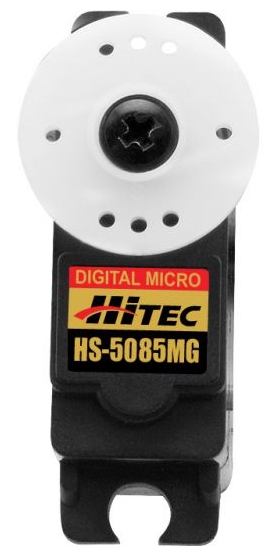

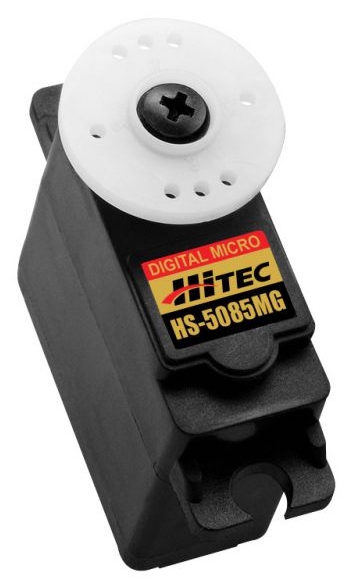

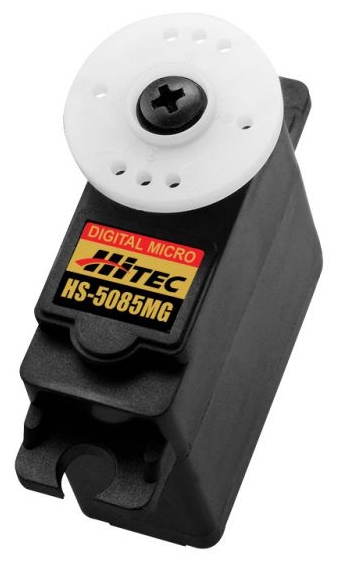

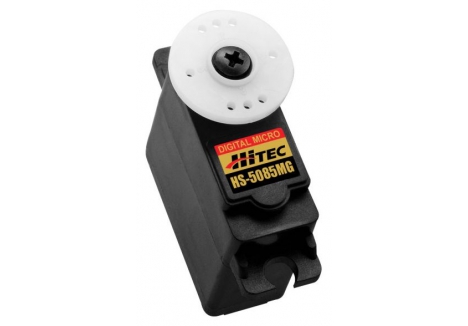

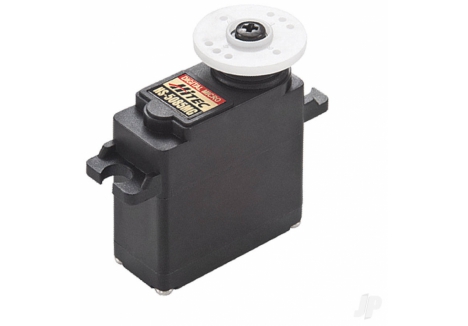

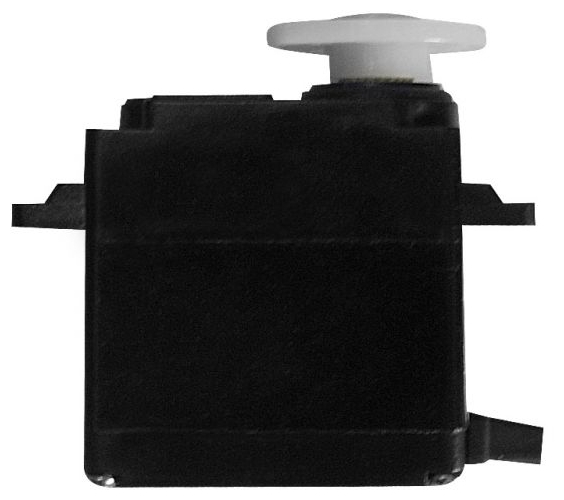

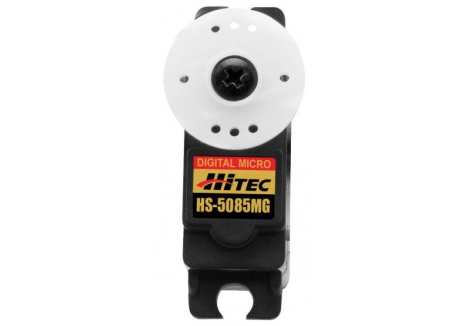

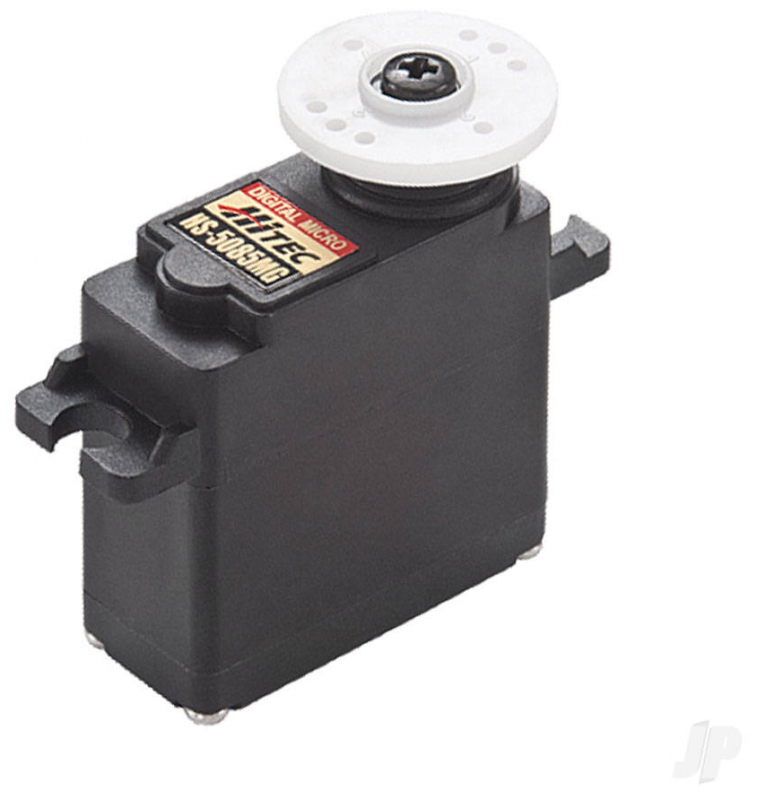

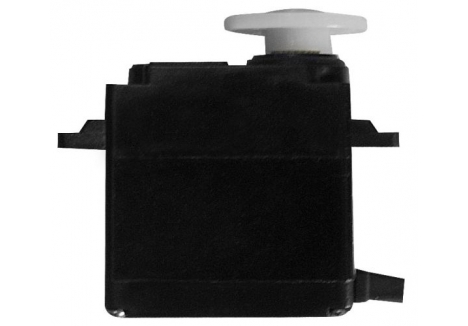

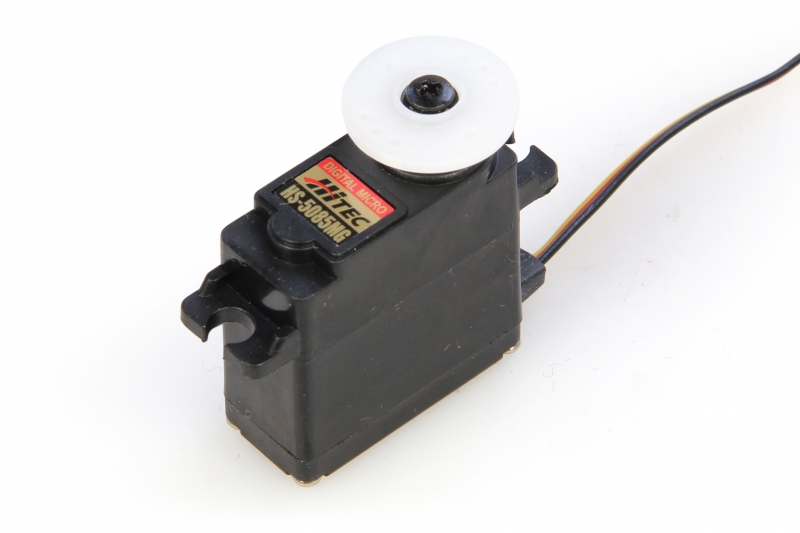

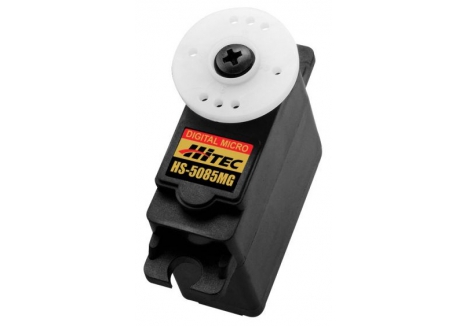

digital version of one of Hitec's most popular mini servos the HS-5085MG offers excellent centering, resolution and durability for those looking to save weight without sacrificing performance. A popular servo for smaller airplanes, helis, boats, cars and trucks, the HS-5085MG offers a fine balance between speed and torque.
Advanced Servo Specifications
| Control System: | +Pulse Width Control 1500usec Neutral |
| Operating Voltage Range: | 4.8V to 6.0V |
| Operating Temperature Range: | -20° to +60° (-4°F to +140°F) |
| Idle Current: | 3mA |
| No Load Running Current (4.8V/6.0V): | 230mA/60° / 290mA/60° |
| Stall Current (4.8V/6.0V): | 1,700mA / 2,150mA |
| Dead Band Width: | 2usec |
| Potentiometer Type: | 2 Slider/Direct Drive |
| Connector Wire Length: | 250mm (9.84in) |
| Connector Wire Gauge: | 28AWG |
Applications:
- Smaller Airplanes: Provides precise control without adding significant weight.
- Helicopters: Suitable for models requiring reliable and responsive servos.
- Boats: Enhances maneuverability in compact marine models.
- Cars and Trucks: Offers accurate steering and throttle control in lightweight vehicles.
