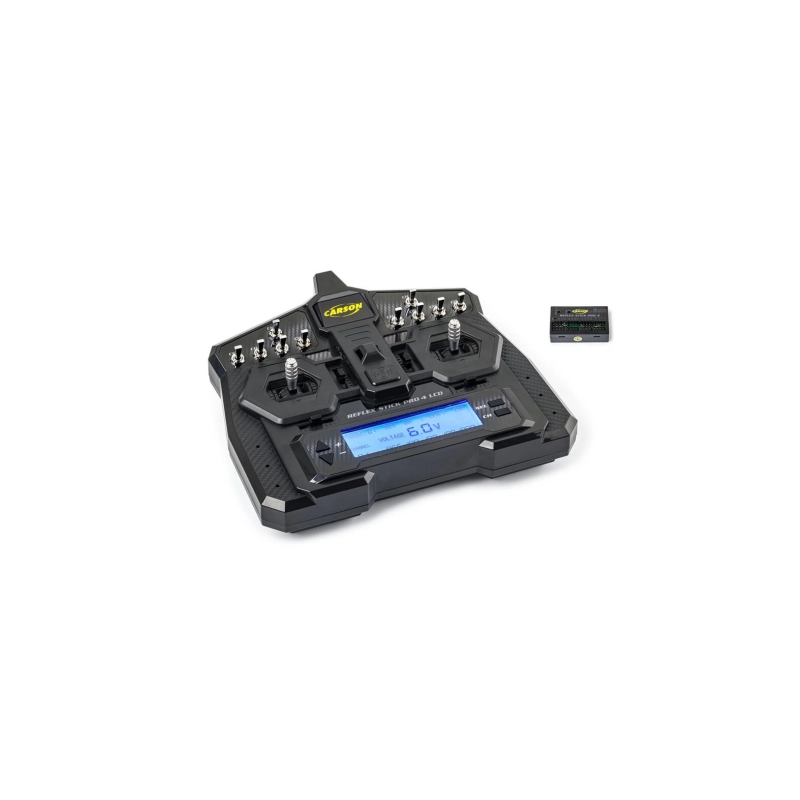

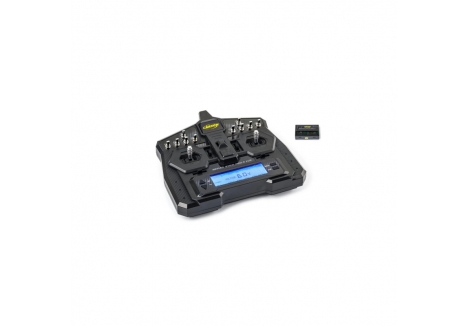

The Carson FS 14Ch Reflex Stick Pro 4 LCD 2.4GHz radio system, part number HC-C501023, provides 14-channel control for RC trucks, construction models and function models. It combines a transmitter with an LCD display, a 15-channel receiver and setup functions for models requiring lighting, sound and other auxiliary controls.
Four channels are continuously adjustable and fully proportional, while channels 7, 8, 9, 10, 13 and 14 use three-position toggle switches. Channels 5, 6, 11 and 12 are operated using three-position push buttons with a centre position. This layout allows several switching tasks to be assigned from the handset rather than relying only on steering and throttle controls.
The transmitter includes memory for 15 model setups and adjustment functions for channels 1 to 4. These include dual rate, servo reverse, trim, end point adjustment and exponential settings, allowing servo travel and response to be configured for different models. A failsafe system is also included. The stick units use sensitive mechanics, while the carbon-look surface and illuminated logo provide the stated appearance features.
Suggested compatibility includes TAMIYA MFC 01, MFC 02 and MFC 03 systems, along with DMD units. The Graupner J/R connector system supports integration with compatible equipment. The transmitter operates from four AA cells, and the receiver power supply can reach up to 11 V when used without a BEC.
What's Included
14-channel LCD remote control
15-channel receiver
Manual
Specifications
Transmitter operating voltage: 4.8–6 V
Transmitter battery supply: 4 AA cells
Receiver power supply: up to 11 V without BEC
Connector system: Graupner J/R
Model memory: 15 setups
Features
15 model memory
Four continuously adjustable, fully proportional channels
Channels 7, 8, 9, 10, 13, 14 with 3-position toggle switch
Channels 5, 6, 11, 12 with 3-position push button with center position
Dual Rate Channels 1-4 (servo travel limit)
100% compatible with TAMIYA MFC 01/02/03 and DMD units
Servo Reverse (reversal of rotation direction for channels 1-4)
Trim function for channels 1-4
EPA Channels 1-4 (servo travel limit)
EXP function Channels 1-4 (exponential)
Failsafe system
Stick units with sensitive mechanics
Modern ergonomic RC casing
Logo illumination when powered on
Surface with elegant carbon-look finish
Technical Details
Operating voltage transmitter: 4.8 - 6 V (4 AA cells)
Receiver power supply (without BEC) up to 11 V possible
Connector system: Graupner J/R
Key Info:
Brand: Carson
Part No: HC-C501023
Barcode: 4005299017681
15 model memory
Four continuously adjustable, fully proportional channels
Channels 7, 8, 9, 10, 13, 14 with 3-position toggle switch
Channels 5, 6, 11, 12 with 3-position push button with center position
Dual Rate Channels 1-4 (servo travel limit)
100% compatible with TAMIYA MFC 01/02/03 and DMD units
Servo Reverse (reversal of rotation direction for channels 1-4)
Trim function for channels 1-4
EPA Channels 1-4 (servo travel limit)
EXP function Channels 1-4 (exponential)
Failsafe system
Stick units with sensitive mechanics
Modern ergonomic RC casing
Logo illumination when powered on
Surface with elegant carbon-look finish
Technical Details
Operating voltage transmitter: 4.8 - 6 V (4 AA cells)
Receiver power supply (without BEC) up to 11 V possible
Connector system: Graupner J/R
Key Info:
Brand: Carson
Part No: HC-C501023
Barcode: 4005299017681
