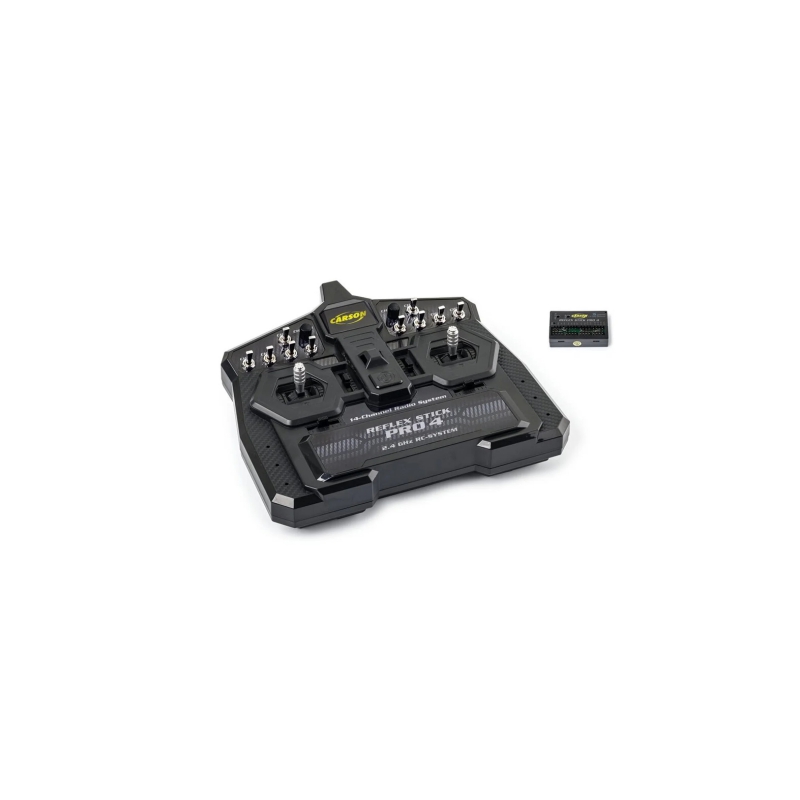

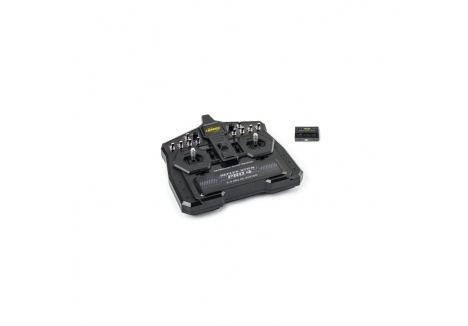

The Carson FS 14 Ch Reflex Stick Pro 4 2.4GHz radio control system, part number HC-C501022, is a 14-channel transmitter for models requiring proportional inputs and switched functions. Its ergonomic housing has a carbon-look surface and an illuminated logo when powered on. The 2.4GHz transmission system uses four continuously adjustable, fully proportional channels through the control sticks, while additional functions are assigned to toggle switches and push buttons.
Channels 7, 8, 9, 10, 13 and 14 use three-position toggle switches. Channels 5, 6, 11 and 12 use three-position push buttons with a centre position, providing separate control for auxiliary model functions. Channels 1 to 4 feature servo reverse and trim, allowing the direction and neutral position of connected servos to be adjusted. Dual-rate adjustment is available on channels 1 and 4 for changing servo travel.
The system includes a failsafe function and control sticks with smooth mechanics. Suggested compatibility includes TAMIYA MFC 01, MFC 02, MFC 03 and DMD units, making this transmitter suitable for radio-controlled models with multiple switching tasks. A 15-channel receiver is listed in the included contents. The transmitter operates from four AA cells, while the receiver power supply can support up to 11 V without BEC.
Specifications
Channels: 14
Transmission: 2.4GHz
Transmitter operating voltage: 4.8–6 V
Receiver power supply: up to 11 V without BEC
Connector system: Graupner J/R
Recommended age: 14 years and over
Features
Four continuously adjustable, fully proportional channels
Channels 7, 8, 9, 10, 13, 14 via 3-position toggle switches
Channels 5, 6, 11, 12 via 3-position push buttons with center position
Servo reverse (reversing the direction of movement for channels 1–4)
Trim function for channels 1–4
Dual rate for channels 1 and 4 (servo travel adjustment)
100% compatible with TAMIYA MFC 01/02/03 and DMD unit
Failsafe system
Control sticks with precise, smooth mechanics
Modern ergonomic RC housing
Illuminated logo when powered on
Premium carbon-look surface
Technical Details
Transmitter operating voltage: 4.8 – 6 V (4 AA cells)
Receiver power supply (without BEC) up to 11 V possible
Connector system: Graupner J/R
Key Info:
Brand: Carson
Part No: HC-C501022
Barcode: 4005299017674
