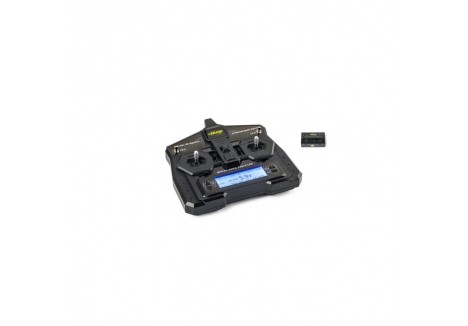

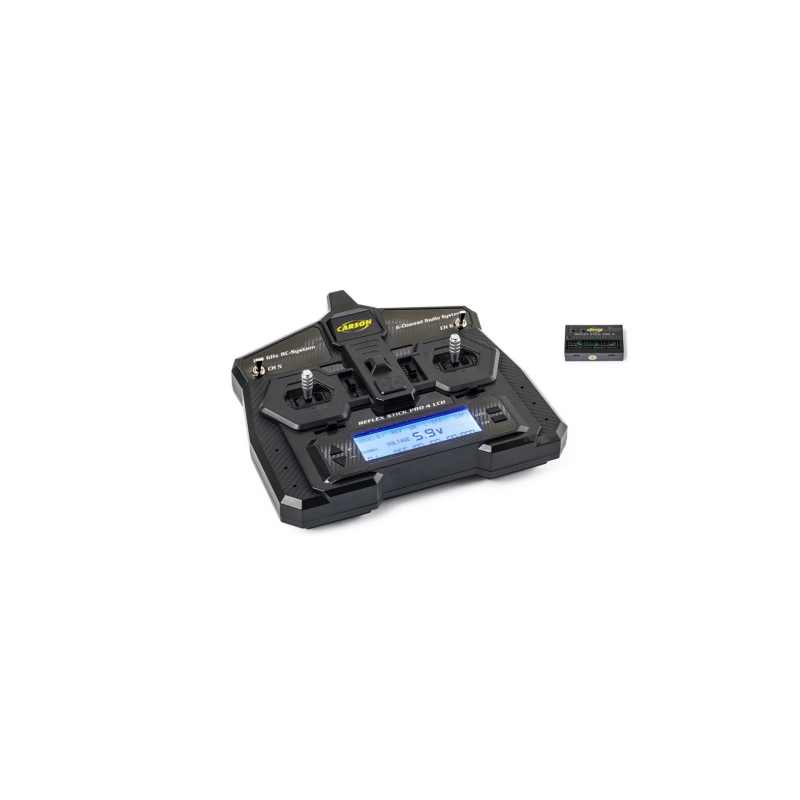

The Carson CarsonFS 6 Ch Reflex Stick Pro 4 LCD 2.4GHz transmitter, part number HC-C501021, is a six-channel 2.4GHz radio system for managing compatible radio-controlled models. It provides four continuously adjustable, fully proportional channels for precise control, while channel 5 uses a three-position push button with a centre position and channel 6 is operated through a three-position toggle switch. Fifteen model memory slots allow settings for multiple models to be stored and selected as needed.
Control adjustment is supported by servo reversing, trim and dual-rate functions for channels 1–4, allowing the direction, neutral position and servo travel to be configured. EPA provides servo travel limit adjustment, while the EXP function offers exponential control for these channels. A failsafe system adds an important control feature, and the control sticks use smooth, precise mechanics within an ergonomic housing.
Features
The transmitter has an illuminated logo when powered on and a premium carbon-look surface. It is also suggested for compatibility with TAMIYA MFC 01, MFC 02, MFC 03 and DMD units. The receiver power supply can support up to 11V when a BEC is not used.
Technical Specifications
Transmitter operating voltage: 4.8–6V
Transmitter power: 4 AA cells
Receiver power supply without BEC: up to 11V
Connector system: Graupner J/R
Channels: 6
Model memory: 15 slots
Features:
15 model memory slots
Four continuously adjustable, fully proportional channels
Channel 6 via 3-position toggle switch
Channel 5 via 3-position push button with center position
Servo reverse (reversing the direction of movement for channels 1–4)
Trim function for channels 1–4
Dual rate for channels 1–4 (servo travel adjustment)
100% compatible with TAMIYA MFC 01/02/03 and DMD unit
EPA for channels 1–4 (servo travel limit adjustment)
EXP function for channels 1–4 (exponential)
Failsafe system
Control sticks with precise, smooth mechanics
Modern ergonomic RC housing
Illuminated logo when powered on
Premium carbon-look surface
Technical Data:
• Transmitter operating voltage: 4.8 – 6 V (4 AA cells)
• Receiver power supply (without BEC) up to 11 V possible
• Connector system: Graupner J/R
Key Info:
Brand: Carson
Part No: HC-C501021
Barcode: 4005299017667
