Hobbywing UBEC 5A 2-8S LiPo Voltage Regulator 5A Continuous Output HW30607000

Overview

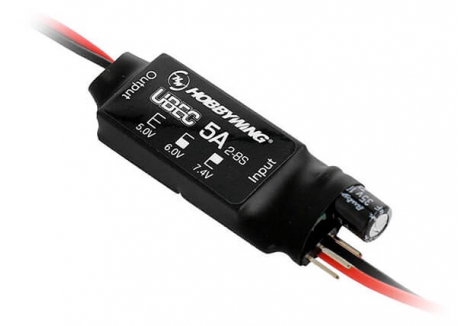

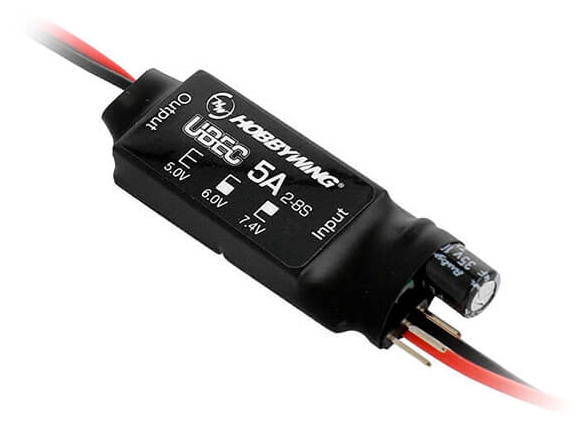

The Hobbywing UBEC 5A (2-8S) V2 AIR is a professional-grade DC voltage regulator designed to deliver stable, regulated power to your RC models. Whether you're running a brushless RC car UK, fixed-wing aircraft, or any other RC device requiring multiple voltage outputs, this UBEC provides the reliability and performance that serious RC enthusiasts demand. The unit draws power from 2-8S LiPo batteries and converts it into three selectable voltage outputs (5.0V, 6.0V, or 7.4V), making it compatible with virtually any servo or electrical equipment in your RC setup.

Built with Hobbywing's proven engineering expertise, the UBEC 5A V2 AIR features an all-metal housing design that not only provides excellent heat dissipation but also reduces electromagnetic interference—crucial for maintaining clean signal integrity in your RC model. This compact yet robust regulator is ideal for RC enthusiasts of all levels, from weekend bashers running ready to run RC cars to serious competitors requiring precision power delivery. With its multiple protection functions and LED status display, you'll always know your UBEC is operating safely and efficiently.

The UBEC 5A V2 AIR is particularly popular among RC fixed-wing aircraft pilots who need reliable, lightweight power regulation, but it's equally at home in crawler, buggy, and truck applications where multiple servos require different voltage levels. Its compact dimensions (just 50x17x10mm) and lightweight construction (21g) make it an easy fit in any RC model without adding significant weight or complexity to your setup.

Key Features

• Highly Efficient DC-DC Regulator Chip — The UBEC utilises a high-performance switching module that achieves transmission efficiency of over 90%, meaning minimal power loss and reduced heat generation during operation, which extends the lifespan of your batteries and connected equipment.
• Three Adjustable Output Voltages — With selectable output options of 5.0V, 6.0V, or 7.4V, this UBEC accommodates servos and equipment with different voltage requirements, eliminating the need for multiple regulators in your RC setup and simplifying your power distribution system.
• Continuous 5A with 15A Peak Current — The UBEC delivers a stable continuous current of 5A, with the ability to supply instantaneous peaks of up to 15A, providing sufficient power for multi-servo applications, LED systems, and other demanding RC equipment without voltage sag.
• All-Metal Housing Design — The robust metal construction helps conduct heat away from internal components and reduces electromagnetic interference, ensuring clean power delivery and stable performance in electronically sensitive applications like RC aircraft and precision vehicles.
• Overcurrent Protection — Automatic overcurrent protection circuitry safeguards your connected devices by immediately limiting current draw if a fault condition is detected, preventing damage to servos and other sensitive electronics.
• Output Short-Circuit Protection — Built-in short-circuit protection automatically disconnects the output if a short is detected, protecting both the UBEC itself and your RC equipment from potentially catastrophic damage.
• Overheat Protection — Thermal monitoring circuitry continuously monitors the UBEC's internal temperature, automatically throttling output if the unit becomes too hot, ensuring safe operation even in demanding conditions.
• LED Status Display — An integrated LED indicator provides real-time visual feedback on the UBEC's operational status, allowing you to quickly verify that the regulator is functioning correctly and receiving input power.
• Wide Input Voltage Compatibility — The 2-8S LiPo input range means this UBEC works with battery packs ranging from 7.2V (2S) up to 29.6V (8S), making it suitable for virtually any modern RC model powered by lithium polymer batteries.
• Compact and Lightweight — Measuring just 50x17x10mm and weighing only 21g, the UBEC 5A V2 AIR is incredibly space-efficient, making it easy to integrate into confined spaces without compromising your RC model's weight distribution or performance characteristics.

Technical Performance

The Hobbywing UBEC 5A (2-8S) V2 AIR represents a mature evolution in voltage regulation technology for RC models. At its core sits a high-efficiency DC-DC switching regulator chip capable of maintaining conversion efficiency above 90% across its operating range. This means that when you draw current from the UBEC, more than nine-tenths of the input power is cleanly converted to the output voltage you've selected, with minimal wasted energy escaping as heat. This efficiency characteristic is particularly important in battery-powered RC applications, where every percentage point of efficiency directly translates to extended flight time, longer run times, or reduced thermal stress on battery packs. The engineered combination of continuous 5A output with 15A instantaneous capability provides headroom for multi-servo applications and transient power demands. The all-metal housing isn't merely decorative—it serves as both a heat sink and a Faraday cage, conducting excess thermal energy away from the sensitive internal components whilst simultaneously reducing electromagnetic radiation that might otherwise interfere with your RC model's radio receiver or sensitive sensors. For UK RC enthusiasts building precision setups—whether assembling a brushless RC car UK or configuring a fixed-wing aircraft—this level of power quality and reliability is essential. The three selectable output voltages (5.0V, 6.0V, and 7.4V) cover the operating ranges of virtually all standard RC servos and digital devices, eliminating voltage sag issues that can cause servo chatter, centre-point drift, or loss of precision in your model's control response. The integrated protection suite—overcurrent, short-circuit, and thermal protection—means you can operate confidently knowing that transient faults, accidental shorts, or unexpected thermal conditions won't cascade into expensive equipment failures.

What's in the Box

• Hobbywing UBEC 5A (2-8S) V2 AIR Regulator
• User Manual

Frequently Asked Questions

• What does UBEC stand for and why would I need one in my RC model? — UBEC stands for Ultimate BEC (Battery Elimination Circuit). A UBEC is essential if you want to power servos and other RC equipment directly from your main battery pack without requiring a separate battery for those components. The UBEC regulates the battery voltage down to the correct level your servos need, eliminating voltage sag and ensuring consistent servo performance throughout your flight or run.
• Can I use the Hobbywing UBEC 5A with my ready to run RC car? — Yes, absolutely. This UBEC is compatible with any ready to run RC car or truck that uses LiPo batteries in the 2-8S range and has multiple servos or devices that need regulated power. It's particularly useful if you've added extra servos, lights, or other electronics to your ready to run RC setup.
• What battery voltage do I need to use with this UBEC? — The UBEC accepts input voltages from 2S LiPo (7.2V) up to 8S LiPo (29.6V), making it compatible with virtually any modern lithium polymer battery pack used in RC models. The output voltage you select (5.0V, 6.0V, or 7.4V) is independent of the input voltage, so you can reliably power servos regardless of your battery's voltage as long as it falls within the 2-8S input range.
• How do I know which output voltage to select? — Standard analogue RC servos operate at 4.8-6.0V, so the 5.0V or 6.0V output options work perfectly for traditional servos. Digital servos can often handle up to 7.4V and operate more powerfully at this voltage, so if you're using digital servos, the 7.4V setting will provide increased torque and speed. Check your servo documentation to confirm the maximum safe voltage.
• Is this UBEC suitable for fixed-wing aircraft? — Yes, the UBEC 5A V2 AIR is specifically designed with fixed-wing applications in mind, as indicated by its model designation. Its compact size (50x17x10mm), lightweight construction (just 21g), and reliable voltage regulation make it ideal for powering multiple servos in aircraft applications where weight and space are critical considerations.
• What makes this better than a basic BEC built into an ESC? — A dedicated external UBEC like this one provides several advantages over relying solely on an ESC's internal BEC. It distributes the thermal load, provides more stable voltage regulation, offers higher current capacity (5A continuous with 15A peaks), and most importantly, works with any ESC including those without built-in BEC functionality or where the ESC's BEC isn't sufficient for multiple servos and accessories.
• How much continuous power can this UBEC supply? — The UBEC is rated for 5A continuous current output at your selected voltage (5.0V, 6.0V, or 7.4V). This is sufficient to power multiple standard RC servos simultaneously. The 15A instantaneous peak rating provides headroom for sudden current demands, such as when multiple servos move simultaneously or when additional loads are suddenly connected.
• Does the all-metal housing make it heavier? — Despite its robust all-metal construction, the UBEC weighs only 21g, which is exceptionally lightweight. The metal housing actually helps dissipate heat more efficiently than plastic alternatives, so you benefit from better thermal management without a weight penalty.
• Can I adjust the output voltage while flying or running? — No, the voltage selection is fixed once set and should only be changed when your RC model is powered down and disconnected from the battery. Always configure your desired output voltage before connecting the UBEC to your model and battery.
• What protection does this UBEC offer? — The UBEC 5A V2 AIR includes three layers of protection: overcurrent protection that limits excessive current draw, output short-circuit protection that disconnects power if a short is detected, and overheat protection that monitors internal temperature and throttles output if the unit becomes too hot. These protections safeguard both the UBEC itself and your connected equipment.
