HW30415002

Overview

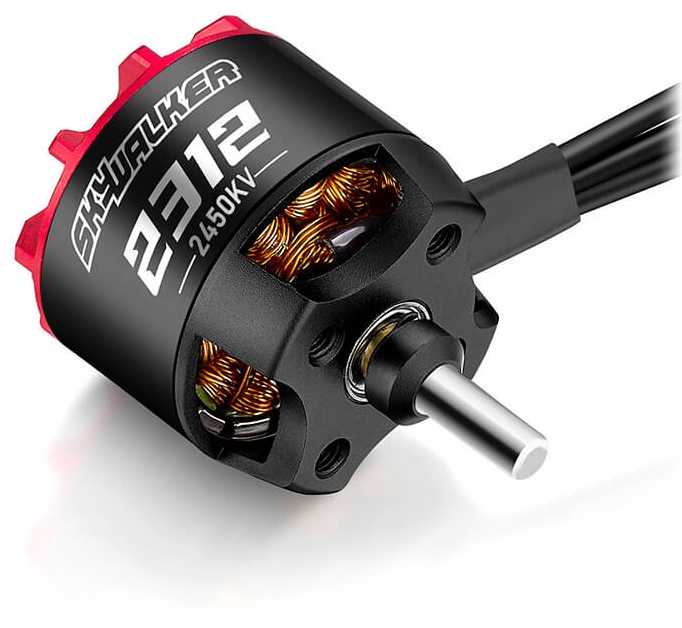

The Hobbywing Skywalker 2312SL 2450KV brushless outrunner motor represents a significant leap forward in RC aircraft propulsion technology. Designed specifically for fixed-wing RC models, this first-generation Skywalker motor delivers a whole new flying experience for RC hobby pilots who demand reliable, high-performance power. Whether you're flying a sleek racing aircraft, an aerobatic performer, or a general-purpose fixed-wing model, this brushless motor offers the perfect blend of power, efficiency and durability that serious RC enthusiasts expect from Hobbywing's renowned engineering.

What sets the Skywalker 2312SL 2450KV apart from competing brushless RC motors is its exceptional 10% power advantage over comparable motors with similar specifications. This performance boost translates directly into faster climb rates, snappier throttle response, and more aggressive manoeuvrability in the air. The motor is an ideal complement to Hobbywing's already established Skywalker electronic speed controllers, creating a perfectly matched propulsion system that maximises reliability and performance. For UK RC pilots building their ultimate aircraft power system, this motor delivers the professional-grade quality you'll find in competitive models across the country.

At just 65 grams and measuring only 28.8mm in diameter by 46mm in length, the Skywalker 2312SL 2450KV offers exceptional power density without adding unnecessary weight to your aircraft. The compact form factor makes it easy to fit into tight fuselage spaces while the generous 4mm shaft diameter ensures robust power transmission to your propeller.

Key Features

• 10% Performance Advantage — Compared with competing motors of identical specifications, the Skywalker 2312SL achieves approximately 10% more output power, giving you noticeably stronger acceleration and higher peak performance during demanding flight manoeuvres.
• N48 Magnetic Arc Design — The motor utilises premium N48 strong magnetic arc magnets that are engineered to provide maximum torque output, ensuring that your aircraft has the grunt needed for aggressive flying styles and heavy payloads.
• Optimised Rotor Design — The rotor has been precisely engineered with excellent dynamic balance to noticeably reduce vibration and ensure smoother operation overall, resulting in quieter, more refined flight characteristics and less stress on your airframe.
• Multi-Anti-Loosening Rotor Security — The rotor assembly incorporates a copper pad, retainer spring, bushing and set screw that work together to secure the rotor reliably, significantly improving the motor's long-term reliability and reducing the risk of catastrophic failure mid-flight.
• Superior Cooling Performance — The motor features a generous hollow cavity combined with a self-dissipating structure in the top cover, which together enhance the cooling capacity dramatically and help dissipate heat efficiently during extended flights, prolonging the lifespan of your motor.
• Premium Silicon Steel Construction — Built with top-branded JNEH1200 silicon steel sheet at 0.2mm thickness, the motor benefits from lower iron loss and superior magnetic efficiency, translating to better power delivery and reduced heat generation during operation.
• High-Temperature Enamelled Wire — The stator coil features 180°C high-temperature resistant enamelled wire that enhances thermal tolerance, allowing the motor to handle sustained high-power operations without degradation of the winding insulation.
• Flexible Silicone Wire Outlet — Rather than traditional straight silicon wire outlets, this motor features a softer silicone wire outlet that is significantly easier to route through tight aircraft spaces and less prone to stress fractures at the connection point.
• High-Precision Manufacturing — Every motor undergoes rigorous dynamic balance testing and high-precision CNC machining to ensure consistent quality, providing you with confidence that your motor will perform reliably flight after flight.
• Perfect ESC Integration — The motor is recommended for use with Hobbywing's Skywalker V2 20A-50A electronic speed controller, creating a perfectly matched system that maximises efficiency and reliability.

Technical Performance

The Skywalker 2312SL 2450KV motor delivers outstanding technical specifications tailored for high-performance fixed-wing aircraft. With a KV rating of 2450, this motor spins at approximately 2,450 revolutions per minute per volt applied, making it ideal for 3S LiPo battery systems that typically provide 11.1 volts nominal. The motor achieves a maximum continuous current of 47 amps over a 10-minute period, with maximum continuous power output of 520 watts at 10 minutes, giving you sustained high-performance flying without the motor overheating. The internal resistance is exceptionally low at just 19.3 milliohms, which means minimal voltage drop and maximum efficiency in power delivery. The 12-slot, 14-pole (12N14P) stator and rotor configuration provides excellent torque characteristics and smooth power delivery across the entire RPM range. The motor features high-quality 684ZZ ball bearings (9mm outer diameter, 4mm inner diameter, 4mm width) that ensure smooth, low-friction rotation and long operational life. The 4mm shaft diameter is perfectly sized to accommodate standard aircraft propeller adapters whilst providing robust power transmission without flex or play. With a no-load current draw of just 4.1 amps at 11.1 volts, the motor is extremely efficient even when running without a propeller load. The 18AWG phase cable at 100mm length provides ample lead length for routing through your aircraft fuselage whilst the gauge is substantial enough to handle the 47-amp continuous current without voltage drop. Mounting is straightforward with M2.5 threaded mounting holes on a 12mm diameter pitch circle, and the motor accepts both 16mm and 19mm diameter propeller adapters with M3 mounting threads. This is a brushless, sensorless motor design, meaning it requires an electronic speed controller to operate and provides maximum efficiency with modern lithium polymer battery systems used by RC pilots throughout the UK.

What's in the Box

• 1 x Hobbywing Skywalker 2312SL 2450KV brushless outrunner motor
• 1 x Product manual with specifications and installation instructions

What You Need to Complete

• 3S lithium polymer (LiPo) battery pack — 11.1 volt nominal minimum to operate the motor safely
• Hobbywing Skywalker V2 20A-50A electronic speed controller (ESC) — required to control motor speed and direction
• Radio receiver compatible with your RC transmitter — to wirelessly control the motor via the ESC
• Propeller suitable for 3S power — manufacturer recommends 5x3E or 6x6E propellers for this motor specification
• Propeller adapter and mounting hardware — to secure your propeller to the motor shaft
• Battery charger capable of charging 3S LiPo packs — to recharge your battery between flights
• RC aircraft airframe — the fuselage and wing structure to house your motor and other components

Frequently Asked Questions

• What battery does the Hobbywing Skywalker 2312SL 2450KV motor require? — This motor is optimised for 3S lithium polymer (LiPo) battery packs, which provide 11.1 volts nominal. The manufacturer specifications show a no-load current of 4.1 amps at 11.1 volts, and the motor can safely handle up to 47 amps continuous current, meaning you need a 3S battery with at least 47 amps continuous discharge capability for extended flying sessions.
• What electronic speed controller should I use with this motor? — Hobbywing recommends pairing the Skywalker 2312SL with their Skywalker V2 electronic speed controller rated for 20A minimum to 50A maximum. This creates a perfectly matched system optimised for performance and reliability.
• Is the Skywalker 2312SL suitable for beginner RC pilots? — Whilst this is a high-quality professional-grade motor, it does require some technical knowledge to install properly. You'll need to solder the motor leads to your ESC, set up proper battery connectors, and install the motor securely in your airframe. Beginners should seek assistance from experienced RC builders or visit their local RC shop in the UK for installation support.
• What propellers are recommended for this motor? — For 3S LiPo operation, Hobbywing recommends using either 5x3E or 6x6E propellers. The 5x3E configuration provides higher speed with slightly less thrust, whilst the 6x6E provides more thrust with a bit less top speed. Choose based on your aircraft type and flying style.
• What makes this motor 10% more powerful than competitors? — The Skywalker 2312SL achieves its 10% performance advantage through several design innovations: premium N48 magnets for maximum torque, optimised stator winding design, precision-balanced rotor assembly, and efficient cooling structure. These combine to deliver more usable power to your propeller.
• How heavy is this motor and will it fit my aircraft? — The Skywalker 2312SL weighs just 65 grams and measures 28.8mm in diameter by 46mm in length, making it extremely compact and lightweight. This motor is ideal for aircraft where weight is critical, though you should verify that your airframe has sufficient space in the fuselage to accommodate these dimensions.
• Is this motor waterproof? — The manufacturer specifications do not indicate waterproof rating for this motor. It is designed for general RC aircraft use and should be kept dry during operation and storage. Do not fly in rain or land in water.
• What is the difference between the 2312 2450KV and other Skywalker motors? — Hobbywing makes the Skywalker series in three sizes: the 2312, 2316 and 2320. The 2312 is the smallest and lightest, ideal for smaller aircraft. The 2316 is mid-size, and the 2320 is the largest. Additionally, each size comes in multiple KV ratings (980KV, 1250KV, 1400KV, etc.). The 2450KV variant of the 2312 is the highest KV version, suitable for maximum speed applications on 3S batteries.
