HW30302061

Overview

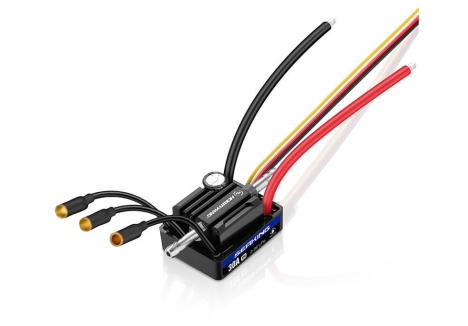

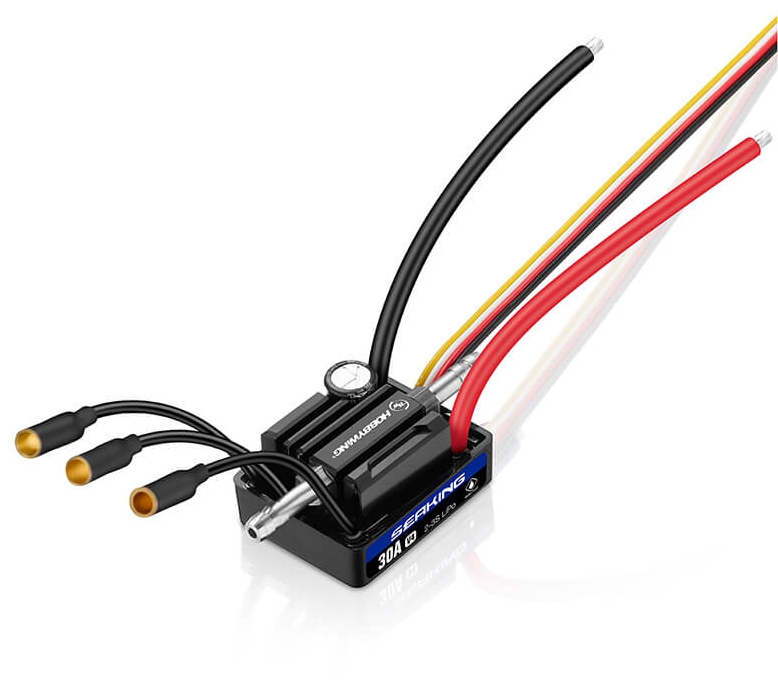

The Hobbywing SeaKing 30A V4 Brushless Speed Control is a compact, high-performance electronic speed controller purpose-built for RC boat enthusiasts in the UK who demand reliability, precision control, and advanced waterproofing. This fourth-generation ESC represents the pinnacle of Hobbywing's marine electronics expertise, delivering exceptional durability and performance in challenging water conditions. Whether you're piloting a sleek racing catamaran, a scale model tugboat, or an agile speedboat up to 45cm in length, the SeaKing 30A V4 provides the robust electronic foundation you need for responsive, consistent throttle control and optimal motor management.

Designed specifically for brushless boat applications, this ESC combines ultra-high reliability with sophisticated protective circuitry that keeps your RC boat running smoothly even under demanding conditions. The 30A continuous current rating with a peak capacity of 100A makes it ideal for mid-sized RC boats requiring responsive acceleration and smooth deceleration. With its slim 26mm width design—8% narrower than the previous V3 model—the SeaKing 30A V4 slides effortlessly into tight engine compartments, making installation on narrow boats far simpler than ever before. This is the go-to choice for serious RC boat racers and weekend enthusiasts alike who refuse to compromise on quality or performance.

Backed by Hobbywing's reputation as a world-leading manufacturer of brushless ESCs for RC vehicles, the SeaKing 30A V4 comes equipped with intelligent firmware, multiple safety protection systems, and support for advanced programming options. UK RC hobbyists will appreciate the straightforward integration with standard RC receivers, the extensive connectivity options, and the comprehensive feature set that allows you to fine-tune every aspect of your boat's electronic behaviour. This is a genuine upgrade over older marine ESC technology, offering waterproof protection, responsive servo control via the built-in BEC, and the peace of mind that comes with Hobbywing's engineering excellence.

Key Features

• IP67 Full Waterproof Design — The SeaKing 30A V4 carries an IP67 protection rating, meaning it provides outstanding waterproof and dustproof capabilities that allow you to use the ESC immediately without requiring any additional waterproofing treatment, making it ideal for splashing, water spray, and dusty marine environments.
• Ultra-High Reliability and Durability — This ESC incorporates multiple layers of protection including low voltage protection, over-temperature protection, throttle signal loss protection, and overload protection, all specifically engineered for boat applications to deliver powerful performance whilst significantly reducing the risk of damage under high-load conditions.
• Slim Profile Design for Tight Installations — At just 26mm wide, the SeaKing 30A V4 is 8% narrower than the previous V3 generation, allowing for easier installation on narrow boats where space is at a premium and traditional bulkier ESCs simply won't fit.
• Adjustable BEC with High Output Current — The built-in Battery Elimination Circuit features adjustable output voltage with two selectable levels (6.0V and 7.4V) and delivers up to 2A of continuous current, allowing you to effortlessly power high-performance servos and receiver systems without requiring a separate battery.
• Programmable Parameter Control — With 11 optimised programmable parameters, the SeaKing 30A V4 meets competitive racing needs and offers a wider, more detailed range of settings to fine-tune throttle curves, boost levels, braking characteristics, and reverse thrust configurations to match your exact driving style and boat characteristics.
• AUX External Control Channel — By connecting the yellow signal wire to an unused receiver channel, you can adjust ESC parameters such as reverse thrust in real-time using your remote control, adding significant convenience to parameter management without requiring a programming box.
• Freewheeling Function for Better Control — When enabled, the Freewheeling function reduces ESC temperature, causes your boat to decelerate faster when throttle is released, and dramatically improves cornering control and handling characteristics compared to traditional ESC designs.
• Built-in Data Logging via Bluetooth — By connecting the ESC to the optional OTA Bluetooth module, you can monitor real-time data such as throttle position, voltage, temperature, and speed via a mobile app, and review historical performance data in the form of curve graphs after operation, providing a clear overview of your ESC and motor's operating status.
• Firmware Update Support — The SeaKing 30A V4 supports firmware updates via Hobbywing's USB LINK software and HW LINK mobile app, ensuring you always have access to the latest features and improvements from Hobbywing's development team (requires LCD programming box or OTA module, sold separately).
• Multiple Programming Methods — This ESC supports programming via LED Program Box, LCD G2 Program Box, LCD PRO Program Box, and OTA Programmer, giving you flexibility in how you configure and adjust the ESC to match your specific boat setup and racing requirements.

Technical Performance

The Hobbywing SeaKing 30A V4 Brushless Speed Control is engineered to deliver exceptional performance in RC boat applications ranging from small scale models up to 45cm in length. This brushless, sensorless ESC handles a continuous current rating of 30 amps with peak bursts up to 100 amps, providing responsive acceleration and smooth power delivery across the entire throttle range. It accepts input voltage from 2S to 3S LiPo batteries, making it compatible with the most common battery configurations used in modern RC boat racing and recreational piloting. The engineering is robust and refined, with a focus on marine-specific reliability—the aluminium construction combined with comprehensive protective circuitry ensures the ESC survives the harsh salt-water and splash environments that characterise UK coastal and freshwater RC boating. The slim 26mm width (32.8mm x 26mm x 18.3mm overall dimensions) and lightweight 33.9g construction make it ideal for weight-sensitive speed boats where every gram counts, whilst the gold-plated 3.5mm connectors ensure reliable power transfer and minimal voltage drop. The BEC (Battery Elimination Circuit) delivers up to 2 amps at either 6.0V or 7.4V, sufficient to drive modern digital servos and receiver systems without the need for a separate battery pack. Three motor output wires (16AWG, 60mm length) provide flexible motor placement options, and the throttle signal input accepts standard PWM signals from any major RC receiver brand used in the UK market, including Spektrum, Futaba, and RadioLink systems.

What's in the Box

• Hobbywing SeaKing 30A V4 Brushless Speed Controller
• Red battery input wire (14AWG, 75mm length)
• Black battery input wire (14AWG, 75mm length)
• Three black motor output wires (16AWG, 60mm length)
• 3.5mm gold female output connectors
• Instruction manual and quick start guide

What You Need to Complete

• RC Receiver (compatible with any standard PWM RC receiver supporting 2.4GHz or higher frequency bands)
• Brushless Motor (3-pole brushless motor suitable for 2-3S LiPo power)
• LiPo Battery Pack (2S or 3S configuration, typically 5000-7000mAh capacity recommended for sustained performance)
• Battery Charger (suitable for LiPo batteries with appropriate cell balancing)
• RC Boat Hull and Chassis (designed to accommodate up to 45cm boat size)
• Servo for Steering Control (standard size servo compatible with 6.0V or 7.4V BEC output)
• Optional: LCD Program Box Pro (model 30502002) or OTA Programmer (model 30850400) for advanced parameter programming and data logging via Bluetooth

Frequently Asked Questions

• Is the Hobbywing SeaKing 30A V4 suitable for beginners to RC boating? — Absolutely. The SeaKing 30A V4 is an excellent choice for beginners because it combines ease of use with sophisticated protection systems that prevent damage from common mistakes. The straightforward throttle signal input works with any standard RC receiver, the built-in BEC eliminates the need for a separate battery for servos, and the comprehensive protection systems (low voltage protection, over-temperature protection, throttle signal loss protection) mean the ESC will protect your investment even if you make setup errors. The programmable parameters allow you to start with conservative settings and gradually unlock the ESC's full potential as your skills improve.
• What battery configuration does this ESC require? — The SeaKing 30A V4 accepts 2S or 3S LiPo battery packs. A 2S LiPo provides approximately 7.4V nominal voltage (safe minimum for BEC operation), whilst a 3S LiPo provides 11.1V nominal voltage. Most RC boat racers in the UK use 3S LiPo batteries with this ESC for maximum performance, though 2S configurations work perfectly well for recreational boating. Never attempt to use batteries outside this specification, as the ESC is not designed for 4S or higher configurations and you risk permanent damage to the electronics.
• How is the SeaKing 30A V4 different from the SeaKing 60A or 90A models? — The 30A model is specifically designed for smaller boats up to 45cm length, whilst the 60A version suits boats up to 60cm and the 90A handles boats up to 80cm. The 30A carries a continuous current rating of 30 amps (peak 100A), making it ideal for lightweight, speed-focused boats with smaller brushless motors. The 60A ESC offers 60A continuous (peak 200A) for larger or heavier boats requiring more power delivery. Choose the 30A if your boat is relatively small or light, and consider stepping up to 60A if you're building a larger or heavier hull. The physical size difference is also significant—the 30A is only 26mm wide, making it substantially easier to fit into compact boat designs.
• Does the SeaKing 30A V4 need waterproofing treatment? — No, it does not. The ESC comes with an IP67 waterproof rating, which means it provides excellent protection against splashes, water spray, and dust under normal use conditions. The protection has been tested according to both GB/T 4208-2017 (domestic standards) and IEC 60529 (international standards). You can use it immediately in water without any additional waterproofing or conformal coating. However, it's important to note that the IP67 protection is not permanent and may decrease with wear and aging over time, so inspect the ESC regularly for signs of corrosion or damage.
• Can I monitor my boat's performance in real-time whilst racing? — Yes, if you purchase the optional OTA Programmer module (model 30850400) separately. This Bluetooth module connects to the ESC and allows you to monitor real-time data such as throttle position, voltage, temperature, and motor speed via a mobile app on your smartphone or tablet. After racing, you can review historical performance data displayed as curve graphs, giving you detailed insight into how your motor and ESC performed throughout your run. The effective Bluetooth transmission range is approximately 5 metres in open field conditions.
• What programming options are available for customising the ESC? — The SeaKing 30A V4 supports four different programming methods: the LED Program Box (basic programming), LCD G2 Program Box (enhanced programming), LCD PRO Program Box (professional-grade programming with colour display), and OTA Programmer (wireless Bluetooth programming). You can also adjust certain parameters like reverse thrust directly from your RC transmitter by connecting the yellow AUX signal wire to an unused receiver channel. With 11 optimised programmable parameters, you have granular control over throttle curves, braking intensity, acceleration ramps, low voltage shutdown thresholds, freewheeling function, and much more to precisely match your racing style.
• Is this ESC compatible with my existing RC receiver and transmitter? — Yes. The SeaKing 30A V4 accepts standard PWM throttle signals from any major RC receiver brand used in the UK, including Spektrum, Futaba, RadioLink, and many others. The receiver plugs directly into the ESC's throttle signal input port using a standard servo lead. The yellow AUX signal wire provides access to a secondary control channel if your receiver has an available auxiliary channel, allowing real-time parameter adjustment. Ensure your receiver is compatible with your transmitter system, and the ESC will work seamlessly regardless of your radio equipment.
• What makes the SlimProfile 26mm design beneficial for my boat? — The SeaKing 30A V4 is 8% narrower than the previous V3 generation at just 26mm wide, making it significantly easier to install in tight engine compartments and narrow boat hulls. This slim profile is particularly valuable when building small-scale boats or models with limited internal space, where bulkier ESCs simply cannot fit. You can now design your boat's electrical bay more efficiently, route wires more cleanly, and potentially achieve better weight distribution without sacrificing any performance or protection capabilities.
• How does the Freewheeling function improve my boat's handling? — When enabled, the Freewheeling function causes your boat to decelerate noticeably faster when you release the throttle, improving cornering control and overall handling characteristics. This is especially valuable in competitive racing where precise deceleration control allows tighter cornering and faster lap times. The Freewheeling function also reduces ESC operating temperature by allowing more efficient energy dissipation. You can toggle this function on or off through the programmable parameters to suit your boat's characteristics and your personal driving style.
