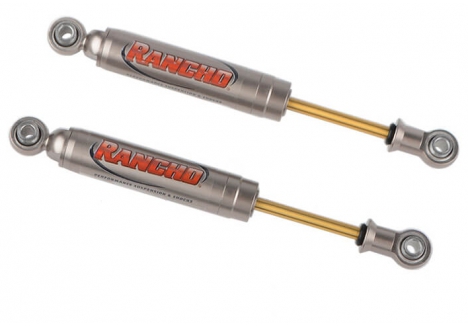

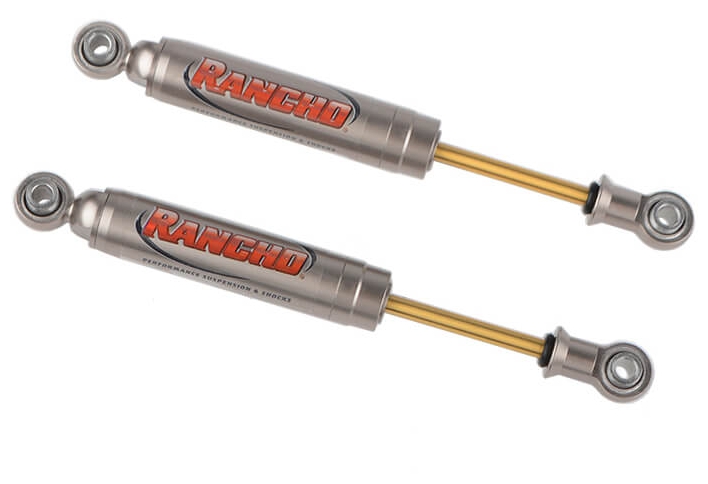

The latest update to the Licensed Rancho RS9000 XL Shock feature our new X-ring technology that reduces contact friction for smooth shock shaft movement while improving oil retention around the shock shaft. Built and ready to handle the rocks. Your scale build will never be the same once you bolt up a set of these awesome looking shocks!
Features
- Machined Billet Aluminium.
- Internal Spring Design.
- X-ring Gaskets.
- Titanium Nitride Coated Shock Shafts.
Specifications
Hole to Hole (Compressed): 2.66in / 67.6mm
Hole to Hole (Uncompressed): 3.54in / 90mm
Overall Length: 3.89in / 98.8mm
Travel Length: 0.88in / 22.4mm
Shock Body OD: 0.39in / 10mm
Shaft OD: 0.11in / 3.0mm
Each Shock Weighs: 0.39oz / 11.2g
What's Included
- 2 x RC4WD Rancho RS9000 XL Shock Absorbers (90mm)(V2)
Fits
- RC4WD Trail Finder 2 "LWB" 1/10 Scale Builders Kit (Z-K0065)
- RC4WD Trail Finder 2 Truck 1/10 Scale Builders Kit (Z-K0069)
- RC4WD Trail Finder 2 Truck Kit w/1982 Toyota Pickup Hard Body Complete Set (Z-K0070)
- RC4WD Marlin Crawler Trail Finder 2 RTR w/Mojave II Crawler Body Set (Z-RTR0034)
- RC4WD Trail Finder 2 RTR w/1985 Toyota 4Runner Hard Body Set (Red) (Z-RTR0063)
- RC4WD Trail Finder 2 "LWB" RTR w/ 1987 Toyota XtraCab Hard Body Set (White) (Z-RTR0064)
- RC4WD Trail Finder 2 "LWB" RTR W/ Chevrolet K10 Scottsdale Hard Body Set (Black) (Z-RTR0067)
- RC4WD Trail Finder 2 RTR w/Chevrolet Blazer Body Set (Midnight Edition) (Z-RTR0068)
- RC4WD Trail Finder 2 RTR w/1982 Toyota Pickup Hard Body Set (Blue) (Z-RTR0069)
- RC4WD Trail Finder 2 RTR w/1982 Toyota Pickup Hard Body Set (Red) (Z-RTR0070)
Notes
- Use blue (medium) thread lock to the bottom shock shaft rod end before installing onto your vehicle to help keep it in place.
- The new X-ring shocks are designed to be oil filled for smooth damping.
