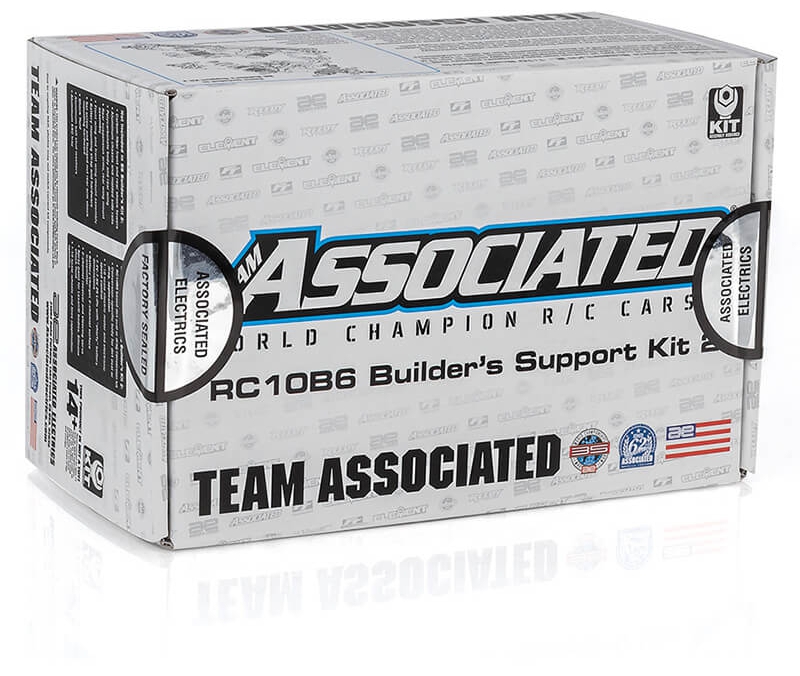

TEAM ASSOCIATED B6 BUILDERS SUPPORT KIT 2 AS90053

Champions by Design.1:10 scale 2WD off road has been Team Associated’s signature class since the release of the RC10 in 1984. The Team Associated RC10 buggy series has won 13 of the 18 I.F.M.A.R. World Championships contested since the racing class began. In fact, Team Associated has won more 2WD I.F.M.A.R World Championships than all other manufacturers combined!

The RC10B6 Builder’s Support Kit 2 brings Team Associated race-winning technology to Builder’s assembling dirt oval sprint cars, late models, and custom drag cars. The applications are endless. The Builder’s Support Kit has the major sub-assemblies builders need in a value-packed kit, without having to pay for excess 2WD off-road buggy parts.

At the heart of the RC10B6 Builder’s Support Kit is the Laydown, Layback, and Standup transmissions with ball differential; all gearboxes are included. Putting the power down is the next-generation Octalock slipper clutch with Factory Team LCF slipper pads. Along with the easy-access rear differential, the rear end includes standard pivot rear blue aluminium arm mounts, 69mm CVA bones and B7 rear hubs. The kit also includes a set of four 13mm Big Bore shocks, all four with 23mm length bodies for custom build applications. Builders need only select an appropriate application, and they can bolt on the suspension, shocks, hubs, drivetrain, and gearbox from the Builder’s kit. The opportunities are endless to customize your dirt oval or drag car from any of the B6-based third-party specialty manufacturers in the industry.

New Features

• All 3 B6.1 series gearboxes: laydown, layback, and standup gearboxes included for tuning mass balance to different track surfaces.
• Hardware included for gearboxes.
• 13mm big bore threaded aluminium shocks (four 23mm bodies and four 21mm shafts) with X-rings for low friction assembly.
• 13mm shock springs (orange front, red rear) for most dirt oval and on-road type applications.
• Updated B6.4 front end assembly (ball stud mount, steering bellcranks, steering rack, and top plate) with gull wing front arms and blue aluminium front axles.
• Updated B6.4 -1 scrub caster and steering blocks.
• Wide pivot rear aluminium arm mounts for use with B6.2 series 69mm CVA bones.
• RC10B7 rear hubs, B7 upper caps, and B6.2/B7 +2 CVA axles.
• B74 rear outer hinge pins included with M3 locknuts.
• 13mm diameter 2.5mm thick machined shock pistons.
• Updated RC10B7 shock rod ends.
• 5mm aluminium clamping wheel hexes.

Legacy Features (From B6 Builders Support Kit)

• B6 series Ball differential included.
• Adjustable differential height to allow drive shaft alignment through all ride height and axle height configuration.
• Factory Team ball bearing set with 24 precision oiled ball bearings.
• Set of six 48mm turnbuckles, ball cups, and HD metric ball studs.
• Aluminium rear ball stud mount with three link positions for maximum adjustability and added strength.
• Lightweight aluminium one-piece top shaft.
• Octalock spur gears and 19mm octalock LCF pads.
• Blue aluminium shock bushings.
• Black steel LP serrated wheel nuts.
• 3mm I.D. molded plastic spacers included for ball stud and shim needs.
• Fasteners and metric hardware.
• New RC10B6.3 servo mounting system with direct-to-chassis aluminium chassis mounts and molded brace with transponder mounting location.
• +1 carbon fiber steering arms.

Specifications

Power Source: Electric
Terrain: Off-Road
Body Style: Buggy
Scale Size: 1:10 Scale
Assembly Level: Kit*
Width: Varies
Weight: Varies
Internal Gear Ratio: Varies
Drive: 2WD

Please Note: *This vehicle comes as a kit and must be fully assembled by the user.

What's Included

• Ball differential/
• Laydown, Layback, and standup transmission cases.
• 4 x 13mm Big Bore shocks: 23mm shock bodies and 21mm shock shafts with X-rings.
• 2 x 13mm shock springs, red fronts.
• 2 x 13mm shock springs, orange rear.
• RC10B6 front end assembly: steering, top plate, suspension, gull wing front arms and blue aluminium front axles.
• 24 x Factory Team precision oiled ball bearing set.
• +1 carbon fiber steering arms.
• 6 x 48mm turnbuckles, ball cups, and HD metric ball studs.
• Rear aluminium arm mounts for use with 69mm CVA bones and RC10B7 rear hubs.
• Rear aluminium ball stud mount.
• Aluminium one-piece top shaft.
• RC10B6.3 servo mounting system with transponder mounting location.
• Octalock spur gears and 19mm Octalock LCF pads.
• 4 x 2.5mm machined shock pistons.
• Blue aluminium shock bushings.
• 5mm aluminium clamping wheel hexes.
• Black steel LP serrated wheel nuts.
• 3mm I.D. molded plastic spacers for ball stud and shim needs.
• Fasteners and metric hardware.

Not Included In B6 Builder's Kit

• Carbon-fiber front and rear shock towers.
• Aluminium chassis and molded side rails.
• Polycarbonate body and rear wing.
• Rear suspension arms, rear wing mount assembly.
• Front wing and front wing mount assembly.
• Battery mounting strap and hardware.
• Set screw and flanged nut rear arm shock mounting hardware.
• Shock fluid.
• Aluminium ball stud washers.
• Aluminium ESC tray.

Required To Complete

• RC10B6 based dirt oval or drag conversion kit.
• Conversion-specific body for dirt oval or drag, application.
• 1:10 scale electric motor and electronic speed control.
• 7.4V-7.6V 2S LiPo with “shorty” battery dimensions.
• Battery charger, 2-channel surface transmitter.
• 2-channel receiver and steering servo.
• Spray paint for Lexan® bodies, Silicone shock fluid.
• 1:10 scale wheels and tires (application specific).
