AS1530

Overview

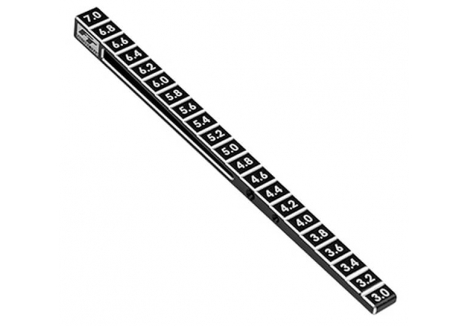

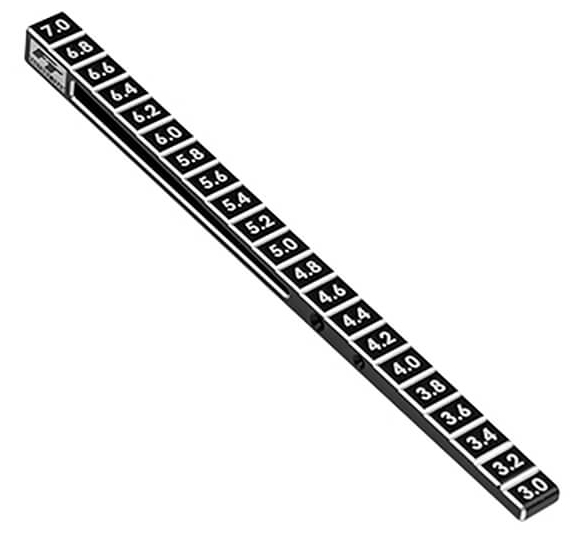

The Team Associated FT Stepped Ride Height Gauge 3-7mm (AS1530) is an essential setup tool for any serious RC car enthusiast looking to achieve precise and repeatable suspension geometry. Whether you're setting up your on-road RC car UK for competitive racing or fine-tuning your chassis for optimal performance, this stepped gauge takes the guesswork out of ride height adjustment. Manufactured by Team Associated Factory Team, this tool represents the professional-grade precision that separates championship-winning setups from mediocre ones. The stepped design allows you to quickly and accurately measure ride height in small, precise increments, making it invaluable for trackside adjustments or workshop setup sessions.

Ride height is one of the most critical suspension parameters in RC racing, directly affecting how your vehicle handles over bumps, maintains grip through corners, and responds to driver inputs. Getting this measurement wrong can result in poor handling characteristics, inconsistent performance, and ultimately, slower lap times. The FT Stepped Ride Height Gauge eliminates the need for trial-and-error adjustments by providing a repeatable measurement standard that you can use time and time again. This tool is perfect for ready to run RC cars, competition kits, or any vehicle where suspension setup matters. Whether you're a seasoned RC racer preparing for the next club meeting or a dedicated enthusiast committed to maximising your vehicle's potential, this gauge will become an indispensable part of your setup toolkit.

Team Associated Factory Team is renowned for producing high-quality setup tools and accessories that meet the demands of serious competitors. The introduction of the FT Stepped Ride Height Gauge demonstrates the brand's commitment to providing tools that make precise adjustments accessible to everyone, from beginners learning proper setup procedures to experienced racers chasing tenths of a second. Investing in quality setup tools like this gauge pays dividends in consistency, reliability, and ultimately, performance on the track.

Key Features

• Stepped Gauge Design with 0.2mm Increments — This gauge features precisely machined steps that allow you to read ride height in 0.2mm increments, ensuring measurements are accurate and repeatable every single time you use the tool, which is essential for consistent setup between race days and practice sessions.
• 3mm to 7mm Measurement Range — The gauge covers the standard ride height range required for most on-road RC cars, providing sufficient coverage for the vast majority of setup scenarios and adjustment requirements in competitive racing.
• Stepped Measurement System — Rather than using a continuous scale that can be difficult to read accurately, the stepped design allows you to visually and physically identify the exact ride height by simply placing the gauge against the chassis and noting which step aligns with the measurement point.
• Factory Team Manufacturing Standards — Built to the exacting tolerances expected of Team Associated Factory Team products, this gauge is machined to tight specifications ensuring that every increment is precisely calibrated for accurate measurement across multiple units.
• Easy Trackside Use — The stepped design makes this tool quick and intuitive to use during trackside adjustments, allowing you to make changes without requiring complex measurements or calculations, saving valuable time during practice and race sessions.
• Ideal for Competitive Setup — Whether you're preparing for club racing, regional competitions, or just seeking to improve your lap times at your local track, this gauge provides the precision that serious RC car racing demands.

Technical Performance

The Team Associated FT Stepped Ride Height Gauge is engineered to the highest standards expected of professional racing tools. The stepped design provides precise measurement points at 0.2mm increments starting from 3mm and progressing through to 7mm, covering the full range of ride heights typically required for on-road RC vehicles. Each step is machined to tight tolerances to ensure consistency and accuracy, meaning you can trust the measurements you take with this gauge and compare them reliably across multiple setup sessions. The stepped approach eliminates the ambiguity and potential for misreading that can occur with traditional ruler-style gauges, making this a more reliable tool for serious racers. The gauge is constructed using quality materials suitable for workshop and trackside use, and its straightforward design means there are no moving parts or mechanisms to fail or wear out over time. This is a tool designed to last and provide accurate measurements year after year.

What's in the Box

• Team Associated FT Stepped Ride Height Gauge (AS1530)

Frequently Asked Questions

• What is a stepped ride height gauge and why do I need one? — A stepped ride height gauge is a precision tool that allows you to measure the distance between your RC car's chassis and the ground at specific points. Ride height directly affects suspension geometry, handling characteristics, and overall performance. By using a stepped gauge, you can make accurate, repeatable measurements and compare setups between different sessions or vehicles, ensuring consistency in your setup procedures.
• Can I use this gauge on any on-road RC car? — Yes, this gauge is suitable for any on-road RC car where you need to measure ride height in the 3mm to 7mm range, which covers most contemporary on-road racing vehicles. The stepped design makes it easy to use on any vehicle with accessible measurement points where you can place the gauge against the chassis.
• What is the advantage of 0.2mm increments? — The 0.2mm increments provide the level of precision that modern RC racing demands. These small adjustments can noticeably affect how your car handles, giving you the ability to fine-tune your setup in meaningful ways rather than being limited to crude, larger measurement steps that might miss optimal settings.
• How do I use the stepped ride height gauge? — Simply position the gauge against your chassis at the measurement points (typically at the front and rear pickup points), and identify which stepped increment aligns with your chassis. This gives you your ride height reading. Make note of these measurements, adjust your suspension as needed, and use the same gauge to verify your new settings are correct.
• Is this tool suitable for beginners? — Absolutely. In fact, this tool is particularly valuable for beginners because it takes the complexity out of ride height measurement. Rather than trying to interpret readings from a ruler or scale, the stepped design provides clear, obvious measurement points that are easy to understand and use correctly.
• How does this compare to other ride height measurement methods? — Traditional methods might involve using a ruler, calliper, or feeler gauge, each of which can be time-consuming and prone to misreading. The stepped design of this gauge is faster to use, harder to misinterpret, and provides more consistent results across multiple users, making it superior for organised racing and serious setup work.
