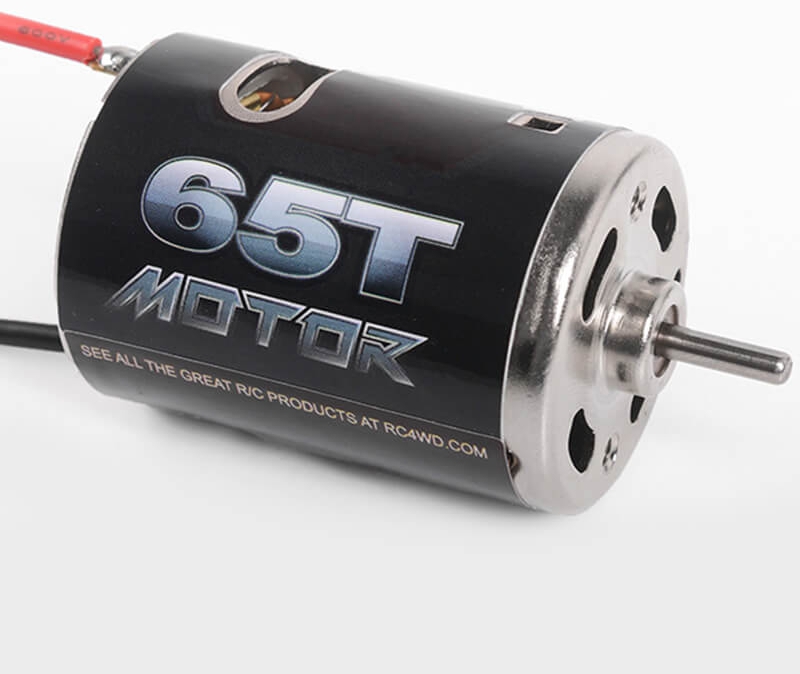

RC4WD 540 Crawler Brushed Motor 65T for 1/10 Rock Crawlers Z-E0002

Overview

The RC4WD 540 Crawler Brushed Motor 65T (Z-E0002) is a purpose-built electric motor engineered specifically for rock crawling and scale trail driving enthusiasts across the UK. Whether you are upgrading your RC crawler or building a new trail machine, this brushed motor delivers the smooth, controlled low-speed performance that defines authentic scale crawling. It combines reliable brushed motor technology with RC4WD's proven track record in the rock crawling community, making it an ideal choice for anyone serious about tackling technical terrain with precision and control.

This 65-tooth variant sits perfectly in the middle of RC4WD's motor range, offering a balanced combination of speed and torque that suits most popular crawler platforms. Custom-made to fit legendary platforms like the Axial AX10, Trail Finder, SCX10 Honcho, SCX10 Dingo, Wraith and Ridgecrest, this motor integrates seamlessly into your existing RC car UK setup. The compact 50 mm length makes installation straightforward even in tight engine bays, whilst the pre-wired 3 mm bullet connectors mean you can have this motor running in minutes.

RC4WD's engineering expertise shines through in every detail, from the chrome-plated steel construction to the built-in capacitor that eliminates glitching during trail runs. Whether you are a seasoned rock crawler or exploring scale driving for the first time, this brushed RC motor delivers the reliability and performance you need to conquer any obstacle.

Key Features

• Custom-Made 540 Steel Case with Chrome-Plated Finish — The motor can is manufactured from quality steel and finished with a durable chrome plating that resists corrosion and wear from trail conditions, protecting your investment and ensuring longevity through countless hours of off-road use.
• Built-In Capacitor to Minimise Glitching — Electronic interference during rock crawling can cause erratic motor behaviour, but the integrated capacitor smooths out these glitches and delivers consistent power delivery even when navigating technical terrain with multiple electrical systems active.
• High-Torque Magnet and Rotor Design — The motor features premium magnet materials and a purpose-designed rotor that maximises torque output at low speeds, essential for crawling over rocks, logs and steep inclines where raw pulling power matters more than outright speed.
• Pre-Wired with 3 mm Bullet Connectors — Ready-to-connect wiring with industry-standard 3 mm bullet connectors means installation is quick and straightforward; note that Axial ESCs use 4 mm connectors which can be easily crimped to match, providing compatibility with most popular ESC platforms in the ready to run RC crawler market.
• Compatible with 3 mm Pinions — The motor shaft accepts standard 3 mm pinion gears, giving you flexibility to fine-tune gearing for your specific terrain and driving style without requiring proprietary or hard-to-source components.
• Compact 50 mm Length — At just 50 millimetres long, this motor fits easily into tight engine bay spaces on modern compact crawlers, eliminating the need for extensive modifications or custom mounts that would compromise chassis rigidity.
• Tuned for Rock Climbing and Scale Driving — Unlike generic motors, this unit is specifically calibrated for the demands of technical rock crawling and authentic scale trail driving, delivering the control and torque characteristics that serious crawler enthusiasts demand.
• Polished Bushings for Smooth Operation — Precision polished bushings provide smooth, friction-reduced rotation and help minimise wear on the motor shaft; note these are non-replaceable components designed to last the lifetime of the motor under normal use.

Technical Performance

The RC4WD 540 Crawler Brushed Motor 65T represents the sweet spot in the company's motor lineup, engineered to deliver excellent performance across a wide range of crawler applications and skill levels. This is a genuine 540-size brushed motor—a proven and reliable motor size that has become the standard for RC crawlers worldwide. The 65-tooth (65T) configuration provides significantly more torque than higher-turn variants whilst still maintaining adequate speed for scale driving, making it ideal for rock crawling where controlled, powerful movement is paramount.

Performance specifications reveal the motor's crawling credentials: at 7.2 volts (a common voltage for 2S LiPo batteries used in crawlers), the 65T variant delivers 7000 RPM at no load (±10% tolerance) whilst drawing just 0.65 amps, indicating efficient operation. At maximum efficiency, it produces 5900 RPM (±10%) at 2.79 amps, demonstrating the kind of stable, controllable power delivery essential for technical terrain. The motor is engineered to operate safely across a designed temperature range of -30°C to +80°C, meaning it will perform reliably whether you are winter trail running in the UK or summer bashing in warmer climates. Motor end play is specified at just 0.50 mm maximum, ensuring tight tolerances and minimal lateral movement that could introduce vibration or noise. The noise signature is kept below 60 decibels, making this a relatively quiet motor suitable for local trail locations where noise restrictions exist.

The brushed motor design, whilst requiring occasional maintenance compared to brushless alternatives, offers distinct advantages for crawlers: lower cost, excellent low-end torque characteristics, and simpler electronics compatibility. The build quality is evident in every detail—the chrome-plated steel can resists rust and corrosion, the rotor and magnet assembly maximises torque output, and the polished bushings deliver smooth, long-lasting rotation. This is genuine RC4WD engineering, not a generic import, and the attention to detail reflects years of experience building motors specifically for serious crawler platforms.

What's in the Box

• 1x RC4WD 540 Crawler Brushed Motor 65T (Z-E0002)

Recommended Accessories

• Motor Spray — RC4WD recommends applying motor spray after trail runs to help keep the motor in optimal condition, protect internal components from moisture and dust, and extend the working life of your motor investment.

Frequently Asked Questions

• What is the difference between the 65T and other tooth counts in the RC4WD crawler motor range? — RC4WD offers this 540 motor in five different tooth counts: 35T (fastest, 12,500 RPM at 7.2V), 45T (9,500 RPM), 55T (8,000 RPM), 65T (7,000 RPM) and 80T (slowest, 5,500 RPM). The higher the turn count, the slower the motor but the higher the torque output. The 65T is the most popular choice for all-round rock crawling because it balances speed and torque perfectly for technical terrain.
• What voltage battery do I need for this motor? — The specifications are rated at 7.2 volts, which corresponds to a 2S LiPo battery (two 3.7V cells in series). This is the standard voltage for crawler applications in the RC car UK market and offers the best balance of performance and compatibility with most crawler ESCs.
• Is this motor suitable for beginners? — Yes. The 540 brushed motor is one of the most beginner-friendly motor types in RC crawling. It is simpler to understand than brushless motors, more forgiving with ESC programming, and the brushed design naturally delivers excellent low-speed control perfect for learning rock crawling techniques. The pre-wired connector and compact size also make installation straightforward for first-time builders.
• What crawlers is this motor compatible with? — RC4WD specifically confirms this motor fits the Axial Bully, Axial AX10, Axial Trail Finder, Axial SCX10 Honcho, Axial SCX10 Dingo, Axial Wraith and Axial Ridgecrest. Many other 540-size crawler platforms will also accept this motor, but Axial vehicles are the officially supported platforms.
• Do I need to do anything to connect this motor to my Axial ESC? — The motor comes pre-wired with industry-standard 3 mm bullet connectors. Most Axial ESCs use 4 mm connectors, but these can be easily crimped to 3 mm size to match the motor connectors, making connection straightforward with basic soldering tools.
• How often does this brushed motor need maintenance? — Brushed motors require periodic maintenance. RC4WD recommends applying motor spray after each trail session to keep the motor clean and protected from moisture and dust. The polished bushings are non-replaceable, so proper care extends motor life significantly.
• What is the advantage of the built-in capacitor? — The integrated capacitor eliminates electrical glitching—those sudden jerky movements or momentary power cuts that can occur during rock crawling when multiple electrical systems are drawing power. This results in smoother, more predictable motor control and better overall trail performance.
