Overview
Castle Creations dedication to excellence compels them to continuously enhance the user experience, optimize performance, and meticulously craft every detail of our products to deliver maximum satisfaction. Even the finest products can be improved, which is why we're thrilled to unveil the newly revamped 1512-2650Kv V2. This updated version features a completely re-engineered rotor and stator, leading to improved magnetic flux. The result? Greater efficiency, smoother startups, lower temperatures, and extended run times!
Note:011-0131-00 Rotor Replacement is NOT compatible with the V2 motor. A new rotor replacement will be available in the future. Check back herefor updates.
In The Box

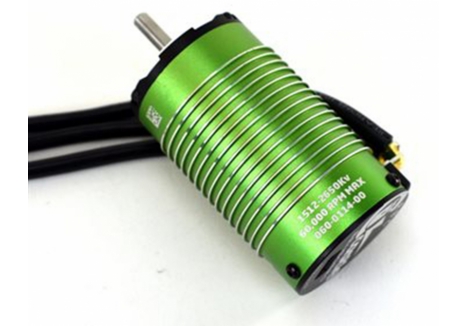

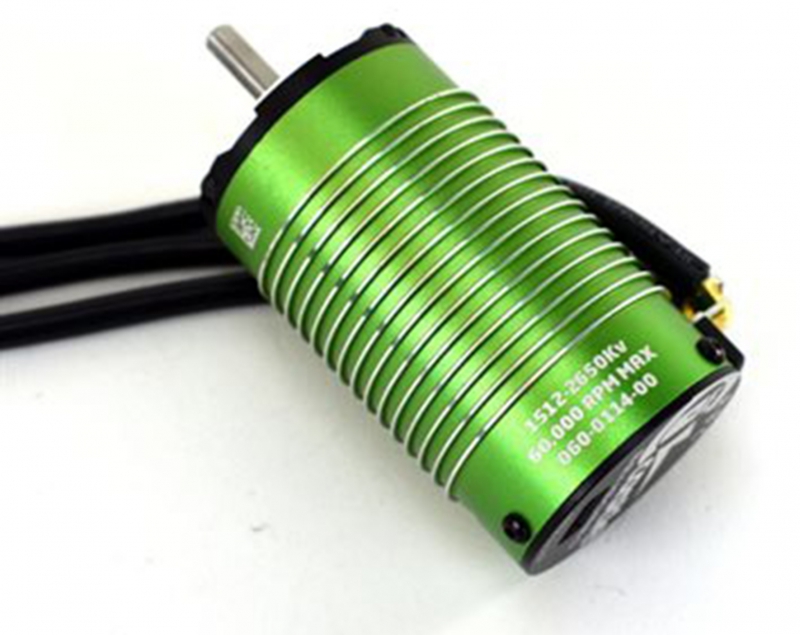

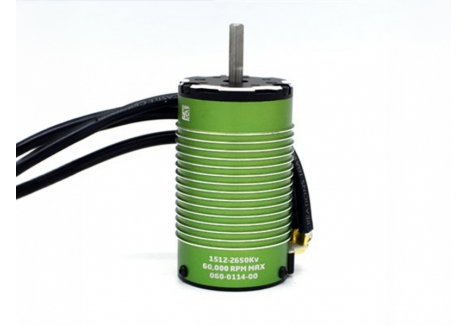

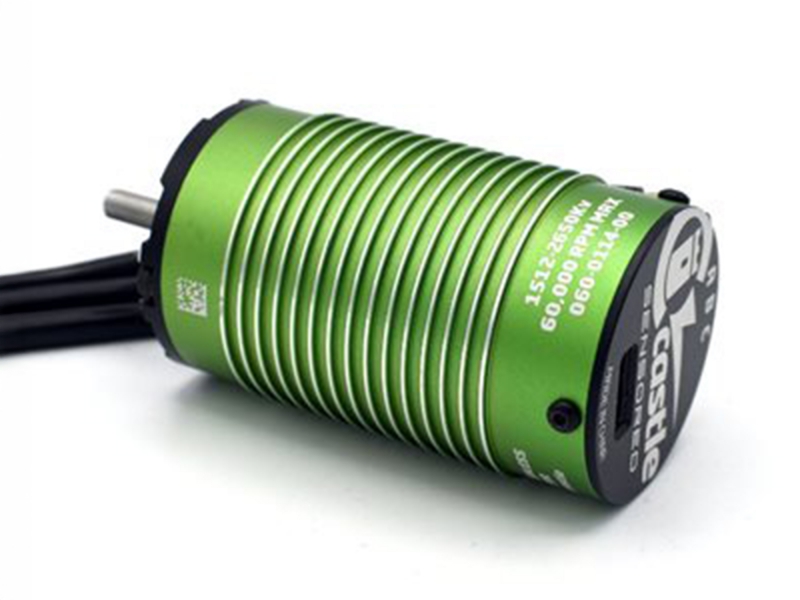

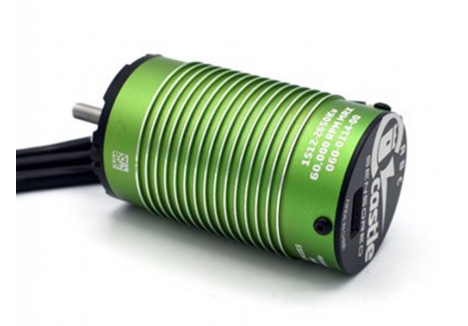

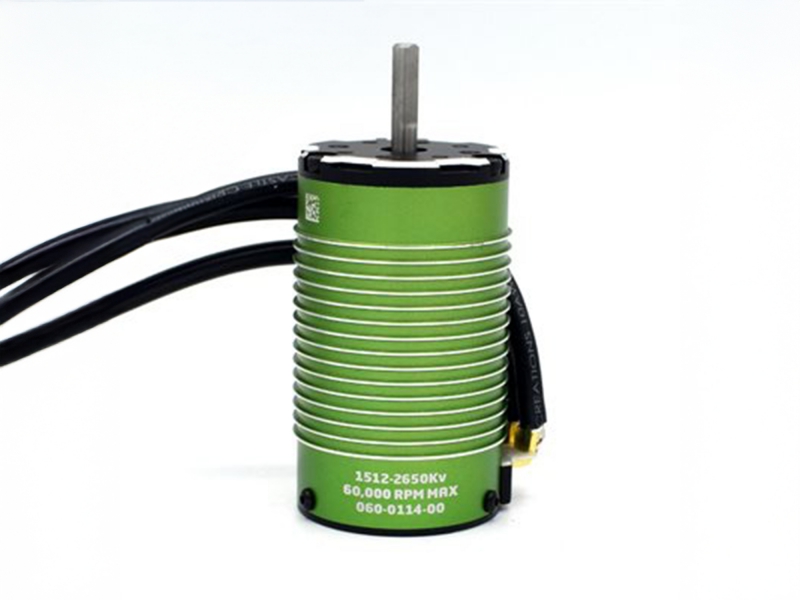

- (1) 1512-2650KV V2 Sensored Brushless Motor
Application
Ideal for 1:8 scale off-road and on-road vehicles as well as 1:10 scale 4WD SCT up to 9lbsFeatures
- Input Voltage range: 2s-4s LiPo
- Redesigned rotor and stator assemblies.
- Reduced magnetic cogging, producing less residual drag brake.
- Increased efficiency, resulting in lower temperatures and longer run times.
- Smoother start-up, reducing cogging or stuttering when starting from a stop.
- Rebuildable design allows replacement of front end bell/bearing assembly or rotor/shaft assembly.
- High-Strength Kevlar Wrap and 180C Grade Neodymium Sintered Magnets
- Oversized NMB Bearings and High-Temperature, High-Purity Copper Windings
- Castle 10 AWG, High-Strand-Count Silicone-Insulated Wire with 6.5mm Bullet Connectors
- High-Performance 0.2mm Steel Lamination Stacked Stator
- Oversized, low-resistance, gold-plated solder tabs
- Sensor board with High Quality Temperature-Stabilized Sensors
- T6 Aluminum CNC Machines Front/Rear End bell
The Design
- Our IMPROVED 4-POLE 12-SLOT design boasts exceptional EFFICIENCY and produces LESS HEAT.
- QUIETSENSE technology shields the sensors from magnetic field noise generated from the motor coils and keeps your motor and ESC in sync at all times. Use of a Flux Shield in conjunction with secondary Sense Magnets delivers even HIGHER PRECISION and MORE EFFICIENT startups.
- Our OPTIMIZED design eliminates the need for mechanical timing adjustments. Our sensor alignment method delivers uniform timing and torque in both directions, automatically.
- REBUILDABLE design allows users to replace front end bell/bearing assembly or rotor/shaft assembly.
- Updated modern and sleek design; looks as cool as it performs.
Integrated Sophistication
Castle engineers always add a little something extra in their designs thattakes your performance to the next level. We have not skimped here. Many customers have utilized our industry leading software functionality that Castle Link* offers. When paired with a Castle Creations sensor supported ESC, like the MAMBA MAX PRO, MAMBA X or MAMBA MONSTER X, you can unlock advanced tuning capabilities that Castle Link provides specifically for sensored motors.
SMARTSENSE uses the motors sensors to start the motor to provide smooth starts,excellent torque, and low-speed drivability. Once the motor is turning,it seamlessly transitions to Castle's ULTRA- EFFICIENT sensorless mode. When running, a motor must transition between different load points and a different timing advance is required for optimal efficiency at all load points. Using mechanical timing adjustments alone, you can only target one driving condition, such as higher start power or higher top end speed. This sacrifices performance and efficiency during the other driving phases. Electronic timing in SMARTSENSETwill advance timing automatically for peak performance during all driving conditions. This allows users to combine the best of both worlds in an unrivaled HYBRID between smooth sensored startups and high-efficiency sensorless drive.
With a Castle sensored ESC and sensored motor you will have the ULTIMATE POWER PLANT for your vehicle. Users will experience PRECISE throttle control, BUTTERY SMOOTH starts, PEAK PERFORMANCE and EFFICIENCY throughout the full throttle range. You will feel the POWER and LONGER RUN TIMES that a WORLD-CLASS motor produces.
It's not magic. it's SMARTSENSET.
- Weight: 383 g
- Diameter: 40 mm
- Length: 68 mm
