Overview

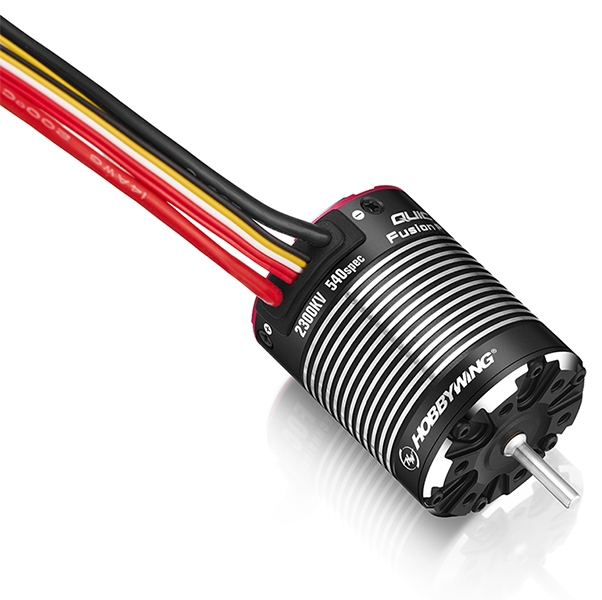

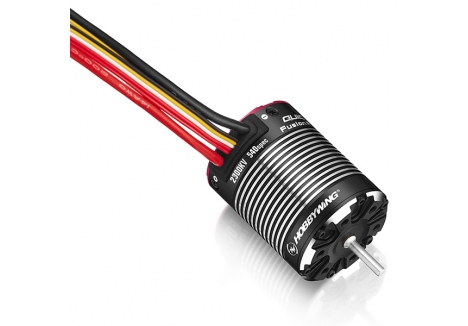

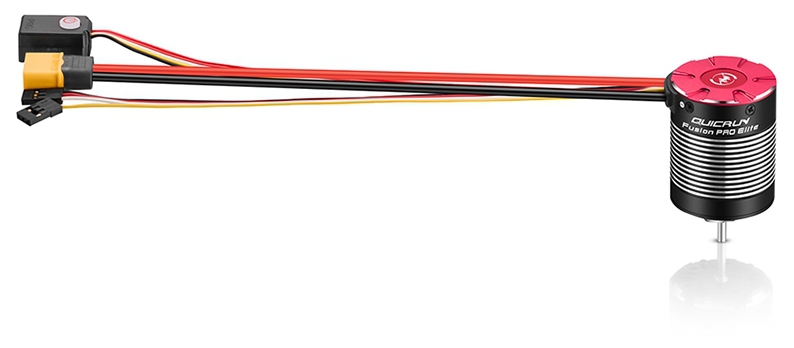

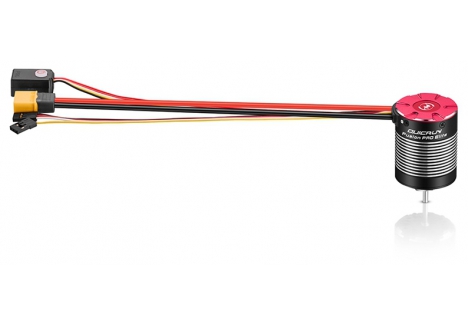

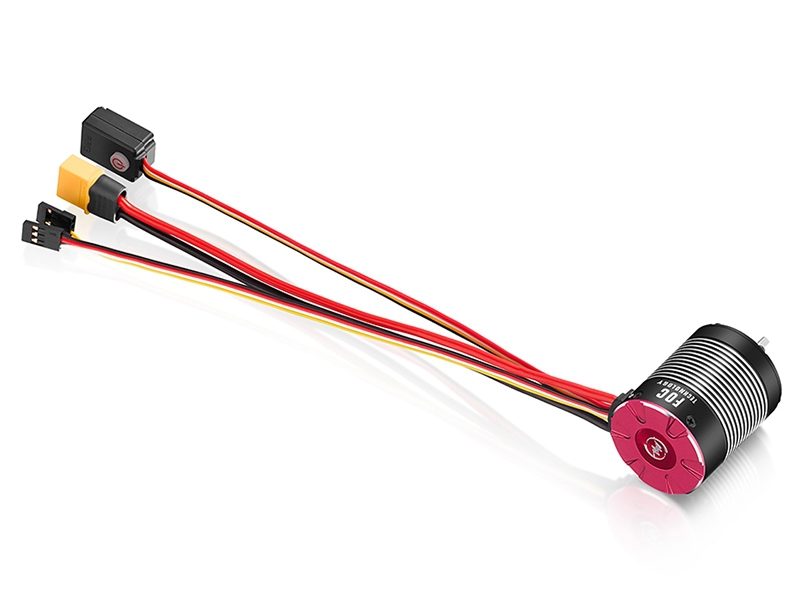

The Hobbywing QUICRUN Fusion Pro-Elite for Crawler 2300KV is a revolutionary integrated power system designed specifically for 1/10th scale crawlers and climbing vehicles. This ultra-compact 2-in-1 motor and ESC combination represents the pinnacle of modern crawler engineering, delivering the performance and reliability that serious RC enthusiasts demand. Whether you're tackling rocky terrain, navigating obstacles, or exploring challenging trails with your brushless RC crawler, this system provides the stable, consistent power needed to conquer any landscape without performance drop-offs.
What makes the Fusion Pro-Elite stand out in the crowded world of brushless RC car electronics is its exceptional combination of compact design and powerful performance. At just 48.5mm in length, this motor is 9.5mm shorter than the Pro Standard version and 1.3mm shorter than the AXE 540, making it compatible with nearly all 1/10th scale vehicles on the market. The integrated design eliminates the need for complex wiring harnesses and multiple components, allowing for super clean installation that looks professional and performs flawlessly. For anyone searching for the best brushless motor and ESC combo for their RC crawler or looking to upgrade their existing setup, this is a product that genuinely delivers on its promises.
Backed by Hobbywing's reputation as a leader in RC electronics, the QUICRUN Fusion Pro-Elite combines cutting-edge FOC (Field-oriented control) technology with intelligent torque management to provide an experience that is both exhilarating and intuitive. This is the optimal setup for 1/10th scale crawlers, delivering the low-speed torque and precise control that separates amateur builds from competition-grade machines.
Key Features
- Ultra-Compact Integrated Design — By combining the motor and ESC into a single 48.5mm unit, installation becomes dramatically simpler and the vehicle receives a cleaner, more professional appearance. This compact form factor fits nearly all 1/10th scale vehicles on the market, making it an ideal upgrade for existing crawlers or the perfect foundation for new builds.
- FOC Drive Technology — The QUICRUN Fusion Pro-Elite utilises Field-oriented control drive, which delivers significantly stronger low-speed torque and smoother performance compared to conventional sensored systems. This means your crawler will have the aggressive power needed to climb obstacles whilst maintaining excellent linearity for precise control, and the FOC system eliminates motor noise for near-silent operation that lets you fully enjoy the trail experience.
- Closed-Loop Intelligent Torque Control — The ESC features an intelligent torque output and speed closed-loop control system that automatically adapts to changing terrain conditions in real-time. When your crawler encounters resistance or an obstacle, the system increases output torque to help you overcome it. On descents, it reduces torque output and stabilises vehicle speed, making even challenging terrain feel remarkably simple to drive.
- 50A Continuous Output Current — With a maximum continuous output current of 50A and peak current of 150A, this system has the grunt needed for serious 1/10th scale crawler work. Whether you're running hard at full throttle or navigating technical terrain, the power delivery is consistent and reliable.
- 2-4S LiPo Battery Support — The ESC supports 2-cell through 4-cell LiPo batteries (or 6-12 cell NiMH), giving you flexibility in your power setup. You can run 2S for lighter terrain, 3S for general use, or push to 4S (14.8V) for maximum performance on demanding crawls.
- AUX External Control Channel — By connecting the yellow AUX CH signal wire to an unused receiver channel, you can adjust ESC parameters like drag brake force in real-time from your radio transmitter. This on-the-fly tuning capability means you can dial in the perfect setup for each trail without stopping to reprogram the ESC.
- IP67 All-Terrain Waterproof Protection — The entire power system is rated IP67, delivering outstanding waterproof and dustproof performance. Whether you're crawling through rain, snow, mud, sand, or even standing water, this system handles harsh environments with confidence. (Note: IP67 protects against splashes and normal water exposure but is not permanent; avoid extended submersion.)
- Built-in 10A High-Performance BEC — The integrated BEC (Battery Elimination Circuit) is capable of delivering up to 10A of continuous output current with selectable voltages of 6V, 7.4V, or 8.4V. This means you can power standard servos, high-voltage servos, lighting systems, winches, and other accessories directly from the main battery without needing a separate power supply.
- Five Selectable Operating Modes — The ESC offers versatile control with five operating modes to suit different driving styles and applications: Constant Speed Mode (Direct Forward/Reverse), Normal Mode (Forward/Reverse with Brake), Normal Mode (Direct Forward/Reverse without Constant Speed), Hybrid-RPM Matching Mode, and Hybrid-Normal Mode. This flexibility easily adapts to a wide range of crawler applications.
- 14 Adjustable Parameters — For users who want professional-level control, the ESC offers 14 adjustable parameters including running mode, LiPo cell count, cutoff voltage, thermal protection, motor rotation direction, BEC voltage, drag brake force, drag brake rate, maximum reverse force, maximum brake force, RPM decrease rate, punch, neutral range, and AUX channel function.
- Compatible with LED and LCD Pro Program Boxes — You can programme the ESC using the simple LED Program Box for basic adjustments, or upgrade to the advanced LCD Pro Program Box for a complete range of professional-level settings. An OTA (over-the-air) programmer is also supported, though Bluetooth is not currently available.
Technical Performance
The Hobbywing QUICRUN Fusion Pro-Elite is engineered to the highest standards with a 2300KV brushless motor featuring 4 poles, a 37mm diameter, and a 3.175mm shaft with 16mm exposed length. Weighing just 178.5g including wires and connectors, this is a remarkably compact and lightweight solution that does not compromise on power or durability. The system is specified for 1/10th scale crawlers and features a continuous current rating of 50A with peak current handling of 150A, ensuring stable performance even under demanding conditions. The XT60 battery connectors are industry-standard, and the system includes 14AWG input wires in 220mm lengths (one red, one black) for reliable power delivery. The 2300KV motor rating means excellent low-end torque for rock crawling whilst maintaining good control linearity. Build quality is exceptional, with all components sealed to IP67 waterproof standards, giving you confidence that your investment will survive genuine RC crawler adventures. Whether you operate in the UK's variable climate or face mud, water, dust, and extreme terrain, this integrated system is built to last and perform consistently across extended sessions.
What's in the Box
- Hobbywing QUICRUN Fusion Pro-Elite integrated motor and ESC unit
- Black input wire (14AWG, 220mm)
- Red input wire (14AWG, 220mm)
- XT60 battery connector
- User manual and ESC calibration guide
What You Need to Complete
- 2-4S LiPo battery or 6-12 cell NiMH battery (compatible with XT60 connector)
- RC receiver and radio transmitter system
- Servo(s) for steering and other functions (the 10A BEC will power these)
- 1/10th scale crawler vehicle chassis (compatible with most designs)
- Optional: LED Program Box or LCD Pro Program Box for advanced ESC tuning
Frequently Asked Questions
- What is the difference between the QUICRUN Fusion Pro-Elite and other crawler motor and ESC combos? — The Fusion Pro-Elite is specifically engineered for crawlers with an ultra-short 48.5mm length, making it 9.5mm shorter than the Pro Standard version and 1.3mm shorter than the AXE 540. The FOC drive technology delivers stronger low-speed torque than conventional sensored systems, the closed-loop intelligent torque control automatically adapts to terrain changes, and the integrated design eliminates complex wiring whilst maintaining a powerful 50A continuous output current. These features combined make it one of the most advanced crawler power systems available.
- Is the Hobbywing QUICRUN Fusion Pro-Elite suitable for beginners? — Yes, absolutely. Whilst this system is powerful enough for experienced competitors, it is also very beginner-friendly. The integrated design simplifies installation, the intelligent torque control makes the vehicle easier to drive on varying terrain, and basic operation requires no special knowledge. Beginners can programme the ESC using the simple LED Program Box with straightforward settings, though the system also supports advanced programming for those who want to fine-tune performance later.
- What battery does the QUICRUN Fusion Pro-Elite need? — The ESC supports 2-4S LiPo batteries or 6-12 cell NiMH batteries. A 3S LiPo (11.1V) is a popular choice for balanced performance, whilst 4S LiPo (14.8V) provides maximum power for serious crawling. The system will deliver a maximum continuous output current of 50A regardless of cell count, so battery capacity should be at least 50C rating for reliable performance.
- Can I adjust parameters whilst driving my crawler? — Yes, one of the standout features of the QUICRUN Fusion Pro-Elite is the AUX External Control channel. By connecting the yellow AUX CH signal wire to an unused receiver channel, you can adjust parameters like drag brake force in real-time from your radio transmitter. This on-the-fly tuning means you can optimise performance for different terrain without stopping to reprogram.
- Is the QUICRUN Fusion Pro-Elite waterproof? — The entire power system is rated IP67, delivering outstanding waterproof and dustproof performance. It will handle rain, snow, mud, sand, and standing water during normal use. However, IP67 protection is not permanent and may decline over time due to ageing. Do not submerge the unit for extended periods, as this may cause damage.
- What accessories do I need to programme the ESC? — The ESC supports three programming methods: the SET button on the ESC itself (simple), an LED Program Box (more options), or the advanced LCD Pro Program Box (professional settings with full menu system). The programme port uses a separate switch position. Most users will find the LED or LCD Program Boxes make setup much easier than button programming.
- Does this motor and ESC fit in my existing crawler? — The Fusion Pro-Elite is designed to fit nearly all 1/10th scale vehicles on the market. Its ultra-compact 48.5mm length makes it one of the shortest integrated units available. Specific compatibility depends on your chassis, but with standard mounting patterns and XT60 connectors, installation is straightforward in most cases.
Why Buy from RC Model Shop?
RC Model Shop is a trusted UK RC retailer and authorised dealer for all the brands we stock, including Traxxas, ARRMA, Losi, FTX, Hobbywing, Spektrum and more. Based in Walsall, we have a physical store where customers are welcome to come in, view products and purchase in store. Whether you are a seasoned competitor, a weekend basher, or just discovering the world of RC for the first time, our team of experienced RC enthusiasts is here to help you find the perfect setup and provide ongoing support. Order the Hobbywing QUICRUN Fusion Pro-Elite for Crawler 2300KV HW30120500 today with confidence, knowing you are buying from an authorised retailer with genuine products, expert knowledge and a commitment to customer satisfaction. Shop online or visit us in Walsall — we look forward to helping you get the most out of your RC experience.
- Scale: 1/10th
- Motor Type: Brushless, sensored
- Motor Size: 540 (37mm diameter)
- Motor KV Rating: 2300KV
- Motor Poles: 4
- Motor Shaft Diameter: 3.175mm
- Motor Shaft Exposed Length: 16mm
- Motor Length: 48.5mm
- Total Weight: 178.5g (including wires and connectors)
- ESC Type: Integrated brushless sensored ESC
- ESC Continuous Current: 50A
- ESC Peak Current: 150A
- Battery Voltage Support: 2-4S LiPo, 6-12 cell NiMH
- Battery Connector Type: XT60
- Maximum Battery Voltage: 14.8V (4S LiPo)
- BEC Output Voltage: 6V, 7.4V, or 8.4V (selectable)
- BEC Continuous Current: 10A (switch mode)
- Waterproof Rating: IP67
- Input Wires: Black 14AWG 220mm x1, Red 14AWG 220mm x1
- Operating Modes: 5 modes (Constant Speed Mode Direct Forward/Reverse, Normal Mode Forward/Reverse with Brake, Normal Mode Direct Forward/Reverse without Constant Speed, Hybrid-RPM Matching Mode, Hybrid-Normal Mode)
- Adjustable Parameters: 14 parameters (Running Mode, LiPo Cells, Cutoff Voltage, Thermal Protection, Motor Rotation, BEC Voltage, Drag Brake Force, Drag Brake Rate, Max Reverse Force, Max Brake Force, RPM Decrease Rate, Punch, Neutral Range, AUX CH Function)
- Drive System: FOC (Field-oriented control)
- Programming Methods: SET button on ESC, LED Program Box, LCD G2 Program Box, LCD Pro Program Box
- OTA Programmer Support: Supported (Bluetooth not supported)
- Firmware Upgrade: Not supported
- Application: 1/10th scale crawlers
- Control Features: AUX external control channel for real-time parameter adjustment, closed-loop intelligent torque control, automatic terrain adaptation
The Hobbywing HW30120500 Fusion Pro Elite Crawler motor is a high-performance, sensored brushless system engineered for precision control and smooth, quiet operation. Designed specifically for 1/10-scale crawlers, this compact black motor and ESC combo integrates advanced Field-Oriented Control (FOC) technology to deliver exceptional low-speed torque and refined throttle response. With a motor length of just 48.5 mm, the system supports cleaner wiring layouts and fits easily into space-conscious builds, making it ideal for enthusiasts seeking streamlined installations without compromising on power or reliability.
Key features of the Hobbywing HW30120500 Fusion Pro Elite Crawler motor
- Ultra-short 48.5 mm motor – ideal for clean, space-efficient wiring in tight chassis builds
- FOC drive technology – delivers strong low-speed torque and refined throttle feel
- IP67 waterproof rating – ready for wet, dusty, and all-terrain conditions
- Real-time AUX channel tuning – adjust performance parameters directly from your transmitter
- Adjustable HV BEC – supports high-torque servos with selectable voltage output
- Active drag brake adjustment – superior hill-hold control on steep inclines
- Multiple protection systems – safeguards against low voltage, overheating, and throttle loss
- Supports Hobbywing LED and LCD Program Boxes – for convenient ESC setup
Why choose the Hobbywing HW30120500 Fusion Pro Elite Crawler motor for your build?
The Hobbywing HW30120500 Fusion Pro Elite Crawler motor stands out for its ultra-short integrated design, measuring just 48.5 mm in length. This compact form factor allows for cleaner wiring and easier installation in most 1/10-scale crawler chassis. Whether you're upgrading an existing rig or building a new crawler from scratch, this motor offers a space-saving solution without sacrificing performance.
How does FOC technology enhance crawler control?
Built around advanced FOC drive technology, the Hobbywing Fusion Pro HW30120500 ultra-short motor for clean wiring delivers intelligent torque output and speed closed-loop control. This results in superior low-speed crawling capability, smoother throttle transitions, and a more refined driving experience. Compared to traditional brushless or brushed setups, FOC provides a noticeable improvement in responsiveness and terrain adaptability.
Is the Hobbywing Fusion Pro HW30120500 suitable for all conditions?
Yes — the system is rated IP67 for waterproof and dustproof performance, making it ideal for trail runs, mud, and rocky environments. The Hobbywing Fusion Pro HW30120500 IP67 waterproof brushless combo is built to withstand harsh conditions while maintaining consistent output and reliability. This protection grade ensures peace of mind for outdoor enthusiasts who demand durability and performance in unpredictable terrain.
What makes the BEC system ideal for modern servos?
The built-in switch-mode BEC offers selectable voltage outputs of 6V, 7.4V, or 8.4V with a continuous current of 5A. This flexibility supports high-torque and high-voltage servos commonly used in advanced crawler builds. Whether you're running a powerful steering servo or additional accessories, the adjustable BEC ensures stable power delivery and system efficiency.
Can you adjust performance settings on the fly?
Absolutely. The Hobbywing Fusion Pro HW30120500 for sale with real-time AUX tuning allows users to fine-tune performance parameters directly from their transmitter’s AUX channel. This feature is especially useful for adapting throttle response, drag brake strength, and other settings based on terrain or driving style. It eliminates the need for manual programming during runs and enhances overall control.
What protection features are built into the system?
The system includes multiple protection mechanisms to safeguard against common issues. These include low-voltage protection, overheat protection, throttle signal loss protection, and lock-up protection. These features ensure the Hobbywing HW30120500 Fusion Pro Elite Crawler motor operates safely and reliably, even under demanding conditions.
How easy is it to set up the ESC?
ESC setup is streamlined thanks to support for Hobbywing’s LED Program Box and LCD Program Box Pro/G2. These tools allow for quick configuration of key parameters without complex programming steps. The independent programming port located at the switch position further simplifies firmware access and tuning, making the system user-friendly for both beginners and experienced hobbyists.
Is this the best choice for compact crawler builds?
For builders seeking a compact, efficient, and high-performance motor and ESC combo, the Hobbywing Fusion Pro HW30120500 ultra-short motor for clean wiring is an affordable and reliable solution. Its short motor length, waterproof design, and intelligent control features make it one of the best options for modern 1/10-scale crawlers.
Ready to upgrade your crawler with precision control and rugged performance? Buy Hobbywing HW30120500 Fusion Pro Elite Crawler motor today.
Brand, Model and Product Type
- Brand: Hobbywing
- Model: HW30120500
- Product Colour: Black
- Product Type: Hobbywing HW30120500 Fusion Pro Elite Crawler motor, Hobbywing HW30120500 2300Kv brushless crawler ESC combo, Hobbywing HW30120500 sensored crawler system 1/10 scale, Hobbywing Fusion Pro HW30120500 ultra-short motor for clean wiring, Hobbywing Fusion Pro HW30120500 IP67 waterproof brushless combo
Dimensions and Weight
- Motor Diameter: 3.7 cm – compact size for tight chassis integration
- Motor Length: 4.85 cm – ultra-short design supports clean, space-efficient wiring layouts
- Exposed Shaft Length: 1.6 cm – suitable for most 1/10-scale crawler drivetrains
- Shaft Diameter: 0.3175 cm – standard fitment for crawler applications
- Total Weight (including wires and connectors): 0.1785 kg – lightweight for improved balance and handling
Motor and ESC Specifications
- Motor Type: Brushless, sensored – delivers smooth, quiet, and efficient operation
- ESC Type: Integrated with motor – simplifies installation and reduces wiring complexity
- KV Rating: 2300Kv – tuned for strong low-speed torque and refined throttle control
- Motor Poles: 4 – enhances torque delivery and crawling precision
- Continuous Current: 50A – supports demanding trail conditions
- Peak Current: 150A – handles power surges during steep climbs or heavy loads
- Input Voltage: 2–4S LiPo or 6–12 cell NiMH – flexible power options for various crawler setups
Performance and Control Features
- Drive Technology: Field-Oriented Control (FOC) – ensures intelligent torque output and speed closed-loop control
- Drag Brake: Active adjustment – provides superior hill-hold performance on inclines
- Throttle Feel: Refined and responsive – ideal for technical crawling and low-speed manoeuvres
- Noise Level: Quiet operation – enhances trail experience without motor whine
Protection and Durability
- Waterproof Rating: IP67 – fully sealed for use in wet, muddy, or dusty environments
- Protection Features: Includes low-voltage, overheat, throttle loss, and lock-up protection – safeguards system longevity
Connectivity and Programming
- Programming Support: Compatible with Hobbywing LED Program Box and LCD Program Box Pro/G2 – enables convenient ESC setup
- Programming Port: Independent port located at switch position – simplifies access for configuration
- OTA Programming: Not supported – configuration must be done via supported program boxes
- ESC Set Button Programming: Not supported – external programming tools required
Power Output and BEC
- BEC Type: Switch-mode – efficient power delivery to servos
- BEC Output: Adjustable 6V / 7.4V / 8.4V – supports high-torque and high-voltage servos
- BEC Current: 5A continuous – stable output for demanding servo applications
Wiring and Connectors
- Input Wires: 14AWG, 22 cm (1x black, 1x red) – durable and pre-soldered for ease of use
- Input Connector: XT60 – widely compatible with crawler battery setups
