Overview

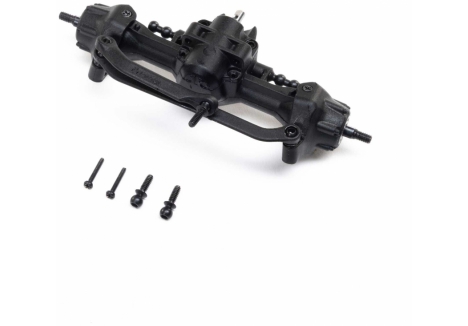

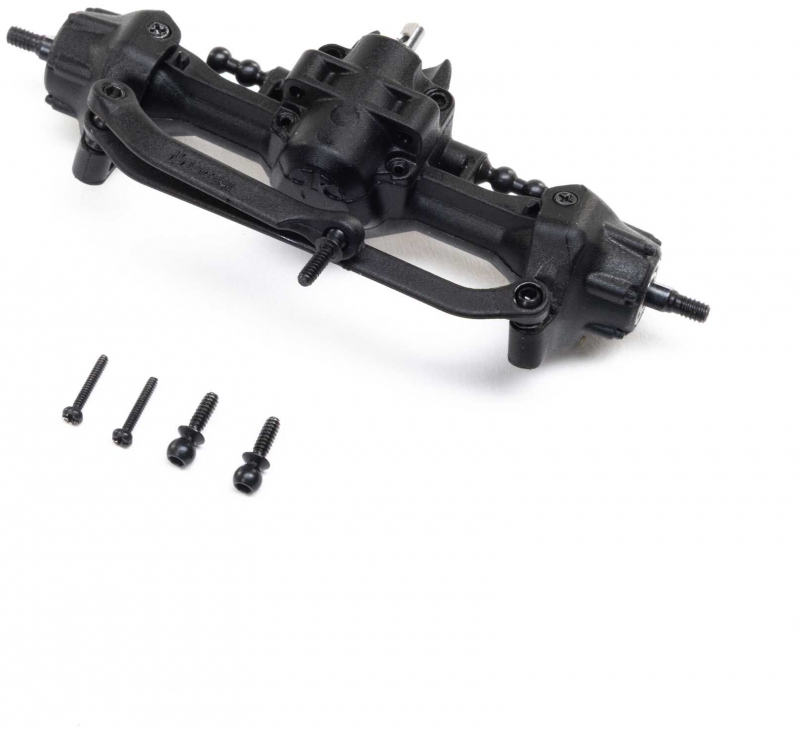

The Axial Front Axle, Assembled for the SCX30 is a fully assembled and ready-to-install front axle assembly designed specifically for the Axial 1/30 SCX30 rock crawler platform. This genuine Axial replacement part (model Z-AXI-3324) is an essential spare for owners of the SCX30 Ford Bronco, Chevrolet K10, or Jeep Wrangler JLU RC crawler models. Whether you're replacing a damaged axle assembly, upgrading your RC car UK setup, or maintaining your brushed rock crawler, this pre-assembled unit delivers the convenience of a drop-in solution without the need for complex assembly work.
Built to Axial's exacting standards, this front axle assembly comes complete with all necessary components pre-installed, including steering links ready for immediate use. The assembly features robust 2/16T worm gears that provide reliable torque delivery and smooth operation across varied terrain. For RC enthusiasts in the UK looking for genuine OEM parts to keep their ready to run RC crawlers in peak condition, this assembled axle represents excellent value and reliability. The comprehensive package includes housing, differentials, knuckles, stub axles, bearings, and all linkage components needed for a complete front end.
This is the ideal solution for serious RC hobbyists who demand authentic Axial engineering and want to avoid the hassle of sourcing and assembling individual components. Whether used as a replacement following wear and tear or as an upgrade to freshen your setup, the Axial Front Axle assembled unit ensures your SCX30 rock crawler continues to perform at its best on challenging terrain.
Key Features
- Fully Assembled Ready to Install — The entire front axle assembly arrives pre-built and ready to drop into your SCX30 chassis, eliminating the need for time-consuming component assembly and reducing the risk of incorrect installation that could compromise performance.
- Steering Links Pre-installed — Both the drag link and tie rod link come factory-installed, meaning your steering geometry is correctly configured from the moment you fit the assembly, saving valuable build time.
- 2/16T Worm Gear System — This specification delivers excellent low-speed control and impressive torque multiplication, making it ideal for technical rock crawling where precision and climbing power are essential for negotiating obstacles.
- Complete Component Package — Includes housing, differential cover, knuckles (driver and passenger side), stub axles, dogbones, precision ball bearings in two sizes, kingpin screws, ball studs, and all fasteners required for a fully functional front end assembly.
- Genuine Axial Manufacturing — As an official Axial OEM part, this assembly is manufactured to the exact specifications and quality standards of the original equipment, ensuring perfect compatibility and reliable operation with your SCX30 model.
- Compatible with Multiple SCX30 Models — This front axle assembly fits all Axial SCX30 rock crawler variants including the Ford Bronco 4X4, Chevrolet K10 4x4, and Jeep Wrangler JLU 4X4 ready to run RC models in all available colours (grey, blue, green, black, and white).
- Precision Ball Bearing Construction — Six ball bearings measuring 3mm x 6mm x 2mm and two additional 2mm x 5mm x 2.5mm bearings ensure smooth axle rotation, reduced friction, and extended component lifespan even during intensive off-road use.
Technical Performance
This Axial front axle assembly is engineered with attention to the specific demands of 1/30 scale rock crawling, where low-speed torque, articulation, and obstacle-clearing capability are paramount. The 2/16T worm gear configuration provides a substantial gear reduction that maximises climbing power whilst maintaining controllable speed, a crucial characteristic for navigating steep slopes, rock formations, and technical terrain that defines the SCX30 experience. The assembly utilises precision-ground ball bearings in two distinct sizes to optimise both load distribution and rotational efficiency across the front axle shafts and differential gears. The housing and differential cover are manufactured from robust materials designed to withstand the stresses of rock crawling without flex or deformation. The included stub axles and dogbones are engineered for durability whilst maintaining the precise tolerances required for smooth operation. Each kingpin screw is sized at M1.0 x 0.25mm with 6mm button head dimensions, ensuring secure knuckle attachment without over-tightening that could cause binding. The ball studs and double ball studs (2.5mm specification) provide reliable steering linkage connections that maintain accurate geometry under load. With all components pre-assembled and tested, this unit arrives in optimal working condition, ready for immediate installation into your SCX30 chassis.
What's in the Box
- Housing, Front, Axle x1
- Diff Cover, Front, Axle x1
- Knuckle, Driver Side, Front, Axle x1
- Knuckle, Passenger Side, Front, Axle x1
- Stub Axle, Front, Axle x2
- Dogbone, Front, Axle x2
- O-Ring, 0.5mm, 2mm ID, Worm Gear x1
- Pinion Worm Gear, 2T, 2/16T, Axle x1
- Worm Gear, 16T, 2/16T, Axle x1
- Ball Bearing, 3mm x 6mm x 2mm x6
- Ball Bearing, 2mm x 5mm x 2.5mm x2
- Kingpin Screw x4
- Double Ball Stud, 2.5mm x3
- Ball Stud, 2.5mm x3
- Screw, M1.0 x 0.25mm x 6mm, Button Head, Steel x2
- Drag Link x1
- Tie Rod Link x1
- Ball Stud, 2.5mm x2
- Double Ball Stud, 2.5mm x1
Frequently Asked Questions

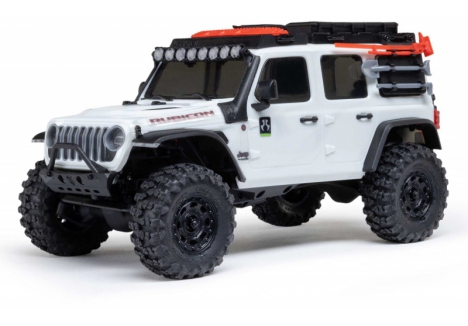

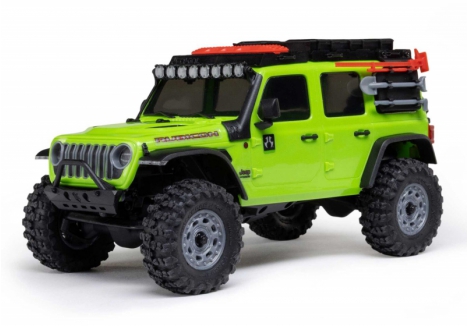

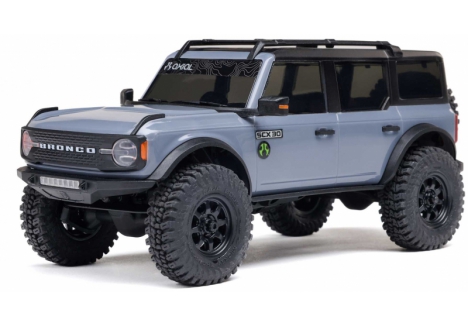

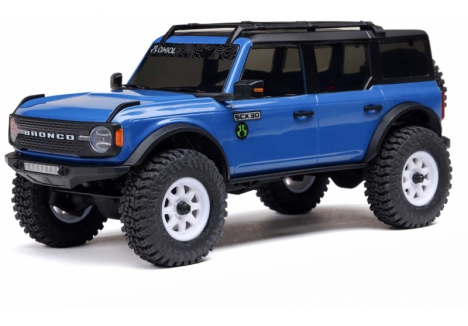

- Is this front axle assembly compatible with all SCX30 models? — Yes, this Axial front axle is engineered for complete compatibility with all Axial SCX30 rock crawlers including the Ford Bronco 4X4 RTR (both grey and blue versions), Chevrolet K10 4x4 RTR (green and black), and Jeep Wrangler JLU 4X4 RTR (white and green). The assembly will fit seamlessly into any of these ready to run RC models.
- Do I need to assemble this axle or does it come ready to install? — This front axle assembly arrives fully assembled with steering links already pre-installed. You can drop the entire unit directly into your SCX30 chassis without requiring any component assembly, making installation quick and straightforward for most users.
- What do the 2/16T worm gears mean and why do they matter? — The 2/16T specification refers to a 2-tooth pinion worm gear meshing with a 16-tooth worm gear, providing an 8:1 gear reduction ratio. This configuration is ideal for rock crawling applications as it multiplies torque for excellent climbing power whilst maintaining controlled low-speed operation on technical terrain.
- What happens if my current front axle is damaged or worn? — If your existing front axle assembly has suffered damage, broken components, or worn bearings, this complete replacement assembly is the solution. Simply remove your old axle and install this genuine Axial unit to restore full front-end performance and reliability.
- Are all the bearings and fasteners included in this assembly? — Yes, the assembly is completely comprehensive. It includes six ball bearings measuring 3mm x 6mm x 2mm, two additional ball bearings measuring 2mm x 5mm x 2.5mm, all kingpin screws, ball studs, double ball studs, and the specific fasteners required for complete installation.
- Why choose a genuine Axial part over aftermarket alternatives? — Genuine Axial parts are manufactured to the exact original specifications ensuring perfect fit, finish, and performance. OEM components have been engineered and tested specifically for your SCX30 model, guaranteeing compatibility and reliability that aftermarket parts may not provide.
