Product Details

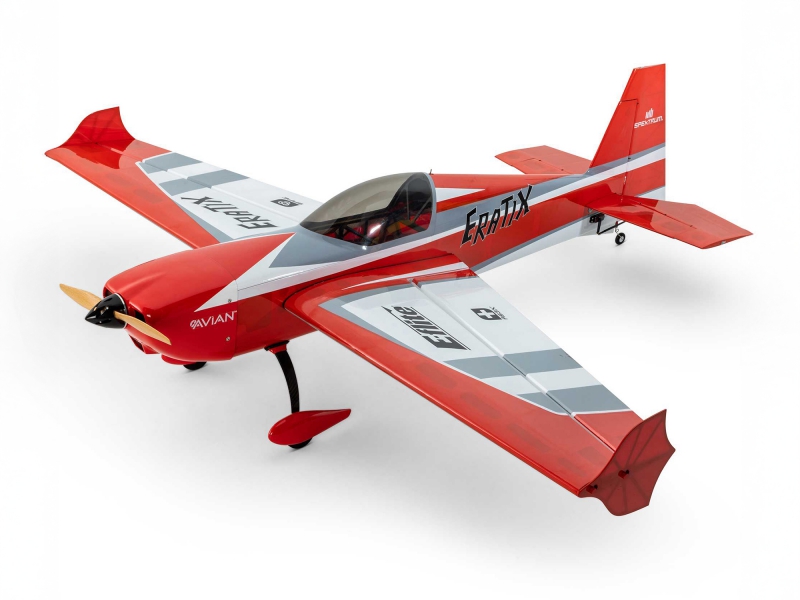

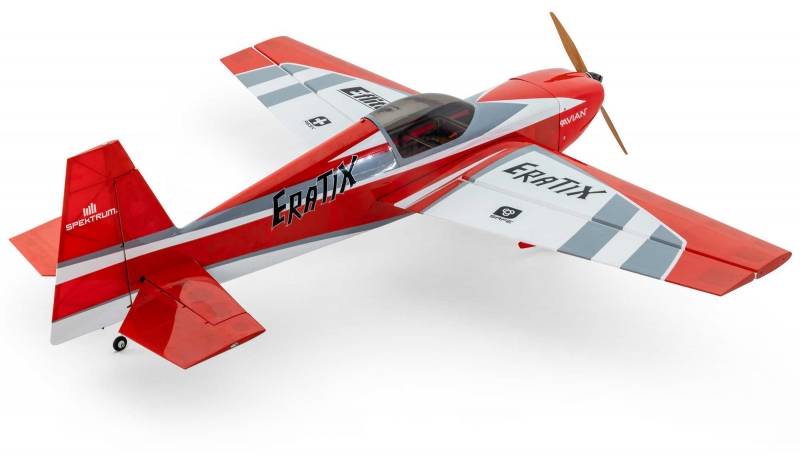

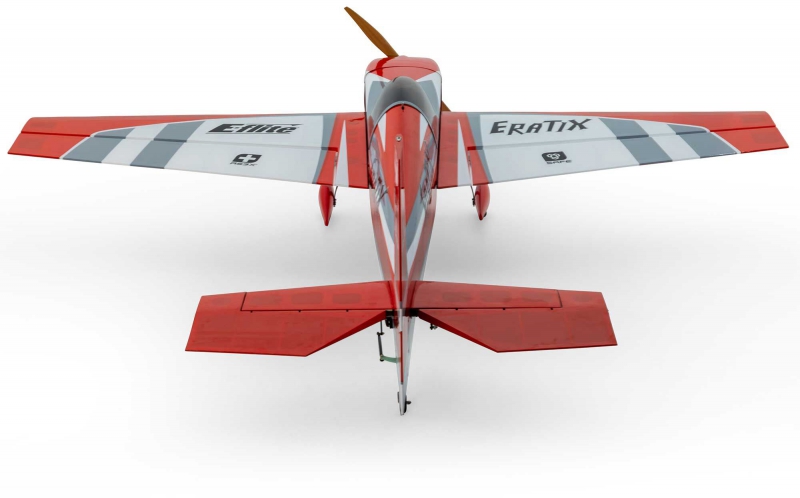

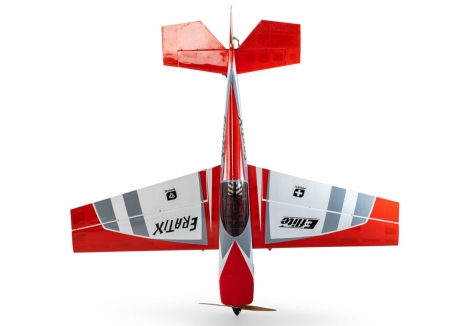

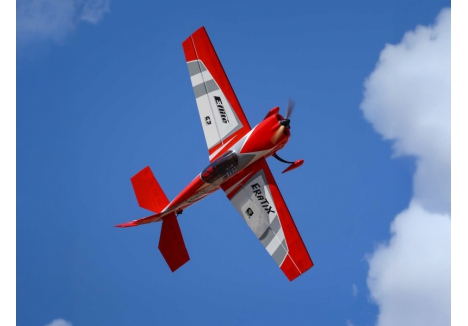

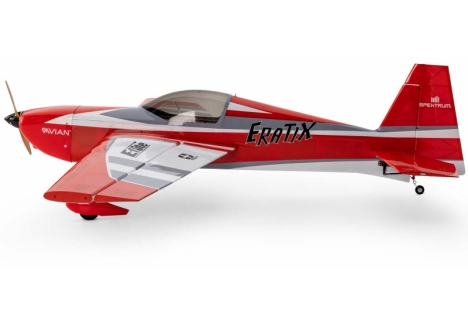

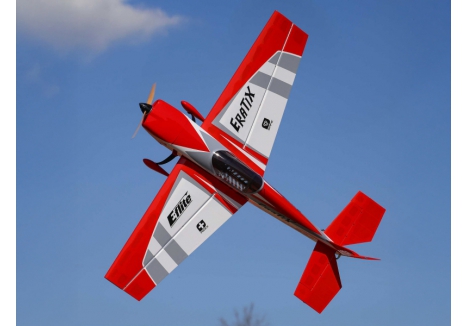

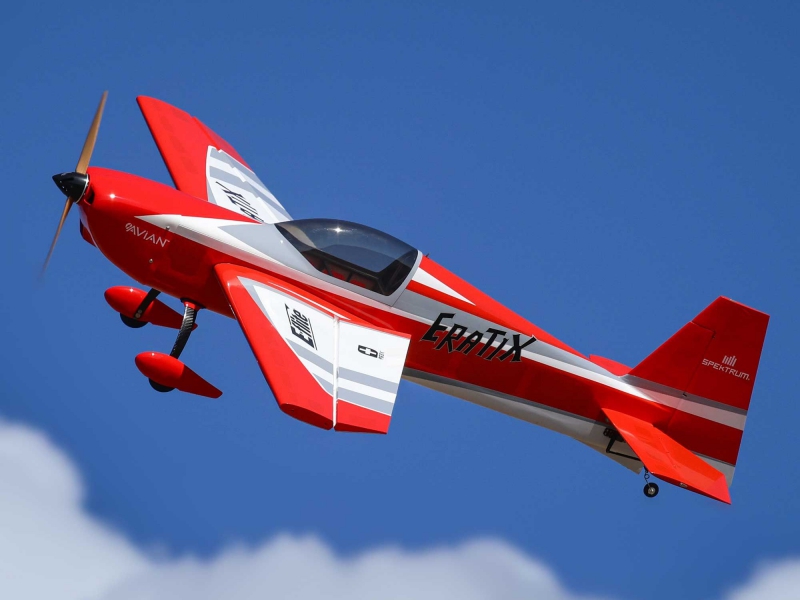

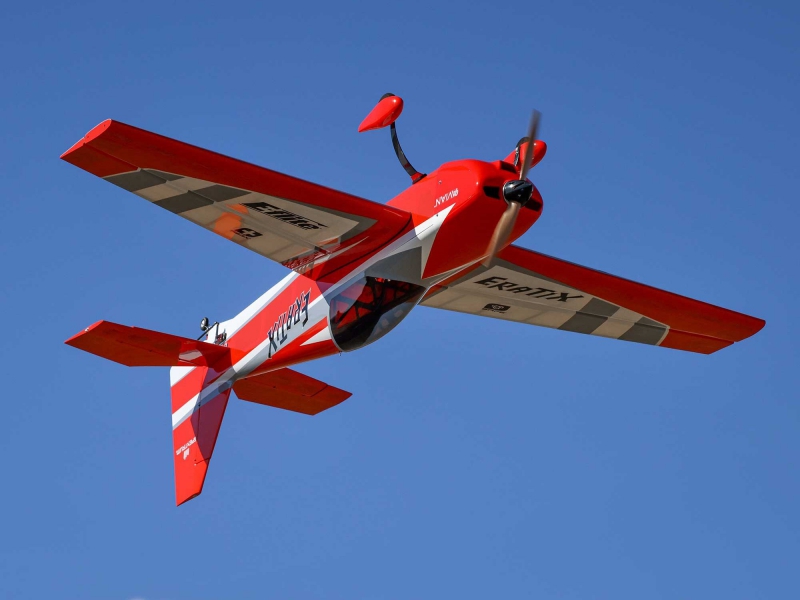

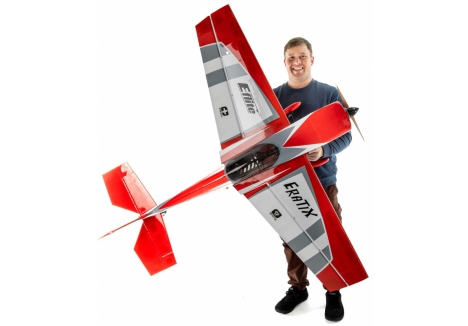

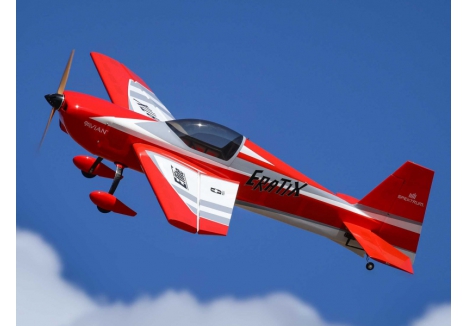

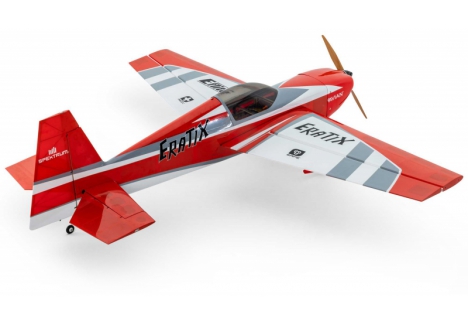

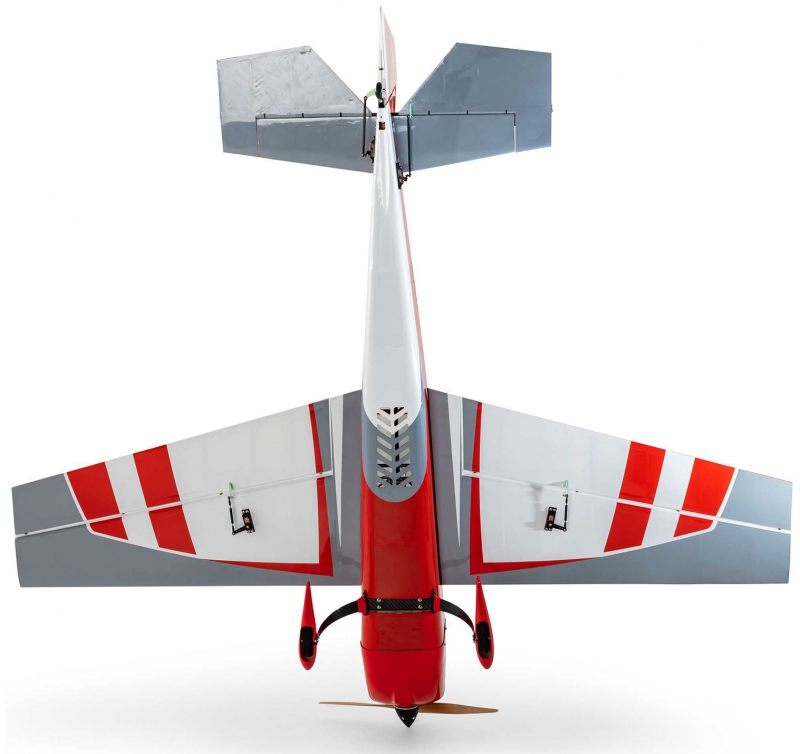

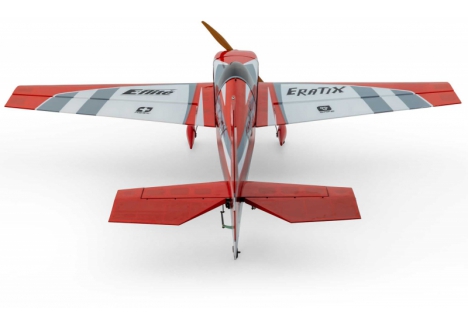

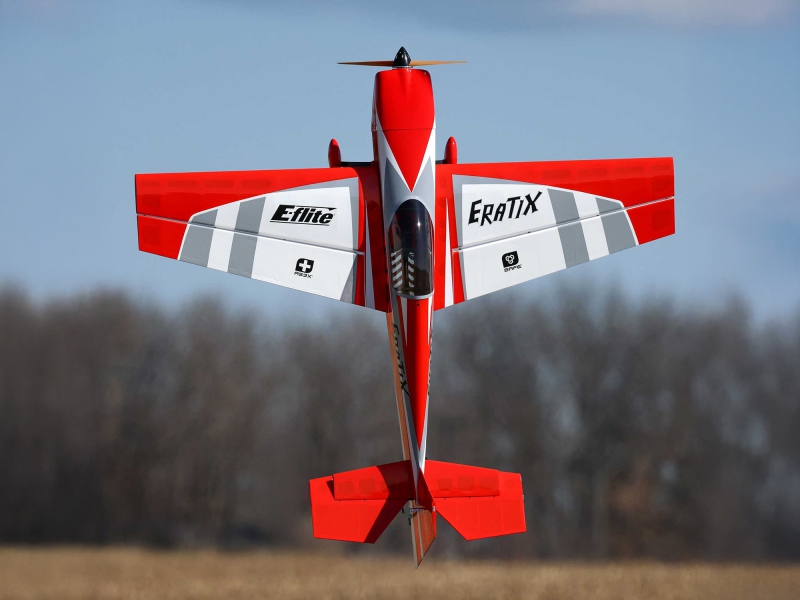

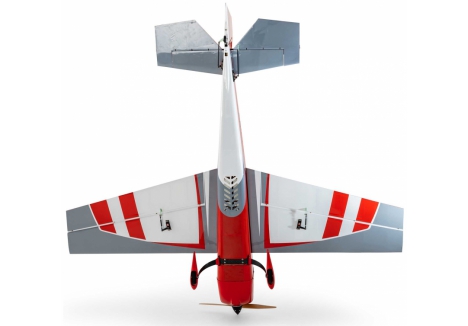

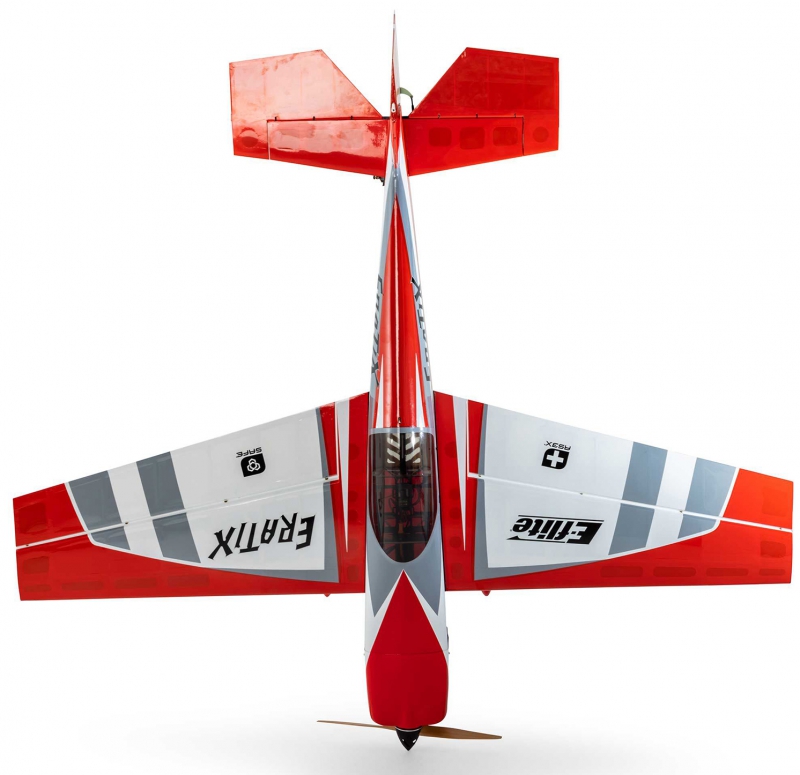

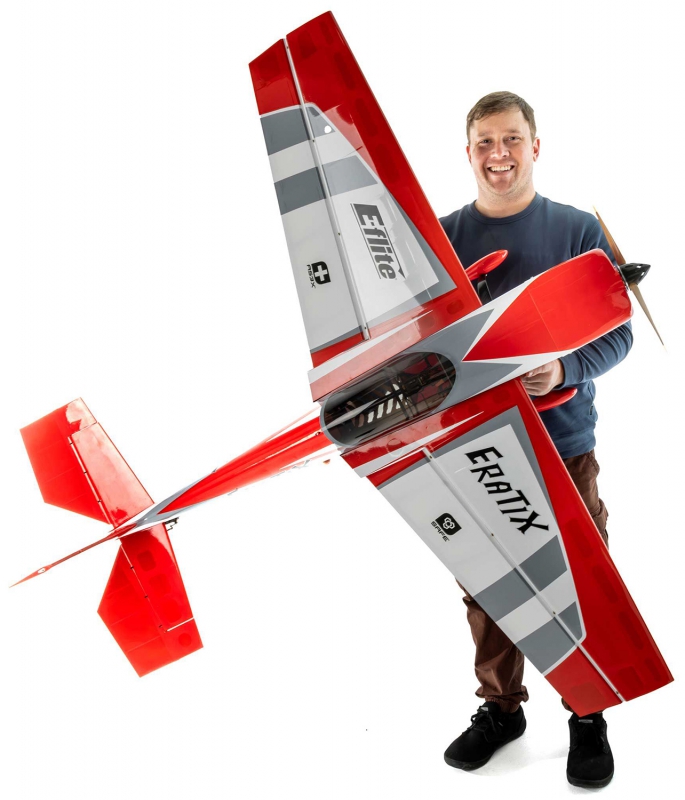

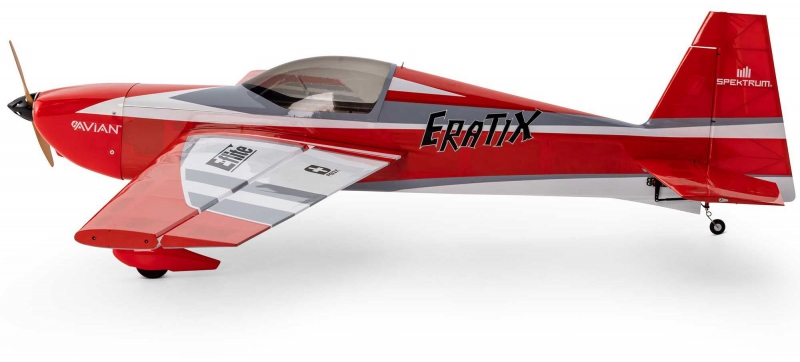

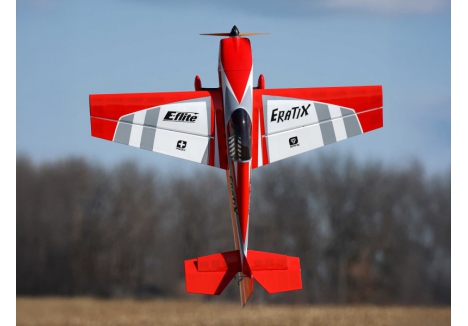

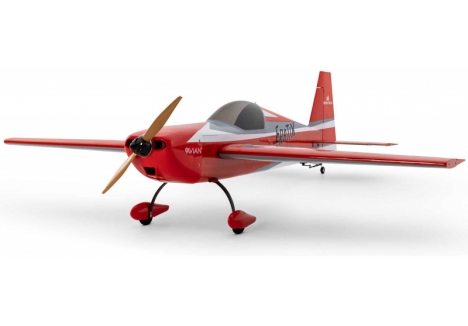

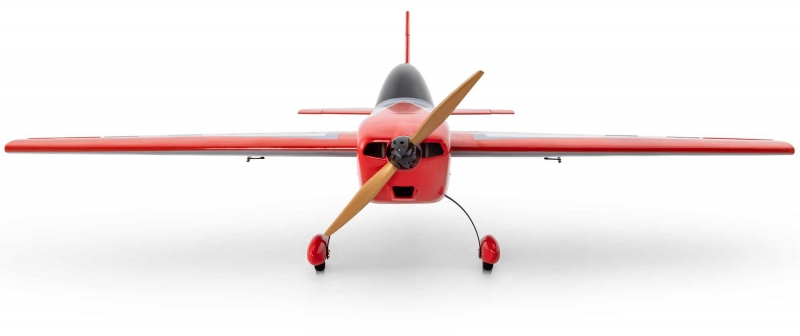

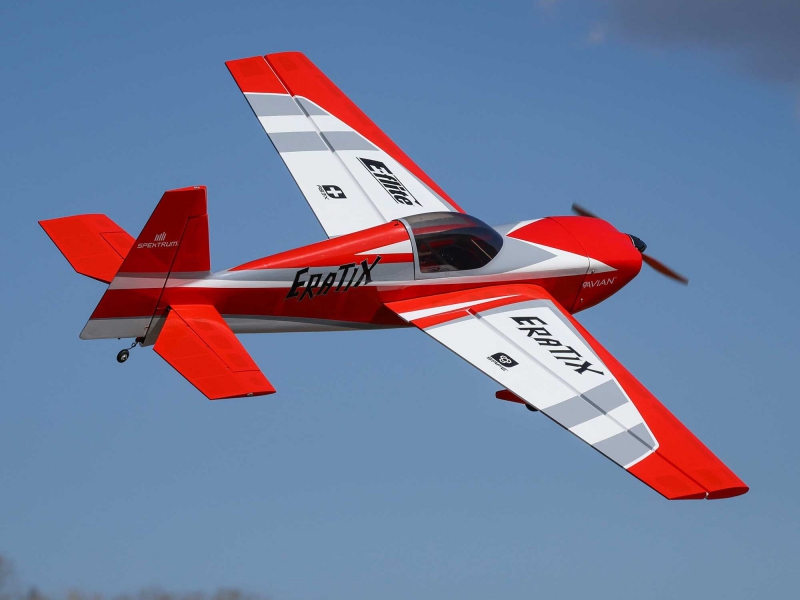

The E-flite Eratix 3D SWS (Sport Wood Series) 1.6m (64") is a larger version of the popular Eratix 3D FF (Flat Foamy) 860mm that features the benefits of lightweight and rigid built-up wood construction! It's available in both an ARF and a first-ever BNF Basic version that bolts together in almost no time compared to other similar class ARF and PNP models.
Key Features
- Based on the design of the popular Eratix 3D FF (Flat Foamy) 860mm model but in a larger size with unique performance and capabilities

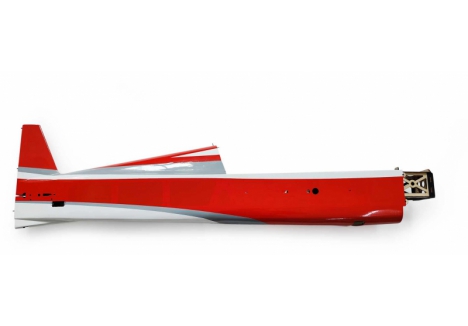

- Strong and stiff - yet lightweight and long-lasting - built-up wood and carbon fibre reinforced airframe finished with genuine UltraCote film covering
- Spektrum Avian 5055-500Kv brushless motor compatible with 6S batteries
- 100-amp Spektrum Avian Smart ESC provides real-time battery voltage, current and other data via compatible receivers and transmitters
- Spektrum AR637TA+ receiver with full-range telemetry and industry-leading DSMX technology
In The Box
- (1) E-flite Eratix 3D SWS 1.6m (64") BNF Basic with:

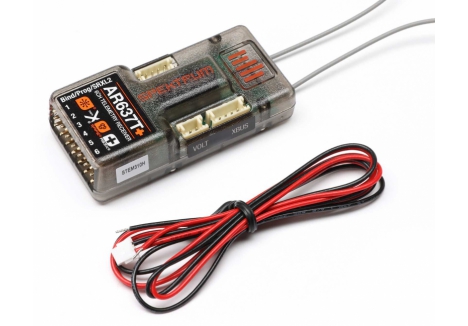

- (1) Spektrum AR637TA+ 6-Channel Receiver with AS3X+ and SAFE Select (installed)

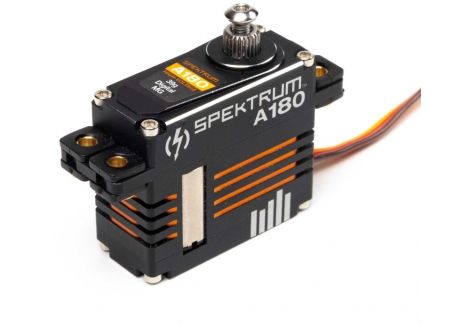

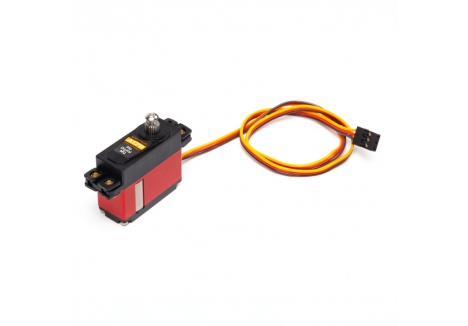

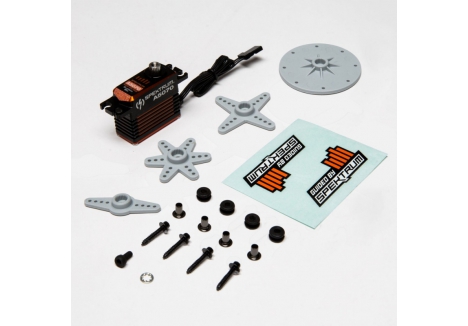

- (2) Spektrum A180 HV Digital, Metal-Geared Mini Servos (installed on rudder and elevator)
- (2) Spektrum A179 HV Digital, Metal-Geared Mini Servo (installed on ailerons)

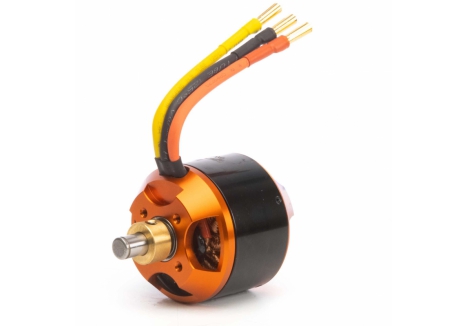

- (1) Spektrum Avian 5055-500Kv Brushless Outrunner Motor (installed)
- (1) Spektrum Avian 100-Amp Brushless Smart ESC (installed)
- (1) Product Manual
Needed to Complete
- Full-range 4-6+ channel Spektrum™ DSMX®/DSM2® compatible transmitter

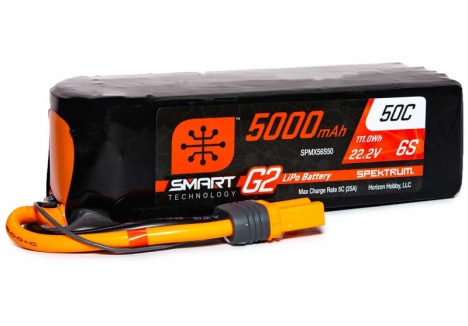

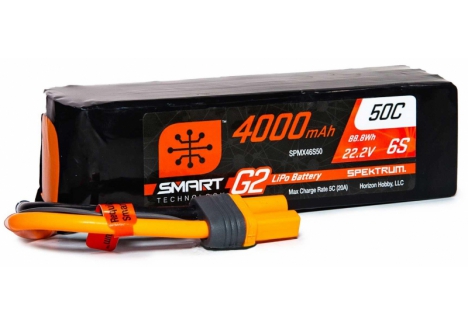

- 6S 22.2V 3200-7000mAh LiPo with EC5™ or IC5™ Connector
- Compatible LiPo charger

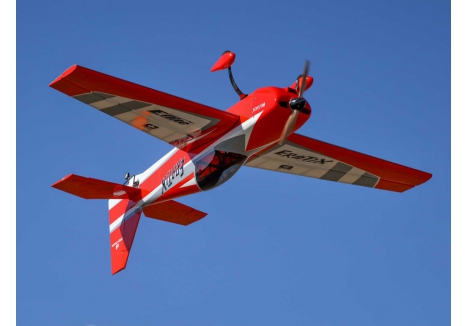

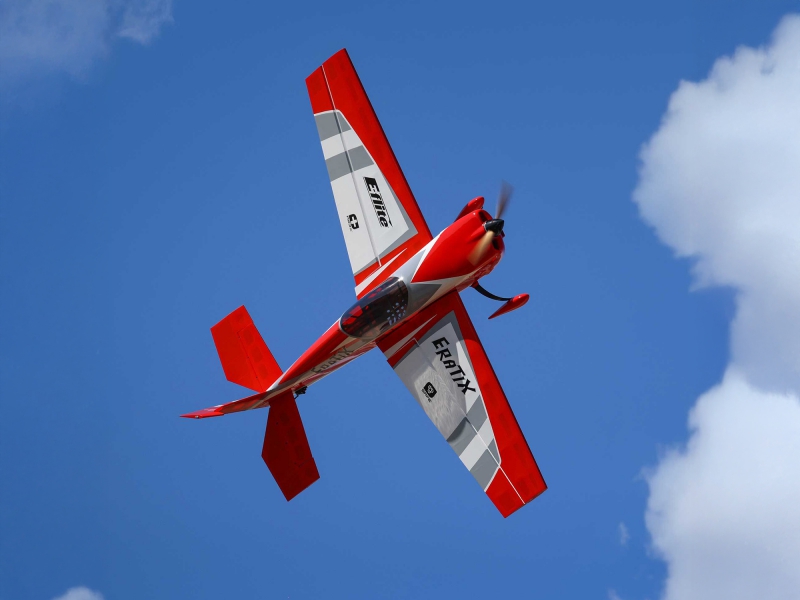

E-flite Eratix 3D SWS 1.6m (64") RC Plane Introduction
The E-flite® Eratix 3D FF (Flat Foamy) 860mm took the market by storm by being the most convenient, easiest to assemble, and fly "flat foamy" model in its class. Now the Eratix 3D SWS (Sport Wood Series) 1.6m (64") offers those same benefits along with the advantages of lightweight, stiff, and strong wood construction to deliver excellent flight performance plus convenience and value unlike similar class models. It's the first-ever wood-built and fully 3D capable model of its size available in a BNF Basic version - that assembles quickly and easily without any glue - equipped with factory-installed high voltage digital and metal-geared servos, a 6S compatible Spektrum Avian motor and Smart ESC, plus a 6-channel receiver with AS3X+ and SAFE Select technologies. It's also available in an ARF version that's ready for installation of your preferred power system and electronics.
E-flite Eratix 3D SWS 1.6m (64") RC Plane Overview

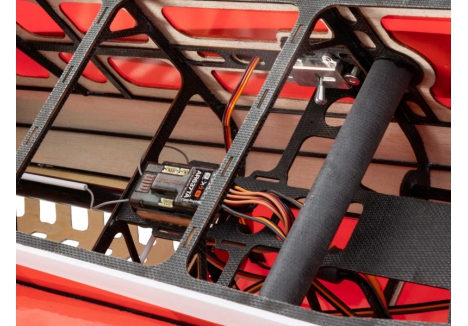

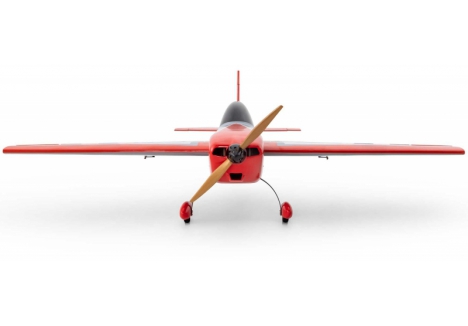

The E-flite® Eratix 3D Sport Wood Series (SWS) 1.6m (64") offers the aggressive aerobatic plus smooth sport flying performance of similar models - without all the hassles of building one! The BNF Basic version assembles without glue and can be ready to fly in less time compared to the many hours it usually takes to construct other models in its class. It's based on the design of the "flat foamy" Eratix but features strong, stiff, and lightweight built-up wood construction. The balsa and plywood airframe with carbon fibre reinforcement throughout arrives factory-finished with genuine UltraCote™ film covering. The BNF Basic version arrives mostly factory-assembled, so you can have it flying in almost no time - without glue or special tools. A two-piece wing that installs without fasteners and tools makes it easier to store and transport. Plus, you can install the included and optional-use Side Force Generators (SFGs) for even better aerobatic capabilities.
The BNF (Bind-N-Fly) Basic version features four factory-installed high-voltage digital and metal-geared Spektrum servos, a 6S-compatible Avian 5055-500Kv outrunner motor, and a 100-amp Smart ESC that provides a variety of power system-related telemetry data with both Smart and non-Smart batteries via compatible Spektrum AirWare-equipped transmitters. This version is also equipped with an AR637TA+ receiver that provides full-range, real-time telemetry data, including overall battery voltage, current draw, ESC temp, and more, plus motor reversing for special ground handling and other capabilities. It also features the benefits of enhanced AS3X+ that's been specifically tuned for 3D/XA (eXtreme Aerobatic) performance without compromising feel, along with optional-use SAFE Select technology. The ARF (Almost-Ready-To-Fly) version is ready for you to install the electronics and power system you prefer.
Both versions feature carbon fibre landing gear with optional-use wheel pants, and a large and top-mounted canopy hatch for easy access to the battery compartment. They're also equipped with pin hinges for the ailerons, along with captured pin hinges for the elevator and rudder for easy and glue-free control surface installation or replacement. It all combines to make the Eratix 3D SWS a great first-ever "wood" and everyday sport flying to 3D aerobatic model for intermediate to experienced pilots!
E-flite Eratix 3D SWS 1.6m (64") RC Plane Features
- Based on the design of the popular Eratix 3D FF (Flat Foamy) 860mm model but in a larger size with unique performance and capabilities
- A great first-ever "wood" and everyday sport flying to 3D aerobatic capable model for intermediate to experienced pilots
- Strong and stiff – yet lightweight and long-lasting – built-up wood and carbon fibre reinforced airframe finished with genuine UltraCote film covering

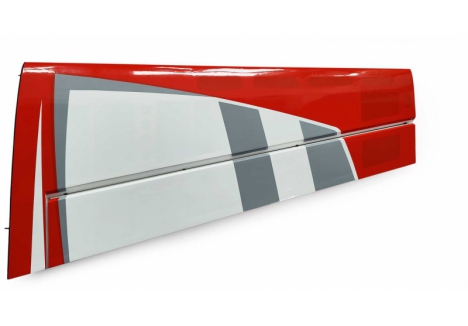

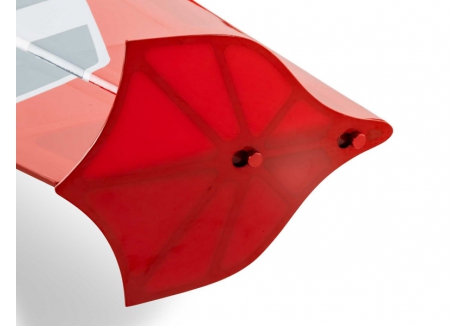

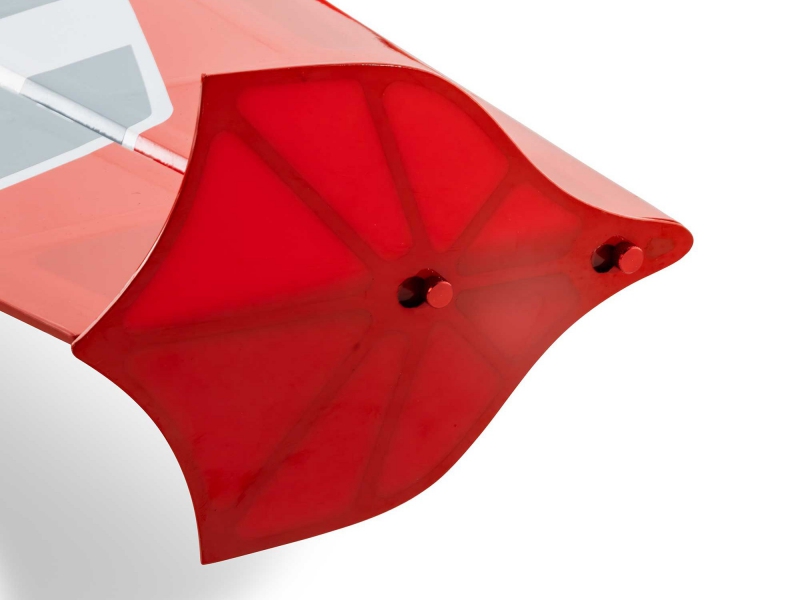

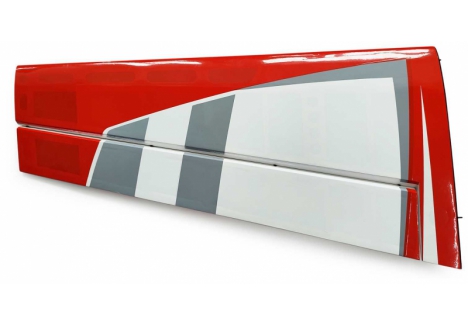

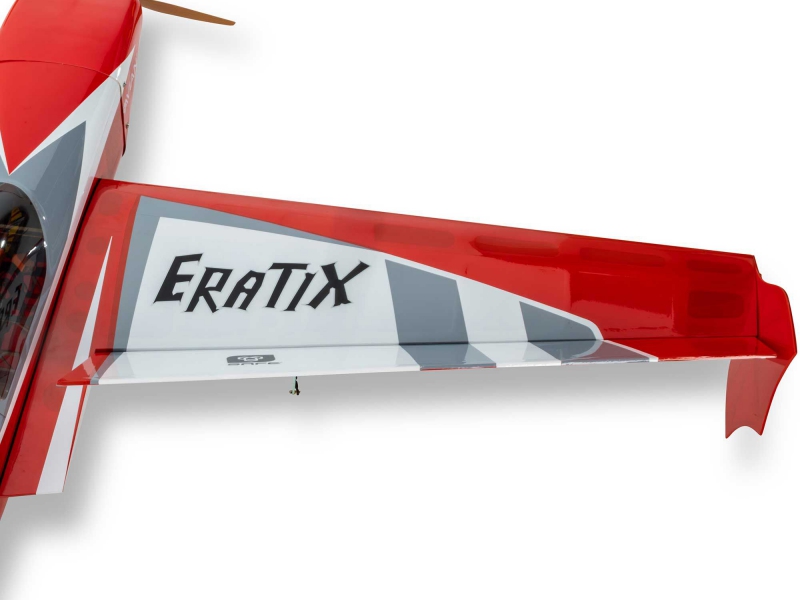

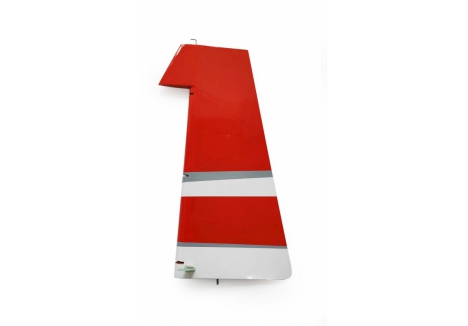

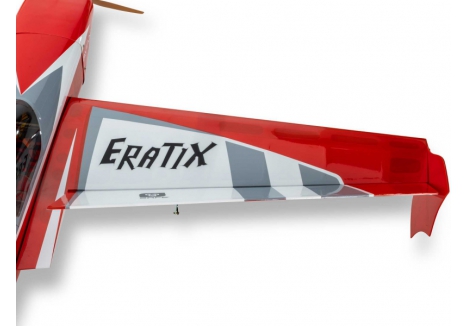

- Two-piece wing with padded roots that installs without fasteners or tools makes it easier to store and transport

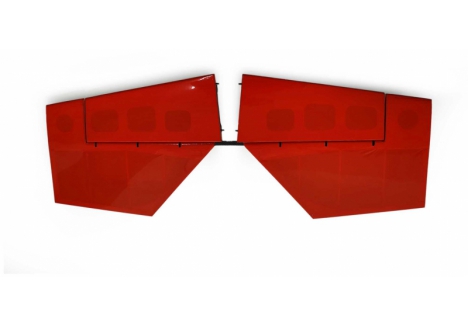

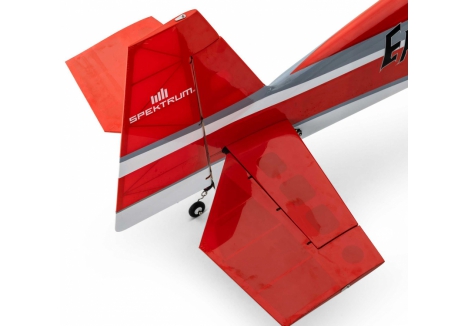

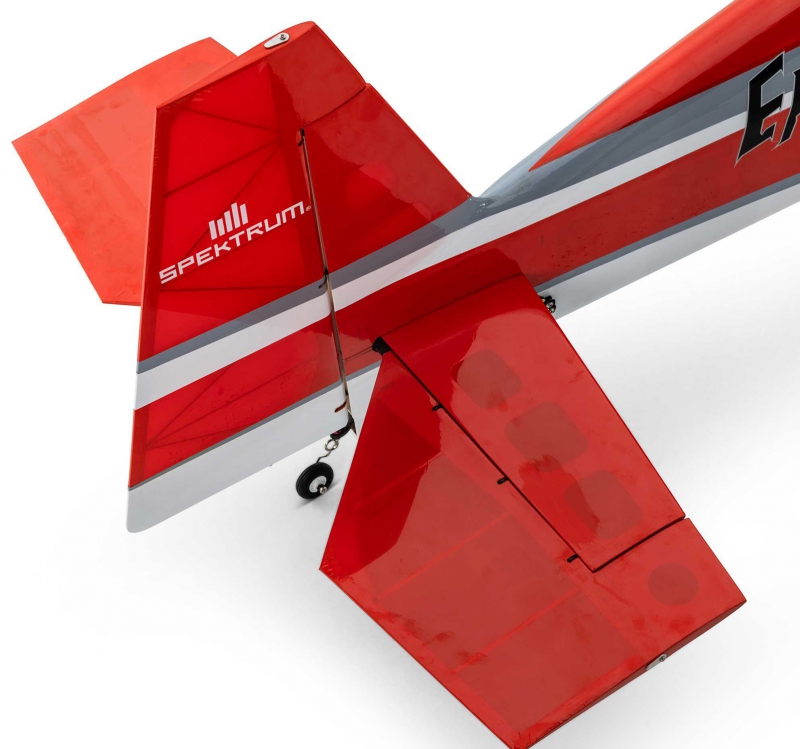

- Pin hinges for the ailerons, plus captured pin hinges for the elevator and rudder for easy control surface installation or replacement

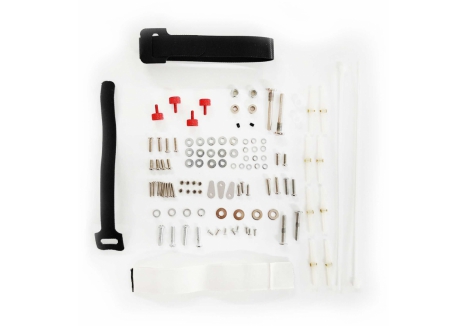

- Fast and easy bolt-together assembly – no glue or special tools required

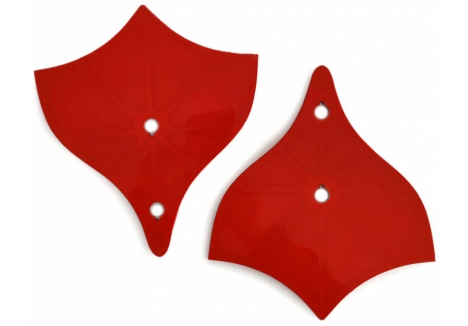

- Includes optional-use Side Force Generators (SFGs) for even better aerobatic capabilities

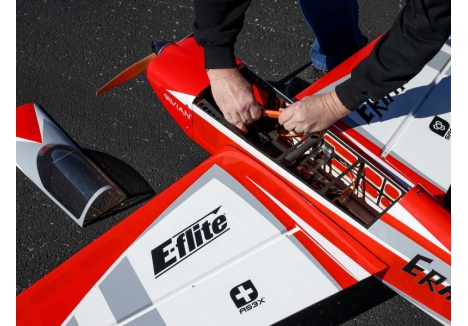

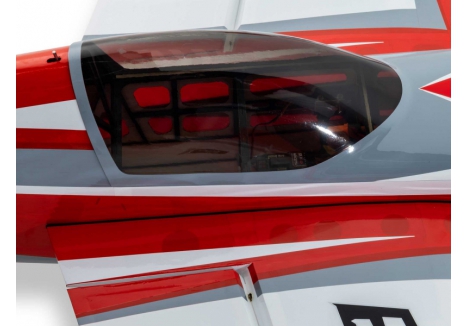

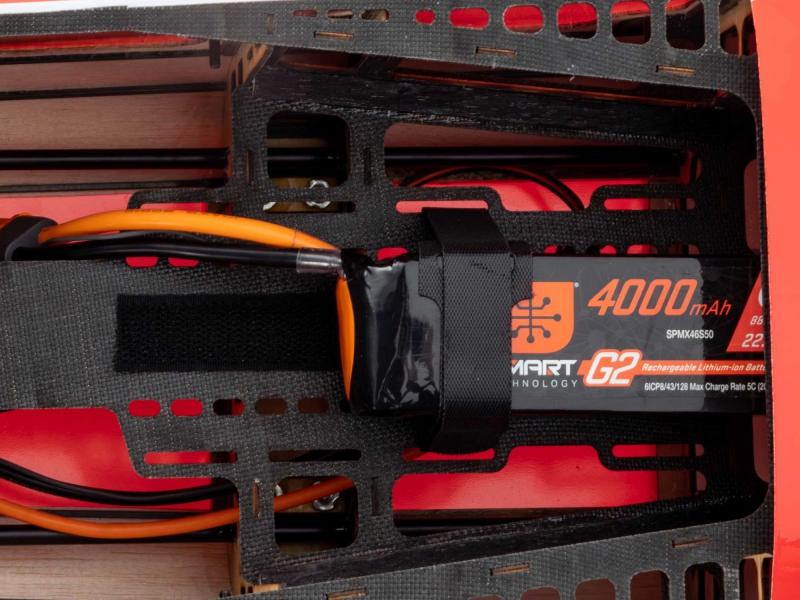

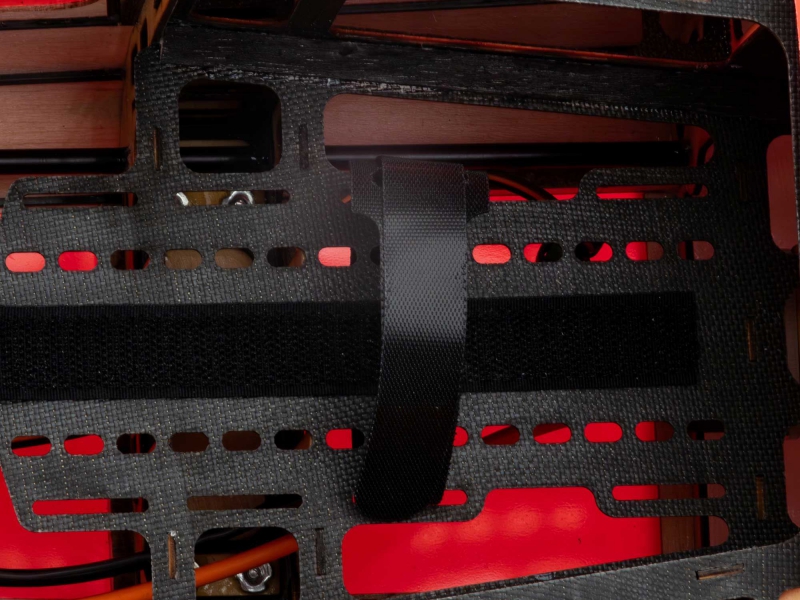

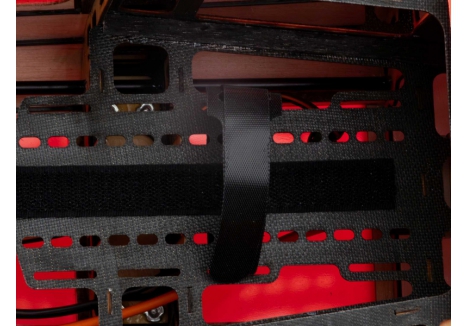

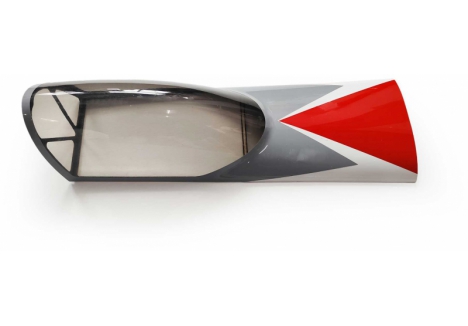

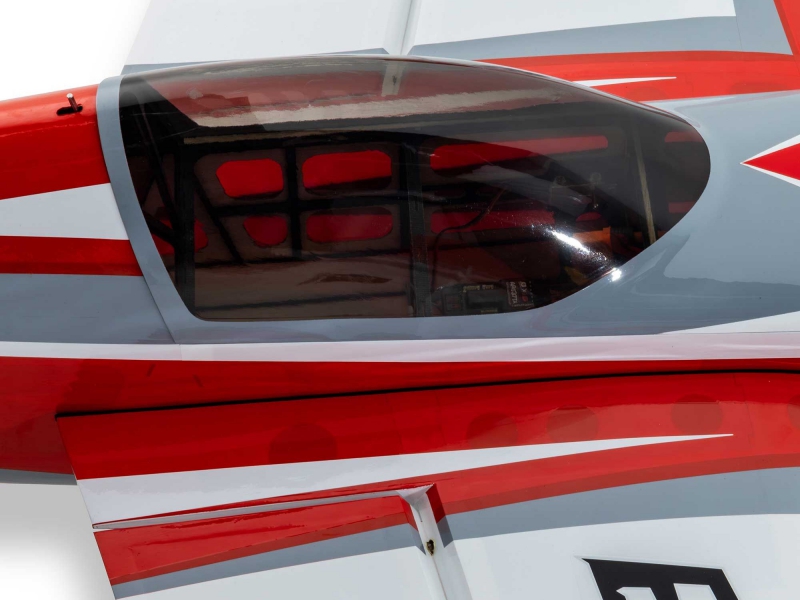

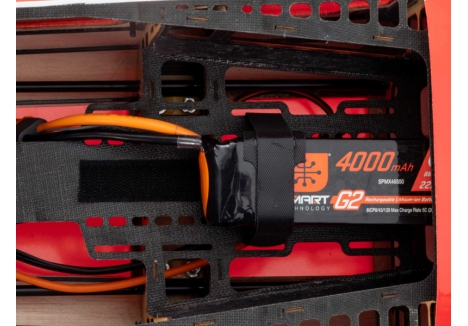

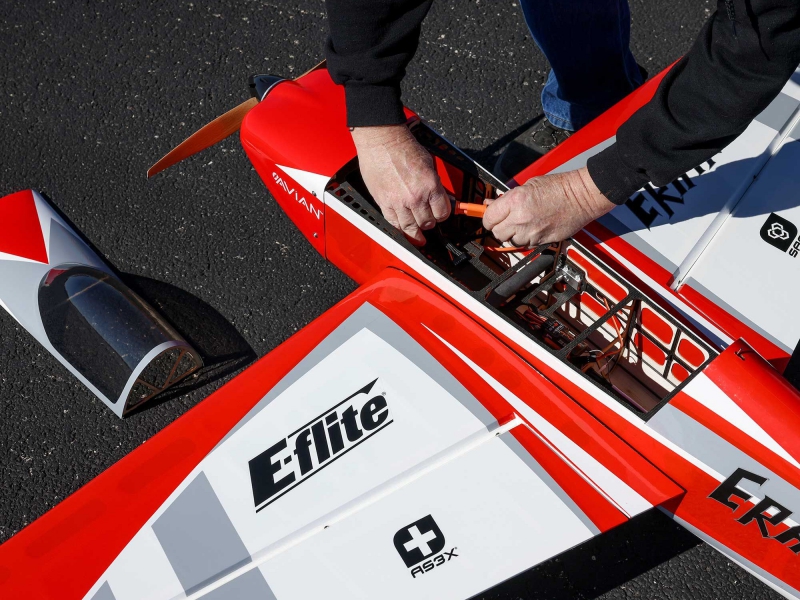

- Large and top-mounted canopy hatch for easy access to the battery compartment
- Four durable, factory-installed high voltage metal-geared and digital Spektrum mini servos
- Spektrum Avian 5055-500Kv brushless motor compatible with 6S batteries
- Popular and common 3200–7000mAh batteries deliver a wide range of performance and flight times
- 100-amp Spektrum Avian Smart ESC provides real-time battery voltage, current and other data via compatible receivers and transmitters
- Optional-use motor reversing for special ground handling and other capabilities including shortened rollouts after landing

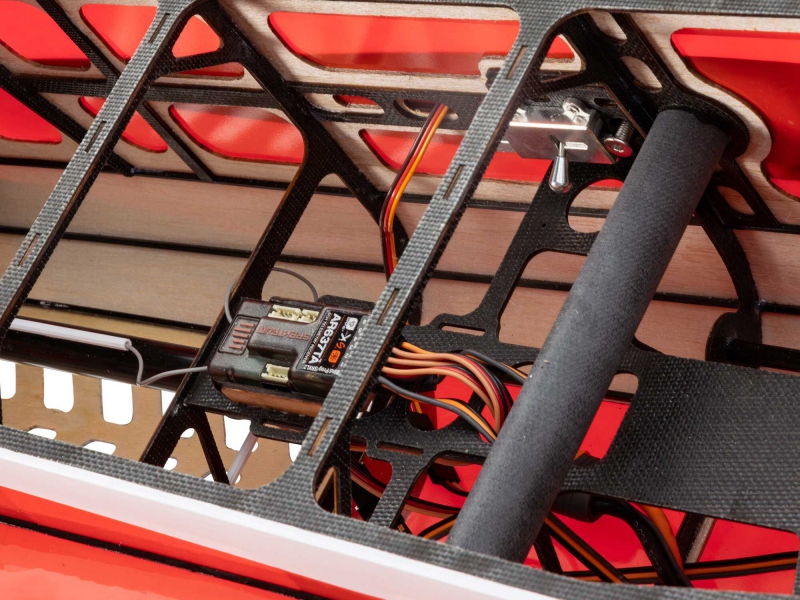

- Spektrum AR637TA+ receiver with full-range telemetry and industry-leading DSMX technology
- Receiver loaded with a Smart Transmitter File that allows you to import all settings for NX and iX series transmitters during the binding process
- Easier to fly with innovative and optional-use SAFE Select flight envelope protection
- The unmatched stability and locked-in feel of exclusive and enhanced AS3X+ technology specifically tuned for 3D/XA (eXtreme Aerobatic) performance without compromising feel

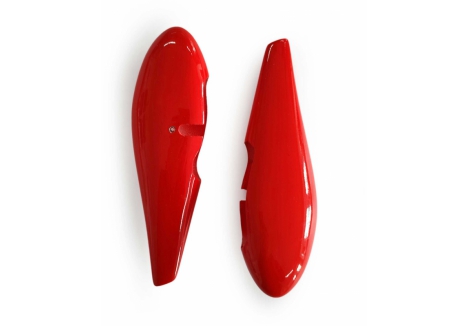

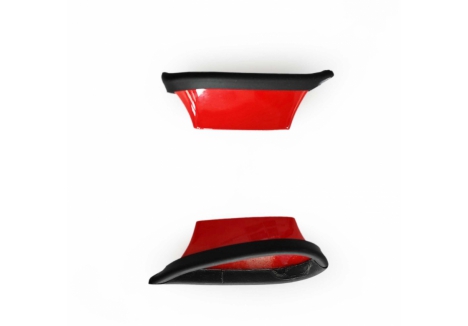

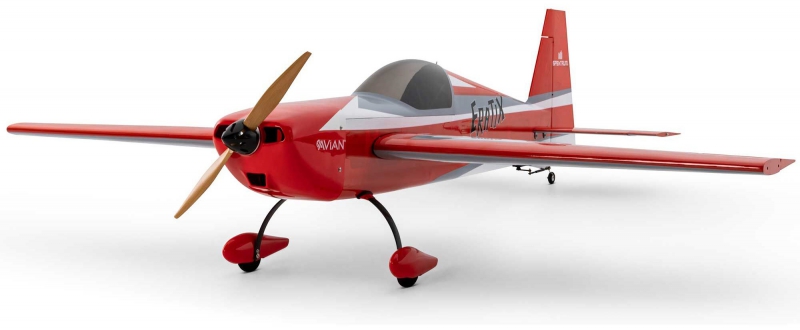

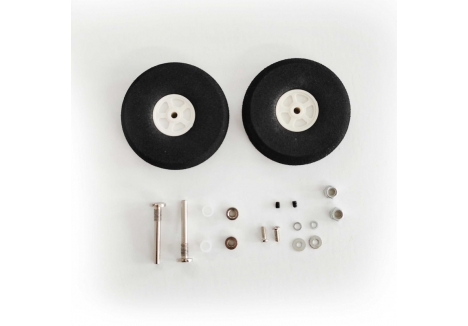

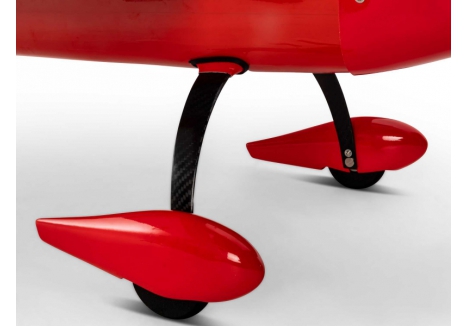

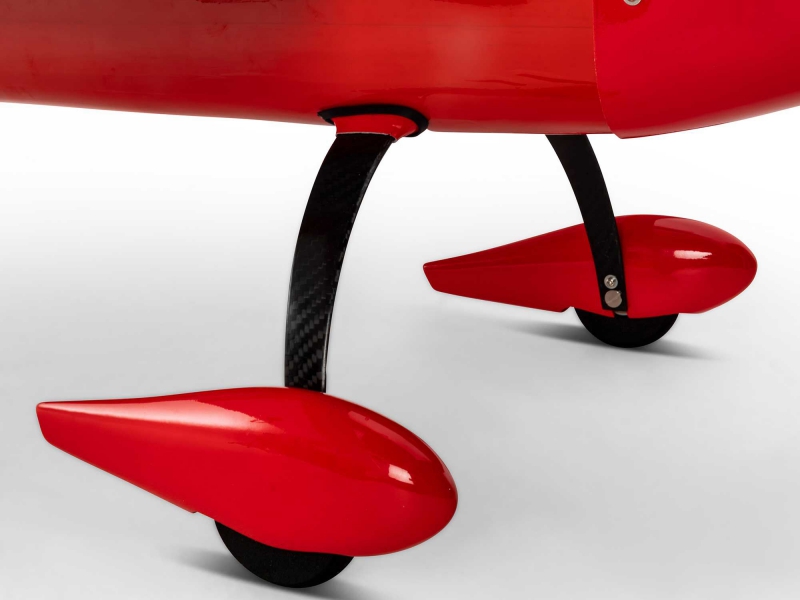

- Carbon fibre landing gear with optional-use wheel pants

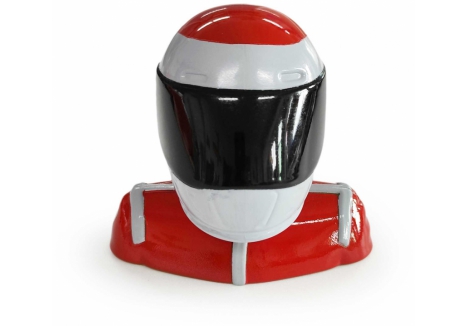

- Optional pilot figure that’s painted to match (sold separately)

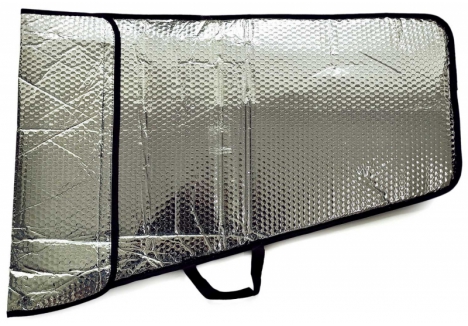

- Includes standard wing bag
Bind-N-Fly Completion Level Advantage
Already own a Spektrum™ transmitter? Bind-N-Fly (BNF) aircraft make getting into the air quickly and with the best control experience possible easier than ever. They come out of the box with the power system, servos and a Spektrum 2.4GHz receiver installed so all you need to do is bind the receiver to a compatible transmitter, finish any final assembly, and fly!
This Bind-N-Fly Basic model is equipped with a Spektrum 2.4GHz DSMX® receiver featuring AS3X+ (Artificial Stabilization-3-aXis+) technology that works behind the scenes to smooth out the effects of wind and turbulence. The result is a heightened sense of stability and precision that makes you feel like you're flying a much larger, expertly tuned aircraft.
If this is your first model of its type, or you want an extra margin of safety while familiarizing yourself with the airplane, you can enable the optional-use SAFE® Select flight envelope protection technology built into the receiver. No programming is required. Simply change up the binding sequence as directed in the manual.
With SAFE Select enabled, you get:
Pitch and Bank Angle Limits
- These envelope limits keep the airplane from rolling or pitching upside down. They also prevent excessive climb or dive angles.
Automatic Self-Leveling
- The airplane instantly returns to and holds level flight when the sticks are released and in the centre position. It's also helpful for keeping the wings level during takeoffs/launches and landings.
Easy Switch Assignment-No Complex Programming Required
- The simple procedure for assigning a transmitter switch to turn SAFE Select features on and off doesn't require any complex programming and takes just a few seconds.
If you don't want to enable the SAFE Select features, just bind the receiver normally and it will function like a standard AS3X+ receiver.
