RLKR081010

Overview

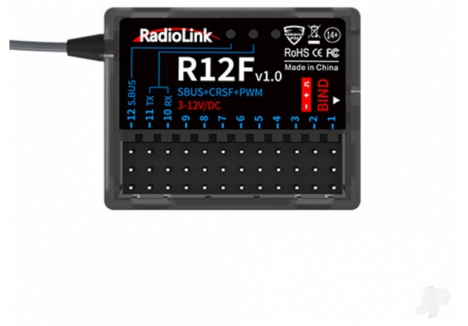

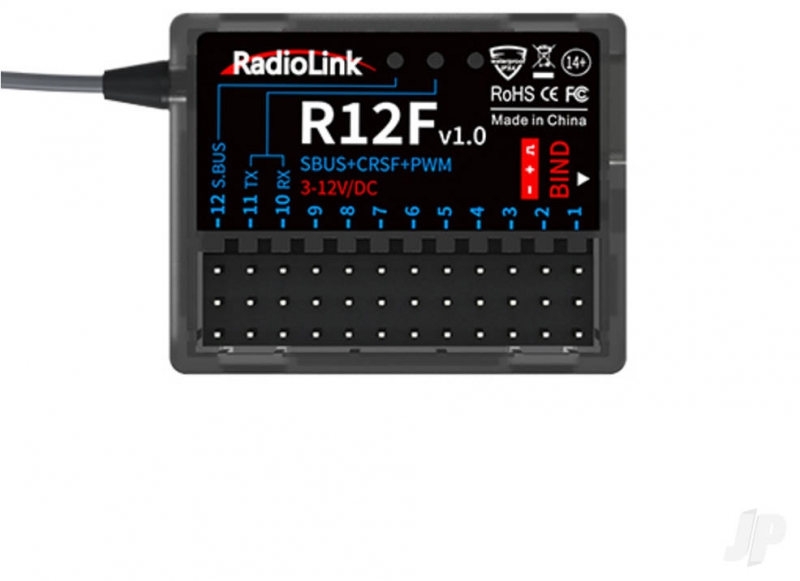

The RadioLink R12F 2.4GHz 12-channel receiver is a versatile and compact solution for RC enthusiasts across the UK who demand flexible signal control options without compromising on quality or performance. Whether you're piloting a fixed-wing aircraft, multi-rotor drone, or ground-based RC vehicle, this receiver delivers reliable, interference-resistant performance thanks to its advanced 2.4G FHSS spread spectrum algorithm and 67-channel pseudo-random frequency hopping technology. The R12F is engineered to provide excellent anti-interference performance in crowded RF environments, making it an ideal choice for outdoor RC flying sites and busy RC racing venues throughout the UK. Its compact, lightweight design helps keep overall model weight low whilst offering ample channel capacity for complex setups, whether you prefer traditional PWM wiring or modern serial connections.

This receiver comes factory-bound to the RadioLink T12D transmitter, meaning you can get started immediately without additional setup hassles. For those purchasing a standalone R12F receiver to expand an existing RC system, the binding process is straightforward and takes just minutes. The receiver supports multiple signal output protocols—PWM, SBUS, and CRSF—giving you the flexibility to integrate with virtually any flight controller, ESC, or servo configuration. Whether you're a seasoned RC competitor, a weekend basher, or just discovering the world of RC for the first time, the R12F provides the reliable connectivity and multi-channel capacity you need for advanced RC model control.

RC Model Shop stocks the RadioLink R12F as part of our comprehensive range of radio control systems and receivers. We understand that choosing the right receiver is crucial for safe, reliable RC operation, which is why we stock only authorised RadioLink products with full technical support. This receiver is particularly popular with UK RC pilots who demand compatibility with the latest flight controller platforms whilst maintaining the proven reliability of the RadioLink brand.

Key Features

• 12 Full Proportional Channels — The R12F delivers 12 independent, fully-proportional control channels, providing sufficient capacity for complex aircraft with multiple control surfaces, multi-rotor drones with advanced flight modes, or ground-based vehicles with extensive servo requirements. Each channel operates independently with smooth, proportional output that allows precise model control.
• 2.4GHz FHSS Technology with 67-Channel Frequency Hopping — Using advanced 2.4G FHSS (Frequency Hopping Spread Spectrum) with 67-channel pseudo-random frequency hopping, the R12F achieves excellent anti-interference performance in congested RC environments. This technology is particularly valuable at busy UK RC flying sites and racing venues where multiple transmitters operate simultaneously.
• Multiple Signal Output Protocols (PWM, SBUS, CRSF) — The receiver supports three different signal output modes—traditional PWM (9 channels), SBUS serial output, and modern CRSF protocol—allowing seamless integration with any flight controller platform. Whether you're using legacy equipment or cutting-edge flight controllers, the R12F adapts to your setup.
• Four Flexible Working Modes — The R12F can operate in four distinct working modes: PWM only (12 channels), PWM+SBUS (11 PWM channels plus SBUS on channel 12), PWM+CRSF+SBUS (9 PWM channels with CRSF telemetry), or PWM+CRSF (9 PWM channels with CRSF telemetry). Mode switching is achieved by pressing the binding button—no software required.
• Real-Time Signal Strength Monitoring (RSSI) — The T12D transmitter displays RSSI (Received Signal Strength Indication) values directly on its LCD screen, allowing you to monitor signal quality throughout your flight or RC session. The closer the RSSI value is to 0dBm, the stronger the signal; this diagnostic capability helps identify antenna problems or interference issues before they cause control loss.
• Firmware Update Capability — The R12F supports firmware updates via USB Type-C connection, ensuring you can benefit from performance improvements and new features released by RadioLink. Updates are simple to perform and require no specialist knowledge.
• Anti-Polarity Protection — The receiver features integrated anti-polarity protection, meaning if your battery is accidentally connected in reverse, the receiver itself will not be damaged. However, servo connections must still be checked carefully to avoid damage to servos.
• Compact, Lightweight Construction — Weighing just 10 grams (0.03 pounds), the R12F minimises the weight penalty on your RC model whilst maintaining all essential performance characteristics. Its small physical footprint makes installation straightforward even in space-constrained airframes.
• Factory-Bound Configuration — When purchased as part of the T12D system, the R12F arrives pre-bound and ready to use immediately. The transmitter displays a signal tower icon confirming successful binding before you even power up your model.
• Telemetry Integration Ready — The R12F works with flight controller telemetry systems, allowing you to view critical flight data (altitude, speed, battery voltage, GPS position) directly on the T12D transmitter's display screen, provided you have the correct telemetry cable connected to your flight controller.

Technical Performance

The R12F is built to the exacting standards expected by professional RC pilots and serious hobbyists across the UK. Its 2.4GHz frequency band operates on the internationally recognised spectrum, eliminating the need for frequency crystal management that older 35MHz receivers required. The 67-channel pseudo-random frequency hopping algorithm ensures that even in environments with significant RF noise or interference from WiFi networks and other wireless devices, the receiver maintains a robust connection to the transmitter. The receiver supports PWM output on channels 1–9 with standard servo pulse widths (typically 1000–2000 microseconds), SBUS serial output on channel 12 (a single-wire protocol carrying all 12 channels), and CRSF telemetry protocol on channels 10–11. Signal quality is continuously monitored and reported as RSSI values; normal operation typically shows RSSI values between 0 and ?30dBm. The receiver is engineered with precision electronic components and requires careful installation away from sources of electromagnetic interference such as motors, ESCs, and power distribution systems. The antenna is critical to performance—the transparent line approximately 4–5 centimetres long extending from the grey coaxial cable is the actual antenna element and must never be bent, broken, or placed parallel to the ground. Instead, the antenna should be positioned vertically to the ground and kept at least half an inch away from metal objects, carbon fibre components, and conductive materials that would reflect RF signals and degrade range. For models containing significant metal components, dual antenna positioning on opposite sides of the airframe provides optimal signal coverage in all flight attitudes. The receiver operates from 4.0V to 6.0V input voltage, typically powered by separate receiver batteries (such as 4-cell NiMh packs) or BEC-regulated power from your main battery system. All connections use standard RC servo connectors with light-coloured wires for signal, dark-coloured wires for ground, and the middle wire for 5V power.

What's in the Box

• RadioLink R12F 12-channel receiver with integrated antenna
• Grey coaxial cable antenna assembly (approximately 4–5 centimetres transparent section)
• User manual and technical documentation

What You Need to Complete

• RadioLink T12D transmitter (the R12F is bound to this transmitter by default, though it can be rebound to other compatible transmitters if required)
• Receiver battery (typically 4-cell NiMh pack or equivalent voltage source)
• Servo connectors or cable extensions if your model layout requires longer lead lengths
• Flight controller with telemetry port (if you want to enable telemetry functionality)
• Type-C USB cable (if you plan to update firmware or transfer model data)

Frequently Asked Questions

• Can I use the R12F receiver with RC planes, drones, and helicopters? — Yes, the R12F is designed for use with any RC model type that requires proportional control. Its 12 full channels support fixed-wing aircraft with multiple control surfaces, multi-rotor drones (which typically use 4–8 channels), and helicopters with cyclic/collective pitch mixing. The telemetry capability also makes it particularly popular with FPV drone pilots.
• What does RSSI mean and why should I check it? — RSSI (Received Signal Strength Indication) is the signal quality measurement displayed on your T12D transmitter screen. Values between 0 and ?30dBm indicate normal operation; values more negative than ?30dBm suggest weak signal due to damaged antennas, interference, or obstructions. Regularly testing RSSI at your normal flying distance ensures you identify antenna problems before they cause mid-flight signal loss or control issues.
• How do I switch between PWM, SBUS, and CRSF modes? — The R12F automatically operates in one of four modes based on which LED indicators are lit. To change modes, press the binding button on the side of the receiver: one press toggles SBUS on/off (blue LED), two presses within 2 seconds toggles CRSF on/off (green LED). The red LED indicates PWM output is active. Different combinations of LEDs represent the four working modes—no software configuration is required.
• Is the R12F suitable for beginners? — The R12F is a straightforward, reliable receiver suitable for RC pilots of all experience levels. When purchased with the T12D transmitter, it arrives pre-bound and ready to use immediately. For newcomers, the intuitive channel monitor display on the T12D's LCD screen makes it easy to verify all channels are functioning correctly before flight.
• What voltage does the R12F receiver need? — The R12F operates from 4.0V to 6.0V, which means it can use a 4-cell NiMh receiver battery pack (4.8V nominal) or be powered through a BEC (Battery Elimination Circuit) from your main flight battery. If using a separate receiver battery, ensure correct polarity to avoid damage to servo connections (the receiver itself has anti-polarity protection, but servos do not).
• How far can the R12F receive a signal? — The theoretical range depends on antenna installation, environmental interference, and transmitter power. The manufacturer recommends testing RSSI at your intended flying distance to verify signal quality. When antennas are properly installed vertically and kept away from metal interference sources, UK RC pilots typically achieve reliable control at distances exceeding 500 metres in open areas.
• Can I use the R12F with my existing transmitter? — The R12F is designed to work with the RadioLink T12D transmitter, with which it comes pre-bound. It can be rebound to other compatible RadioLink transmitters using the binding procedure described in the manual (position transmitter and receiver 30 centimetres apart, power both on, press the receiver's ID SET binding button for more than 1 second).
• How do I update the R12F firmware? — Firmware updates are performed via USB Type-C connection. Plug a Type-C cable into the receiver whilst holding the binding button, then plug the other end into your computer and release the binding button. The receiver LED will illuminate and a USB flash drive will appear on your computer—simply copy the new firmware file to this drive to update automatically.
• What is the difference between PWM and SBUS output? — PWM (Pulse Width Modulation) uses separate signal wires for each channel, requiring 12 servo connectors for full 12-channel operation. SBUS uses a single serial wire that carries all 12 channels encoded in a single data stream, simplifying wiring but requiring flight controllers with SBUS input capability. CRSF is the latest protocol offering even faster response times and telemetry feedback.
• Is the receiver waterproof? — The R12F electronics are precision components that require protection from moisture and condensation. Whilst the plastic housing provides some protection, you should keep the receiver in a sealed plastic bag in normal conditions and ensure antennas are not exposed to heavy rain during flight. The manual specifically recommends sponge or foam vibration-damping material around the receiver during installation.
