Overview

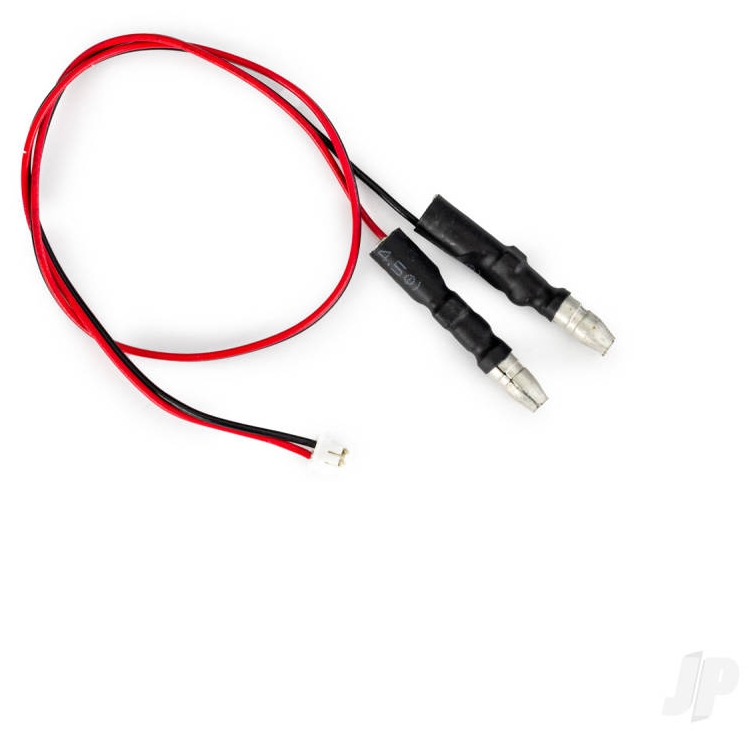

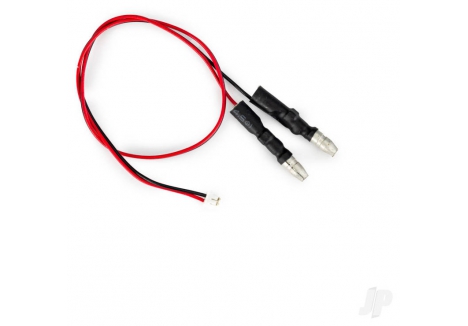

The Traxxas Motor sense wire harness (TRX6597) is an essential component for enthusiasts looking to upgrade their RC crawler or trail truck with the advanced Pro Scale Lighting Control System. This specialist harness integrates seamlessly with Traxxas's innovative lighting ecosystem, enabling you to add authentic scale-model lighting effects to your RC car UK setup. Whether you're a dedicated TRX-4 owner seeking to enhance realism or a serious RC hobbyist in the United Kingdom looking to implement cutting-edge telemetry and lighting control, this motor sense wire harness is a crucial accessory that bridges your speed control and advanced lighting module.
Traxxas has engineered the Pro Scale Advanced Lighting Control System to work in perfect harmony with the TQi receiver and Traxxas Link wireless technology, allowing you to operate full-function LED lighting remotely via the Traxxas Link mobile application. The motor sense wire harness specifically communicates speed and motor data to the lighting control module, enabling intelligent brake lights, turn signals, and reverse lighting that responds dynamically to your driving inputs. This level of integration transforms your ready to run RC vehicle into a scale replica that behaves like a real vehicle, complete with responsive lighting sequences that mirror actual automotive lighting patterns.
Installing the Pro Scale Advanced Lighting Control System on your TRX-4 trail truck or compatible Traxxas model creates an immersive driving experience that combines the thrill of off-road RC racing with the visual authenticity of scale model realism. The motor sense wire harness works in conjunction with the Lighting Power Module (which connects to your speed control) and the Pro Scale Lighting Module itself, creating a fully integrated system that requires no compromise on remote operation or customisability. For UK RC enthusiasts who demand the highest standards of scale accuracy and modern technology integration, this is an indispensable upgrade component.
Key Features
- Motor Speed Sensing Capability — This harness reads real-time motor speed data and transmits it directly to the Pro Scale Lighting Control Module, enabling the system to automatically adjust lighting responses based on vehicle acceleration, deceleration, and speed. This intelligent feedback ensures your brake lights illuminate proportionally when you decelerate and turn signals activate in coordination with steering inputs, creating authentic automotive lighting behaviour that elevates scale realism dramatically.
- Seamless Traxxas Link Integration — The motor sense wire harness is specifically engineered to work with the TQi receiver and Traxxas Link Wireless Module (TRX6511), allowing you to configure and operate all Pro Scale Lighting functions remotely through the Traxxas Link mobile application on iOS or Android devices. This wireless connectivity means you can adjust lighting preferences, test individual light sequences, and monitor system status without stopping your RC truck or returning to your starting point.
- Complete System Compatibility — This harness works in perfect harmony with the full Pro Scale Lighting ecosystem including the Pro Scale Lighting Power Module (which connects to your electronic speed control's red mini plug), the Pro Scale Lighting Module itself, and all Traxxas LED light kits designed for specific TRX-4 models and other Traxxas vehicles. The connector design ensures proper electrical communication without requiring modification to your existing RC setup.
- Enhanced Vehicle Realism — By enabling the lighting system to sense actual motor behaviour, the motor sense wire harness allows your RC car UK to replicate genuine vehicle dynamics through lighting feedback. Your crawler or trail truck will display brake lights that pulse with engine braking, headlights that brighten during acceleration, and reverse lights that activate automatically when you engage reverse, creating scale authenticity that impresses both operators and spectators.
- Professional Telemetry Compatibility — When paired with the Telemetry Expander and Maxx Link Cable (TRX6565), the motor sense harness works within a comprehensive system that provides real-time GPS speed, battery voltage, temperature readings, and advanced performance metrics through the Traxxas Link app dashboard. This allows you to monitor your RC vehicle's performance whilst simultaneously controlling advanced lighting sequences, giving you unprecedented control and data visibility.
- Plug-and-Play Installation — The motor sense wire harness features Traxxas's standard connectors that integrate directly with your speed control and lighting module without requiring soldering, crimping, or complex modifications. Installation takes minutes and maintains the professional appearance of your RC truck's internal wiring whilst ensuring reliable signal transmission.
Technical Performance
The Traxxas Motor sense wire harness represents the engineering excellence that defines Traxxas's approach to RC vehicle systems. Designed specifically for the Pro Scale Advanced Lighting Control System, this harness carries precise motor speed data from your brushless or brushed motor's electronic speed control (ESC) directly to the Lighting Power Module, where sophisticated algorithms interpret this information to drive intelligent lighting responses. The harness features high-quality insulation and shielding that prevents electrical noise interference, ensuring clean signal transmission even in high-vibration off-road conditions common to trail running and crawling. Traxxas engineers have tested this component across the full range of compatible TRX-4 models (including TRX-4 Sport, TRX-4 Defender, TRX-4 Tactical Unit, and other variants) as well as TRX-6 scale crawlers, confirming reliable performance across different motor types, KV ratings, and battery configurations. The harness works seamlessly whether your RC vehicle runs 3S, 4S, or higher LiPo battery packs, and accommodates both 540-size brushed motors and the brushless systems common in modern Traxxas trail trucks. The electrical specifications ensure that motor speed signals are accurately captured across the full throttle range from zero to maximum speed, whilst the physical design allows for neat routing through the chassis without fouling suspension components, steering linkages, or other mechanical systems. Whether you operate your RC crawler on rocky terrain, through water crossings, or in dusty conditions, the motor sense wire harness maintains reliable signal integrity and operates across a wide temperature range, making it suitable for year-round RC hobby use throughout the United Kingdom.
What's in the Box
- Traxxas Motor sense wire harness for Pro Scale Advanced Lighting Control System
- Installation documentation and connection guide
What You Need to Complete
- TRX-4 or compatible Traxxas vehicle with electronic speed control
- Pro Scale Lighting System Kit (model number specific to your TRX-4 variant)
- Pro Scale Lighting Installation Kit (model number specific to your TRX-4 variant)
- Pro Scale LED light kit appropriate for your model
- Pro Scale Lighting Power Module (connects harness to your speed control)
- TQi receiver and TQi transmitter (standard in most TRX-4 and all TRX-6 models)
- Traxxas Link Wireless Module (TRX6511) for remote app control
- Maxx Link Cable (TRX6565) to enable simultaneous lighting and telemetry operation
- Telemetry Expander (TRX6550X or TRX6553X with GPS) for advanced data monitoring
- Telemetry Expander Mount (TRX6561)
Frequently Asked Questions
- What is the motor sense wire harness and why do I need it for Pro Scale Lighting? — The motor sense wire harness is the critical data link between your RC vehicle's speed control and the Pro Scale Lighting Module. It continuously reads your motor's speed and acceleration data, allowing the lighting system to respond intelligently to your driving inputs. Without this harness, the lighting system cannot sense vehicle speed, meaning brake lights won't illuminate when you decelerate, and the entire system loses the ability to create authentic automotive lighting sequences. In essence, this harness is what transforms static LED lights into a fully responsive lighting system that behaves like real vehicle lighting.
- Can I install this motor sense wire harness on my TRX-4 without professional help? — Yes, the motor sense wire harness is designed for straightforward installation by RC enthusiasts with basic mechanical knowledge. It plugs directly into your speed control's connector and into the Pro Scale Lighting Power Module using standard Traxxas connectors—no soldering or crimping is required. The Traxxas website provides detailed installation guides and video tutorials, and most users report completing the installation in under 15 minutes. However, the complete Pro Scale Lighting system installation (including the harness, lighting module, and all LED light assemblies) is more involved and may take 1-2 hours depending on your TRX-4 model and your familiarity with RC vehicle assembly.
- Does the motor sense wire harness work with both brushless and brushed motors? — Yes, the motor sense wire harness is compatible with both brushless and brushed motor configurations, as long as your speed control properly outputs motor speed data. Most Traxxas electronic speed controls (both contemporary and recent-generation models) transmit this data via the standard data connector that the harness plugs into. If you're upgrading an older TRX-4 with vintage brushed motors and older ESC models, you should verify that your specific speed control variant supports motor telemetry output—Traxxas customer support (1-800-TRAXXAS) can confirm compatibility for your exact vehicle configuration.
- Can I use the motor sense wire harness with other manufacturers' lighting systems? — The motor sense wire harness is specifically engineered for Traxxas Pro Scale Lighting systems and uses Traxxas's proprietary connector standards and signal protocols. Whilst the harness may physically connect to other brands' controllers in some cases, it will not function correctly because the signal format and voltage specifications are unique to Traxxas systems. For optimal performance and reliability, use this harness exclusively with official Traxxas Pro Scale Lighting components and with compatible TRX-4 or TRX-6 vehicles.
- What battery voltage and capacity does the motor sense wire harness support? — The motor sense wire harness itself does not have direct battery requirements—it simply reads and transmits motor speed data. However, the complete Pro Scale Lighting system operates across the same battery range as your TRX-4 vehicle, which typically supports 2S, 3S, and 4S LiPo battery packs (7.4V to 14.8V nominal). The system has been tested across this full voltage range and functions reliably from the lowest charged state of a 2S pack through the maximum voltage of a freshly charged 4S pack.
- Does this harness require the Traxxas Link app to function? — The motor sense wire harness itself will function without the Traxxas Link app—it continuously transmits motor speed data to the Pro Scale Lighting Module, enabling responsive lighting sequences. However, to configure the system, customise lighting behaviour, test individual light sequences, and access the full feature set of the Pro Scale Lighting system, you need the TQi receiver, Traxxas Link Wireless Module (TRX6511), and the Traxxas Link mobile application installed on an iOS or Android device. The harness enables this connectivity but does not require it for basic operation.
- Can I monitor motor speed data on my Traxxas Link dashboard if I install this harness? — Motor speed data is transmitted through the motor sense wire harness to the Pro Scale Lighting Power Module, where it's used to drive intelligent lighting responses. If you also install a Telemetry Expander system and use the Maxxlink Cable to connect all components, the Traxxas Link app will display comprehensive performance data including motor RPM (indirectly via speed sensors if installed), GPS speed, battery voltage, and temperature readings. The motor sense wire harness is the foundational component that enables this data visibility throughout your entire Traxxas Link system.
- Is the motor sense wire harness waterproof and suitable for water crossings? — The connectors on the motor sense wire harness are designed with standard Traxxas weatherproofing appropriate for typical RC trail driving, including shallow water fords and wet conditions. However, the complete Pro Scale Lighting system (including the motor sense harness, Power Module, and all lighting components) is not fully submersible and should not be submerged in deep water. If your RC crawler regularly crosses deep water holes or streams, consult Traxxas technical support regarding waterproofing recommendations for your specific setup.
