FUT05102308-3

Overview

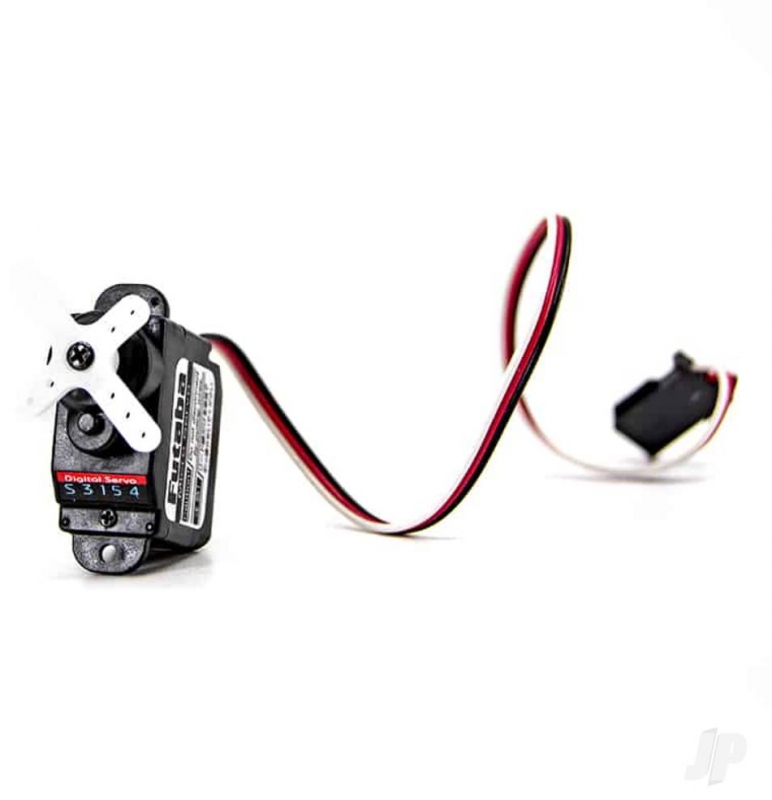

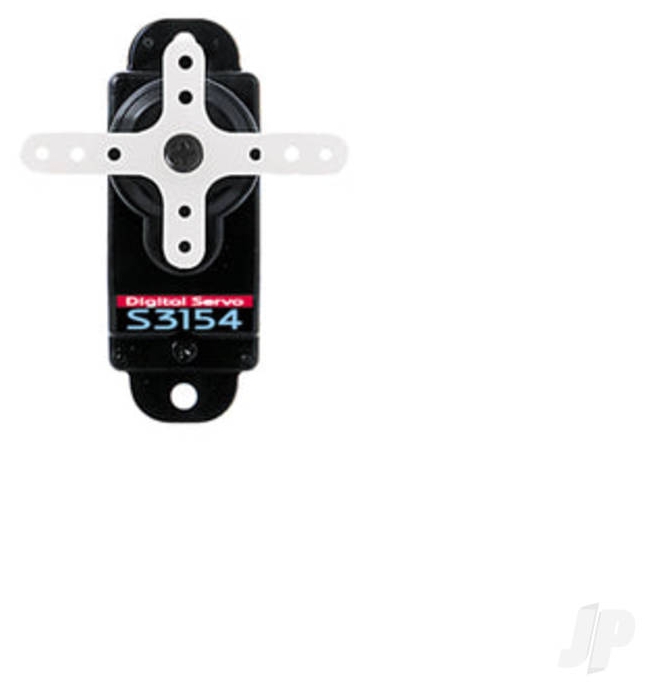

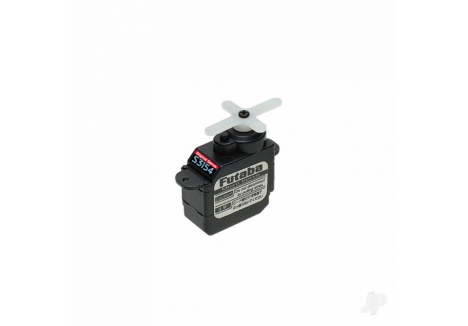

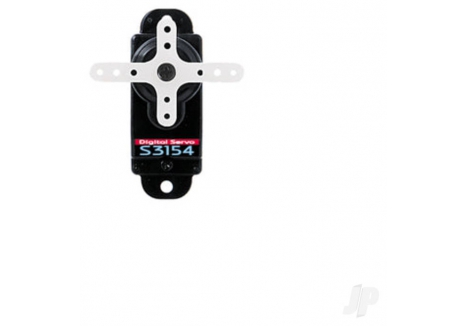

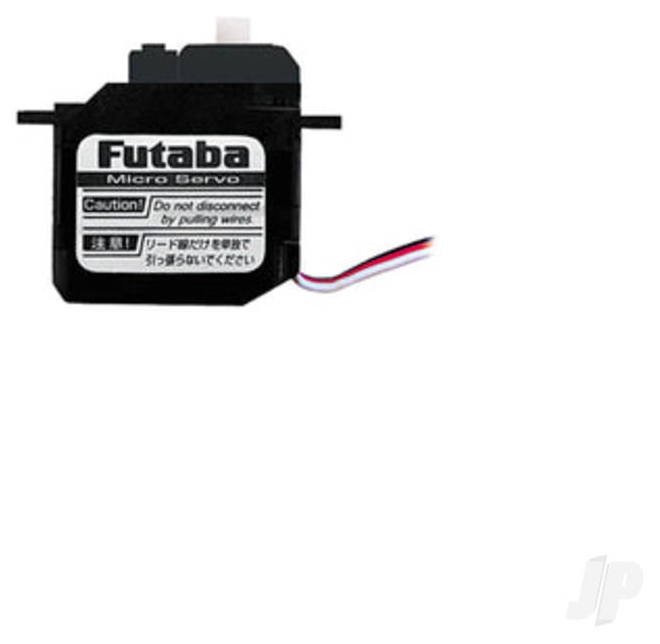

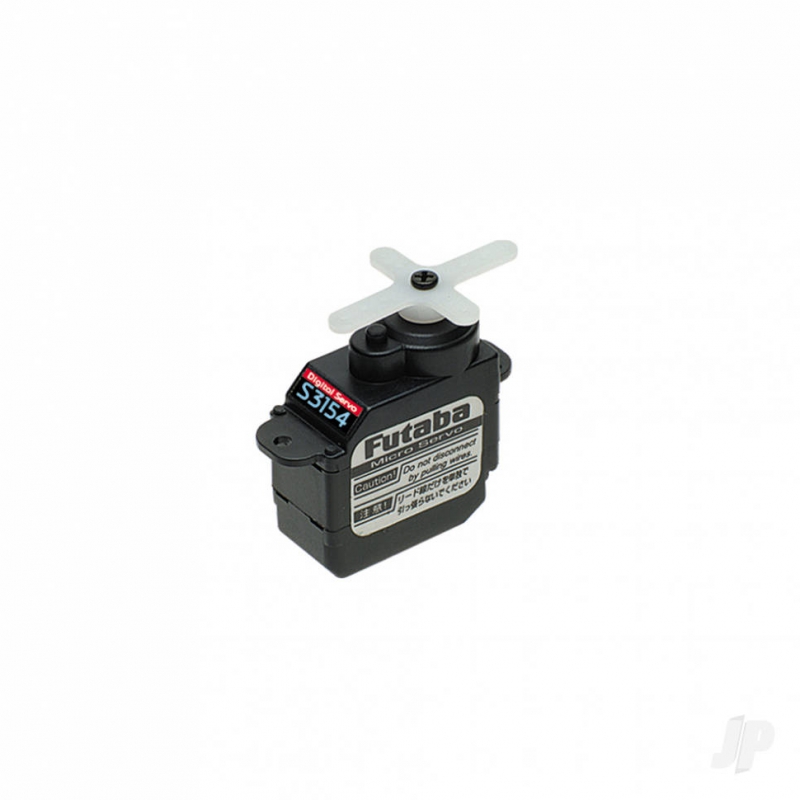

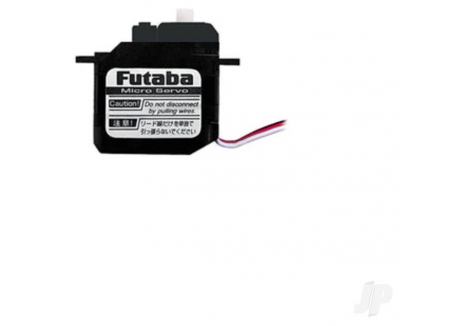

The Futaba S3154 Sub-Micro Digital Servo is a precision-engineered servo designed specifically for small electric-powered RC aircraft and lightweight RC models where space, weight and control accuracy are paramount. Weighing just 7.9 grams and measuring a compact 21.8×11×19.8mm, this sub-micro servo represents the pinnacle of Futaba's engineering expertise, delivering the responsiveness and reliability that serious RC enthusiasts expect from a market-leading brand. Whether you're building a micro RC plane, a delicate electric-powered foam model or any compact RC project that demands fast, precise servo control, the S3154 delivers exceptional performance in an ultra-compact package.

This is a genuine Futaba product, manufactured to the exacting standards you'd expect from Japan's most trusted RC radio and servo manufacturer since 1962. The S3154 combines digital servo technology with resin gears and a robust construction to provide reliable performance in demanding applications. If you're searching for the best sub-micro digital servo for your small RC aircraft or lightweight electric RC model, the Futaba S3154 is the answer. It's the choice of experienced RC modellers across the UK who understand that servo quality directly impacts flight control and model responsiveness.

Futaba servos are renowned throughout the RC community for their precision, durability and consistent performance across thousands of flight hours. The S3154 continues this tradition, offering PWM command protocol compatibility with virtually all modern RC radio systems, making it an ideal upgrade or replacement servo for existing builds or new projects alike.

Key Features

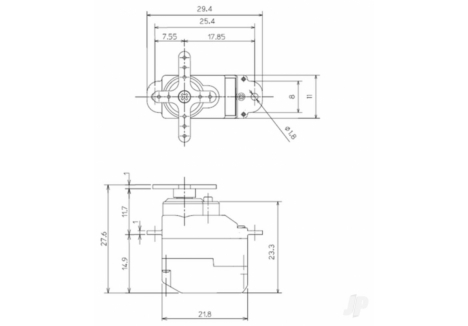

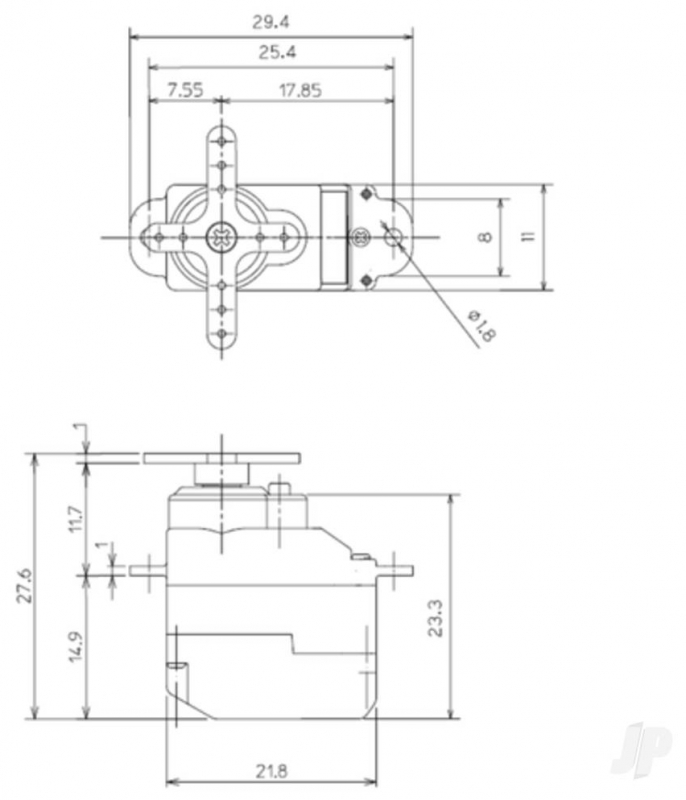

• Ultra-compact sub-micro size — At just 21.8×11×19.8mm and weighing only 7.9 grams, this servo is engineered for space-critical applications where every gram and millimetre matters, making it perfect for small electric RC aircraft and micro RC models where weight savings directly improve flight performance and battery endurance.
• Exceptional speed response — With a speed of 0.10 seconds per 60 degrees at 4.8V and an impressive 0.09 seconds per 60 degrees at 6.0V, this servo delivers rapid control input response that translates to crisp, immediate aircraft control and precise manoeuvring in flight.
• Strong torque output — Despite its diminutive size, the S3154 delivers 1.5kgf·cm of torque at 4.8V and 1.7kgf·cm at 6.0V, providing sufficient power to control control surfaces on small and medium-sized RC aircraft models without compromise.
• Digital servo technology — The digital circuitry provides superior holding power and resistance to servo drift compared to analogue servos, ensuring your RC model maintains precise control inputs even in challenging flight conditions.
• Resin gear construction — The servo features high-quality resin gears with a 25-tooth spline (4mm diameter), engineered to balance durability with low weight while maintaining the precision tolerances required for responsive control.
• Wide voltage compatibility — Operating across a 4.8V to 6.0V range, this servo is compatible with standard 4-cell and 5-cell NiMH battery packs as well as 1S and 2S LiPo batteries, offering flexibility in powering your RC setup.
• PWM protocol standard — The servo uses industry-standard PWM (Pulse Width Modulation) command protocol, ensuring compatibility with virtually all modern RC radio systems and receivers available in the UK RC market.
• Premium Futaba quality — As an official Futaba product distributed through J Perkins, the authorised UK and Ireland Futaba distributor established in 1975, you're guaranteed genuine Futaba engineering, full warranty support and access to genuine spares and service.

Technical Performance

The Futaba S3154 demonstrates excellent engineering in every aspect of its design. The servo's compact dimensions of 21.8×11×19.8mm combined with its feather-light 7.9-gram weight make it the logical choice for any RC modeller seeking to minimise servo-related mass on their aircraft. The digital servo electronics provide consistent performance across the 4.8V to 6.0V operating range, with torque scaling from 1.5kgf·cm at the lower voltage to a maximum of 1.7kgf·cm at 6.0V, whilst speed improves from 0.10 seconds per 60-degree travel at 4.8V to the rapid 0.09 seconds at 6.0V. This voltage-dependent performance characteristic means you can optimise the servo's behaviour to match your specific RC model's requirements — choosing 4.8V for maximum efficiency and endurance, or 6.0V when maximum responsiveness is critical. The resin gear spline (25-tooth, 4mm diameter) represents a careful engineering balance between the need for precision and the requirement to maintain weight savings. Whilst resin gears are lighter than metal alternatives, Futaba's decades of servo manufacturing experience ensures their resin compound delivers the durability and precision tolerances required for reliable operation across thousands of servo cycles. The servo is specifically engineered for small electric-powered RC models and explicitly not recommended for gas-powered engines or applications requiring high torque loads. This specialisation means every design decision — from the gear material to the circuit board layout — has been optimised for the exact use case of lightweight electric RC aircraft control.

What's in the Box

• 1× Futaba S3154 Sub-Micro Digital Servo
• Servo horns (plastic control surface attachment horns)
• Mounting hardware (fasteners and brackets for installation)

Important Usage Notes and Warnings

• Not suitable for gas-powered models — Do not use this servo with petrol or nitro-powered RC engines, as the vibration and shock loads from combustion engines will damage the precision gears and servo circuitry.
• Avoid high-load applications — This servo is specifically engineered for light-load control surface actuation on small aircraft and lightweight RC models; it is not suitable for applications requiring high torque or sustained heavy loads.
• Voltage limitations — Never operate this servo above 6.0V, as doing so will cause permanent damage to the digital circuitry and significantly shorten the servo's service life. Always ensure your battery pack and voltage regulator are correctly configured.
• Use dedicated servo horns only — Always use servo horns specifically designed for this micro servo; using conventional full-size servo horns may cause misalignment, excessive load and gear damage.
• Protect against mechanical shock — The ultra-miniature precision gears inside this servo are designed for smooth, controlled motion; excessive force, rough handling or impact to the servo horn during flight or operation may result in internal gear damage.
• Avoid sustained high loads — Whilst the servo can operate at maximum torque, sustained high-load operation will shorten its working life; use the minimum load necessary for your application.

Frequently Asked Questions

• Is the Futaba S3154 suitable for beginner RC modellers? — The S3154 is not recommended as a first servo choice for complete beginners, as it requires careful handling and proper installation technique. However, if you have previous RC experience and are building your first small RC aircraft, it's an excellent choice. The servo's compact size means it requires more precise mounting and careful installation compared to larger servos, so we recommend it for intermediate modellers and above.
• What battery voltage does the S3154 need? — The S3154 operates across a 4.8V to 6.0V range, making it compatible with 4-cell NiMH packs (4.8V nominal), 5-cell NiMH packs (6.0V nominal), and 1S or 2S LiPo batteries. At 4.8V you'll get 1.5kgf·cm torque and 0.10s/60° speed; at 6.0V you'll achieve 1.7kgf·cm torque and the faster 0.09s/60° speed. Choose your voltage based on your specific RC model's requirements — 6.0V for maximum responsiveness, 4.8V for extended endurance.
• Will this servo work with my RC radio system? — Yes, the S3154 uses industry-standard PWM (Pulse Width Modulation) protocol, which is compatible with virtually all modern RC radio receivers available in the UK market. Whether you're using Futaba, Spektrum, JR, Hitec or any other major RC radio brand, this servo will work seamlessly with your system.
• What is the difference between this servo and a standard size servo? — The S3154 is specifically engineered as a sub-micro servo, roughly one-fifth the weight and volume of standard servos. This makes it ideal for small electric RC aircraft, foam models and other weight-critical applications where the 7.9-gram weight of the S3154 represents a significant saving compared to even mini servos. The trade-off is that it's not suitable for high-torque applications or rough handling — it's a precision instrument for precision applications.
• Can I use this servo on an RC car or RC truck? — Whilst the S3154 could theoretically control steering on a very small electric RC car, it is specifically engineered and recommended for small electric-powered RC aircraft only. The vibration, impact loads and sustained torque demands of RC cars and trucks exceed this servo's design specifications and will shorten its life significantly. For RC vehicles, we recommend standard-sized Futaba servos designed for that application.
• How do I know if my RC model needs this servo? — The S3154 is ideal if your small electric-powered RC aircraft, foam model or micro RC model has a construction weight under 500 grams, uses small control surfaces, and requires compact servo packaging. If you're designing a scratch-built micro RC plane, a small foam electric aircraft, or a lightweight trainer aircraft, this is an excellent servo choice. Check your model's documentation or designer's recommendations for servo weight and torque specifications.
• Is this servo waterproof? — The S3154 is not waterproof and should not be exposed to water, rain or high humidity environments. It's designed for dry, indoor or fair-weather outdoor RC aircraft operation only. If water protection is required for your application, you'll need to select a different servo.
