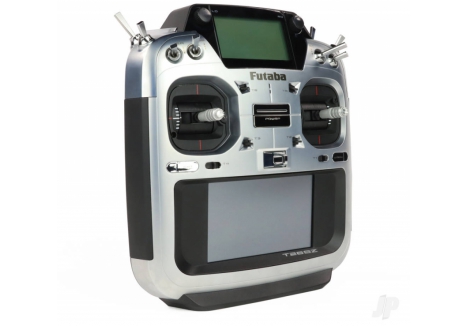

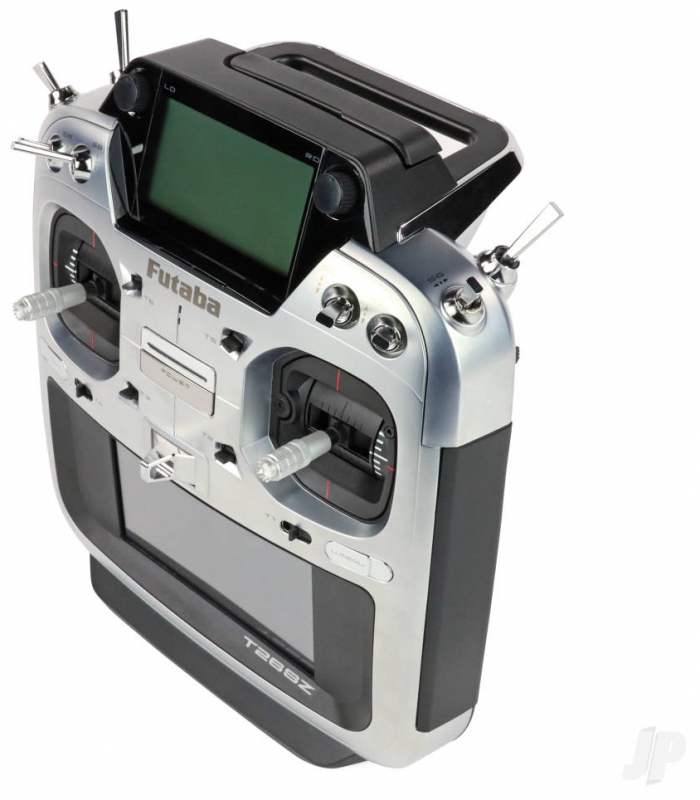

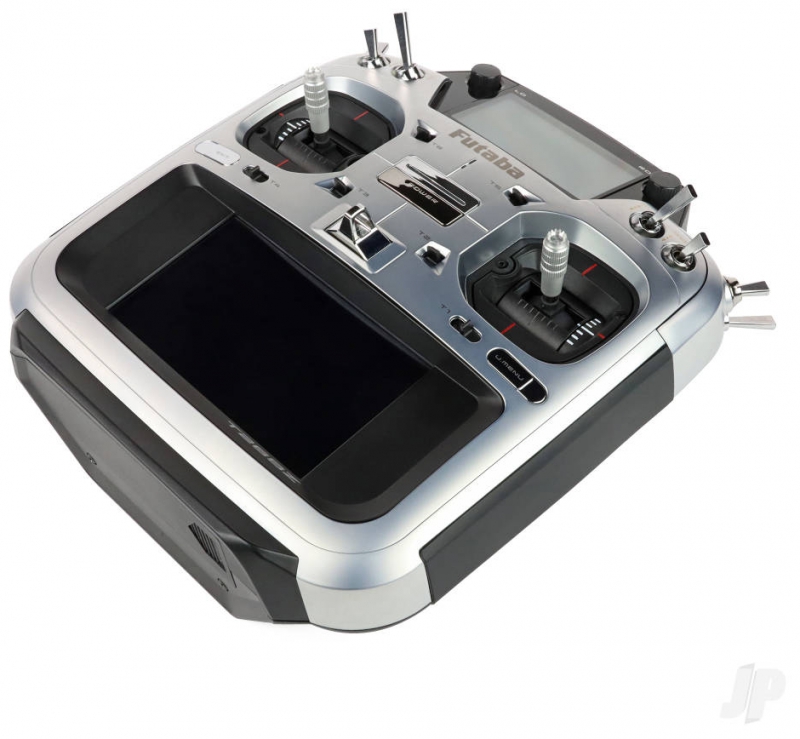

Futaba T26SZ 26-Channel Air Radio with R7208SB Rx, Multi Mode FUT05003225-3

Overview

The Futaba T26SZ 26-Channel Air Radio with R7208SB Receiver represents the pinnacle of mid-to-high-end RC radio systems available in the UK market today. This professional-grade transmitter is thoughtfully positioned between the much-loved mid-range T16IZS and the highly-desirable range-topping T32MZ-WC, making it the perfect choice for serious RC pilots who demand unquestioned reliability and a future-proof radio system. Whether you're flying fixed-wing aircraft, helicopters, gliders or any combination across your RC fleet, the T26SZ delivers near like-for-like features to Futaba's flagship model with elegant styling and intuitive programming that appeals to both seasoned competitors and experienced hobbyists.

For RC enthusiasts across the UK who fly anything and everything, this transmitter offers an exceptional blend of user-friendly interface design with advanced programming depth that simply cannot be ignored. The T26SZ features instant boot-up, incredible receiver pricing through the included R7208SB, and satellite-free airframe installations that streamline your setup considerably. With its twin screens, silky-smooth hall effect non-contact gimbals, and the latest FASSTest 26-channel protocol, the T26SZ is highly likely to tick every box on your extensive wish list, whether you're based in England, Scotland, Wales or Northern Ireland.

This is a radio system built for pilots who refuse to compromise on quality, demand absolute precision control, and seek unparalleled flexibility across multiple model types. The T26SZ combines professional-grade engineering with genuine ease of use, making it an investment that will serve you faithfully for years to come.

Key Features

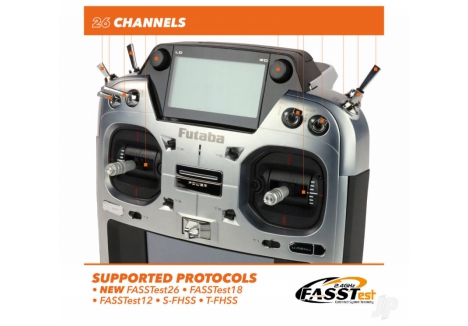

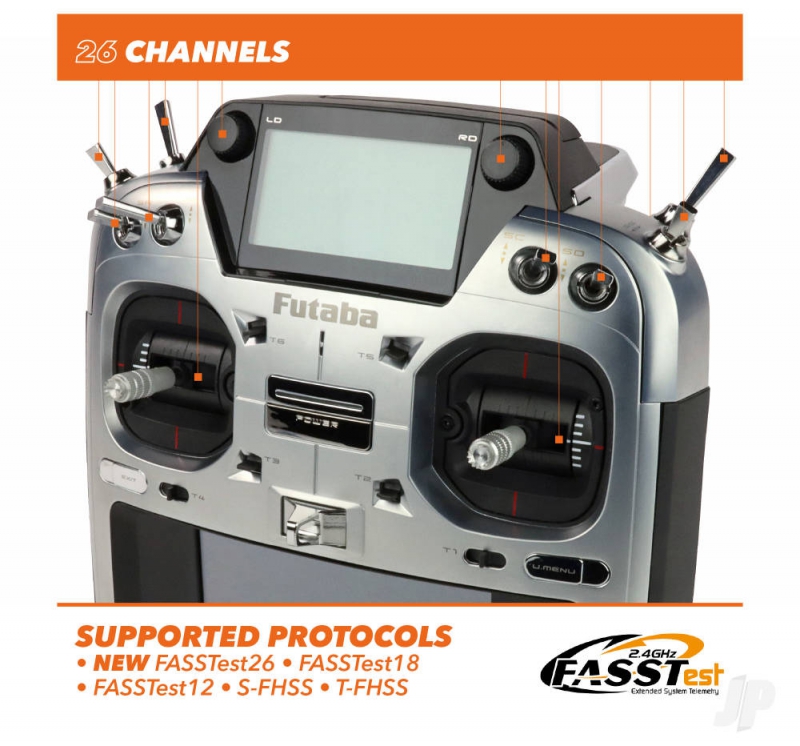

• 26 Channels with FASSTest Protocol — The T26SZ provides 26 channels of control using Futaba's latest FASSTest protocol, along with backwards compatibility with T-FHSS and S-FHSS air protocols, ensuring you can operate with virtually any modern Futaba receiver without limitation or concern about frequency conflicts.

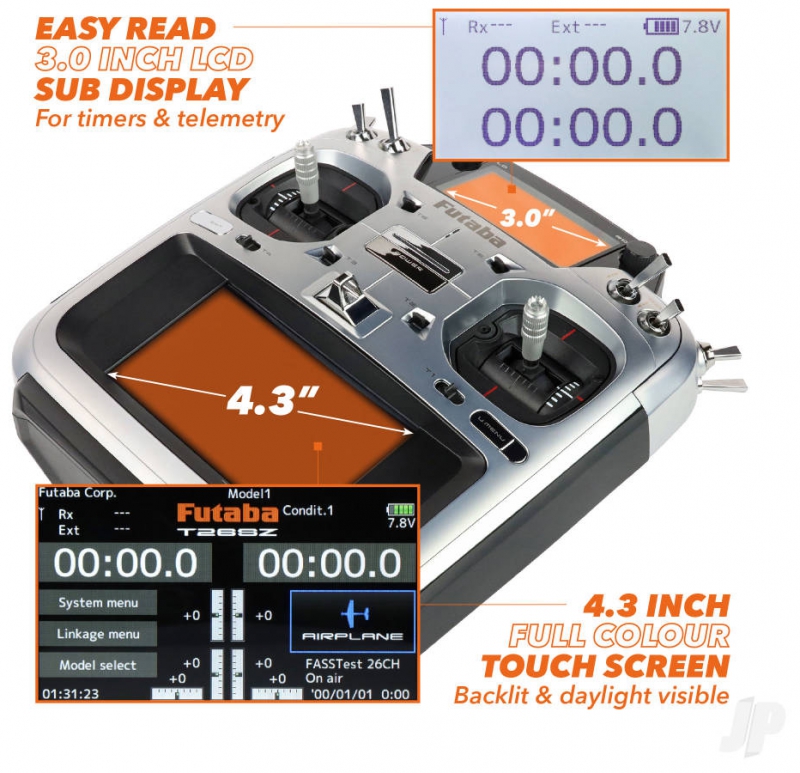

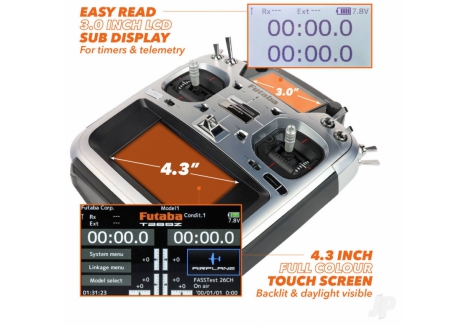

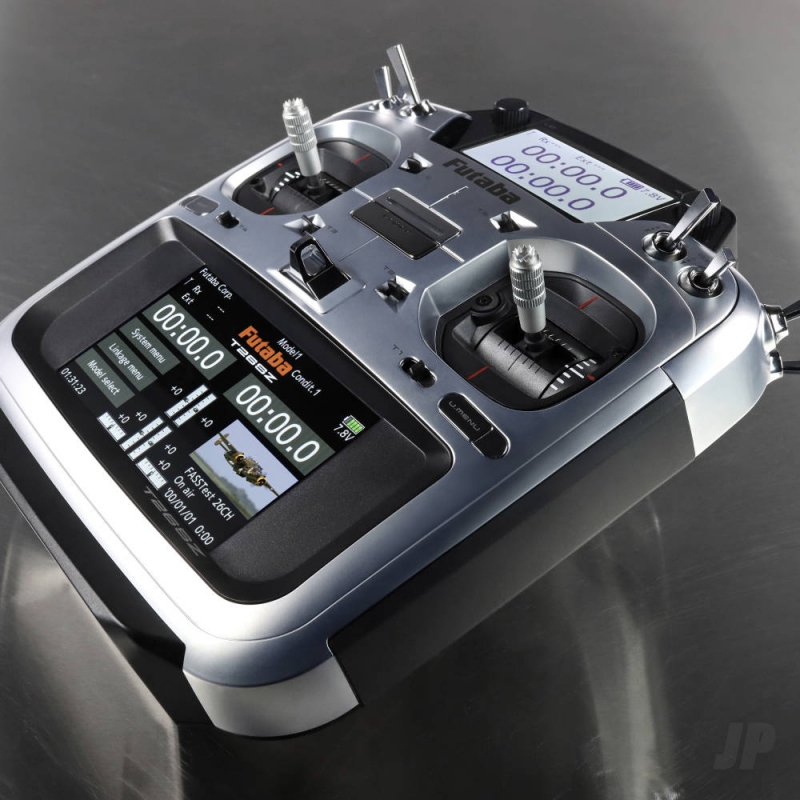

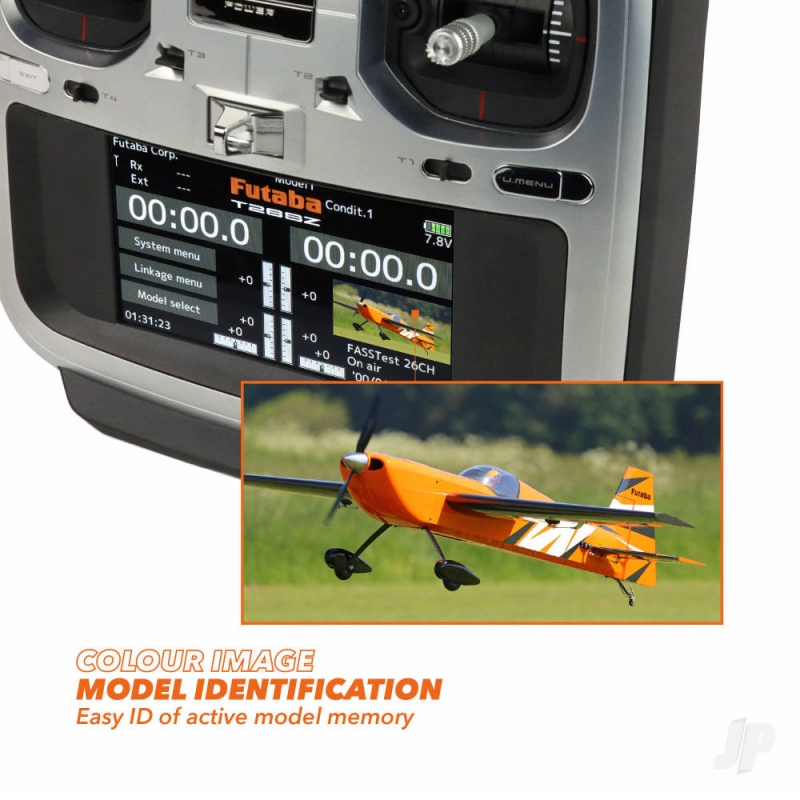

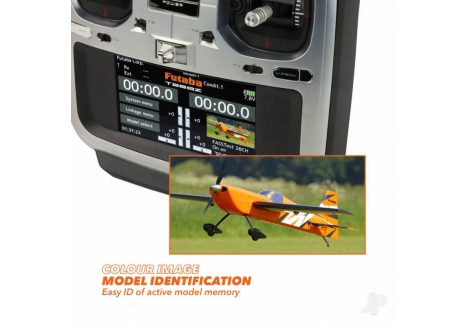

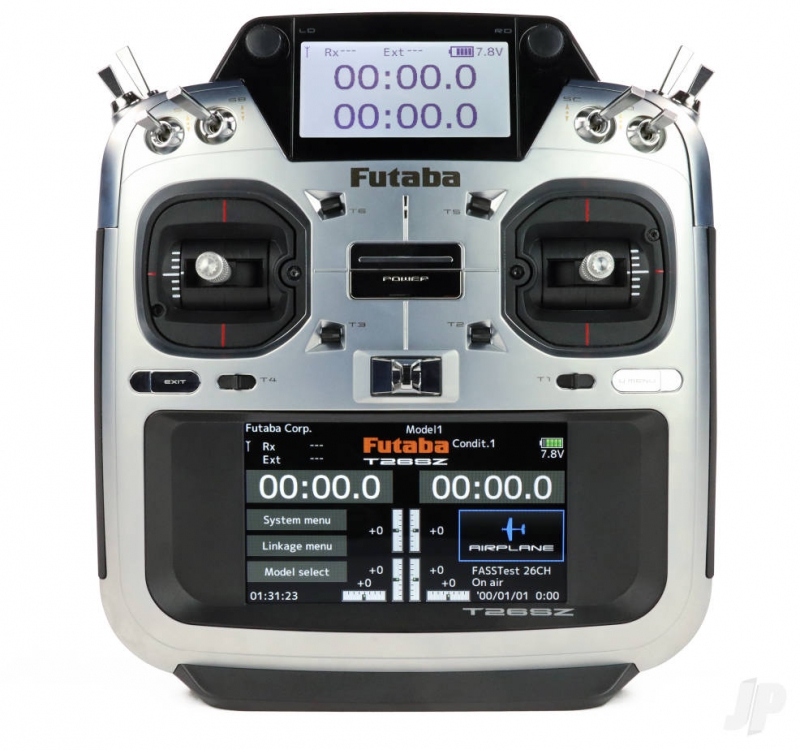

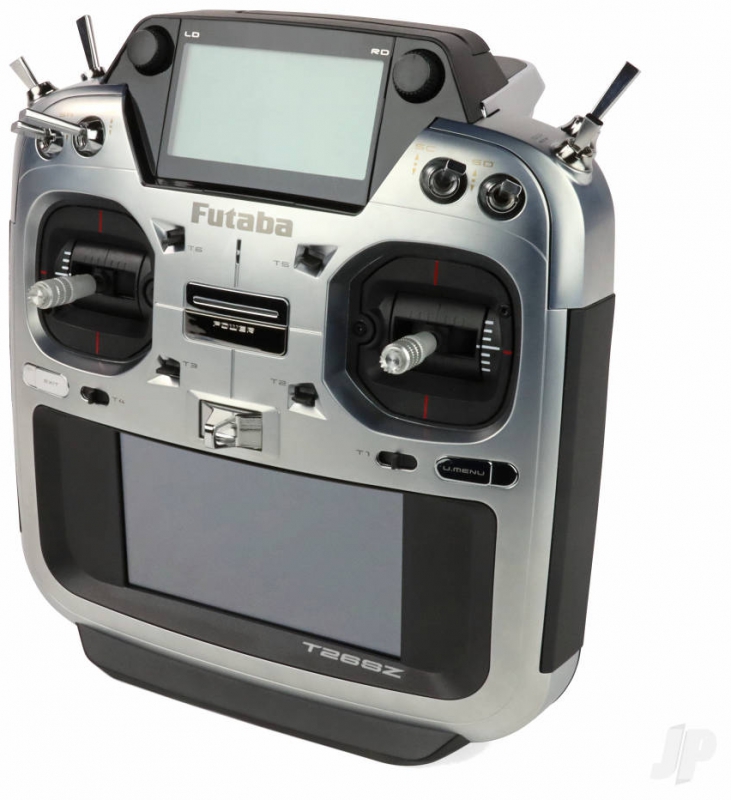

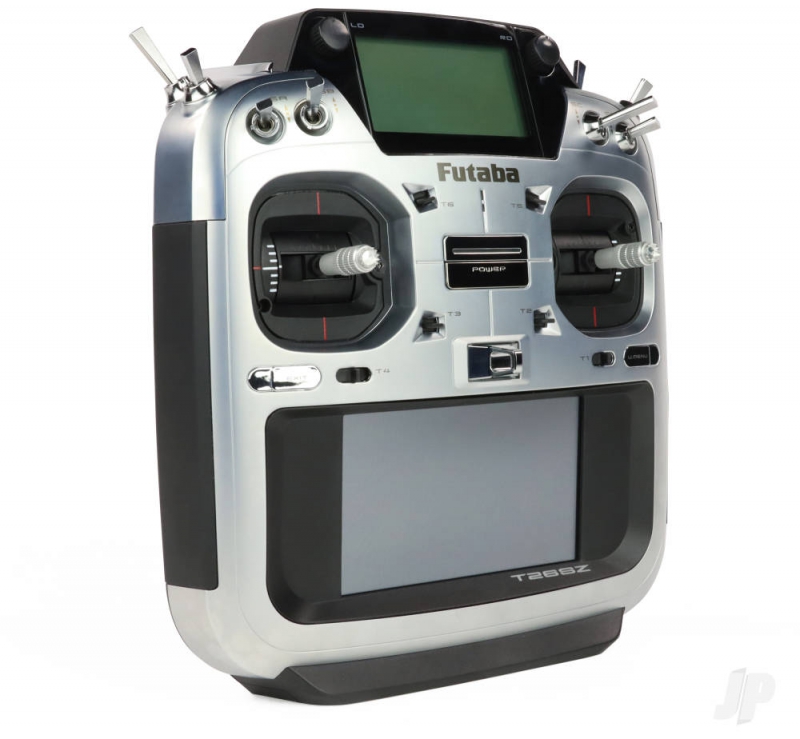

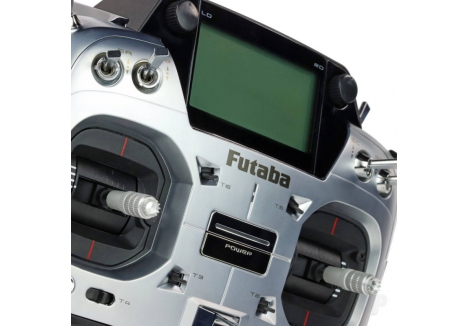

• Dual Display System — A large 4.3-inch HVGA full colour backlit LCD transflective touch screen serves as your main display and works perfectly indoors and outdoors, whilst a high-quality 3.0-inch secondary reflective LCD provides instant recognition of critical telemetry information without requiring you to navigate menus.

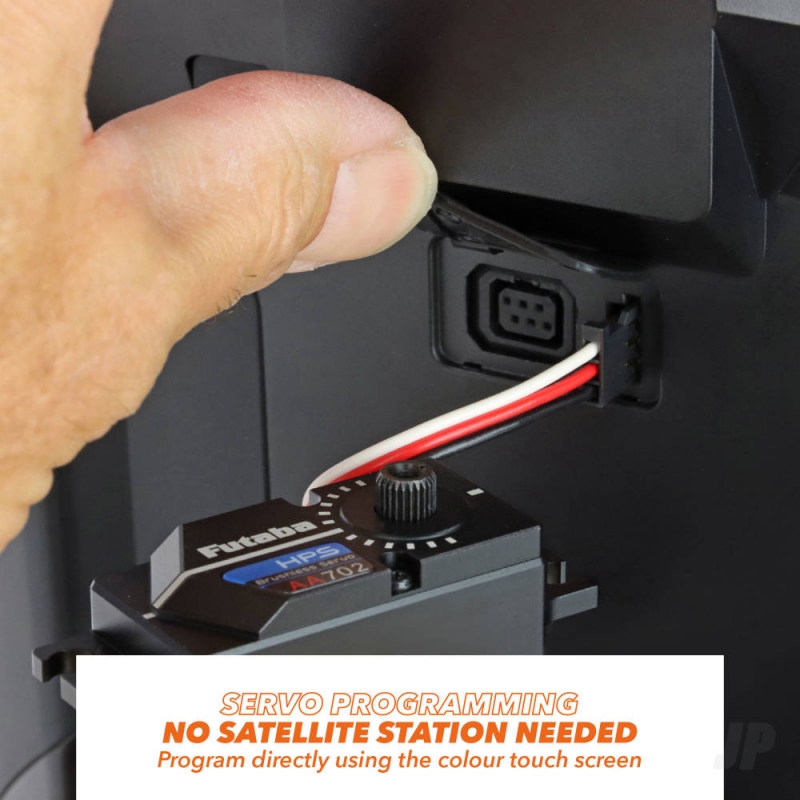

• S.BUS2 System Integration — Multiple servos, gyros and telemetry sensors can be easily installed with a minimum of cables, dramatically simplifying your model installations and reducing weight whilst maintaining full system communication and redundancy.

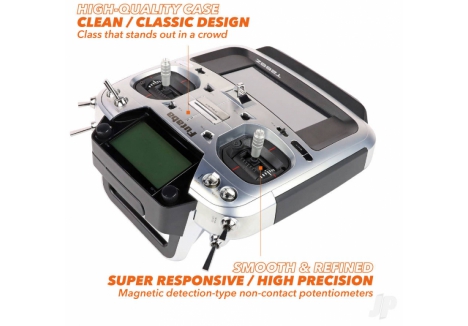

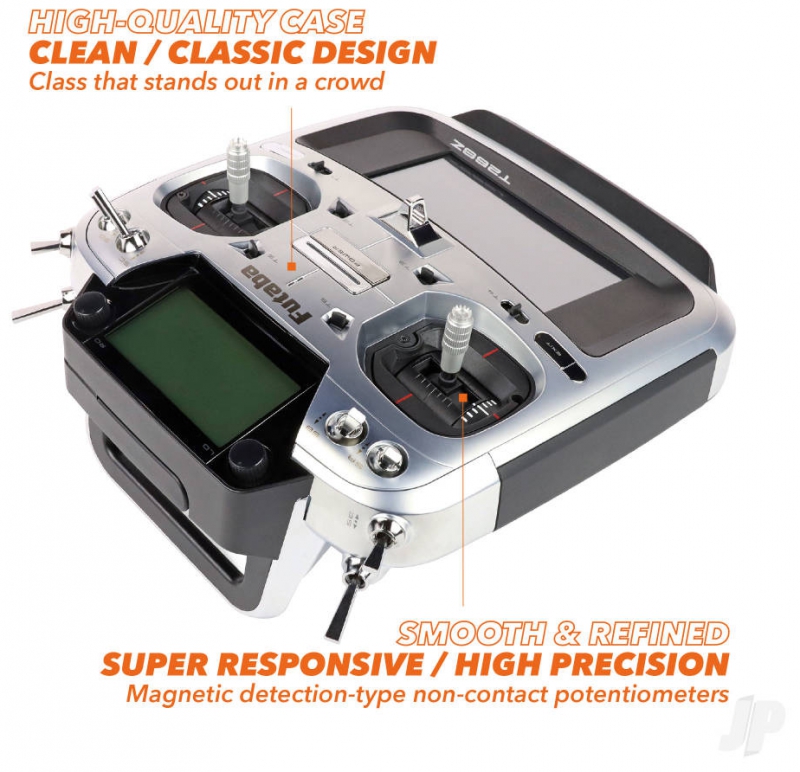

• Hall Effect Non-Contact Gimbals — The silky-smooth stick potentiometers use magnetic detection non-contact technology to offer fine, ultra-precise, long-lasting operation without the wear issues associated with traditional contact-based potentiometers, ensuring your radio remains responsive throughout its service life.
• Adjustable Throttle Stick — An external adjustment screw on the throttle stick allows you to select between ratchet or self-neutralising spring adjustment, adapting the control feel to match your flying style and model requirements perfectly.

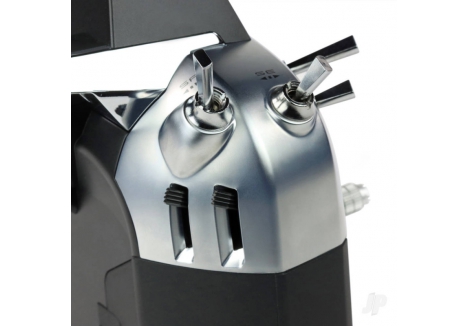

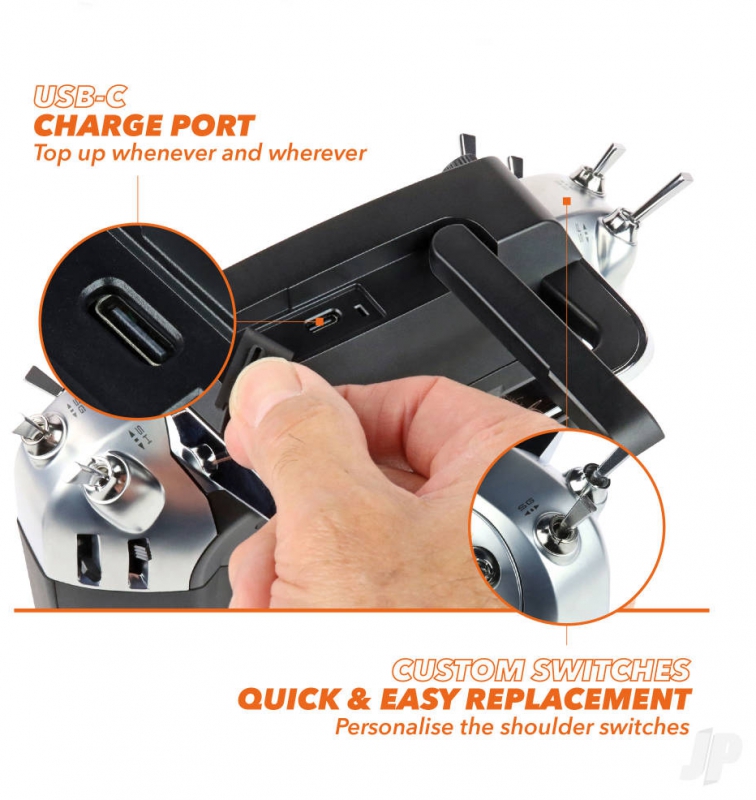

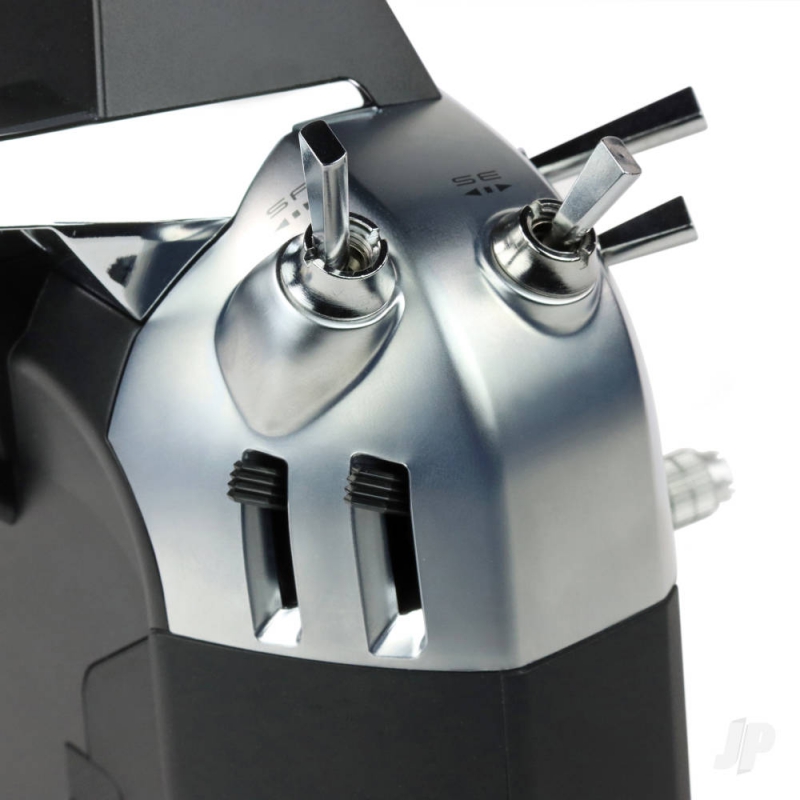

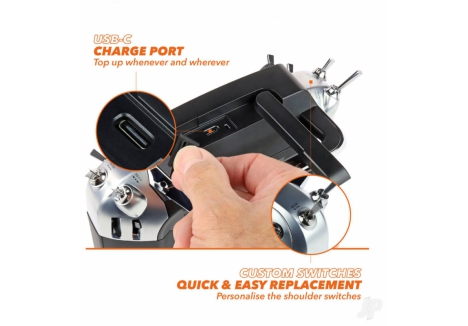

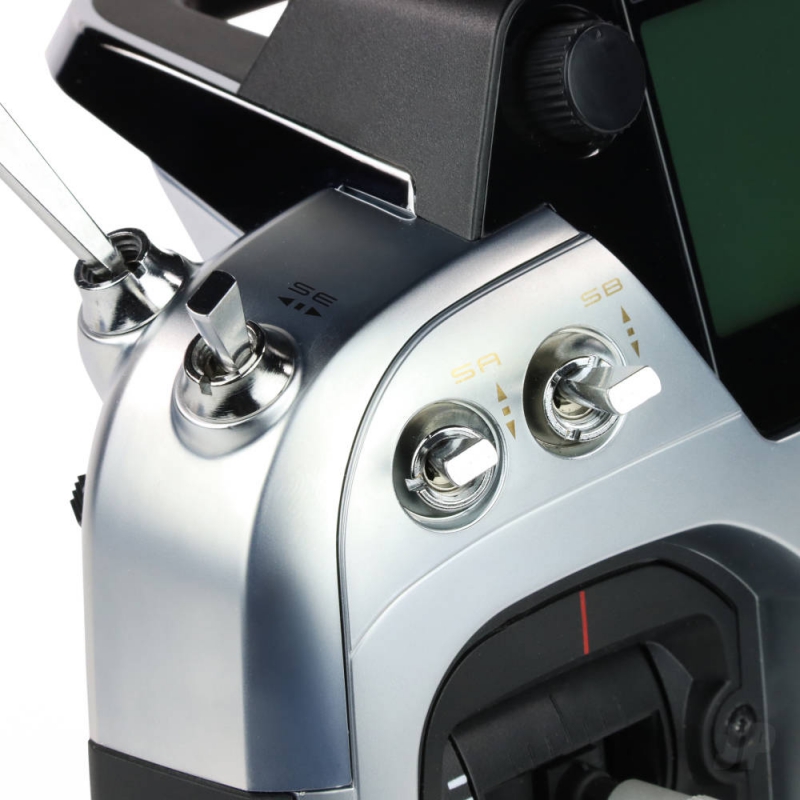

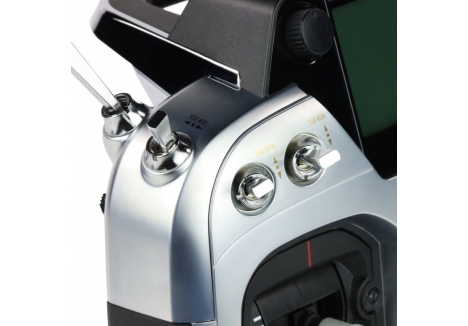

• Customisable Shoulder Switches — Four of the toggles on the right and left shoulder can be replaced with your chosen two-position, three-position or momentary switch configuration, giving you complete flexibility to optimise your control layout.
• High Capacity Li-Ion Battery — The included 7.4V 2100mAh Li-Ion battery pack offers comfortable operating duration with genuine peace of mind during extended flying sessions, and charges conveniently via the supplied USB-C lead.

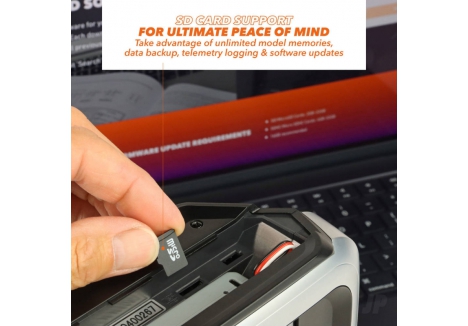

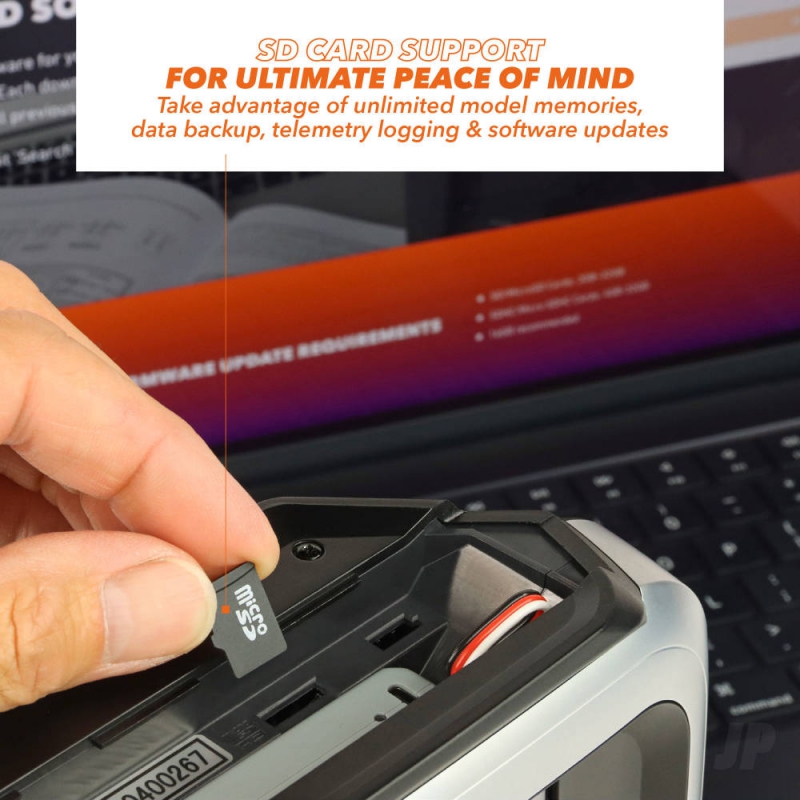

• MicroSD Card Port — Update software, store model data and upload picture files using the microSD port, ensuring your radio remains current with the latest firmware and allows you to back up your entire model programming.
• Comprehensive Telemetry System — Monitor temperature, RPM (both magnetic and optical sensors supported), altitude, GPS position, voltage, receiver battery status, current draw and access complete data logging, giving you unprecedented insight into your model's performance.
• 30 Model Memory Slots — Store complete programming for 30 different models within the radio, allowing you to swap between aircraft, helicopters and gliders seamlessly without reprogramming.

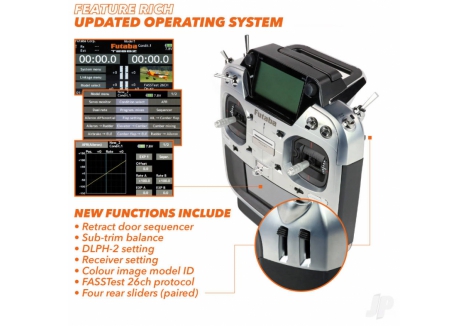

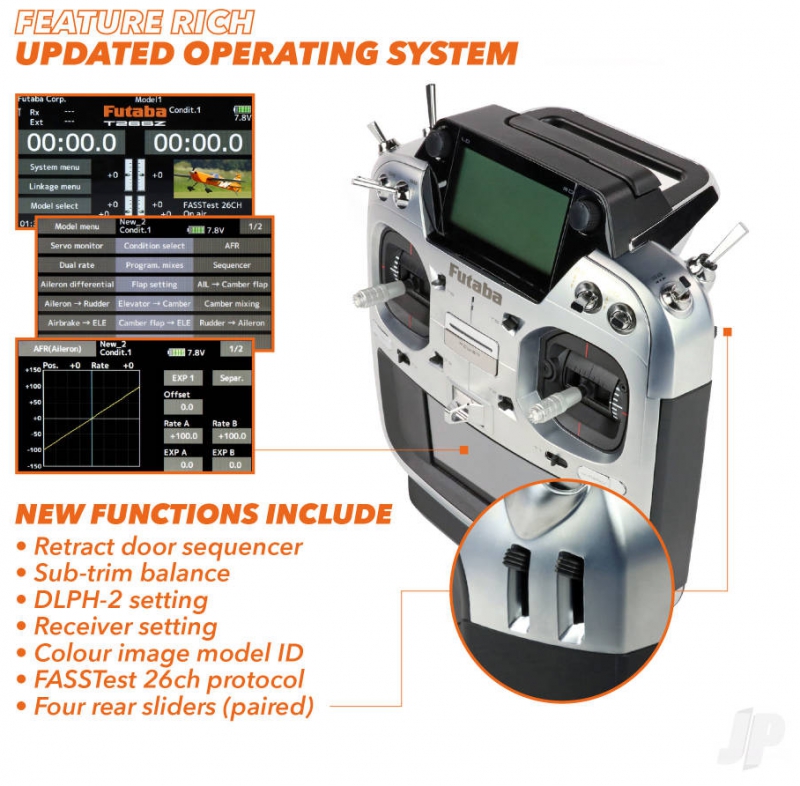

• Intuitive Programming Interface — Model-specific programming and editing has never been easier, with a user-friendly system that makes complex adjustments straightforward without sacrificing depth or flexibility.
• Multiprop Channel Expansion — Using the MPDX-1 multiprop decoder (sold separately), one channel can be divided into eight channels, with support for two MPDX-1 units simultaneously if your advanced projects require it.
• Voice and Vibration Alerts — Receive important notifications through voice announcements or vibration feedback, keeping you informed of system status and alerts without taking your eyes off your model.
• Wireless Trainer System — Train new pilots safely using the wireless trainer function, allowing student and instructor to fly the same model with instant switchover capability in emergency situations.
• Earphone Jack and Calendar Clock — Connect headphones for private audio alerts during flying, and benefit from an integrated calendar and clock function for accurate time and date stamping of your flights.

Technical Performance

The T26SZ represents a significant leap forward in RC radio design, combining robust engineering with exceptional attention to user experience. The transmitter measures 190×64×205mm and weighs 920 grams with battery installed, providing excellent ergonomic balance during extended flying sessions. The radio protocol support encompasses FASSTest (the latest Futaba standard offering enhanced security and faster response), alongside T-FHSS and S-FHSS air protocols for complete receiver compatibility across Futaba's comprehensive range. The 4.3-inch colour touch screen features HVGA resolution and transflective technology, meaning it remains perfectly visible whether you're flying outdoors in bright sunlight or indoors under artificial lighting, whilst the secondary LCD display handles telemetry monitoring independently. The included R7208SB receiver provides 8-channel PWM output capability with excellent range and reliability, and supports satellite-free configuration for cleaner, lighter airframe installations. The high-capacity 2100mAh Li-Ion battery provides ample flight time per charge, and the USB-C connector represents modern charging standards found throughout contemporary RC equipment in the UK. The radio supports eight different flight conditions, with 30 pre-programmed mixers covering virtually every common model type (13 fixed-wing configurations, 8 helicopter swash types, multiple tail and rudder variants), plus 10 fully programmable mixers for custom applications. Advanced servo management includes 240-step sub trim resolution with balance capability, dual-rate and exponential adjustment with up to 17-point curve editing, and servo speed control for precise movement rate management. Gyro integration supports Futaba's CGY755, CGY760R, CGY770R and GYA553 models with dedicated setup parameters, whilst the DLPH-2 settings and receiver mode-setting port provide deep integration with advanced avionics.

Programming Capabilities

The T26SZ offers unparalleled programming depth that transforms it into a complete flight control system rather than a simple transmitter. Sub trim adjustment with balance capability ensures perfectly neutral servos, whilst servo reverse allows immediate correction of inverted channels. End point adjustment ranges from 30–140% of servo throw, providing both restriction and overtravel options depending on your model's requirements. Dual-rate and exponential functions help tailor control response to match your flying style, with curve mode offering up to 17 individual points for precise control shaping. The 10 programmable mixers combine with 30 factory-programmed options covering aileron differential, camber mixes, butterfly and snap roll for fixed-wing aircraft, swash ring and governor control for helicopters, and multi-engine or multi-motor mixing for complex aircraft. Throttle management includes cut function to stop propellers instantly, throttle limiting to prevent overspeeding, and sophisticated throttle and pitch curve programming with idle-down capability. Condition naming allows you to label different flight modes or aircraft configurations with custom text, reducing confusion during rapid model swaps. Acceleration mixing, logic switches, and function-specific naming provide tournament-grade programming capability, whilst the servo monitor function displays real-time servo position without commanding movement, essential for diagnostics and safe setup verification.

What's in the Box

• 1× T26SZ 26-Channel Transmitter
• 1× R7208SB Receiver (8-channel PWM output)
• 1× 7.4V 2000mAh Li-Ion Transmitter Battery Pack
• 1× USB-C Charge Lead
• 1× Neck Strap
• 1× Tool Set
• 1× Printed Instruction Manual (Short form, with full manual available for download)

Compatibility and Support

The T26SZ operates on 2.4GHz frequency, compatible with all modern Futaba receivers and many third-party systems supporting FASSTest protocol. The radio supports mode interchangeable operation (Modes 1–4), allowing you to configure throttle and elevator placement to match your preferred flying style. As an official Futaba product, the T26SZ is fully supported by J Perkins (the official UK and Ireland Futaba distributor established in 1975), with comprehensive spare parts availability and professional customer care throughout the UK and Ireland. Over 70 authorised Futaba stockists across the country can provide expert help, advice, and rapid spares delivery, ensuring you're never left stranded if you need genuine replacement components or technical support.

Frequently Asked Questions

• Is the Futaba T26SZ suitable for beginners or is it only for advanced pilots? — The T26SZ sits in the high-end category, so whilst beginners can certainly use it, the extensive programming options and feature set means it offers far more capability than a beginner would typically require. However, if you're a serious hobbyist planning to expand your RC collection significantly or transition into competitive flying, the T26SZ is an excellent future-proof investment. Its user-friendly interface hides the complexity well, making it accessible despite the advanced features underneath.
• What is the difference between the T26SZ and other Futaba radios like the T16IZS or T32MZ-WC? — The T16IZS is positioned as the beloved mid-range option with excellent value but fewer channels and less programming depth. The T32MZ-WC is Futaba's absolute flagship with the widest feature set and maximum channels. The T26SZ occupies the sweet spot between them, offering 26 channels and nearly identical feature parity to the T32MZ-WC at a significantly lower price point, making it the optimal choice for most serious RC pilots in the UK who want professional capability without flagship pricing.

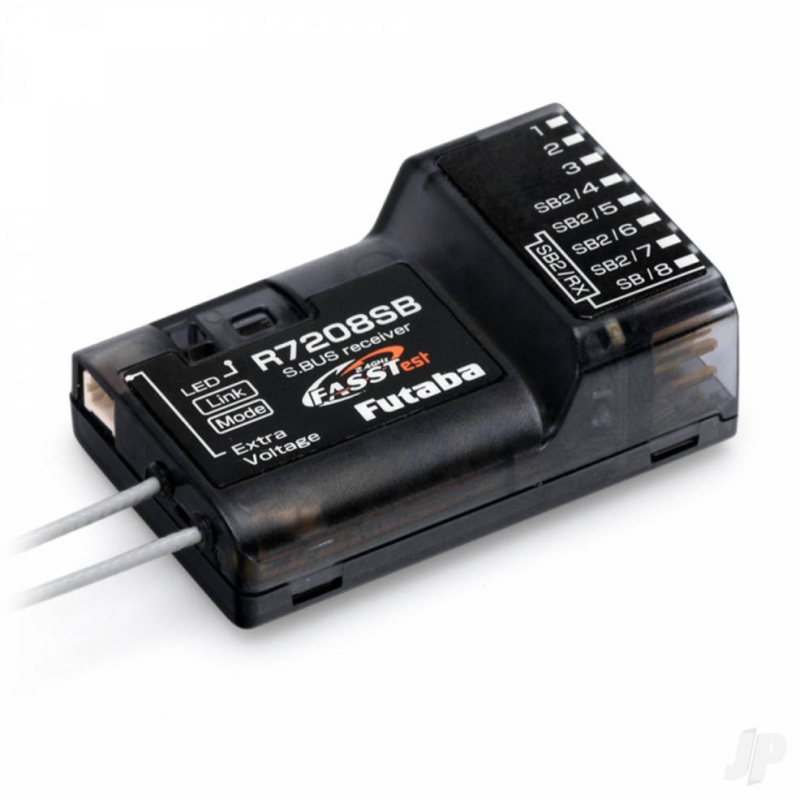

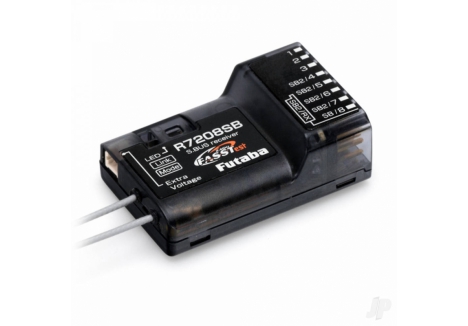

• What receiver is included and what are its specifications? — The R7208SB receiver is included in the package. It provides 8-channel PWM output, supports all Futaba air protocols (T-FHSS, S-FHSS, and FASSTest), and allows satellite-free configuration for clean airframe installations. Its affordability and reliability make it an excellent match for the transmitter.
• Can I use different receivers with the T26SZ? — Yes, the T26SZ transmitter is compatible with any Futaba receiver supporting FASSTest, T-FHSS or S-FHSS protocols. You can use it with R6208FB, R6303SB, R7008SB, R7306SB and many other Futaba models depending on your channel requirements and application.
• What battery does the T26SZ use and how long does it take to charge? — The radio includes a 7.4V 2000mAh Li-Ion battery pack. Charge time depends on your charger specification (not included), but typically takes 60–90 minutes with a standard 500mA charger. The USB-C connector allows charging from any compatible USB power source, including computer USB ports, portable power banks, or dedicated RC chargers.
• How many flight conditions can the T26SZ store? — The T26SZ supports 8 different flight conditions per model, allowing you to programme multiple distinct flight modes or trim settings for different phases of flight. Combined with 30 model memory slots, you can store complete configurations for 30 different aircraft with 8 flight conditions each.
• Does the T26SZ support telemetry and what sensors are compatible? — Yes, comprehensive telemetry is fully supported with compatibility for 14 different sensor types, including temperature, RPM (magnetic and optical), altitude, GPS, voltage, receiver battery status, and current draw. All data is logged for later analysis, making the T26SZ ideal for advanced pilots who want detailed flight performance information.
• Can I expand the channel count beyond 26 using the MPDX-1 multiprop decoder? — Yes, the MPDX-1 multiprop decoder (sold separately) allows one transmitter channel to be divided into eight separate servo channels. Up to two MPDX-1 units can be used simultaneously, allowing you to control complex model configurations with numerous control surfaces or camera pan/tilt mechanisms.
• What makes the hall effect gimbals special compared to traditional potentiometer sticks? — Hall effect gimbals use magnetic detection technology with no physical contact between moving and stationary parts, eliminating wear and tear entirely. This means they maintain perfect precision and smooth operation throughout the radio's lifetime without developing dead spots, scratches or accuracy loss that can affect traditional contact-based potentiometers over time.
• Is the T26SZ waterproof for outdoor use in wet conditions? — The T26SZ features a transflective display that works in wet conditions outdoors, but the radio itself is not fully waterproof and should not be submerged. It's suitable for typical outdoor RC flying in rain and damp conditions, but should be protected from heavy water exposure and is best stored indoors when not in use.
• What wireless trainer system support does the T26SZ offer? — The T26SZ includes wireless trainer capability, allowing you to connect a second transmitter (instructor unit) wirelessly for flight training purposes. This allows instant switchover control in emergency situations, providing a safe way to teach new pilots without extensive modifications or cable connections.
