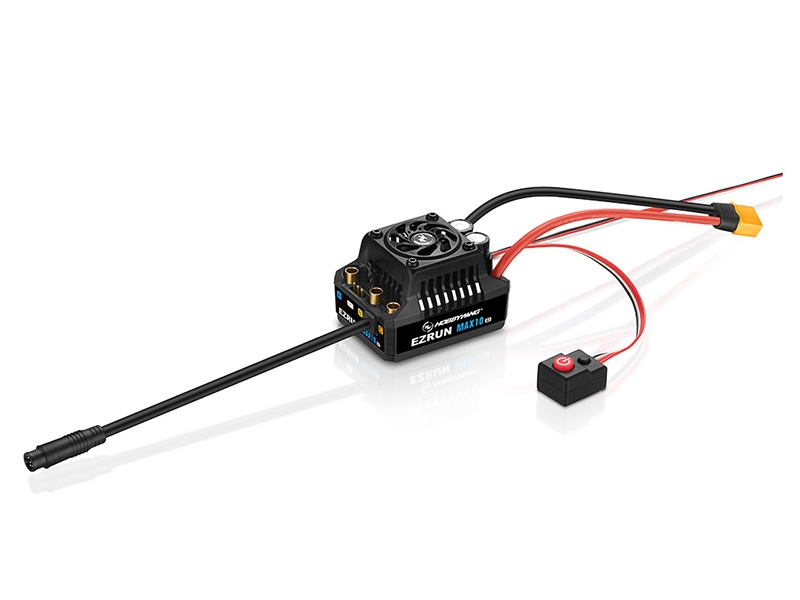

Hobbywing EZRUN MAX10 G2 80A Brushless ESC 1/10 RC Car HW30102604

Overview

The Hobbywing EZRUN MAX10 G2 - 80A ESC represents a significant upgrade in electronic speed control technology for 1/10th scale RC car enthusiasts across the UK. Whether you're running a flat road racer, an off-road buggy, or a short course truck, this brushless ESC delivers the performance, reliability and advanced features that serious hobbyists demand. Compared with the previous generation, the MAX10 G2 combines strong explosive power with stable, consistent output delivery, whilst maintaining excellent low-speed linearity that makes it equally adept at smooth, controlled walking speeds and aggressive high-speed runs. This makes it an exceptionally versatile choice for RC car UK drivers who want a single ESC capable of handling diverse driving conditions and motor combinations.

What sets the EZRUN MAX10 G2 apart in the competitive world of brushless RC speed controllers is its focus on intelligent engineering and real-world usability. The ESC isn't just about raw power—it's about delivering that power intelligently. With support for turbo timing adjustment up to 32 degrees, paired with compatible EzRun 3652/3665 G3 motors, you can unlock performance gains of up to 25% additional top speed. The patented frameless fan design combined with smart start-stop technology ensures the ESC stays cool during intense racing sessions whilst remaining quiet and efficient during casual runs. Whether you're a seasoned competitor looking to extract maximum performance or an enthusiast seeking a reliable, feature-rich ESC for your ready to run RC or kit-built vehicle, the MAX10 G2 delivers on all fronts.

Built with IP67 waterproof protection, this brushless ESC is designed to operate in all-weather conditions, from muddy off-road courses to snowy winter runs and even water crossings. The integration of Hobbywing's advanced sensor technology, combined with wireless data logging capabilities via optional OTA Bluetooth module, means you have complete visibility into your power system's performance whenever you want it.

Key Features

• Upgraded Sensored Mode with Waterproof Interface — The EZRUN MAX10 G2 features an improved waterproof sensored cable interface and upgraded sensored mode technology that delivers exceptional throttle response and perfectly matches the EzRun 3652/3665 SD G3 motor family, giving you the precision control that competitive drivers demand.
• Turbo Timing Adjustment Up to 32 Degrees — This adjustable timing feature allows experienced users to optimise performance characteristics for their specific setup and driving style, and when combined with EzRun 3652/3665 G3 motors, enables speed increases of approximately 25%, giving you a genuine performance advantage on the track.
• Patented Frameless Fan with Smart Start-Stop Technology — The innovative frameless fan design maximises airflow across the integrated case radiator, efficiently removing heat away from critical components, whilst intelligent start-stop technology minimises fan noise and power consumption during low-temperature operation, activating only when thermal loads demand it.
• 74% Increased Capacitance with Double Explosion-Proof Protection — The onboard capacitor bank has been increased by 74% compared to the previous generation MAX10, providing superior power delivery from battery to ESC and preventing overload conditions that could otherwise damage capacitors, with dual protection systems ensuring safe, reliable operation even under extreme load.
• Smart Freewheeling Technology for Higher Efficiency — Advanced freewheeling technology enables the MAX10 G2 to operate with significantly higher efficiency than its predecessor, resulting in operating temperatures approximately 25°C lower than previous generation models, meaning better performance, extended run times, and longer overall ESC lifespan.
• Excellent Low-Speed Linearity and Smooth Power Delivery — The MAX10 G2 delivers strong explosive power for violent acceleration and high-speed driving whilst maintaining precise, linear throttle control at low speeds, making it ideal for technical courses, crawling sections, and smooth low-speed walking that demands fine control.
• Real-Time Data Logging via OTA Bluetooth Module — Connect the optional OTA Bluetooth module to monitor throttle position, voltage, current, temperature, speed and other critical parameters in real-time through the mobile app, with historical data logging capabilities allowing you to review your driving sessions and diagnose any performance issues after the fact.
• IP67 All-Weather Protection for Harsh Conditions — The complete IP67 waterproof and dustproof system enables safe operation in mud, sand, ice, snow and water crossings without risk to the power unit, making this ESC suitable for year-round RC car UK driving in diverse environmental conditions.
• Sensored and Sensorless Motor Compatibility — The MAX10 G2 supports both sensored brushless motors using the new waterproof interface and standard sensorless brushless motors, offering flexibility in motor selection (adapter cables sold separately for non-Hobbywing sensored interfaces).
• XT60 Connector with 12AWG Input Wires — Heavy-gauge 12AWG input wiring and XT60 battery connectors ensure low resistance, efficient power transfer and reliable connections that can handle the 80A continuous current and 520A peak current capability of this ESC.

Technical Performance

The Hobbywing EZRUN MAX10 G2 - 80A is engineered for 1/10th scale brushless RC applications, delivering 80 amps continuous current and 520 amps peak current, making it ideal for powered by 2-3S LiPo batteries. The ESC accepts input voltages from 2-4S LiPo configurations (though this 80A variant is optimised for 2-3S), with a dedicated BEC (Battery Elimination Circuit) providing switchable 6V or 7.4V output at 5 amps to power your receiver and servos (note that 7.4V output is only available when input is 3S or higher). The compact dimensions of 53mm × 39.5mm × 37.2mm with a total weight of just 120 grams including wires make it easy to fit into modern 1/10th scale off-road buggies, stadium trucks and short course trucks. The onboard 25×25×10mm frameless fan runs on 5-7.4V power supplied by the BEC, offering efficient cooling without the bulk and weight of traditional shrouded fans. For motor compatibility, this ESC is certified to work with sensorless brushless motors with 2S LiPo at KV ratings up to 6000KV, or 3S LiPo with motors up to 4200KV, with the 3652-size motor being the recommended match. The engineering focus throughout emphasises stability, efficiency and real-world usability—from the increased capacitor bank that prevents electrical stress on the system, to the smart freewheeling technology that reduces operating heat by approximately 25°C compared to older designs, to the advanced sensored mode that delivers precise throttle response when paired with compatible G3-generation motors. Whether you're building a kit-based RC car or upgrading existing ready to run RC equipment, the MAX10 G2 offers the robust performance and intelligent features expected from a premium ESC manufacturer.

What's in the Box

• Hobbywing EZRUN MAX10 G2 - 80A electronic speed controller
• Pre-attached red 12AWG input wire (150mm length) with XT60 connector female
• Pre-attached black 12AWG input wire (150mm length)
• Product documentation and quick-start guide

What You Need to Complete

• 2-3S LiPo battery (2S maximum 6000KV motor, 3S maximum 4200KV motor, 3652-size motor recommended)
• Brushless motor compatible with sensorless or sensored brushless specifications
• Receiver and servo equipment
• Optional: OTA Programmer (Hobbywing part number 30850400) for wireless configuration and data logging
• Optional: LCD Program Box for advanced ESC programming (Hobbywing part number 30502001, though basic programming via SET button is supported)
• Optional: Sensored motor cable adapter if using non-Hobbywing sensored motors

Frequently Asked Questions

• Is the Hobbywing EZRUN MAX10 G2 - 80A suitable for beginners in RC cars UK? — Yes, the MAX10 G2 is excellent for beginners because it offers excellent low-speed linearity alongside high-speed performance, meaning new drivers can develop smooth throttle control at walking speeds while still enjoying explosive acceleration when needed. The sensored motor compatibility (when paired with appropriate motors) provides even better control. That said, some basic understanding of LiPo battery handling, motor KV ratings and ESC programming is advisable.
• What battery does this ESC require? — The EZRUN MAX10 G2 - 80A is designed for 2-3S LiPo battery packs. With 2S LiPo, you can run motors up to 6000KV; with 3S LiPo, motors up to 4200KV. The ESC does not support 4S batteries. Always use quality LiPo batteries from reputable manufacturers and balance-charge them before use.
• How does the MAX10 G2 compare to previous generation MAX10 models? — The G2 generation offers significant improvements: 74% increased capacitance for better power stability, approximately 25°C lower operating temperatures thanks to smart freewheeling technology, upgraded sensored mode with waterproof connectors for improved throttle response, an enhanced patented frameless fan for better cooling efficiency, and stronger explosive power with more stable output delivery. It also features better low-speed linearity, making it more versatile across different driving conditions.
• Can I use this ESC with sensorless motors only, or does it work with sensored motors? — The MAX10 G2 excels with both. It natively supports the new waterproof sensored interface for Hobbywing EzRun 3652/3665 G3 sensored motors, delivering excellent throttle response. It also fully supports standard sensorless brushless motors. For sensored motors from other manufacturers using standard interfaces, you'll need to purchase an adapter cable separately.
• Is the EZRUN MAX10 G2 waterproof? — Yes, the ESC features full IP67 waterproof and dustproof protection, meaning it can safely operate in mud, sand, water crossings, snow and other harsh environments. However, like all electronics, it should not be submerged for extended periods.
• What data can I access with the optional Bluetooth module? — After connecting the OTA Bluetooth module (sold separately), the mobile app provides real-time monitoring of throttle position, battery voltage, motor current draw, ESC temperature, motor speed and other operational data. You can also review historical data logs after your driving sessions to optimise performance or diagnose issues.
• Does the ESC require programming before use? — Basic programming can be done directly via the SET button on the ESC, though an optional LCD Program Box or OTA Programmer provides more advanced configuration options. For most standard setups with 2-3S batteries and sensored/sensorless motors, the default settings should work well.
• What is turbo timing adjustment, and how does it benefit my RC car? — Turbo timing refers to the electrical advance angle applied to the brushless motor commutation. The MAX10 G2 supports up to 32 degrees of adjustment. Higher timing values increase responsiveness and top speed but can generate more heat and noise. When paired with EzRun 3652/3665 G3 motors, users report speed improvements of approximately 25%, though this should be tuned based on your specific setup and driving conditions.
• What is the difference between 80A and 140A versions of the MAX10 G2? — The 80A version (this product) is optimised for 2-3S LiPo and lower-power 1/10th scale applications like on-road and off-road vehicles and light-duty short course trucks. The 140A version handles 2-4S LiPo and is designed for more demanding applications like monster trucks and heavier vehicles requiring sustained high currents. Choose based on your battery configuration and vehicle weight/motor size.
