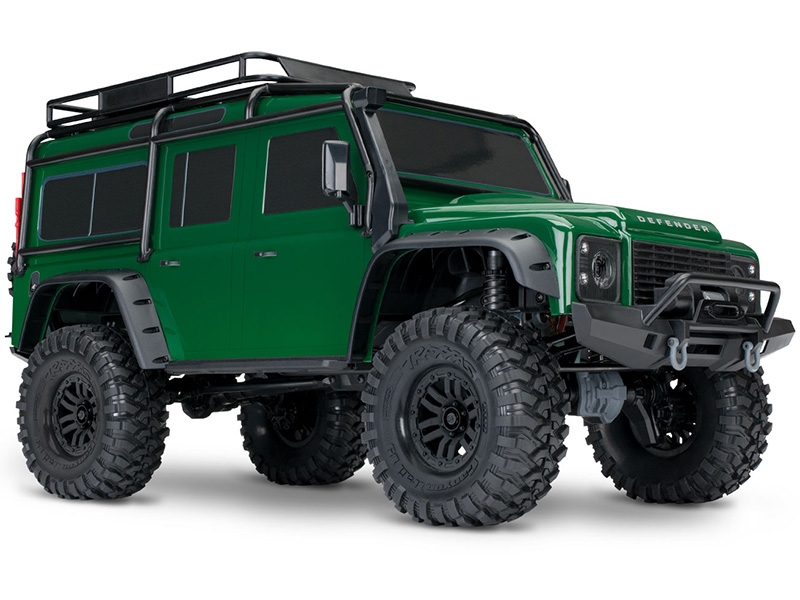

Traxxas TRX-4 Land Rover Defender 1:10 4X4 Electric Trail Crawler, Green (+ TQi 4-ch, XL-5 HV, Titan 550, Clipless Body) TRX82256-4-GRN

Brand, Model, Product Type

• Brand: Traxxas
• Model: TRX82256-4-GRN
• Product Type: Traxxas TRX82256-4-GRN TRX-4 Defender 1/10 scale 4WD RTR trail crawler, Traxxas TRX82256-4-GRN Land Rover Defender with XL-5 HV waterproof ESC, Traxxas TRX82256-4-GRN TRX-4 brushed motor crawler with portal axles, Traxxas TRX82256-4-GRN Defender crawler with clipless body mounting, Traxxas scale trail crawler with Titan 21T brushed motor and portal axles

Dimensions

• Scale: 1/10 – ideal for realistic trail crawling and scale detailing
• Weight: 3.37 kg – provides enhanced stability and trail traction
• Length: 58.6 cm – extended chassis for improved climbing geometry
• Width: 24.9 cm – wide track for balanced off-road performance
• Height: 29.2 cm – accommodates rugged body and high ground clearance
• Wheelbase: 32.4 cm – adjustable for SWB and LWB configurations
• Center Ground Clearance: 8.0 cm – portal axles provide superior obstacle clearance
• Battery Compartment: 15.9 cm x 4.7 cm x 2.3–2.6 cm – supports full-size and compact battery packs

Motor and ESC

• Motor Type: Titan® 21T reverse rotation brushed motor – delivers high torque for trail crawling
• Cooling System: Internal cooling fan – maintains motor efficiency during extended runs
• Motor Weight: 240 g – lightweight for optimal power-to-weight balance
• ESC Type: XL-5™ HV brushed ESC – waterproof and trail-tuned for versatile driving profiles
• ESC Modes: Sport, Race, Training™, Trail, Crawl – tailored for different terrain and skill levels
• ESC Voltage Range: Compatible with 6–7 cell NiMH (7.2–8.4 V) and 2–3s LiPo (7.4–11.1 V)
• ESC Setup: EZ-Set® one-button configuration – simplifies tuning and setup

Drivetrain and Transmission

• Drivetrain: Full-time shaft-driven 4WD – ensures consistent traction across terrain
• Differentials: Remote locking steel gear differentials – cable-actuated for on-the-fly control
• Transmission: Two-speed high/low range – remote shifting for adaptable trail performance
• Transfer Case: Steel gear – built for durability and smooth power delivery

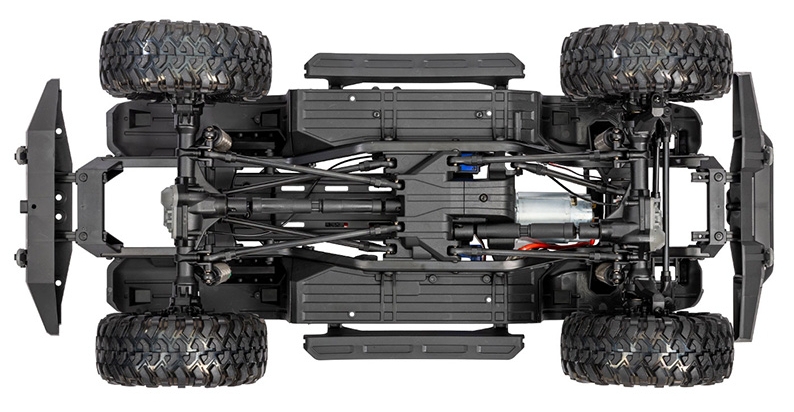

• Axles: Portal axles – increase ground clearance and eliminate torque twist
• Driveshafts: Hardened steel rear axle shafts and steel front CV driveshafts – built for rugged terrain

Suspension and Steering

• Front Suspension: 3-link with panhard bar – enhances articulation and stability
• Rear Suspension: Triangulated 4-link – optimized for trail crawling
• Shocks: Aluminium GTS oil-filled coilover shocks – threaded bodies for adjustable ride height
• Steering Servo: 2075X metal gear digital servo – waterproof and high-torque
• Steering Angle: 45° – superior turning radius for tight trail navigation

Radio System and Electronics

• Radio System: TQi™ 2.4 GHz 4-channel transmitter – cruise control and telemetry-ready
• Receiver: 6533 micro receiver – 5-channel with fail-safe and telemetry ports
• Compatibility: Supports optional Traxxas Link Wireless Module for app integration
• Receiver Box: Patented waterproof design – protects electronics in wet conditions
• Micro Servos: Waterproof with sleeved cables – reliable under harsh conditions

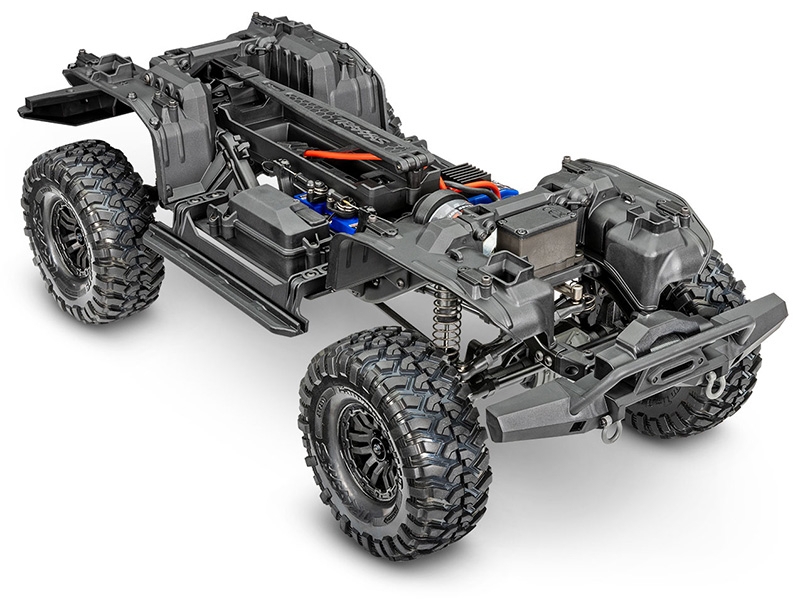

Chassis and Frame

• Frame Rails: 1.5 mm thick steel – increases torsional rigidity and trail durability
• Wheelbase Positions: Adjustable – 30 cm, 31.2 cm, 32.4 cm, 33.6 cm

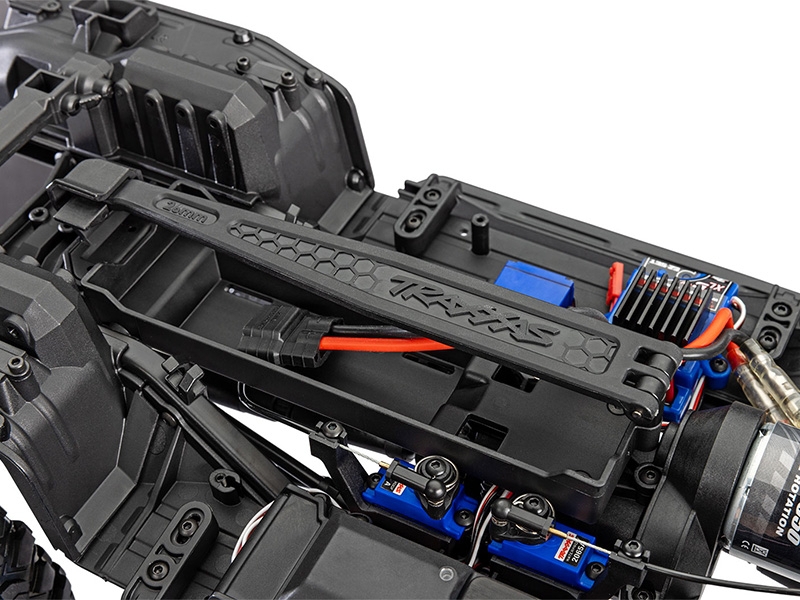

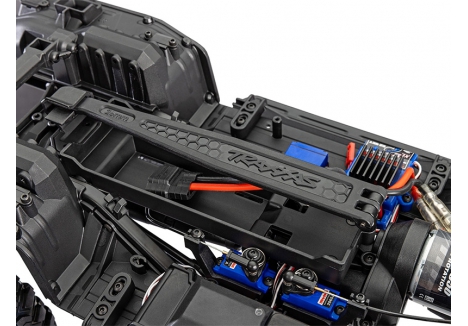

• Battery Tray: Dual tray design – accommodates full-size and compact batteries
• Wire Routing: Integrated clips – clean and secure cable management
• Rock Rails: Adjustable width – protects chassis and body during trail use

Wheels and Tyres

• Tyres: 1.9″ Canyon Trail tyres – trail-tuned foam inserts and S1 rubber compound
• Wheels: Tough black scale wheels – pre-glued and mounted for durability
• Hex Size: 12 mm steel hex – secure and rugged wheel mounting

Scale Details

• Body: Officially licensed Land Rover® Defender® body – clipless mounting for quick access
• Exterior Features: Injection molded grille, snorkel, side mirrors, rugged roll cage, fender flares
• Bumpers: Front with tow hooks and replica winch; rear with scale accessories and functional spare tyre
• Interior Features: Full nylon composite wheel wells and floor pans

What’s in the Box

• TRX-4 Land Rover® Defender® Ready-To-Race® model
• XL-5 HV waterproof electronic speed control
• Titan 21T reverse rotation motor
• TQi 2.4 GHz radio system with cruise control
• High quality maintenance tools

What You’ll Need

• NiMH (4–7 cell) or LiPo (2s–3s) battery packs
• Traxxas EZ-Peak® Live charger (recommended)
• Four AA alkaline batteries for the transmitter

Sold Separately

• Accessory LED Light Kits
• Traxxas Link Wireless Module (6511)
• Optional battery straps for smaller 1/16 scale batteries

Warranty

• 1-year limited warranty – covers manufacturing defects and electronics as per Traxxas policy

The Traxxas TRX82256-4-GRN Defender TRX-4 RC crawler in striking Green combines rugged off-road capability with refined scale detail, delivering a trail experience that’s both technically advanced and visually authentic. Built on the proven TRX-4 platform, this 1:10 scale crawler features officially licensed Land Rover Defender styling and integrates cutting-edge performance technologies. From clipless body mounting to portal axles and remote locking differentials, the Traxxas Defender TRX82256-4-GRN with clipless body mounting and portal axles is engineered to conquer demanding terrain while offering unmatched convenience and realism.

Key features of the Traxxas TRX82256-4-GRN Defender TRX-4 RC crawler

• Clipless body mounting – secure latching system with clean lines and fast access to internal components
• Portal axles – increased ground clearance and reduced torque twist for superior off-road control
• Remote locking differentials – switchable front and rear locking for adaptable terrain handling
• 2-speed transmission – shift between high-speed trail driving and low-range crawling
• Titan 550 motor – delivers reliable brushed power for technical crawling and trail endurance
• XL-5 HV speed control – waterproof and trail-tuned for smooth throttle response and 3S LiPo compatibility
• Steel ladder frame – rigid chassis structure for precise suspension articulation
• Cruise control – maintain consistent speed over long-distance treks with transmitter-based adjustment

What makes clipless body mounting a game-changer?

The Traxxas Defender TRX82256-4-GRN with clipless body mounting and portal axles introduces a hidden latching system that eliminates traditional body clips. This innovation not only enhances the visual flow of the Defender’s iconic silhouette but also provides secure retention during aggressive driving. The clipless system allows quick access to the chassis for battery changes or maintenance, making trail preparation faster and more convenient. Whether you're navigating rocky terrain or packing up for transport, the clipless mounting system adds practical value without compromising durability.

How do portal axles improve off-road performance?

Portal axles on the Traxxas TRX82256-4-GRN Defender TRX-4 RC crawler deliver unmatched ground clearance by raising the axle housing above the wheel centre. This design reduces torque twist and allows the crawler to straddle obstacles that would challenge conventional axles. The added clearance improves approach, departure, and breakover angles, enabling the Defender to tackle steep inclines and technical rock formations with confidence. Combined with the steel ladder frame and long-travel suspension, portal axles make this model one of the best options for serious off-road enthusiasts.

Can the Traxxas Defender TRX82256-4-GRN scale crawler handle varied terrain?

Versatility is a hallmark of the Traxxas Defender TRX82256-4-GRN scale crawler with 2-speed transmission and Titan 550 motor. The remote locking differentials allow drivers to switch between unlocked and locked modes directly from the transmitter. Unlocked differentials offer smooth turning and better handling at higher speeds, ideal for trail cruising. When the terrain becomes challenging, locking the front and rear differentials provides maximum traction and grip. This adaptability ensures the Defender performs optimally across gravel, mud, rocks, and forest trails.

Why is the Titan 550 motor ideal for trail endurance?

The Titan 550 brushed motor in the Traxxas Defender TRX82256-4-GRN trail truck with metal gear servo and hill hold braking is engineered for torque-rich performance and long run times. Its reverse rotation design complements the drivetrain layout, delivering smooth power delivery across both speed ranges. Paired with the XL-5 HV electronic speed control, the motor supports 3S LiPo batteries for extended trail sessions. The motor’s reliability and efficiency make it an affordable choice for hobbyists seeking consistent performance without the complexity of brushless systems.

What benefits does cruise control offer on long treks?

Cruise control on the Traxxas Defender TRX82256-4-GRN with remote locking differentials and cruise control adds a layer of comfort for extended trail driving. Using the TQi transmitter, drivers can set a consistent speed and fine-tune it with the multifunction knob. This feature is particularly useful when travelling with other trail vehicles, allowing for synchronised movement and reduced fatigue. Cruise control transforms the TRX-4 Defender into a reliable companion for long-distance exploration, enhancing both usability and enjoyment.

How does the steel ladder frame contribute to technical crawling?

The steel ladder frame on the Traxxas Defender TRX82256-4-GRN with XL-5 HV speed control and steel ladder frame provides a rigid backbone that supports the suspension system’s full range of motion. Molded nylon composite crossmembers add structural integrity while keeping weight manageable. This chassis design eliminates flex, allowing for accurate wheel placement and improved control during technical manoeuvres. The frame’s durability ensures long-term reliability, even under demanding conditions, making the Defender a dependable choice for serious off-road enthusiasts.

The Traxxas TRX82256-4-GRN Defender TRX-4 RC crawler in Green is a trail-ready machine that blends scale realism with advanced performance. With clipless body mounting, portal axles, cruise control, and a Titan 550 motor, this model offers a compelling mix of innovation and capability. Whether you're navigating rocky terrain or exploring forest paths, the Defender TRX-4 delivers a confident and immersive driving experience. Buy Traxxas TRX82256-4-GRN Defender TRX-4 RC crawler today and elevate your off-road adventures.

Brand, Model and Product Type

• Brand: Traxxas
• Model: TRX82256-4-GRN
• Product Type: Traxxas TRX82256-4-GRN Defender TRX-4 RC crawler, Traxxas TRX82256-4-GRN Defender TRX-4 trail truck, Traxxas TRX82256-4-GRN Defender TRX-4 scale crawler, Traxxas Defender TRX82256-4-GRN with clipless body mounting and portal axles, Traxxas Defender TRX82256-4-GRN with XL-5 HV speed control and steel ladder frame
• Colour: Green

Dimensions and Weight

• Length: 58.6 cm – extended body length enhances scale realism and trail presence
• Front Track Width: 24.9 cm – wide stance improves stability on uneven terrain
• Rear Track Width: 24.9 cm – matched rear width ensures balanced handling and traction
• Ground Clearance: 8.0 cm – portal axle design increases clearance for obstacle navigation
• Height: 29.2 cm – tall profile supports aggressive approach and departure angles
• Wheelbase: 32.4 cm – long wheelbase improves climbing ability and directional control
• Weight: 3.372 kg – optimised for trail endurance and agility

Chassis and Suspension

• Chassis Structure: Steel ladder frame with nylon composite crossmembers – provides a rigid backbone for precise suspension articulation
• Suspension Design: Long-travel 4-link geometry – maximises axle articulation for technical crawling
• Shock Type: Oil-filled coil-over shocks – smooth damping and adjustable ride height
• Shock Length (Front and Rear): 9.0 cm – supports plush suspension travel over rough terrain
• Axle Type: Portal axles – reduce torque twist and raise driveshafts for improved clearance

Drivetrain and Transmission

• Drive System: Shaft-driven 4WD – delivers consistent torque to all wheels
• Transmission: 2-speed high/low remote shifting – switch between high-speed trail driving and low-range crawling
• Differential Type: 4-gear remote locking – selectable front and rear locking for terrain adaptability
• Gear Pitch: 32 pitch – durable gearing for smooth power delivery
• Motor: Titan 550 brushed – tuned for torque and trail efficiency
• Brake Type: Electronic hill hold – maintains position on inclines without rollback

Tyres and Wheels

• Tyres: 1.9 inch Canyon Trail – soft compound with tuned foam inserts for superior grip on rocky surfaces
• Tyre Dimensions: 11.8 cm x 4.8 cm – wide footprint for enhanced traction and stability
• Wheels: 4.9 cm x 2.6 cm – steel hex drive compatible with popular 1.9 wheel sets
• Hex Size: 12 mm – standard fitment for aftermarket compatibility

Electronics and Control

• Speed Control: XL-5 HV – supports 3S LiPo for extended run times and smoother throttle response
• Radio System: TQi 2.4 GHz 4-channel transmitter – includes cruise control and multi-function knob
• Receiver: 6533 – integrated with telemetry-ready features
• Servo: 2075X metal gear – high-torque steering with durable internal gearing
• Waterproofing: Fully waterproof electronics – safe for use in mud, snow, and shallow water

Battery and Power

• Battery Tray Dimensions: 15.9 cm (L) x 4.7 cm (W) x 2.3/2.6 cm (H) – accommodates 7.4V or 11.1V LiPo packs
• Compatible Batteries: 4–7 cell NiMH or 2S/3S LiPo – supports long run times with flexible power options
• Charger Requirement: Compatible with Traxxas EZ-Peak Live charger for efficient charging
• Transmitter Power: Requires 4 AA alkaline batteries

Angles and Approach

• Approach Angle: 56.49° – allows aggressive entry onto steep inclines
• Departure Angle: 41.67° – prevents rear-end hang-ups on descents
• Breakover Angle: 57° – excellent centre clearance for cresting obstacles

Included Support

• Includes: Fully assembled TRX-4 Defender with clipless body, TQi radio system, XL-5 HV ESC, Titan 550 motor
• Also Included: High-quality maintenance tools and Quick Start Guide
