In Stock
Delivery Included
1 Year Warranty
In the arena and competition of RC car racing, no matter on-road or off- road, 0.001 second can make quite a difference.
The 0.001 second can allow you to win the race (or lose the Race), how can you gain a major advantage? Besides driving skills and luck, an element that truly helps is the power system you are going to use. With HOBBYWING’s upcoming XERUN XR10 Pro ESC & V10 G2 motor, HOBBYWING driver Bruno Coelho TQ’d and won the 2016 TITC in the modified class, his teammate Nicolas Lee broke into the top 10 in the same class. Bruno Coelho also TQ’d and won round 2 of the 2016 ETS in Germany with a XERUN XR10 Pro ESC and V10 G2 4.5T motor. THE XERUN XR10 Pro’s great performance at well-known competition has already made it popular at home and abroad.
Technical Specifications
Cont./Peak Current - 160A/1200A
Motor Type - Sensored / Sensorless Brushless Motors
Applications - 1/10th, 1/12th Touring Car & Buggy; 1/8th, 1/10th Rock Crawler
Motor Limit - Brushless Motor Limit with 2S LiPo/6S NiMH: (Touring Car) T=3.5T, (Buggy) T=5.5T
Brushless Motor Limit with 3S LiPo/9S NiMH: (Touring Car) T=4.5T, (Buggy) T=6.5T
* Note 1
LiPo/NiMH Cells - 2-3S LiPo/4-9S NiMH
BEC Output - 6V/7.4V Switchable, Continuous Current of 4A (Switch-mode)
Cooling Fan - Powered by the stable BEC voltage of 6V/7.2V
Connectors - Input End: No Connectors; Output End: No Connectors
Size/Weight - 37.5x30.9x31.6mm / 95g (w/ wires)
Programming Port - PRG/FAN Port
(*The output from the battery voltage is regulated by the voltage regulation circuit)
XERUN XR10 Pro Features;
Special Design for Top Racing
Reliable hardware combined with intelligent software (containing 10 common select-to-use profiles) creates an ideal power solution to 1/10th, 1/12th scale top touring car, Pan car and buggy racing.
High Power Output
Continuous current of 160A and peak current of up to 950A guarantees a stable and high current output continuously during competitions.
High current/voltage BEC
The built-in switch mode BEC with a maximum output of 4A and voltage adjustable between 6V and 7.4V allows the user to use various high voltage servos.
Adjustable Throttle & Brake PWM Frequencies
Independent and adjustable throttle & brake PWM frequencies guarantee precise and accurate throttle and brake control for all classes of competitions (esp. the Stock class).
Programming/upgrading/data reading wirelessly
With Hobbywing’s WiFi module and iPhone or an Android phone (with the HOBBYWING WiFi Link software installed), the user can program parameters, upgrade firmware and check relevant data during the event.
Efficient Heat Dissipating System
The aluminum casing and reticular heat sink combined with the HOBBYWING patented copper heat-conductive plates which are attached to the MOSFET board allows the internal heat to be quickly transferred to the heat sink for dissipation. With the high-performing detachable cooling fan, a highly reliable heat transfer system for maximum cooling is accomplished.
Advanced and Secure Electronic Switch
The XR10 Pro ESC features an electronic switch with a lifespan of over 50000 on/off cycles, housed in a completely waterproof, dust-proof and shock-resistant design.
Innovative data-logging Function
This ESC features the data-logging function which can record the maximum ESC/motor temperature, RPM and etc. in real time and allows the user to analyze the recorded data via the LCD program box or WiFi module after each use.
LCD Program card not included.
Separate Programming/Fan Port
The separate PRG/FAN port on the ESC can power an external fan for maximize cooling performance or connect the ESC to a LCD program box or WiFi module for ESC programming.
Brand, Model and Product Type
- Brand: Hobbywing
- Model: HW30112600
- Product Type: Hobbywing HW30112600 ESC with 160A continuous and 1200A peak current, Hobbywing HW30112600 XR10 Pro V4 speed controller with data logging, Hobbywing HW30112600 brushless ESC with 4A BEC and wireless programming, Hobbywing HW30112600 with 2–3S LiPo input and adjustable PWM frequencies, Hobbywing XR10 Pro V4 ESC for 1/10 touring cars, pan cars, and buggies, Hobbywing ESC with copper heat plates and detachable cooling fan
- Product Colour: Black
Dimensions
- Length: 3.75 cm – compact footprint for tight 1/10 scale chassis layouts
- Width: 3.09 cm – allows efficient integration with racing electronics
- Height: 3.16 cm (with fan and shroud) – accommodates cooling system without obstructing body shell
- Weight: 95 g – includes wires; lightweight for competitive setups
Electrical and Performance Specifications
- Continuous Current: 160A – delivers stable power for high-speed racing and precision control
- Peak Current: 1200A – supports rapid acceleration and torque bursts
- Input Voltage: 2–3S LiPo / 4–9 cell NiMH – compatible with standard racing battery formats
- Motor Compatibility: Sensored brushless motors – optimized for smooth throttle response
BEC System
- BEC Type: Switch-mode – efficient and thermally stable
- BEC Output Voltage: Selectable 6V / 7.4V – supports high-voltage servo systems
- BEC Output Current: 4A – ensures reliable servo performance under race conditions
Protection and Safety Features
- Electronic Switch: Rated for 50,000+ cycles – eliminates mechanical wear and failure
- Heat Dissipation System: Copper heat plates and reticular aluminum casing – rapidly transfers heat from MOSFETs
- Cooling Fan: Detachable – improves airflow and maintains optimal operating temperature
Connectivity and Programming
- Wireless Programming: Supported via WiFi module – enables mobile app control and firmware upgrades
- Program Port: Separate – supports fan and programming interface
Data Logging and Monitoring
- Real-Time Data: Supported – captures throttle, RPM, temperature, and voltage metrics
- Historical Graphs: Supported – enables post-race analysis and tuning
- Extreme Value Recording: Enabled – stores peak performance data for review
Cooling System
- Fan Size: 2.5 × 2.5 × 1.0 cm – compact and efficient for 1/10 scale builds
- Fan Voltage Range: 5–7.4V – powered by BEC output
Wires and Connectors
- Input Wires: 12AWG Black × 2 – 20 cm length for secure power delivery
- Output Wires: 12AWG Black × 3 – motor phase connections
- Input Connectors: Not included – user-configurable based on battery setup
- Output Connectors: Not included – allows flexible motor pairing
Applications
- Vehicle Type: 1/10 touring cars, pan cars, and buggies – ideal for competitive racing formats
- Motor Type: Brushless – supports sensored configurations for precision control
What’s Included

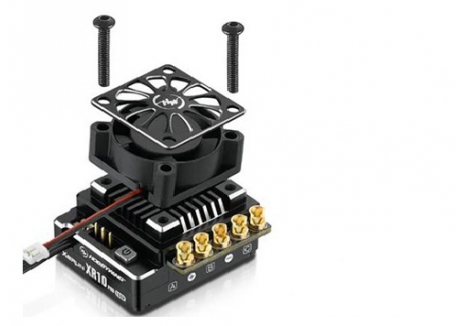

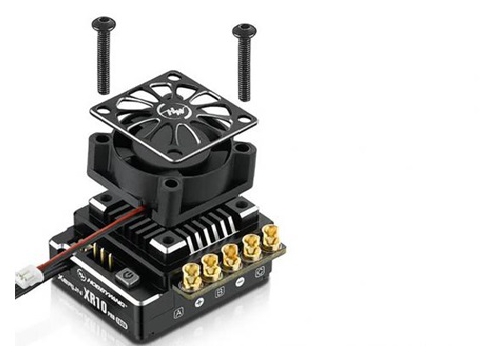

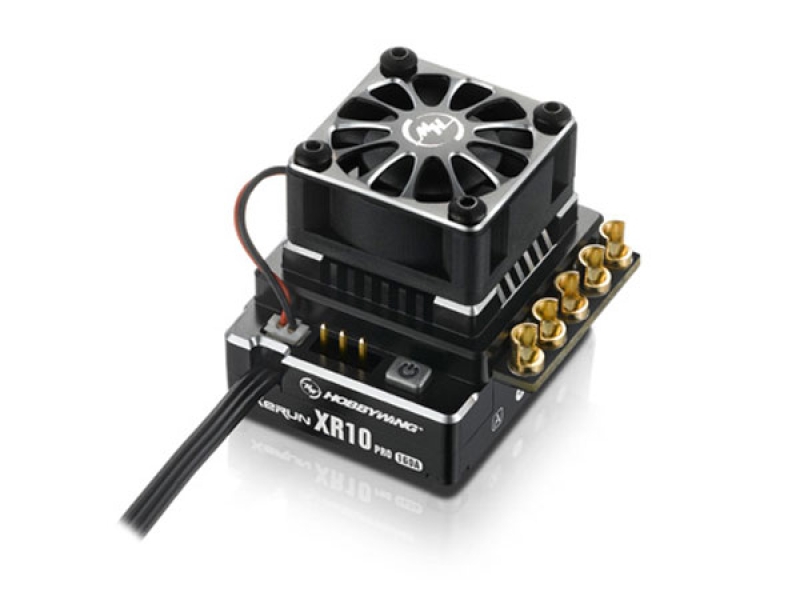

- 1 × Hobbywing XERUN XR10 Pro V4 ESC (Black)
What You Require
- 2–3S LiPo or 4–9 cell NiMH battery pack
- Compatible sensored brushless motor
- WiFi module (for wireless programming and data review)
Sold Separately
- WiFi module
- LCD program box
Product Description of Hobbywing HW30112600 ESC with 160A continuous and 1200A peak current
The Hobbywing HW30112600 ESC with 160A continuous and 1200A peak current is a black, competition-grade brushless controller engineered for elite 1/10 scale racing platforms. Designed for touring cars, pan cars, and buggies, this ESC delivers precise throttle response, advanced heat dissipation, and wireless programmability. Whether you're chasing podiums or refining lap consistency, the Hobbywing HW30112600 XR10 Pro V4 speed controller with data logging offers the configurability and reliability demanded by serious racers. With support for 2–3S LiPo input, adjustable PWM frequencies, and a 4A switch-mode BEC, this ESC is built to dominate on the track.
Key features of the Hobbywing HW30112600 ESC
- Wireless programming – supports WiFi module for app-based tuning and firmware upgrades
- Data logging function – records ESC/motor temperature, RPM, and more for post-race analysis
- Copper heat plates – patented design for rapid MOSFET heat transfer and cooling
- Detachable cooling fan – enhances airflow and thermal stability during extended runs
- Adjustable throttle and brake PWM frequencies – fine-tune response for different track conditions
- Electronic switch – rated for 50,000+ cycles, eliminates mechanical failure risks
How does the Hobbywing HW30112600 ESC support competitive racing?
The Hobbywing HW30112600 ESC with 160A continuous and 1200A peak current is built for precision and power. Its intelligent software includes 10 selectable profiles tailored for top-tier 1/10 scale racing formats. Whether you're dialing in throttle curves for a touring car or maximizing brake control on a buggy, the ESC responds with accuracy and consistency. The high-current architecture ensures stable output under load, while the compact form factor fits seamlessly into tight chassis layouts. For racers who demand control without compromise, this ESC delivers.
What makes the heat dissipation system so effective?
The Hobbywing ESC with copper heat plates and detachable cooling fan features a patented thermal design that rapidly transfers heat from the MOSFET board to the external heat sink. The reticular aluminum casing enhances surface area for dissipation, while the detachable fan provides active cooling during high-load operation. This system maintains optimal operating temperatures, reducing thermal throttling and extending component lifespan. Whether you're running back-to-back heats or pushing voltage limits, the ESC stays cool and consistent.
How does wireless programming improve usability?
The Hobbywing HW30112600 brushless ESC with 4A BEC and wireless programming supports the Hobbywing WiFi module, allowing users to configure settings, update firmware, and review data logs directly from a mobile device. This eliminates the need for physical programmers and streamlines setup between races. Real-time data logging captures key metrics such as RPM, temperature, and throttle input, which can be reviewed via the app or LCD program box. For racers who value speed and precision, wireless control is a game-changer.
Why is PWM frequency adjustment important?
The Hobbywing HW30112600 with 2–3S LiPo input and adjustable PWM frequencies allows users to fine-tune throttle and brake response to match track conditions and driving style. By adjusting the pulse width modulation frequency, racers can optimize smoothness, punch, and braking aggressiveness. This level of control is essential in competitive environments where milliseconds matter. Combined with the ESC’s high-speed processing and stable output, PWM tuning gives drivers a strategic edge.
Is the XR10 Pro V4 ESC suitable for all 1/10 scale platforms?
Absolutely. The Hobbywing XR10 Pro V4 ESC for 1/10 touring cars, pan cars, and buggies is designed to meet the demands of multiple racing disciplines. Its compact size, flexible wiring, and programmable profiles make it adaptable to various chassis and motor setups. Whether you're competing in on-road precision or off-road agility, the ESC delivers the responsiveness and reliability needed to stay ahead. With support for 2–3S LiPo input and a robust 4A BEC, it powers high-voltage servos and maintains consistent control across formats.
For racers seeking a lightweight, high-performance ESC with advanced tuning and thermal management, the affordable Hobbywing XR10 Pro V4 with MOSFET heat dissipation and 10 profiles is the ultimate upgrade. Buy Hobbywing HW30112600 ESC with WiFi module support and fan shroud today.
Technical Specifications of Hobbywing HW30112600 ESC with 160A continuous and 1200A peak current
Brand, Model and Product Type
- Brand: Hobbywing
- Model: HW30112600
- Product Type: Hobbywing HW30112600 ESC with 160A continuous and 1200A peak current, Hobbywing HW30112600 XR10 Pro V4 speed controller with data logging, Hobbywing HW30112600 brushless ESC with 4A BEC and wireless programming, Hobbywing HW30112600 with 2–3S LiPo input and adjustable PWM frequencies, Hobbywing XR10 Pro V4 ESC for 1/10 touring cars, pan cars, and buggies, Hobbywing ESC with copper heat plates and detachable cooling fan
- Product Colour: Black
Dimensions
- Length: 3.75 cm – compact footprint for tight 1/10 scale chassis layouts
- Width: 3.09 cm – allows efficient integration with racing electronics
- Height: 3.16 cm (with fan and shroud) – accommodates cooling system without obstructing body shell
- Weight: 95 g – includes wires; lightweight for competitive setups
Electrical and Performance Specifications
- Continuous Current: 160A – delivers stable power for high-speed racing and precision control
- Peak Current: 1200A – supports rapid acceleration and torque bursts
- Input Voltage: 2–3S LiPo / 4–9 cell NiMH – compatible with standard racing battery formats
- Motor Compatibility: Sensored brushless motors – optimized for smooth throttle response
BEC System
- BEC Type: Switch-mode – efficient and thermally stable
- BEC Output Voltage: Selectable 6V / 7.4V – supports high-voltage servo systems
- BEC Output Current: 4A – ensures reliable servo performance under race conditions
Protection and Safety Features
- Electronic Switch: Rated for 50,000+ cycles – eliminates mechanical wear and failure
- Heat Dissipation System: Copper heat plates and reticular aluminum casing – rapidly transfers heat from MOSFETs
- Cooling Fan: Detachable – improves airflow and maintains optimal operating temperature
Connectivity and Programming
- Wireless Programming: Supported via WiFi module – enables mobile app control and firmware upgrades
- Program Port: Separate – supports fan and programming interface
Data Logging and Monitoring
- Real-Time Data: Supported – captures throttle, RPM, temperature, and voltage metrics
- Historical Graphs: Supported – enables post-race analysis and tuning
- Extreme Value Recording: Enabled – stores peak performance data for review
Cooling System
- Fan Size: 2.5 × 2.5 × 1.0 cm – compact and efficient for 1/10 scale builds
- Fan Voltage Range: 5–7.4V – powered by BEC output
Wires and Connectors
- Input Wires: 12AWG Black × 2 – 20 cm length for secure power delivery
- Output Wires: 12AWG Black × 3 – motor phase connections
- Input Connectors: Not included – user-configurable based on battery setup
- Output Connectors: Not included – allows flexible motor pairing
Applications
- Vehicle Type: 1/10 touring cars, pan cars, and buggies – ideal for competitive racing formats
- Motor Type: Brushless – supports sensored configurations for precision control
What’s Included
- 1 × Hobbywing XERUN XR10 Pro V4 ESC (Black)
What You Require
- 2–3S LiPo or 4–9 cell NiMH battery pack
- Compatible sensored brushless motor
- WiFi module (for wireless programming and data review)
Sold Separately
- WiFi module
- LCD program box
