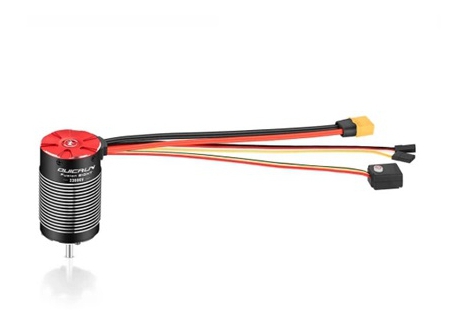

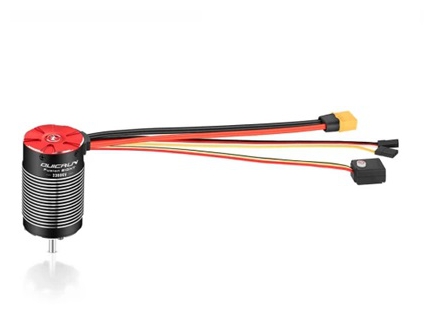

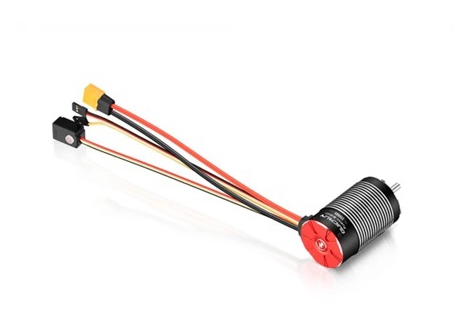

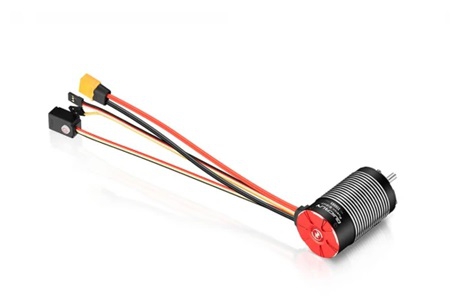

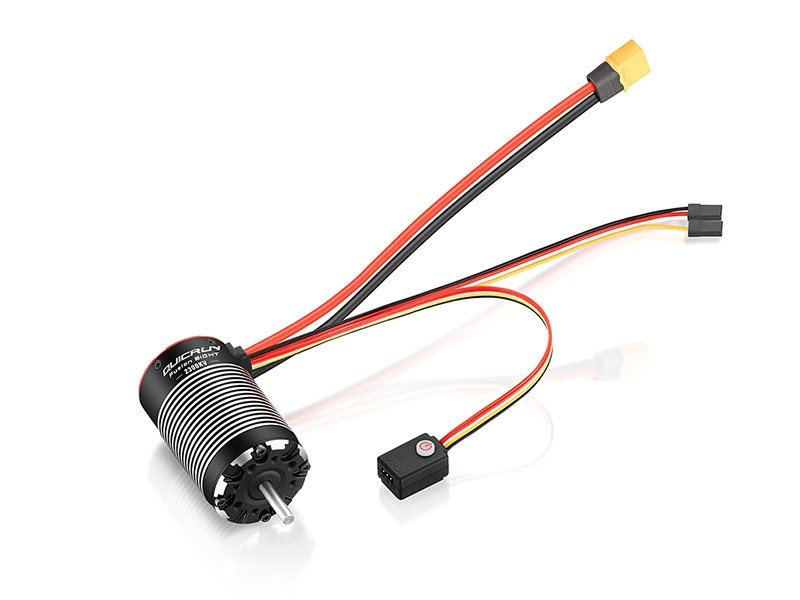

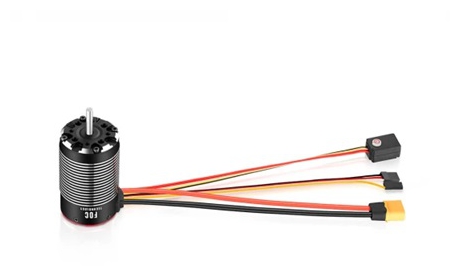

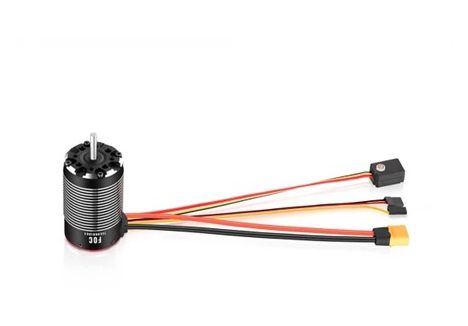

Introducing the Hobbywingn QuicRun Fusion 8IGHT Climbing integrated power system.
Integrated design
The industry's first commercialized FOC integrated power system suitable for 1/ 8th scale models has an overall size of only 42*69mm , making the frame layout and wiring simpler and more beautiful , effectively solving the problem of difficult wiring in climbing vehicles due to small internal space.
4S High Power Climbing ESC
The ESC supports up to 4S LiPo.
Maximum continuous output 80A.
In addition, the small size design can not only be used for 1/ 8th climbing models, but also meet the needs of 1/ 7th light-load climbing models.
Adjust the drag brake force in real time
When the yellow signal line is connected to an idle channel of the receiver, the remote controller can be used to adjust the braking force in real time, easily meeting the braking force requirements in various application environments.
FOC drive, good linearity, high torque, and almost silent.
Adopting FOC drive mode, the torque is very strong when running at low speed, and it runs very smoothly even at extremely low speed, which is far superior to ordinary sensory power systems and even better than brushless power.
In addition, the driving noise that drivers hate is solved when the motor is running, and it is almost silent.
Intelligent torque output, easy to control.
When the car is going uphill, the ESC automatically increases the output torque to overcome the resistance and go uphill smoothly;
When going downhill, the electronic control automatically reduces the output torque and stabilizes the vehicle speed.
The intelligent output torque can effectively control the speed and make the vehicle easy to control.
Note: When the operation mode is set to normal mode, there is no fixed speed function, which is similar to the effect of brushless operation.
All-weather and all-terrain operation capability
The entire power system has an IP67 protection grade and excellent waterproof and dustproof performance. It can easily cope with complex roads containing mud, snow, ice and water .
Note: The IP67 protection level mentioned above is splash-proof, water-resistant and dust-proof under normal use, but it is not permanent and the protection performance may decrease due to daily wear and aging. Do not soak in water for a long time, otherwise it may damage the product.
Powerful built-in BEC
Built-in powerful BEC with maximum output current of 13A
Output voltage can be switched between 6V/7.4V/8.4V
It can easily drive various standard servos, high-voltage servos and peripheral electrical equipment (such as lights, winches, etc.) .
Support three operation modes
Meet various application requirements.
- Classic fixed speed mode (direct forward and reverse)
- Normal mode without constant speed function (forward and reverse with brake)
- Normal mode without fixed speed function (direct forward and reverse)
Support LED / LCD dual programming box
Rich and applicable parameter items. The ESC has 13 adjustable parameters to meet various application setting requirements.
- Operation Mode
- Lithium battery number
- Low voltage protection threshold
- Overheat protection threshold
- Motor rotation direction
- BEC voltage
- Drag brake force
- Drag brake acceleration
- Maximum reversing force
- Maximum braking force
- Speed smoothness
- Start acceleration
- Throttle midpoint area
Specifications
- Scale - 1/8th
- Brushed/Brushless - Brushless
- Feeling/No Feeling - Feeling
- Waterproof Waterproof
- Cont./Peak Current - 80A/240A
- Input Voltage - 2-4S Lipo/6-12 Cell NiMH
- BEC Output - 6V/7.4V/8.4V adjustable, continuous current 6A (switching regulator mode)
- Motor KV - 2300KV
- Motor Poles 4
- Power Cord - Black-13AWG-250mm*1 Red-13AWG-250mm*1
- Power Plug - XT60
- Diameter/length of Motor - 42mm/69mm
- Shaft diameter / exposed shaft length - 5mm/18.5mm
- SET Button on ESC - Not Supported
- LED Program Box - Supported
- LCD G2 Program Box - Not Supported
- OTA Programmer - Not Supported
- Program Interface - Independent programming interface(switch position)
- Firmware Upgrade - Not Supported
- Weight - 338g (including wire plug)
- Vehicles - Various 1/8th rock crawler
Brand, Model and Product Type
- Brand: Hobbywing
- Model: HW30120404
- Product Type: Hobbywing HW30120404 Fusion 8IGHT ESC/motor combo with 2300kV output, Hobbywing HW30120404 2-in-1 crawler system with 80A ESC and XT60 plug, Hobbywing HW30120404 brushless sensored combo with IP67 waterproof rating, Hobbywing HW30120404 with 6V/7.4V/8.4V adjustable BEC and 4-pole motor, Hobbywing Fusion 8IGHT ESC with real-time drag brake adjustment and FOC drive
- Product Colour: Black
Dimensions
- Motor Diameter: 4.2 cm – suitable for 1/8 scale crawler platforms requiring high torque output
- Motor Length: 6.9 cm – compact enough to fit tight chassis layouts while housing integrated ESC
- Shaft Diameter: 0.5 cm – ensures compatibility with standard 1/8 crawler drivetrains
- Exposed Shaft Length: 1.85 cm – provides secure gear engagement for consistent torque transfer
- Total Weight: 338 g – includes wiring and connectors; balanced for stability and durability
Electrical and Performance Specifications
- Motor KV Rating: 2300KV – optimized for torque-rich crawling and responsive throttle control
- Motor Pole Count: 4 – delivers smooth and consistent power across technical terrain
- Continuous Current: 80A – supports sustained climbing and low-speed maneuvering
- Peak Current: 240A – handles short bursts of torque for steep ascents and obstacle negotiation
- Input Voltage Range: 2–4S LiPo / 6–12 cell NiMH – compatible with standard 1/8 crawler battery setups
BEC System
- BEC Type: Switch-mode – efficient voltage regulation for servo and accessory support
- BEC Output Voltage: Adjustable between 6V, 7.4V, and 8.4V – supports high-voltage servo configurations
- BEC Output Current: 6A – ensures consistent power delivery under demanding load conditions
Control and Tuning Features
- FOC Drive: Enabled – provides silent torque control and ultra-smooth throttle modulation
- Drag Brake Adjustment: Real-time tuning supported – enhances slope holding and descent control
- ESC Programming: Supported via LED Program Box and LCD G2/LCD PRO – allows detailed configuration of performance parameters
- Program Port: Independent – located at switch position for convenient access
- Firmware Upgrade: Not supported – configuration limited to onboard and external programming tools
Durability and Environmental Protection
- Waterproof Rating: IP67 – protects internal electronics from water, dust, and debris during outdoor use
- Sensored Configuration: Enabled – ensures accurate throttle response and smooth low-speed control
Wiring and Connectors
- Input Wires: 13AWG Black and Red – 25 cm length for flexible routing and high-current delivery
- Input Connector: XT60 – pre-installed for secure battery connection and reliable power transfer
Vehicle Compatibility
- Scale: 1/8 – designed for rock crawlers requiring high-efficiency climbing and torque stability
- Vehicle Type: Rock crawler – optimized for technical terrain and low-speed precision
- Motor Type: Brushless sensored – delivers smooth and accurate throttle control
What’s in the Box
- 1 × Hobbywing QUICRUN Fusion 8IGHT Combined ESC/Motor – 2300kV
What You Require
- 2–4S LiPo or 6–12 cell NiMH battery pack
- Compatible 1/8 scale crawler chassis
Sold Separately
- LED Program Box
- LCD G2 Program Box or LCD PRO
Product Description of Hobbywing HW30120404 Fusion 8IGHT ESC/motor combo with 2300kV output
The Hobbywing HW30120404 Fusion 8IGHT ESC/motor combo with 2300kV output is a black, sensored brushless system engineered for 1/8 scale rock crawlers demanding high torque, silent operation, and simplified installation. This integrated 2-in-1 unit combines an 80A ESC with a 4-pole motor, delivering consistent power and precision control across technical terrain. With a 69mm motor length and IP67 waterproof rating, the Hobbywing HW30120404 2-in-1 crawler system with 80A ESC and XT60 plug is built for rugged outdoor use and optimized for compact wiring. Whether navigating steep inclines or crawling through debris-laden trails, this system offers real-time drag brake adjustment, FOC drive technology, and a high-efficiency BEC for reliable performance under load.
Key features of the Hobbywing HW30120404 Fusion 8IGHT
- Integrated 2-in-1 ESC/motor design – simplifies wiring and installation in tight 1/8 crawler chassis
- FOC drive system – delivers silent torque control and ultra-smooth throttle modulation
- Real-time drag brake adjustment – enhances slope holding and descent stability
- IP67 waterproof rating – protects electronics from water, dust, and debris in outdoor conditions
- Adjustable BEC output – supports 6V, 7.4V, and 8.4V for high-voltage servo compatibility
- LCD programming support – enables detailed configuration of performance parameters
How does the integrated 2-in-1 design improve crawler builds?
The Hobbywing HW30120404 Fusion 8IGHT ESC/motor combo with 2300kV output features a unified architecture that combines the ESC and motor into a single compact unit. This design reduces wiring complexity, improves space efficiency, and minimizes installation time. With a motor length of 69mm and a diameter of 42mm, the system fits seamlessly into most 1/8 scale crawler platforms. The pre-installed XT60 plug and 13AWG wiring ensure secure power delivery, while the reduced footprint allows for cleaner layouts and improved airflow within the chassis. For builders seeking streamlined integration without sacrificing performance, this combo offers a practical and powerful solution.
What advantages does the FOC drive system offer?
The Hobbywing Fusion 8IGHT ESC with real-time drag brake adjustment and FOC drive utilizes field-oriented control to deliver ultra-silent operation and precise torque modulation. This technology ensures smooth throttle response at low speeds, making it ideal for technical crawling and scale realism. The FOC system also enhances energy efficiency by optimizing motor performance under varying loads, reducing power consumption and heat generation. Whether climbing over rocks or descending steep slopes, the ESC maintains consistent control, allowing drivers to focus on line selection and terrain navigation without throttle jitter or noise interference.
How does real-time drag brake adjustment enhance slope control?
The Hobbywing HW30120404 2-in-1 crawler system with 80A ESC and XT60 plug includes real-time drag brake tuning via supported LCD programming tools. This feature allows users to fine-tune braking force and response rate based on terrain and driving style. Whether holding position on a steep incline or descending with precision, the drag brake system provides the stability needed for confident control. The ability to adjust brake parameters on the fly ensures adaptability across different environments, making the system suitable for both recreational and competitive crawling applications.
Why is IP67 waterproofing essential for outdoor crawlers?
The Hobbywing HW30120404 brushless sensored combo with IP67 waterproof rating is built to withstand the rigors of outdoor terrain. Its sealed housing protects internal electronics from water, dust, and debris, ensuring reliable operation in mud, snow, and wet conditions. This level of protection is critical for rock crawlers that frequently encounter unpredictable environments. The waterproof design also extends the lifespan of the system by preventing corrosion and electrical failure, allowing users to push their builds harder without compromising durability or safety.
How does the adjustable BEC support high-performance servos?
The Hobbywing HW30120404 with 6V/7.4V/8.4V adjustable BEC and 4-pole motor includes a switch-mode BEC capable of delivering 6A continuous current. Users can select between three voltage outputs to match the requirements of their servo systems, enabling compatibility with high-voltage steering and accessory components. This flexibility ensures optimal responsiveness and power delivery, especially in demanding crawling scenarios where servo performance directly impacts maneuverability. The BEC’s stability under load contributes to smoother operation and reduces the risk of brownouts during peak power draw.
Is the Hobbywing HW30120404 suitable for advanced tuning?
Yes. The Hobbywing 1/8 crawler combo with 2–4S LiPo support and 69mm motor length supports configuration via LED and LCD programming boxes, including the LCD G2 and LCD PRO. These tools allow users to adjust performance parameters such as throttle response, drag brake rate, and neutral range. The independent programming port located at the switch position provides easy access for tuning without disassembly. While firmware upgrades are not supported, the system’s onboard configurability ensures that users can tailor the ESC’s behavior to match their driving style and terrain requirements.
For builders seeking a high-efficiency, waterproof crawler system with advanced torque control and simplified wiring, the affordable Hobbywing 2300kV crawler system with LCD programming and 13AWG wiring delivers exceptional value and performance. Buy Hobbywing HW30120404 Fusion 8IGHT for 1/8 rock crawlers with silent torque control today.
Technical Specifications of Hobbywing HW30120404 Fusion 8IGHT ESC/motor combo with 2300kV output
Brand, Model and Product Type
- Brand: Hobbywing
- Model: HW30120404
- Product Type: Hobbywing HW30120404 Fusion 8IGHT ESC/motor combo with 2300kV output, Hobbywing HW30120404 2-in-1 crawler system with 80A ESC and XT60 plug, Hobbywing HW30120404 brushless sensored combo with IP67 waterproof rating, Hobbywing HW30120404 with 6V/7.4V/8.4V adjustable BEC and 4-pole motor, Hobbywing Fusion 8IGHT ESC with real-time drag brake adjustment and FOC drive
- Product Colour: Black
Dimensions
- Motor Diameter: 4.2 cm – suitable for 1/8 scale crawler platforms requiring high torque output
- Motor Length: 6.9 cm – compact enough to fit tight chassis layouts while housing integrated ESC
- Shaft Diameter: 0.5 cm – ensures compatibility with standard 1/8 crawler drivetrains
- Exposed Shaft Length: 1.85 cm – provides secure gear engagement for consistent torque transfer
- Total Weight: 338 g – includes wiring and connectors; balanced for stability and durability
Electrical and Performance Specifications
- Motor KV Rating: 2300KV – optimized for torque-rich crawling and responsive throttle control
- Motor Pole Count: 4 – delivers smooth and consistent power across technical terrain
- Continuous Current: 80A – supports sustained climbing and low-speed maneuvering
- Peak Current: 240A – handles short bursts of torque for steep ascents and obstacle negotiation
- Input Voltage Range: 2–4S LiPo / 6–12 cell NiMH – compatible with standard 1/8 crawler battery setups
BEC System
- BEC Type: Switch-mode – efficient voltage regulation for servo and accessory support
- BEC Output Voltage: Adjustable between 6V, 7.4V, and 8.4V – supports high-voltage servo configurations
- BEC Output Current: 6A – ensures consistent power delivery under demanding load conditions
Control and Tuning Features
- FOC Drive: Enabled – provides silent torque control and ultra-smooth throttle modulation
- Drag Brake Adjustment: Real-time tuning supported – enhances slope holding and descent control
- ESC Programming: Supported via LED Program Box and LCD G2/LCD PRO – allows detailed configuration of performance parameters
- Program Port: Independent – located at switch position for convenient access
- Firmware Upgrade: Not supported – configuration limited to onboard and external programming tools
Durability and Environmental Protection
- Waterproof Rating: IP67 – protects internal electronics from water, dust, and debris during outdoor use
- Sensored Configuration: Enabled – ensures accurate throttle response and smooth low-speed control
Wiring and Connectors
- Input Wires: 13AWG Black and Red – 25 cm length for flexible routing and high-current delivery
- Input Connector: XT60 – pre-installed for secure battery connection and reliable power transfer
Vehicle Compatibility
- Scale: 1/8 – designed for rock crawlers requiring high-efficiency climbing and torque stability
- Vehicle Type: Rock crawler – optimized for technical terrain and low-speed precision
- Motor Type: Brushless sensored – delivers smooth and accurate throttle control
What’s in the Box
- 1 × Hobbywing QUICRUN Fusion 8IGHT Combined ESC/Motor – 2300kV
What You Require
- 2–4S LiPo or 6–12 cell NiMH battery pack
- Compatible 1/8 scale crawler chassis
Sold Separately
- LED Program Box
- LCD G2 Program Box or LCD PRO
