Brand, Model and Product Type

• Brand: Traxxas
• Model: TRX74276-4-GRN
• Color: Green
• Product Type: Traxxas TRX74276-4-GRN brushless rally car, Traxxas TRX74276-4-GRN 1/10 scale RC car, Traxxas TRX74276-4-GRN AWD Fiesta VXL, Traxxas TRX74276-4-GRN with 3500Kv motor and VXL-3S ESC, Traxxas RC car with low-CG chassis and all-terrain tyres

Dimensions

• Length: 53.5 cm – extended chassis supports rally-grade stability and speed
• Width: 28.1 cm – wide track improves cornering grip and lateral control
• Height: 20.6 cm – elevated stance accommodates terrain variation
• Wheelbase: 32.4 cm – tuned for responsive handling and directional stability
• Ground Clearance: 2.1 cm – low-CG layout enhances corner speed and realism
• Weight: 2.77 kg – reinforced structure balances durability and performance

Drivetrain and Transmission

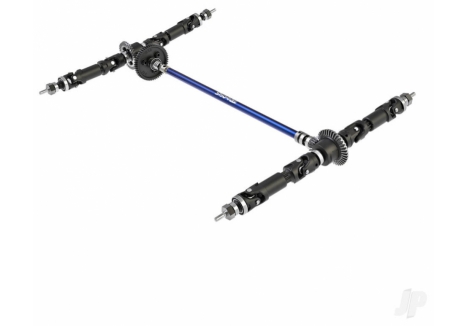

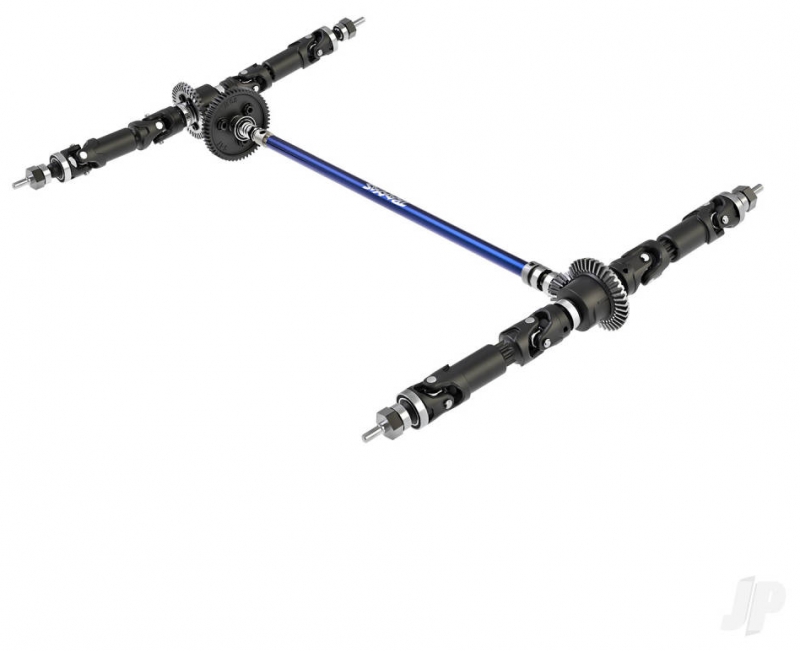

• Drivetrain: Shaft-driven 4WD – full-time all-wheel drive for consistent traction across rally surfaces

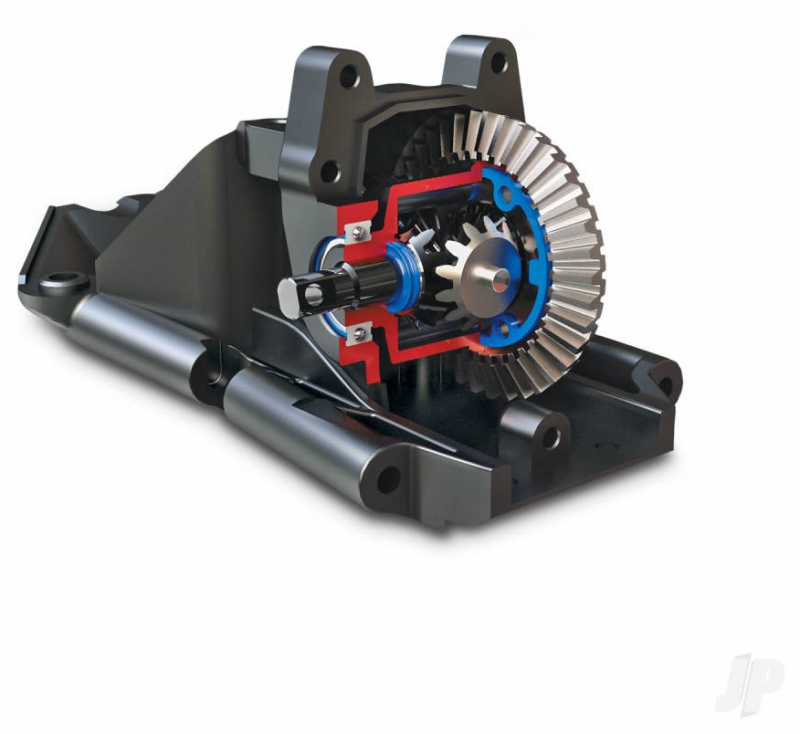

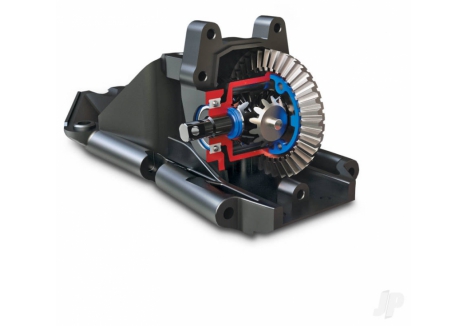

• Differential Type: Hardened steel bevel, sealed, limited slip – supports high torque and smooth power delivery
• Gear Ratio (Internal): 19.69:1 – calibrated for acceleration and top-end speed
• Gear Pitch: 32 pitch – large steel spur gear for durability under load

Motor and ESC

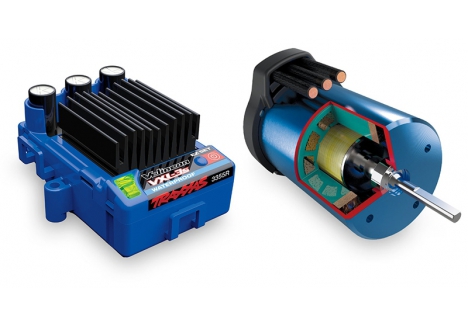

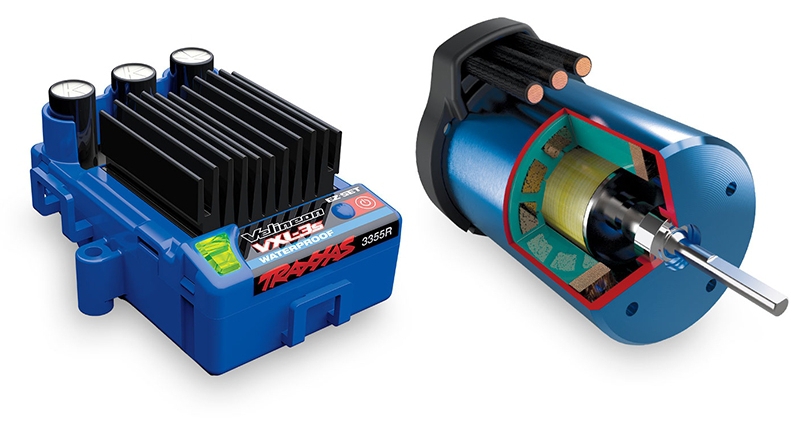

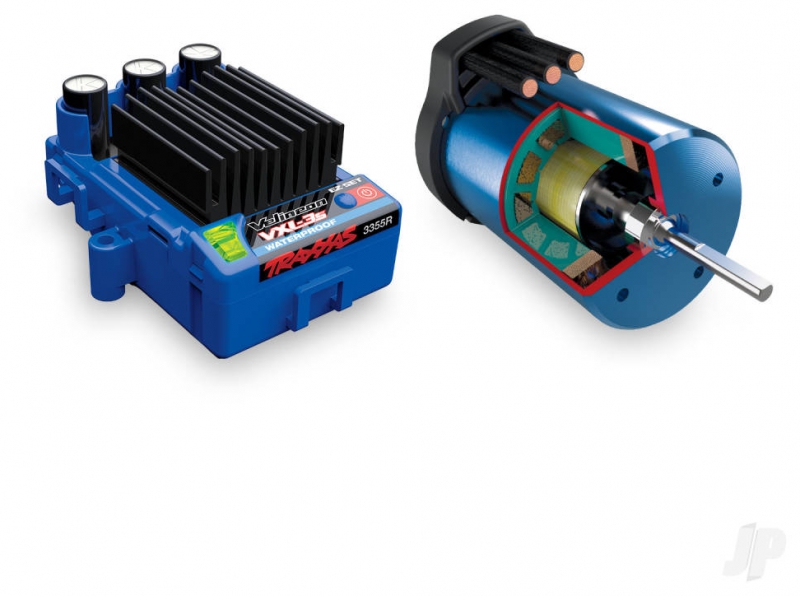

• Motor: Velineon 3500Kv sensorless brushless – high-speed ball bearings and Neodymium magnet for sustained output
• Motor Dimensions: 5.6 cm length × 3.6 cm diameter – compact size supports low-CG integration
• Motor Weight: 262 g – lightweight design for balanced chassis dynamics
• Motor Shaft: 3 mm – standard fitment for secure gear engagement
• ESC: Velineon VXL-3S – waterproof, programmable, and LiPo/NiMH compatible
• ESC Dimensions: 3.1 cm × 5.5 cm × 2.6 cm – compact case with heat sink and optional fan support
• ESC Weight: 109 g – lightweight for efficient mounting
• ESC Drive Modes: Sport, Race, Training Mode – selectable profiles for different skill levels
• Battery Compatibility: 6–9 cell NiMH (7.2–10.8V) or 2–3 cell LiPo (7.4–11.1V)

Radio System and Control

• Transmitter: TQi 2.4 GHz 2-channel – high-output radio with multi-function knob

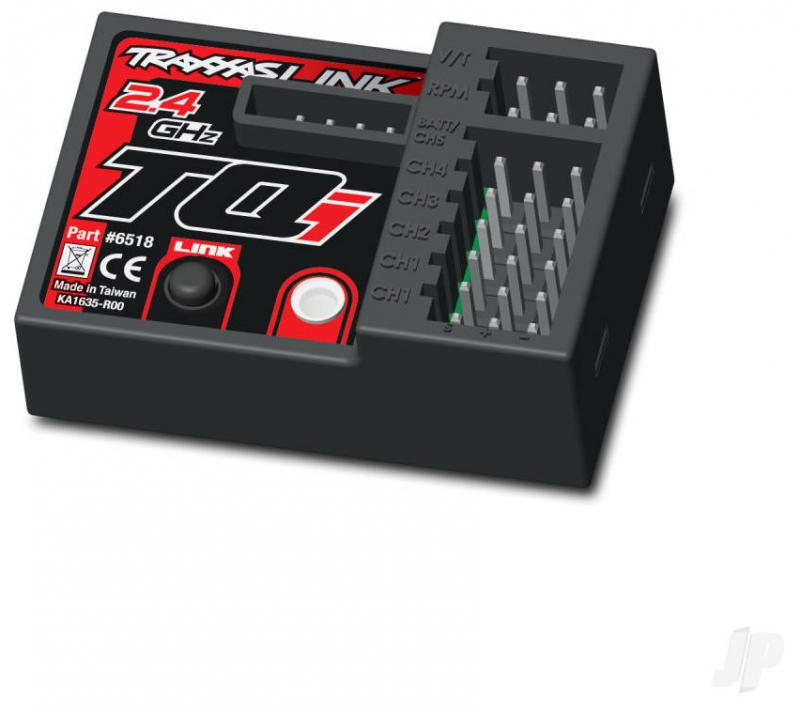

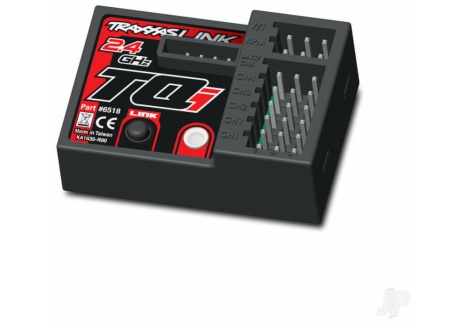

• Receiver: 5-channel 6533 – supports Traxxas Link and fail-safe security
• TSM Control: Traxxas Stability Management – adjustable from transmitter, maintains steering under throttle

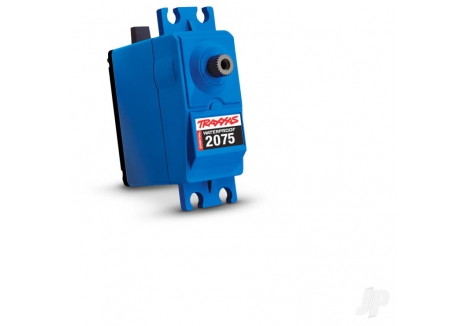

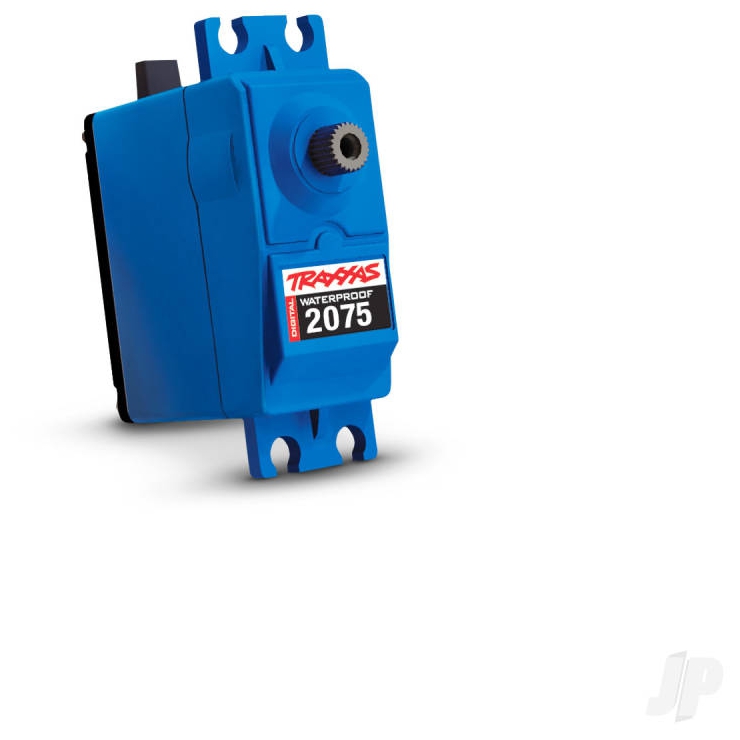

• Servo: 2075 high-torque waterproof – chassis-mounted with dual bellcrank and servo saver

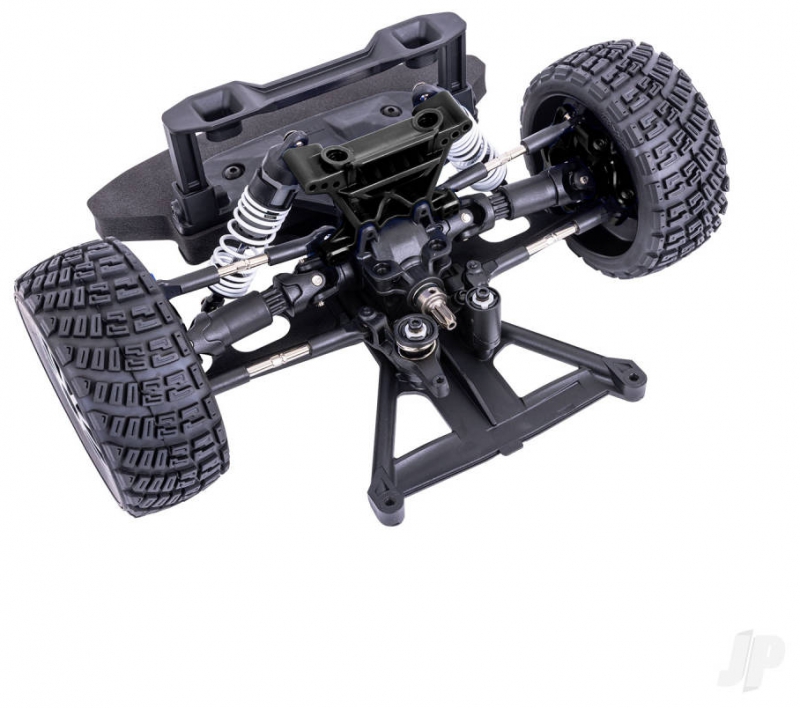

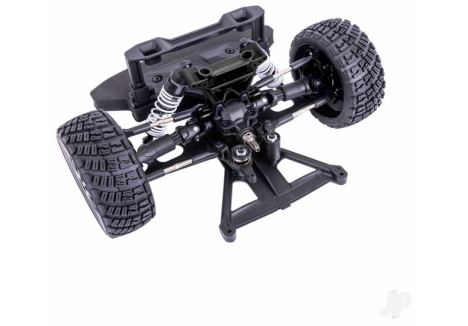

Chassis and Suspension

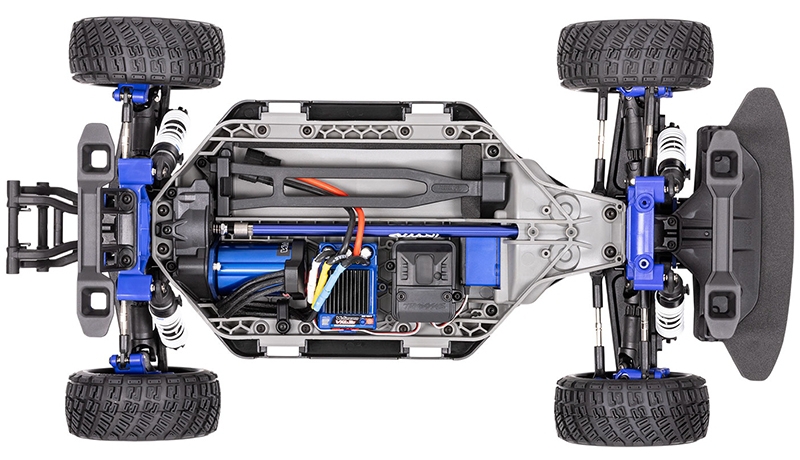

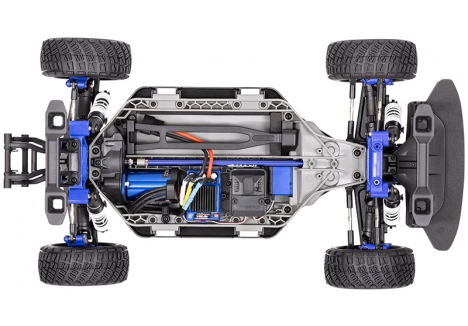

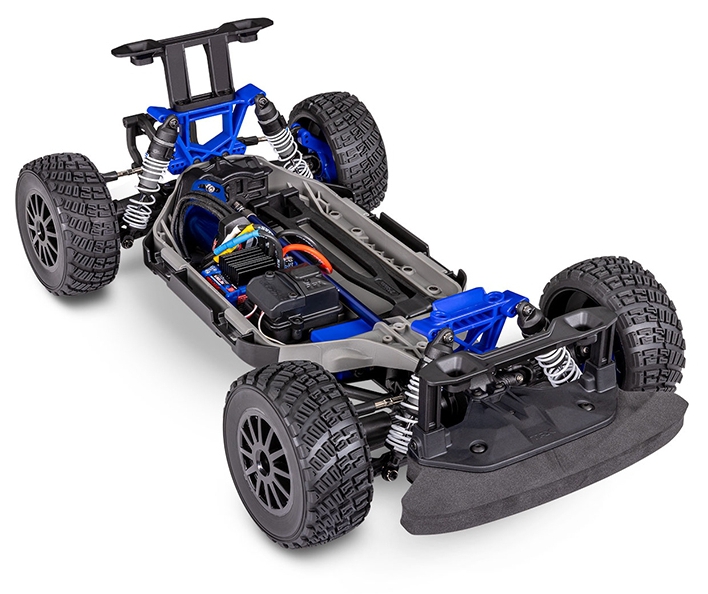

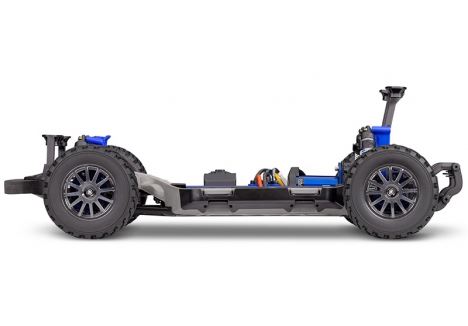

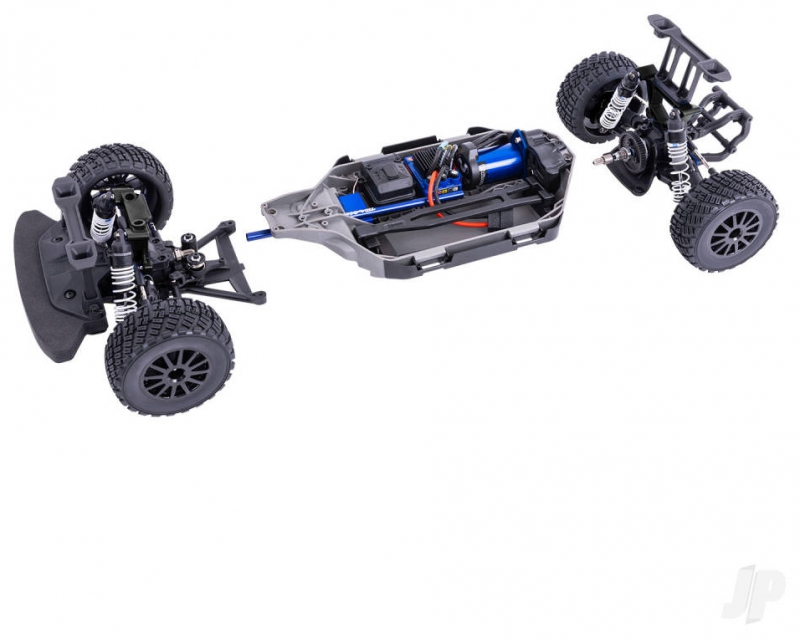

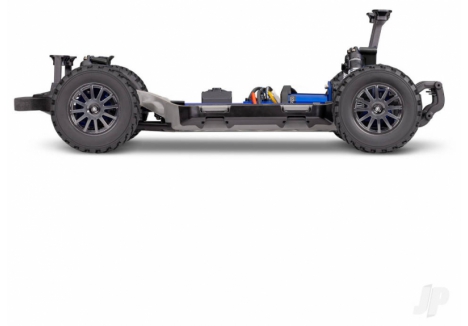

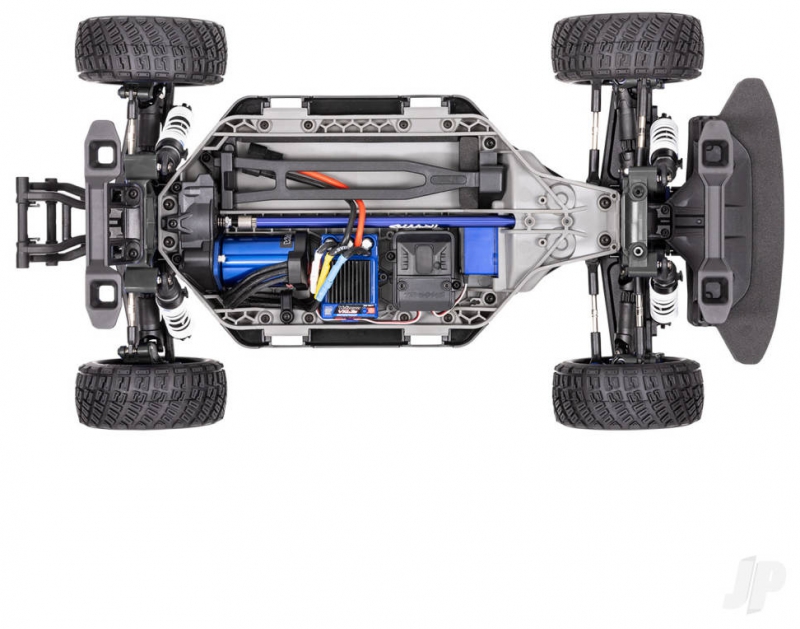

• Chassis Type: Low-CG reinforced modular – improves handling and simplifies maintenance
• Battery Compartment: 16.5 cm × 5.0 cm × 2.3/2.6 cm – adjustable hold-down for multiple pack formats

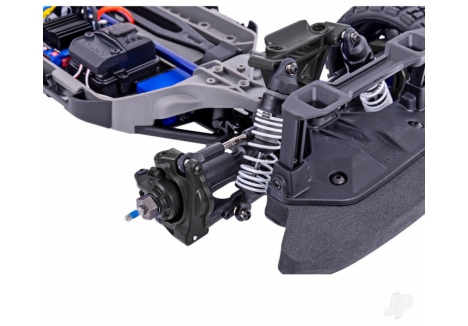

• Suspension: Oil-filled Ultra Shocks – white powder-coated springs for terrain absorption
• Steering System: Dual bellcrank – integrated servo saver for impact protection

Tyres and Wheels

• Tyres: Pre-glued all-terrain rally – foam inserts and tread pattern for multi-surface grip
• Wheel Type: Dual-profile 12-spoke – 5.1 cm outer diameter, 7.6 cm inner diameter

Durability and Hardware

• Upgrade Kit: Extreme Heavy Duty – strengthened C-hubs, axle carriers, and steering blocks

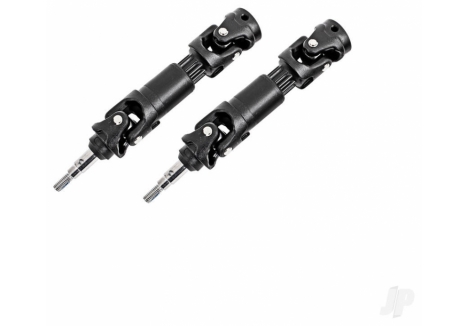

• Driveshafts: Heavy duty – oversized 6 mm axles for impact resistance
• Bearings: Rubber-sealed – precision fitment for reduced friction and extended life
• Hardware: Precision hex – secure fasteners for consistent assembly

What’s In The Box

• 1 × Ford Fiesta ST Rally VXL with VXL-3S ESC and 3500Kv motor
• 1 × TQi 2.4 GHz radio system
• 1 × Quick Start Guide
• 1 × High quality maintenance tools
• 1 × Optional speed gear

What You Require

• 1 × NiMH or LiPo battery (6–9 cell NiMH or 2–3 cell LiPo)
• 1 × Compatible charger
• 4 × AA alkaline batteries for transmitter

Sold Separately

• Battery – required for operation
• Charger – compatible with selected battery type

Product Description of Traxxas TRX74276-4-GRN brushless rally car

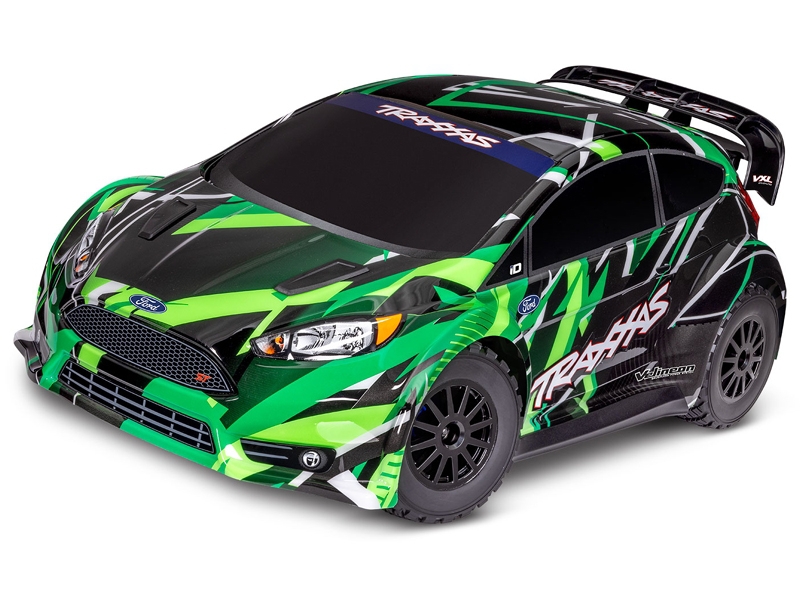

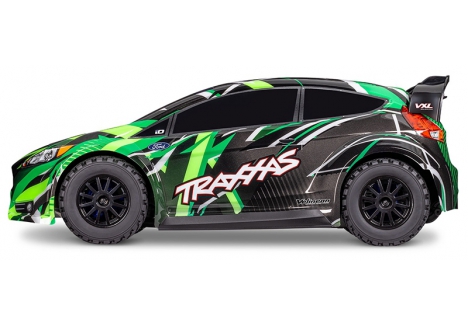

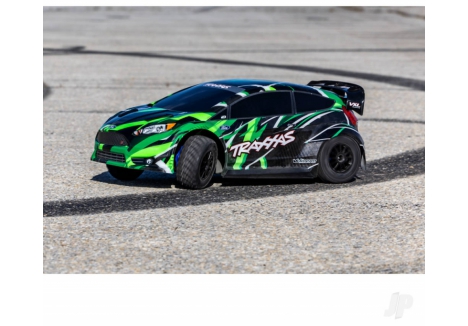

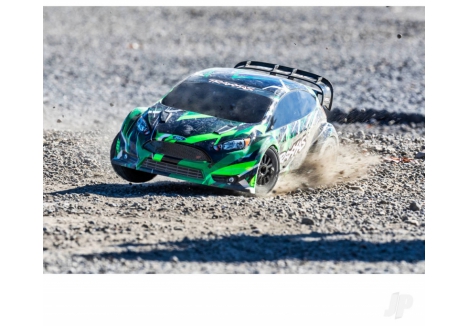

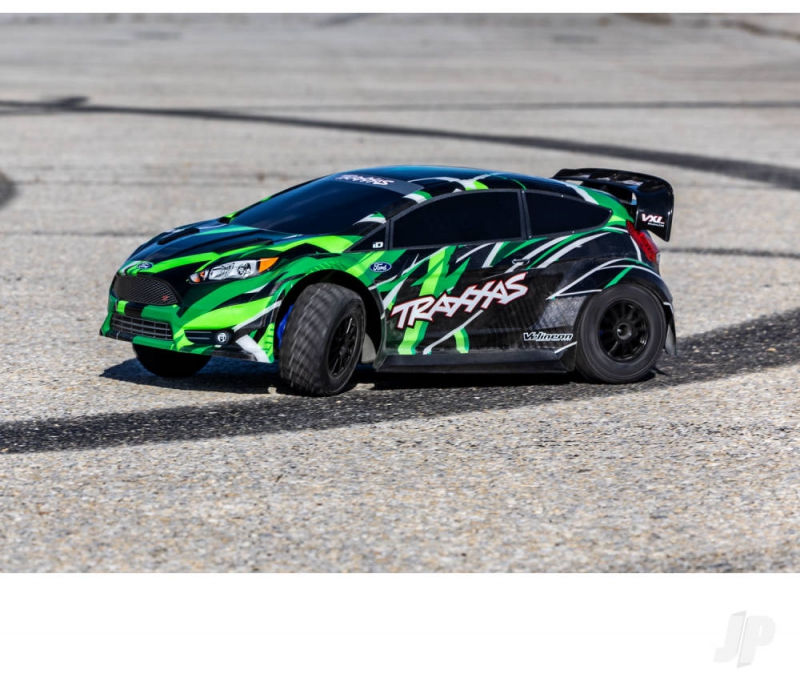

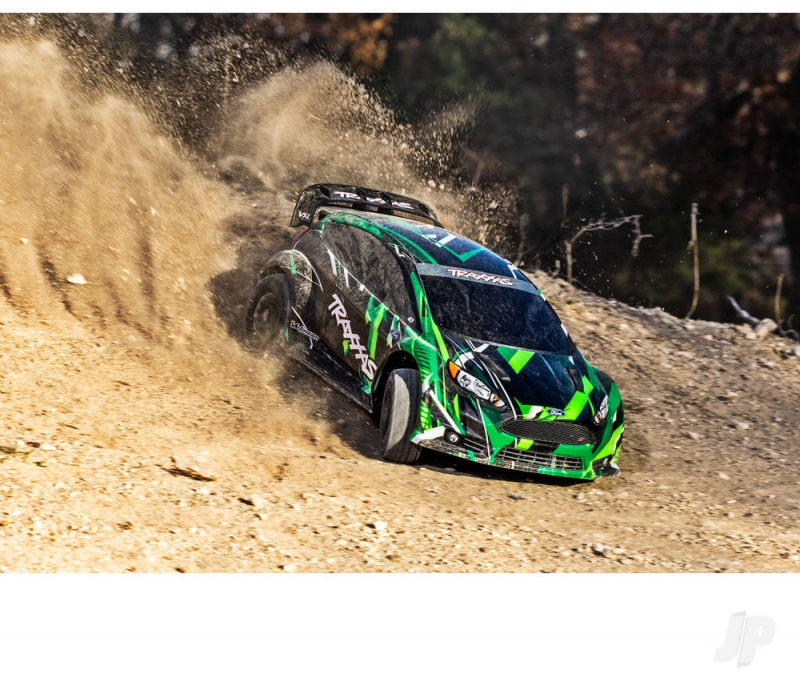

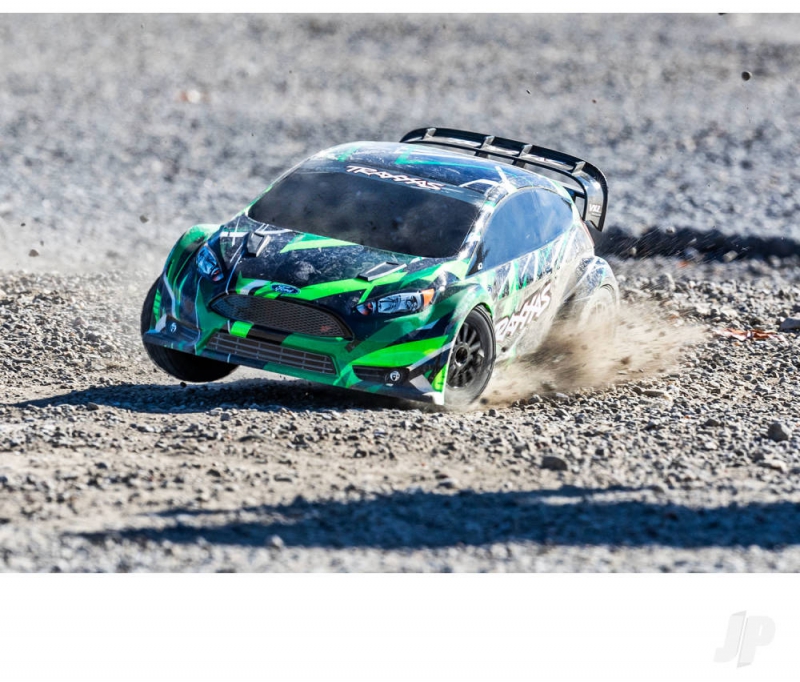

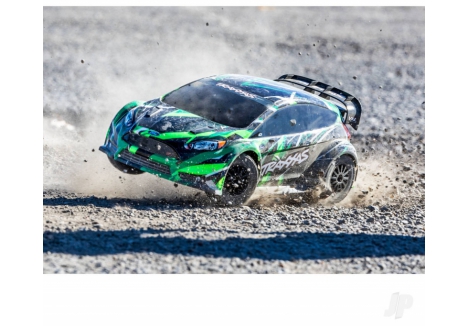

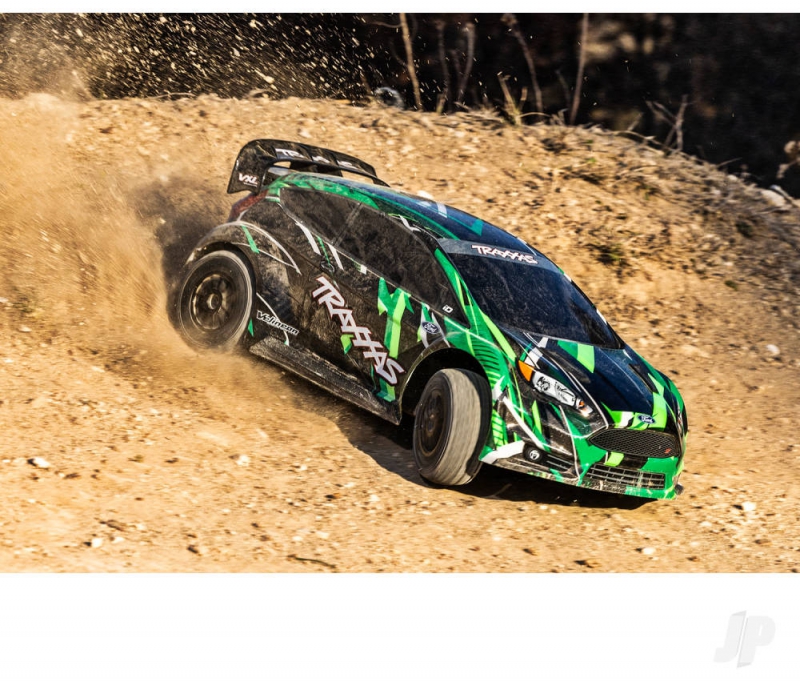

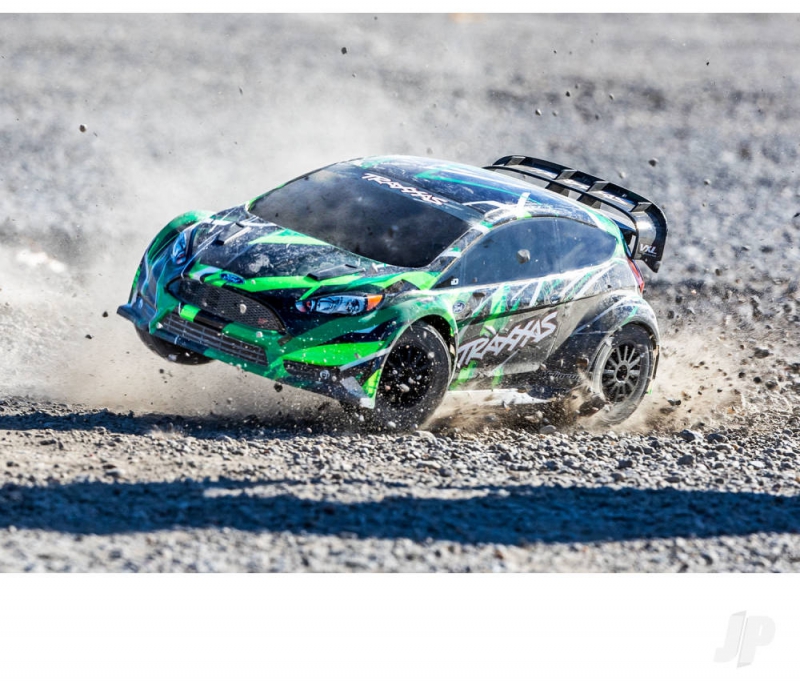

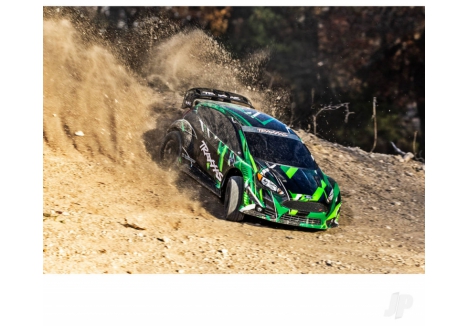

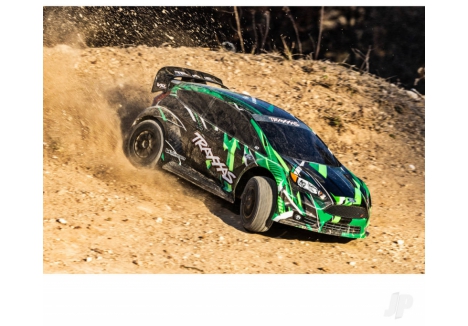

The Traxxas TRX74276-4-GRN brushless rally car is a 1/10 scale RC car engineered for high-speed rally performance, precision handling, and rugged durability. Finished in vibrant green, the AWD Fiesta VXL platform combines a low-CG modular chassis, clipless ProGraphix body, and all-terrain tyres to deliver a true rally racing experience. Powered by a Velineon 3500Kv motor and waterproof VXL-3S ESC, the Traxxas TRX74276-4-GRN 1/10 scale RC car reaches speeds of 60+ mph and maintains control across gravel, pavement, and loose surfaces. With TSM control, heavy-duty drivetrain components, and oil-filled shocks, the Traxxas TRX74276-4-GRN AWD Fiesta VXL is built to dominate rally terrain with confidence and style.

Key features of the Traxxas TRX74276-4-GRN brushless rally car

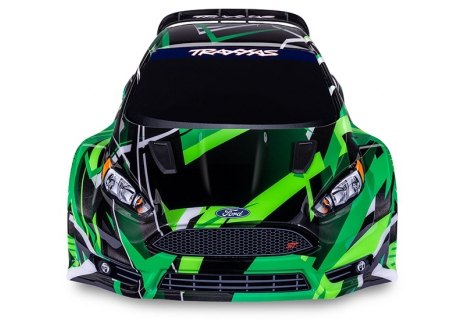

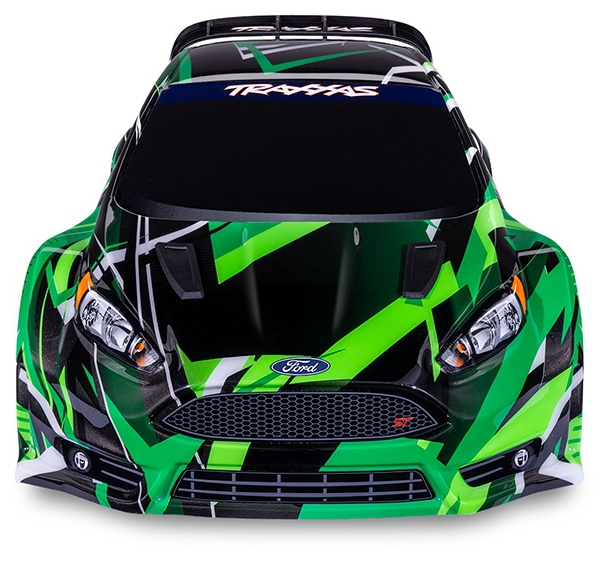

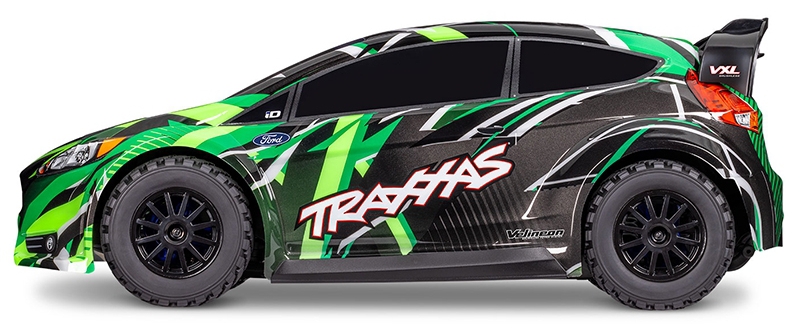

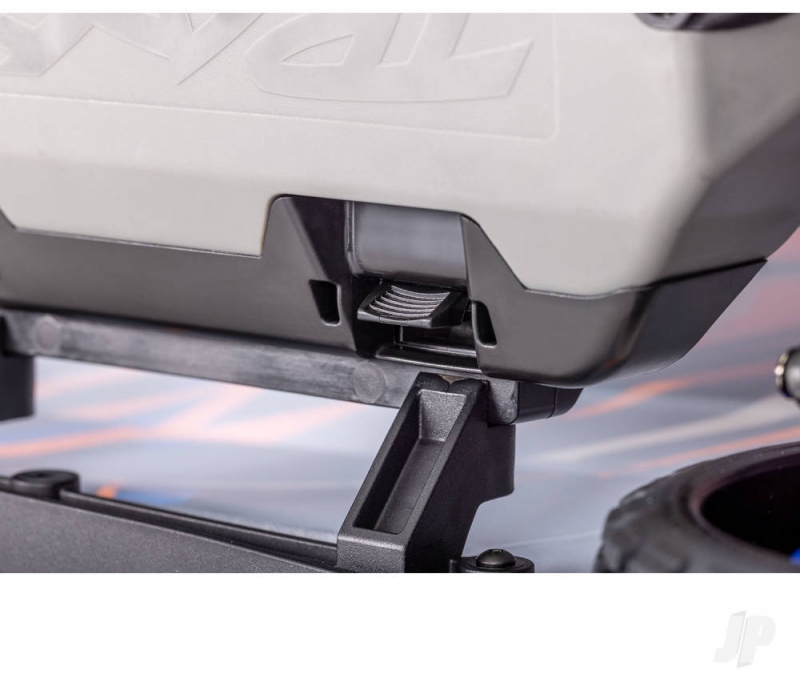

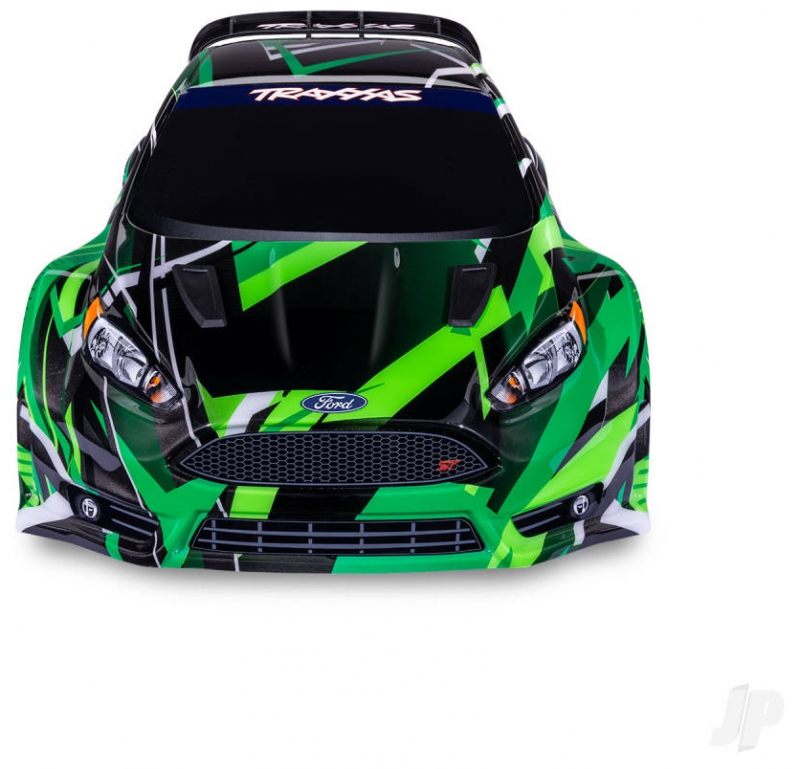

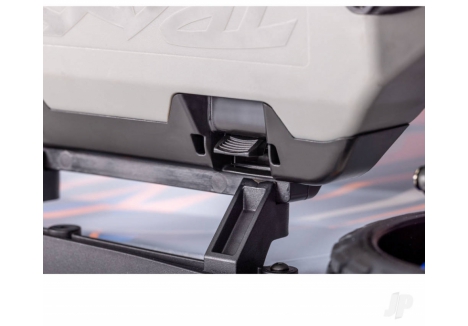

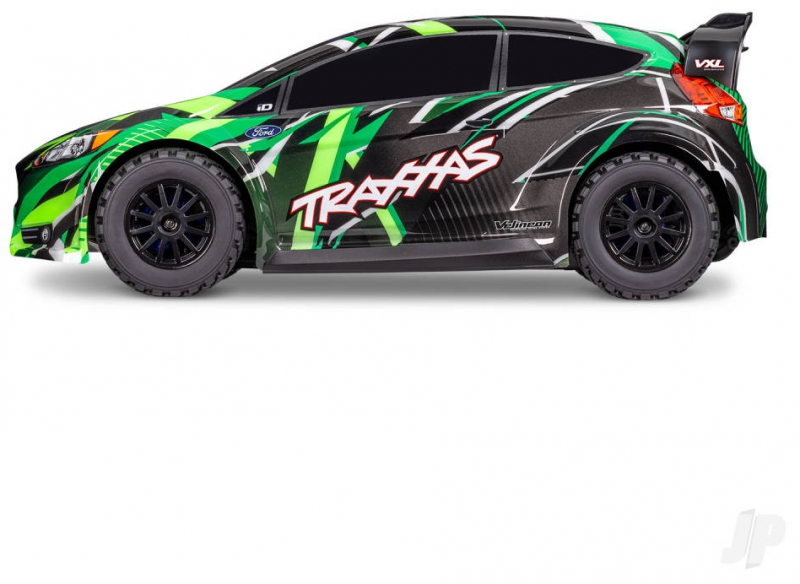

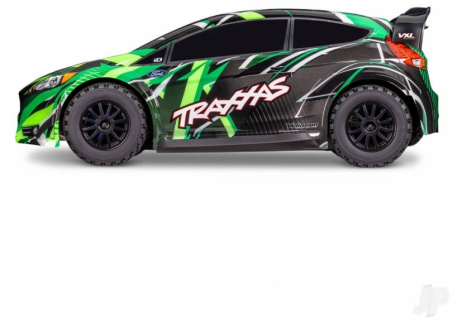

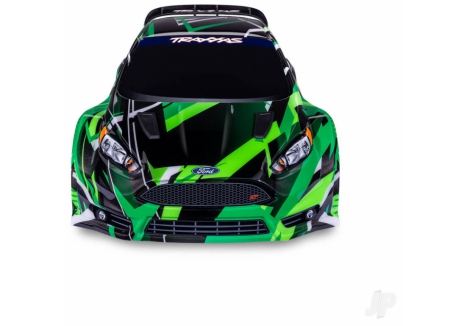

• Clipless body – officially licensed Ford Fiesta ST shell with nerf bars and quick-release mounting

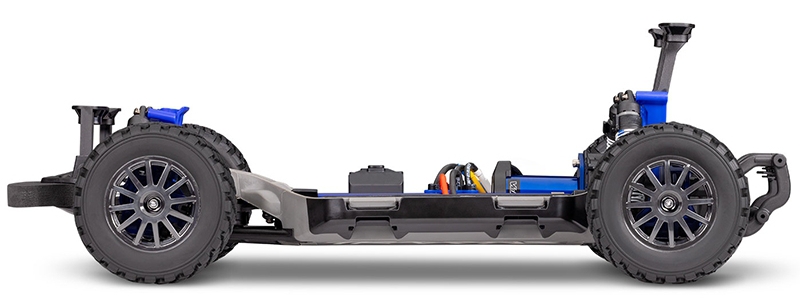

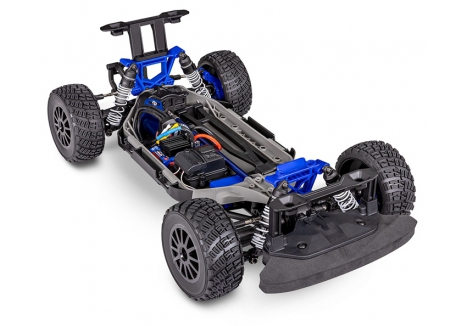

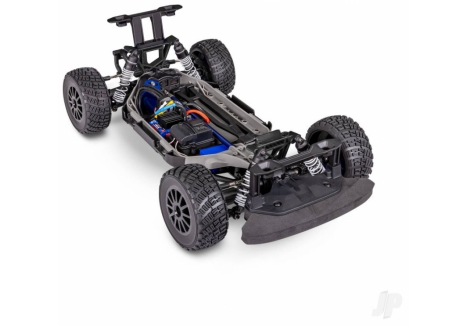

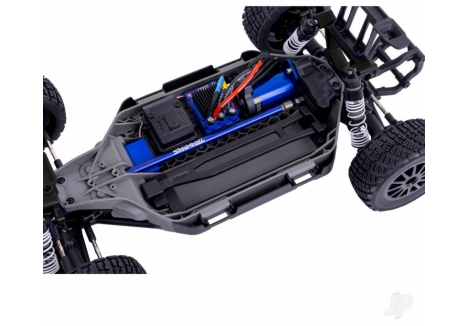

• Low-CG modular chassis – reinforced layout with low-mounted electronics for improved cornering
• All-terrain tyres – dual-profile rally wheels with foam inserts for multi-surface grip
• TSM control – adjustable stability management for throttle-on powerslides and straight-line tracking

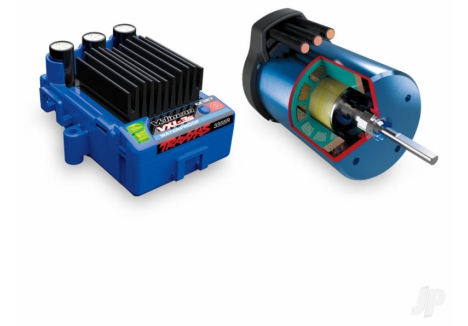

• 3500Kv motor and VXL-3S ESC – waterproof brushless system with programmable drive modes

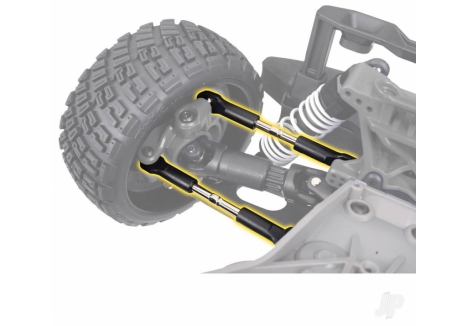

• Heavy duty driveshafts – oversized 6 mm axles and strengthened carriers for impact resistance
• Oil-filled shocks – Ultra Shocks with white powder-coated springs for terrain absorption

How does the clipless body enhance rally realism?

The Traxxas rally car with clipless body and TSM control features an officially licensed Ford Fiesta ST shell that combines scale detail with functional durability. The body is pre-painted with applied decals and includes a composite rear wing, high-approach front bumper, and internal nerf bars for reinforcement. The clipless mounting system allows quick removal while holding tight during intense action. This design not only improves maintenance access but also enhances the visual authenticity of the rally platform, making it ideal for enthusiasts who value both performance and realism.

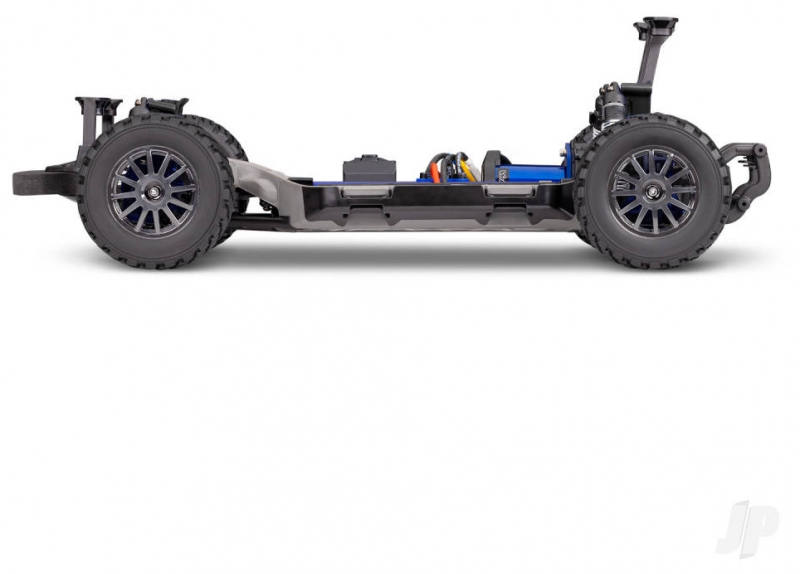

What advantages does the low-CG modular chassis offer?

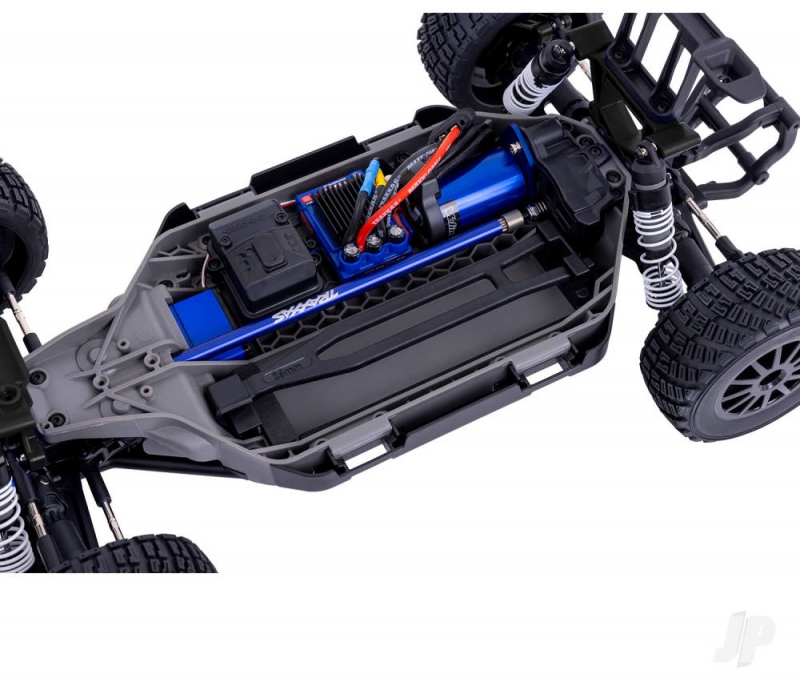

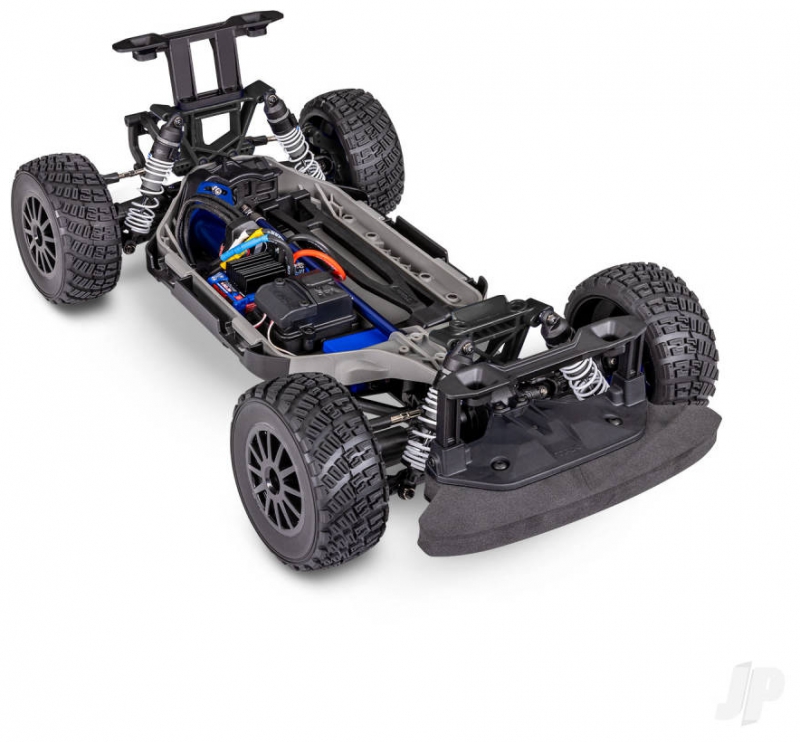

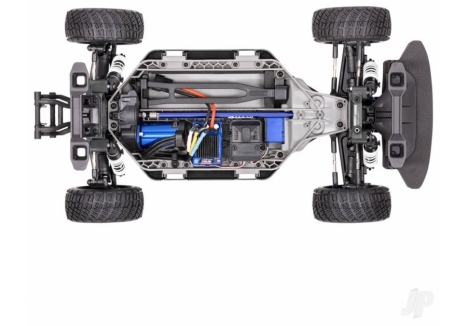

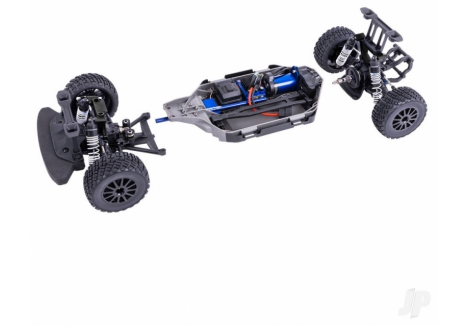

The Traxxas RC car with low-CG chassis and all-terrain tyres is built on a reinforced modular layout that positions batteries and electronics low in the frame. This configuration dramatically increases cornering speed and stability, especially on uneven terrain. The chassis includes a high-angle front bumper, single-screw motor plate for easy access, and adjustable battery hold-downs that accommodate both NiMH and LiPo packs. The modular design simplifies maintenance and supports aggressive driving without compromising control, making it a standout feature for rally-focused performance.

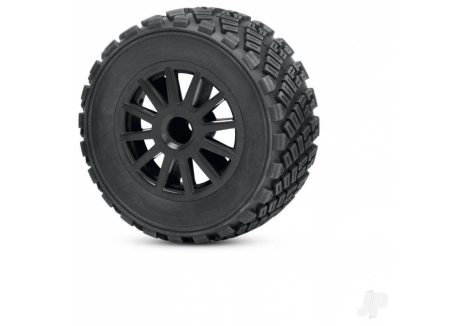

How do the all-terrain tyres and dual-profile wheels improve grip?

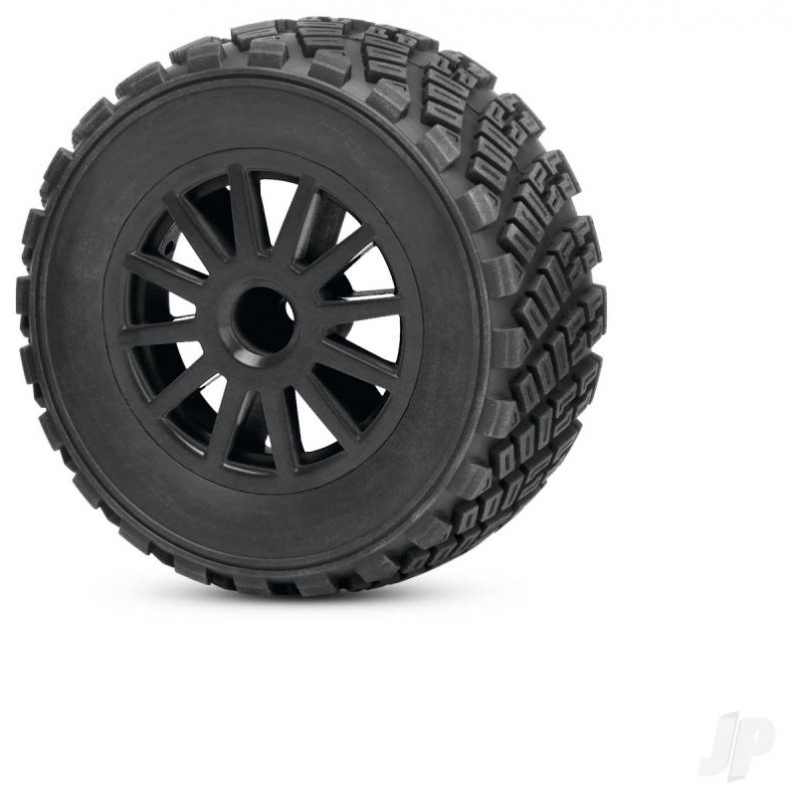

The pre-glued rally tyres on the Traxxas TRX74276-4-GRN AWD Fiesta VXL feature a dual-profile structure with 2″ outer and 3″ inner diameters mounted on 12-spoke wheels. Foam inserts maintain shape under load, while the tread pattern delivers consistent traction across gravel, dirt, and pavement. Combined with rubber-sealed ball bearings and precision hex hardware, the wheel and tyre setup ensures that the car remains planted during acceleration, braking, and cornering. This configuration supports both scale realism and high-performance handling.

How does TSM control improve stability?

Traxxas Stability Management (TSM) integrated into the Traxxas TRX74276-4-GRN brushless rally car adjusts steering and throttle inputs in real time to maintain composure on low-traction surfaces. TSM allows drivers to execute throttle-on powerslides and maintain straight-line acceleration without dulling throttle response. The system is adjustable from the transmitter, offering up to 100% assistance or full manual control. This feature is especially valuable for rally racing, where terrain variability demands responsive and adaptive handling.

What makes the 3500Kv motor and VXL-3S ESC ideal for rally speed?

The Traxxas TRX74276-4-GRN with 3500Kv motor and VXL-3S ESC delivers brushless power capable of exceeding 60 mph with optional gearing. The Velineon 3500Kv motor features high-speed ball bearings, a sintered Neodymium magnet, and a brilliant blue-anodized finish. The waterproof VXL-3S ESC includes three programmable drive profiles—Sport, Race, and Training Mode—and supports both NiMH and LiPo batteries. With built-in low-voltage detection and EZ-Set one-button setup, the system offers reliable performance and user-friendly configuration for all skill levels.

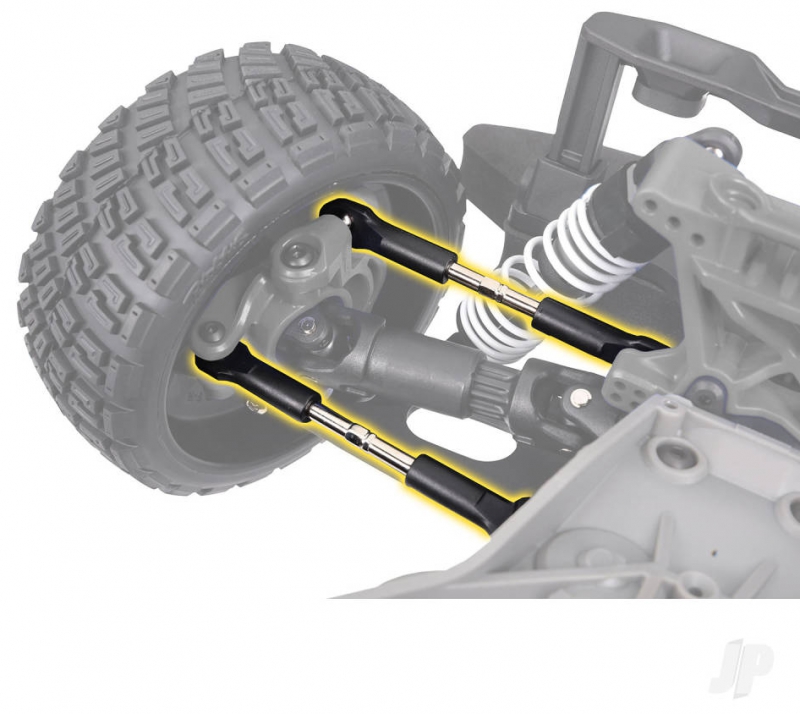

How does the drivetrain and suspension support durability?

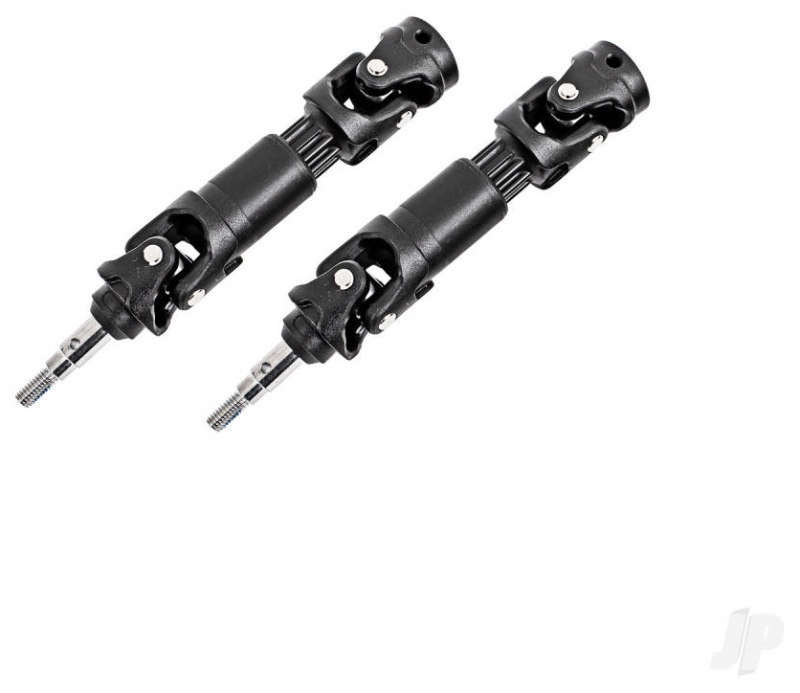

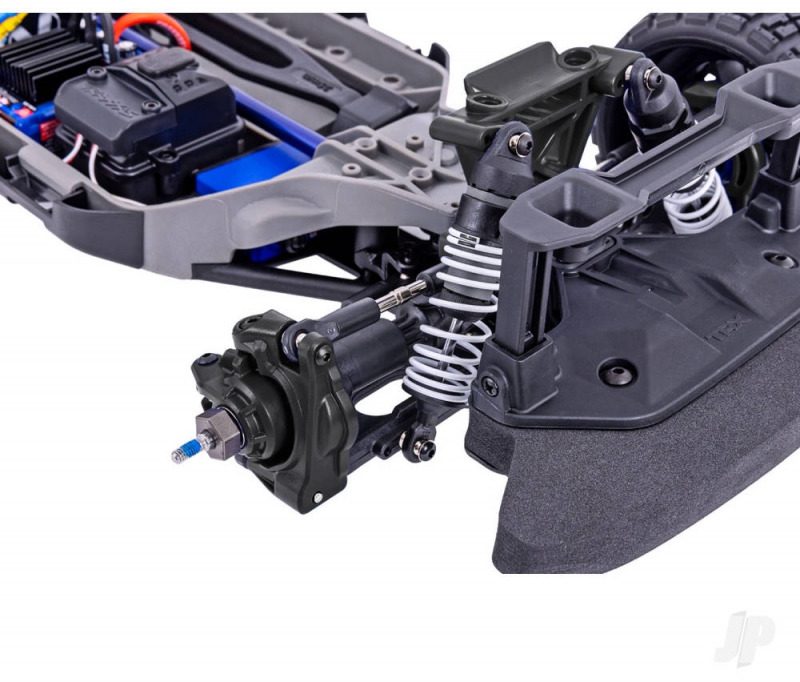

The affordable Traxxas Fiesta with heavy duty driveshafts and dual-profile wheels includes the Extreme Heavy Duty Upgrade Kit with strengthened C-hubs, axle carriers, and steering blocks. Oversized 6 mm axles and all-metal gear differentials ensure that the drivetrain withstands high torque and impact. The oil-filled Ultra Shocks feature white powder-coated springs and are mounted on a dual bellcrank steering system with an integrated servo saver. This setup absorbs terrain impact and maintains steering precision, making the car suitable for both competitive racing and recreational stunting.

For drivers seeking the best Traxxas 1/10 RC car with oil-filled shocks and 60+ mph speed potential, the Fiesta ST Rally VXL offers a complete package of speed, control, and resilience. With its waterproof electronics, modular chassis, and rally-tuned geometry, the car is ready to perform straight out of the box. Buy Traxxas TRX74276-4-GRN rally car with waterproof electronics and modular chassis and experience rally-bred performance in a fully assembled, green-finished platform.

Technical Specifications of Traxxas TRX74276-4-GRN brushless rally car

Brand, Model and Product Type

• Brand: Traxxas
• Model: TRX74276-4-GRN
• Color: Green
• Product Type: Traxxas TRX74276-4-GRN brushless rally car, Traxxas TRX74276-4-GRN 1/10 scale RC car, Traxxas TRX74276-4-GRN AWD Fiesta VXL, Traxxas TRX74276-4-GRN with 3500Kv motor and VXL-3S ESC, Traxxas RC car with low-CG chassis and all-terrain tyres

Dimensions

• Length: 53.5 cm – extended chassis supports rally-grade stability and speed
• Width: 28.1 cm – wide track improves cornering grip and lateral control
• Height: 20.6 cm – elevated stance accommodates terrain variation
• Wheelbase: 32.4 cm – tuned for responsive handling and directional stability
• Ground Clearance: 2.1 cm – low-CG layout enhances corner speed and realism
• Weight: 2.77 kg – reinforced structure balances durability and performance

Drivetrain and Transmission

• Drivetrain: Shaft-driven 4WD – full-time all-wheel drive for consistent traction across rally surfaces
• Differential Type: Hardened steel bevel, sealed, limited slip – supports high torque and smooth power delivery
• Gear Ratio (Internal): 19.69:1 – calibrated for acceleration and top-end speed
• Gear Pitch: 32 pitch – large steel spur gear for durability under load

Motor and ESC

• Motor: Velineon 3500Kv sensorless brushless – high-speed ball bearings and Neodymium magnet for sustained output
• Motor Dimensions: 5.6 cm length × 3.6 cm diameter – compact size supports low-CG integration
• Motor Weight: 262 g – lightweight design for balanced chassis dynamics
• Motor Shaft: 3 mm – standard fitment for secure gear engagement
• ESC: Velineon VXL-3S – waterproof, programmable, and LiPo/NiMH compatible
• ESC Dimensions: 3.1 cm × 5.5 cm × 2.6 cm – compact case with heat sink and optional fan support
• ESC Weight: 109 g – lightweight for efficient mounting
• ESC Drive Modes: Sport, Race, Training Mode – selectable profiles for different skill levels
• Battery Compatibility: 6–9 cell NiMH (7.2–10.8V) or 2–3 cell LiPo (7.4–11.1V)

Radio System and Control

• Transmitter: TQi 2.4 GHz 2-channel – high-output radio with multi-function knob
• Receiver: 5-channel 6533 – supports Traxxas Link and fail-safe security
• TSM Control: Traxxas Stability Management – adjustable from transmitter, maintains steering under throttle
• Servo: 2075 high-torque waterproof – chassis-mounted with dual bellcrank and servo saver

Chassis and Suspension

• Chassis Type: Low-CG reinforced modular – improves handling and simplifies maintenance
• Battery Compartment: 16.5 cm × 5.0 cm × 2.3/2.6 cm – adjustable hold-down for multiple pack formats
• Suspension: Oil-filled Ultra Shocks – white powder-coated springs for terrain absorption
• Steering System: Dual bellcrank – integrated servo saver for impact protection

Tyres and Wheels

• Tyres: Pre-glued all-terrain rally – foam inserts and tread pattern for multi-surface grip
• Wheel Type: Dual-profile 12-spoke – 5.1 cm outer diameter, 7.6 cm inner diameter

Durability and Hardware

• Upgrade Kit: Extreme Heavy Duty – strengthened C-hubs, axle carriers, and steering blocks
• Driveshafts: Heavy duty – oversized 6 mm axles for impact resistance
• Bearings: Rubber-sealed – precision fitment for reduced friction and extended life
• Hardware: Precision hex – secure fasteners for consistent assembly

What’s In The Box

• 1 × Ford Fiesta ST Rally VXL with VXL-3S ESC and 3500Kv motor
• 1 × TQi 2.4 GHz radio system
• 1 × Quick Start Guide
• 1 × High quality maintenance tools
• 1 × Optional speed gear

What You Require

• 1 × NiMH or LiPo battery (6–9 cell NiMH or 2–3 cell LiPo)
• 1 × Compatible charger
• 4 × AA alkaline batteries for transmitter

Sold Separately

• Battery – required for operation
• Charger – compatible with selected battery type
