- Brand: Blade
- Model Number: BLH-1720

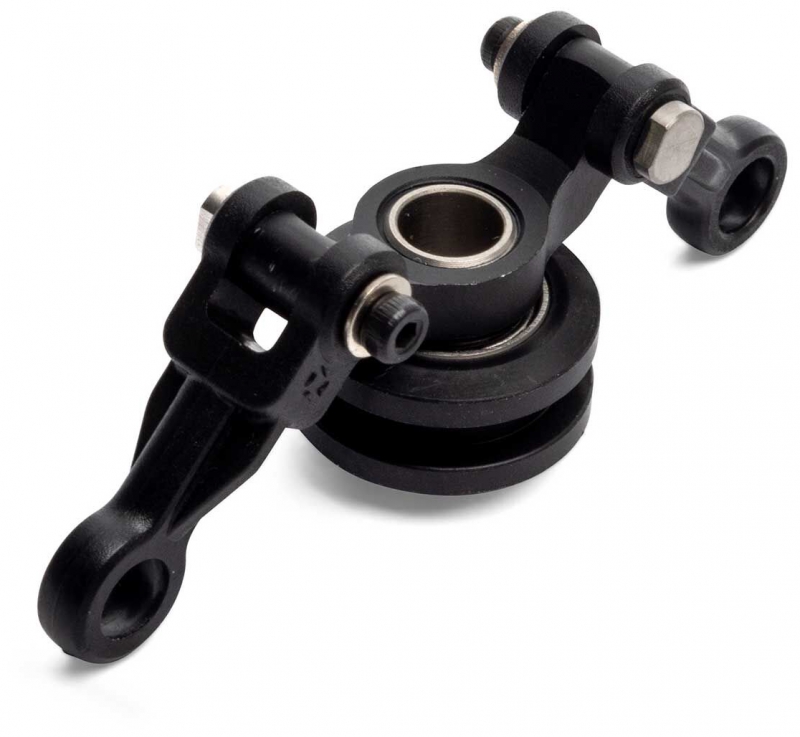

- Product Type: Pitch Slider Assembly
- Compatibility: Fusion 700 Helicopter
- Fitment: Standard Part
- Barcode: 0660132981976
- Included Components: Pitch Slider Fork Mount, Pitch Slider, Pitch Slider Yoke and Sleeve, Pitch Slider Mount
- Hardware Included: 2 x M3x8mm Bolts, 2 x Plastic Pitch Links, 2 x Pitch Link Hardware, 1 x M3x22mm Bolt, 2 x M3 Step Washers
- Material: Precision-engineered components with plastic pitch links
- Application: Rotor head pitch control system
Overview
The Blade BLH-1720 Pitch Slider Assembly is an essential maintenance and repair component designed specifically for the Fusion 700 helicopter. This comprehensive assembly brings together all the critical rotor head components and hardware needed to keep your RC helicopter in peak condition. Whether you are a seasoned RC helicopter pilot in the UK or someone new to the hobby, having quality replacement parts on hand is crucial for maintaining smooth, reliable flight performance. The pitch slider assembly is responsible for managing the pitch control mechanism of your helicopter, making it one of the most important systems to maintain regularly.
This complete assembly pack eliminates the need to source individual components from multiple suppliers, providing everything in one convenient package. Designed by Blade, a recognised leader in RC helicopter engineering, the BLH-1720 combines precision-manufactured components with quality hardware to ensure your pitch control system operates smoothly and reliably. Whether you are performing routine maintenance, replacing worn components, or repairing damage from a crash, this assembly gives you genuine Blade parts that match your helicopter's original specifications perfectly.
For UK RC enthusiasts who demand quality and reliability, this spare parts assembly represents excellent value. It allows you to service your Fusion 700 at home without expensive downtime, keeping your helicopter ready for the next flight. The assembly is straightforward to install for anyone with basic mechanical skills and a few standard tools, making it ideal for both experienced modellers and those maintaining their first RC helicopter.
Key Features
- Complete Assembly Pack — This assembly includes every component needed to service or replace the pitch slider system, eliminating the frustration of hunting for individual parts and ensuring all components are matched and compatible with each other.
- Precision Slider Component — The pitch slider itself is engineered to precise tolerances to ensure smooth, responsive pitch control input, directly affecting flight stability and control quality during flight operations.
- Matched Fork Mount — The slider fork mount is designed to secure the pitch slider assembly in the correct position, maintaining accurate geometry and ensuring consistent pitch control response across all flight manoeuvres.
- Yoke and Sleeve Assembly — This component transfers control inputs to the rotor head and is critical for translating stick inputs into blade pitch changes, making proper installation and maintenance essential for safe, predictable flight.
- Pitch Slider Mount — The dedicated mount bracket ensures the entire assembly is secured rigidly to the helicopter frame, preventing movement or vibration that could cause unpredictable flight behaviour.
- Premium Hardware Package — The assembly includes M3x8mm bolts, M3x22mm bolts, M3 step washers and plastic pitch links, all sized and specified for the Fusion 700, ensuring proper fitment and structural integrity.
- Plastic Pitch Links — These durable plastic linkages connect the pitch slider to the rotor head mechanism and are engineered to withstand the dynamic forces of flight while maintaining smooth motion and precise control input transmission.
- Genuine Blade Components — By using authentic Blade parts, you ensure your helicopter performs exactly as designed by the manufacturer, with proper fitment, durability and reliability guaranteed.
- Simplified Maintenance — Rather than replacing individual worn or damaged parts one at a time, this complete assembly allows you to service the entire pitch control system in one operation, saving time and ensuring all components are fresh and properly matched.
Technical Performance
The Blade BLH-1720 Pitch Slider Assembly represents precision engineering designed for the demanding requirements of RC helicopter flight. Every component in this assembly has been engineered to exacting standards to ensure smooth, responsive pitch control that translates directly into stable, predictable flight characteristics. The pitch slider mechanism is the mechanical interface between your transmitter control inputs and the actual pitch angle of the rotor blades, making its condition absolutely critical to flight safety and performance. The slider itself moves smoothly within the fork mount, guided by the yoke and sleeve assembly, allowing the plastic pitch links to transmit control inputs to the swashplate with minimal play or backlash. The specified M3 bolts and step washers ensure all components remain securely fastened even under the vibration and dynamic forces experienced during flight operations. The plastic pitch links are engineered from reinforced polymer materials that provide excellent durability and resistance to fatigue while maintaining the precise fitment and smooth operation required for helicopter flight control. The complete assembly can be installed using basic hand tools and requires no special equipment or skills beyond fundamental mechanical competency, making it accessible to RC helicopter enthusiasts at all levels. Regular maintenance and timely replacement of worn components using this genuine Blade assembly ensures your Fusion 700 maintains consistent flight performance and reliability over many hours of flight time.
What's in the Box
- 1 x Pitch Slider Fork Mount
- 1 x Pitch Slider
- 1 x Pitch Slider Yoke and Sleeve
- 1 x Pitch Slider Mount
- 2 x M3x8mm Bolts
- 2 x Plastic Pitch Links
- 2 x Pitch Link Hardware
- 1 x M3x22mm Bolt
- 2 x M3 Step Washers
Frequently Asked Questions
- Is the Blade BLH-1720 Pitch Slider Assembly suitable for beginners? — Yes, this assembly is suitable for anyone with basic mechanical skills and the ability to use standard hand tools. The installation process is straightforward and does not require specialised equipment or advanced technical knowledge. If you have ever performed routine maintenance on your RC helicopter, you will find this assembly easy to install.
- What is the Pitch Slider Assembly used for? — The pitch slider assembly is the mechanical system that controls the pitch angle of your helicopter's rotor blades in response to your transmitter inputs. It includes the slider that moves within the fork mount, transferring your control inputs through the plastic pitch links to the swashplate, which in turn adjusts blade pitch. When this system wears or becomes damaged, helicopter control becomes unpredictable or unresponsive, making replacement essential for safe flight.
- How do I know if my pitch slider assembly needs replacement? — Signs of wear include sluggish or unresponsive pitch control, grinding or rough feeling in the pitch control during flight, or visible play or movement in the slider components. If you have crashed your helicopter or noticed any deterioration in pitch control responsiveness, replacing the assembly is recommended to restore reliable flight characteristics.
- Will this assembly work with my Blade Fusion 700? — Yes, the BLH-1720 is specifically designed for the Fusion 700 and includes all components matched to your helicopter's specifications. It is a standard part for this model and will fit perfectly without modification or adaptation.
- What tools do I need to install this assembly? — You will need basic hand tools such as small wrenches or hex keys suitable for M3 fasteners, and possibly a small screwdriver depending on your helicopter's design. Most RC modellers have these tools already in their workshop. No specialised equipment or power tools are required for installation.
- Can I install this assembly myself? — Yes, if you have basic mechanical skills and experience working on RC helicopters, installation is straightforward. The assembly is designed for field maintenance and repair, allowing you to service your helicopter at home. If you are uncomfortable working on your helicopter yourself, your local RC hobby shop can install it for you.
