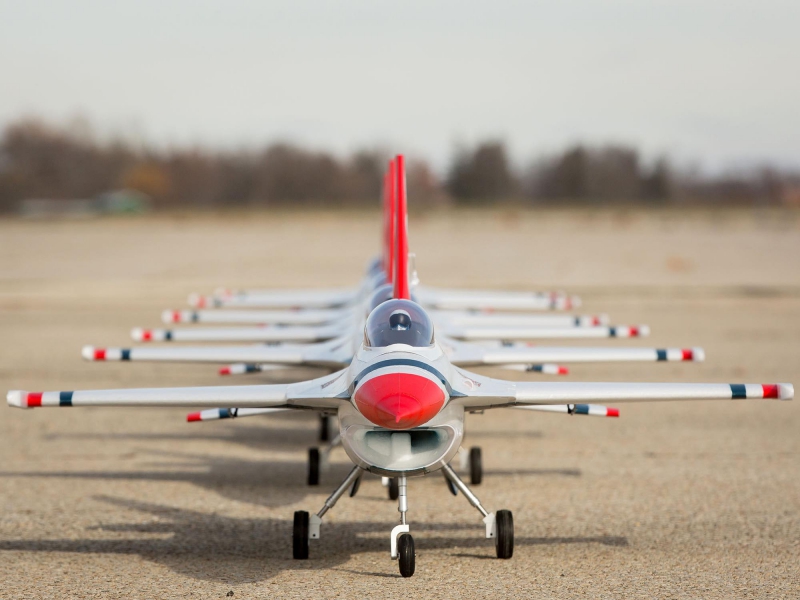

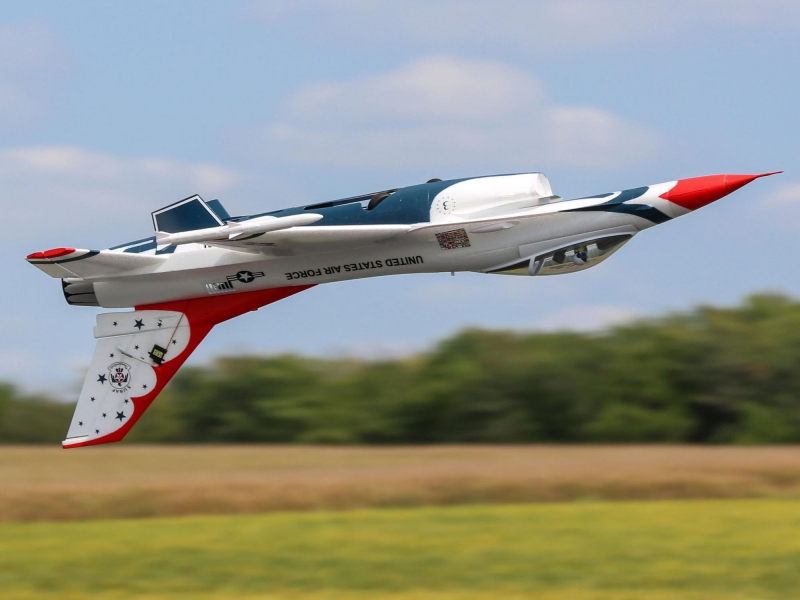

Overview

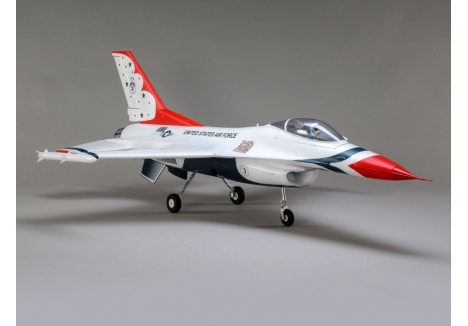

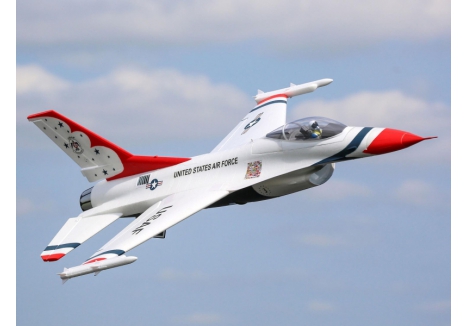

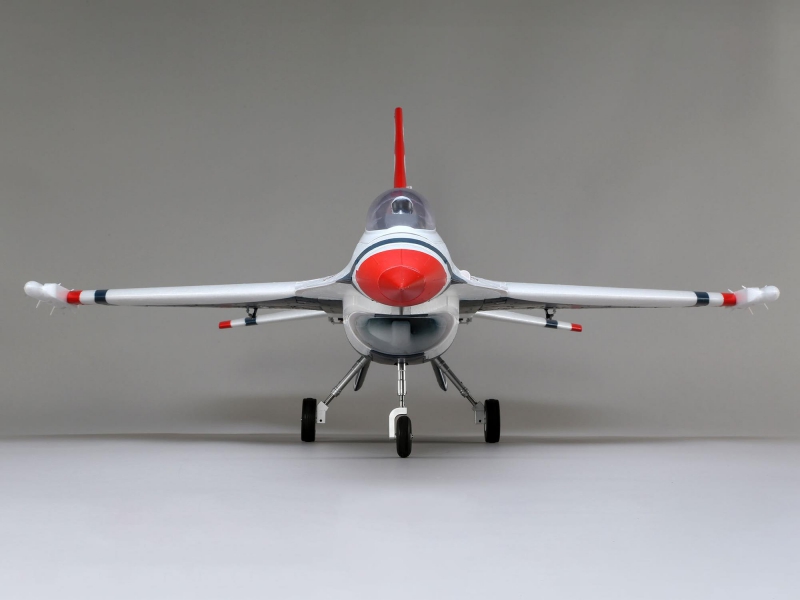

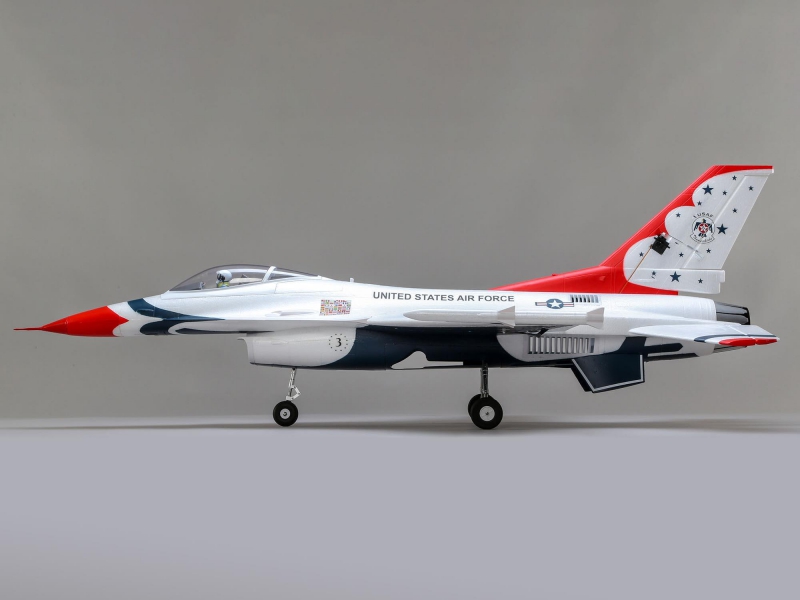

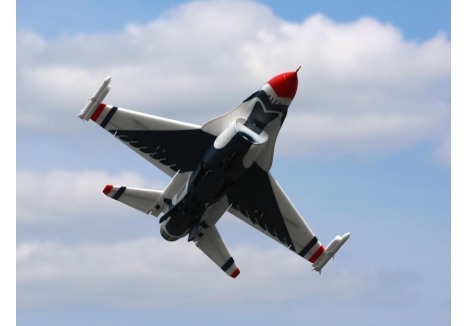

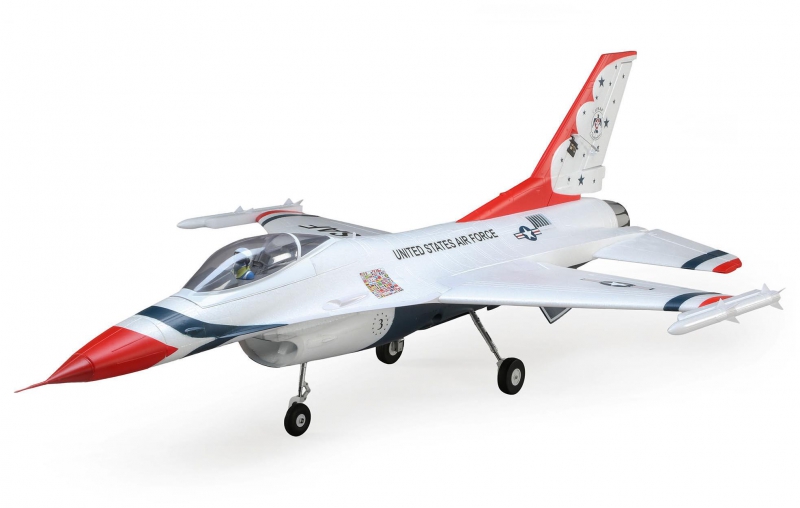

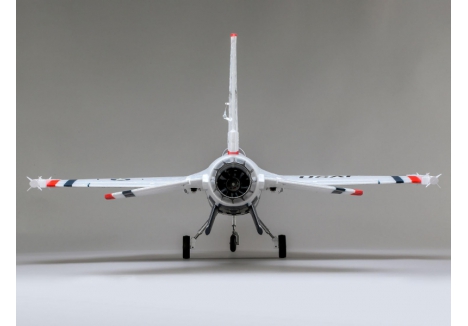

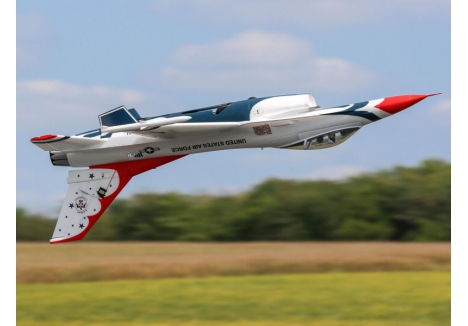

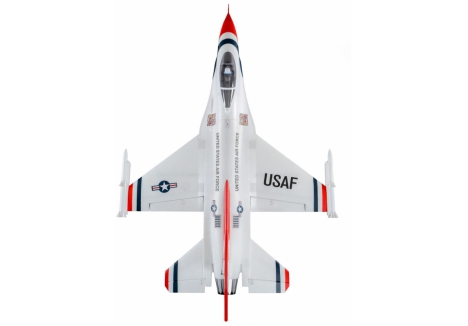

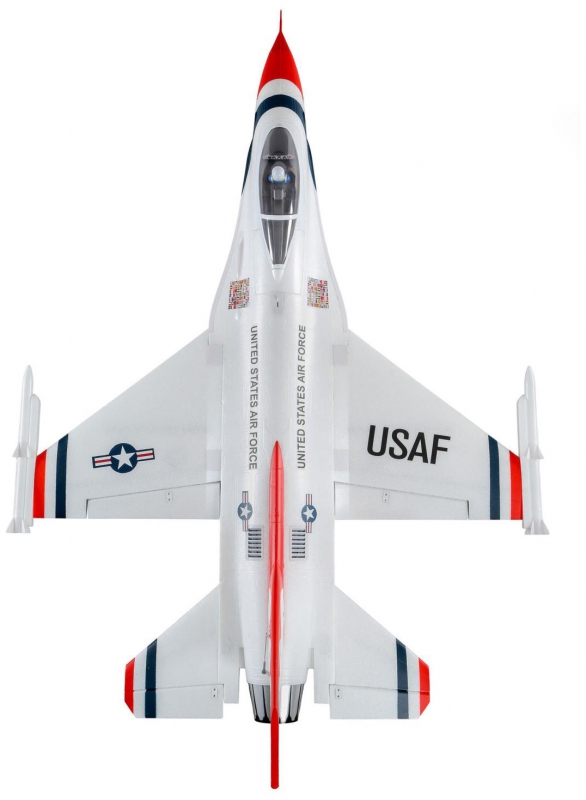

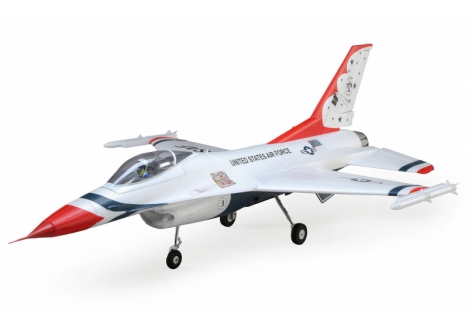

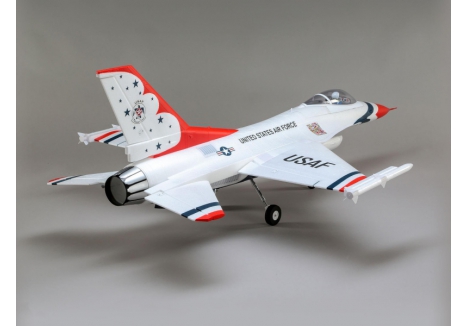

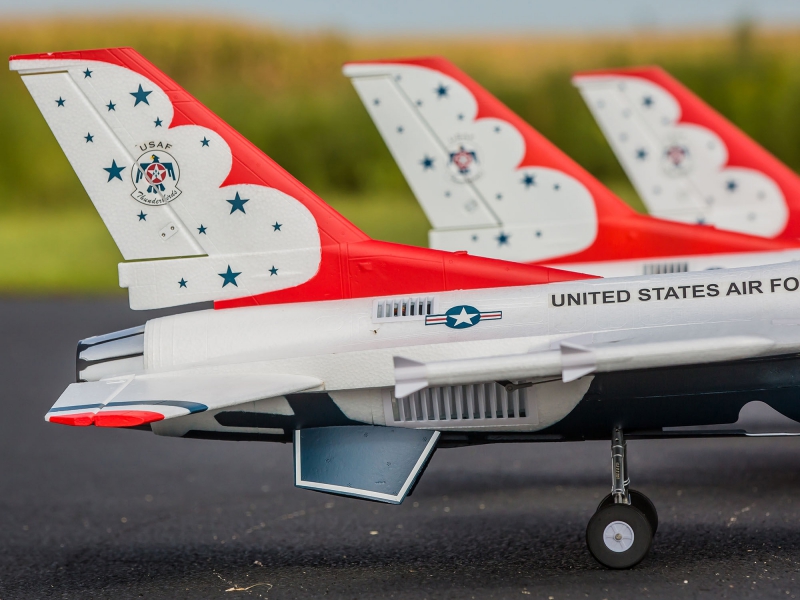

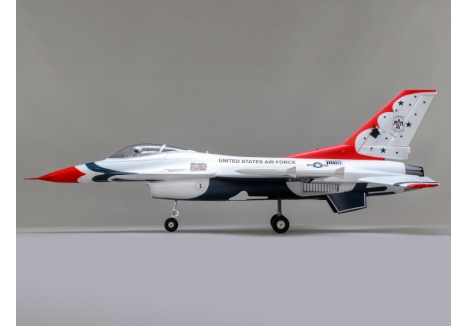

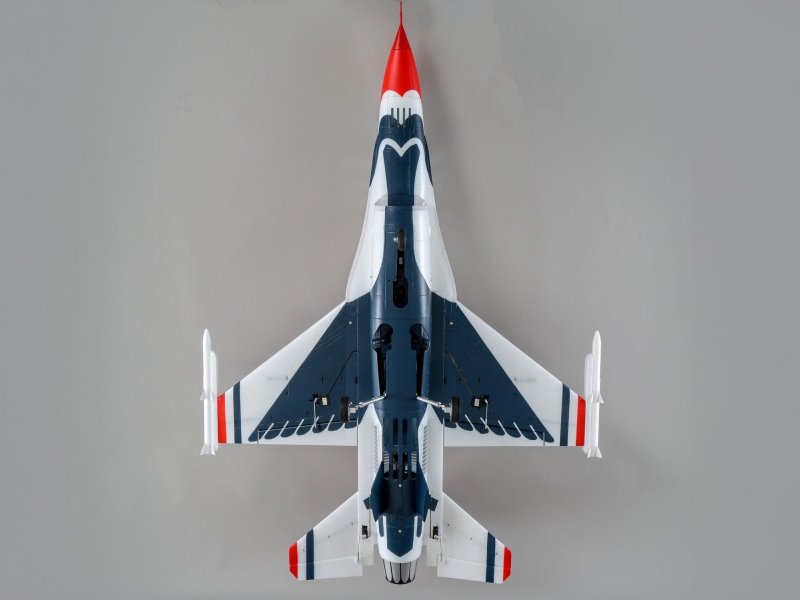

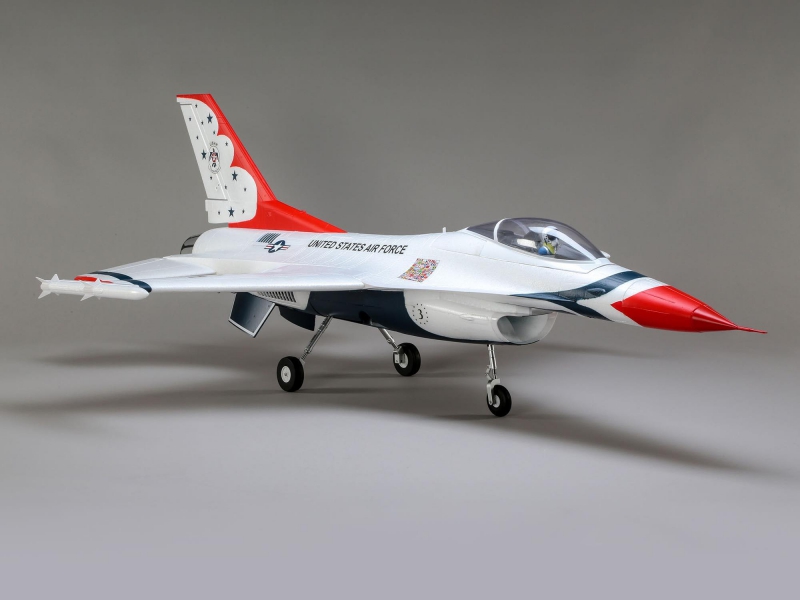

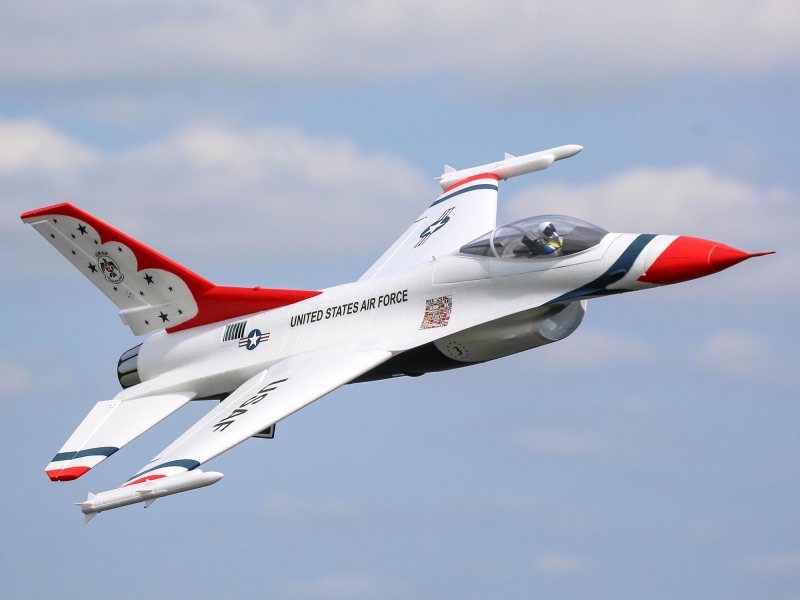

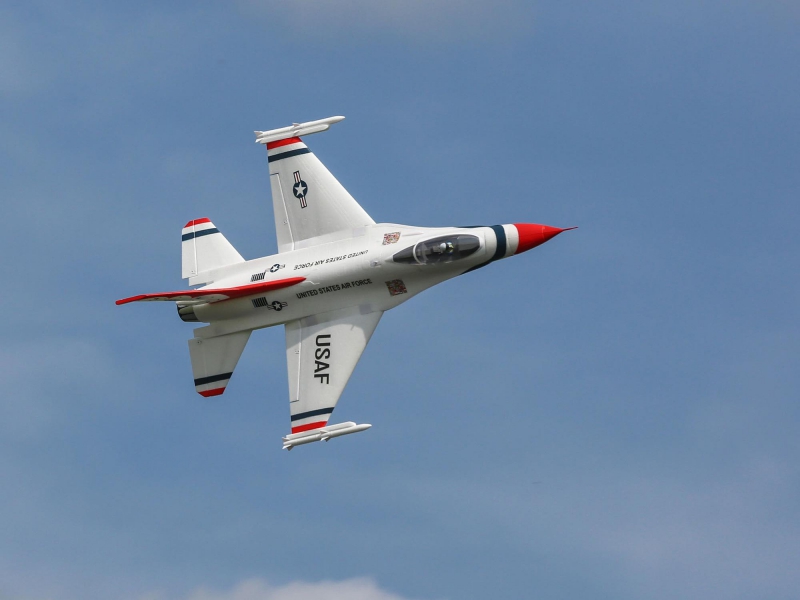

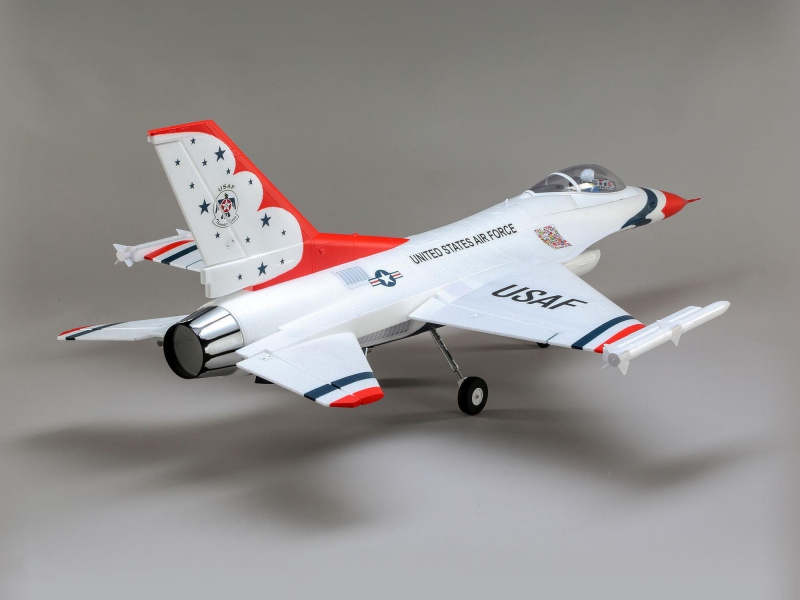

The E-flite F-16 Thunderbirds 70mm EDF Jet BNF Basic (model A-EFL178500) is a detailed scale replica inspired by the iconic U.S. Air Force Thunderbirds demonstration team aircraft. This is one of the most recognisable and capable mid-sized F-16 electric ducted fan models available for RC enthusiasts in the UK today. The aircraft has been completely updated and upgraded with a higher performance power system, Smart telemetry electronics, and optional-use thrust reversing capability, making it the easiest to fly and highest performance F-16 EDF model yet. Whether you're an experienced RC pilot looking for a high-speed aerobatic platform or a competent intermediate flyer wanting to step up to full-house jet performance, this Bind-N-Fly model delivers genuine turbine-like sound, rapid throttle response, and outstanding speed with nearly unlimited vertical capability.
As a Bind-N-Fly Basic model, the E-flite F-16 comes fully assembled with all internal electronics factory-installed and ready to bind to your existing Spektrum transmitter. This means you avoid the assembly complexity of a traditional kit whilst still receiving a genuinely feature-rich, high-performance ready to run RC jet. The composite-reinforced EPO airframe is lightweight yet durable, with removable wings and magnetically-secured nose cone for easy transport and storage. The included decal sheet allows you to apply your preferred Thunderbird number designation, letting you truly personalise your aircraft. Crucially, this model incorporates exclusive Spektrum AS3X stabilisation technology that smooths out the effects of wind and turbulence, delivering a locked-in feel that makes you feel like you're flying a much larger, expertly tuned aircraft. For those seeking additional safety margins during familiarisation flights, optional-use SAFE Select flight envelope protection can be enabled with a simple binding procedure—no complex programming required.
The updated power system is the heart of this aircraft's exceptional performance. The factory-installed 12-blade 70mm fan is matched to a larger 3060-1900Kv brushless inrunner motor and an 85-amp Spektrum Avian Smart Lite ESC that work together to deliver abundant speed and thrust. With popular 6S 3200–4000mAh 30+C LiPo batteries, this F-16 is capable of level flight top speeds well over 100 MPH and nearly unlimited vertical performance. The Spektrum AR631 receiver provides real-time telemetry data including battery voltage, current draw, and motor RPM via compatible AirWare-equipped transmitters. Optional-use motor and thrust reversing (requiring a 7+ channel transmitter) helps shorten rollout after landing and enables special ground handling capabilities. Factory-installed electric retracts with shock-absorbing struts make it possible to take off from and land on a variety of surfaces, including manicured grass, whilst keeping ground handling smooth and delivering an authentic scale flying experience.
Key Features
- Updated and upgraded power system — The factory-installed 3060-1900Kv brushless inrunner motor combined with the 85-amp Spektrum Avian Smart Lite ESC delivers exceptional performance, providing nearly unlimited vertical capability and level flight speeds exceeding 100 MPH when paired with recommended 6S batteries, making this one of the most capable mid-sized EDF jets available in the UK market today.

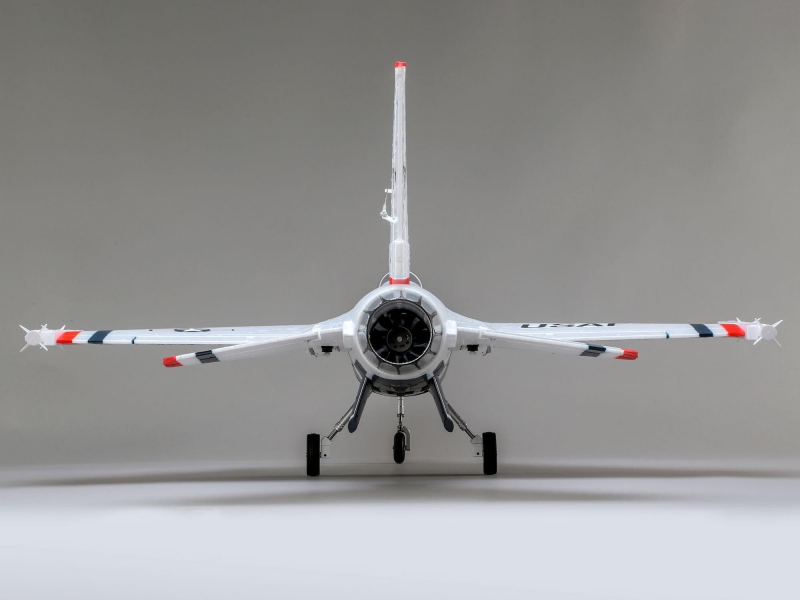

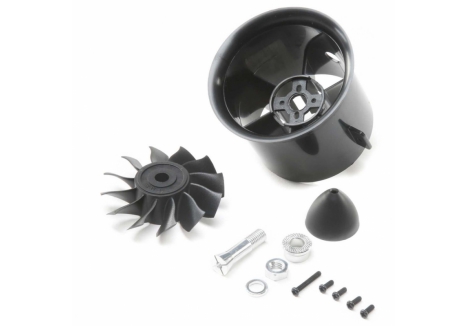

- 12-blade 70mm electric ducted fan — This advanced fan design produces excellent top-end speed and vertical performance whilst generating a turbine-like sound that mimics a real jet engine, delivering an immersive flying experience that sets this model apart from lesser EDF alternatives.
- Exclusive AS3X stabilisation technology — Working continuously in the background, AS3X smooths out the destabilising effects of wind and turbulence, delivering a locked-in, stable feel that makes the aircraft seem larger and more expertly tuned than it actually is, greatly enhancing flight confidence and precision.
- Optional-use SAFE Select flight envelope protection — This innovative safety feature provides pitch and bank angle limits that prevent excessive manoeuvres, combined with automatic self-levelling that engages when control sticks are centred, offering peace of mind during familiarisation flights or when flying in challenging conditions—and it can be switched on and off with a simple transmitter switch assignment.
- Smart telemetry electronics — The Spektrum Avian Smart Lite ESC and AR631 receiver work together to provide real-time power system data including overall battery voltage, current draw, motor RPM, and other critical information via compatible AirWare-equipped transmitters, allowing you to monitor your aircraft's performance and battery health throughout every flight.
- Optional-use thrust reversing — Available when using a 7+ channel transmitter, this capability helps shorten rollout distances after landing and enables special ground handling manoeuvres, adding versatility and operational flexibility to your F-16 experience.

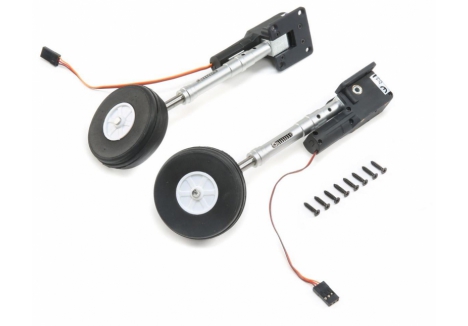

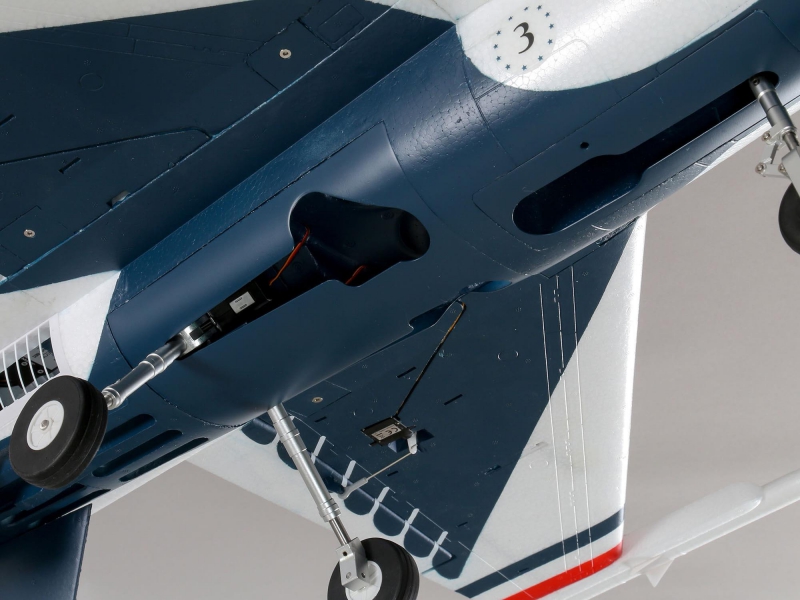

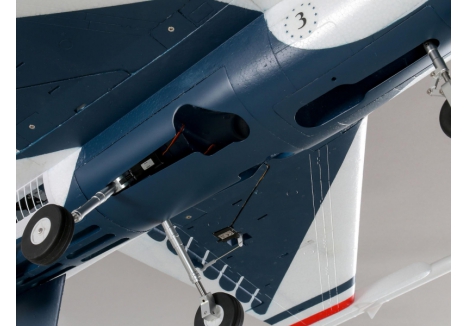

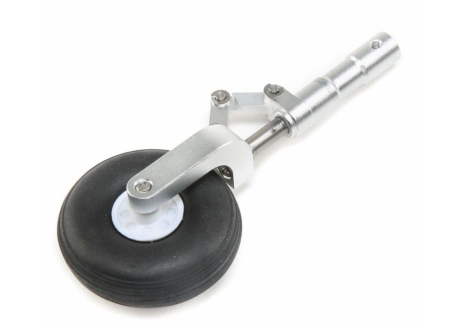

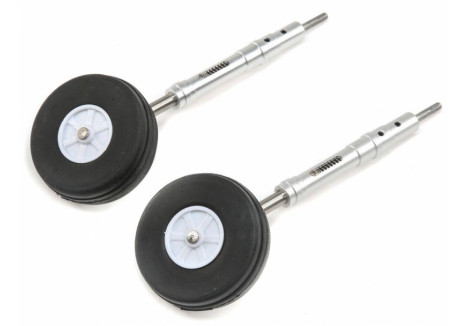

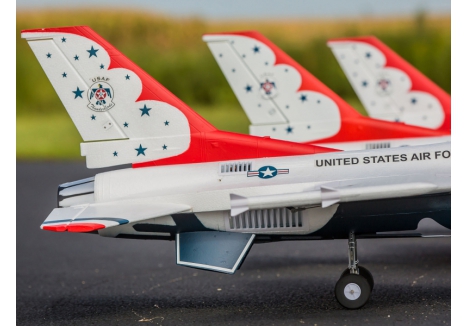

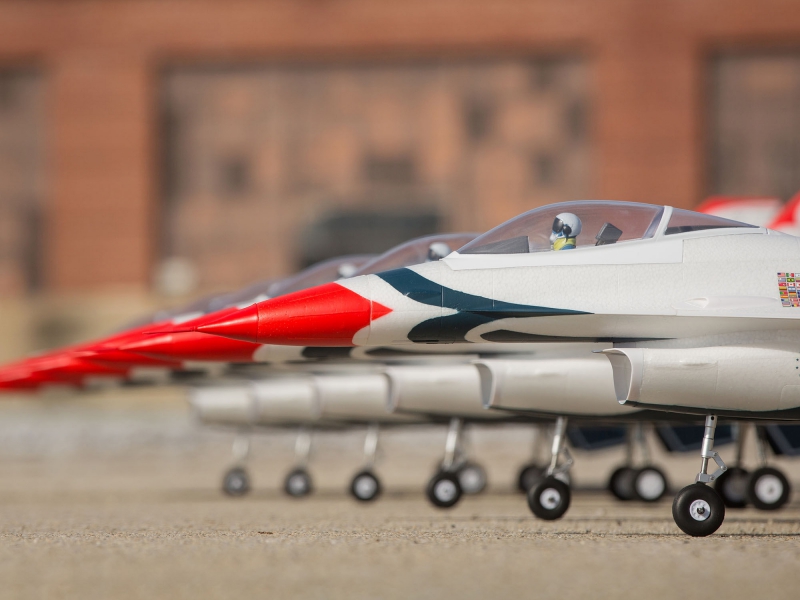

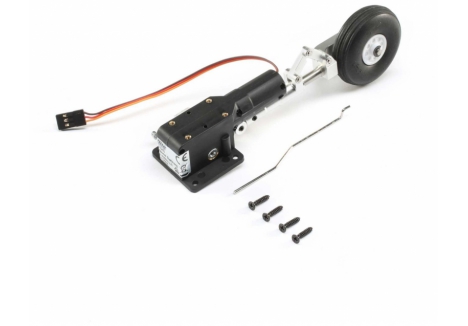

- Factory-installed electric retracts — Featuring shock-absorbing struts and metal components for durability, these retracts enable operation from diverse surfaces including paved runways, dirt fields, and even manicured grass, whilst delivering authentic scale ground handling and realistic flight operations.

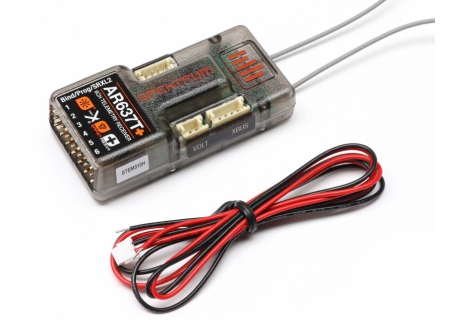

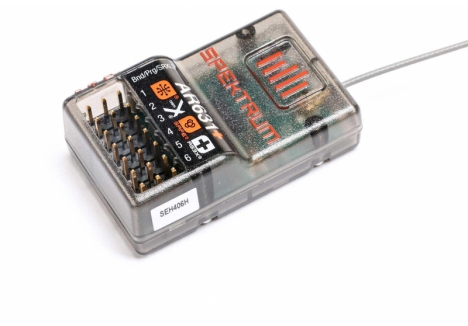

- Spektrum AR631 six-channel receiver — Featuring industry-leading DSMX technology with full-range compatibility and extensive channel availability, this receiver integrates AS3X and SAFE Select capabilities whilst providing real-time telemetry data from the power system, ensuring reliable control and valuable flight information.

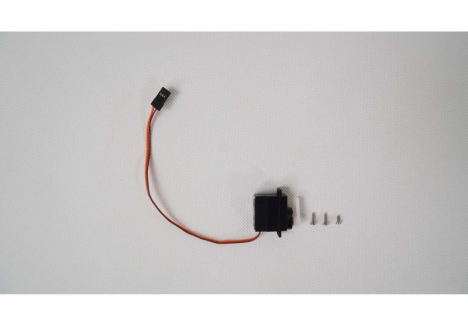

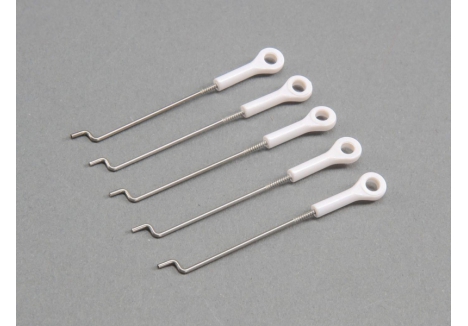

- Six digital metal-geared servos — Factory-installed with ball-link equipped linkages, these precise, fast-acting servos deliver crisp and responsive control authority across the entire speed envelope, from slow high-alpha flight through to high-speed aerobatic manoeuvres.

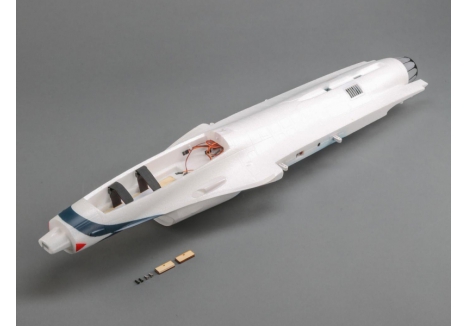

- Durable composite-reinforced EPO airframe — Lightweight yet exceptionally strong, this construction combines excellent strength-to-weight ratio with inherent durability and damage resistance, whilst the plastic-capped strakes provide additional protection against paint chipping and accidental damage during operations.

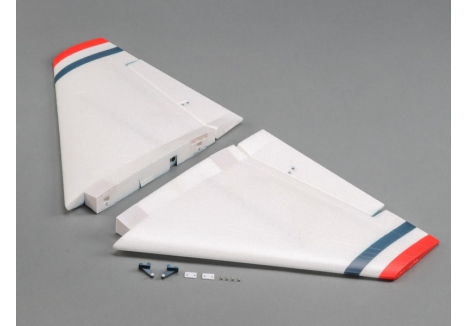

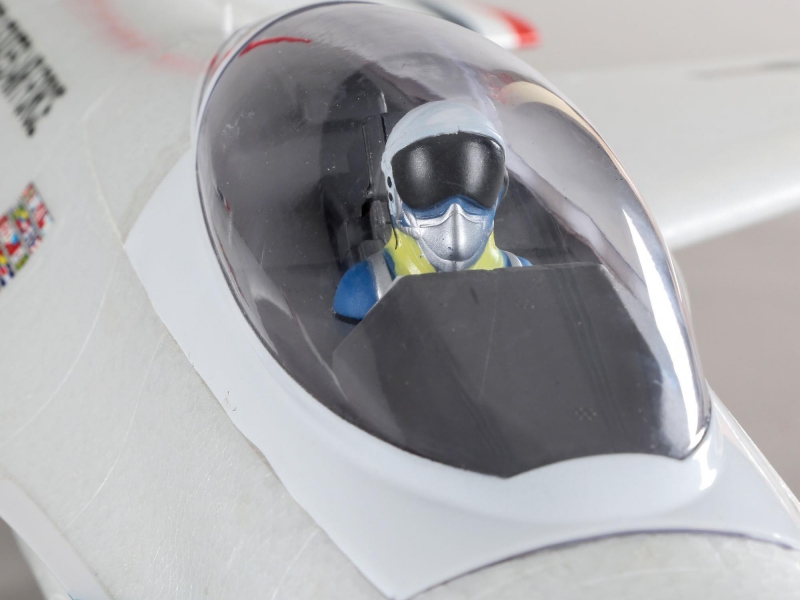

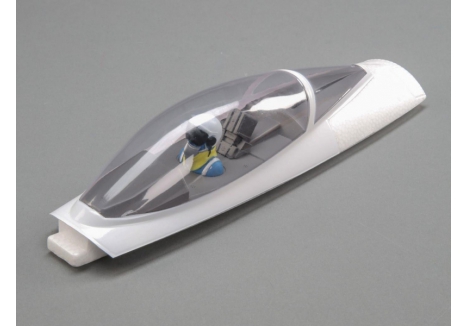

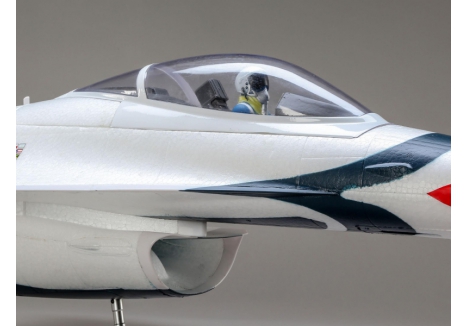

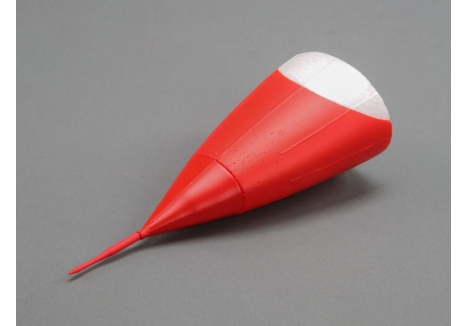

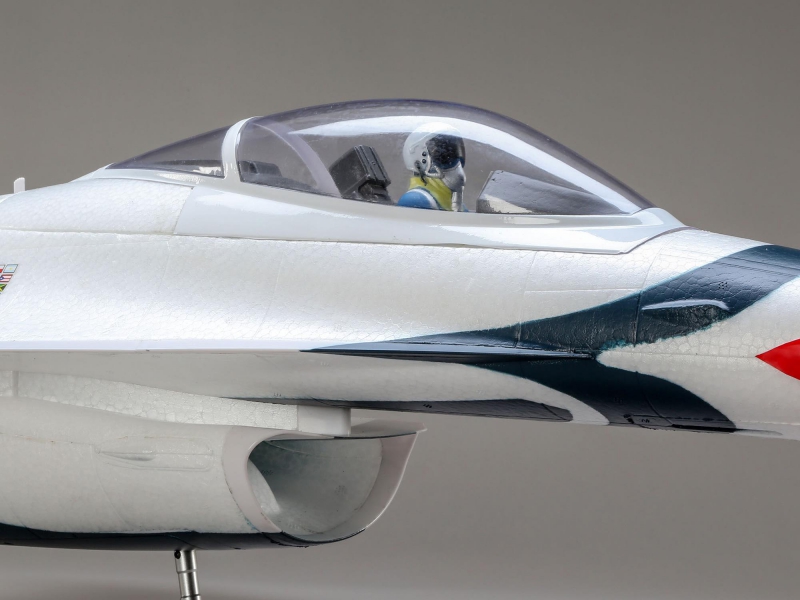

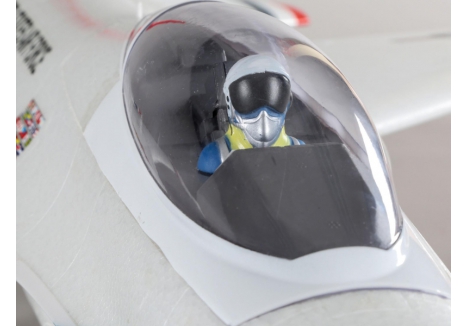

- Removable wings and magnetically-secured nose cone — These design features simplify transport, storage, and setup, making it genuinely convenient to take your F-16 to the flying field, whilst the top hatch with clear canopy and detailed cockpit interior add scale realism and visual appeal.

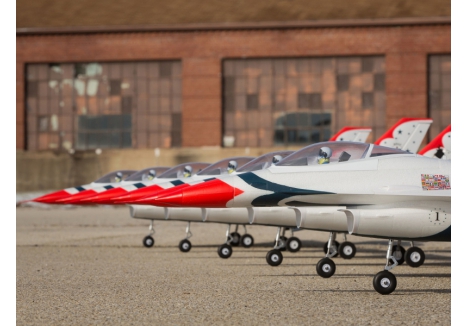

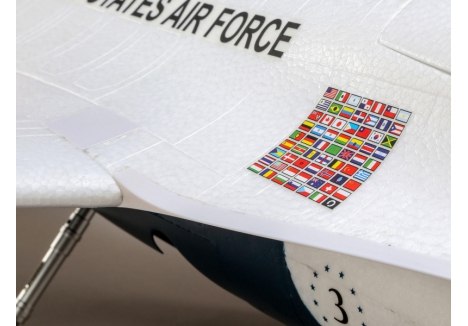

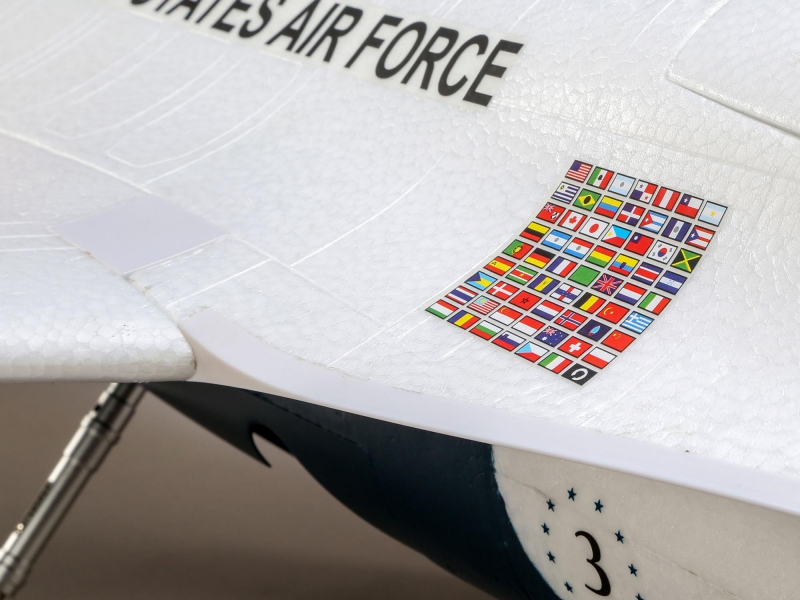

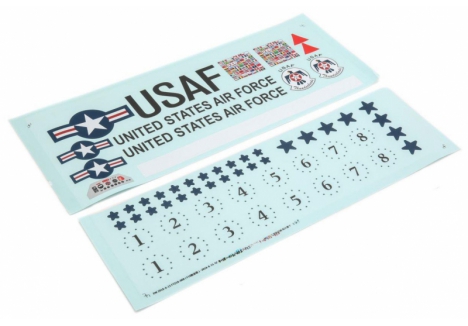

- Inclusive Thunderbird decal sheet — The aircraft arrives with a complete decal sheet allowing you to apply your choice of Thunderbird number designation (1 through 8), enabling personal customisation that matches the iconic demonstration team livery of your preference.
- Less than one hour assembly time — Unlike traditional RC jets requiring extensive building, this Bind-N-Fly model needs minimal final assembly, allowing you to get airborne quickly without the time investment of a complex build project.
Technical Performance
The E-flite F-16 Thunderbirds 70mm EDF represents a significant leap forward in mid-sized electric jet performance. At its core sits a factory-matched power system specifically engineered for this airframe: the upgraded 3060-1900Kv brushless inrunner motor delivers rapid throttle response and abundant thrust across the entire flight envelope, whilst the 85-amp Spektrum Avian Smart Lite ESC manages power delivery with precision and provides comprehensive telemetry feedback. The 12-blade 70mm ducted fan is optimised for this motor and ESC combination, producing the distinctive high-pitched turbine-like whine that makes EDF flying so immersive and authentic. When paired with popular 6S 3200–4000mAh 30+C LiPo batteries (featuring either EC5 or IC5 connectors), this power system combination is capable of achieving level flight speeds exceeding 100 MPH and delivering nearly unlimited vertical performance—genuine vertical climbing capability that rivals much larger models. The composite-reinforced EPO airframe weighs just 2090 grams without battery, rising to approximately 2630 grams when equipped with a recommended 6S 3200mAh battery pack, ensuring weight is kept to optimal levels for the power system and enabling the aircraft to achieve its impressive performance envelope. The airframe measures 49.53 inches (1258mm) in length with a 32.01-inch (813mm) wingspan, providing a balanced scale appearance whilst remaining manageable for field operations. The factory-installed electric retract units feature shock-absorbing struts and metal components, enabling reliable takeoffs and landings from grass, dirt, and paved surfaces. Six fast, precise digital metal-geared servos with ball-link equipped linkages provide control authority, whilst the advanced avionics suite—featuring the AR631 receiver with AS3X and optional SAFE Select technologies—ensures stable, responsive flight characteristics across the entire speed range from slow, stable high-alpha manoeuvres through to aggressive high-speed aerobatic flight. The integrated Smart telemetry system continuously monitors and reports battery voltage, current draw, and motor RPM, providing real-time performance data that helps optimise your flying technique and manage battery resources effectively.
What's in the Box
- E-flite F-16 Thunderbirds 70mm EDF aircraft (complete and factory-assembled)

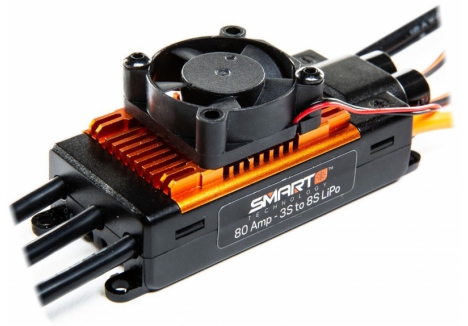

- Spektrum Avian 85A Smart Lite Brushless ESC (factory-installed)

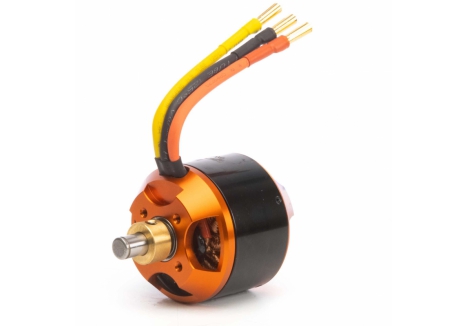

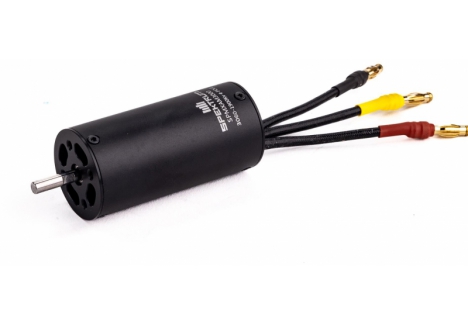

- Spektrum 3060-1900Kv four-pole brushless inrunner motor (factory-installed)

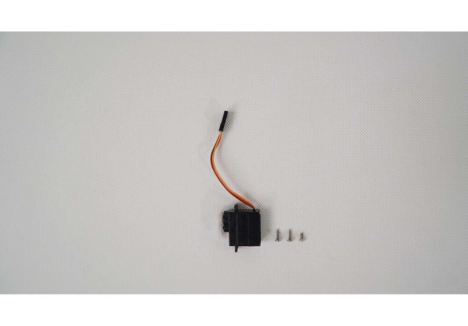

- Six Spektrum digital metal-geared servos (factory-installed)
- Spektrum AR631 six-channel receiver (factory-installed)
- Decal sheet for Thunderbird number designation personalisation
What You Need to Complete

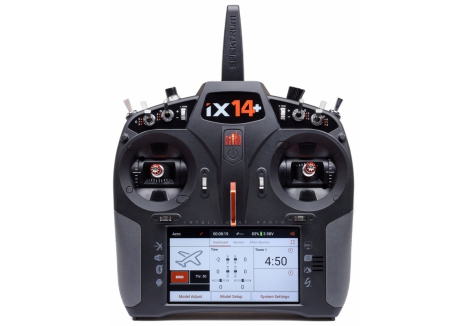

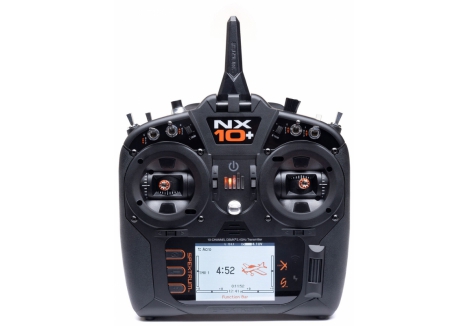

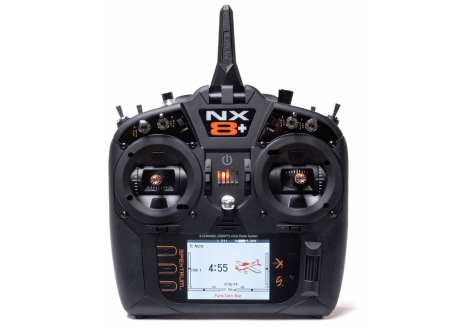

- Full-range six to seven+ channel Spektrum DSMX or DSM2 compatible transmitter (required to bind and operate the aircraft)

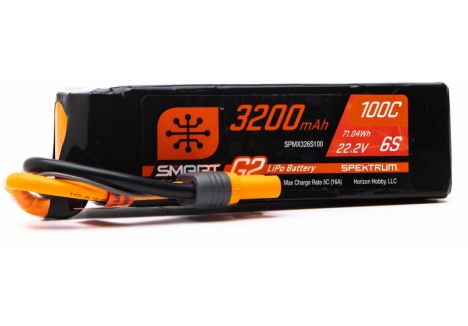

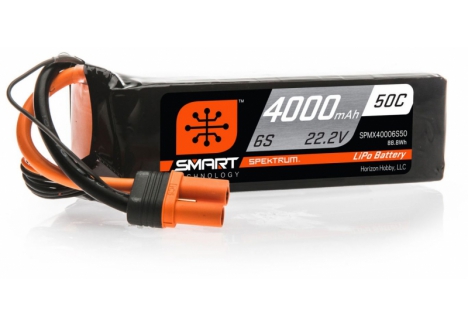

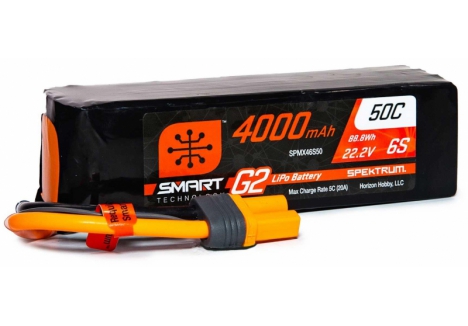

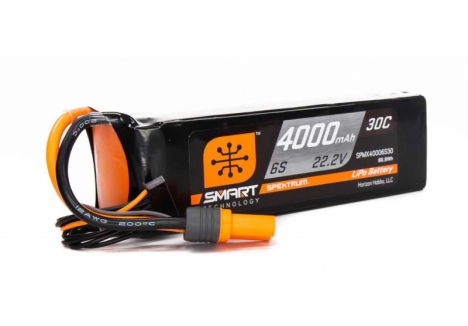

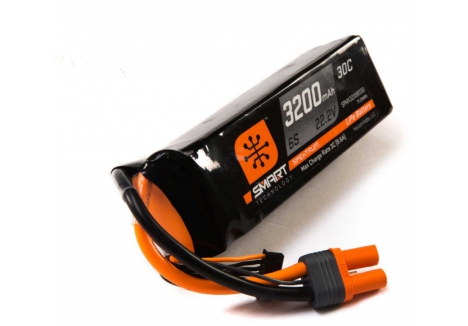

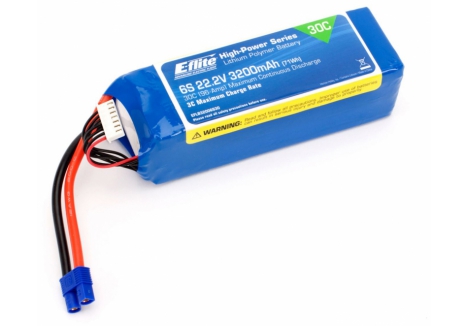

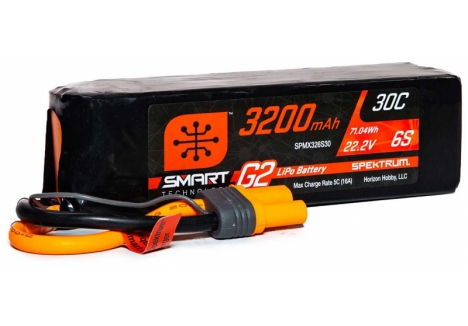

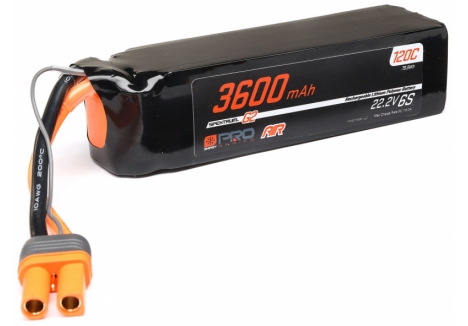

- 6S 22.2V 3200–4000mAh 30+C LiPo battery with EC5 or IC5 connector (sold separately; multiple batteries recommended for extended flying sessions)
- Compatible LiPo battery charger (sold separately)
Frequently Asked Questions
- Is the E-flite F-16 Thunderbirds 70mm EDF Jet suitable for beginners and intermediate RC pilots? — This model is rated as Skill Level 2/Level 3, making it suitable for competent intermediate pilots rather than absolute beginners. However, the inclusive AS3X stabilisation technology significantly eases flight characteristics, and the optional SAFE Select flight envelope protection provides an additional safety margin during familiarisation. If you're new to EDF jets or RC flying generally, we recommend seeking instruction from experienced pilots or a local RC club before operating this high-performance model. The aircraft's wide performance envelope means it can fly stably and slowly for practice, but its top-end speed capability demands respect and appropriate flying space.
- What battery does the F-16 Thunderbirds EDF need and how long will it fly? — This aircraft requires a 6S 22.2V LiPo battery in the 3200–4000mAh capacity range with a minimum 30+C discharge rating, and either an EC5 or IC5 connector type. The factory-recommended configuration uses a 6S 3200mAh battery. Higher capacity batteries (up to 4000mAh) are compatible and will extend flight duration whilst adding minimal weight. Actual flight time depends on flying style, throttle management, and atmospheric conditions, but typical flights range from 8-15 minutes for aggressive flying to 12-20 minutes for moderate throttle usage. We recommend purchasing multiple battery packs to maximise your flying sessions.

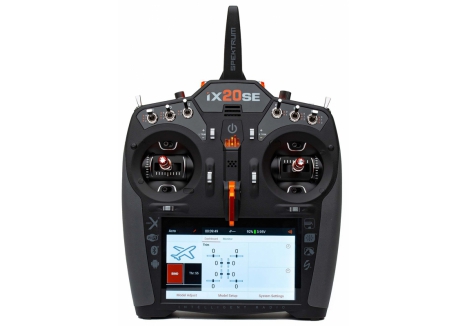

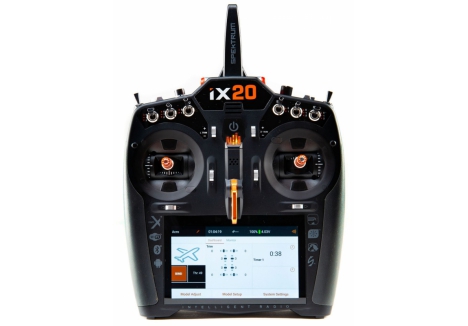

- What transmitter do I need to operate this Bind-N-Fly model? — The E-flite F-16 requires any full-range six to seven+ channel Spektrum DSMX or DSM2 compatible transmitter. For optimal integration and access to all features including real-time telemetry data from the Smart Lite ESC and optional thrust reversing capability, we recommend an AirWare-equipped transmitter such as the Spektrum DX6e, DX8e, DX6 G2 or G3, DX8 G2, DX9, NX6 through NX20, or iX12 through iX20. Note that thrust reversing requires at least a seven-channel capable transmitter. If you do not already own a compatible transmitter, RC Model Shop supplies complete package bundles that include both the aircraft and a suitable transmitter.
- What makes this F-16 different from other mid-sized EDF jets available in the UK? — The E-flite F-16 Thunderbirds incorporates several genuinely distinctive advantages. The factory-installed 12-blade 70mm fan combined with the upgraded 3060-1900Kv motor and 85-amp Avian Smart Lite ESC delivers superior vertical performance and speed compared to earlier EDF designs. The integration of AS3X stabilisation and optional SAFE Select flight envelope protection creates a forgiving flying experience that belies the aircraft's performance capability. Real-time Smart telemetry feedback from the power system—showing battery voltage, current draw, and motor RPM—provides operational intelligence unavailable on simpler models. The optional thrust reversing capability adds practical ground handling advantages and genuine operational flexibility. The detailed scale appearance, including cockpit detail, pilot figure, and authentic Thunderbird decals, makes this a genuinely attractive display piece between flights. The composite-reinforced EPO construction combined with shock-absorbing electric retracts enables operations from diverse surfaces, expanding your flying location options beyond traditional hard runways.
- How does AS3X stabilisation work and will it limit my aerobatic capability? — AS3X (Artificial Stabilisation–3-aXis) operates continuously in the background, using the aircraft's onboard gyroscopes to detect wind disturbances and turbulence, then automatically making subtle control corrections to maintain stable flight. Importantly, AS3X does not restrict your control inputs or limit aerobatic capability—you retain full control authority and can perform any manoeuvre you command, from high-speed low-level passes through aggressive rolls, loops, and inverted flight. AS3X simply makes the aircraft feel larger and more stable, reducing the constant small control inputs required to maintain stable flight in turbulent conditions. This combination of full aerobatic freedom with enhanced stability makes AS3X particularly valuable for confident, responsive flying.
- What is SAFE Select and do I need to use it? — SAFE Select provides optional-use flight envelope protection including pitch and bank angle limits (preventing excessive climb or dive angles and preventing inverted flight), combined with automatic self-levelling that engages when control sticks are released and centred. SAFE Select is entirely optional—you can bind the receiver normally and only AS3X will be active, or you can enable SAFE Select through a simple binding procedure that requires no complex programming. Many intermediate pilots appreciate SAFE Select during familiarisation flights or when flying in challenging wind conditions, then disable it once fully confident with the aircraft. The flexibility to enable or disable SAFE Select with a single transmitter switch allows you to adapt the aircraft's behaviour to your skill level and flying conditions.

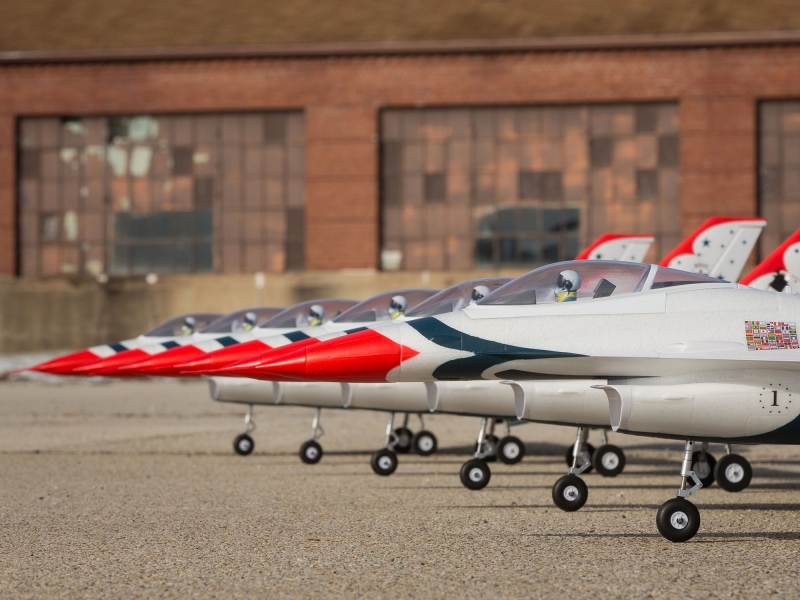

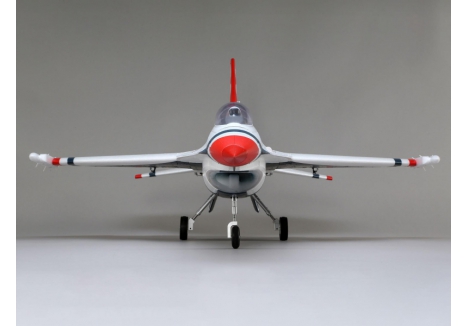

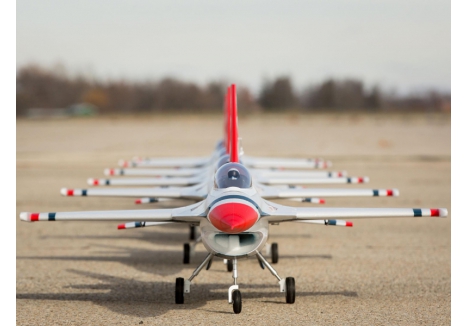

- Does this aircraft have retractable landing gear? — Yes, the E-flite F-16 features factory-installed electric retract units with shock-absorbing struts and metal components for reliable operation and durability. The steerable nose wheel and main gear enable operations from diverse surfaces including paved runways, dirt strips, and even manicured grass fields. The shock-absorbing struts reduce ground impact forces, improving reliability and protecting the airframe during takeoff and landing operations.
- How quickly can I get airborne after purchasing? — As a Bind-N-Fly Basic model, the E-flite F-16 arrives fully assembled with all internal electronics installed. You simply need to bind the receiver to your transmitter—a process taking just a few minutes—then you're ready to fly. Approximate assembly time for any final assembly steps is less than one hour, making this one of the fastest paths to F-16 flying for UK RC enthusiasts. If you do not own a compatible transmitter or battery system, RC Model Shop supplies package bundles that include everything needed.
