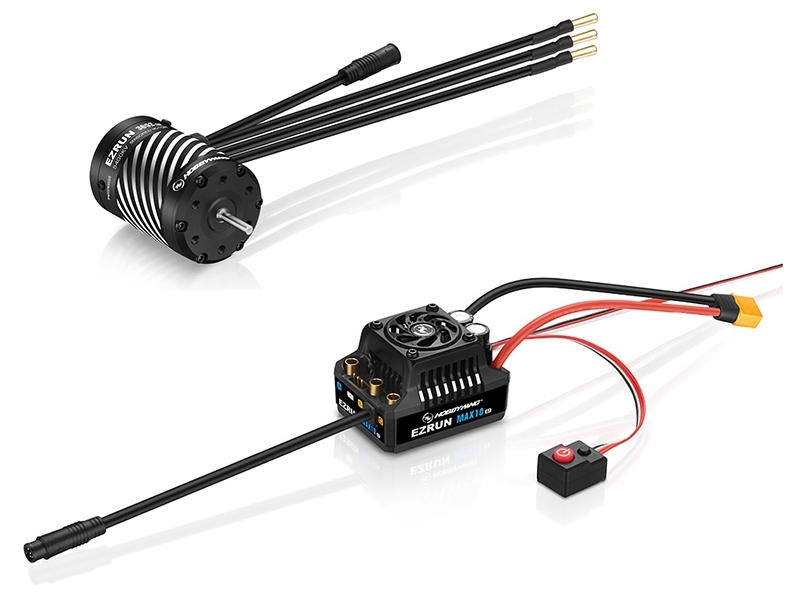

Hobbywing Combo MAX10 G2 80A ESC 3652SD 5400kV BLK G3 Motor HW38020348

Overview

The Hobbywing Combo MAX10 G2 80A ESC 3652SD 5400kV BLK G3 Motor represents a premium integrated power system designed specifically for 1/10 scale RC car enthusiasts in the UK seeking reliable, high-performance electronics with exceptional control characteristics. This combo pairing brings together Hobbywing's latest generation speed controller technology with their proven 3652 SD G3 brushless motor, creating a matched system optimised for on-road and off-road driving across all conditions. Whether you're piloting a short course truck, truggy, or general 1/10 scale RC car, this brushless RC combo delivers the kind of responsive throttle feel and power consistency that separates serious hobbyists from casual drivers.

This ready-to-run combo solution eliminates the guesswork of component compatibility and provides genuine peace of mind for UK RC car buyers. The MAX10 G2 represents a significant evolution over previous generation ESCs, introducing smarter thermal management, improved power delivery, and advanced sensor integration that works seamlessly with the 3652 G3 motor's upgraded sensored cable interface. For drivers looking to upgrade their RC car setup or build a new platform from scratch, this combination offers outstanding value and genuine performance gains.

Built with Hobbywing's reputation for quality and innovation, the MAX10 G2 and 3652 G3 combo is backed by comprehensive customer support, data logging capabilities, and genuine waterproof protection rated to IP67 standard. This means your RC car can handle mud, sand, water, snow, and ice without compromising the integrity of the power system.

Key Features

• Upgraded Sensored Mode with Enhanced Throttle Response — The MAX10 G2 introduces an improved waterproof sensored cable interface paired with upgraded sensor mode programming specifically calibrated for the 3652/3665 SD G3 motors. This combination delivers noticeably superior throttle response and control feel, allowing drivers to modulate acceleration with precision and confidence that simply wasn't possible with previous generation systems.
• Turbo Timing Adjustment up to 32 Degrees — Supporting full timing adjustment range of 32 degrees, the MAX10 G2 allows you to optimise motor performance characteristics across different driving conditions and battery configurations. When paired with the 3652 G3 motor, turbo timing mode increases maximum speed by 25 percent, delivering genuinely noticeable performance uplift for competitive drivers and weekend bashers alike.
• Smart Start-Stop Technology with Intelligent Fan Control — The MAX10 G2 incorporates intelligent start-stop technology that disables the frameless fan during cool running conditions, eliminating unnecessary noise and reducing power draw from your battery. The fan automatically activates only when internal temperatures rise to predetermined levels, optimising efficiency and extending your running time on charge.
• 74 Percent Increased Capacitor Bank with Double Explosion Protection — Compared to the previous generation MAX10, total capacitor capacitance has been increased by 74 percent, providing substantially improved power delivery from battery to ESC. Integrated overheating protection combined with the larger capacitor bank prevents catastrophic capacitor failure from power surges, voltage spikes, or battery overload conditions, protecting your investment and ensuring system reliability.
• Smart Freewheeling Technology for Superior Efficiency — Revolutionary freewheeling circuitry reduces internal power dissipation during coast phases and non-powered driving conditions, improving overall system efficiency compared to previous generations. This engineering advancement results in operating temperatures approximately 25°C lower than the previous MAX10 ESC, enabling longer sustained throttle application and greater consistency during extended driving sessions.
• IP67 Waterproof and Dustproof Protection — Rated to IP67 waterproof standard, this power combo provides complete environmental protection suitable for all-weather RC car operation. Drive confidently through mud, sand, shallow water crossings, rain, snow, and ice without concern for water ingress or dust contamination damaging critical electronics.
• Data Logging and Real-Time Telemetry via Bluetooth — Connect the optional OTA Bluetooth module to view real-time vehicle data including throttle position, battery voltage, current draw, operating temperature, and speed directly on your smartphone through the dedicated mobile application. Historical data logging allows you to review performance trends, identify potential issues, and optimise your setup based on actual performance metrics from your driving sessions.
• Patented Frameless Fan Design — The revolutionary frameless fan architecture allows significantly greater air outlet on the side of the fan body, directing cooling airflow directly away from the integrated case with minimal turbulence. This patented design maximises cooling effectiveness whilst minimising acoustic noise, perfect for drivers who appreciate refined, quiet operation.
• Stronger Explosive Power with Stable Output — Compared to the previous generation, the MAX10 G2 delivers noticeably stronger initial acceleration response combined with rock-solid output power stability across the entire RPM range. Excellent low-speed linearity ensures smooth, predictable throttle response even at minimal stick inputs, critical for technical driving and precise speed control.

Technical Performance

The MAX10 G2 ESC is specifically engineered for 1/10 scale brushless RC applications, rated for continuous current draw of 80 amperes with peak burst capability of 520 amperes, making it ideal for 2S and 3S LiPo battery systems. The ESC accepts input voltage of 2-3S LiPo configuration, with a precision-regulated BEC output of 6V at 5A (capable of delivering 7.4V output when input voltage is 3S or higher), providing stable power to your receiver and servos. Motor connector utilises industry-standard 4.0mm gold-plated bullets, ensuring secure connections and minimal voltage drop. The matched 3652 SD G3 brushless motor features a 5400kV rating, designed to work optimally with 2S LiPo battery packs, though 3S operation is fully supported. The motor incorporates sensored mode operation with 0-degree base timing, featuring a 4-pole design with specifications of 227.9g total weight, 37mm diameter and 53mm length, with a 3.17mm diameter shaft extending 15mm from the motor body. Combined, this system is optimised for on-road and off-road short course truck applications, delivering strong mid-range torque and smooth power delivery across typical driving speeds. The aluminium construction and advanced thermal management design ensure reliable operation during extended driving sessions, whilst the waterproof-rated connectors and sealed casing protect against moisture ingress during operation in wet conditions.

What's in the Box

• Hobbywing EzRun MAX10 G2 80A Speed Controller with integrated sensored cable interface
• Hobbywing EzRun 3652 SD G3 Brushless Motor (5400kV, sensored)
• ESC input power wires: 1x Red 12AWG (150mm), 1x Black 12AWG (150mm)
• XT60 power connector (female) for battery connection
• Motor output connectors: 4.0mm gold-plated bullet connectors

What You Need to Complete

• 2S or 3S LiPo battery pack (2S recommended for optimal 5400kV motor performance)
• LiPo battery charger with XT60 connector compatibility
• RC receiver compatible with your chosen transmitter system
• RC transmitter (remote control)
• Suitable RC car chassis with 1/10 scale motor mounting capability
• Motor pinion gear (size depends on your chosen final drive ratio)
• Sensored motor cable (available separately if needed for cable replacement)
• Optional: OTA Bluetooth programmer module for data logging and advanced tuning

Frequently Asked Questions

• Is the Hobbywing MAX10 G2 combo suitable for beginners in RC car driving? — Yes, this combo is appropriate for beginners to intermediate drivers. The upgraded sensored mode and excellent low-speed linearity make throttle control predictable and manageable during the learning process. The IP67 waterproof protection means you needn't worry about light water splash or rainy conditions during practice sessions. However, first-time RC builders should note that you'll need to source a receiver, transmitter, battery, and suitable chassis to complete the setup, so this is not a fully ready-to-run out-of-the-box solution for brand new hobbyists.
• What battery does the MAX10 G2 80A ESC require? — The MAX10 G2 80A is rated for 2-3S LiPo battery systems. Input voltage range is 2-3S, meaning you can operate it safely on 7.4V (2S) or 11.1V (3S) LiPo packs. The matched 3652 SD G3 motor features 5400kV rating, which is optimised for 2S LiPo operation, though the combo is fully compatible with 3S LiPo batteries for drivers seeking increased performance.
• Does overheating protection actually work with this ESC and motor combo? — Yes, the MAX10 G2 includes full overheating protection circuitry, and this protection is fully functional when the ESC is paired specifically with the Hobbywing EzRun 3652/3665 G3 motor (as included in this combo). The increased capacitor bank and smart freewheeling technology work together to reduce internal heat generation, whilst the intelligent fan control activates cooling only when needed, extending the time between throttle-offs during extended driving sessions.
• Can I use this MAX10 G2 ESC with motors other than the included 3652 G3? — The MAX10 G2 is optimised for the 3652/3665 SD G3 motor range, particularly for the upgraded sensor mode and overheating protection functionality. However, the ESC also supports conventional sensored mode interfaces, meaning it can work with other sensored brushless motors, though you may need to purchase additional sensored cable connectors separately. For maximum benefit and full feature support, using the matched 3652 G3 motor as included in this combo is the best choice.
• What makes the MAX10 G2 significantly better than the previous generation MAX10? — Several key improvements distinguish the G2 model: capacitor bank increased by 74 percent, smart start-stop fan technology for reduced noise and power consumption, upgraded sensor mode programming for improved throttle response, smart freewheeling technology reducing operating temperature by approximately 25°C, and improved waterproof sensored cable interface. Combined, these enhancements deliver noticeably stronger initial acceleration, more stable power output, better low-speed control, and cooler running temperatures during extended driving sessions.
• Is this combo waterproof enough for driving in water? — The IP67 waterproof rating provides complete protection against dust ingress and temporary water submersion. You can safely drive through mud, wet grass, water crossings, and rainy conditions without damaging the electronics. However, the IP67 standard is not rated for prolonged submersion, so avoid deliberately submerging the ESC and motor in deep water for extended periods. Rinse with fresh water after each muddy session for maximum component longevity.
• How do I use the data logging feature on this combo? — The MAX10 G2 supports data logging through connection of the optional OTA Bluetooth programmer module (sold separately). Once connected via Bluetooth (effective transmission range 5 metres in open field), you can view real-time telemetry including throttle position, battery voltage, current draw, operating temperature, and vehicle speed through a dedicated mobile application. Historical data logging allows review of performance trends and identification of potential issues based on actual driving data.
