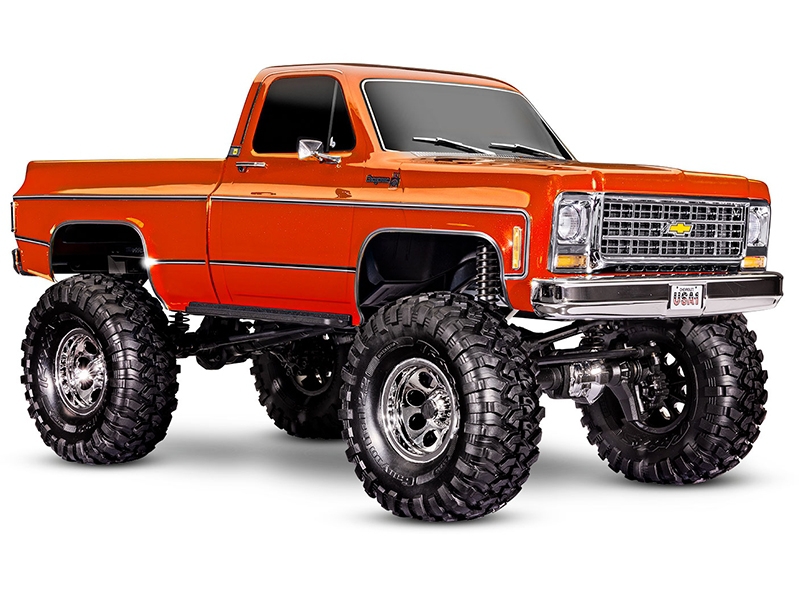

Traxxas TRX-4 1:10 Scale Electric Trail Crawler with 1979 Chevrolet K10 Cheyenne High Trail Body – Metallic Copper – TRX92056-4-COPR

Brand, Model and Product Type

• Brand: Traxxas
• Model: TRX92056-4-COPR
• Product Type: Traxxas TRX92056-4-COPR TRX-4 Chevrolet K10 Cheyenne High Trail Edition, Traxxas TRX92056-4-COPR TRX-4 1:10 Scale 4WD Electric Rock Crawler, Traxxas TRX92056-4-COPR TRX-4 Chevrolet K10 RTR Off-Road Truck, Traxxas TRX-4 Chevrolet K10 Cheyenne High Trail Edition TRX92056-4-COPR, Traxxas TRX-4 1:10 Scale Shaft-Driven 4WD Trail Crawler, Traxxas TRX-4 Chevrolet K10 RTR Electric Trail Truck

Dimensions

• Scale: 1:10 – ideal for realistic trail crawling and scale detailing
• Weight: 3.35 kg – provides stability and traction on uneven terrain
• Length: 52.6 cm – extended chassis for improved articulation
• Width: 27 cm – wide stance enhances balance and cornering
• Height: 27.7 cm – accommodates lifted suspension and oversized tires
• Wheelbase: 33.6 cm – long wheelbase improves climbing and trail stability
• Front Track: 27 cm – matches rear track for consistent handling
• Rear Track: 27 cm – balanced geometry for trail performance
• Center Ground Clearance: 10.2 cm – increased clearance from portal axles and lift kit

Motor and ESC System

• Motor Type: Titan 550 21T reverse rotation brushed motor – delivers high torque for trail crawling
• Motor Weight: 240 g – compact yet powerful for sustained performance
• Motor Length: 7.8 cm overall, 5.7 cm can length – optimized for chassis integration
• Motor Diameter: 3.9 cm – fits securely within motor mount
• Motor Shaft Size: 3 mm – compatible with standard gear interfaces
• Motor Connector Type: Bullet – ensures secure and efficient power transfer
• ESC Type: XL-5 HV brushed – waterproof and trail-tuned for versatile driving modes
• ESC Case Size: 3.1 cm x 5.5 cm x 2.6 cm – compact for internal mounting
• ESC Weight: 74 g – lightweight design with integrated heat sink
• Drive Profiles: Sport, Race, Training, Trail, Crawl – selectable modes for different terrain and skill levels
• Voltage Compatibility: Supports 6–7 cell NiMH (7.2–8.4 V) and 2–3s LiPo (7.4–11.1 V)
• Low Voltage Protection: Two-stage LVD – safeguards battery health during operation

Drivetrain and Transmission

• Drivetrain: Full-time shaft-driven 4WD – ensures consistent traction across all wheels
• Transmission: Two-speed high/low range with remote shifting – adapts speed and torque for trail conditions
• Differential Type: 4 gear, remote locking – cable-actuated steel gear diffs for terrain-specific control
• Gear Pitch: 32 pitch – durable gearing for high torque applications
• Transfer Case: Steel gear – enhances drivetrain durability and power delivery
• Axles: Steel front CV driveshafts and hardened steel rear axle shafts – built for rugged trail use
• Stub Axles: 6 mm – heavy-duty design for wheel support

Suspension and Steering

• Front Suspension: 3-link with panhard bar – maintains axle alignment during articulation
• Rear Suspension: Triangulated 4-link – provides stability and flexibility over obstacles
• Link Rods: 5 mm steel rods with 4 mm threaded ends – robust construction for trail abuse
• Rod Ends: Heavy-duty with steel hollow balls – ensures smooth movement and durability
• Shocks: Extended aluminum GTS coilover shocks – oil-filled with threaded bodies for adjustable ride height
• Shock Seals: O-ring cap seal and dual X-ring shaft seals – prevents oil leakage and maintains damping performance
• Steering Servo: 2075X metal gear digital – chassis-mounted for direct steering response
• Steering Angle: 45° – superior turning radius for tight trail navigation
• Steering Geometry: Corrected for bump steer – ensures consistent handling across terrain

Radio System and Electronics

• Radio System: TQi 2.4 GHz 4-channel transmitter – includes cruise control and adjustable endpoints
• Receiver: 6533 5-channel micro receiver – telemetry-ready with fail-safe security
• App Compatibility: Supports optional Traxxas Link Wireless Module (6511) – enables full app functionality
• Receiver Box: Patented waterproof design – protects electronics in wet conditions

Body and Chassis

• Body: Licensed 1979 Chevrolet K10 – includes grille, chrome bumpers, mirrors, handles, and wipers
• Mounting System: Clipless – smooth exterior with internal body cage for rigidity
• Wheelbase: 33.6 cm – extended for improved stability and articulation
• Frame Rails: Full-length 1.5 mm thick steel – provides structural integrity
• Rock Rails: Adjustable for width – protects chassis during trail use
• Wire Routing: Integrated clips – ensures clean and secure cable management

Wheels and Tires

• Wheels: 2.2″ 8-hole chrome mag wheels – pre-mounted with hub inserts
• Tires: Canyon Trail – trail-tuned foam inserts and S1 rubber compound for grip
• Hex Size: 12 mm steel hex – standard fitment for durability

Battery Compartment

• Main Compartment: 15.9 cm x 4.7 cm x 2.3 cm (height up to 2.6 cm) – accepts full-size long packs
• Secondary Tray: Front-mounted – accepts smaller 1/16 scale batteries with optional strap
• Battery Strap: Hinged design – quick access without pins

What's in the Box

• TRX-4 Ready-To-Race model
• XL-5 HV waterproof electronic speed control
• Titan 21T reverse rotation motor
• TQi 2.4 GHz radio system with cruise control
• High-quality maintenance tools

What You’ll Need

• NiMH (4–7 cell) or LiPo (2s–3s) batteries – compatible with TRX-4 battery compartment dimensions
• Traxxas EZ-Peak Live charger (model 2971) – recommended for fast and efficient charging
• Four AA alkaline batteries – required for transmitter operation

Sold Separately

• Battery and charger – not included with the model
• Traxxas Link Wireless Module (6511) – enables full app functionality and telemetry features
• Optional battery straps – required for fitting smaller 1/16 scale batteries

Warranty

• 1-year manufacturer warranty
