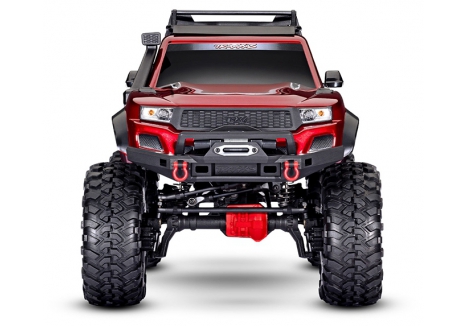

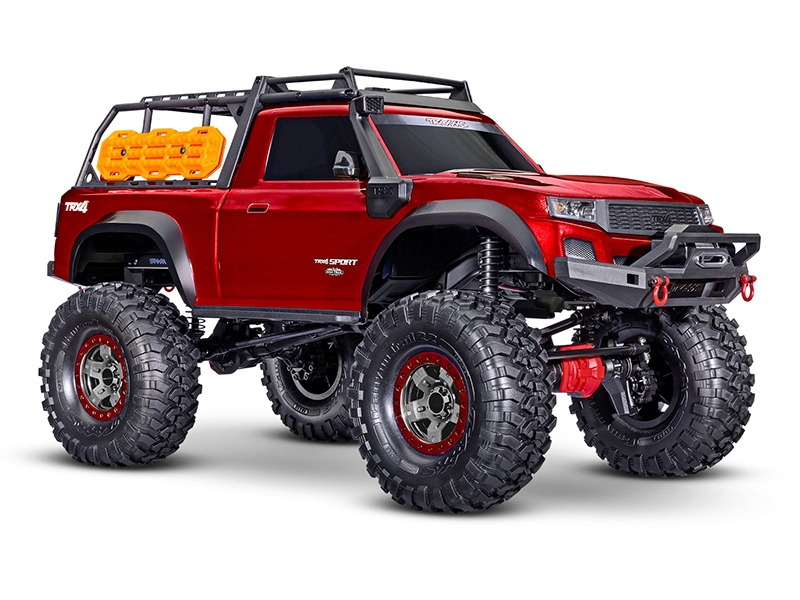

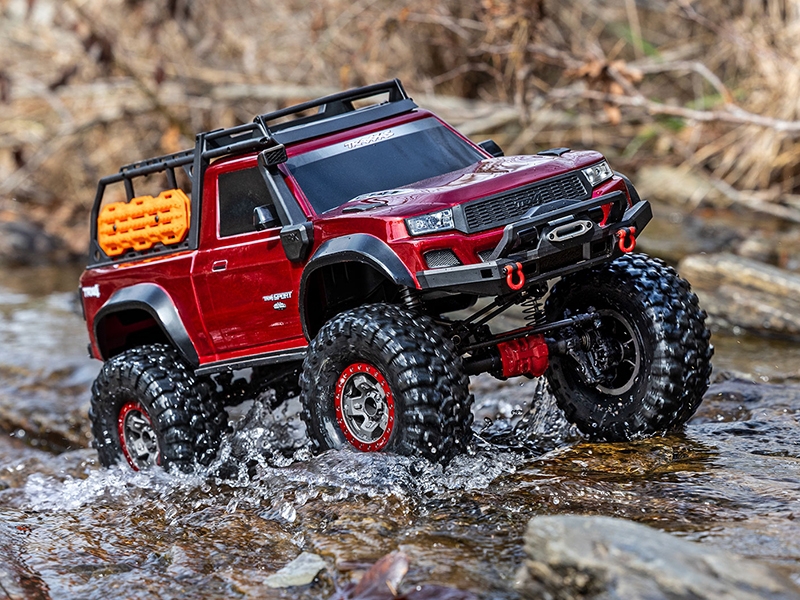

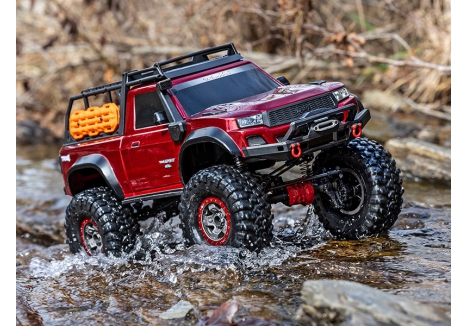

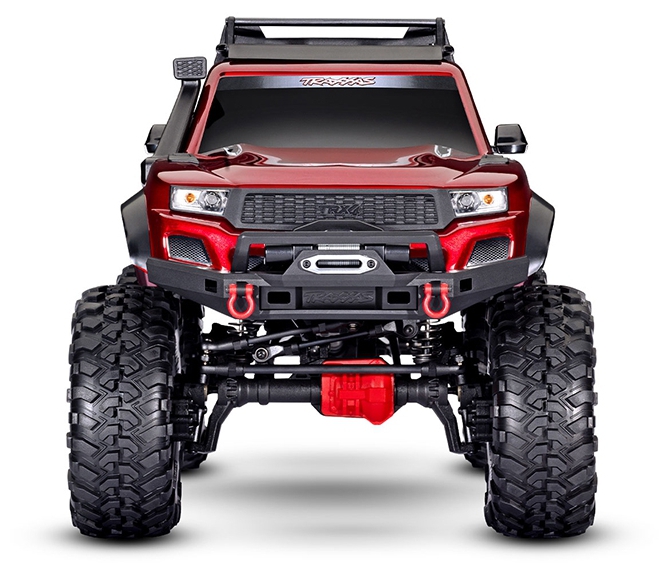

Even the toughest off-road challenges have met their match with TRX-4® Sport High Trail™ Edition. A factory-installed Long Arm Lift Kit amplifies TRX-4 Sport's performance-focused all-terrain capability with even more ground clearance. High-angle bumpers and fully-locked axles provide nearly unstoppable climbing versatility with the show-stopping looks of the High Trail Edition's rugged Expedition Rack and scale accessories.
LIFTED PERFORMANCE
The High Trail Edition TRX-4 Sport gets you up and over obstacles with a factory-installed Long Arm Lift Kit for over an inch more ground clearance than the standard TRX-4. Oversize Canyon Trail tires ride on 2.2″ black 5-spoke wheels to tame the most technical trails with extreme all-terrain traction.
CLIPLESS BODY MOUNT
New to TRX-4 Sport, the High Trail Edition's clipless body combines clean flowing lines with secure latching convenience. TRX-4 Sport's hidden latches hold tight on the trail no matter how intense the action gets, but release in just seconds to access the chassis.

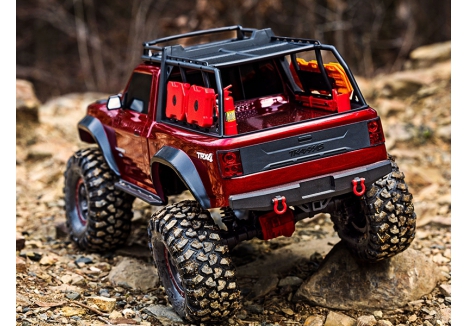

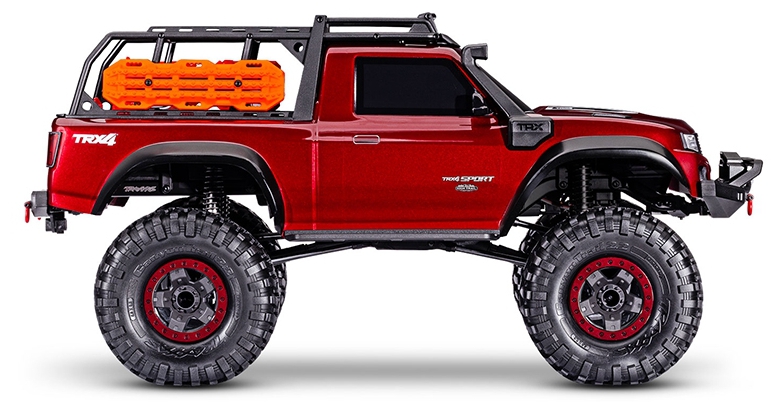

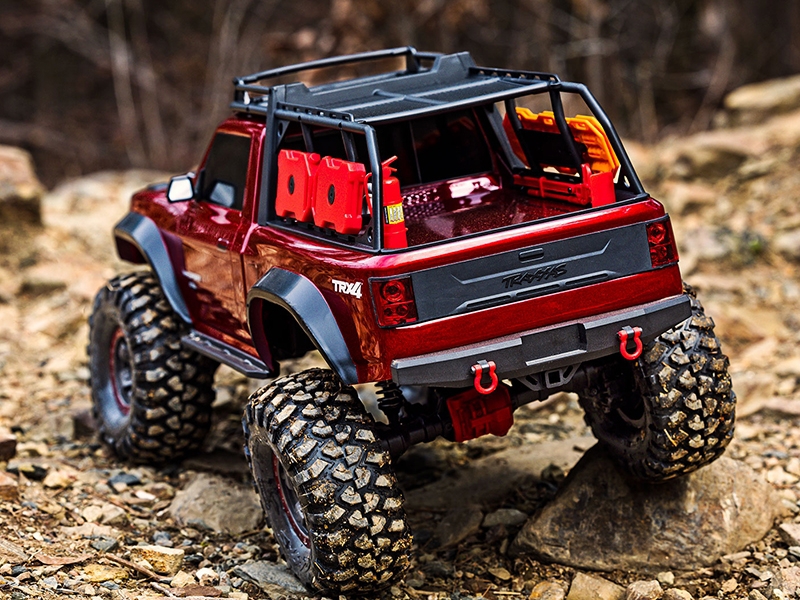

SCALE ACCESSORIES
TRX-4 High Trail Edition comes fully outfitted for adventure with a tough Expedition Rack and moulded accessories. A replica snorkel, side mirrors, traction boards, fire extinguisher, jack, and fuel canisters provide extreme scale detail with inner fenders for a realistic appearance.

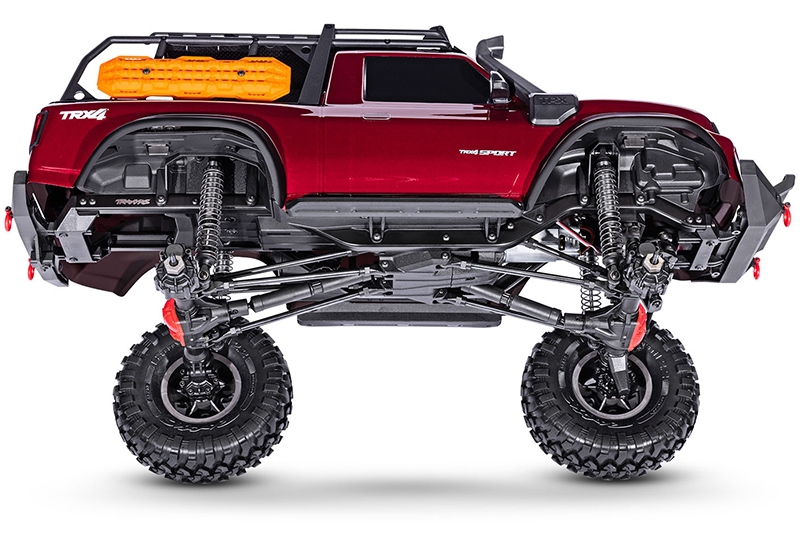

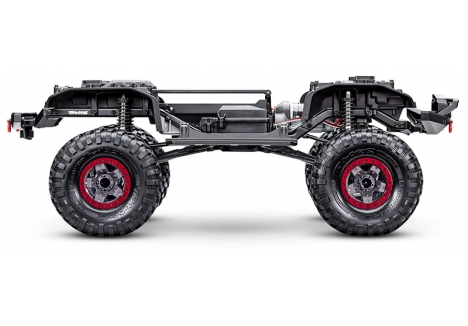

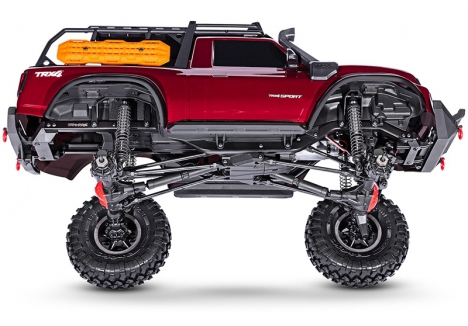

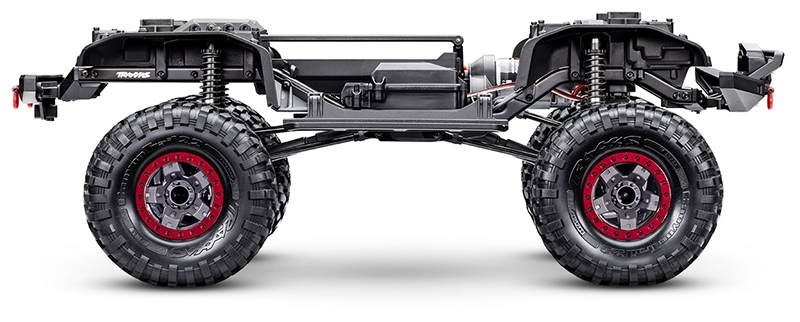

FACTORY-INSTALLED LIFT KIT
TRX-4 Sport High Trail Edition's factory-installed lift kit and oversize tires add over an inch of trail-conquering ground clearance. Extended 110mm GTS shocks deliver silky-smooth damping performance with greater wheel articulation for increased off-road capability. Extended steel links and a revised servo mount maintain TRX-4's superior suspension geometry.
OVERSIZE 2.2″ WHEELS & TYRES
Aggressive S1-compound Canyon Trail tires feature large lugs for increased grip with 2-stage foam inserts for realistic trail performance. The tires come mounted and glued to large 2.2" 5-spoke wheels with beadlock detailing.
ACCESSORY LIGHTING AVAILABLE
Take your TRX-4 Sport's realism to the next level with the optional 8085X Pro Scale® LED Light Kit. The Pro Scale® Advanced Lighting Control System adds full-function headlights, brake and reverse lights, turn signals, multiple driving modes, and much more to your TRX-4.
Specs:

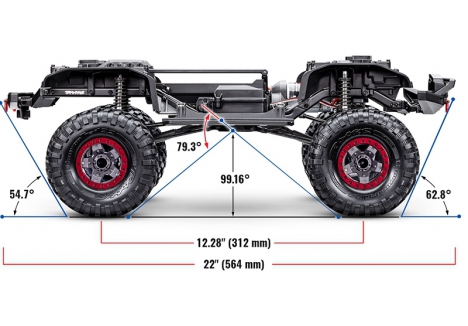

Length: 22 inches (564mm)
Front Track: 10.6 inches (270mm)
Rear Track: 10.6 inches (270mm)
Center Ground Clearance: 4 inches (99mm)
Weight (w/o battery): 7.04lbs (3.20kg)
Height (overall): 10.8 inches (275mm)
Wheelbase: 12.3 inches (312mm)

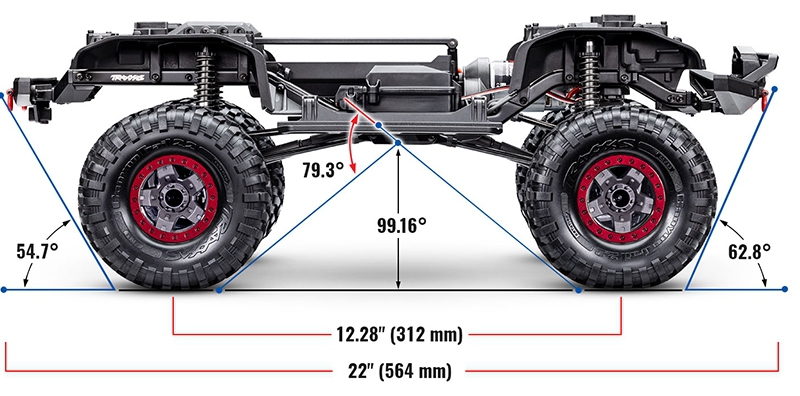

Approach Angle: 62.8°
Departure Angle: 54.7°
Breakover Angle: 79.3°
Front Shock Length: 4.33 inches (110mm)
Rear Shock Length: 4.33 inches (110mm)
Front Wheels: 2.2 x 1.34 inches (56 x 34mm)
Rear Wheels: 2.2 x 1.34 inches (56 x 34mm)
Front Tires: 5.3 x 2.14 inches (135 x 54mm)
Rear Tires: 5.3 x 2.14 inches (135 x 54mm)
Hex Size: 12mm
Speed Control: XL-5 HV
Motor (electric): 21T Reverse Rotation
Transmission: Single Speed
Gear Pitch: 32P
Differential Type: Spool (no differential)
Chassis Structure / Material: Steel Ladder Frame with Nylon Composite Crossmembers
Brake Type: Electronic “Hill Hold”
Drive System: Shaft Driven 4WD
Steering: Chassis Mounted Servo
Servo: 2075X Metal Gear
Transmitter: TQ™ 2.4 GHz 4-Channel Transmitter
Receiver: 6533
Skill Level: 1
Battery Tray: 158.75 L x 47 W x 23/26mm H
What’s In The Box:
TRX-4, Ready-To-Drive® model
XL-5 HV waterproof electronic speed control
Titan® 21T reverse rotation motor
TQ™ 2.4GHz radio system
High quality maintenance tools
What You’ll Need:
Batteries
TRX-4 accepts a wide variety of NiMH (4–7 cell) and LiPo (2s–3s) batteries.
Charger
Traxxas EZ-Peak® Live charger is recommended for easy and fast charging performance (model #2971).
AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
Brand, Model and Product Type
- Brand: Traxxas
- Model: TRX82044-4-RED
- Product Type: Traxxas TRX82044-4-RED TRX-4 Sport High Trail Edition crawler, Traxxas TRX82044-4-RED TRX-4 Sport High Trail Edition 4X4 trail truck, Traxxas TRX82044-4-RED TRX-4 Sport High Trail Edition RTR off-road truck, Traxxas TRX-4 Sport High Trail Edition brushed motor crawler, Traxxas TRX-4 Sport High Trail Edition with portal axles
Dimensions
- Scale: 1/10
- Length: 56.4 cm – suitable for navigating large trail obstacles
- Width: 27 cm – provides a stable footprint for off-road terrain
- Height: 27.5 cm – accommodates lifted suspension and scale accessories
- Wheelbase: 31.2 cm – optimised for climbing and articulation
- Front Track: 27 cm
- Rear Track: 27 cm
- Center Ground Clearance: 9.9 cm – enhanced by portal axles and long arm lift kit
- Weight: 3.20 kg – balanced for trail stability and control
Chassis and Frame
- Chassis Type: Steel ladder frame with full-length 1.5 mm thick rails
- Rock Rails: Adjustable width for custom trail setups
- Wire Routing: Integrated clips for clean and secure cable management
Drivetrain and Transmission
- Drivetrain: Full-time shaft-driven 4-wheel drive
- Differentials: Spool-locked front and rear for maximum traction
- Transfer Case: Steel gear construction for durability under load
- Axles: Hardened steel rear axle shafts and steel front CV driveshafts
- Stub Axles: Tough 6 mm design for rugged terrain
- Transmission: Single-speed with dual horizontal shafts and twin friction plate slipper clutch
Motor and Speed Control
- Motor: Titan® 550 21T reverse rotation brushed motor with internal cooling fan
- Speed Control: XL-5™ HV waterproof electronic speed control
- Drive Profiles: Sport Mode, Race Mode, Training Mode™, Trail Mode, Crawl Mode
- Setup: Traxxas EZ-Set® one-button configuration
- Voltage Compatibility: Supports 6–7 cell NiMH (7.2–8.4 V) and 2–3s LiPo (7.4–11.1 V)
- Low Voltage Protection: Two-stage LVD system
Suspension and Steering
- Front Suspension: 3-link with panhard bar
- Rear Suspension: Triangulated 4-link design
- Link Rods: 5 mm diameter steel rods with 4 mm threaded ends
- Rod Ends: Heavy-duty with steel hollow balls
- Shocks: Extended aluminum GTS coilover shocks with silver-anodised threaded bodies
- Shock Seals: O-ring cap seal and dual X-ring shaft seals
- Steering Servo: Chassis-mounted 2075X metal gear digital servo
- Steering Angle: 45° with corrected geometry for bump steer elimination
Wheels and Tyres
- Wheels: Oversized 2.2″ 5-spoke wheels with replica beadlock rings
- Tyres: Pre-mounted Canyon Trail tyres with trail-tuned foam inserts
- Compound: S1 rubber for enhanced grip
- Hex Size: 12 mm steel hex hubs
- Bearings: Sealed ball bearings throughout
- Hardware: Hex fasteners with rust-resistant black oxide coating
Body and Scale Accessories
- Body Mounting: Clipless design for smooth appearance and secure fit
- Body Details: Molded grille, tailgate, snorkel, and side mirrors mounted to internal frame
- Wheel Wells: Full nylon composite construction
- Floor Pans: Durable nylon composite for added rigidity
- Expedition Rack: Rugged rack with detailed scale accessories
- Lighting: LED-ready headlights and tail lights
Radio System
- Transmitter: TQ™ 2.4 GHz 2-channel ergonomic design with internal antenna
- Receiver: Traxxas 6519 3-channel micro receiver with fail-safe security
- Receiver Box: Patented O-ring sealed watertight enclosure
Battery Compartment
- Dimensions: 15.9 cm x 4.7 cm x 2.3 cm, 2.6 cm height clearance
- Strap: Hinged design for quick access and secure fit
- Compatibility: Accepts full-size long packs and smaller 1/16 scale batteries with optional strap
What’s In The Box
- TRX-4 Sport High Trail Edition fully assembled trail truck
- XL-5 HV waterproof electronic speed control
- Titan® 21T reverse rotation motor
- TQ™ 2.4 GHz 2-channel radio system
- High-quality maintenance tools
What You’ll Need
- Compatible NiMH (4–7 cell) or LiPo (2s–3s) battery
- Battery charger – Traxxas EZ-Peak® Live charger (model 2971) recommended
- Four AA alkaline batteries for the transmitter
Sold Separately
- Battery pack
- Battery charger
- Optional battery strap for smaller packs
