Etronix Photon SBS LED Programming Card 1/8 and 1/10 Scale Brushless ESC Tuning ET0107

Overview

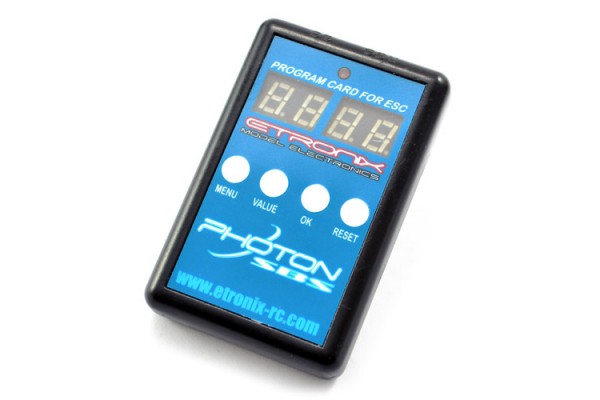

The Etronix Photon SBS LED Programming Card (2.1W + 1/8th) ET0107 is an essential tuning tool for anyone running Etronix Photon brushless motor systems in their RC car. Whether you're a seasoned RC enthusiast in the UK or just getting started with brushless RC vehicles, this compact programming card puts precise control over your ESC settings directly in your hands. Rather than being stuck with factory defaults, the Photon programming card allows you to finely tune ten different parameters to match your driving style, track conditions, and performance preferences. This level of customisation is what separates casual RC drivers from serious racers and hobbyists who want to extract maximum performance from their brushless RC setup.

Designed specifically for use with Etronix Photon 1/8th and 1/10 scale brushless motor systems, this programmable setup card is a compact, user-friendly device that connects directly to your ESC to unlock advanced tuning capabilities. The LED programming interface makes it intuitive to navigate through settings, whilst the comprehensive range of adjustable parameters means you can dial in everything from throttle response to motor braking characteristics. If you've invested in quality brushless RC equipment but haven't explored the full potential of your ESC, this programming card is the gateway to unlocking that performance.

For UK RC enthusiasts running Etronix Photon systems, this is an indispensable accessory that transforms your RC car from a basic performer into a finely-tuned machine. Available online at RC Model Shop with fast UK delivery, the Photon SBS LED Programming Card represents outstanding value for anyone serious about their brushless RC experience.

Key Features

• Ten Adjustable Parameters — This programming card allows you to customise ten critical ESC settings, giving you complete control over how your brushless motor system behaves. Rather than accepting factory presets, you can tailor every aspect of your RC car's performance to your specific needs.
• Automatic Cell Detection — The cutoff voltage parameter automatically detects the number of cells in your battery pack, ensuring proper voltage protection without manual configuration. This intelligent feature prevents over-discharging your LiPo batteries and extends their lifespan.
• Running Mode Selection — Choose between forward without reverse, forward with reverse, or forward with pause then reverse. This flexibility means you can set up your RC car exactly how you want it to behave, whether you're bashing casually or racing competitively.
• Motor Timing Control — Fine-tune your motor timing across five settings from very low to very high, allowing you to optimise efficiency and performance. Higher timing settings increase speed and power but also generate more heat, so this setting lets you find your perfect balance.
• Initial Acceleration Tuning — Select from low, medium, high, or very high initial acceleration settings to control how aggressively your RC car launches from a standstill. This is crucial for both racing starts and casual driving comfort.
• Throttle Percent Reverse — Adjust reverse throttle from 20% through to 100%, giving you precise control over backward speed. This is particularly useful for track racing where you need fine control over reverse motion.
• Throttle Limit Control — Set throttle limits from 0% through to 90% to prevent over-stressing your motor and drivetrain, or to create different driving modes. Perfect for breaking in new motors or adapting to different track conditions.
• Percentage Braking Adjustment — Configure braking strength from 10% through to 100%, allowing you to dial in the perfect stopping power for your RC car. Combined with drag brake settings, this gives you complete control over deceleration behaviour.
• Drag Brake Configuration — Set drag brake from 0% through to 30% to fine-tune how your motor acts as a brake when throttle is released. This parameter is essential for smooth track driving and prevents wheel lock-up.
• Motor Rotation Selection — Easily reverse motor rotation direction with a simple setting, eliminating the need for physical rewiring if you need to change your setup.
• Neutral Range Deadband — Adjust deadband settings from 2% through to 10% to eliminate unwanted throttle input in the neutral zone. This prevents your RC car from creeping forward or backward when your transmitter stick is centred, crucial for stable line holding.
• LED Programming Interface — The intuitive LED display makes navigating through parameters simple and straightforward, even for those new to ESC programming. No complex menus or confusing interfaces—just clear, direct parameter adjustment.
• Included Connection Cable — The programming card comes complete with the required connection cable, so you can start tuning your Etronix Photon ESC immediately without purchasing additional accessories.

Technical Performance

The Etronix Photon SBS LED Programming Card is engineered as a precision tuning device for Etronix Photon brushless speed controllers used in 1/8 and 1/10 scale RC cars. The device operates on the principle of parameter-based programming, allowing users to adjust voltage cutoff, running modes, motor timing, acceleration profiles, throttle response, braking characteristics, motor direction, and deadband settings. The automatic cell detection feature is particularly sophisticated, eliminating the need for manual voltage configuration regardless of whether you're running 2S, 3S, or other LiPo battery pack configurations. The five-position motor timing scale (very low, low, normal, high, very high) provides granular control over commutation timing, directly affecting both speed output and heat generation. The throttle reverse range of 20% to 100%, combined with throttle limiting capabilities from 0% to 90%, gives competitive RC racers and bashers complete control over both forward and reverse performance envelopes. The braking and drag brake parameters work in concert to provide smooth deceleration profiles, essential for maintaining traction and control during cornering. The neutral range deadband adjustment from 2% to 10% is critical for eliminating centre-stick creep and ensuring stable vehicle behaviour when hands-off. Built to work seamlessly with Etronix Photon 2.1W and 1/8 scale speed controller systems, this programming card represents professional-grade ESC tuning capability in a compact, user-friendly package.

What's in the Box

• Etronix Photon SBS LED Programming Card
• Connection cable for ESC programming

Frequently Asked Questions

• Will this programming card work with all Etronix ESC systems? — The Etronix Photon SBS LED Programming Card is specifically designed for Etronix Photon 1/8 and 1/10 scale brushless motor systems. It will not work with other ESC brands or older Etronix controller models. Always verify compatibility with your specific speed controller before purchasing.
• What battery compatibility does the automatic cell detection support? — The automatic cell detection feature recognises the number of cells in your LiPo battery pack without manual configuration. This means whether you're running 2S, 3S, 4S, or higher cell count batteries, the programming card will automatically set the appropriate cutoff voltage to protect your battery from over-discharge.
• Is this suitable for beginners to ESC programming? — Yes, the Etronix Photon SBS LED Programming Card is designed with beginner-friendly features including an intuitive LED interface and straightforward parameter names. However, understanding what each parameter does and how to tune it effectively does require some RC knowledge. Beginners should start with factory settings and make small adjustments one parameter at a time, testing thoroughly after each change.

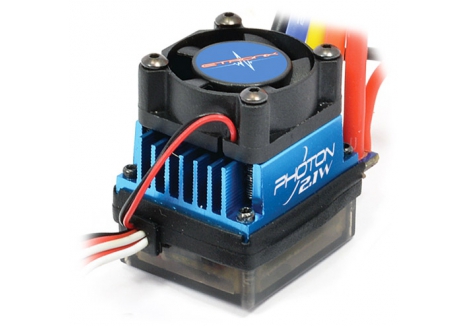

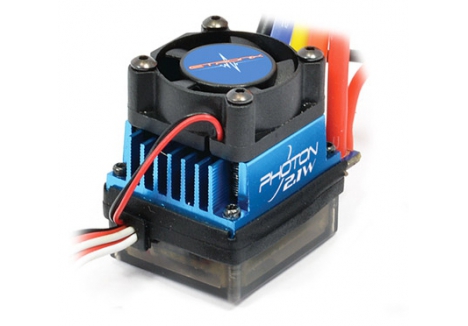

• Can I use this card on both 1/8 and 1/10 scale Etronix Photon systems? — Absolutely. The programming card is compatible with Etronix Photon 2.1W and Photon 1/8th scale brushless motor systems, making it versatile across multiple vehicle sizes. However, it will not work with other ESC brands, so ensure you're using an Etronix Photon-compatible speed controller.
• What motor timing setting should I use for my RC car? — Motor timing selection is a balance between speed and heat generation. Lower timing settings (very low, low, normal) are safer for general bashing and produce less heat, whilst higher settings (high, very high) increase speed and power but generate significantly more heat. Always monitor motor temperature and start with normal timing, adjusting upwards only if your motor runs cool. Experienced racers often use higher timing on well-ventilated motors, but beginners should be cautious.
• Does this programming card include the cable needed to connect to my ESC? — Yes, the Etronix Photon SBS LED Programming Card comes complete with the necessary connection cable, so you have everything needed to start programming your ESC right out of the box. No additional purchases are required to begin customising your brushless RC setup.
• How does the deadband setting affect my RC car's handling? — Deadband is the neutral zone around the centre of your transmitter's throttle stick where no input is registered. Setting deadband too low (2%) means even tiny stick movements can cause throttle changes, potentially causing the car to creep forward unintentionally. Setting it higher (up to 10%) creates a more stable centre point, preventing accidental movement when your hand is off the stick. Most drivers prefer 4-6% for optimal handling.
