- Brand: Axial
- Model Number: Z-AXI232071
- Product Type: Suspension Spare Part - Axle Tube Link Mount Set and Cap

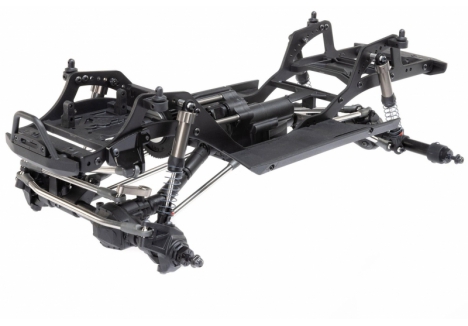

- Compatible Vehicle: Axial SCX10 Pro Scaler 1:10 4WD Kit (C-AXI03028)
- Scale: 1/10
- Suspension Type: 3-Link/4-Link
- Axle Type: Multi-piece steel tube axles with servo mounting options (AMS or CMS)
- Shock Type: Aluminium oil-filled
- Shock Eye-to-Eye Length: 96mm
- Shock Spring Diameter: 12mm
- Shock Lower Cap: Dual O-ring with built-in bump stop
- Vehicle Type: Rock Crawler
- Drive Configuration: 4WD
- Drivetrain: Complete ball bearings
- Internal Gear Ratio Options: 10.26:1 or 15.33:1
- Final Drive Ratio Options: 38.46:1 or 57.50:1
- Gear Pitch: 32-Pitch
- Wheelbase: 12.5 inches (318mm)
- Ground Clearance: 2.25 inches (57.1mm)
- Motor Position: Low and forward mounted for superior weight distribution
- Underdrive Transmission: Rear axle underdrive capability via servo or manual lock in 1:1 or underdrive
- Chassis Material: Aluminium plate
- Body Style: Aluminium smooth body
- Steering Type: 2WS (2-Wheel Steer)
- Wheel Hex Size: 12mm
Overview
The Axial Axle Tube Link Mount Set & Cap is an essential replacement and upgrade component designed specifically for the 1/10 SCX10 PRO Comp Scaler rock crawler. This suspension spare part is engineered to maintain and enhance the performance of one of the most competition-proven RC crawlers available in the UK market today. Whether you're a serious competitor looking to fine-tune your SCX10 Pro setup or a dedicated RC enthusiast wanting to keep your crawler in peak condition, this axle tube link mount set delivers the reliability and precision that the SCX10 Pro platform demands.
The SCX10 PRO has already proven itself at multiple competitive events, winning and placing at prestigious competitions including the Little Rock City Scale Nationals, Clash of the Four Cardinals, and SuperShafty Fall Crawl. This level of performance doesn't happen by accident—it's the result of meticulous engineering and the use of quality replacement parts like this axle tube link mount set. If you own an SCX10 Pro and want to maintain its competition-ready status, or if you're building one of these impressive 4WD rock crawlers from the ground up, having reliable suspension components is absolutely critical to your success on the trail.
This suspension spare is compatible with the Axial SCX10 Pro Scaler 1:10 4WD Kit and represents genuine Axial engineering. For anyone serious about RC rock crawling in the UK, investing in quality OEM replacement parts ensures your rig remains at the cutting edge of performance.
Key Features
- Genuine Axial Engineering — Manufactured by Axial specifically for the SCX10 PRO platform, ensuring perfect fitment and optimal performance with your competition-grade crawler chassis and suspension system.
- Suspension System Component — Part of the sophisticated 3-link/4-link suspension arrangement that the SCX10 PRO uses to achieve its legendary climbing ability, side-hilling performance, and break-over capability on extreme terrain.
- Multi-Piece Axle Compatibility — Designed to work seamlessly with the SCX10 PRO's innovative multi-piece steel tube axles that can accommodate either axle-mounted servo (AMS) or chassis-mounted servo (CMS) configurations, offering flexibility for different competition setups.
- Competition-Grade Construction — Built to withstand the demands of serious rock crawling competition where durability and reliability are non-negotiable, with proven track record at major crawling events across North America.
- Replacement and Upgrade Application — Whether you need to replace worn or damaged components from hard use or you're upgrading an existing SCX10 PRO setup, this part maintains the exact specifications and tolerances required for optimal suspension geometry.
Technical Performance
The Axial Axle Tube Link Mount Set & Cap represents precision engineering for the 1/10 scale rock crawling discipline. The SCX10 PRO platform upon which this component is used features a carefully optimised 3-link/4-link suspension arrangement paired with new aluminium oil-filled shocks with an eye-to-eye length of 96mm and 12mm diameter springs. The dual O-ring lower shock cap acts as the upper spring retainer while the lower shock cup features a built-in bump stop that can be trimmed for fine-tuning suspension response. The multi-piece axle design with steel tubes provides the structural integrity needed for the extreme articulation and terrain contact required in competitive rock crawling. The complete ball bearing specification throughout the drivetrain ensures smooth, reliable operation even after dozens of competition runs. The lightweight aluminium chassis plates combined with strategically positioned components like the low and forward motor mount deliver superior weight distribution that keeps the SCX10 PRO planted and stable on the steepest climbs and most challenging side-hill obstacles. With an internal gear ratio of either 10.26:1 or 15.33:1 paired with a 38.46:1 or 57.50:1 final drive ratio, the transmission delivers the low-end torque essential for crawling whilst the 12.5-inch wheelbase and 2.25-inch ground clearance provide the platform articulation and obstruction avoidance necessary for winning competition runs.

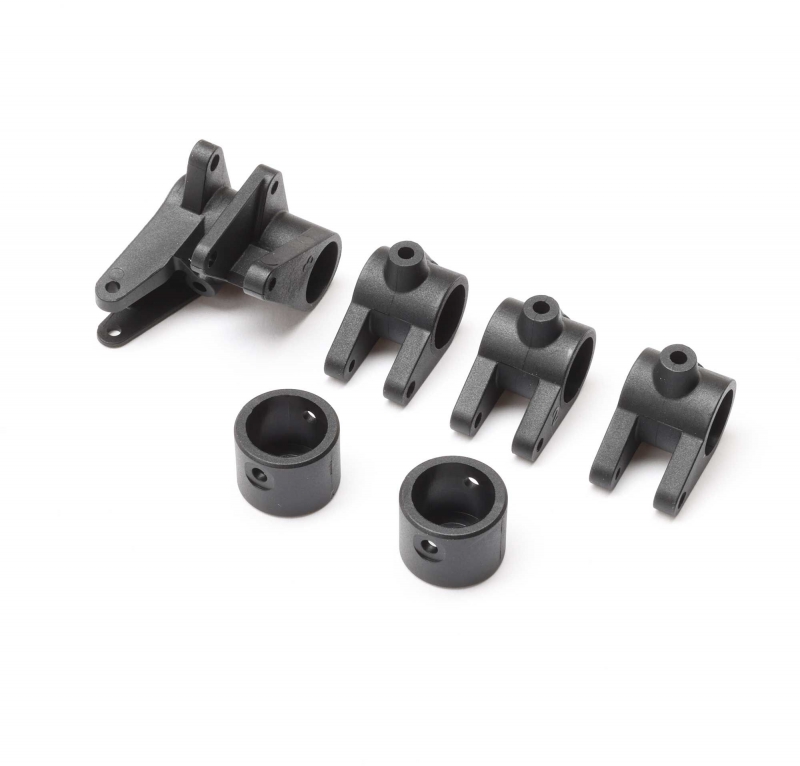

What's in the Box
- Axle Tube Link Mount Set
- Axle Tube Link Mount Cap
Frequently Asked Questions
- What is the Axle Tube Link Mount Set used for on an RC rock crawler? — The axle tube link mount is a critical suspension component that connects the axle assembly to the chassis via the 3-link/4-link suspension geometry. It maintains the correct angle and position of the axle under compression and articulation, allowing the crawler to maintain traction and stability on uneven terrain whilst enabling the extreme wheel travel necessary for rock crawling and competition climbing.
- Is this part suitable for both beginners and competition drivers? — Whilst this is a replacement part rather than a complete kit, it's suitable for anyone who owns an SCX10 PRO regardless of skill level. Beginners building their first competition crawler will benefit from using genuine Axial parts, whilst experienced competitors rely on these components to maintain the exact specifications that make the SCX10 PRO a proven winner at major events.
- Will this part fit my SCX10 PRO? — Yes, this axle tube link mount set is specifically designed and engineered for the Axial SCX10 Pro Scaler 1:10 4WD Kit (model reference C-AXI03028). It is a genuine Axial replacement part with the exact fitment required for your crawler's suspension system.
- Do I need any special tools to install this part? — Installation details are available in the official SCX10 PRO Kit Manual, which provides multilingual instructions for assembly and maintenance of all suspension components including the axle tube link mounts. Standard RC hobby tools are typically required.
- Why would I need to replace the axle tube link mount set? — After hard use in competition or regular crawling, suspension components can wear or sustain impact damage. Replacing worn link mounts restores the precise suspension geometry that the SCX10 PRO is engineered around, ensuring it maintains its competition-ready performance for climbing, side-hilling, and break-over manoeuvres.
