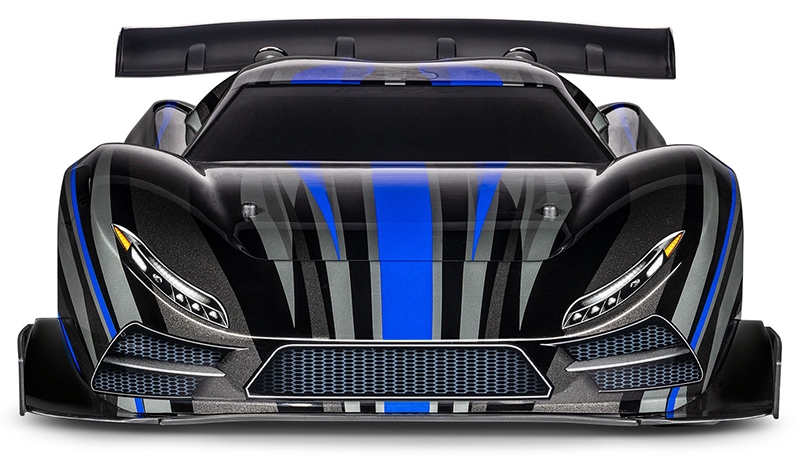

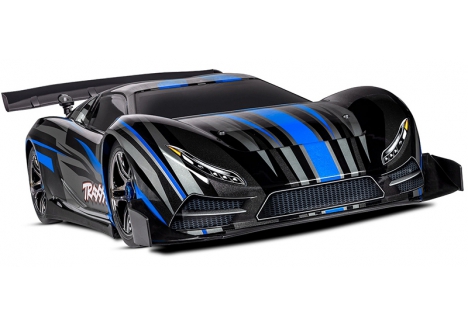

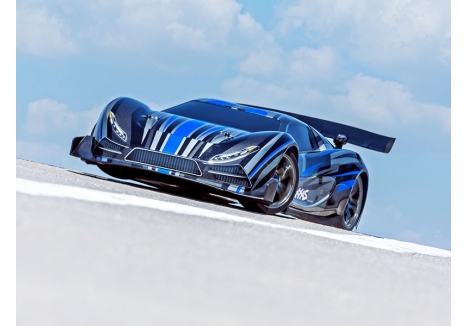

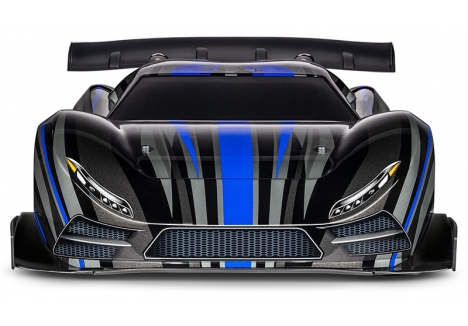

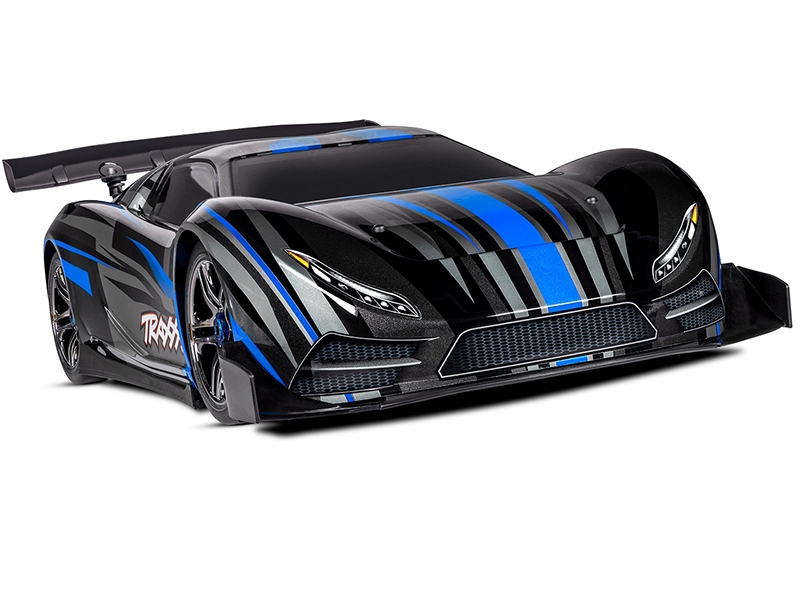

From a dead stop, 60mph flashes by in 2.3 seconds. Keep the throttle pegged and you’ll smash the 100mph barrier in 4.92 seconds. Simply put, XO-1 is the fastest and most outrageous Ready-to-Race RC car ever created. New aero improvements make XO-1 even easier to drive at the limit and more fun than ever before. If you’re looking for the most extreme RC thrill ride ever to hit the pavement, look no further than Traxxas, The Fastest Name in Radio Control.
100+ MPH TOP SPEED
The Traxxas XO-1 is a brutally fast hypercar intended for only the most experienced drivers. New aerodynamic improvements make XO-1’s performance more accessible than ever before with predictable straight-line performance and confidence-inspiring handling. Belted slick tires and a revised rear wing keep the XO-1 glued to the pavement whether you’re testing its top speed potential or carving up a tight race course.
FUNCTIONAL AERO
From top to bottom, XO-1 is a masterwork of intelligent aero design. The sculpted supercar body slices through the wind for record-breaking speed. New high-downforce canards on the front splitter and a revised rear wing provide superior high-speed stability. A high-tech NACA duct under the chassis routes cool air around the motor with a rear body vent for hot air to escape.
BIG BLOCK POWER
XO-1’s legendary speed wouldn’t be possible without explosive power and XO-1 brings big-block 6s brushless horsepower to the table. Weighing almost two pounds, the massive Traxxas Big Block motor pumps out supercar speed and gut-wrenching torque for brutal acceleration. The finely-tuned Mamba Monster Extreme ESC delivers 25+ volts of ferocious power with scalpel-like precision.
MAMBA MONSTER EXTREME SPEED CONTROL
Traxxas partnered with Castle Creations to develop the Mamba Monster Extreme speed control. From its integrated capacitor bank to the proprietary software created just for XO-1, the Mamba Monster Extreme represents the state-of-the-art in big-volt power delivery.
Key Features

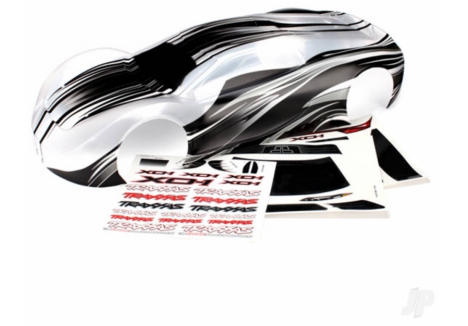

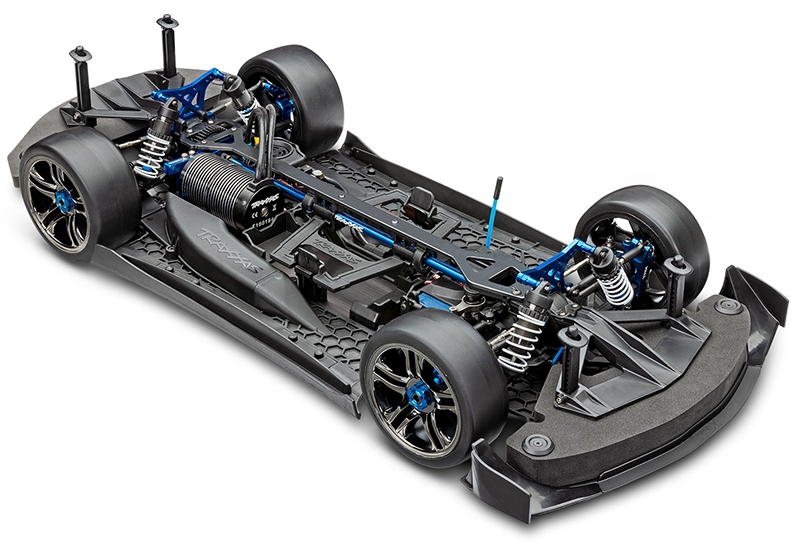

Computer-optimised 1:7 scale supercar with thick 1 mm polycarbonate body with high-impact ProGraphix paint

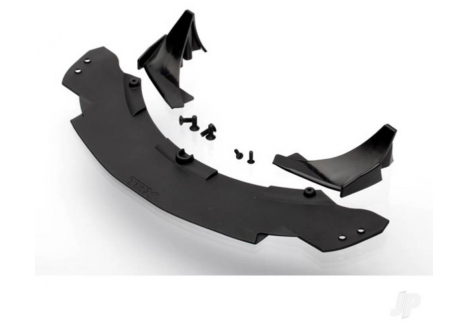

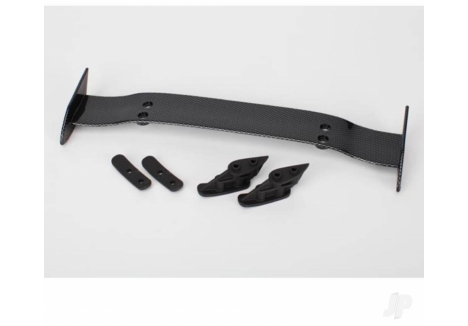

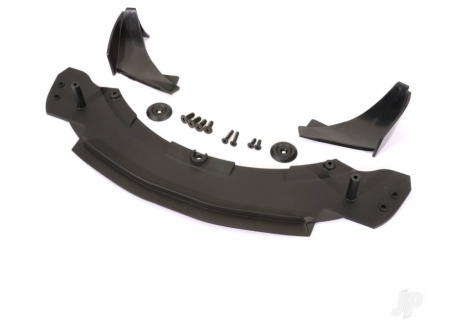

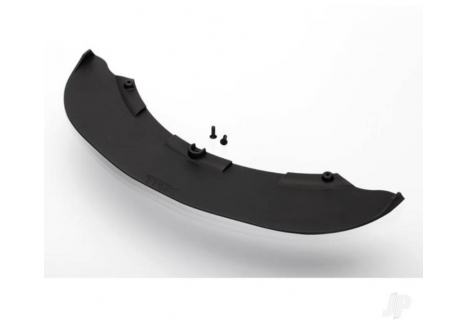

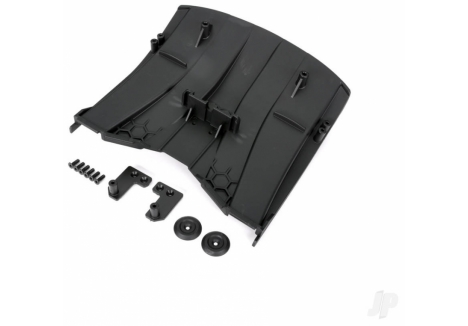

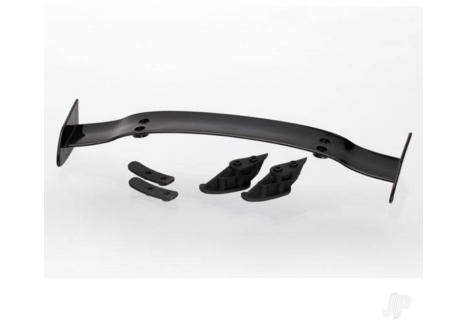

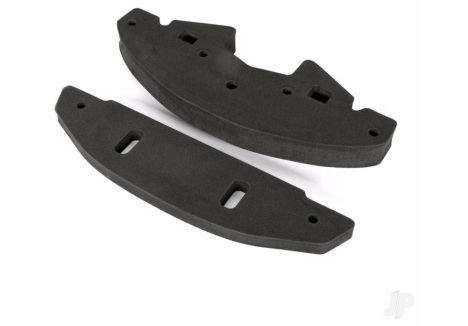

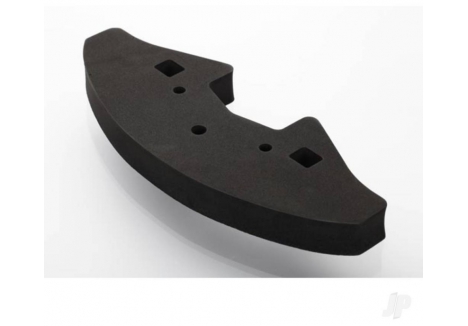

Functional aerodynamics with new front splitter design with channels to hold the body in place and high-downforce canards for high-speed stability. New high-downforce rear wing for improved balance, NACA motor cooling duct with rear hot air vent and rigid foam bumpers maintain body shape at speed
Extreme 100+mph capable power system with two 3s LiPo batteries (not included) and included accessories
0-60 mph in 2.3 seconds and 0-100 mph in 4.9 seconds
6s LiPo capable Mamba Monster Extreme Power System by Castle Creations
1650 kV Traxxas Big Block 1717 brushless motor with finned can design for improved cooling, oversize premium bearings. (Largest motor ever fitted to a Ready-to-Race car)
Traxxas Stability Management (TSM) for improved straight line acceleration and braking

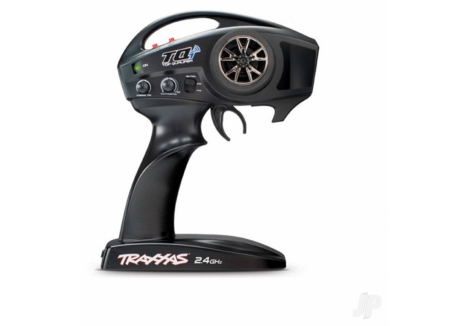

2-channel TQi 2.4GHz high output radio system with Traxxas Link wireless module and 5-channel micro receiver (#6533) with fail-safe security
Digital high-torque ball bearing 2075 steering servo with metal bellcrank with integrated cam-style servo saver

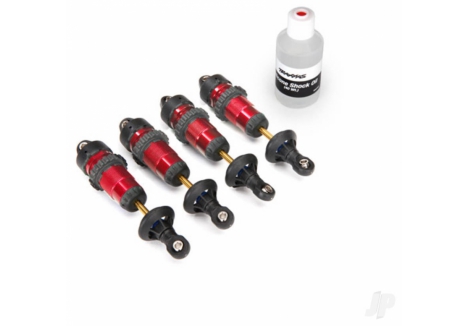

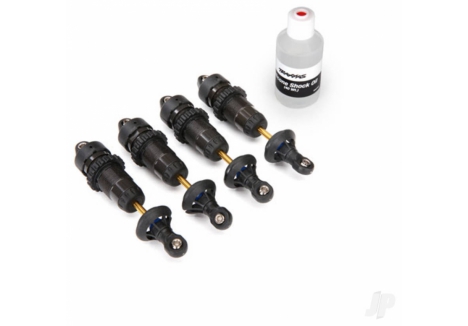

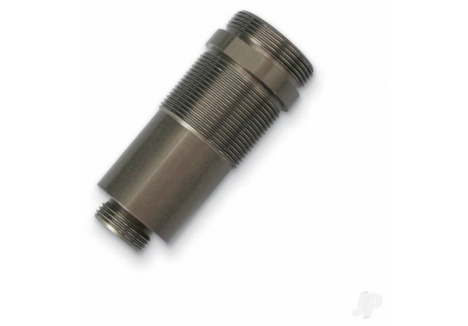

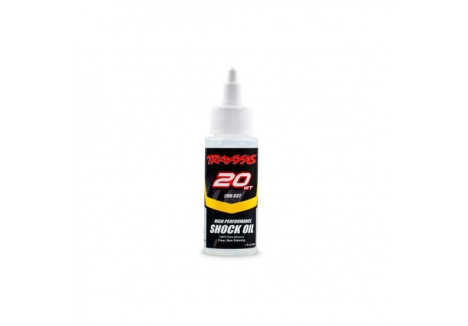

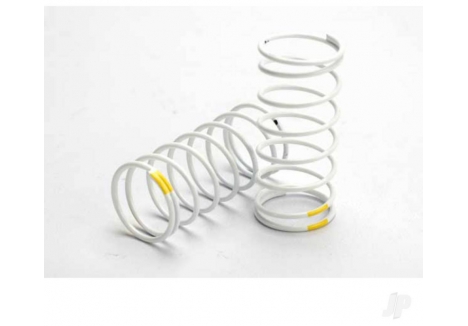

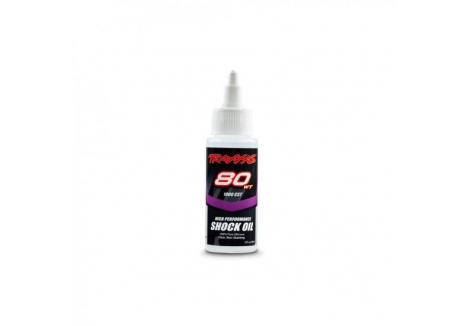

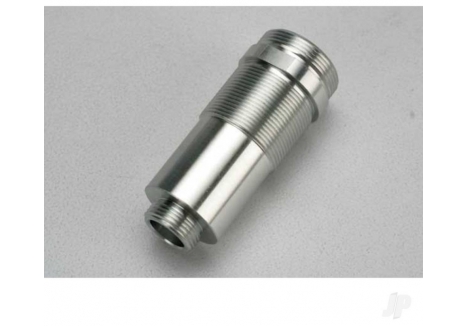

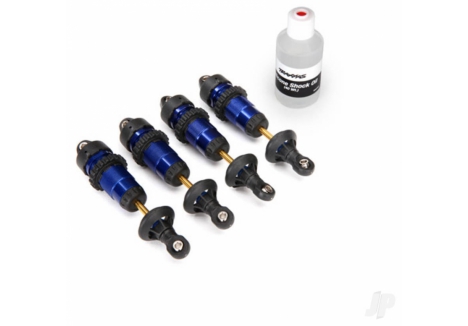

Oil-filled GTR shocks with height-adjustable threaded aluminium bodies

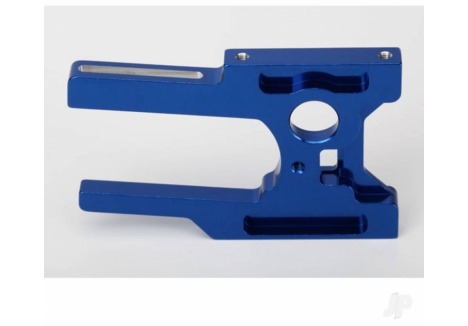

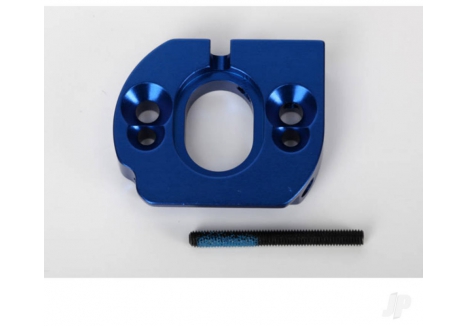

Machined aluminium motor mount with precise gear mesh settings and steel CV driveshafts

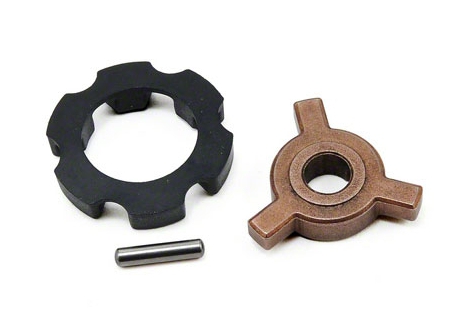

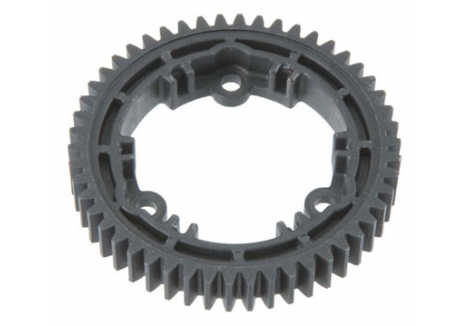

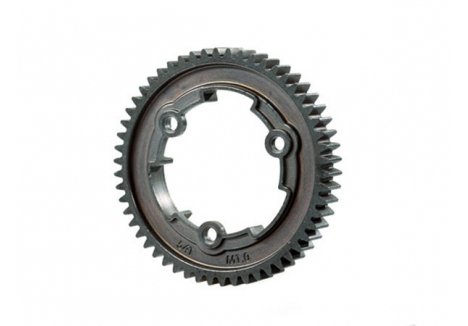

Large Mod-1 pinion and spur gears with exclusive Cush Drive to absorb drivetrain shocks
Sealed silicone-filled limited-slip design

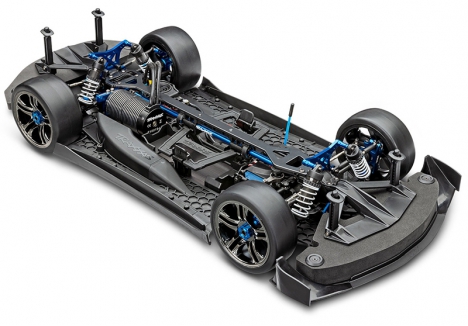

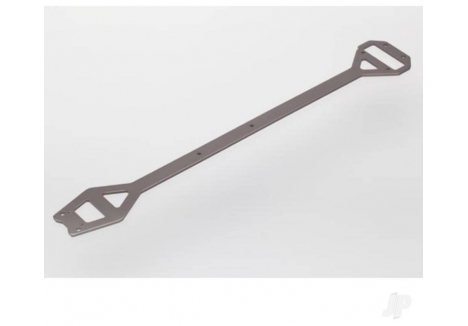

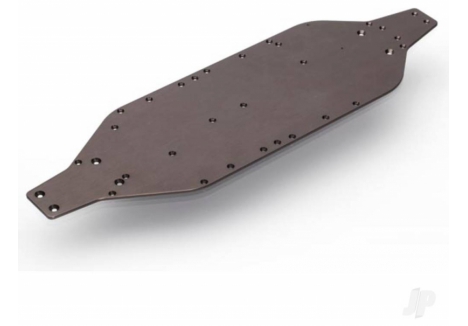

3 mm Dark titanium-anodised 6061-T6 aluminium upper and lower chassis plates with keys into front and rear bulkheads for completely smooth undertray
118+mph-rated belted slick tires with contoured foam inserts
Spec:
Length: 27 inches (686mm)
Front Track: 11.81 inches (300mm)
Rear Track: 11.81 inches (300mm)
Ground Clearance: 0.59 inches (15mm)
Weight: 8.6lbs (3.9 kg) (w/o batteries)
Width (overall): 13.0 inches (329mm)
Height (overall): 5 inches (127.5mm)
Wheelbase: 15.9 inches (404mm)
Shock Length: 3.3in (83mm) front, 3.4in (86mm) rear

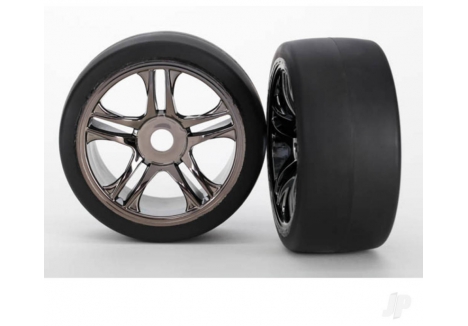

Front Tires (pre-glued): Belted slick
4.29in (109mm) x 1.7in (43mm)
Rear Tires (pre-glued): Belted slick
4.29in (109mm) x 2in (51mm)
Wheels (front & rear): 3.3in (84mm) Split-Spoke™ (black-chrome)
with 17mm splined hex
Speed Control: Castle Mamba Monster Extreme forward/reverse/brake
Motor (electric): Traxxas Big Block Brushless (1650 kV)
Transmission: Single-speed with Cush Drive™
Overall Drive Ratio: 9.36 (stock, out-of-box)
Differential Type: Sealed hardened steel bevel
Gear Pitch: Module 1.0
Chassis Structure/Material: 3mm plate, dual plane, 6061-T6 aluminum
Brake Type: Electronic
Drive System: Shaft-Driven 4WD
Steering: Dual-Bellcrank with steel arm
Radio System: TQi™ 2.4GHz Radio System with Traxxas Link Wireless Module
Receiver: TSM® Receiver (#6533)

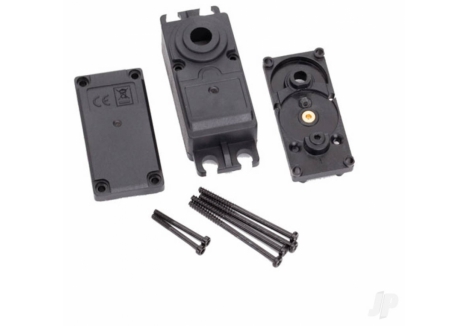

Servo: #2075 High Torque Waterproof
Top Speed: 50+mph out of box; 100+mph with high-speed wing, speed gear, and Traxxas Link app unlock
Battery Tray Dimensions: 155mm / 50mm / 29mm (adjustable height and length)
What's in the Box
1x XO-1 Supercar with Mamba Monster Extreme ESC and Traxxas Big Block motor

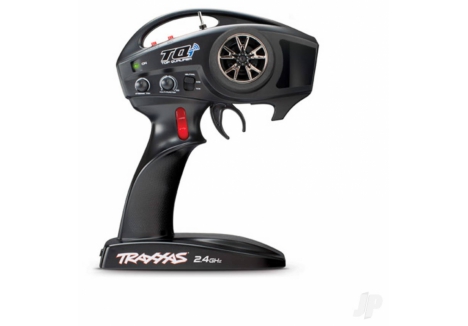

1x TQi 2.4GHz radio system with installed Traxxas Link wireless module
1x Quick Start Guide

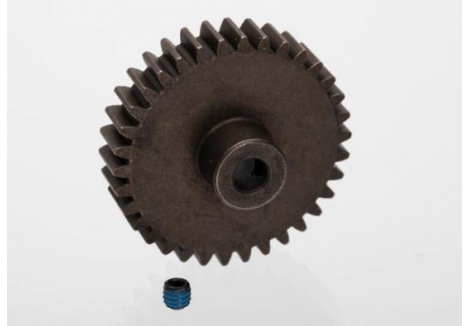

1x Optional 34-tooth top speed gear
Needed to Complete

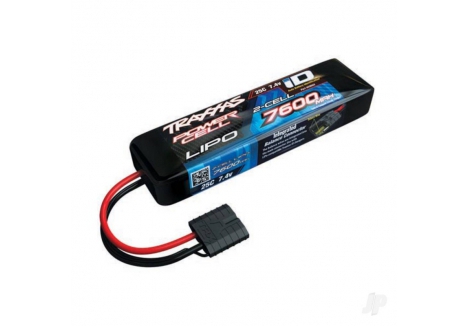

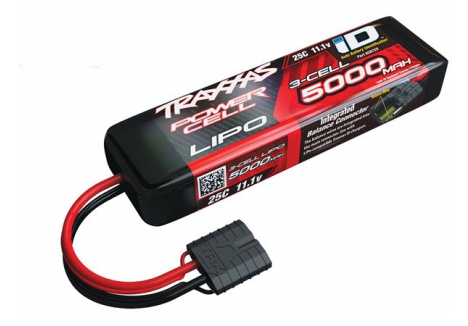

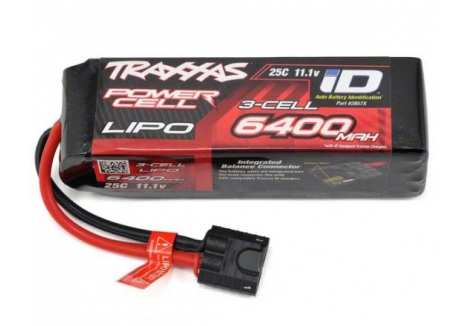

Batteries and Charger - XO-1 requires dual 2s or dual 3s LiPo batteries. See full list of compatible batteries. Use the Dual 3s Completer Pack (#TRX2990TX) for maximum performance and convenience.
Mobile Device Running Free Traxxas Link App - Get real-time telemetry on your mobile device with the app and unlock top-speed mode for 100+mph performance.
4x AA alkaline batteries for the transmitter
Top Speed: 50+mph out of box; 100+mph with high-speed wing, speed gear, and Traxxas Link app unlock
