Product Overview
The Mamba Micro X2 is a refresh of our popular 1:18 scale Mamba Micro X. This new ESC increases the maximum input voltage to 4s. We also added DATA LOGGING and our CRYO-DRIVE TECHNOLOGY; CryoDrive allows the ESC to run cooler and more efficiently at partial throttle. Like its predecessor, it boasts an 2 amp peak BEC,waterproof* and has SENSORED MOTOR SUPPORT (included 0808 is sensorless).
This is the perfect upgrade for 1:18 scale RC vehicles, up to 3S LiPo and weighing in at up to 2.25lbs. Vehicles include: Traxxas Slash 4x4 1/16th, Losi Mini-T 2.0, Traxxas LaTrax Rally, Traxxas LaTrax Teton, Axial Yeti Jr.
The Mamba Micro X also works well in some 1:10th scale crawlers for low speed operation (no rock racing/hill climbing). You can now purchase the Mamba Micro X2 Crawler Edition ESC paired with our Slate Crawler motors.
Features
- Input Voltage range 2S-3S (with included 0808-5300Kv motor
- Adjustable: 5.5V or 7.5V (2A Peak), default 5.5V
- Waterproof design.
- Sensored Motor capable (with optional sensor harness)
- Convenient transmitter programming for six common adjustable settings.
- Additional settings and software updates available via Windows-based Castle Link software and USB adapter (coupon included with purchase) or the Castle Link App for
- Android or iOS and a B-LINK Bluetooth Adapter (sold separately)
- Telemetry Ready (Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters)
- Auxiliary Wire Functionality allows for "on-the-fly" adjustments such as Max Power and Max Brake.
- Audible Alerts that will notify you of possible issues with calibrations and error conditions.

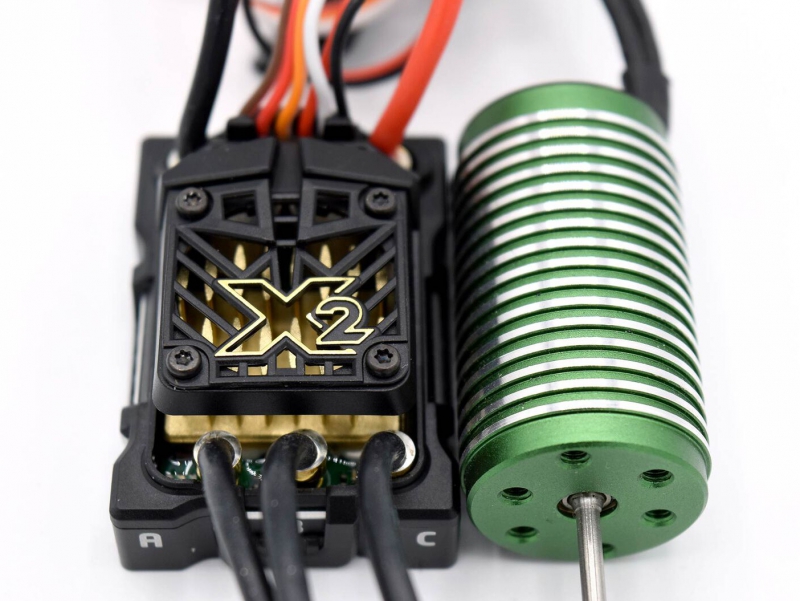

Mamba Micro X2 w/0808-5300Kv Motor Purchase Includes:
- Mamba Micro X2 ESC with 3.5mm connectors
- 0808-5300Kv Brushless Sensorless Motor
- Quick Start Guide
- Castle Decals
*Not intended for operation while submerged in liquid. If unit is operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then fully dry unit.
Enabled by default, the Mamba Micro X2 captures and records performance data from your vehicle. This allows you to view a detailed turn-by-turn record of what your ESC actually experienced during the run. You will be able to record real-time data such as motor RPM, ESC and motor temperature, throttle input, and more. Download and analyze the collected data via Castle Link and make adjustments to maximize both performance and battery life.
Quick Tip: You can use the Quick Connect Duo (sold separately) to allow you to access both wires into a single Castle Link connection.
The Mamba Micro X2 allows "on-the-fly" adjustments to be made through the AUX wire once enabled in Castle Link. Once you have selected an AUX wire function, that setting can then be tuned from your transmitter while driving. Torque control, max throttle, max brake and drag brake adjustments are a sampling of the available modes. This real-time tuning allows you to quickly and easily fine-tune your system.
The Castle Link Programming Suite is your ticket to creating the perfect setup. To gain access to the host of tuning parameters, simply use the Castle Link adapter with your Mamba Micro X2 purchase and download the simple to install software from the Castle Creations website and you are ready to personalize your controller's settings. You can wirelessly program your ESC with the Castle Link Mobile App and the purchase the B-Link Bluetooth Adapter.
Users will receive free access to all firmware updates, including added features sets using the Castle Link USB Programming Kit or the Castle Link App and a B-Link Bluetooth Adapter.
Mamba Micro X2 is telemetry ready, which means owners of Futaba T4PX or 7PX Transmitters will be able to purchase the Castle Creations Telemetry Link for S.BUS2. Real-time data such as ESC temperature, voltages, and RPM can be monitored to ensure performance advantages and spare you the "unknown" parameters that all R/C enthusiasts experience at some point. Telemetry data provides another level of protection and can increase performance.
Audible Alerts that will notify you of possible issues with calibrations and error conditions to help diagnose problems in the field.
Brand, Model and Product Type
- Brand: Castle Creations
- Model: P-CC010-0169-02
- Product Type: Castle P-CC010-0169-02 Mamba Micro X2 ESC and 0808-5300Kv sensorless motor combo, Castle P-CC010-0169-02 waterproof ESC with CRYO-DRIVE and data logging, Castle P-CC010-0169-02 ESC combo for 1/18 scale 2WD/4WD vehicles up to 2.25 lbs, Castle P-CC010-0169-02 with 2A peak BEC and telemetry-ready design, Castle Micro X2 ESC combo with Bluetooth programming and auxiliary wire tuning, Castle sensorless motor combo with open-end connectors and 3.5mm bullets
Dimensions
- ESC Size (L x W x H): 4.16 × 2.94 × 2.13 cm – compact footprint ideal for micro-scale installations
- Weight: Approximately 47g with wires – lightweight for 1/18 scale RC cars and crawlers
Voltage and Power Specifications
- Input Voltage Range: 2S–4S LiPo – supports up to 16.8V for expanded power options
- Internal BEC Type: Selectable voltage BEC – adjustable via Castle Link software
- BEC Output Voltage: 5.5V or 7.5V – default set to 5.5V, upgradeable for high-draw servos
- BEC Peak Current: 2A – suitable for micro-scale servo and accessory loads
Cooling and Thermal Management
- Thermal Control System: Castle P-CC010-0169-02 waterproof ESC with CRYO-DRIVE and data logging – reduces heat during partial throttle operation
- Waterproofing: Epoxy-potted electronics – protects against moisture and debris in wet conditions
Motor Specifications
- Motor Type: 0808-5300Kv brushless sensorless motor – optimized for lightweight off-road setups
- Motor Compatibility: Designed for 1/18 scale 2WD/4WD vehicles up to 2.25 lbs
- Connector Type: Castle sensorless motor combo with open-end connectors and 3.5mm bullets – secure motor interface with flexible installation options
Control Modes and Programming
- Control Modes: Sensorless, Sensored (with optional harness), and Brushed – selectable via Castle Link
- Transmitter Programming: Six adjustable settings including cutoff voltage and drag brake
- Bluetooth Programming: Castle Micro X2 ESC combo with Bluetooth programming and auxiliary wire tuning – compatible with Castle Link app and B-Link adapter (sold separately)
- Auxiliary Wire: Enables real-time tuning from transmitter – adjust max power, brake, and throttle on-the-fly
Telemetry and Diagnostics
- Telemetry Ready: Castle P-CC010-0169-02 with 2A peak BEC and telemetry-ready design – compatible with Futaba S.BUS2 transmitters
- Audible Alerts: Diagnostic tones for calibration errors and system warnings
Data Logging
- Integrated Data Logging: Castle P-CC010-0169-02 waterproof ESC with CRYO-DRIVE and data logging – captures performance metrics for analysis and optimization
What's in the Box
- Mamba Micro X2 ESC
- 0808-5300Kv brushless sensorless motor
- Coupon for free Castle Link USB adapter
- Quick Start Guide
- Castle Decals
What You Require / What You Will Need
- Castle Link USB adapter (included via coupon)
- B-Link Bluetooth Adapter (sold separately)
- Compatible 2S–4S LiPo battery
- Optional sensor harness for sensored motor configuration
Sold Separately
- B-Link Bluetooth Adapter
- Sensor harness for sensored motor configuration
Product Description of Castle P-CC010-0169-02 Mamba Micro X2 ESC and 0808-5300Kv sensorless motor combo
Castle P-CC010-0169-02 Mamba Micro X2 ESC and 0808-5300Kv sensorless motor combo is a high-efficiency power system engineered for 1/18 scale 2WD and 4WD RC vehicles weighing up to 2.25 lbs. This compact combo integrates Castle’s advanced CRYO-DRIVE thermal control and onboard data logging, delivering cooler operation, responsive throttle performance, and real-time diagnostics. The waterproof ESC is paired with a lightweight 0808-5300Kv brushless sensorless motor, offering high-RPM output and simplified installation for micro-scale off-road builds. Whether you're upgrading a trail rig or building a lightweight basher, this combo provides the precision, flexibility, and durability needed for serious micro RC applications.
Key features of the Castle P-CC010-0169-02 Mamba Micro X2 ESC and 0808-5300Kv sensorless motor combo
- Selectable BEC voltage – supports both 5.5V and 7.5V outputs for servo compatibility
- CRYO-DRIVE thermal control – improves efficiency and reduces heat during partial throttle operation
- Waterproof epoxy potting – protects internal electronics from moisture and debris
- Telemetry-ready interface – enables real-time data monitoring with compatible transmitters
- Bluetooth programming support – allows wireless configuration via Castle Link app
- Auxiliary wire tuning – enables on-the-fly adjustments for throttle, brake, and power settings
- Audible alerts – diagnostic tones for calibration errors and system warnings
- Factory-installed 3.5mm connectors – ensures secure motor connections with open-end flexibility
- Integrated data logging – captures performance metrics for analysis and optimization
What makes CRYO-DRIVE essential for micro-scale performance?
The Castle P-CC010-0169-02 waterproof ESC with CRYO-DRIVE and data logging uses proprietary software to minimize heat generation during partial throttle operation. This is especially critical for micro platforms, where airflow is limited and thermal buildup can affect performance. CRYO-DRIVE enables cooler, more efficient operation, allowing longer runtimes and consistent power delivery across varied terrain. This technology ensures the ESC remains stable and responsive even under demanding conditions.
Why choose the 0808-5300Kv motor for 1/18 scale builds?
The Castle P-CC010-0169-02 ESC combo for 1/18 scale 2WD/4WD vehicles up to 2.25 lbs includes a high-RPM 0808-5300Kv brushless sensorless motor designed for speed and agility. Its compact size and open-end connectors allow flexible installation, while the 3.5mm bullets ensure secure power delivery. This motor is ideal for lightweight off-road setups, offering the torque and acceleration needed for trail rigs, backyard bashers, and technical crawlers without compromising efficiency or durability.
Can you tune the ESC wirelessly and in real time?
Yes. The Castle Micro X2 ESC combo with Bluetooth programming and auxiliary wire tuning supports wireless configuration via the Castle Link mobile app and optional B-Link Bluetooth Adapter. Users can also connect via USB using the included Castle Link coupon. The app provides access to firmware updates, setup profiles, and advanced tuning parameters. Additionally, the auxiliary wire allows on-the-fly adjustments from the transmitter, enabling real-time control of throttle, brake, and power settings without interrupting the drive.
How does telemetry support improve system awareness?
The Castle P-CC010-0169-02 with 2A peak BEC and telemetry-ready design integrates seamlessly with Futaba S.BUS2 transmitters, including T4PX, T7PX, and T7PXR. This allows users to monitor real-time data such as ESC temperature, voltage, and RPM during active driving. Telemetry feedback enhances system awareness and helps prevent performance issues before they arise. Combined with audible alerts, the telemetry-ready interface provides a comprehensive diagnostic toolkit for micro-scale enthusiasts.
What are the benefits of the adjustable BEC?
The Castle sensorless motor combo with open-end connectors and 3.5mm bullets includes an internal Battery Eliminator Circuit with selectable output voltage. Users can choose between 5.5V and 7.5V depending on their servo and accessory requirements. With a peak current of 2A, the BEC supports micro-scale components without voltage drop or glitching. This ensures stable power delivery across all conditions, making the combo suitable for both basic and upgraded setups.
What’s included in the Castle P-CC010-0169-02 ESC combo package?
Each package includes the Mamba Micro X2 ESC, a 0808-5300Kv brushless sensorless motor, a coupon for the Castle Link USB adapter, a quick start guide, and Castle decals. The ESC is telemetry-ready and compatible with Castle Link software for PC and mobile devices. With waterproof construction, CRYO-DRIVE thermal control, and integrated data logging, this combo is ready to perform in any environment. Whether you're building a micro crawler or upgrading a lightweight trail rig, the Mamba Micro X2 combo delivers the features and reliability needed for high-performance driving.
For RC drivers seeking a waterproof ESC and sensorless motor combo with CRYO-DRIVE cooling, telemetry support, and Bluetooth tuning, the Castle P-CC010-0169-02 Mamba Micro X2 ESC and 0808-5300Kv sensorless motor combo is the strategic upgrade. Buy Castle P-CC010-0169-02 ESC combo for 2S–3S micro RC platforms.
Technical Specifications of Castle P-CC010-0169-02 Mamba Micro X2 ESC and 0808-5300Kv sensorless motor combo
Brand, Model and Product Type
- Brand: Castle Creations
- Model: P-CC010-0169-02
- Product Type: Castle P-CC010-0169-02 Mamba Micro X2 ESC and 0808-5300Kv sensorless motor combo, Castle P-CC010-0169-02 waterproof ESC with CRYO-DRIVE and data logging, Castle P-CC010-0169-02 ESC combo for 1/18 scale 2WD/4WD vehicles up to 2.25 lbs, Castle P-CC010-0169-02 with 2A peak BEC and telemetry-ready design, Castle Micro X2 ESC combo with Bluetooth programming and auxiliary wire tuning, Castle sensorless motor combo with open-end connectors and 3.5mm bullets
Dimensions
- ESC Size (L x W x H): 4.16 × 2.94 × 2.13 cm – compact footprint ideal for micro-scale installations
- Weight: Approximately 47g with wires – lightweight for 1/18 scale RC cars and crawlers
Voltage and Power Specifications
- Input Voltage Range: 2S–4S LiPo – supports up to 16.8V for expanded power options
- Internal BEC Type: Selectable voltage BEC – adjustable via Castle Link software
- BEC Output Voltage: 5.5V or 7.5V – default set to 5.5V, upgradeable for high-draw servos
- BEC Peak Current: 2A – suitable for micro-scale servo and accessory loads
Cooling and Thermal Management
- Thermal Control System: Castle P-CC010-0169-02 waterproof ESC with CRYO-DRIVE and data logging – reduces heat during partial throttle operation
- Waterproofing: Epoxy-potted electronics – protects against moisture and debris in wet conditions
Motor Specifications
- Motor Type: 0808-5300Kv brushless sensorless motor – optimized for lightweight off-road setups
- Motor Compatibility: Designed for 1/18 scale 2WD/4WD vehicles up to 2.25 lbs
- Connector Type: Castle sensorless motor combo with open-end connectors and 3.5mm bullets – secure motor interface with flexible installation options
Control Modes and Programming
- Control Modes: Sensorless, Sensored (with optional harness), and Brushed – selectable via Castle Link
- Transmitter Programming: Six adjustable settings including cutoff voltage and drag brake
- Bluetooth Programming: Castle Micro X2 ESC combo with Bluetooth programming and auxiliary wire tuning – compatible with Castle Link app and B-Link adapter (sold separately)
- Auxiliary Wire: Enables real-time tuning from transmitter – adjust max power, brake, and throttle on-the-fly
Telemetry and Diagnostics
- Telemetry Ready: Castle P-CC010-0169-02 with 2A peak BEC and telemetry-ready design – compatible with Futaba S.BUS2 transmitters
- Audible Alerts: Diagnostic tones for calibration errors and system warnings
Data Logging
- Integrated Data Logging: Castle P-CC010-0169-02 waterproof ESC with CRYO-DRIVE and data logging – captures performance metrics for analysis and optimization
What's in the Box
- Mamba Micro X2 ESC
- 0808-5300Kv brushless sensorless motor
- Coupon for free Castle Link USB adapter
- Quick Start Guide
- Castle Decals
What You Require / What You Will Need
- Castle Link USB adapter (included via coupon)
- B-Link Bluetooth Adapter (sold separately)
- Compatible 2S–4S LiPo battery
- Optional sensor harness for sensored motor configuration
Sold Separately
- B-Link Bluetooth Adapter
- Sensor harness for sensored motor configuration
