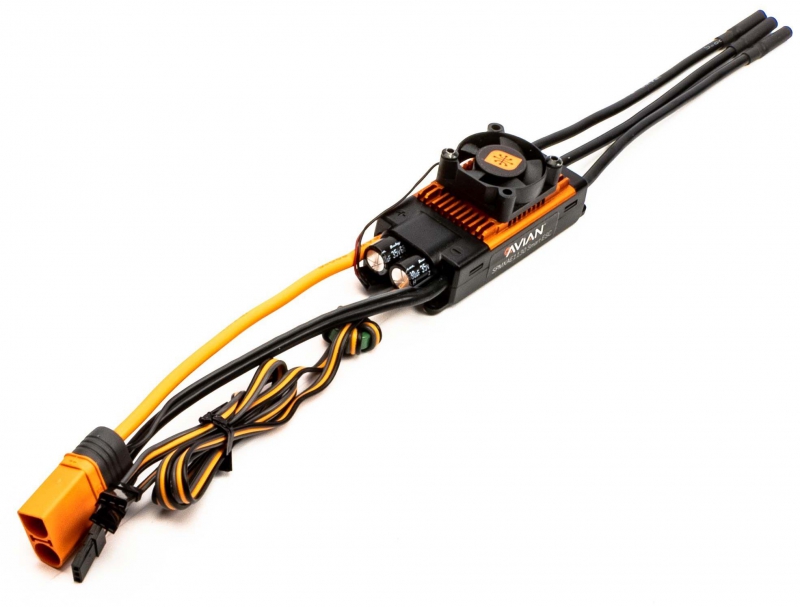

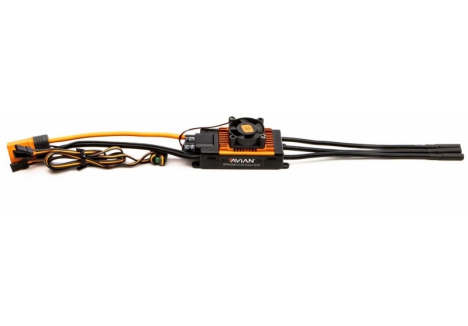

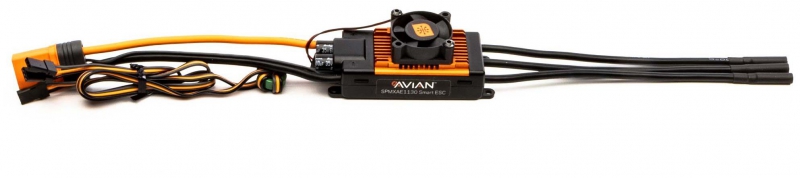

The Spektrum P-SPMXAE1130 Avian 130A Smart ESC with 3S–6S LiPo support, IC5 input, and 32-bit ARM M4 processor is a high-performance brushless electronic speed control engineered for advanced aircraft applications. Designed for pilots who demand precision, power, and real-time system awareness, this ESC integrates Smart telemetry, thrust reversing, and multiple programming options into a compact, heat-dissipating form factor. With a continuous current rating of 130A and support for up to 160A bursts, the Spektrum P-SPMXAE1130 delivers reliable performance across a wide range of high-output airframes.
Key features of the Spektrum P-SPMXAE1130 Avian 130A Smart ESC
- Smart telemetry – transmits real-time data directly to your Spektrum transmitter
- Thrust reversing – enables motor reversal for braking and ground mobility
- 4mm motor leads – standard bullet connectors for brushless motor integration
- Switch-mode BEC – adjustable output at 6V, 7.4V, or 8.4V for servo compatibility
- Multi-point protection – includes thermal, overload, and low-voltage cutoff safeguards
- Heat-dissipating design – supports stable operation under high current loads
- Firmware updatable – supports SmartLink USB and Programming Box for field updates
What makes the Spektrum P-SPMXAE1130 ideal for high-performance aircraft?
The Spektrum P-SPMXAE1130 brushless air ESC with Smart telemetry, thrust reversing, and 4mm motor leads is built to support demanding flight profiles with consistent power delivery and system control. With a continuous current rating of 130A and burst capacity up to 160A, the ESC is suitable for brushless motors that require sustained high output. Its compact dimensions (84mm length, 33mm height, 36mm width) and 126g weight allow for easy integration into performance-focused airframes, while the IC5 input connector ensures secure and efficient battery connection.
How does Smart telemetry improve flight monitoring?
Smart technology transforms the Spektrum digital ESC with 130A output, 160A burst, and on-screen programming via Spektrum transmitter into a real-time diagnostic tool. Through a single-wire connection, the ESC transmits vital data—current, voltage, temperature, RPM, and cell balance—directly to your Spektrum transmitter. This eliminates the need for additional sensors or modules, reducing weight and simplifying setup. Pilots gain immediate insight into system health and battery status, allowing for proactive adjustments and safer flight decisions.
What benefits does thrust reversing offer?
Thrust reversing, available on the Spektrum P-SPMXAE1130 Avian 130A Smart ESC with 3S–6S LiPo support, IC5 input, and 32-bit ARM M4 processor, adds a layer of control for ground mobility and landing management. With a Smart-compatible transmitter and receiver, users can reverse motor direction instantly, enabling smoother taxiing and braking on the runway. This feature is particularly valuable for aircraft that require extended landing distances or operate in confined environments. Activated through ESC parameters, thrust reversing enhances realism and safety without requiring additional hardware.
How does the ARM M4 processor enhance responsiveness?
At the core of the Spektrum P-SPMXAE1130 HV ESC with 130A continuous current, 160A burst, and adjustable switch-mode BEC is a powerful 32-bit ARM M4 processor. This advanced chip architecture delivers high-resolution signal input and precise motor output, resulting in smoother throttle transitions and improved flight dynamics. The processor also supports complex telemetry functions and real-time data handling, ensuring accurate feedback without latency. For pilots seeking maximum control and responsiveness, the M4 processor is a key contributor to the ESC’s performance and reliability.
What programming options are available for field adjustments?

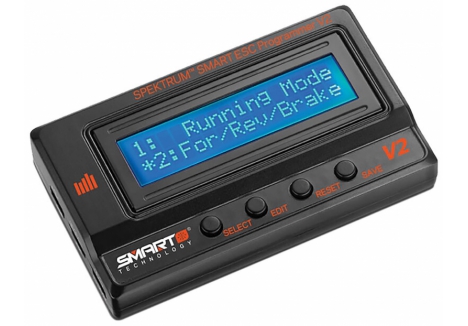

The Smart ESC for aircraft with one-wire telemetry, overload protection, and firmware updates via SmartLink offers multiple programming methods to suit different pilot preferences. Throttle stick programming allows basic adjustments without extra tools. For more detailed configuration, the Smart ESC Programming Box provides a user-friendly interface for on-site tuning. Additionally, the SmartLink USB application enables firmware updates and parameter changes via PC. These options ensure that pilots can adapt their ESC settings to match flying conditions and performance goals with minimal downtime.
How does the heat-dissipating design support long-term reliability?
The high-performance air ESC with heat-dissipating design, dual BEC connectors, and programmable timing is built to withstand the rigors of high-output flight. Its thermal management features prevent overheating during extended operation, while dual BEC connectors ensure stable power distribution to servos and receivers. The switch-mode BEC delivers adjustable voltage to match system requirements, and overload protection safeguards against electrical surges. These features combine to deliver consistent performance and long-term durability in demanding flight environments.
Buy Spektrum P-SPMXAE1130 Avian 130A Smart ESC for 3S–6S brushless aircraft and high-performance airframes.
Brand, Model and Product Type
- Brand: Spektrum
- Model: P-SPMXAE1130
- Product Type: Spektrum P-SPMXAE1130 Avian 130A Smart ESC with 3S–6S LiPo support, IC5 input, and 32-bit ARM M4 processor, Spektrum P-SPMXAE1130 brushless air ESC with Smart telemetry, thrust reversing, and 4mm motor leads, Spektrum P-SPMXAE1130 HV ESC with 130A continuous current, 160A burst, and adjustable switch-mode BEC, Smart ESC for aircraft with one-wire telemetry, overload protection, and firmware updates via SmartLink
Dimensions
- Product Length: 8.4 cm – compact for streamlined aircraft installations
- Product Height: 3.3 cm – low-profile for fuselage integration
- Product Width: 3.6 cm – standard footprint for air ESC mounting
- Product Weight: 126 g (4.4 oz) – lightweight for balanced aircraft setups
Electrical and Performance Specifications
- ESC Type: Brushless – optimized for high-efficiency motor control
- Application: Air – designed for brushless aircraft systems
- Input Voltage: 3S–6S LiPo – supports up to 22.2V for HV setups
- Maximum Continuous Current: 130A – sustained output for demanding flight profiles
- Maximum Burst Current: 160A – short-duration peak power handling
- Motor Output Lead: 4mm – standard bullet connectors for brushless motors

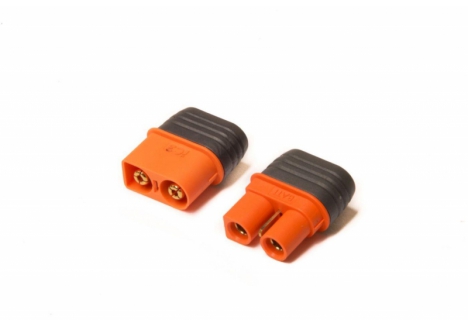

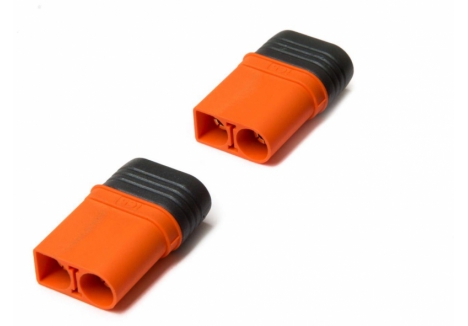

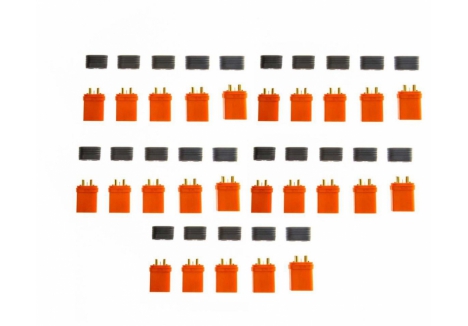

- Battery Input Lead: IC5 – high heat-resistant connector with EC3/EC5 compatibility
Processor and Control Features
- Processor: 32-bit ARM M4 – delivers high-resolution signal input and motor output
- Programmable: Yes – supports transmitter stick input, Smart ESC Programming Box, and SmartLink app
- Adjustable Timing: Yes – enables fine-tuning of motor performance
- Brakes: Yes – supports braking functionality for landing control
- Forward/Reverse: Yes – includes thrust reversing for ground mobility
Telemetry and Smart Technology
- Telemetry: One-wire Smart telemetry – transmits current, voltage, temperature, RPM, and cell balance
- Firmware Updates: Supported – via Smart ESC Programming Box and SmartLink PC application
Protection and Safety Features
- Auto Cutoff: Yes – protects against low-voltage conditions
- Failsafe Protection: Yes – ensures controlled shutdown during signal loss
- Thermal Protection: Yes – prevents overheating during extended operation
- Over-Current Protection: Yes – safeguards against electrical surges
- Overload Protection: Yes – supports high-load safety
BEC Specifications
- BEC Type: Switch-mode – efficient power delivery to receiver and servos
- BEC Voltage: Adjustable – 6V, 7.4V, or 8.4V output options
- BEC Continuous Current: 8A – supports high-demand servo systems
- BEC Maximum Burst Current: 25A – handles peak loads during flight maneuvers
- Dual BEC Connectors: Yes – ensures stable and redundant power distribution
Construction and Mounting
- Heat Dissipation: Integrated design – supports stable operation under high current loads
- Ready to Install: Yes – arrives pre-configured with no soldering required
What’s in the Box
- 1 × Spektrum Avian 130A Smart ESC
- 1 × Spektrum Smart sticker sheet
- 1 × Product Manual
What You Require / What You Will Need
- Spektrum Aircraft Receiver – required for ESC integration

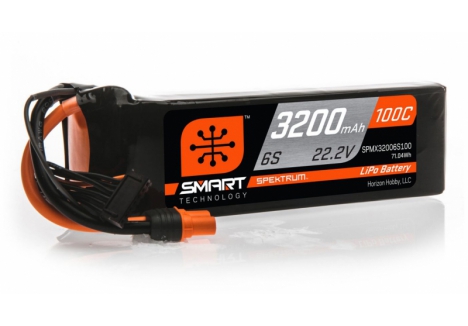

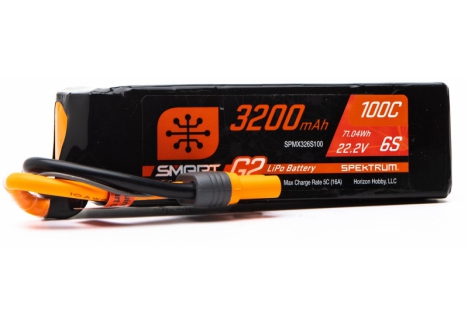

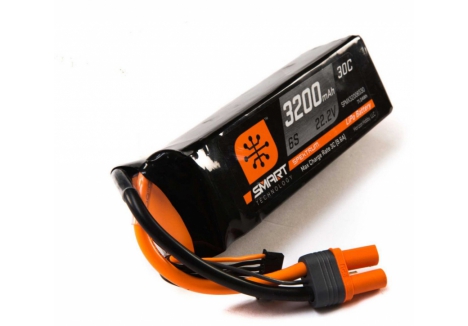

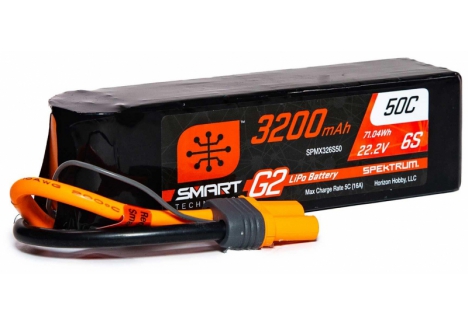

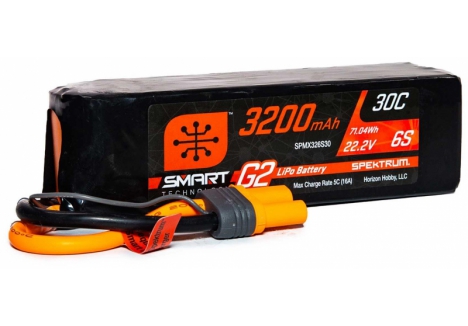

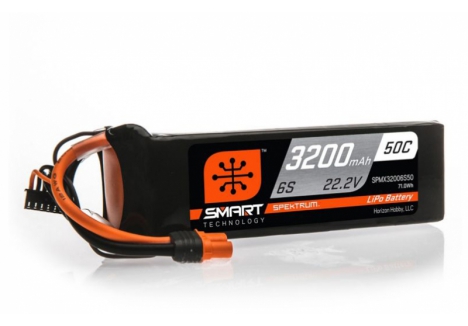

- Spektrum Smart Technology LiPo Battery – required for full telemetry functionality
- Spektrum Transmitter – required for Smart telemetry and thrust reversing
