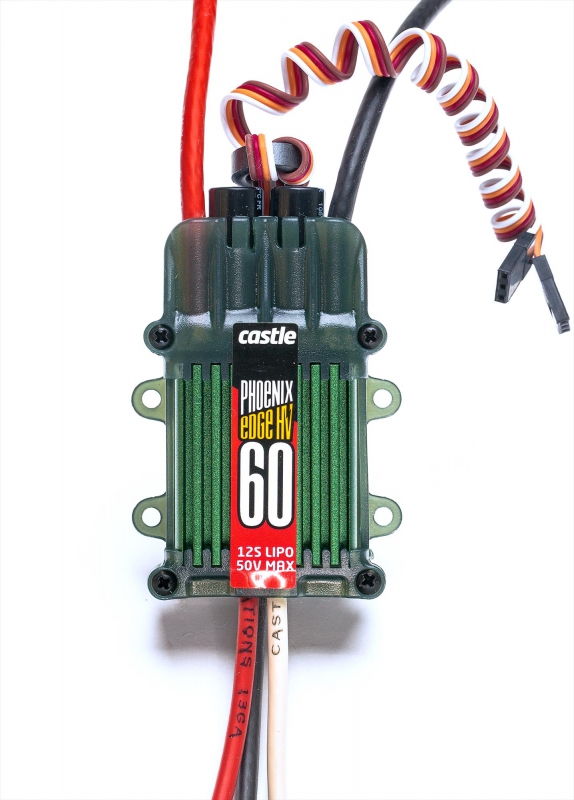

Product Description of Castle P-CC10600 Phoenix Edge 60HV ESC with 60A continuous rating, 12S max input, and telemetry support

The Castle P-CC10600 Phoenix Edge 60HV ESC with 60A continuous rating, 12S max input, and telemetry support is a compact, high-voltage electronic speed controller designed for precision, safety, and configurability in demanding flight environments. Built for 500 class helicopters and scale fixed-wing aircraft, this ESC delivers consistent power output and intelligent control across a wide voltage range. With support for up to 50.4V and no internal BEC, the Castle P-CC10600 ensures clean separation of power systems, reducing electrical noise and enhancing reliability. Whether you're executing scale maneuvers or managing rotor speed in a heli, this ESC provides the performance and flexibility required for confident flight.

Key features of the Castle P-CC10600 Phoenix Edge 60HV

• High-voltage support – handles up to 12S LiPo input for powerful aircraft systems
• Telemetry integration – enables real-time monitoring of voltage, temperature, and system status
• AUX wire versatility – supports RPM output, governor gain input, and arming lockout
• Data logging capability – records flight metrics for post-flight diagnostics and tuning
• USB and Bluetooth programmability – allows full access to firmware updates and configuration options
• Compact and lightweight – optimized for installations in 500 class helis and scale aircraft

Why is the Castle P-CC10600 ideal for 500 class helis and scale aircraft?

The Castle P-CC10600 high-voltage ESC for 500 class helis and scale fixed-wing aircraft is engineered to meet the power and control demands of mid-scale platforms. With a continuous current rating of 60 amps and support for 3S to 12S LiPo batteries, this ESC delivers sustained performance across a wide voltage range. Its compact dimensions—71.9mm in length, 50.8mm in width, and 23.2mm in depth—make it suitable for installations where space and airflow are limited. Weighing just 110.2g with wires, the Castle P-CC10600 offers a lightweight solution without compromising durability or thermal management.

How does telemetry support improve flight safety and system awareness?

Telemetry is a critical feature for pilots operating high-performance aircraft, and the Castle ESC for 3S–12S LiPo setups with no internal BEC and full telemetry compatibility provides robust support for real-time data feedback. When paired with Castle Telemetry Link modules for S.BUS2 or X-BUS systems, users can monitor ESC temperature, input voltage, and receiver battery status during flight. Audible alerts and flashing LED patterns provide immediate feedback on system health, helping prevent unexpected shutdowns and allowing pilots to respond to faults before they escalate. This integration enhances situational awareness and supports safer, more informed flying.

What can the AUX wire do for advanced flight control?

The Phoenix Edge 60HV ESC with RPM output, governor gain input, and arming lockout key features a white AUX wire that unlocks multiple advanced functions. Pilots can use it to adjust helicopter governor gain mid-flight, output RPM data to compatible gyros, or activate an audible beacon after an unexpected landing. The AUX wire also supports ESC arming lockout, enhancing safety during setup and transport. When connected to a receiver channel programmed as an arm lock switch, the ESC will not arm until the channel signal exceeds 50%, preventing accidental activation and ensuring controlled startup procedures.

How does data logging enhance post-flight analysis?

Data logging is a powerful diagnostic tool, and the Castle P-CC10600 programmable ESC with data logging, AUX wire, and Castle Link USB access captures key flight metrics such as RPM, voltage, and current draw. These logs can be reviewed using Castle Link software, allowing users to identify inefficiencies, diagnose faults, and fine-tune throttle curves or governor settings. The ability to store and analyze flight data is especially valuable for competitive pilots and engineers who require precise control over every aspect of their aircraft’s behavior. This feature turns every flight into a learning opportunity for performance optimization.

What programming options are available for the Castle P-CC10600?

Configuration flexibility is a hallmark of the Castle programmable ESC with 50.4V max voltage, no BEC, and Castle Link USB access. Users can program the ESC using the Castle Link USB adapter (included via coupon) and the Castle Link Windows software. For mobile access, the ESC is compatible with the Castle Link iOS App and B-Link Bluetooth Adapter. These tools allow pilots to adjust throttle response, AUX wire behavior, and telemetry parameters. Firmware updates are available at no charge, and users can save multiple setup profiles for different aircraft. Manual programming via transmitter stick is also supported for basic adjustments.

Is the Castle P-CC10600 suitable for scale and rotorcraft platforms?

Absolutely. The Castle P-CC10600 Phoenix Edge 60HV ESC with 60A continuous rating, 12S max input, and telemetry support is optimized for both scale fixed-wing aircraft and rotorcraft in the 500 class range. Its compact form factor and lightweight design make it easy to install in tight fuselage compartments, while its high-voltage capacity ensures consistent power delivery during scale maneuvers and rotor transitions. The combination of telemetry, data logging, and AUX wire control gives pilots the tools they need to manage complex flight profiles with precision and confidence.

For pilots seeking a telemetry-capable, programmable solution with advanced safety and control features, the Castle P-CC10600 Phoenix Edge 60HV ESC for 500 class helis and 12S scale aircraft is a proven choice. Buy Castle P-CC10600 Phoenix Edge 60HV ESC for 500 class helis and 12S scale aircraft.

Technical Specifications of Castle P-CC10600 Phoenix Edge 60HV ESC with 60A continuous rating, 12S max input, and telemetry support

Brand, Model and Product Type

• Brand: Castle
• Model: P-CC10600
• Product Type: Castle P-CC10600 Phoenix Edge 60HV ESC with 60A continuous rating, 12S max input, and telemetry support, Castle P-CC10600 high-voltage ESC for 500 class helis and scale fixed-wing aircraft, Castle P-CC10600 programmable ESC with data logging, AUX wire, and Castle Link USB access, Castle P-CC10600 with 50.4V max voltage, 110g weight with wires, and 71.9mm length, Castle ESC for 3S–12S LiPo setups with no internal BEC and full telemetry compatibility

Dimensions

• Length: 7.19 cm – compact enough for streamlined installations in 500 class helis and scale aircraft
• Width: 5.08 cm – standard footprint for high-voltage ESCs
• Depth: 2.32 cm – slim profile supports efficient airflow and cooling
• Weight (with wires): 110.2 g – lightweight for mid-scale aircraft without compromising durability
• Weight (without wires): 59.2 g – ideal for installations requiring reduced onboard mass

Electrical and Performance Specifications

• Input Voltage Range: 3S–12S LiPo – supports high-voltage setups up to 50.4V
• Max Continuous Amperage: 60A – delivers sustained current for demanding flight profiles
• Max Voltage: 50.4V – optimized for 12S configurations in scale aircraft
• Internal BEC: None – requires external BEC or receiver power source for servo systems
• Receiver Voltage Input Range: 4.8V–9V – compatible with standard receiver systems

Telemetry and Monitoring

• Telemetry Capable: Yes – supports real-time monitoring of ESC temperature, voltage, and receiver battery status
• Compatible Systems: Castle Telemetry Link for S.BUS2 and X-BUS – enables integration with Futaba and Spektrum radios
• Power System Alerts: Audible tones and flashing LED patterns indicate over-temperature, excessive load, and locked head speed

Control and AUX Features

• AUX Wire: Yes – supports RPM output, helicopter governor gain input, and audible beacon functionality
• Arming Lockout: Enabled via AUX wire – prevents motor activation until receiver signal exceeds 50%
• Arm Lock Key: Included – physical key disables ESC arming for added safety during setup

Programming and Software

• Programmability: Fully programmable using Castle Link USB adapter and Castle Link Windows software
• Mobile Access: Compatible with Castle Link iOS App and B-Link Bluetooth Adapter
• Firmware Updates: Free access to all future firmware enhancements via Castle Link
• Manual Programming: Basic settings accessible via transmitter stick input
• Setup Profiles: Ability to save and load multiple configurations for different aircraft

Data Logging

• Logging Capability: Yes – records RPM, voltage, current draw, and system alerts during flight
• Analysis Tools: Compatible with Castle Link software for post-flight diagnostics and performance tuning

Application Guidelines

• Aircraft Compatibility: Designed for 500 class helicopters and scale fixed-wing aircraft
• Installation Notes: Ensure adequate airflow and verify current draw at full throttle before flight

What’s in the Box

• 1 × Castle Phoenix Edge 60HV ESC
• 1 × Coupon for Castle Link USB Adapter
• 1 × Coupon for Arming Lockout Key and Harness

What You Require / What You Will Need

• Battery connectors – sold separately; Dean's Ultra Plugs, E-flite EC5, or 6.5mm Castle Connectors recommended
• Motor connectors – sold separately; direct solder to motor or use bullet connectors
• Castle Link USB Adapter – redeemable via included coupon
• Windows PC – required for Castle Link software and firmware updates

Sold Separately

• Castle Telemetry Link for S.BUS2 – required for telemetry integration with Futaba radios
• Castle Telemetry Link for X-BUS – required for telemetry integration with Spektrum radios
• B-Link Bluetooth Adapter – optional for mobile programming via iOS
