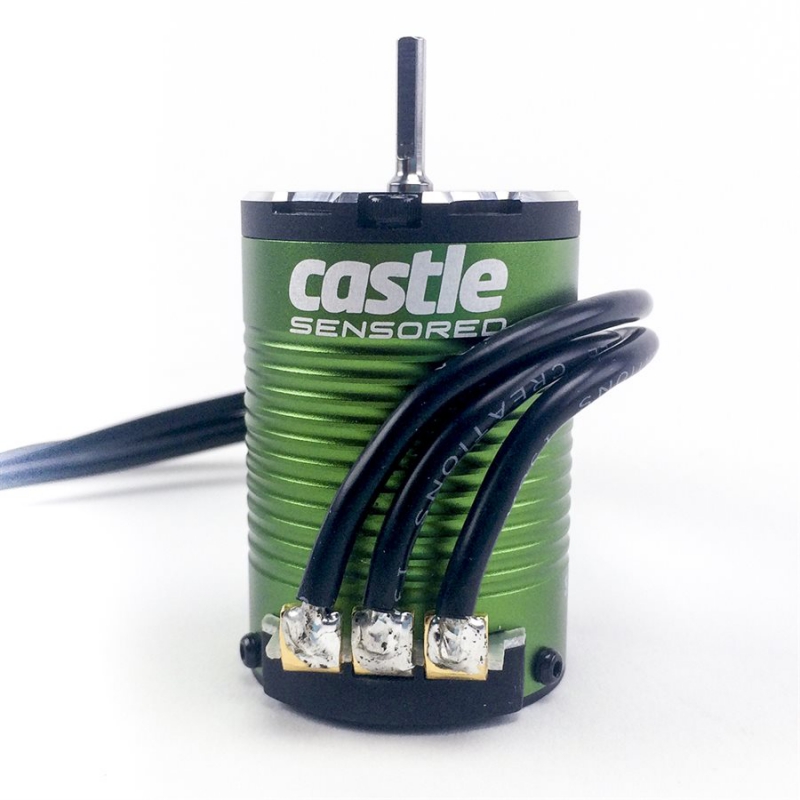

Product Description of Castle M-CC060-0067-00 1415-2400kV sensored brushless motor with 5mm shaft

The Castle M-CC060-0067-00 1415-2400kV sensored brushless motor with 5mm shaft is engineered to deliver precise, torque-rich performance for 1/10 scale short course trucks operating on 3S–4S LiPo setups. Designed with a 4-pole, 12-slot inrunner architecture, the motor integrates Castle’s proprietary SmartSense™ and QuietSense™ technologies to ensure smooth startups and consistent timing across all load phases. With a robust 69mm length and 36mm diameter, the motor is built to handle demanding applications up to 6.5 lbs, offering high-efficiency operation and reduced thermal buildup. The Castle M-CC060-0067-00 4-pole motor for 1/10 SCT and short course trucks features a hardened 5mm stainless steel shaft, high RPM NMB bearings, and a CNC-machined 6061-T6 billet aluminum heatsink can. The product color is green, as shown in manufacturer imagery.

Key features of the Castle M-CC060-0067-00 1415-2400kV motor

• SmartSense startup – delivers clean launches and torque-rich low-speed control
• QuietSense synchronization – maintains ESC-motor sync for smoother transitions
• Kevlar-wrapped rotor – reinforced for durability under high RPM stress
• 180°C neodymium magnets – resist thermal degradation during extended runs
• Rebuildable design – allows rotor, shaft, and bearing replacement
• ROAR sensor port – ensures compatibility with race-legal ESCs
• High-purity copper windings – support efficient power delivery and thermal stability

How does SmartSense™ improve drivability in torque-heavy SCT builds?

The Castle M-CC060-0067-00 sensored inrunner motor with SmartSense and QuietSense uses sensor-based rotor alignment to eliminate startup hesitation and deliver immediate torque. This feature is especially valuable for short course trucks that require precise throttle modulation and low-speed control during acceleration and cornering. Once the motor is in motion, SmartSense™ transitions to Castle’s sensorless mode, where electronic timing is dynamically adjusted to match the motor’s phase and load conditions. This hybrid control system ensures consistent torque output and throttle response across all driving scenarios, making the motor ideal for competitive racing and technical terrain.

What makes QuietSense™ essential for ESC-motor synchronization?

The Castle M-CC060-0067-00 with 180°C magnets and Kevlar-wrapped rotor incorporates QuietSense™ technology to suppress magnetic field noise generated by motor coils. This shielding effect maintains clean signal communication between the motor and ESC, preventing desynchronization during rapid throttle changes or directional shifts. For short course trucks operating in unpredictable environments, QuietSense™ ensures smoother transitions and more predictable handling, especially during aggressive driving or competitive racing. The result is a more refined driving experience with reduced jitter and improved control.

Why is the Kevlar-wrapped rotor critical for durability and performance?

The rotor in the Castle 1415 motor with ROAR sensor port and CNC aluminum heatsink can is wrapped in Kevlar, a material known for its high tensile strength and resistance to deformation. This reinforcement allows the rotor to maintain structural integrity under extreme centrifugal forces, which are common in high-RPM applications. Combined with hardened stainless steel shafts and oversized NMB bearings, the Kevlar wrap ensures that the motor remains reliable and vibration-free during extended use. This durability translates into longer service life and reduced maintenance intervals for serious RC drivers who demand consistent performance.

How does the CNC aluminum can enhance thermal management?

The Castle 2400kV motor with oversized bearings and high-purity copper windings features a CNC-machined 6061-T6 billet aluminum heatsink can that serves as a passive cooling system. This material is chosen for its excellent thermal conductivity, allowing heat generated by the motor’s internal components to dissipate efficiently. The can’s design also supports airflow around the motor, further enhancing cooling during operation. This thermal management system helps prevent overheating, ensuring that the motor maintains consistent performance even during long runs or aggressive driving sessions. The green finish also contributes to the motor’s visual identity and brand recognition.

Is the Castle M-CC060-0067-00 motor suitable for 3S–4S SCT builds?

Absolutely. The Castle M-CC060-0067-00 1415-2400kV sensored brushless motor with 5mm shaft is optimized for 1/10 scale platforms up to 6.5 lbs, making it ideal for 2WD and 4WD short course trucks running on 3S–4S LiPo setups. Its 2400kV rating delivers balanced acceleration and top-end speed, while the sensored architecture ensures clean launches and precise throttle modulation. The ROAR-compliant sensor port makes it compatible with race-legal ESCs, and the rebuildable design allows users to maintain peak performance over time. Whether you're tuning for straight-line speed or technical cornering, this motor provides the responsiveness and reliability needed to excel.

What makes this motor the best Castle upgrade for smooth startup control?

The Castle M-CC060-0067-00 4-pole motor for 1/10 SCT and short course trucks combines advanced materials, intelligent timing control, and precision engineering to deliver a performance-focused solution for 3S–4S platforms. Its 4-pole, 12-slot configuration enhances torque and startup smoothness, while the high-purity copper windings and low-resistance gold-plated connectors ensure efficient power delivery. Every component is optimized for smooth throttle control and low cogging startup, making this motor the best Castle upgrade for torque-heavy short course trucks with smooth startup.

For RC enthusiasts seeking a sensored motor with rebuildable architecture and a hardened 5mm shaft, the affordable Castle 1415-2400kV motor with 5mm shaft and rebuildable design offers unmatched value and performance. Buy Castle M-CC060-0067-00 sensored motor for 3S–4S SCT builds up to 6.5lbs.

Technical Specifications of Castle M-CC060-0067-00 1415-2400kV sensored brushless motor with 5mm shaft

Brand, Model and Product Type

• Brand: Castle Creations
• Model: M-CC060-0067-00
• Product Type: Castle M-CC060-0067-00 1415-2400kV sensored brushless motor with 5mm shaft, Castle M-CC060-0067-00 4-pole motor for 1/10 SCT and short course trucks, Castle M-CC060-0067-00 sensored inrunner motor with SmartSense and QuietSense, Castle M-CC060-0067-00 with 180°C magnets and Kevlar-wrapped rotor, Castle 1415 motor with ROAR sensor port and CNC aluminum heatsink can, Castle 2400kV motor with oversized bearings and high-purity copper windings

Dimensions

• Outer Diameter: 3.6 cm – compact cylindrical profile for 1/10 scale compatibility
• Product Length: 6.9 cm – extended can length enhances torque and thermal dissipation
• Shaft Diameter: 0.5 cm – hardened stainless steel shaft supports high-RPM durability
• Mounting Dimensions: M3 @ 2.5 cm – standard mounting pattern for SCT and short course platforms

Motor Architecture and Performance

• Motor Design: Inrunner – enclosed rotor configuration for efficient power transfer
• Number of Poles: 4 – enhances torque output and startup smoothness
• Slot Configuration: 12-slot – improves motor efficiency and reduces heat generation
• RPM/Volt (Kv): 2400 kV – delivers balanced acceleration and top-end speed for 3S–4S setups
• Input Voltage: 12.4–16.8 V – compatible with high-performance LiPo batteries

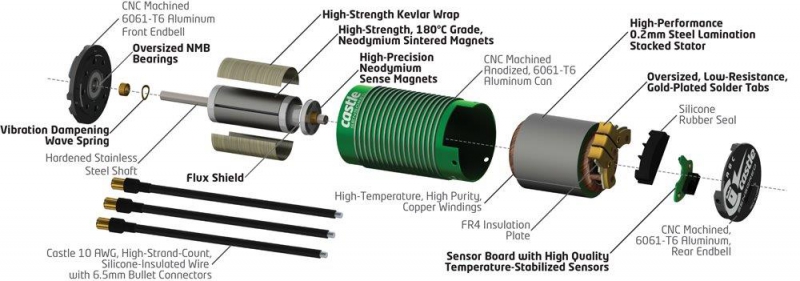

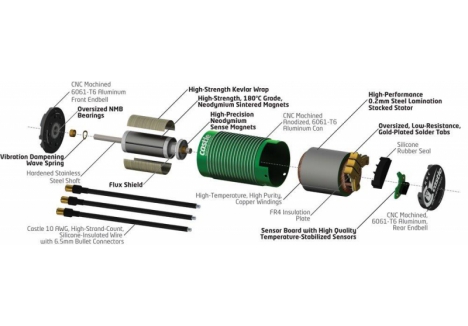

Materials and Build Quality

• Rotor Construction: Kevlar-wrapped – reinforced for structural integrity under high RPM stress
• Magnet Type: High-strength 180°C neodymium sintered magnets – resist thermal degradation
• Can Material: CNC-machined 6061-T6 billet aluminum heatsink can – supports passive cooling
• Bearings: High RPM NMB oversized bearings – ensure smooth rotation and extended lifespan
• Windings: High-purity, high-temperature copper – supports efficient current flow and thermal stability
• Laminations: 0.2 mm steel – minimizes eddy current losses and heat buildup

Connectivity and Compatibility

• Sensor Port: ROAR standard – ensures compatibility with race-legal ESCs
• Connector Type: 4 mm bullet connectors – low resistance and secure fit for high-current delivery
• Wire Gauge: 13 AWG high-strand wire with silicone insulation – supports high power transfer and flexibility

Integrated Technologies

• SmartSense: Sensor-driven startup with automatic timing advance for optimal performance across all load phases
• QuietSense: Magnetic noise shielding maintains ESC-motor synchronization during rapid throttle transitions
• Sensor Alignment: Delivers uniform timing and torque in both directions without mechanical adjustment

Rebuildability and Maintenance

• Design: Rebuildable – allows replacement of rotor, shaft, and front end bell with bearings
• Connection Labels: Clearly marked sensor and power terminals for simplified setup and servicing

Application Suitability

• Ideal for 1/10 scale 2WD and 4WD short course trucks up to 6.5 lbs – optimized for 3S–4S LiPo configurations

What You Require

• Castle sensored ESC such as Mamba Max Pro or Mamba Monster X – required to unlock full SmartSense functionality
• 3S–4S LiPo battery pack with compatible connectors – supports the motor’s rated input voltage range

Sold Separately

• Castle Link USB adapter – enables advanced tuning and firmware updates via Castle Link software
