Product Description of Castle M-CC060-0057-00 1406-5700kV sensored brushless motor for 1/10 SCT

The Castle M-CC060-0057-00 1406-5700kV sensored brushless motor for 1/10 SCT is engineered for high-RPM performance, precision throttle control, and ultra-efficient operation across competitive and recreational RC platforms. Built with a 4-pole, 12-slot architecture, this inrunner motor delivers rapid acceleration and smooth startups, making it ideal for short course trucks, stadium trucks, buggies, and on-road touring cars. Featuring SmartSense™ and QuietSense™ technologies, the Castle M-CC060-0057-00 4-pole motor with SmartSense and QuietSense technology ensures seamless transitions between sensored and sensorless modes while maintaining synchronization and thermal stability under load.

Key features of the Castle M-CC060-0057-00 1406-5700kV motor

• SmartSense™ startup – delivers clean launches and responsive low-speed control
• QuietSense™ synchronization – shields magnetic noise and maintains ESC-motor sync
• Kevlar-wrapped rotor – reinforces structural integrity at high RPM
• 180°C neodymium magnets – resist demagnetization under extreme heat
• ROAR sensor port – ensures compatibility with race-legal ESCs
• Rebuildable design – allows rotor and bearing replacement for extended service life

Why choose SmartSense™ for throttle precision?

The Castle M-CC060-0057-00 sensored inrunner motor with 3.17mm shaft and 4mm bullet connectors uses SmartSense™ to initiate motion with sensor-based rotor positioning. This eliminates startup cogging and delivers consistent torque from the first signal. Once in motion, the motor transitions to Castle’s ultra-efficient sensorless mode, automatically adjusting timing for optimal performance across load conditions. This dual-mode operation ensures high responsiveness and smooth acceleration, especially valuable in racing and technical terrain.

How does QuietSense™ enhance motor-ESC communication?

The Castle M-CC060-0057-00 4-pole motor with SmartSense and QuietSense technology incorporates QuietSense™, which suppresses magnetic field noise generated by motor coils. This keeps the motor and ESC in sync, reducing timing errors and improving startup consistency. By maintaining clean signal integrity, QuietSense™ enhances drivability and protects against desynchronization during rapid throttle changes or directional shifts.

What materials contribute to durability and thermal efficiency?

The Castle M-CC060-0057-00 with 180°C magnets and Kevlar-wrapped rotor is built for high-stress environments. Its rotor is reinforced with Kevlar for tensile strength, while the neodymium magnets are rated to 180°C, resisting demagnetization under heat. The motor’s 6061-T6 billet aluminum heatsink can promotes efficient cooling, and oversized NMB bearings ensure smooth rotation at high RPMs. These features combine to deliver long-term reliability and consistent performance in both racing and bashing scenarios.

How does the rebuildable design extend motor life?

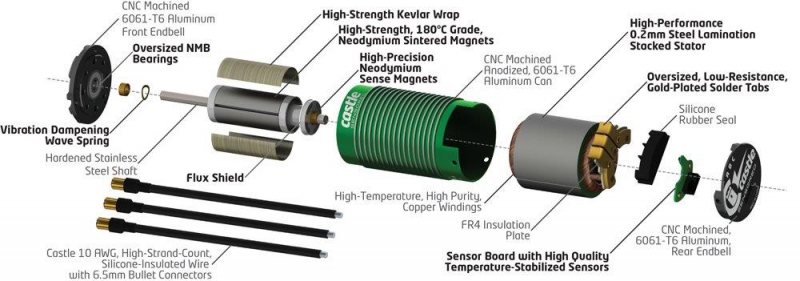

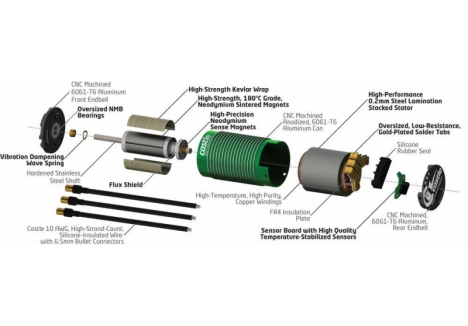

The Castle 1406 motor with ROAR sensor port and CNC aluminum heatsink can features a modular construction that allows users to replace the front end bell, bearings, or rotor assembly. This rebuildable design reduces downtime and extends the motor’s service life, making it a cost-effective choice for serious hobbyists. Labeled sensor connections and gold-plated solder tabs simplify maintenance and ensure secure electrical contact during rebuilds.

Is this motor suitable for high-speed and competitive use?

Absolutely. The Castle 5700kV motor with oversized bearings and high-purity copper windings is optimized for 1/10 scale 2WD short course trucks, stadium trucks, and buggies. Its high RPM capability and efficient winding design deliver rapid acceleration and sustained top-end speed. Whether you're racing on-road or navigating off-road terrain, this motor provides the control and power needed to outperform stock setups. The ROAR-compliant sensor port also makes it eligible for sanctioned events.

For drivers seeking a high-RPM motor with advanced startup control and rebuildable architecture, the best Castle upgrade for precision throttle and low-speed torque control is ready to elevate your build. Buy Castle M-CC060-0057-00 sensored motor for 1/10 stadium trucks and buggies today.

Technical Specifications of Castle M-CC060-0057-00 1406-5700kV sensored brushless motor for 1/10 SCT

Brand, Model and Product Type

• Brand: Castle Creations
• Model: M-CC060-0057-00
• Product Type: Castle M-CC060-0057-00 1406-5700kV sensored brushless motor for 1/10 SCT, Castle M-CC060-0057-00 4-pole motor with SmartSense and QuietSense technology, Castle M-CC060-0057-00 sensored inrunner motor with 3.17mm shaft and 4mm bullet connectors, Castle M-CC060-0057-00 with 180°C magnets and Kevlar-wrapped rotor, Castle 1406 motor with ROAR sensor port and CNC aluminum heatsink can, Castle 5700kV motor with oversized bearings and high-purity copper windings

Dimensions and Mounting

• Outer Diameter: 36 mm (1.41 in) – compact for 1/10 scale platforms
• Length: 50 mm (1.95 in) – optimized for short course and stadium truck fitment
• Shaft Diameter: 3.17 mm (1/8 in) – hardened stainless steel for durability
• Mounting Dimensions: M3 @ 25 mm – standard bolt pattern for 1/10 RC vehicles

Electrical and Performance

• Motor Type: Sensored brushless inrunner
• RPM/Volt (kV): 5700 kV – delivers high RPM for aggressive acceleration
• Input Voltage: Up to 12.6V – compatible with 2S–3S LiPo setups
• Number of Poles: 4 – enhances torque and startup smoothness

Construction and Materials

• Rotor: Kevlar-wrapped for structural integrity at high RPM
• Magnets: High-strength neodymium sintered magnets rated to 180°C
• Windings: High-purity, high-temperature copper for thermal efficiency
• Bearings: Oversized NMB bearings for smooth rotation and durability
• Can Material: 6061-T6 billet aluminum heatsink can for effective cooling
• Laminations: 0.2 mm steel – reduces eddy current losses and heat

Connectivity and Compatibility

• Sensor Port: ROAR standard – compatible with Castle sensored ESCs
• Bullet Connectors: 4 mm gold-plated – low resistance and secure fit
• Wire Gauge: 13 AWG high-strand silicone-insulated wire

Software and Timing Features

• SmartSense: Uses sensors for startup, transitions to sensorless mode for efficiency
• QuietSense: Shields magnetic field noise to maintain ESC-motor sync
• Timing Advance: Electronically optimized across load phases – no mechanical adjustment needed

Rebuildability and Maintenance

• Design: Rebuildable – allows replacement of rotor, shaft, and front end bell with bearings
• Labeling: Clearly marked sensor and power connections for easy setup

Application Suitability

• 1/10 scale 2WD short course trucks
• Stadium trucks and buggies
• On-road touring cars

What You Require

• Compatible Castle sensored ESC (e.g., Mamba Monster X or Mamba Max Pro)
• 2S–3S LiPo battery pack

Sold Separately

• Castle Link USB adapter for advanced tuning
• Castle sensored ESC for full SmartSense functionality
