In Stock With Supplier
1 Year Warranty
Key Features
- Robust landing gear strut and mounting bracket
- Integrated electric motor with a micro PCB
- Built-in over-current protection
- Aircraft weight: 2.00-4.50 lb (0.90-2.00 kg)
- Strut diameter 0.118 in (3mm)
- Strut length 0.866 in (22mm)
Video Overview
Overview
You don’t have to be a master modeler to add the realism of functioning retracts to your airplane. The completely self-contained E-flite® retract system requires no air tank, complex linkages or extra servo. It can simply be bolted into place and plugged into the receiver. A specially-designed Y-harness is included that allows for the use of a single receiver channel to control all retract units.
Detailed Information
10-15 Size Main Retract Units (mm)
The E-flite 10 – 15 Size Main Electric Retracts – EFLG100 offers a compact, powerful, and straightforward solution for adding retractable landing gear to 10–15 size RC aircraft.
Why choose the EFLG100 retracts?
This fully self-contained electric retract system installs quickly—no air tanks, complex linkages, or extra servos required. Simply bolt it in and connect to your receiver via the included Y-harness.

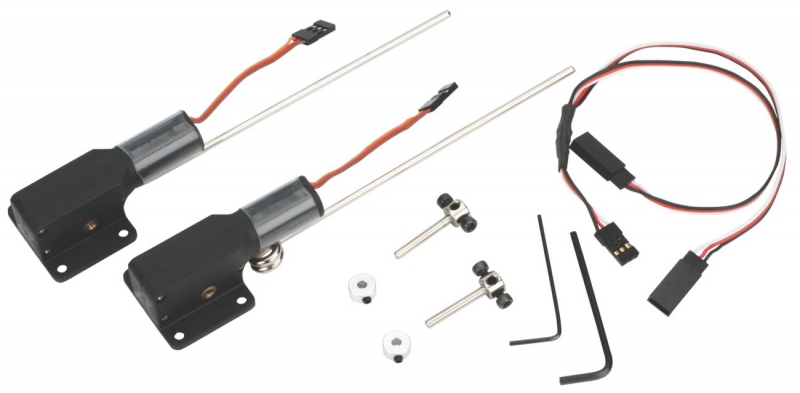

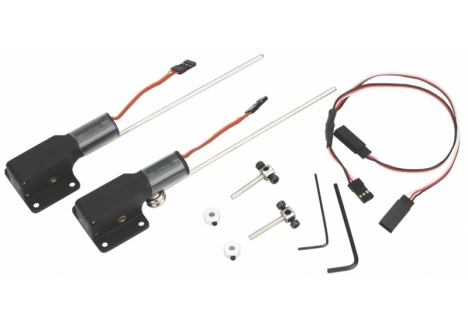

What you get out of the box
- Two durable metal struts with landing gear brackets
- Built-in brushed motor and micro PCB for smooth deployment

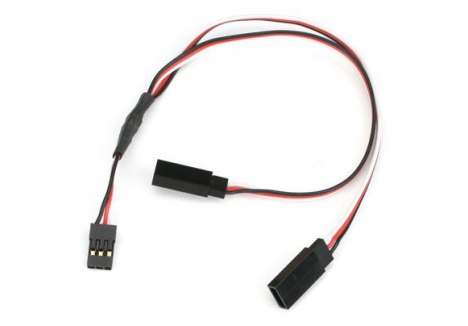

- Y-harness to control both retracts via one receiver channel
- Reliable over-current protection to safeguard against overload
Built for performance and reliability
EFLG100 delivers deployment speeds ranging from ~1.25 s at 4.8 V to ~0.8 s at 7.4 V—fast enough for realistic operation. It supports aircraft weighing between 2.00 to 4.50 lb (0.9–2.0 kg) and features hard-wearing components to withstand typical RC operations.
Simple installation and setup
No intricate setups or alignment issues—just secure the retracts in place, plug the motor wire into the receiver via the Y-harness, and power up. Your plane is ready for retractable realism in minutes.
Advantages over pneumatic or link-based retracts
Electric retracts are clean, lightweight, easier to mount, and eliminate customer-built plumbing or air tank space—making them perfect for modelers of all skill levels. Their compact design also frees up fuselage space for other components.
Key features at a glance
- Self-contained electric design—bolt in and connect
- Fast deployment speed—80% faster at 7.4 V
- Y-harness for single-channel control
- Built-in over-current protection
- Robust 3 mm diameter strut construction
- Compatible with 10–15 size aircraft (2–4.5 lb)
Installation tips
- Align struts symmetrically and verify smooth gear motion
- Secure wiring to prevent snagging or interference
- Test retract movement on the ground before flight
Summary of benefits
- Instant retract capability with minimal effort
- Compact design, ideal for smaller scale models
- Strong mechanical build for long-term durability
- Streamlined integration into existing RC systems
Final thoughts
The E-flite EFLG100 10 – 15 Size Main Electric Retracts deliver reliable, compact retract functionality for your RC aircraft. With a simple install and rugged design, it’s the perfect retract upgrade—buy EFLG100 today.
Brand, Model & Product Type
- Brand: E-flite
- Model: EFLG100
- Product Type: 10–15 Size Main Electric Retracts
Key Features
- Strut Diameter: 0.118 in (3 mm)
- Strut Length: 0.866 in (22 mm)
- Deployment Speed: 1.25 s at 4.8 V / 0.80 s at 7.4 V
- Over-Current Protection: Built-in
- Motor Type: Brushed with integrated micro PCB
- Connector Type: Universal (uses Y-harness)
Aircraft Compatibility
- Recommended Aircraft Weight Range: 2.00–4.50 lb (0.9–2.0 kg)
- Installation: Self-contained fits 10–15 size models with minimal modification
Electrical Specs
- Idle Current Draw: 5 mA
- Stall Current Draw: 200 mA
