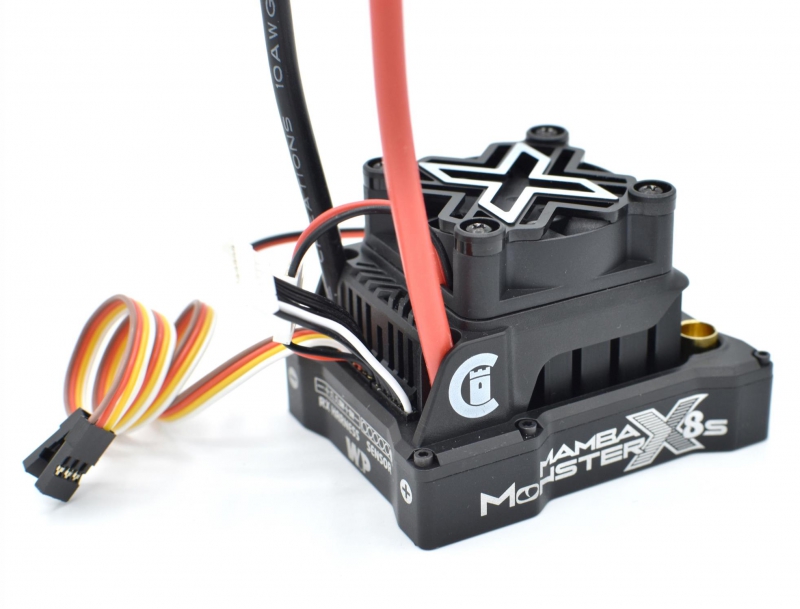

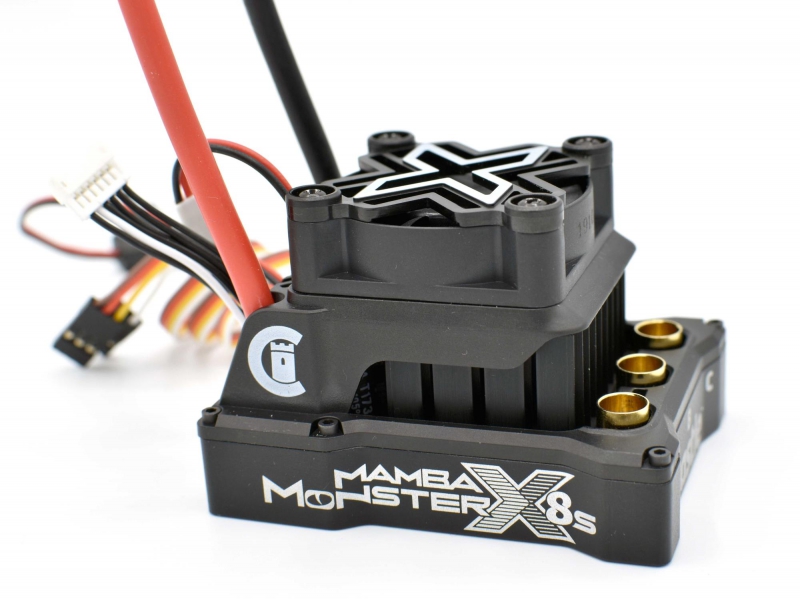

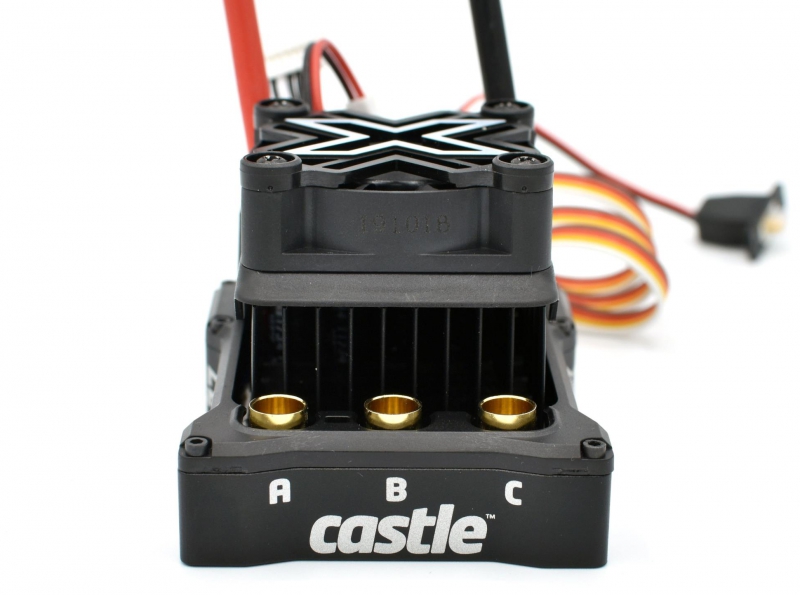

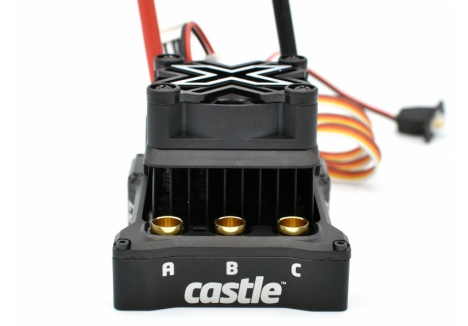

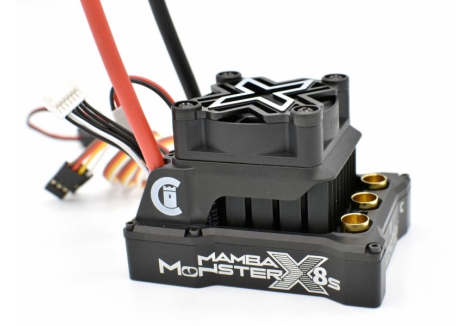

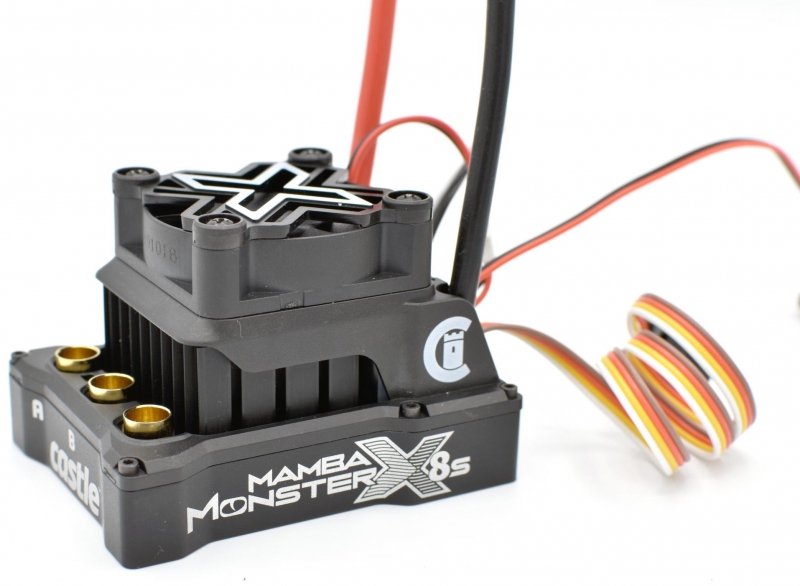

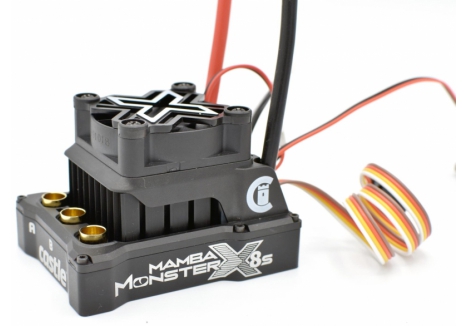

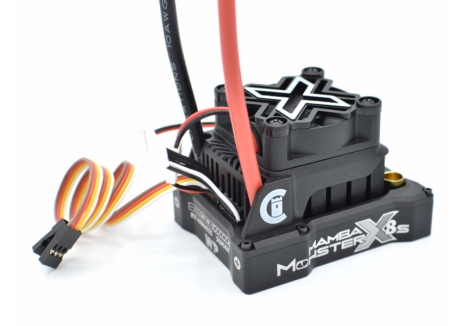

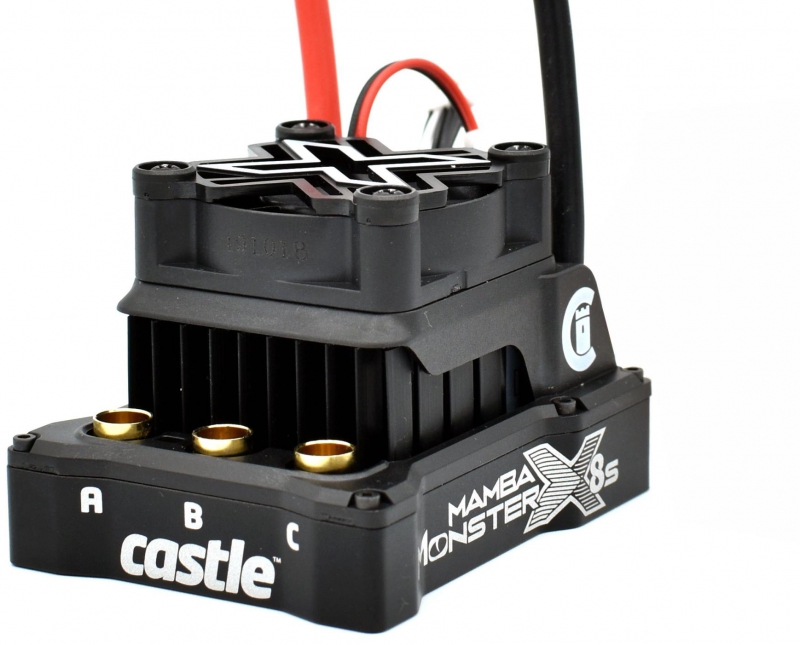

CASTLE MAMBA MONSTER X 8S, 33.6V ESC, 8A PEAK BEC P-CC010-0165-00

• Brand: Castle Creations
• Model Number: P-CC010-0165-00
• Product Type: Brushless Electronic Speed Controller (ESC)
• Scale: 1/8 scale
• Input Voltage: 7.4V – 33.6V (2S–8S LiPo)
• Maximum Vehicle Weight: Up to 15 lbs ready-to-run
• Motor Compatibility: Sensored brushless, sensorless brushless, and brushed motors
• Running Modes: Sensored brushless, sensorless brushless, brushed operation, Smart Sense technology
• Integrated BEC: Adjustable 5.25V–8.0V output (5.5V default)
• BEC Maximum Burst Current: 8A peak
• Low-Voltage Cutoff: Programmable
• Overload Protection: Yes
• Braking: Proportional, programmable
• Timing Advance: Maximum 45 degrees
• Starting RPM: 100 RPM increments
• Ending RPM: 3-4 predetermined options
• Battery Input Connector: 6.5mm bullet (not included)
• Receiver Connector: Standard servo connectors
• Auxiliary Wire: Yes, white signal wire for on-the-fly adjustments
• Data Logging: Yes, 10 data points captured during operation
• Dimensions (L×W×H): 69.5mm × 54.1mm × 47mm (2.7" × 2.1" × 1.8")
• Weight: 163g (5.75oz)
• Case Construction: CNC machined aluminium
• Circuit Protection: Waterproof epoxy potting
• Waterproof Rating: Full waterproof design
• Cooling Fan: Thermally controlled 40mm removable fan
• Heatsink: Premium forged elliptical fin heatsink
• Thermal Management: CRYO-DRIVE technology
• Programming Interface: Castle Link Classic (USB Type-C micro-B)
• Programming Software: Windows PC compatible Castle Link Classic or B-LINK Bluetooth Adapter with Castle Link app (Android/iOS)
• B-LINK Compatible: Yes, support in development
• Transmitter Programming: Yes, six adjustable settings including cutoff voltage and drag brake
• Audible Alerts: Motor over-temperature and low-voltage cutoff warnings
• Replaceable Components: Cooling fan, receiver wire harness
• Warranty: 1 year manufacturer warranty
• Country of Origin: Designed and manufactured in Olathe, Kansas, USA
• Included in Box: Mamba Monster X 8S ESC, product manual, Castle Link USB programming coupon
• Required to Complete: High-current connector (100+ amps), 2S–8S LiPo battery, brushless motor, receiver, transmitter, servos

Overview

The Castle Creations Mamba Monster X 8S is a premium electronic speed controller engineered for serious RC enthusiasts who demand maximum power delivery and thermal efficiency. This waterproof brushless ESC is built to support 2S–8S LiPo batteries (7.4–33.6V), making it one of the most versatile speed controllers available for high-performance RC buggies, truggies, and monster trucks in the UK RC market. Whether you're running a heavy vehicle, tackling aggressive terrain, or pushing extreme gear ratios, the Mamba Monster X 8S combines cutting-edge thermal management technology with robust construction to deliver consistent power and reliability in the most demanding conditions.

This ESC stands out among brushless RC speed controllers because it incorporates Castle's revolutionary CRYO-DRIVE technology, which represents a breakthrough in thermal management for RC electronics. Rather than simply cooling components after heat is generated, CRYO-DRIVE reduces the amount of time that electrical components spend generating heat in the first place. This intelligent approach to thermal control, combined with a unique open housing design, ensures that your RC car can handle longer runs with greater power handling and improved runtime. The Mamba Monster X 8S is designed for drivers who refuse to compromise on performance or durability, making it an ideal choice for competitive racers and dedicated weekend bashers alike.

Constructed with a rugged CNC aluminium case and fully potted in waterproof epoxy, the Mamba Monster X 8S is built to dominate in the harshest of RC driving environments. The waterproof design means you can tackle wet grass, muddy terrain, and even light water crossings without fear of electrical failure. This makes it perfect for UK RC clubs where unpredictable weather is common. With comprehensive programmability through Castle Link USB or the optional B-LINK Bluetooth Adapter, you have complete control over every aspect of your ESC's behaviour, from torque control to rock racing mode.

Key Features

• CRYO-DRIVE Thermal Management Technology — Castle's proprietary software advancement reduces the time electrical components spend generating heat, working in parallel with the open housing design to enable cooler operating temperatures, increased runtime, and superior power handling compared to conventional ESC designs.
• Premium Forged Heatsink with Elliptical Fins — The specially designed heatsink maximises surface area for heat dissipation, allowing the ESC to maintain lower temperatures even during sustained high-power runs, which extends component lifespan and improves reliability.
• Thermally Controlled 40mm Cooling Fan — An oversized factory-equipped cooling fan automatically regulates speed based on ESC temperature, ensuring optimal airflow to critical components and preventing thermal shutdown during intense driving sessions.
• Sensored, Sensorless and SmartSense Running Modes — The ESC supports multiple motor operation modes, allowing compatibility with brushless motors with or without sensors, and SmartSense technology automatically detects motor sensors to optimise performance without manual configuration.
• Adjustable Integrated 8A Peak BEC — The onboard battery eliminator circuit provides adjustable output voltage between 5.25V and 8.0V (with 5.5V default), allowing you to safely power your receiver and servo systems without requiring a separate battery pack.
• Auxiliary Wire for On-The-Fly Adjustments — Connect the white signal wire to an open radio channel to make real-time adjustments to functions like torque control, max brake, or rock racing mode without plugging into a computer.
• Comprehensive Data Logging — The ESC captures 10 performance data points during operation, allowing you to review and analyse your vehicle's behaviour, diagnose issues, and optimise your setup for different driving conditions.
• Waterproof Design with Epoxy Potting — Full waterproof construction with potted circuitry means the ESC can handle all-weather use, mud, dust, and moisture without compromising performance or safety.
• Castle Link USB Programming Suite — Easily tune and update the ESC via Windows PC software, with a USB cable and coupon included in the box, giving you access to six programmable transmitter settings including low-voltage cutoff and drag brake.
• B-LINK Bluetooth Adapter Support — Optional smartphone-based programming is available with the separately sold B-LINK Bluetooth Adapter and Castle Link app (available on Google Play and Apple App Store) for wireless configuration from your phone or tablet.
• Proportional Programmable Braking — Adjust brake response to match your driving style and track conditions, with proportional control allowing smooth modulation of braking force for better vehicle control and predictability.
• Audible Alerts — The ESC provides convenient audible warnings for motor over-temperature and low-voltage cutoff conditions, helping you diagnose issues quickly without needing to retrieve the vehicle.
• Compatible with Heavy Vehicles — Rated for vehicles up to 15 lbs ready-to-run weight, the Mamba Monster X 8S is engineered for serious rigs with high power demands, making it suitable for full-size competitive and bashers alike.

Technical Performance

The Castle Creations Mamba Monster X 8S represents the pinnacle of modern brushless ESC engineering for 1/8 scale RC vehicles. Built around a robust CNC aluminium case measuring 69.5mm × 54.1mm × 47mm and weighing just 163g, this compact yet powerful controller delivers uncompromising performance for demanding applications. The ESC accepts input voltages from 7.4V (2S LiPo) all the way up to 33.6V (8S LiPo), providing exceptional flexibility for builders experimenting with different battery configurations. The integrated 8A peak adjustable BEC operates between 5.25V and 8.0V, sufficient to power high-torque servos and modern receivers without auxiliary power supplies. The waterproof design combines a potted circuit board with an injection-moulded case featuring a removable 30mm cooling fan, and the forged elliptical fin heatsink maximises thermal dissipation. When paired with Castle's 4-pole, 12-slot sensored brushless motors such as the 2028-800KV or 1515-2200KV, the Mamba Monster X 8S delivers controllable low-end torque without sacrificing top-end power or speed. The ESC features a 6.5mm bullet connector for battery input (connector not included), and the full waterproof epoxy potting combined with the open housing design ensures reliable operation in mud, water, dust, and extreme temperatures. For UK RC enthusiasts seeking the ultimate in performance, durability, and tuneability, the Mamba Monster X 8S is an investment in genuine competitive-grade equipment.

What's in the Box

• Castle Creations Mamba Monster X 8S 33.6V Waterproof ESC with 8A Peak BEC
• Product manual with detailed instructions and specifications
• Castle Link USB programming coupon for accessing the full software suite

What You Need to Complete

• High-current battery connector rated for 100+ amps, such as Castle CC Bullet 6.5mm, CC Bullet 8.0mm, or 6.5mm polarised Castle Connectors, soldered to your LiPo battery leads
• 2S–8S LiPo battery pack (7.4V–33.6V)
• Brushless motor compatible with sensored or sensorless operation
• RC receiver compatible with your radio transmitter
• Radio control transmitter and receiver system
• Servo(s) appropriate for your vehicle type
• Completed RC car frame and chassis

Frequently Asked Questions

• What is CRYO-DRIVE and how does it improve performance? — CRYO-DRIVE is Castle Creations' proprietary thermal management technology that reduces the amount of time electrical components spend generating heat. Unlike traditional ESCs that dissipate heat after it's created, CRYO-DRIVE prevents excessive heat generation through intelligent software control. This breakthrough technology works together with the open housing design, forged heatsink, and 40mm cooling fan to achieve cooler operating temperatures. The practical benefit for you is increased runtime, greater power handling capability, and improved reliability during extended driving sessions—particularly important if you're running heavy vehicles or racing competitively.
• Is the Mamba Monster X 8S suitable for beginners? — The Mamba Monster X 8S is a professional-grade ESC designed for experienced RC enthusiasts rather than beginners. Its advanced programmability through Castle Link and comprehensive feature set like data logging and auxiliary wire functions are most appreciated by drivers who understand how to tune and optimise their setups. However, if you're a beginner with access to experienced guidance and you want to invest in equipment that will grow with your skills, this ESC provides excellent value because you won't outgrow it. Beginners should be prepared to take time learning the programming software and understanding the various tuning parameters.
• What battery does the Mamba Monster X 8S need? — The ESC accepts LiPo batteries from 2S (7.4V) all the way up to 8S (33.6V), providing exceptional flexibility. The specific battery you choose depends on your motor's specifications and your desired performance characteristics. Lower voltage batteries (2S–4S) provide longer runtime with lower peak power, whilst higher voltages (6S–8S) deliver maximum power for competitive racing or aggressive bashing. You'll need to solder a high-current connector rated for 100+ amps to your battery leads, such as Castle CC Bullet 6.5mm or 8.0mm connectors. Always check your motor's voltage rating before selecting a battery.
• What are the main differences between the Mamba Monster X 8S and other Castle 1/8 scale ESCs? — Compared to the Sidewinder 8, the Mamba Monster X 8S offers sensored capability, an adjustable BEC with higher output (8A peak versus fixed 2A), auxiliary wire functionality, data logging of 10 parameters, and maximum timing advance of 45 degrees. Compared to the Mamba Monster 2, the Monster X 8S includes the same core features but benefits from the CRYO-DRIVE thermal technology and improved cooling design. The Cobra 8 and Cobra 8 ACE step up to higher power and more advanced tuning features including 120-degree timing and turbo functions, but at significantly higher cost. For most dedicated racers and serious bashers, the Mamba Monster X 8S represents the sweet spot between performance, programmability, and value.
• Can I use this ESC with sensored and sensorless motors? — Yes, the Mamba Monster X 8S supports three running modes: sensored brushless, sensorless brushless, and brushed motor operation. The SmartSense technology automatically detects whether your motor has sensors installed and optimises performance accordingly, so you don't need to manually configure this setting. This versatility is particularly useful if you're experimenting with different motor options or running multiple vehicles.
• Is the Mamba Monster X 8S waterproof? — Absolutely. The ESC features full waterproof design with potted circuitry and a rugged CNC aluminium case, making it suitable for all-weather RC driving. The epoxy potting protects internal components whilst promoting efficient heat transfer. This makes it ideal for UK RC clubs and outdoor tracks where you might encounter mud, grass moisture, and rain. However, avoid submerging the ESC or exposing it to saltwater conditions.
• How do I programme the Mamba Monster X 8S? — You have three programming options: (1) Castle Link Classic Windows Software with the USB Type-C adapter and micro-B cable (coupon included in the box), (2) B-LINK Bluetooth Adapter (sold separately) with the Castle Link app on Google Play or Apple App Store for smartphone programming, or (3) transmitter programming for six basic settings. Windows software provides the most comprehensive tuning options, whilst Bluetooth programming offers convenient wireless configuration. Transmitter programming is perfect for quick adjustments at the track without needing a laptop.
• What is the 8A peak BEC and what does it do? — The BEC (Battery Eliminator Circuit) is a regulator that converts your main LiPo battery voltage down to a lower voltage suitable for powering your receiver, servos, and other low-voltage components. The Mamba Monster X 8S provides 8A peak output at adjustable voltage between 5.25V and 8.0V (default 5.5V). This eliminates the need for a separate receiver battery pack. The 8A rating means you can safely power high-torque servos without risk of voltage droop during heavy steering inputs.
• What size is this ESC and will it fit my vehicle? — The Mamba Monster X 8S measures 69.5mm × 54.1mm × 47mm and weighs 163g, making it compact enough for most 1/8 scale buggies, truggies, and monster trucks. Compared to larger controllers like the Cobra 8, it's noticeably smaller and lighter. Always check your vehicle's electronics tray dimensions before purchasing to ensure proper fitment. The compact size also helps with weight distribution and centre of gravity adjustment.
• What is included in the box? — The package includes the Mamba Monster X 8S ESC itself, a printed product manual, and a coupon for Castle Link USB programming software. You'll need to source a high-current battery connector, LiPo battery, brushless motor, receiver, and transmitter separately. The ESC does not come with power leads pre-attached, so soldering skills are required.
