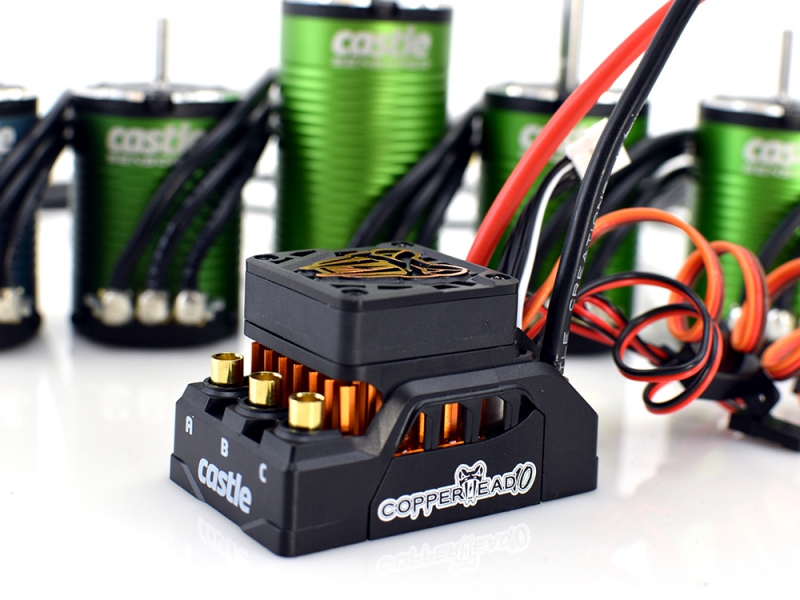

CASTLE COPPERHEAD 10 1415-2400KV COMBO - MT P-CC010-0166-12

Overview

Meet the Castle Creations Copperhead 10 Sensored ESC Combo — a completely new design that rounds out Castle's 1/10 scale offerings with a perfect balance of performance, reliability and affordability. Positioned between the Sidewinder 4 entry-level upgrade and the Mamba X as the extreme performance option, the Copperhead 10 delivers smooth low-speed control and hard-hitting power for any 1/10 scale RC car, whether you're a weekend basher, trail crawler enthusiast, or competitive racer in the UK. This brushless ESC combo is ideal for those searching for a ready-to-run brushless RC motor and speed controller package that doesn't compromise on features or build quality.

Throughout its development, the Copperhead has been tested in all types of elements and conditions, performing as aggressively or as stealthily as desired. Whether you're dominating gates on the trail, throwing dust on the dirt track, or enjoying smooth on-road driving, the Copperhead is power hungry when you need it and delivers buttery smooth low-end power for technical low RPM performance. This is a versatile 1/10 RC combo solution that takes to the open road as well as it takes to no road at all, making it equally at home in trail trucks, crawlers, on-road cars, short course racing and monster trucks.

The combo comes complete with a pre-matched 1415-2400Kv sensored brushless motor that eliminates guesswork when upgrading your RC car's drivetrain. With support for 2S to 4S LiPo batteries, the Copperhead 10 is ready to power vehicles weighing up to 2.9kg (6.5 lbs), making it perfect for a wide range of 1/10 scale platforms.

Key Features

• SmartSense Technology — Uses motor sensors at startup to provide cog-free starts, excellent torque and superior low-speed drivability, then seamlessly transitions to efficient sensorless running with electronic timing for peak performance in all driving conditions. This means smooth, predictable acceleration whether you're crawling through obstacles or driving at speed.
• CRYO-DRIVE Efficiency Technology — Reduces heat build-up by minimising the amount of time electrical components spend generating heat, resulting in improved thermal performance during partial-throttle driving where most RC enthusiasts spend the majority of their wheel time. This advanced technology allows your setup to handle higher gear ratios in heavier vehicles with longer run times.
• Data Logging Lite — Records critical performance data including battery voltage, battery ripple, controller temperature, motor RPM and motor temperature via Castle Link on a Windows PC, allowing you to maximise performance and battery life through real data analysis rather than guesswork.
• Selectable Internal BEC — Provides clean, consistent servo power with a choice of 5.5V or 7.5V output at 6A peak, meaning no more brown-outs, glitching or slow-actuating servos even when using high-power servo modifications or multiple high-torque servos on your RC vehicle.
• Sensored Motor Support — The included 1415-2400Kv sensored brushless motor pairs seamlessly with the ESC to unlock SmartSense capabilities, providing smooth sensored startups and high-efficiency sensorless running that produces more power and less heat than brushed alternatives.
• Wide Battery Compatibility — Supports 2S, 3S and 4S LiPo batteries (ESC only), giving you flexibility to choose the power delivery and runtime that suits your driving style and vehicle setup, whether you're running on 3S-4S monster truck builds or lighter 2S configurations.
• Transmitter Programming — Set up common adjustable settings including low-voltage cutoff, brake type and amount, drag brake and motor direction directly via your transmitter without requiring a PC, allowing quick field adjustments and tuning during your RC driving sessions.
• Castle Link Programming Suite — Access deep tuning parameters, firmware updates and feature sets released by Castle Engineering at no charge, save setup profiles for multiple vehicles, and download performance data for analysis. A coupon for a free Castle Link USB adapter is included with purchase.
• Futaba S.BUS2 Telemetry Ready — Compatible with Futaba T4PX, T7PX and T7PXR transmitters, allowing real-time data monitoring such as ESC temperature, voltages and RPM to ensure performance advantages and eliminate unknown parameters during your RC experience.
• Optional B-Link Bluetooth Programming — Wirelessly programme your ESC using the free Castle Link mobile app on Android or iOS devices paired with the optional B-Link Bluetooth Adapter (sold separately), enabling anytime programming without connecting to a PC.
• Audible Alerts — Emits diagnostic tones for quick identification of common issues such as motor over-temperature, low-voltage cutoff and calibration errors, with a handy reference chart included in your box so you can diagnose problems without needing to search online.

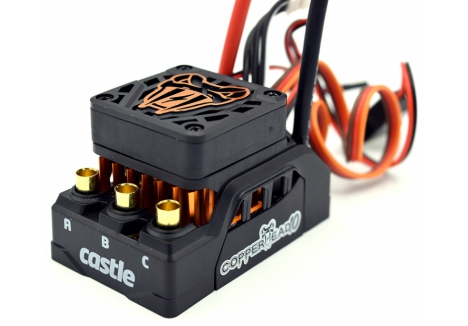

• Waterproof Construction — Housed in a durable injection-moulded case and potted in waterproof epoxy to protect the electronics and promote efficient heat transfer, ensuring reliable performance in wet and muddy trail conditions.

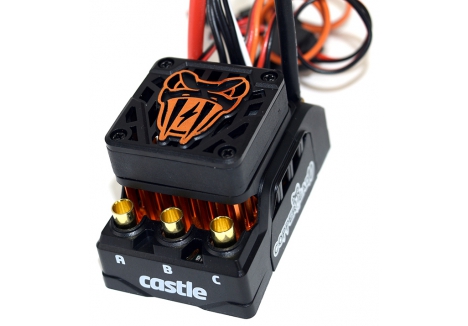

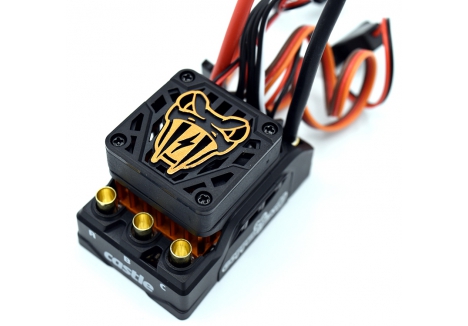

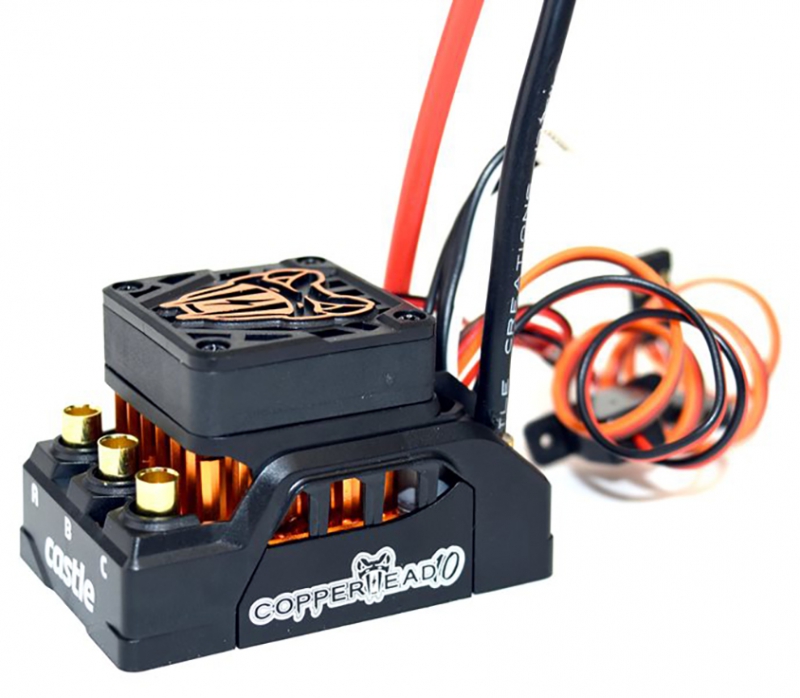

• Removable Cooling Fan — Features a 30mm removable cooling fan with dual-use fan guard that keeps the ESC running cool during intense driving sessions. For crawler setups that don't require active cooling, the fan easily removes with four screws and the guard with the cool Copperhead logo clicks back into place to maintain the mean appearance whilst providing extra protection.

Technical Performance

The Copperhead 10 Performance ESC represents the pinnacle of Castle Engineering's 1/10 scale ESC design, combining advanced thermal management with sensored motor support to deliver exceptional real-world performance. The included 1415-2400Kv brushless motor with 4-pole 12-slot sensored design provides the perfect power match for the ESC's capabilities, delivering smooth low-end torque for technical crawling and trail work whilst maintaining the ability to unleash aggressive acceleration when needed. The ESC itself is constructed from injection-moulded plastic case design potted in waterproof epoxy, protecting all internal components whilst allowing heat dissipation through the potting compound. With support for 2S through 4S LiPo batteries, the Copperhead 10 scales its performance across different power levels — 2S configurations are ideal for lighter vehicles and beginners seeking manageable power delivery, whilst 3S-4S setups transform heavier monster trucks and short course trucks into serious performers. The 6A peak selectable internal BEC eliminates the need for a separate battery for your servos, providing either 5.5V or 7.5V output depending on your servo requirements and selectable through Castle Link. CRYO-DRIVE technology works thousands of times per second to optimally control which components are active, dramatically reducing heat generation during the partial-throttle driving that comprises most RC sessions. This means your RC car can handle longer runs with higher gear ratios in heavier vehicles without thermal throttling or performance degradation. The waterproof epoxy potting and injection-moulded case construction make this ESC suitable for challenging trail driving conditions common in UK RC hobby environments, from muddy woodland trails to wet outdoor track days. The 30mm removable cooling fan provides additional thermal management during extended running sessions, whilst the removable design keeps aesthetics clean when cooling isn't necessary.

What's in the Box

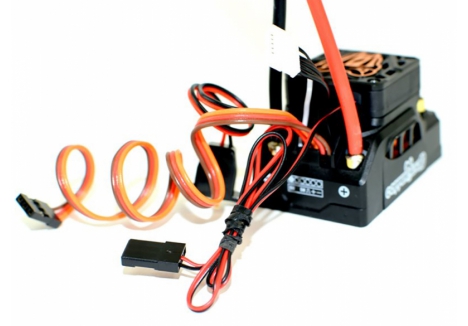

• Copperhead 10 ESC with sensor harness
• 1415-2400Kv sensored brushless motor
• Copperhead decals
• Audible Alert Reference Chart
• Coupon for free Castle Link USB adapter
• Copperhead Quick Start Guide
• Sensor port dust cover

What You Need to Complete

• LiPo battery pack: 2S, 3S or 4S configuration depending on your vehicle and performance preferences
• LiPo battery charger compatible with your chosen battery configuration
• RC transmitter and receiver compatible with your vehicle (not included)
• 1/10 scale RC car chassis — compatible with trail trucks, crawlers, on-road cars, short course trucks and monster trucks
• Servo(s) for steering and throttle control
• Tyres and wheels sized appropriately for your RC vehicle
• Castle Link USB adapter (coupon included to obtain free) for PC-based programming, data logging and firmware updates

Frequently Asked Questions

• Is the Castle Copperhead 10 suitable for beginners starting their first brushless RC car? — Yes, the Copperhead 10 is an excellent choice for beginners upgrading from brushed systems or starting with brushless. The included quick-start guide allows plug-and-play installation with immediate wheel time, whilst transmitter-based programming lets you adjust key settings without needing a PC. The smooth low-speed control from SmartSense technology and sensored motor operation makes it forgiving to drive, particularly valuable when learning throttle modulation and brake control. The audible alerts help diagnose any setup issues, and the included reference chart makes troubleshooting straightforward.
• What battery does the Castle Copperhead 10 need? — The Copperhead 10 ESC supports 2S, 3S and 4S LiPo battery configurations. For the included 1415-2400Kv motor, Castle recommends 3S-4S LiPo setups for 4x4 monster trucks and short course trucks, though 2S can be used in lighter vehicles or for controlled, beginner-friendly power delivery. The specific battery capacity you choose depends on your desired runtime — larger capacity packs provide longer run times but take longer to charge and add weight to your RC vehicle.
• How does the Copperhead 10 compare to other Castle 1/10 ESCs like the Sidewinder 4 and Mamba X? — The Sidewinder 4 is Castle's entry-level 1/10 upgrade option lacking sensored motor support and featuring fewer advanced tuning options. The Copperhead 10 sits directly between the Sidewinder and Mamba X, offering sensored motor support, CRYO-DRIVE technology and Data Logging Lite at a mid-range price point. The Mamba X represents the extreme performance option with full-featured data logging capabilities and additional tuning depth. For most RC enthusiasts seeking balanced performance with modern features without extreme complexity or cost, the Copperhead 10 offers the optimal feature set.

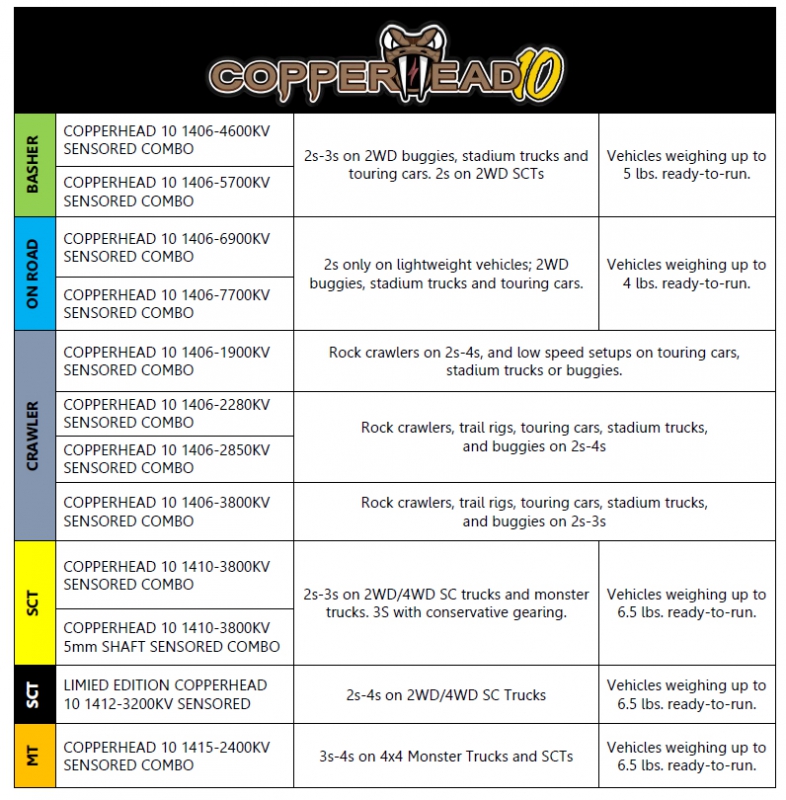

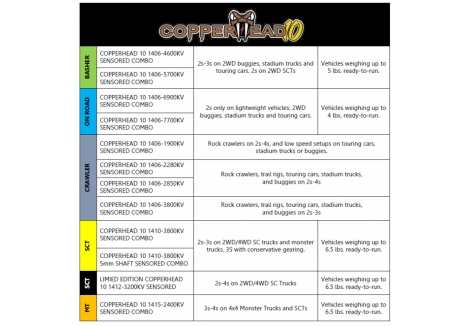

• Can I use the Copperhead 10 with different Castle sensored motors? — Yes, the Copperhead 10 ESC is compatible with Castle's range of 4-pole 12-slot sensored motor options. Castle offers the Copperhead in combo packages with multiple 1406, 1410 and 1415 KV variants (including the 1415-2400Kv included in this combo), all of which unlock full SmartSense technology capabilities. This compatibility eliminates guesswork when upgrading motors in the future, as any Castle 4-pole 12-slot sensored motor will work seamlessly with the ESC.
• Does the Copperhead 10 work with my Futaba transmitter? — The Copperhead 10 is compatible with Futaba S.BUS2 Telemetry Link protocol and specifically supports Futaba T4PX, T7PX and T7PXR transmitters. If you own one of these Futaba models, you can purchase the optional Castle Creations Telemetry Link for S.BUS2 to receive real-time telemetry data such as ESC temperature, battery voltage and motor RPM on your transmitter screen during driving, providing another level of performance monitoring and safety.
• What does Data Logging Lite include and how do I use it? — Data Logging Lite captures battery voltage, battery ripple, controller temperature, motor RPM and motor temperature data during your RC driving sessions. To access this data, you'll need the Castle Link Programming Suite on a Windows PC and the included coupon redeems a free Castle Link USB adapter. Simply connect the adapter to your computer, launch the free Castle Link software, plug your ESC into the adapter, and download your logged performance data to analyse trends and optimise your setup for maximum performance and battery life.
• Can I programme the Copperhead 10 without a computer? — Yes, the Copperhead 10 supports interface-free manual programming mode using your RC transmitter. You can set low-voltage cutoff, brake type and amount, drag brake, motor type and direction directly from your transmitter without any computer or adapter. For deeper tuning and advanced features like SmartSense calibration and data logging, you'll need the Castle Link Programming Suite on a Windows PC or the optional B-Link Bluetooth Adapter paired with the free Castle Link app on Android or iOS.
• Is the Copperhead 10 waterproof for muddy trail driving? — The Copperhead 10 ESC features waterproof epoxy potting throughout its construction and is housed in a durable injection-moulded case designed to protect electronics in wet conditions. Whilst the ESC itself offers excellent water resistance suitable for trail driving in mud and wet environments common in UK RC hobby locations, it's always wise to avoid submersion in water and allow the ESC to dry thoroughly if exposed to heavy splashing. The sensor harness includes a dust cover to protect the sensor port when not in use.
• What type of cooling does the Copperhead 10 provide? — The Copperhead 10 includes a 30mm removable cooling fan with a dual-use fan guard featuring the Copperhead logo. This active cooling combined with CRYO-DRIVE thermal efficiency technology minimises heat generation during normal driving. For crawler setups and other applications that don't require active fan cooling, the 30mm fan easily removes with four screws and the fan guard clicks back into place, maintaining the aesthetic appearance whilst providing protective coverage over the ESC's top surface.
• What is SmartSense and why is it important? — SmartSense is Castle's innovative technology that uses the 1415-2400Kv motor's internal sensors to provide smooth, cog-free starts with excellent low-speed torque and drivability. Once the motor reaches running speed, the ESC seamlessly transitions to ultra-efficient sensorless mode with electronic timing that automatically advances timing for peak performance. This combination delivers more power, less heat and superior driving characteristics compared to brushed motors or non-sensored systems, particularly valuable for technical crawling and trail driving.
