Overview

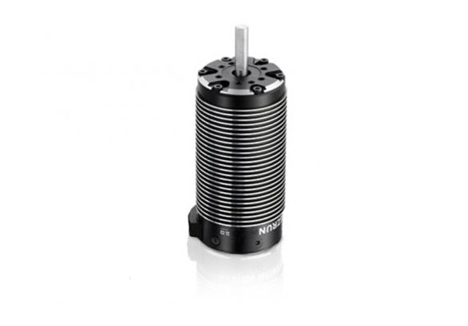

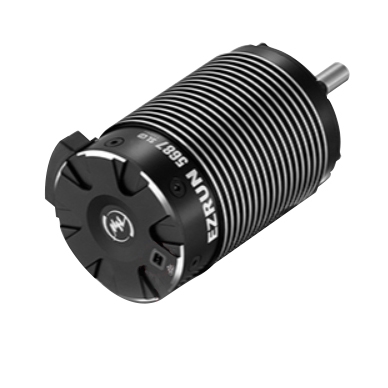

The Hobbywing Black EZRUN 5687 Brushless Sensorless Motor is a professional-grade brushless motor designed specifically for 1/5 and 1/6 scale RC vehicles. With its 1100KV rating and robust construction, this motor delivers the perfect balance of torque and speed for demanding applications, whether you're running high-speed racing on straightaways, executing wheelies with instant full-torque start-ups, or powering through the roughest terrain. This is the motor of choice for serious RC enthusiasts in the UK who demand reliability, efficiency and performance from their brushless RC car setups.
Built by Hobbywing, one of the world's leading manufacturers of RC electronics, the EZRUN 5687 represents years of engineering expertise and innovation. The sensorless brushless design eliminates the need for sensor wires, simplifying installation and reducing potential failure points. Whether you're a seasoned competitor looking to upgrade your setup or an experienced basher seeking maximum durability and torque output, the EZRUN 5687 delivers rock-solid, stable output that handles everything you can throw at it.
What truly sets this motor apart is the engineering quality packed into every component. The CNC-machined hard anodised aluminium case not only looks professional but also provides superior heat dissipation and durability. Combined with ultra-thin silicon steel laminations, high-quality Japanese bearings, and a rotor with a strong structure, this motor is built to last through countless hours of high-performance RC driving.
Key Features
- Fast Acceleration Response — The EZRUN 5687 delivers rapid acceleration response that puts you in control, enabling instant full-torque start-ups that are essential for executing wheelies and aggressive driving techniques without delay or lag.
- Brushless Sensorless Design — The sensorless brushless technology eliminates sensor wires entirely, making installation simpler and more reliable whilst reducing the number of components that could potentially fail during intense RC driving sessions.
- Industry-Leading 90% Efficiency — Hobbywing's temperature control technology ensures the motor runs cooler and more efficiently, converting more of your battery's energy into actual performance rather than wasted heat, which directly translates to longer runtime and better power delivery.
- Thermal Protection Compatibility — When paired with the Hobbywing upgraded MAX5 ESC, the built-in temperature sensor port effectively prevents motor damage from overheating and significantly prolongs the motor's service life during extended racing sessions.
- CNC-Machined Hard Anodised Aluminium Case — The precision-engineered case is machined from aluminium and hard anodised for superior durability, corrosion resistance and professional appearance whilst providing excellent heat dissipation for consistent performance.
- Premium Internal Components — Ultra-thin silicon steel laminations reduce core losses, heat-resistant oxygen-free double insulated windings protect against electrical failure, and high-quality Japanese bearings ensure smooth, reliable rotation under all conditions.
- High-Quality Polished Alloy Steel Shaft — The 8mm output shaft is manufactured from polished alloy steel, ensuring secure engagement with gears and drivetrains whilst resisting wear and corrosion from salt water and outdoor use.
- 4-Pole Brushless Motor Design — The 4-pole configuration provides the optimal balance between power delivery and efficiency, offering smooth torque characteristics across the RPM range for both acceleration and top-speed driving.
- Rock-Solid Stable Output — Engineering refinement ensures consistent, predictable power delivery in all driving conditions, from smooth acceleration to aggressive throttle inputs, giving you the control and confidence you need.
- MAX5 ESC Compatibility — When paired with the Hobbywing EZRUN MAX5 ESC, the excellent match between motor and ESC delivers large torque plus a very smooth and linear power band for precise control and responsive handling.
Technical Performance
The EZRUN 5687 is engineered for serious RC performance with a 1100KV rating that optimises the motor for torque-rich acceleration and high-speed control across 1/5 and 1/6 scale platforms. The motor measures 5.6cm in outer diameter and 8.7cm in length, providing a compact yet powerful solution for large-scale RC vehicles. The 8mm polished alloy steel shaft ensures secure, reliable gear engagement with standard drivetrains. At 916 grams, the motor's substantial weight contributes to its exceptional thermal stability and structural integrity during high-torque operations.
Construction quality is exceptional throughout. The CNC-machined hard anodised aluminium case provides superior durability and heat dissipation, critical for maintaining consistent performance during extended running sessions. Ultra-thin silicon steel laminations minimise core losses whilst heat-resistant oxygen-free double insulated windings protect against electrical stress and failure. High-quality Japanese bearings ensure smooth rotation with minimal friction losses, and the rotor features a strong internal structure to withstand the forces generated during acceleration and deceleration. This combination of premium materials and precision manufacturing delivers an efficiency rating of up to 90%, an industry-leading level that translates directly into longer battery runtime and superior power delivery. The brushless sensorless design eliminates sensor wires entirely, simplifying installation and removing a potential point of failure. When installed with a compatible Hobbywing MAX5 ESC featuring the temperature sensor port, the EZRUN 5687 gains thermal protection capability, automatically monitoring and regulating performance to prevent overheating damage and extend motor lifespan. Whether you're running on 3S, 4S, or higher LiPo battery configurations supported by your ESC, this motor adapts to deliver consistent performance across the full power range.
What's in the Box
- Hobbywing EZRUN 5687 Brushless Sensorless Motor (Black)
- 6.5mm Bullet Connectors
What You Need to Complete
- ESC (Electronic Speed Controller) — A compatible brushless ESC rated for your battery configuration. The Hobbywing EZRUN MAX5 ESC is the recommended pairing for optimal performance and thermal protection features.
- LiPo Battery — A LiPo battery pack suitable for your RC vehicle's battery tray. Battery voltage depends on your ESC's rating (typically 3S to 8S LiPo).
- Battery Charger — A charger capable of safely charging your LiPo battery pack.
- RC Vehicle Platform — A 1/5 or 1/6 scale RC vehicle chassis compatible with this motor size and 8mm shaft diameter.
- Motor Mount and Hardware — Mounting brackets and fasteners specific to your vehicle platform.
Frequently Asked Questions
- Is the Hobbywing EZRUN 5687 suitable for beginners? — This is a modified-class brushless motor designed for experienced RC enthusiasts rather than beginners. It requires proper ESC pairing, battery management knowledge, and understanding of brushless motor operation. If you're new to RC, consider starting with a complete Ready to Run RTR setup that includes all necessary electronics pre-configured.
- What battery does the EZRUN 5687 require? — The motor itself is compatible with LiPo batteries across a wide voltage range. Your specific battery choice depends on the ESC you pair with it. The recommended Hobbywing EZRUN MAX5 ESC supports batteries ranging from 3S to 8S LiPo configurations. Check your ESC specifications for exact battery compatibility.
- Does this motor include thermal protection? — The motor includes a built-in temperature sensor port that activates thermal protection features when paired with a compatible ESC like the Hobbywing upgraded MAX5 ESC. Without a compatible ESC, you won't benefit from active thermal protection, though the excellent heat dissipation design of the aluminium case helps manage heat naturally.
- What is the difference between the EZRUN 5687 and other brushless motors? — The EZRUN 5687 stands out with its industry-leading 90% efficiency rating, sensorless brushless design that simplifies installation, CNC-machined hard anodised aluminium construction, and seamless integration with Hobbywing MAX5 ESCs for thermal protection and smooth power delivery. The 1100KV rating makes this motor particularly well-suited for torque-focused applications and high-performance driving on 1/5 and 1/6 scale vehicles.
- Can I use this motor with any brushless ESC? — Whilst the motor can work with most brushless ESCs featuring 6.5mm bullet connectors, Hobbywing strongly recommends pairing it with the EZRUN MAX5 ESC to unlock the thermal protection features and achieve the excellent torque and smooth linear power band that makes this motor-ESC combination exceptional.
- What does sensorless mean? — Sensorless brushless motors don't require sensor wires to communicate with the ESC. This simplifies wiring, reduces potential failure points, and makes installation more straightforward. The trade-off is that sensorless motors may have slightly less smooth startup compared to sensored motors, though the EZRUN 5687's advanced design minimises this difference.
- Is this motor waterproof? — The motor itself is not fully waterproof, though the hard anodised aluminium case and sealed bearings provide excellent protection against casual water exposure. For salt water or submerged operation, additional waterproofing measures should be considered, and thorough rinsing after salt water use is essential.
- What shaft diameter does this motor have? — The motor features an 8mm polished alloy steel output shaft, which is the standard shaft size for many 1/5 and 1/6 scale RC vehicle platforms. Ensure your vehicle platform is compatible with 8mm motor shafts before purchasing.
Why Buy from RC Model Shop?
RC Model Shop is a trusted UK RC retailer and authorised dealer for all the brands we stock, including Traxxas, ARRMA, Losi, FTX, Hobbywing, Spektrum and more. Based in Walsall, we have a physical store where customers are welcome to come in, view products and purchase in store. Whether you are a seasoned competitor, a weekend basher, or just discovering the world of RC for the first time, our team of experienced RC enthusiasts is here to help you find the perfect setup and provide ongoing support. Order the Hobbywing Black EZRUN 5687 Brushless Sensorless Motor for 1/5 & 1/6 RC Vehicles, 1100KV, 8mm Shaft – HW30402550 today with confidence, knowing you are buying from an authorised retailer with genuine products, expert knowledge and a commitment to customer satisfaction. Shop online or visit us in Walsall — we look forward to helping you get the most out of your RC experience.
- Brand: Hobbywing
- Model Number: HW30402550
- Product Type: Brushless Sensorless Motor
- Colour: Black
- Scale Compatibility: 1/5 and 1/6 scale RC vehicles
- Motor Class: Modified
- Brush Type: Brushless
- Motor Type: Sensorless
- KV Rating: 1100KV
- KV Rating Category: Less than 2000KV
- Pole Count: 4-Pole
- Bore Diameter: 8mm
- Output Shaft Diameter: 8mm (polished alloy steel)
- Connector Type: 6.5mm Bullet Connectors
- Outer Diameter: 5.6cm
- Motor Length: 8.7cm
- Weight: 916g
- Efficiency Rating: Up to 90%
- Case Material: CNC-machined hard anodised aluminium
- Internal Laminations: Ultra-thin silicon steel
- Winding Insulation: Heat-resistant oxygen-free double insulated
- Bearings: High-quality Japanese bearings
- Rotor Construction: Strong structure
- Output Shaft Material: High-quality polished alloy steel
- Thermal Protection: Compatible with Hobbywing MAX5 ESC with temperature sensor port
- Temperature Sensor Port: Yes (when paired with compatible ESC)
- Recommended ESC Pairing: Hobbywing EZRUN MAX5 ESC
Product Description of Hobbywing HW30402550 5687 motor with 1100KV and 8mm shaft
The Hobbywing HW30402550 5687 motor with 1100KV and 8mm shaft is a black, sensorless brushless powerhouse engineered for 1/5 and 1/6 scale RC vehicles. Designed for high-torque start-ups, aggressive terrain handling, and sustained high-speed performance, this motor delivers a stable and linear power band that’s ideal for wheelies, straightaway acceleration, and rugged off-road conditions. With a robust 4-pole rotor and compatibility with 3–8S LiPo batteries, the Hobbywing HW30402550 EZRUN brushless motor for 1/5 and 1/6 scale vehicles offers unmatched durability and responsiveness for light-duty trucks and large-scale RC builds.
Key features of the Hobbywing HW30402550 5687 motor
- 1100KV output – delivers explosive torque and smooth throttle response for large-scale RC applications
- 8mm shaft – ensures secure gear engagement and high-load tolerance
- CNC-machined anodized aluminium case – enhances heat dissipation and structural integrity
- Japanese bearings – provide low-friction rotation and extended service life
- Thermal protection sensor – prevents overheating when paired with MAX5 ESC
- 90% efficiency rating – maximizes power delivery while minimizing energy loss
How does the 1100KV rating support high-torque start-ups?
The Hobbywing HW30402550 motor for high-torque start-ups and rough terrain features a 1100KV configuration that’s optimized for instant torque delivery. This allows large-scale RC vehicles to launch aggressively from a standstill, making it ideal for wheelies and rapid acceleration. The motor’s 4-pole rotor design ensures consistent torque across the RPM range, enabling smooth transitions from low-speed crawling to high-speed racing. Whether you're navigating rocky trails or blasting down straightaways, the motor maintains stable output without sacrificing control.
What makes the 8mm shaft suitable for heavy-duty applications?
The Hobbywing HW30402550 5687 motor with 1100KV and 8mm shaft is built for strength and reliability. The 8mm polished alloy steel shaft offers superior resistance to bending and wear, especially under high torque loads. This ensures secure gear mounting and consistent power transfer, even during aggressive driving. Combined with the motor’s reinforced rotor structure, the shaft supports demanding terrain and heavy vehicle weight without compromising performance or durability.
How does the CNC-machined case improve thermal management?
The Hobbywing HW30402550 sensorless motor with CNC case and thermal protection features a hard anodized aluminium housing that’s precision-machined for optimal heat dissipation. This design minimizes thermal buildup during extended runs, helping maintain consistent performance and protect internal components. When paired with the MAX5 ESC, the motor’s built-in temperature sensor actively monitors heat levels and prevents overheating, extending the motor’s lifespan and ensuring safe operation under load.
Why is the 90% efficiency rating important for RC performance?
The Hobbywing EZRUN 5687 motor with 90% efficiency and MAX5 ESC compatibility is engineered for minimal energy loss and maximum power delivery. This high efficiency rating means more of your battery’s energy is converted into usable torque and speed, resulting in longer runtimes and reduced heat generation. For competitive drivers and hobbyists alike, this translates into smoother acceleration, better throttle response, and improved overall vehicle performance.
How do Japanese bearings enhance motor longevity?
The Hobbywing motor with anodized aluminium housing and Japanese bearings incorporates high-quality components that reduce friction and wear. These bearings ensure smooth rotation of the rotor, minimizing mechanical resistance and vibration. This not only improves efficiency but also extends the motor’s operational life, making it a reliable choice for frequent use in demanding environments. Whether you're racing or bashing, the bearings contribute to consistent performance and reduced maintenance.
Is the Hobbywing HW30402550 compatible with MAX5 ESC systems?
Yes. The Hobbywing HW30402550 EZRUN brushless motor for 1/5 and 1/6 scale vehicles is fully compatible with the Hobbywing MAX5 ESC. This pairing enables advanced thermal protection via the motor’s built-in temperature sensor and port, ensuring safe operation during high-load scenarios. The ESC and motor combination delivers a smooth, linear power band with large torque output, making it ideal for light-duty 1/5 scale and 1/6 RC truck applications. The synergy between motor and ESC enhances responsiveness and protects against thermal damage.
For RC enthusiasts seeking a robust, high-efficiency motor with precision engineering and terrain-ready torque, the affordable Hobbywing 1100KV motor with 87mm length and 916g weight offers exceptional value and performance. Buy Hobbywing HW30402550 motor for high-torque start-ups and rough terrain today.
Technical Specifications of Hobbywing HW30402550 5687 motor with 1100KV and 8mm shaft
Brand, Model and Product Type
- Brand: Hobbywing
- Model: HW30402550
- Product Type: Hobbywing HW30402550 5687 motor with 1100KV and 8mm shaft, Hobbywing HW30402550 EZRUN brushless motor for 1/5 and 1/6 scale vehicles, Hobbywing HW30402550 sensorless motor with CNC case and thermal protection, Hobbywing HW30402550 with 3–8S LiPo support and 4-pole rotor, Hobbywing EZRUN 5687 motor with 90% efficiency and MAX5 ESC compatibility
- Product Colour: Black
Dimensions
- Outer Diameter: 5.6 cm – compact yet powerful for large-scale RC platforms
- Length: 8.7 cm – accommodates internal rotor and thermal protection components
- Shaft Diameter: 0.8 cm – polished alloy steel for secure gear engagement
- Exposed Shaft Length: Not specified – designed for compatibility with standard 1/5 and 1/6 drivetrains
- Weight: 916 g – substantial build for high torque output and thermal stability
Electrical and Performance Specifications
- KV Rating: 1100KV – optimized for torque-rich acceleration and high-speed control
- No-Load Current: 4.1A – indicates efficient energy draw during idle operation
- LiPo Compatibility: 3–8S – supports a wide range of voltage setups for flexible performance tuning
- Motor Type: Brushless sensorless – delivers smooth power without the need for sensor feedback
- Pole Count: 4 – ensures consistent torque delivery and stable output across RPM range
- Timing: 0 – factory-set for optimal performance with MAX5 ESC pairing
Construction and Materials
- Housing: CNC-machined anodized aluminium – enhances heat dissipation and structural integrity
- Rotor: Reinforced structure – built for durability under high torque loads
- Windings: Heat-resistant oxygen-free double insulated – ensures thermal stability and long-term reliability
- Bearings: High-quality Japanese – low-friction and long-lasting for smooth rotation
Cooling and Protection
- Thermal Protection: Enabled via built-in temperature sensor – prevents overheating when paired with MAX5 ESC
- Efficiency: Up to 90% – industry-leading performance with minimal energy loss
ESC Compatibility
- Recommended ESC: Hobbywing EZRUN MAX5 – ensures smooth, linear power band and enhanced torque delivery
Vehicle Compatibility
- Scale: 1/5 and 1/6 – ideal for light-duty trucks and large-scale RC vehicles
- Application: High-torque start-ups, rough terrain, and high-speed straightaways
What’s in the Box
- 1 × Hobbywing EZRUN 5687-1100KV Sensorless Brushless Motor (Black)
What You Require
- Compatible ESC (recommended: Hobbywing EZRUN MAX5)
- 3–8S LiPo battery pack
- 1/5 or 1/6 scale RC vehicle chassis
Sold Separately
