Brand, Model and Product Type

• Brand: Hobbywing
• Model: HW38010801
• Product Type: Hobbywing HW38010801 combo with MAX6 ESC and 4985 1650KV motor, Hobbywing HW38010801 ESC/motor combo for 1/6 and 1/7 scale RC builds, Hobbywing HW38010801 brushless combo with waterproof ESC and 5mm shaft motor
• Product Colour: Black

Motor Specifications

• Motor Type: Sensorless brushless – delivers high torque and efficient acceleration
• KV Rating: 1650KV – optimized for aggressive launches and high-speed terrain control
• No-Load Current: 5.4A – indicates efficient energy draw during idle operation
• Pole Count: 4 – ensures consistent torque delivery across the RPM range
• Motor Diameter: 49.0 mm – compact yet powerful for 1/6 and 1/7 scale platforms
• Motor Length: 86.5 mm – accommodates internal rotor and high-efficiency components
• Shaft Diameter: 5.0 mm – polished alloy steel for secure gear engagement
• Motor Weight: 587 g – heavy-duty build for thermal stability and durability
• LiPo Compatibility: 3–6S – supports high-voltage setups for demanding RC builds
• Application: 1/6 and 1/7 scale RC vehicles – ideal for Traxxas XO-1, CEN GST-E, and similar platforms

ESC Specifications

• ESC Type: MAX6 V3 – engineered for large-scale RC vehicles
• Continuous Current: 160A – delivers sustained power for aggressive terrain and racing
• Peak Current: 1050A – handles short bursts of torque under extreme load
• Cooling Fan: 35 × 35 × 10 mm – powered by built-in BEC for stable temperature control
• ESC Dimensions: 70.0 × 56.0 × 46.5 mm
• ESC Weight: 240 g – includes input wires
• Input Voltage: 3–8S LiPo / 9–24 cell NiMH – supports flexible battery configurations

BEC System

• BEC Type: Switch-mode – efficient voltage regulation for servo and accessory support
• BEC Output Voltage: Adjustable between 6V and 7.4V – supports high-voltage servo configurations
• BEC Output Current: 6A – ensures reliable power delivery under load

Protection and Efficiency Features

• Waterproof Design: Sealed electronics – protects against moisture, dust, and debris
• Anti-Spark Circuit: Integrated – prevents connector damage and physical injury during battery hookup
• Electronic Switch: Rated for 50,000+ cycles – housed in shock-resistant casing
• Multiple Protections: Includes low voltage, ESC overheat, throttle signal loss, current overload, and capacitor overheat protection

Programming and Configuration

• Program Port: FAN/Program Port – supports WiFi module and external programming tools

Wiring and Connectors

• Input Wires: 10AWG Red and Black – 200 mm length for flexible routing
• Output Connectors: 6.5 mm gold-plated female connectors – pre-soldered onto PCB

What’s in the Box

• 1 × Hobbywing MAX6 V3 ESC
• 1 × Hobbywing 4985 1650KV Sensorless Brushless Motor (Black)

What You Require

• 3–6S LiPo battery pack
• Compatible 1/6 or 1/7 scale RC chassis

Sold Separately

• Hobbywing WiFi module or programming card

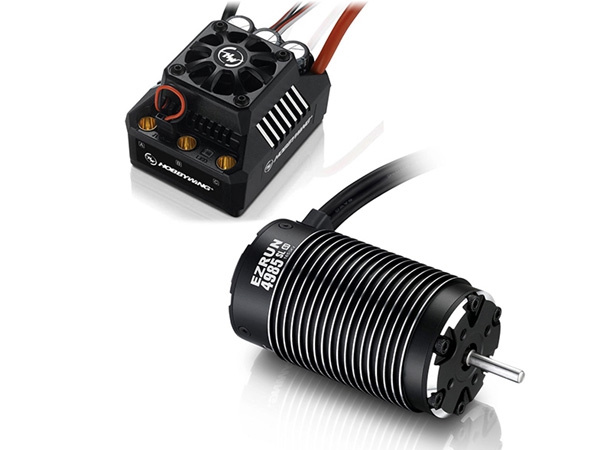

Product Description of Hobbywing HW38010801 combo with MAX6 ESC and 4985 1650KV motor

The Hobbywing HW38010801 combo with MAX6 ESC and 4985 1650KV motor is a black, sensorless brushless system engineered for 1/6 and 1/7 scale RC builds. Designed for aggressive launches and high-speed terrain control, this waterproof combo delivers powerful torque, advanced protection, and flexible tuning. With 3–6S LiPo compatibility, a 160A ESC, and a heavy-duty 587g motor, the Hobbywing HW38010801 ESC/motor combo for 1/6 and 1/7 scale RC builds offers robust performance and reliability for demanding off-road and racing applications.

Key features of the Hobbywing HW38010801 combo

• 1650KV motor – tuned for explosive acceleration and stable high-speed control
• 160A ESC – delivers sustained high-current output for aggressive terrain
• Waterproof and dustproof design – ensures reliable operation in all weather conditions
• Anti-spark circuit – protects connectors and prevents injury during battery hookup
• Gold-plated 6.5mm connectors – pre-soldered for efficient power transfer
• Switch-mode BEC – adjustable between 6V and 7.4V for high-voltage servo support
• Electronic switch – rated for over 50,000 cycles, housed in shock-resistant casing

How does the 1650KV motor enhance launch and speed?

The Hobbywing 1650KV motor system with 4-pole rotor and 86.5mm length is engineered for torque-rich acceleration and high-speed stability. Its 4-pole rotor ensures consistent torque across the RPM range, while the sensorless configuration delivers responsive throttle control. The 5mm shaft provides secure gear engagement, making it ideal for large-scale RC vehicles like the Traxxas XO-1 and CEN GST-E.

What makes the MAX6 ESC suitable for high-performance builds?

The Hobbywing HW38010801 with 160A ESC and 6V/7.4V switch-mode BEC features a high-capacity ESC capable of delivering 160A continuous and 1050A peak current. Smart firmware and built-in protections—including low voltage, overheat, and signal loss—ensure safe operation under extreme conditions. The ESC also supports WiFi module programming and includes a fan-powered port for cooling and configuration.

How does waterproofing improve system longevity?

The Hobbywing HW38010801 brushless combo with waterproof ESC and 5mm shaft motor is built to withstand moisture, dust, and debris. Its sealed construction protects internal electronics, ensuring reliable performance in mud, snow, and wet terrain. This durability makes it ideal for off-road enthusiasts who demand consistent operation in unpredictable environments.

What are the benefits of the anti-spark circuit?

The Hobbywing MAX6 combo with anti-spark circuit and gold-plated connectors includes internal circuitry that prevents sparking during battery connection, especially with high-voltage packs. This protects connectors from damage and reduces the risk of physical injury, making setup safer and more reliable for users handling 5S to 8S LiPo systems.

Is this combo suitable for high-voltage servos?

Yes. The built-in switch-mode BEC supports 6V and 7.4V output with up to 6A continuous current, allowing users to power high-voltage steering servos and accessories without external regulators. This ensures responsive control and reduces the risk of brownouts during peak power draw.

For builders seeking a high-performance, waterproof ESC/motor system with advanced protection and tuning capabilities, the best Hobbywing upgrade for aggressive launches and high-speed terrain is ready to deliver. Buy Hobbywing HW38010801 combo for Traxxas XO-1 and CEN GST-E builds today.

Technical Specifications of Hobbywing HW38010801 combo with MAX6 ESC and 4985 1650KV motor

Brand, Model and Product Type

• Brand: Hobbywing
• Model: HW38010801
• Product Type: Hobbywing HW38010801 combo with MAX6 ESC and 4985 1650KV motor, Hobbywing HW38010801 ESC/motor combo for 1/6 and 1/7 scale RC builds, Hobbywing HW38010801 brushless combo with waterproof ESC and 5mm shaft motor
• Product Colour: Black

Motor Specifications

• Motor Type: Sensorless brushless – delivers high torque and efficient acceleration
• KV Rating: 1650KV – optimized for aggressive launches and high-speed terrain control
• No-Load Current: 5.4A – indicates efficient energy draw during idle operation
• Pole Count: 4 – ensures consistent torque delivery across the RPM range
• Motor Diameter: 49.0 mm – compact yet powerful for 1/6 and 1/7 scale platforms
• Motor Length: 86.5 mm – accommodates internal rotor and high-efficiency components
• Shaft Diameter: 5.0 mm – polished alloy steel for secure gear engagement
• Motor Weight: 587 g – heavy-duty build for thermal stability and durability
• LiPo Compatibility: 3–6S – supports high-voltage setups for demanding RC builds
• Application: 1/6 and 1/7 scale RC vehicles – ideal for Traxxas XO-1, CEN GST-E, and similar platforms

ESC Specifications

• ESC Type: MAX6 V3 – engineered for large-scale RC vehicles
• Continuous Current: 160A – delivers sustained power for aggressive terrain and racing
• Peak Current: 1050A – handles short bursts of torque under extreme load
• Cooling Fan: 35 × 35 × 10 mm – powered by built-in BEC for stable temperature control
• ESC Dimensions: 70.0 × 56.0 × 46.5 mm
• ESC Weight: 240 g – includes input wires
• Input Voltage: 3–8S LiPo / 9–24 cell NiMH – supports flexible battery configurations

BEC System

• BEC Type: Switch-mode – efficient voltage regulation for servo and accessory support
• BEC Output Voltage: Adjustable between 6V and 7.4V – supports high-voltage servo configurations
• BEC Output Current: 6A – ensures reliable power delivery under load

Protection and Efficiency Features

• Waterproof Design: Sealed electronics – protects against moisture, dust, and debris
• Anti-Spark Circuit: Integrated – prevents connector damage and physical injury during battery hookup
• Electronic Switch: Rated for 50,000+ cycles – housed in shock-resistant casing
• Multiple Protections: Includes low voltage, ESC overheat, throttle signal loss, current overload, and capacitor overheat protection

Programming and Configuration

• Program Port: FAN/Program Port – supports WiFi module and external programming tools

Wiring and Connectors

• Input Wires: 10AWG Red and Black – 200 mm length for flexible routing
• Output Connectors: 6.5 mm gold-plated female connectors – pre-soldered onto PCB

What’s in the Box

• 1 × Hobbywing MAX6 V3 ESC
• 1 × Hobbywing 4985 1650KV Sensorless Brushless Motor (Black)

What You Require

• 3–6S LiPo battery pack
• Compatible 1/6 or 1/7 scale RC chassis

Sold Separately

• Hobbywing WiFi module or programming card
