Features

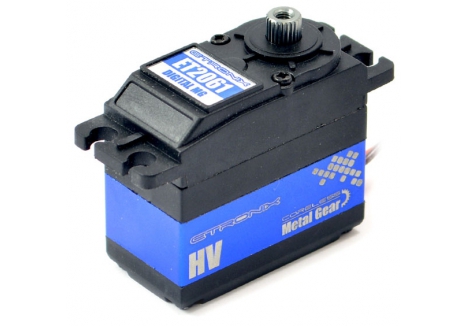

- High performance digital high voltage coreless standard servo
- High-precision aluminium gears with hard anodizing
- Dual ball bearings
- CNC aluminium middle hull
- Waterproof
Specifications
Dead Band: 1μs
Working Frequency: 1520μs / 330hz
Motor: Coreless motor
Operating Speed (6.0V): 0.112sec/60°
Operating Speed (8.4V): 0.095sec/60°
Stall Torque (6.0V): 12.86 kg.cm (178.59oz/in)
Stall Torque (8.4V): 15.83kg.cm (219.83oz/in)
Dimensions: 40.5X20.5X36.5mm /1.59 X0.80X1.43 in
Weight: 59.3g (2.09oz)
Connector Wire Length: JR 265 mm (10.43in)
