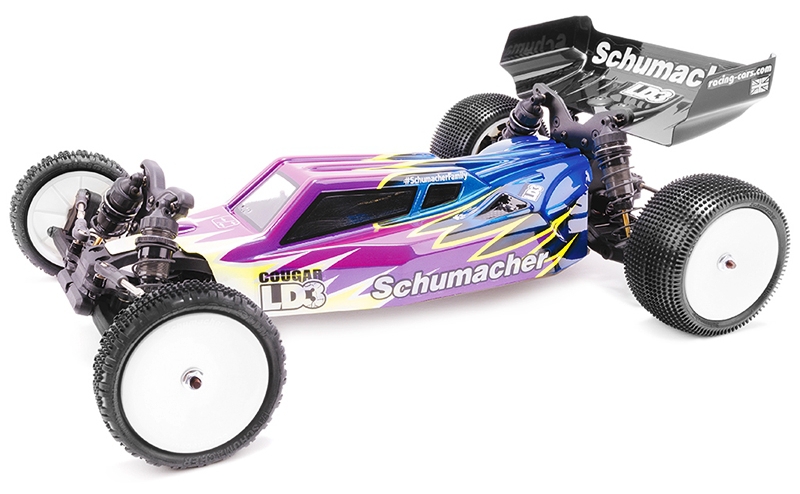

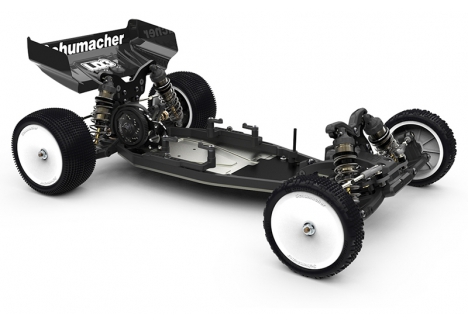

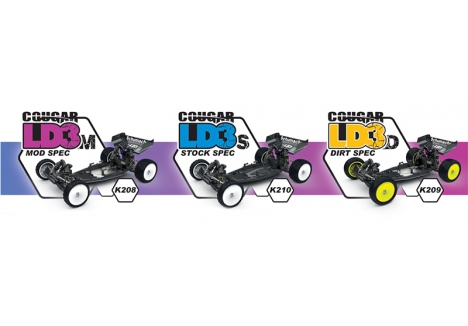

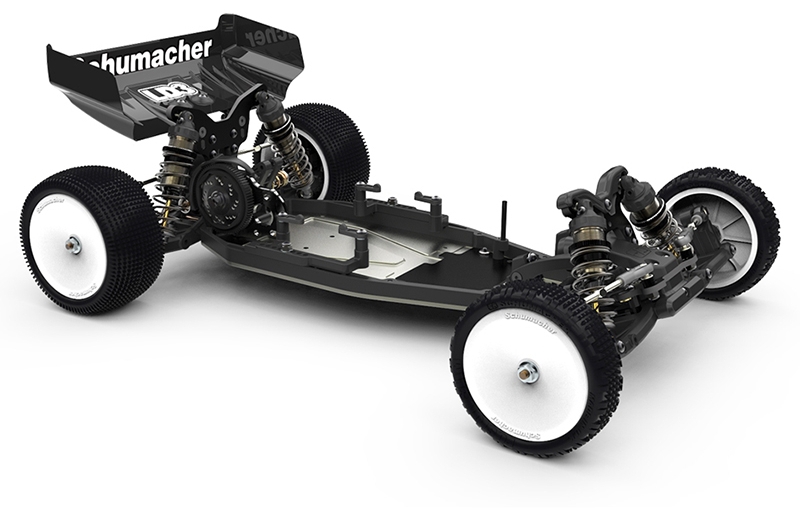

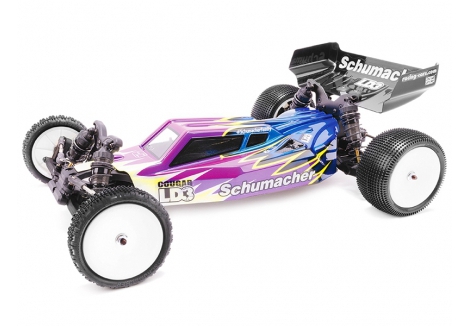

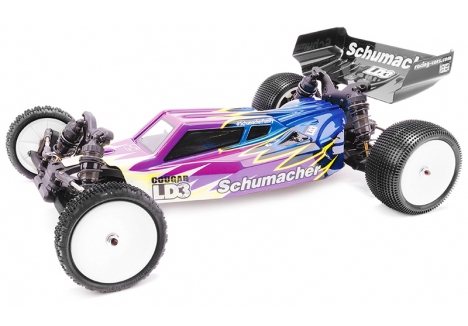

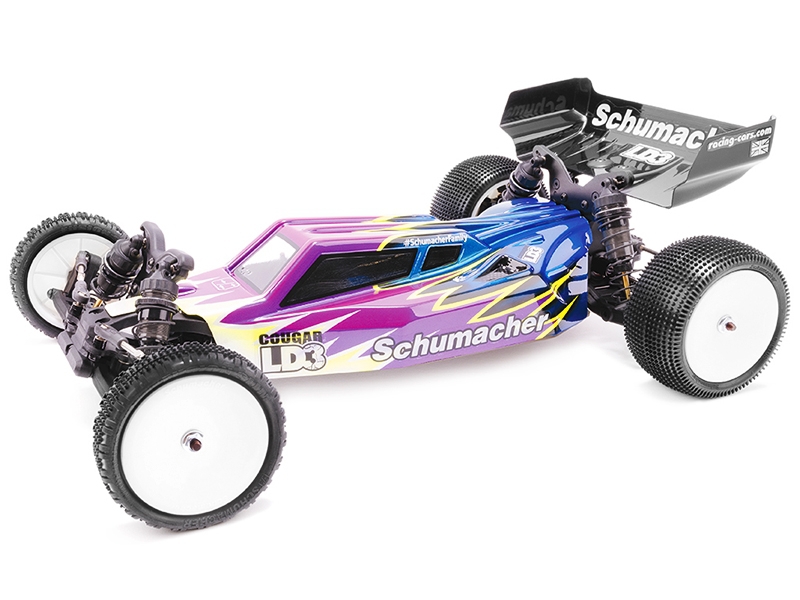

The Schumacher Cougar LD3M – Mod Spec – Kit (SCH-K208) refines the class-leading LD3 1/10 2WD racing buggy platform.

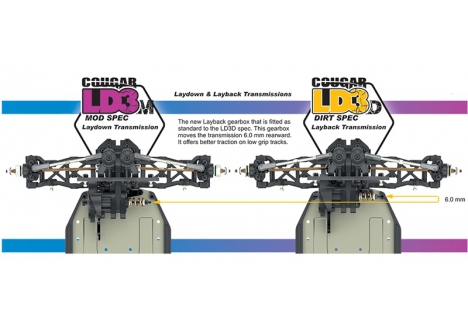

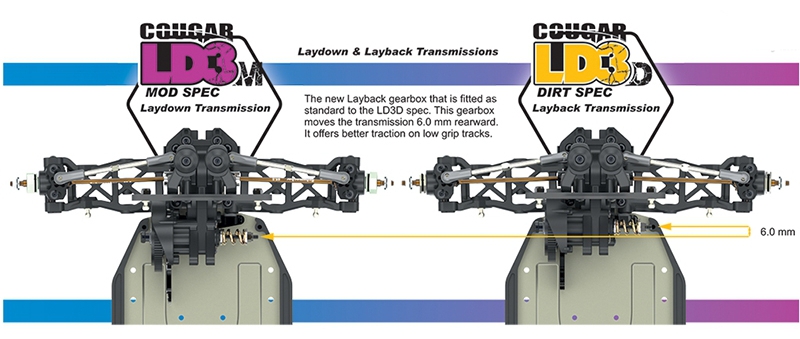

Lighter, more durable and easier to work on, the LD3 has already delivered national and international success, including a World Championship podium. The LD3M configuration is optimised for medium to high-grip astro and carpet tracks, featuring the forward motor position laydown transmission for precise, high-traction handling.
LD3M – Mod Spec Highlights

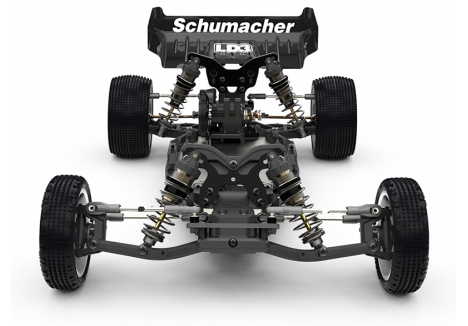

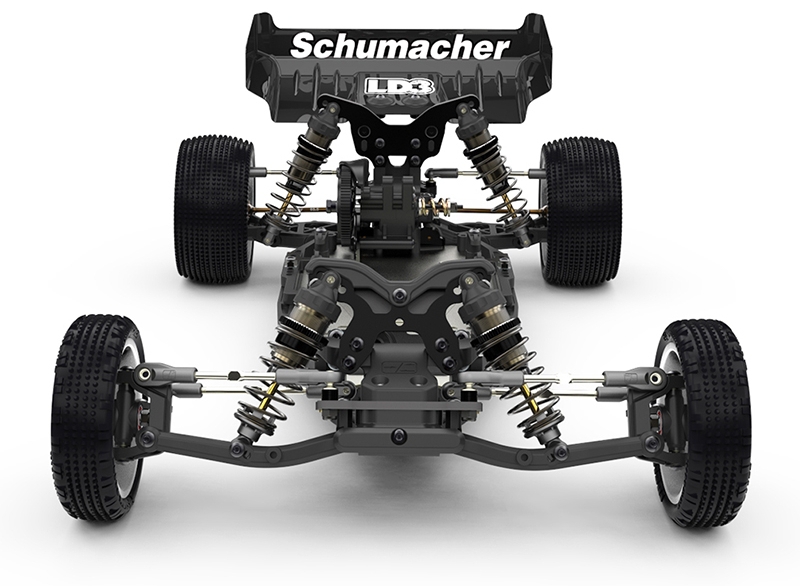

New front quarter geometry: front wishbone, hub carrier with increased adjustability, and 5° caster block.
Fine outboard camber link increments and greater range for front axle position.
Larger hub bearings and updated axle design for durability; −2.0 mm front hex.
S2 steering arms and improved pivot system for king pin and outer hinge pin.
4 mm S2 lightened front shock tower for lower centre of gravity; 4 mm S2 rear shock tower with new geometry.
One-piece shock caps and moulded shock pistons for improved sealing and weight saving.
5.5 mm front camber link ball cups.

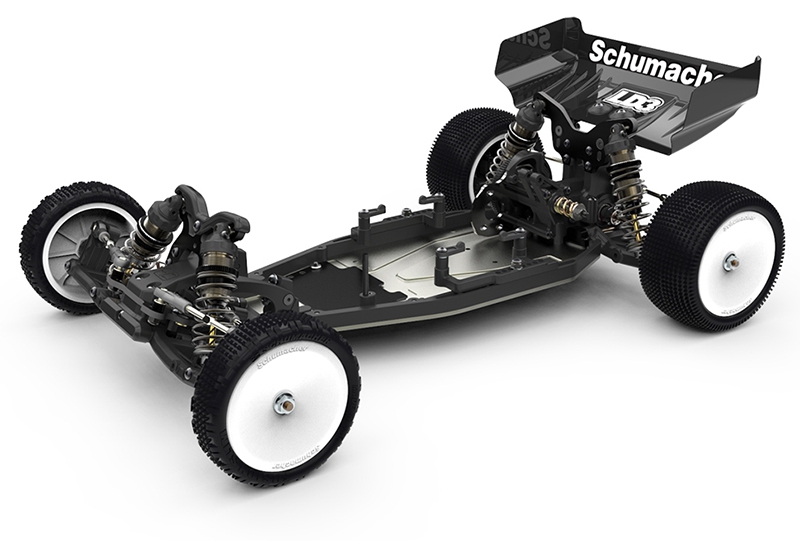

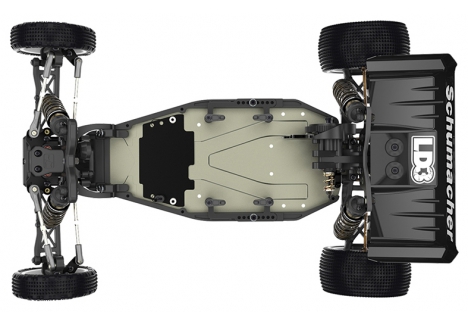

2.5 mm reduced-weight alloy chassis with recessed radio tray and redesigned rear end; side pods with rear flex slots for stiffness tuning.
Internal transmission with twin-pad through slipper and 80T spur; moulded internal idler gear with improved Teflon-coated material.
Revised differential shimming for durability.
Rear suspension wishbones and alloy rear strap with greater wheelbase adjustment and new shock positions.
Pin-retaining design for reliability; rear hub carrier with fully adjustable insert system and camber adjustment.
Aerox Trident Wing 1.0 mm (AX037) and JConcepts S2 Cougar LD3 body (JC0432).
Key Features
Class-leading front suspension geometry with durable components and optional alloy upgrades.
Front end enables zero and minus five wheelbase lengths without needing an additional chassis.
90° phased lightweight steel CVD driveshafts – 65.5 mm.
Easy-access battery fitting system with multiple mounting options; low drop wing mount.
Compact steering layout for in-line weight placement with adjustable, dynamic Ackermann.
12 mm hex wheels with industry-standard offset.
13 mm big-bore shocks with CORE springs, threaded collars and twin O-ring sealing.
Shock seal pack housing with O-ring sealing; lightweight lower spring cups; screw piston fixing with TiN shafts.
Optional rear shock location in front of or behind the wishbones (as standard in the kit).
Front shock tower cover to protect the car and track.
Adjustable rear roll centres, inboard toe-in and anti-squat.
Cable management system.
Easy-access transmission for quick differential maintenance; spur gear shield.
Small, low rotating mass transmission with 3-position height adjustment.
Super-precision ball bearings throughout.
Specifications
Power Source: Electric
Model Type: 2WD, Off-Road, Competition
Length: 395 mm
Width: 245 mm
Wheelbase: 275–285 mm
Top Speed: 40+ mph
Required To Complete
2-channel radio
Motor
Servo
Electronic speed control
Tyres
LiPo battery
Paint for bodyshell
Brand: Schumacher
Part No: SCH-K208
Barcode: 5051294187286
Scale: 1:10
Vehicle Type: Buggy
Power Source: Electric - No Motor
Surface Type: Off Road
Build Level: Unassembled (Kit)
