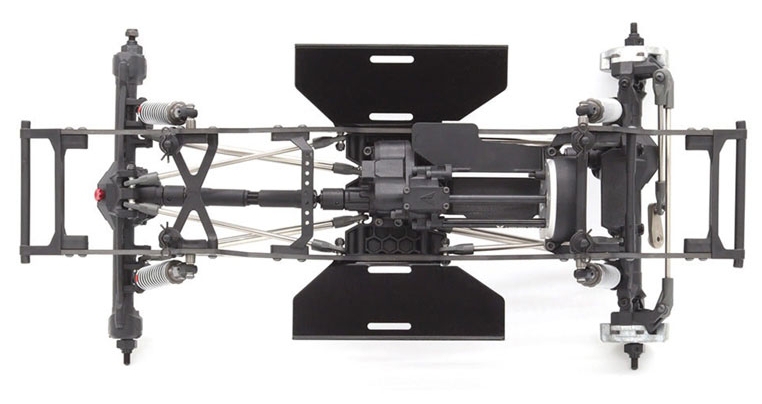

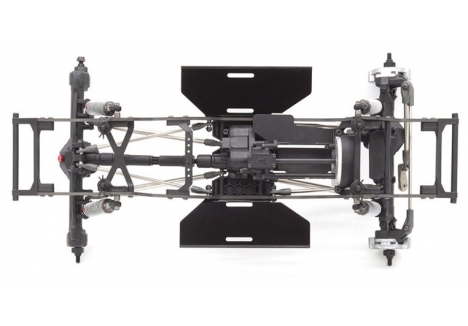

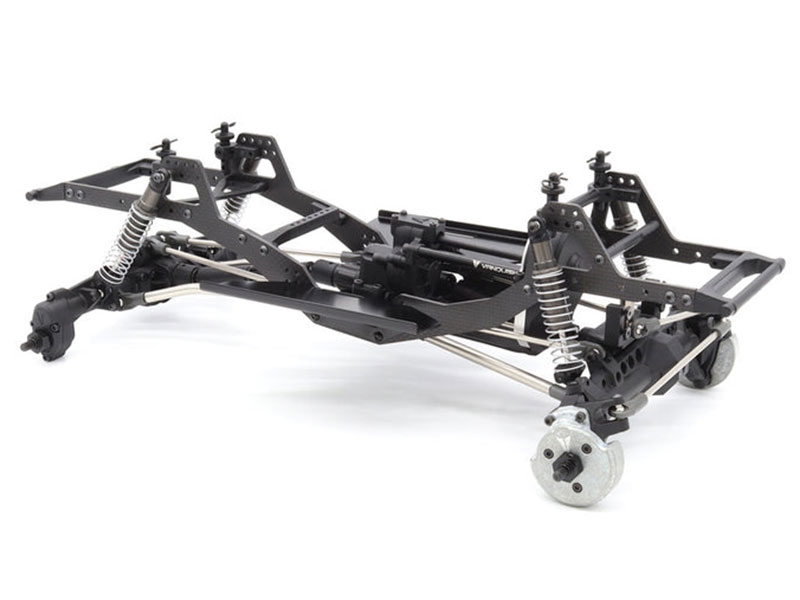

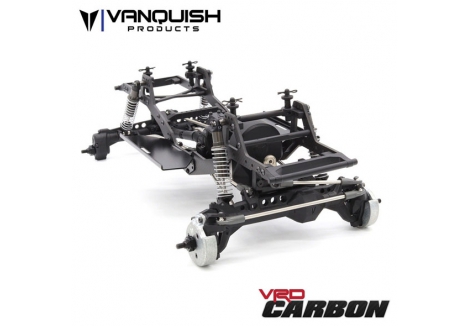

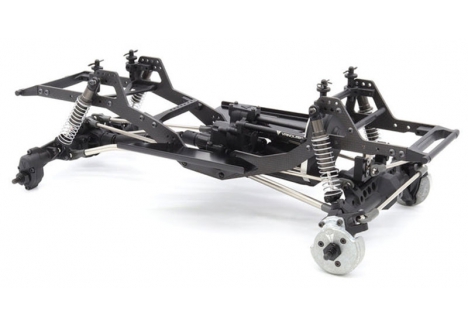

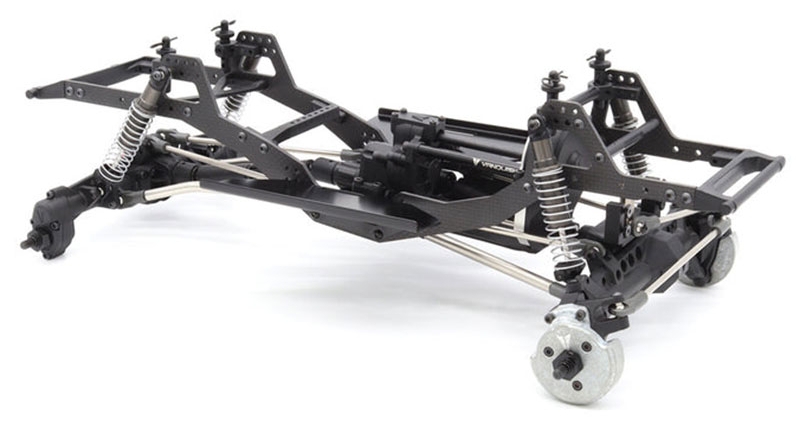

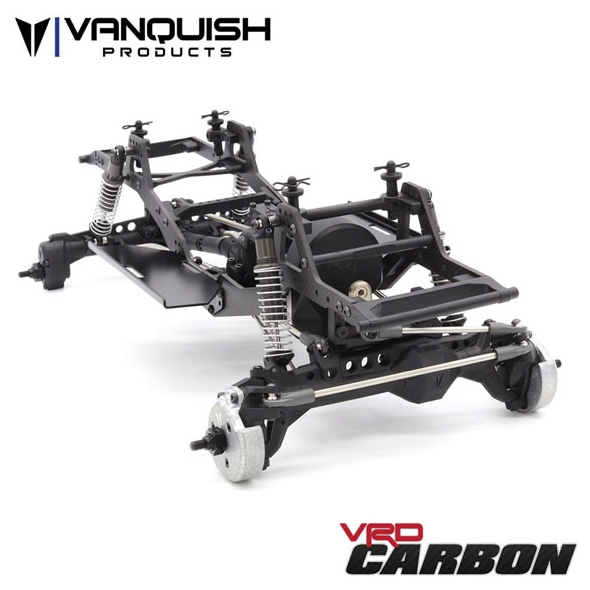

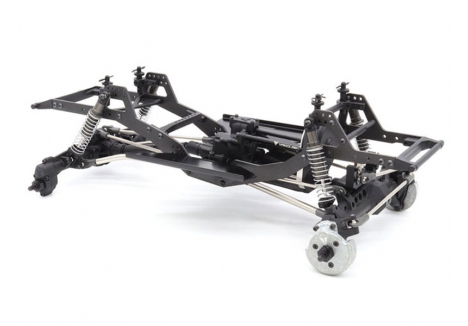

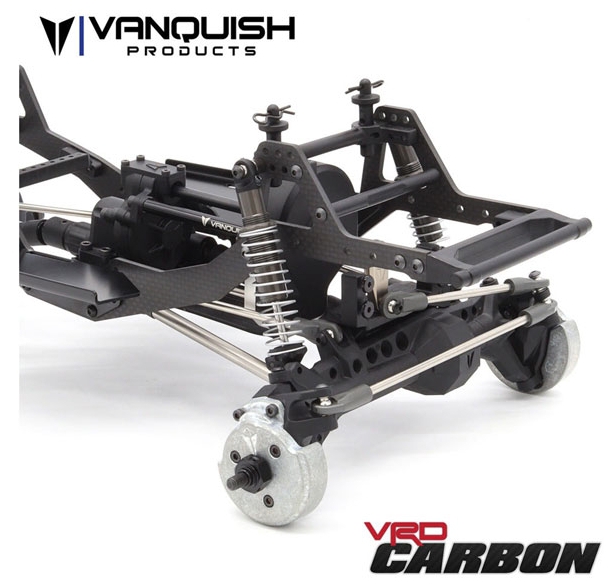

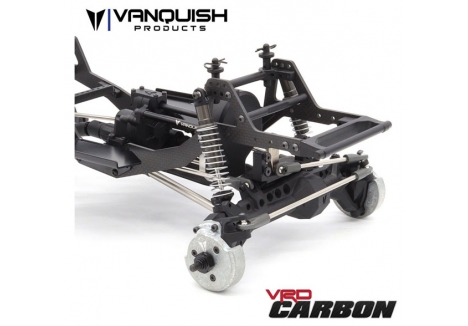

The Vanquish VPS09015 VRD Carbon Kit is a competition-level 1/10 scale rock crawler chassis equipped with carbon fibre frame rails, overdrive drivetrain, and premium suspension gear for serious terrain performance. Built with 3mm matte finish carbon fibre frame rails paired to a 6° flat skid plate, this kit also features a lightweight VFD transmission located low in the chassis, providing both strength and excellent ground clearance.
Key features of the Vanquish VPS09015
- Lightweight Spec VFD Transmission – machined gears and motor plate for reduced weight and high durability
- F10 Portal Axles with Overdrive – front axle with portal overdrive and standard rear portals giving 37% final overdrive
- Incision S8E Shocks – hard-anodized bodies, multiple tuning rod-ends, adjustable shock length between 85-95mm
- Carbon Fibre Frame Rails & Flat Skid Plate – 3mm thick matched with flat-plate skid for rugged chassis strength
- Weighted Brass Tube Inserts & Alloy Knuckle Weights – low centre of gravity for improved stability
- Molded Chassis Components + Aluminum Rock Sliders – protects electronics and aids mounting body and battery securely
With stainless steel lower links and lightweight upper links, this chassis is tuned for serious trail and comp use. Rear links are bent to enhance breakover clearance; adjustable shock and mount positions let you tailor geometry for tight obstacles or aggressive climbing.
What drivetrain specs push this kit ahead?
Featuring overdrive portal gears at front, standard portal at rear, and the VFD transmission, the VPS09015 delivers a final ratio of 37% over stock, offering more torque and better response in crawling situations. Lightweight chromoly gears, universal axle shafts, and machined ring & pinion all contribute to strength without excess weight.
What are needed items to complete this chassis kit?
Since this is a kit, you’ll need to supply a 2+ channel radio system, a 540-size motor, ESC, steering servo, battery (max 35 × 35 × 100 mm), charger, wheels & tires, and a body. Everything else is included to get you started on high performance builds.
If competition crawling or rock terrain mastery is your goal, the Vanquish VPS09015 VRD Carbon Kit offers gear-level upgrades, precision build quality, and customization potential. Buy Vanquish VPS09015 VRD Carbon Kit today and build your path to comp-ready performance.
Brand, Model & Product Type
- Brand: Vanquish Products
- Model: VPS09015
- Product Type: Vanquish VRD Carbon Kit 1/10 Competition Chassis Kit
Chassis & Drivetrain
- Frame Rails: 3mm matte carbon fibre
- Skid Plate: 6° flat aluminium skid plate

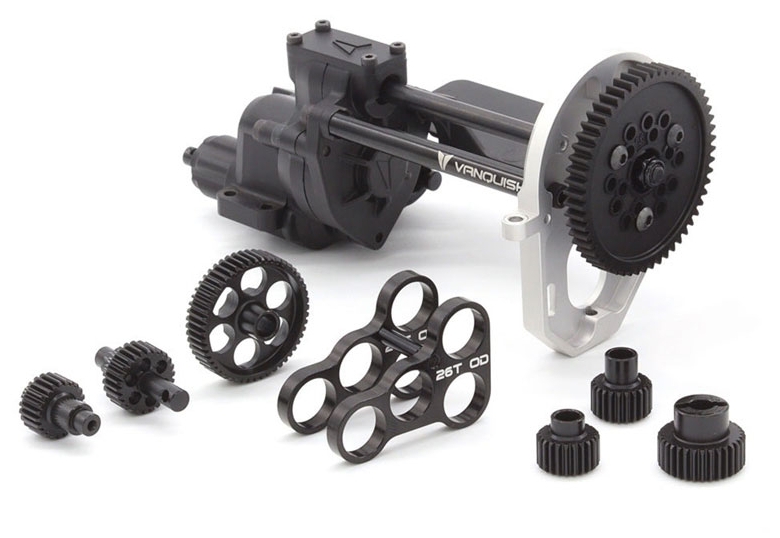

- Transmission: Lightweight Spec VFD with machined chromoly gears and motor plate
- Front Axle Ratio: 5.25:1
- Rear Axle Ratio: 6.25:1
- Final Overdrive: 37% (via mix of portal and transmission overdrive)
Axles, Portals & Weighting

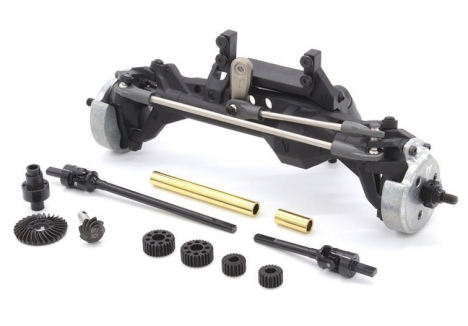

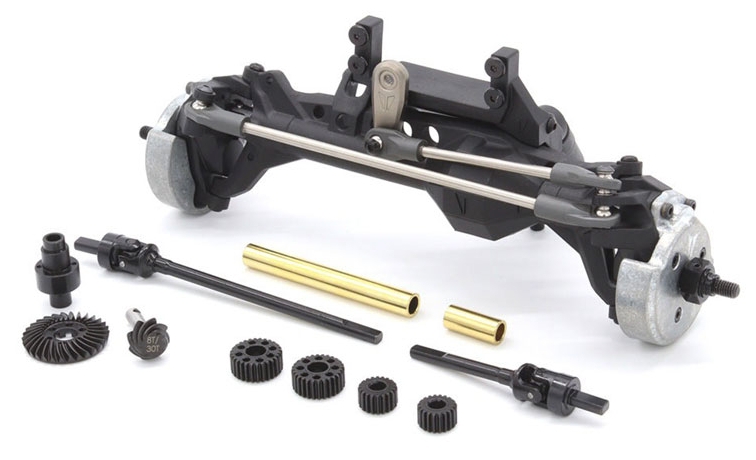

- F10 portal axles, front with overdrive portal gears, rear standard portal gears
- Brass weight tubes in front and rear axles
- Alloy portal knuckle weights on front axles
Suspension & Links
- Shocks: Incision S8E hard-anodised bodies, adjustable with multiple length rod ends (85-95 mm final shock length)
- Lower Suspension Links: heavy-duty stainless steel
- Upper Links: lightweight material
- Bent Rear Lower Links for improved breakover clearance
Misc Construction Details
- Molded chassis components for tunability and modular body/bumper mounting
- Aluminum rock sliders for electronics and battery protection
Dimensions & Frame Layout
- Wheelbase: 322 mm (12.67 in)
- Width (Hex-to-Hex): 200 mm (7.87 in)
Completion Level & Requirements
- Completion Level: Kit (unassembled, electronics & body not included)
- Required Items: Motor (540 size), ESC, Radio/Receiver, Steering Servo, Battery, Charger, Wheels & Tires, Body
Other Features
- Overdrive Portal Gears on Front Axle
- Weighted knuckles & weight tubes to lower center of gravity
Warranty
- Guarantee: 1-Year Manufacturer Guarantee
