Brand, Model and Product Type

• Brand: Futaba
• Model: FUT05102698-3
• Product Type: Futaba FUT05102698-3 HPS-CB701 brushless servo with S.Bus2, Futaba FUT05102698-3 standard servo 49kg 0.075s, Futaba FUT05102698-3 programmable HV servo for RC cars, Futaba FUT05102698-3 with aluminium case and metal gears, Futaba HPS-CB701 servo with SR/UR mode and 25T spline
• Product Color: Black

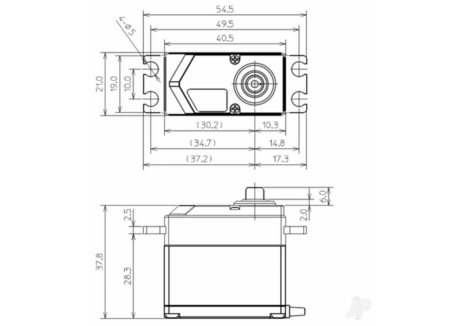

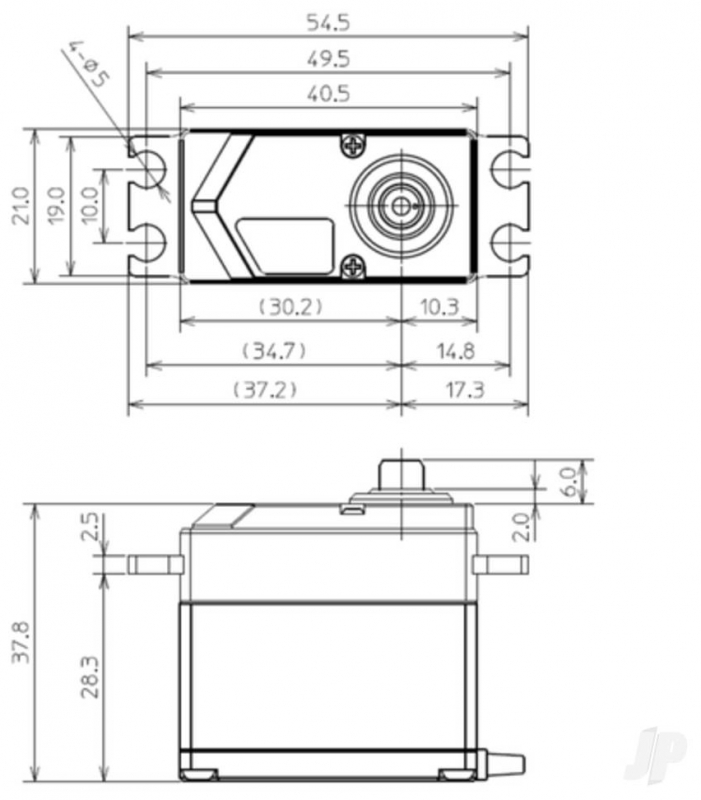

Dimensions

• Product Length: 4.1 cm – compact standard size for high-performance RC integration
• Product Width: 2.1 cm – fits securely into servo bays for 1/10 and 1/8 scale vehicles
• Product Height: 3.8 cm – low-profile aluminium case for heat dissipation and durability
• Product Weight: 75 g – robust build for high-torque applications
• Shipping Weight: 0.12 kg – includes servo, horn, and mounting hardware

Performance Specifications

• Torque at 7.4V: 49.0 kgf.cm / 680.5 ozf.in – ideal for aggressive steering and throttle control
• Torque at 6.0V: 42.0 kgf.cm / 583.3 ozf.in – maintains strong output under moderate voltage
• Speed at 7.4V: 0.075 sec/60° – ultra-fast actuation for competitive racing
• Speed at 6.0V: 0.09 sec/60° – consistent performance across voltage range

Motor and Gear System

• Motor Type: Custom high-power brushless motor – delivers smooth, efficient operation

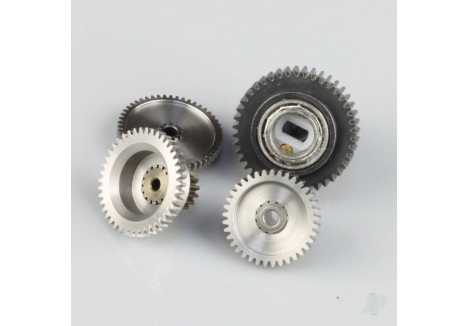

• Gear Material: Metal – ensures long-term durability under extreme loads
• Spline Count: 25T – compatible with Futaba-standard servo horns

Signal and Protocol Support

• Signal Type: PWM – supports conventional receiver systems
• Bus System: S.Bus and S.Bus2 – enables advanced telemetry and simplified wiring
• SR Mode: Supported – compatible with T4PM/P, T7PX/R, T10PX
• UR Mode: Supported – compatible with T10PX for ultra-fast signal processing

Voltage and Power

• Rated Voltage: DC 6.0V – 7.4V
• Operating Voltage: DC 4.8V – 8.4V
• Power Note: Not compatible with dry batteries or BEC systems

Application and Compatibility

• Use Case: RC cars – optimized for 1/10 and 1/8 scale on-road and off-road vehicles
• Servo Size: Standard – fits most competitive RC platforms
• Age Recommendation: 14+ – designed for hobbyists and experienced racers

Construction and Materials

• Case Material: Aluminium – upper, middle, and bottom sections for enhanced durability

What’s in the Box

• 1 × HPS-CB701 Standard Brushless Servo
• Servo horn
• Mounting hardware

What You Require

• Compatible Futaba transmitter with SR/UR mode support
• CIU-2 or CIU-3 USB adapter for PC programming (sold separately)
• Power source between 6.0V and 7.4V (no BEC or dry cells)

Sold Separately

• CIU-2 / CIU-3 USB programming adapter
• Futaba transmitter with S.Bus2 and UR/SR mode support

Product Description of Futaba FUT05102698-3 HPS-CB701 brushless servo

The Futaba FUT05102698-3 HPS-CB701 brushless servo with S.Bus2 is a high-performance, programmable HV servo engineered for elite RC car applications. Designed for 1/10 and 1/8 scale on-road and off-road platforms, this black aluminium-case servo delivers an exceptional 49kgf.cm of torque at 7.4V and a blistering 0.075-second response time per 60°. Whether you're racing nitro buggies or tuning high-speed electric setups, the Futaba FUT05102698-3 standard servo 49kg 0.075s offers precision, durability, and advanced telemetry integration for competitive control.

Key features of the Futaba HPS-CB701 Brushless Servo

• High-voltage brushless motor – delivers consistent power and ultra-fast response
• Torque output – 49kgf.cm at 7.4V for aggressive steering and throttle control
• Speed – 0.075 sec/60° at 7.4V for rapid actuation in high-speed setups
• Programmable via CIU-2/CIU-3 USB adapter – enables custom tuning and firmware updates
• Supports SR and UR modes – compatible with Futaba T4PM/P, T7PX/R, and T10PX transmitters
• S.Bus and S.Bus2 support – simplifies wiring and enables telemetry feedback
• Metal gear train – ensures long-term durability under extreme loads
• 25T spline output – compatible with standard Futaba servo horns
• Aluminium case – upper, middle, and lower sections for heat dissipation and structural integrity

Why choose the Futaba FUT05102698-3 programmable HV servo for RC cars?

The Futaba FUT05102698-3 programmable HV servo for RC cars is built for racers who demand precision and adaptability. With programmable parameters accessible via CIU-2 or CIU-3 adapters, users can fine-tune response curves, torque profiles, and mode settings to match their driving style and terrain. Its compatibility with SR and UR modes ensures ultra-fast signal processing, while S.Bus2 integration allows for streamlined wiring and telemetry monitoring. Whether you're competing on asphalt or dirt, this servo delivers the responsiveness and control needed to dominate the track.

How does the Futaba FUT05102698-3 with aluminium case and metal gears enhance durability?

Durability is critical in high-performance RC environments, and the Futaba FUT05102698-3 with aluminium case and metal gears is built to withstand the rigors of competitive racing. The full aluminium housing provides superior heat dissipation and structural rigidity, protecting internal components from vibration and impact. The metal gear train ensures long-lasting performance under high torque loads, making this servo ideal for aggressive steering setups and heavy-duty throttle control. Combined, these features deliver a servo that performs reliably under pressure.

What makes the Futaba HPS-CB701 servo with SR/UR mode and 25T spline ideal for advanced setups?

The Futaba HPS-CB701 servo with SR/UR mode and 25T spline offers advanced signal processing capabilities that reduce latency and improve control resolution. SR mode enhances speed and precision for fast-paced racing, while UR mode unlocks ultra-responsive performance for expert-level tuning. The 25T spline ensures compatibility with a wide range of servo horns and linkages, allowing seamless integration into custom builds. These features make the HPS-CB701 a top-tier choice for drivers seeking maximum control and configurability.

Is the Futaba brushless servo for 1/10 and 1/8 scale on-road/off-road suitable for competitive racing?

Absolutely. The Futaba brushless servo for 1/10 and 1/8 scale on-road/off-road is specifically designed for competitive RC racing environments. Its high-speed actuation and powerful torque output provide the responsiveness needed for tight corners, rapid acceleration, and aggressive braking. The programmable interface allows racers to tailor performance to specific track conditions, while the robust construction ensures reliability across multiple race seasons. Whether you're racing nitro buggies or electric touring cars, this servo delivers elite-level control.

For serious RC drivers seeking unmatched speed, strength, and configurability, the affordable Futaba HPS-CB701 with 680oz torque and 0.075s response is the ultimate upgrade. Buy Futaba FUT05102698-3 servo with CIU-3 support and mounting hardware today.

Technical Specifications of Futaba FUT05102698-3 HPS-CB701 brushless servo

Brand, Model and Product Type

• Brand: Futaba
• Model: FUT05102698-3
• Product Type: Futaba FUT05102698-3 HPS-CB701 brushless servo with S.Bus2, Futaba FUT05102698-3 standard servo 49kg 0.075s, Futaba FUT05102698-3 programmable HV servo for RC cars, Futaba FUT05102698-3 with aluminium case and metal gears, Futaba HPS-CB701 servo with SR/UR mode and 25T spline
• Product Color: Black

Dimensions

• Product Length: 4.1 cm – compact standard size for high-performance RC integration
• Product Width: 2.1 cm – fits securely into servo bays for 1/10 and 1/8 scale vehicles
• Product Height: 3.8 cm – low-profile aluminium case for heat dissipation and durability
• Product Weight: 75 g – robust build for high-torque applications
• Shipping Weight: 0.12 kg – includes servo, horn, and mounting hardware

Performance Specifications

• Torque at 7.4V: 49.0 kgf.cm / 680.5 ozf.in – ideal for aggressive steering and throttle control
• Torque at 6.0V: 42.0 kgf.cm / 583.3 ozf.in – maintains strong output under moderate voltage
• Speed at 7.4V: 0.075 sec/60° – ultra-fast actuation for competitive racing
• Speed at 6.0V: 0.09 sec/60° – consistent performance across voltage range

Motor and Gear System

• Motor Type: Custom high-power brushless motor – delivers smooth, efficient operation
• Gear Material: Metal – ensures long-term durability under extreme loads
• Spline Count: 25T – compatible with Futaba-standard servo horns

Signal and Protocol Support

• Signal Type: PWM – supports conventional receiver systems
• Bus System: S.Bus and S.Bus2 – enables advanced telemetry and simplified wiring
• SR Mode: Supported – compatible with T4PM/P, T7PX/R, T10PX
• UR Mode: Supported – compatible with T10PX for ultra-fast signal processing

Voltage and Power

• Rated Voltage: DC 6.0V – 7.4V
• Operating Voltage: DC 4.8V – 8.4V
• Power Note: Not compatible with dry batteries or BEC systems

Application and Compatibility

• Use Case: RC cars – optimized for 1/10 and 1/8 scale on-road and off-road vehicles
• Servo Size: Standard – fits most competitive RC platforms
• Age Recommendation: 14+ – designed for hobbyists and experienced racers

Construction and Materials

• Case Material: Aluminium – upper, middle, and bottom sections for enhanced durability

What’s in the Box

• 1 × HPS-CB701 Standard Brushless Servo
• Servo horn
• Mounting hardware

What You Require

• Compatible Futaba transmitter with SR/UR mode support
• CIU-2 or CIU-3 USB adapter for PC programming (sold separately)
• Power source between 6.0V and 7.4V (no BEC or dry cells)

Sold Separately

• CIU-2 / CIU-3 USB programming adapter
• Futaba transmitter with S.Bus2 and UR/SR mode support
