FEATURES
- 12 fully proportional channels.
- 50 Model Memory.

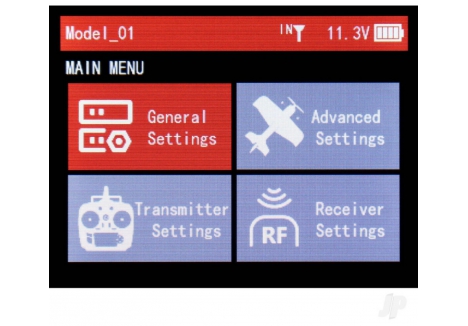

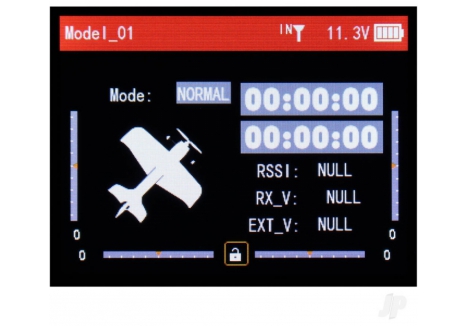

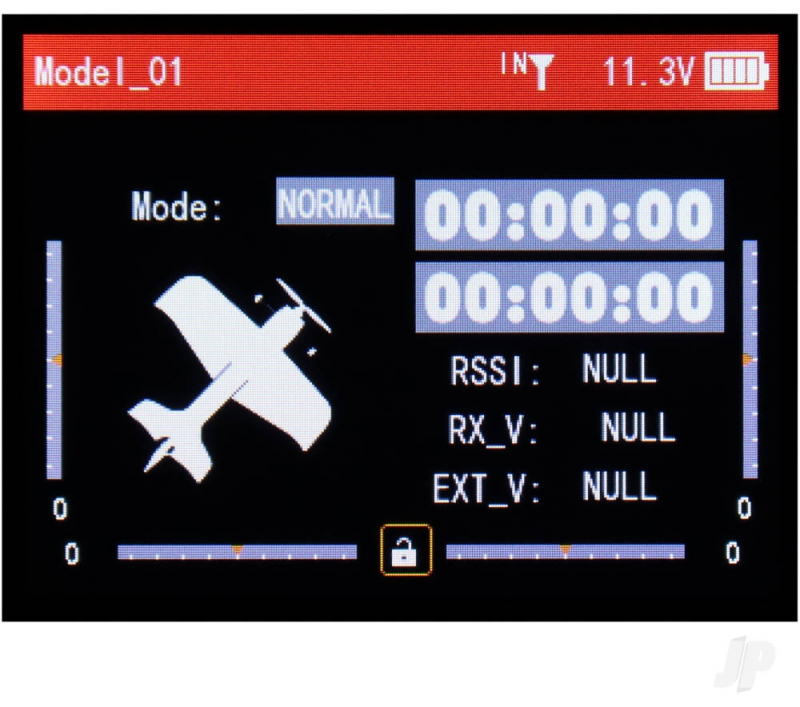

- Colour LCD.
- FHSS (Frequency Hopping Spread Spectrum) protocol.
- Rx batt. & RSSI (Receiver Signal Strength Indicator) telemetry.
- Mode change capable (1/2).
- Wide (7.4 to 18V) voltage range input. (8x AA / 2-4S LiPo)
- Tx battery reverse polarity protection.
- Updatable firmware via micro USB port.
- 4096 bit resolution.
- Tx and Rx low battery voltage warning.
- Motor battery voltage warning (with optional PRM-01 sensor).
- Supports GPS telemetry.
- Waypoint mission capable.
- Long-range model compatibility.

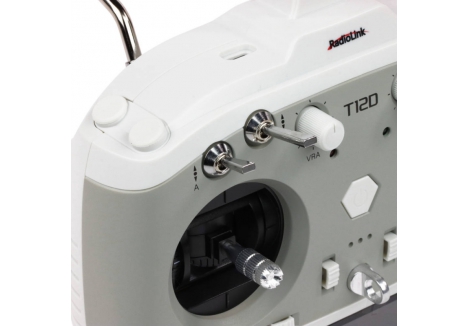

- 1x two-position and 3x three-position switches.
- 2x proportional digital slider controls.
- 2x proportional rotary dials.
- Cable and wireless trainer compatibility.
- Intuitive programming.

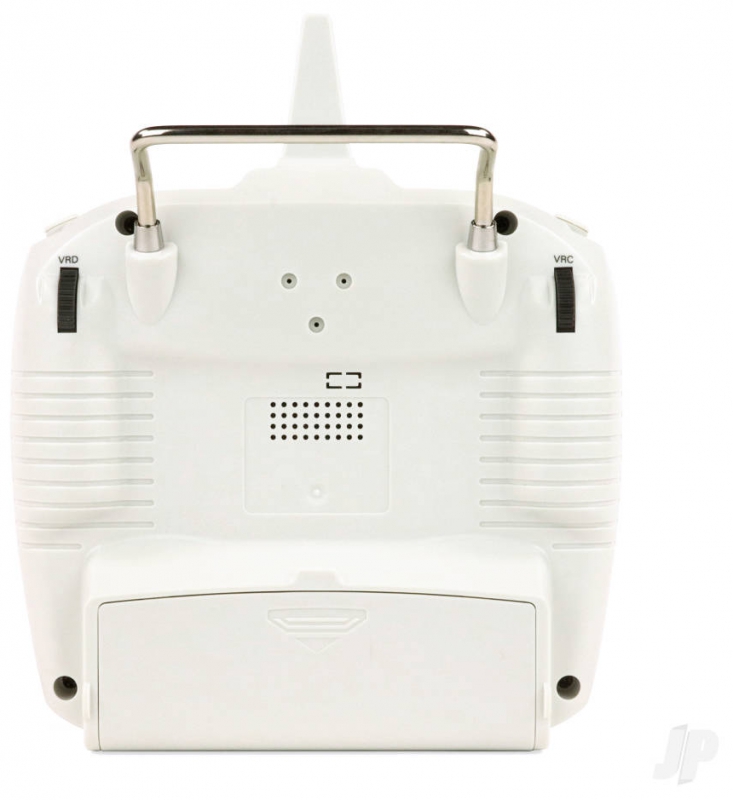

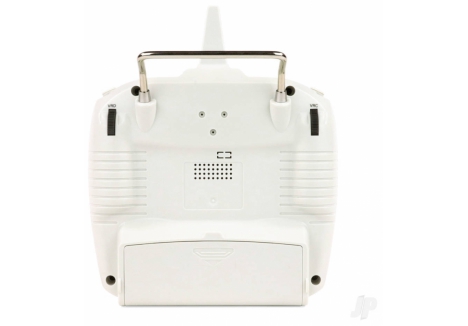

- Sturdy metal carry handle.

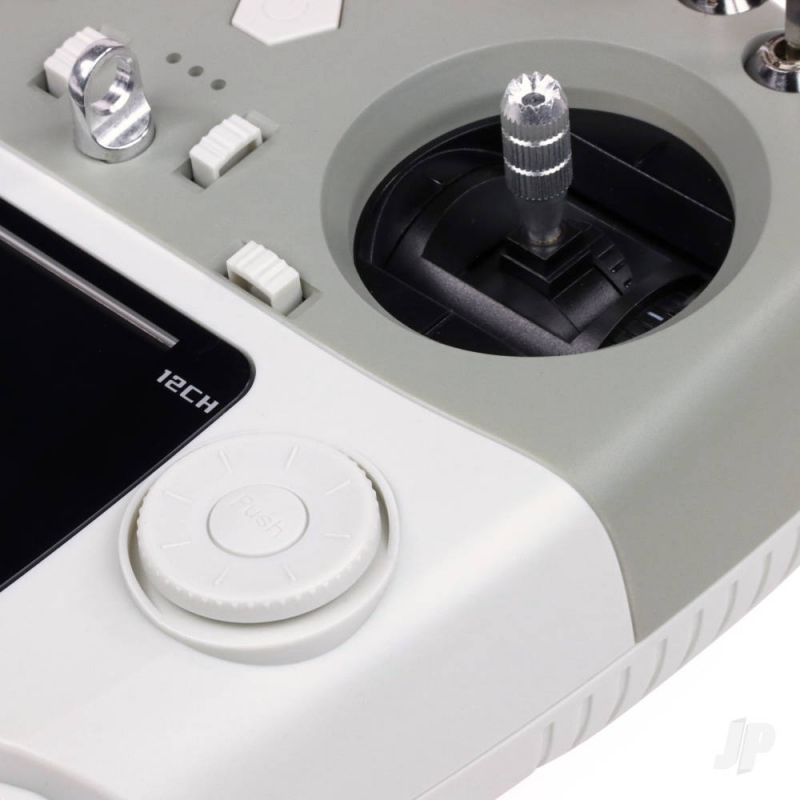

- Digital trims.
- Comfortable ergonomic design.
- S-Bus compatible.
- Vibration alarm.

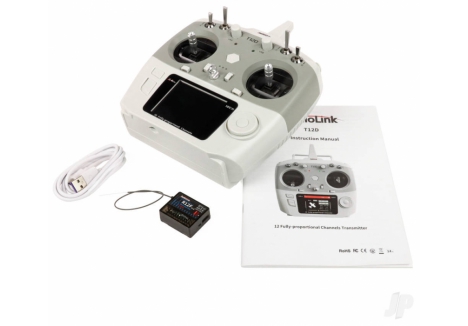

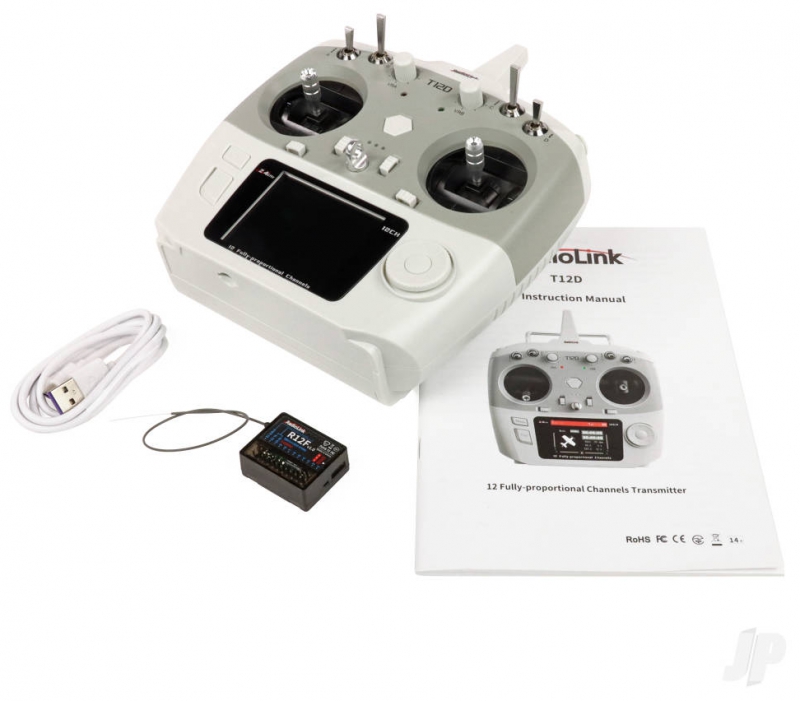

CONTENTS

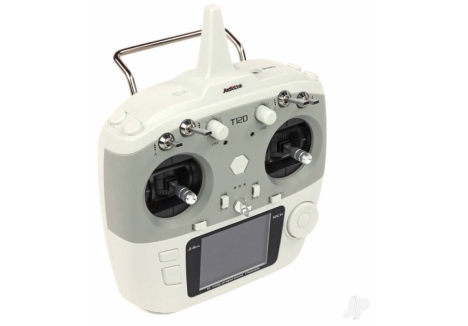

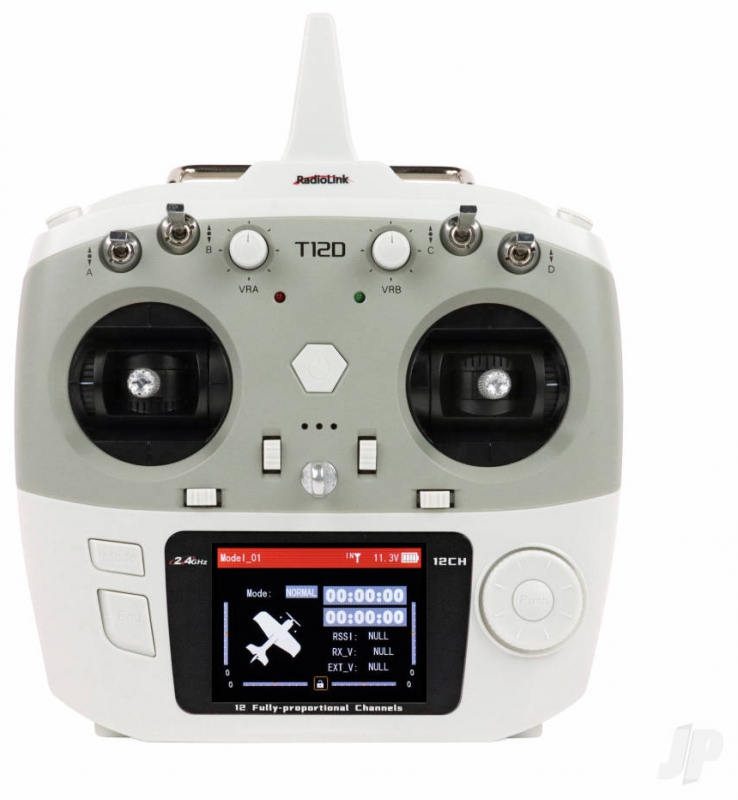

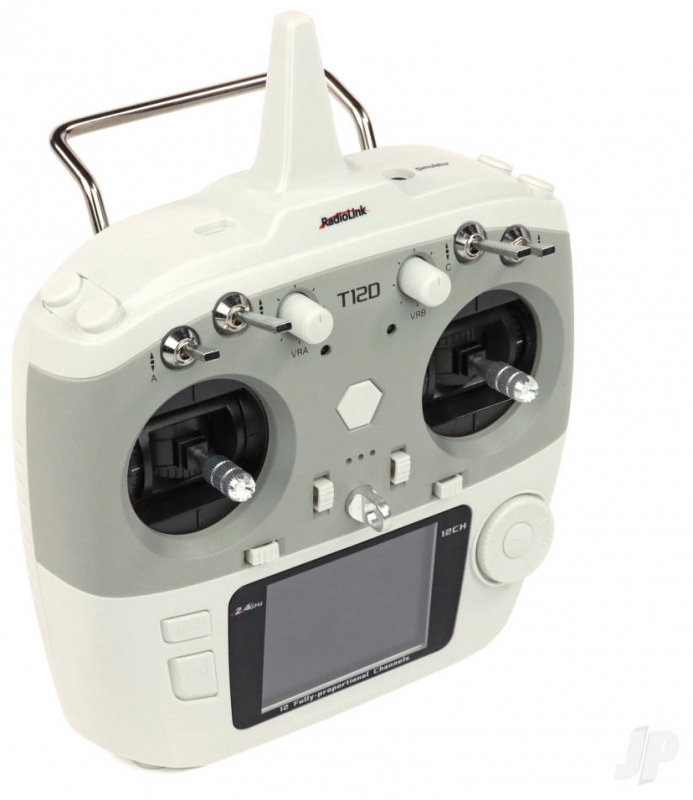

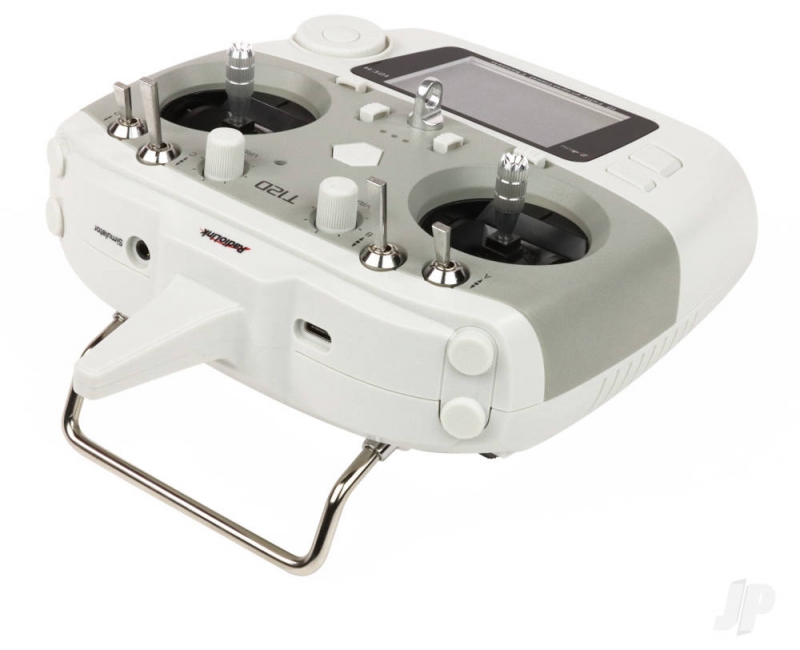

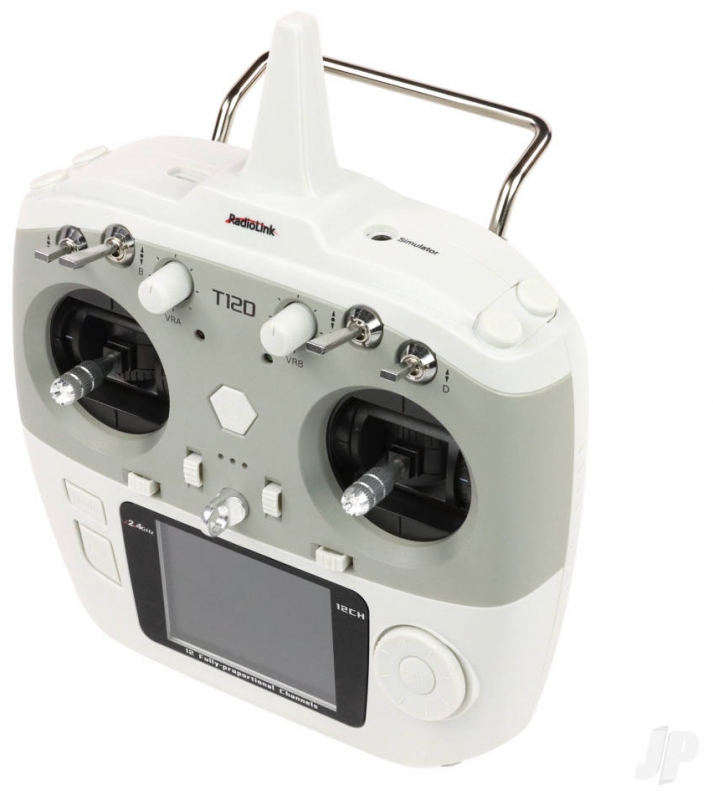

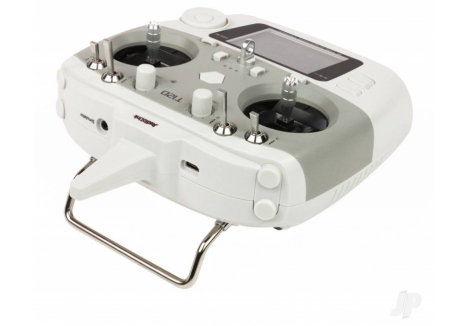

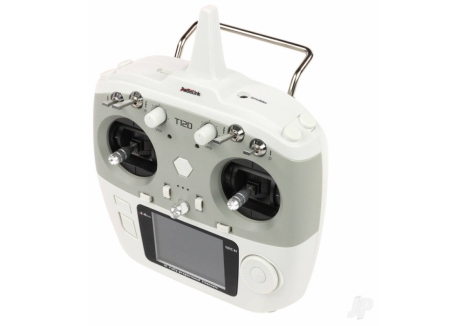

- 1x T12D 2.4GHz 12-channel transmitter.

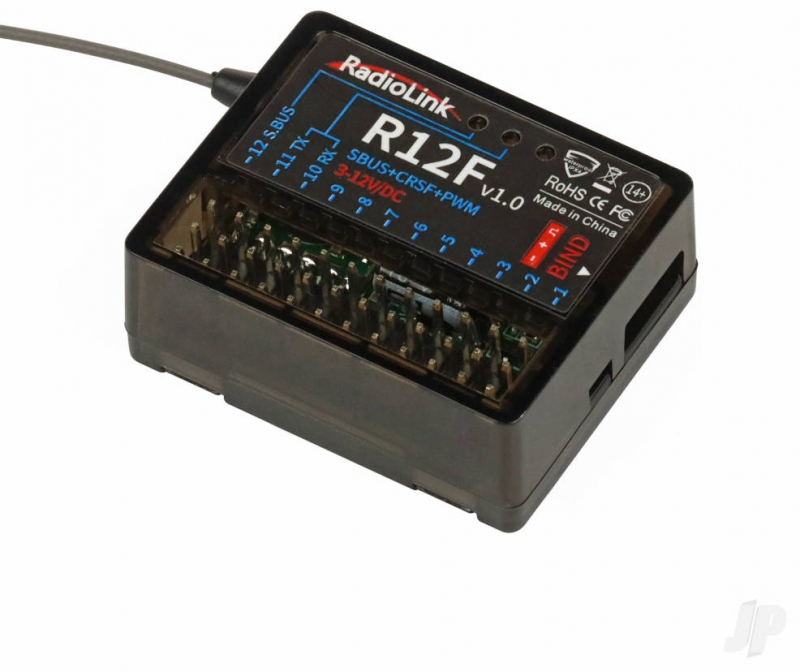

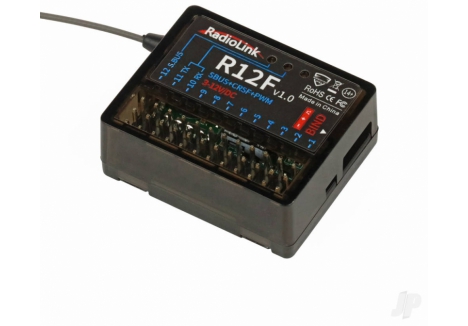

- 1x R12F 12-channel S-Bus receiver.
- 1x Throttle stick spring retainer.
- 1x USB-C cable.
- 1x Instruction Manual.
NEEDED TO COMPLETE
- 8x AA batteries for the transmitter.
DETAILS
Now firmly established as an innovative, forward-thinking and dependable radio brand, RadioLink's 10+ years on the market has seen an exponentially growing core of very satisfied users. The new T12D is a radio system that you'll not only love for its features and flexibility but one you'll grow to adore for its comfort, ease of use and solid reliability. And we haven't even mentioned the price yet! With a range of transmitters covering everything from beginner to expert, standard features that'll raise an enlightened eyebrow and receiver prices that'll have you reaching for your wallet, RadioLink's expanding range is making many friends.
An embellished version of the popular AT9S, the T12D, 2.4GHz mid-range, telemetry capable transmitter has 12 fully proportional channels and, like its predecessor, has been designed with a furure-proof feature-set to suit everyone from traditional fixed-wing enthusiasts, to multirotor pilots, helicopter flyers, truck and track drivers and even bait boat fishermen.
Equipped with FHSS frequency-hopping spread spectrum protocol you can be assured of enhanced interference rejection and the peace of mind that comes with a rock-solid full range transmission rate. But it's better than that, if you're a regular club pilot a quick look at the specification will confirm that, actually, this is all the transmitter you'll ever need. Moreover, with amazingly competitive receiver pricing* you'll realise that you really can afford to conveniently grow, or even re-equip, your fleet. Take a look at the full feature list and make special note of its intuitive programming, colour LCD, telemetry features, wireless trainer link option and tidy good looks.
*Note: The T12D is compatible with the following RadioLink receivers: R16F, R12F, R8FGH, R8FG, R8EF, R8XM, R8FM, R8SM, R7FG, R6FG, R6F and R4FGM.
Comprehensive feature list:

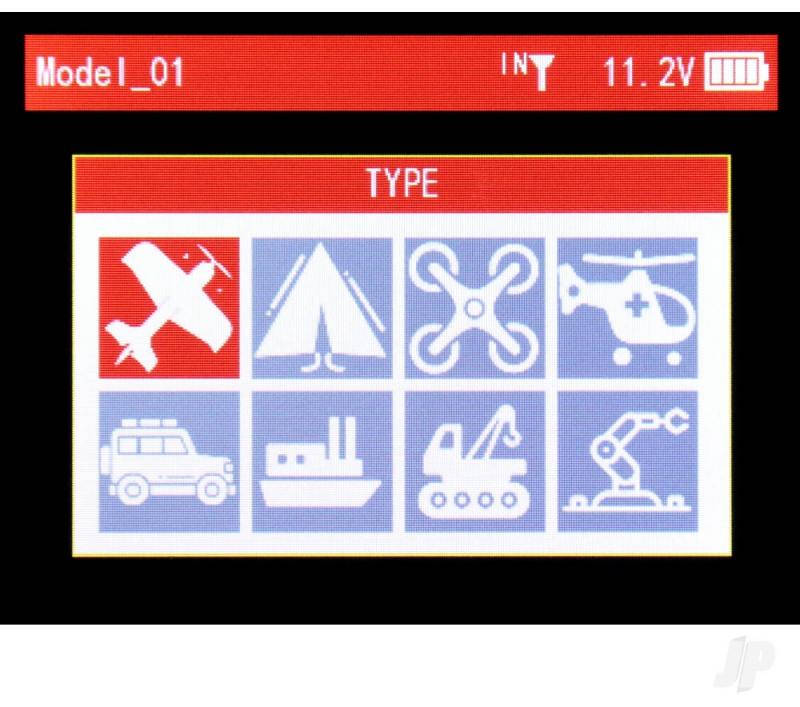

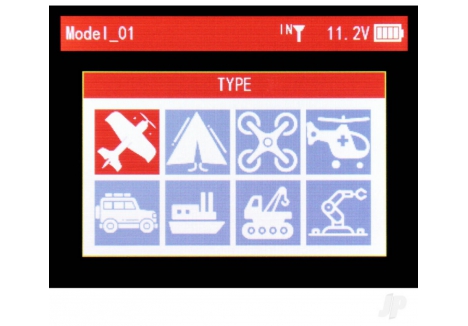

Model categories catered for
- Fixed wing power
- Glider
- Delta
- Helicopter
- Truck & track
- Bait boat
- Robot
Special functions
- End point adjustment
- Sub trim
- Servo reverse
- Dual rate
- Exponential
- Throttle cut
- Fail-safe

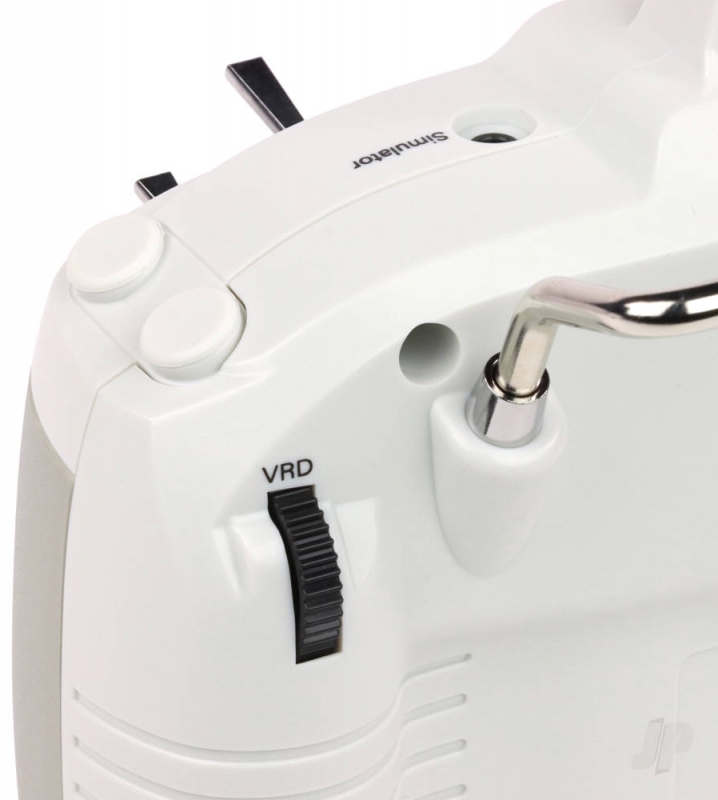

- Simulator mode
- Twin timers
- Throttle activated timer
- Trainer function

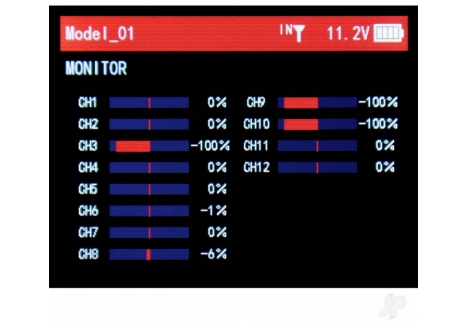

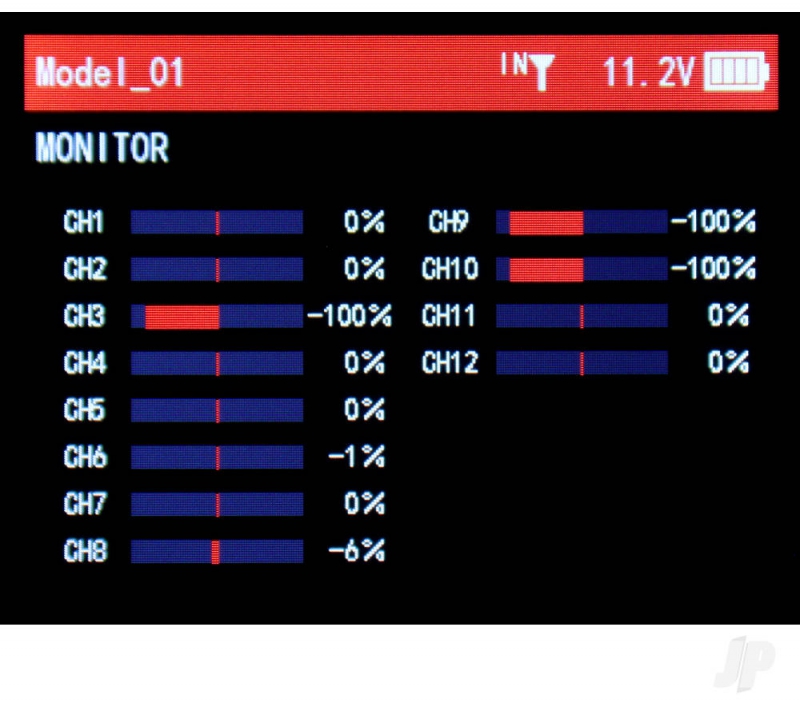

- Servo monitor
- Trim step
- Idle down
- Pre-programmed mixers
- Programmable mixers
- Aileron Differential
- Air Brake
- V-Tail Mixing
- Elevon Mixing
- Throttle Curve
- Servo Speed
- Revolution Mix
- Butterfly
- Flight Conditions
Specification:
| Length (mm): |
175 |
| Height (mm): |
207 (inc. aerial) |
| Width (mm): |
107 (inc. carry handle) |
| Weight (g): |
536 |
The RadioLink RLKT121011 T12D Mode 2 transmitter with 12 channels, FHSS protocol, and colour LCD is a mid-range radio system designed for RC pilots who demand reliable telemetry, intuitive control, and multi-platform versatility. Whether you're flying fixed-wing aircraft, multirotors, helicopters, or operating bait boats and robotic vehicles, the T12D delivers precision, comfort, and future-ready features. With 4096 resolution, 50 model memory slots, and waypoint mission support, this Mode 2 transmitter offers dependable performance for expanding fleets and evolving control needs.
Key features of the RadioLink RLKT121011 T12D Mode 2 transmitter
- 12 fully proportional channels – supports advanced aircraft, surface vehicles, and robotic systems
- Colour LCD interface – provides clear telemetry feedback and intuitive programming access
- Telemetry support – includes RSSI, receiver voltage, and optional motor battery and GPS data
- Waypoint mission capability – enables programmable flight paths for autonomous navigation
- Simulator mode – allows for safe practice and training without live deployment
- USB-C cable – supports external power supply and firmware upgrades
How does the T12D Mode 2 support multi-platform control?
The RadioLink RLKT121011 programmable transmitter with 50 model memory, 536g weight, and waypoint mission support is engineered for versatility across RC disciplines. With 12 channels and 4096-bit resolution, users can assign functions across flaps, rudders, gimbals, winches, and auxiliary outputs with precision. The transmitter includes 2 rotary dials, 2 digital sliders, and 4 assignable switches, allowing for granular control across aircraft, bait boats, and tracked vehicles. Its Mode 2 layout places throttle on the left stick, preferred by many pilots for natural flight coordination.
What telemetry capabilities are included with the RLKT121011?
The RadioLink RLKT121011 telemetry-capable radio system with R12F receiver, USB-C cable, and 4096 resolution offers comprehensive telemetry feedback. Standard features include RSSI and receiver battery voltage monitoring, while optional sensors expand functionality to include motor battery voltage and GPS telemetry. These data streams are displayed on the colour LCD screen, allowing pilots to monitor system health and location in real time. Vibration alerts ensure critical warnings are never missed.
Is the T12D suitable for both surface and aerial platforms?
Yes. The Surface and aerial radio system with GPS telemetry, S-Bus compatibility, and simulator mode is designed to support fixed-wing aircraft, helicopters, gliders, multirotors, trucks, tanks, bait boats, and robots. Its ergonomic white casing includes a sturdy metal carry handle and intuitive programming interface. With 50 model memory slots and S-Bus compatibility, pilots can manage multiple platforms and integrate with modern flight controllers effortlessly.
How does the FHSS protocol enhance transmission reliability?
The RadioLink RLKT121011 T12D Mode 2 transmitter with 12 channels, FHSS protocol, and colour LCD uses Frequency Hopping Spread Spectrum technology to maintain stable, interference-resistant communication. FHSS dynamically shifts frequencies during transmission, reducing the risk of signal loss in crowded environments. This ensures consistent control across long-range operations, making the T12D a dependable choice for club flyers and mid-range RC pilots.
What makes the T12D Mode 2 ideal for mid-range RC pilots?
The RadioLink RLKT121011 with 175mm length, 107mm width, and 2.07lbs shipping weight for mid-range RC pilots is designed for comfort and control. Its lightweight 536g build ensures fatigue-free operation, while the ergonomic layout of switches, sliders, and dials supports precise input across multiple functions. With firmware upgradability, trainer compatibility, and intuitive programming, the T12D offers long-term adaptability and instructional utility.
What’s included with the RLKT121011 T12D Mode 2 system?
The package includes the T12D Mode 2 transmitter, an R12F 12-channel S-Bus receiver, a throttle stick spring retainer, a USB-C cable, and a detailed instruction manual. These components provide everything needed to begin setup and integration with compatible aircraft and vehicles. The transmitter is compatible with a wide range of RadioLink receivers, ensuring seamless expansion across your fleet.
Buy RadioLink RLKT121011 T12D Mode 2 transmitter with R12F receiver and USB-C cable for fixed-wing and multirotor.
Brand, Model and Product Type
- Brand – RadioLink
- Model – RLKT121011
- Product Type – RadioLink RLKT121011 T12D Mode 2 transmitter with 12 channels, FHSS protocol, and colour LCD, RadioLink telemetry-capable radio system with R12F receiver, USB-C cable, and 4096 resolution, RadioLink programmable transmitter with 50 model memory, 536g weight, and waypoint mission support, RadioLink T12D Mode 2 transmitter with 2 rotary dials, 2 digital sliders, and 4 assignable switches for multi-platform control, RadioLink surface and aerial radio system with GPS telemetry, S-Bus compatibility, and simulator mode
Dimensions
- Product length – 17.5 cm, compact and balanced for handheld control across aerial and surface platforms
- Product height – 20.7 cm (including aerial), designed for full visibility and switch accessibility
- Product width – 10.7 cm (including carry handle), optimized for ergonomic grip and dial access
- Net weight – 536 g (18.91 oz), lightweight for fatigue-free operation during extended sessions
- Shipping weight – 0.94 kg (2.07 lbs), includes transmitter, receiver, accessories, and packaging
- Product color – White, with a sturdy metal carry handle for durability and clean styling
Channel and Resolution
- Channel count – 12 fully proportional channels, ideal for mid-range aircraft, vehicles, and robotic systems
- Resolution – 4096-bit, enables ultra-precise input control and servo response across all channels

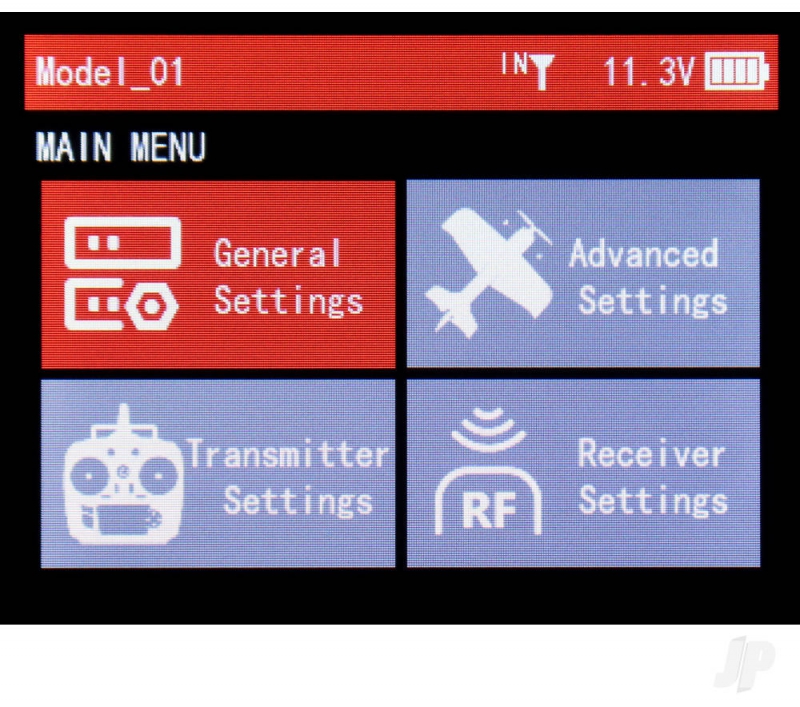

Display and Interface
- Screen type – Colour LCD, provides clear telemetry feedback and intuitive programming interface
- Interface features – digital trims, servo monitor, trim step, and pre-programmed mixers for streamlined setup
Telemetry and Alerts
- Telemetry support – includes receiver battery voltage and RSSI as standard
- Motor battery telemetry – available via optional PRM-01 sensor
- GPS telemetry – supported for location-based feedback and waypoint missions
- Vibration alarm – tactile notification for critical voltage or signal alerts
- Low voltage warning – alerts for both transmitter and receiver battery levels
Mixers and Flight Functions
- Programmable mixers – includes elevon, V-tail, throttle curve, servo speed, and butterfly mixing
- Pre-programmed mixers – supports aileron differential, air brake, and revolution mix
- Flight modes – compatible with fixed-wing, glider, delta, helicopter, truck, track, bait boat, and robot platforms
- Special functions – throttle cut, fail-safe, idle down, dual rate, exponential, and endpoint adjustment
Controls and Switches
- Switch configuration – 1 two-position and 3 three-position switches for flexible input mapping
- Proportional sliders – 2 digital sliders for fine-tuned control over auxiliary functions
- Rotary dials – 2 proportional dials for precision input across throttle, camera, or gimbal systems
Power and Protection
- Input voltage range – 7.4V to 18V, compatible with 8x AA or 2–4S LiPo battery setups
- Reverse polarity protection – safeguards transmitter from incorrect battery connection
- USB-C port – supports external power supply and firmware upgrades
Connectivity and Compatibility
- Wireless trainer compatibility – supported via optional modules for instructor-student link
- Cable trainer compatibility – included for direct training sessions
- S-Bus compatibility – integrates with S-Bus enabled receivers and flight controllers
- Firmware upgrades – available via micro USB port for long-term feature support
- Receiver compatibility – supports R16F, R12F, R8FGH, R8FG, R8EF, R8XM, R8FM, R8SM, R7FG, R6FG, R6F, and R4FGM
What's in the Box
- 1x T12D 2.4GHz 12-channel transmitter
- 1x R12F 12-channel S-Bus receiver
- 1x Throttle stick spring retainer
- 1x USB-C cable
- 1x Instruction manual
