This kit is aimed towards the serious competitive RC crawler and comes packed full of features to progress you through each gate.
The lightweight flat rail carbon fiber chassis, held together with machined aluminum braces, is strong, yet light enough to help keep the center of gravity down low. With plenty of shock and link mounting positions, there are endless increments of suspension tuning options available.
Progress. You asked and you shall receive. Here at Element RC, we strive to bring you products that you want. This time, we went above and beyond to bring you a complete competition rock crawling kit, the Enduro Comp Fox.
This kit is aimed towards the serious competitive RC crawler and comes packed full of features to progress you through each gate. The lightweight flat rail carbon fiber chassis, held together with machined aluminum braces, is strong, yet light enough to help keep the center of gravity down low. With plenty of shock and link mounting positions, there are endless increments of suspension tuning options available.
Just like any good comp rig, the Comp Fox comes designed with an 8º angled Delrin® skid plate to help get over those difficult breakovers and prevent high centering.
At the center of the Comp Fox is our tried-and-true Stealth X(R) transmission with overdrive gears and forward bias aluminum motor mount. This places the weight of the motor over the front axles for the ideal targeted 60/40 weight balance.
To help maximize clearance, the Enduro Comp Fox comes with a newly designed set of high-clearance portal axles that include all-metal gears and ball bearings. With almost an inch more clearance than our standard straight axles, you know this rig means business.
We didn’t stop there. We also included some Factory Team hopups like steel pivot balls, high-clearance links, and threaded aluminum shocks to make the Enduro Comp Fox a fierce competitor on the rocks.
With all these features packed in one box, we know the all-new Enduro Comp Fox is the perfect rig for whatever adventures lie around the next corner. Your journey begins here!
CHASSIS FEATURES
SERVO-ON-AXLE STEERING: Servo-on-axle steering provides better performance while keeping the vehicle’s center of gravity low.

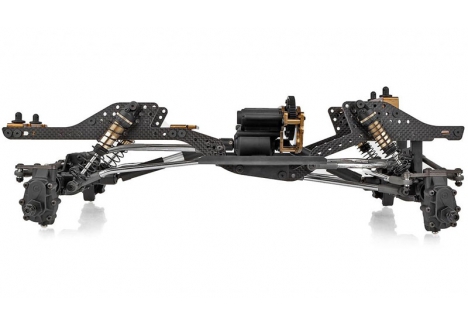

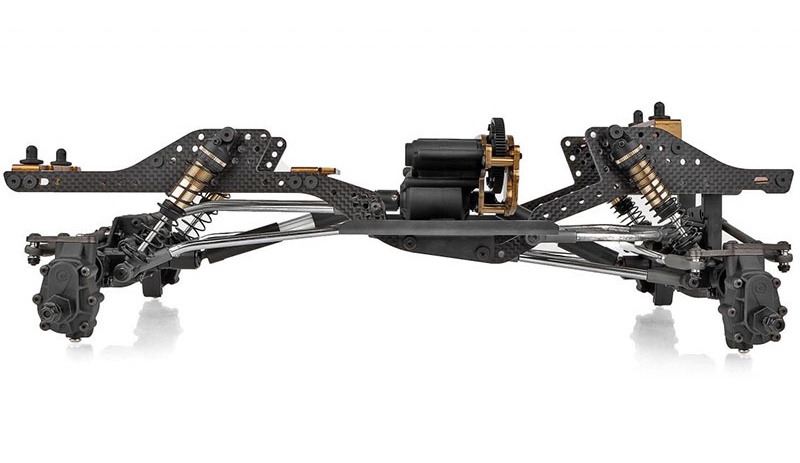

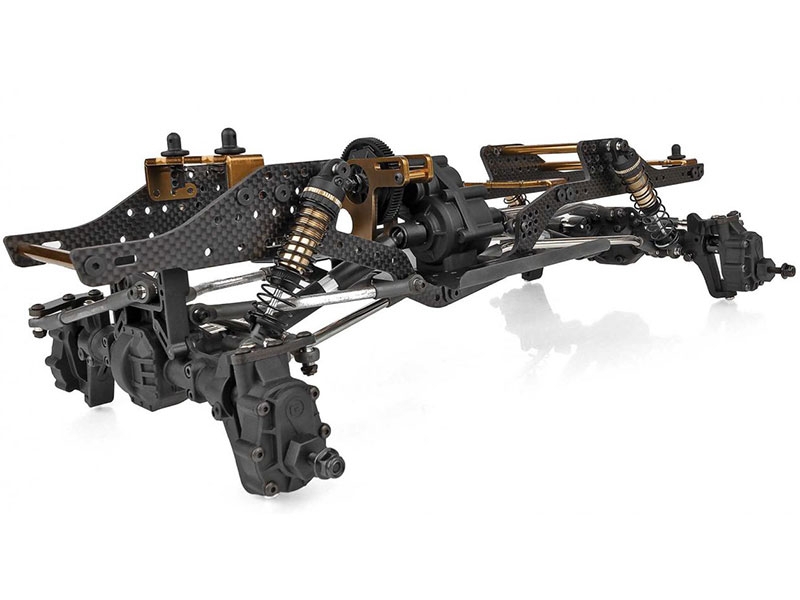

CARBON FIBER FLAT RAIL CHASSIS: The routed carbon fiber flat rail chassis, together with the aluminum chassis braces, is lightweight, rigid, strong, and provides plenty of suspension tuning options.

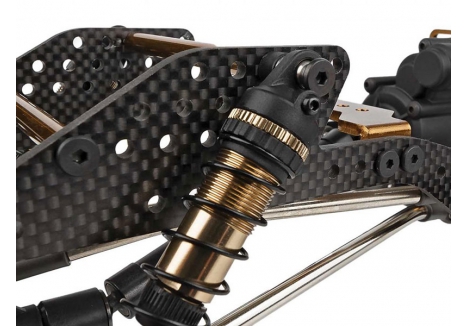

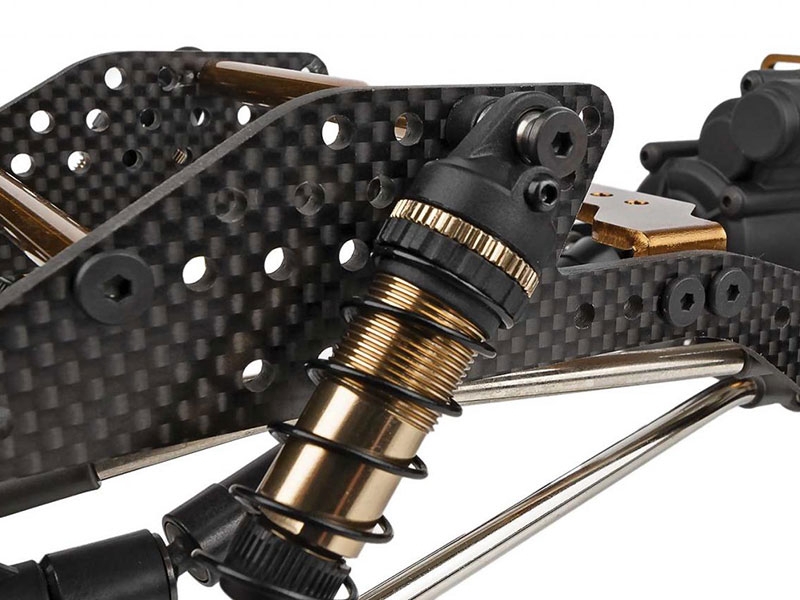

FACTORY TEAM SHOCKS: With almost an inch of center axle clearance over standard straight axles, getting over tough obstacles is a breeze.
STEEL PIVOT BALLS: Steel pivot balls are strong, reliable, resistant to abrasion and friction wear while allowing the suspension to articulate smoothly even under extreme conditions.
DELRIN R ANGLED SKID: Machined from a solid low-friction Delrin® block, the lower skid plate is angled 7 degrees while keeping the transmission flat for more rear ground clearance and better breakover transitions.

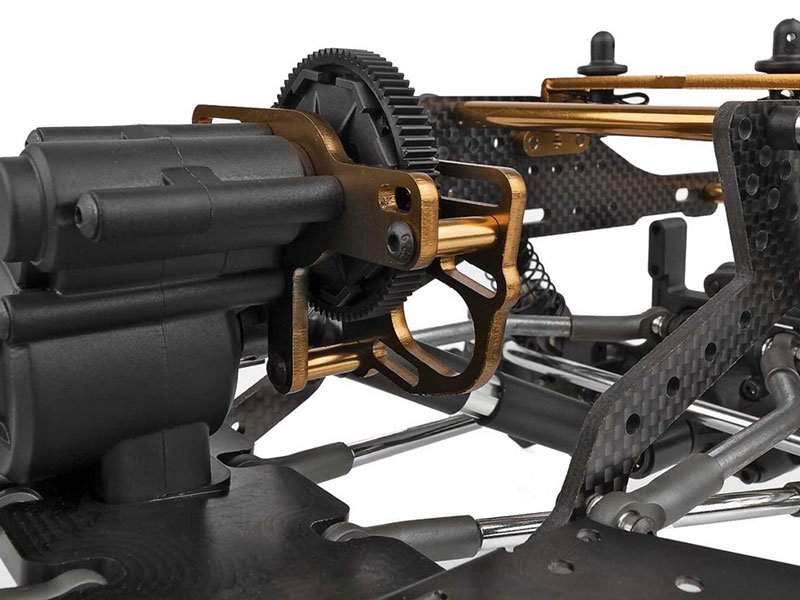

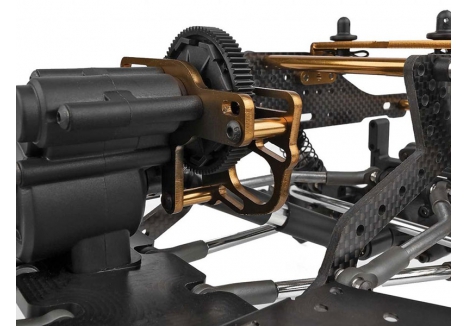

FORWARD BIAS MOTOR MOUNT: The two-piece aluminum motor mount flips the motor forward and low for more frontend weight bias while keeping the center of gravity as low as possible.

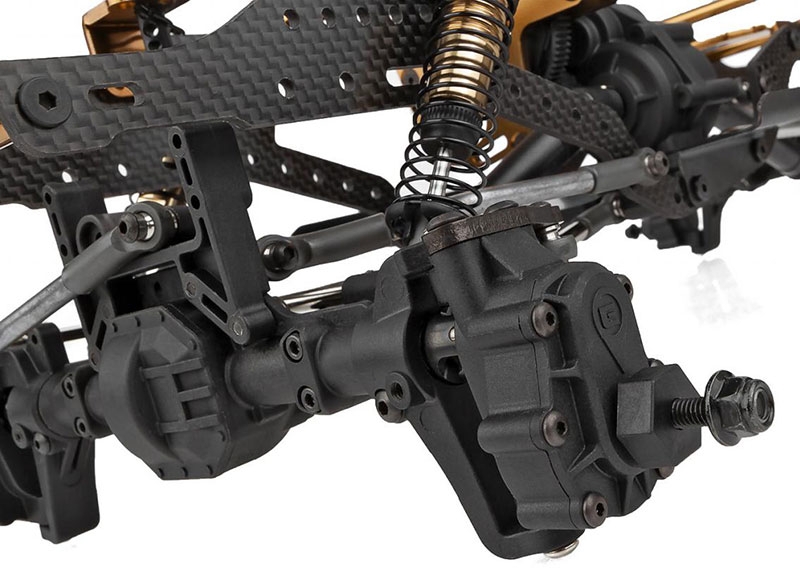

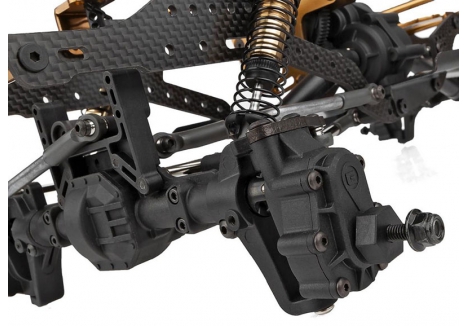

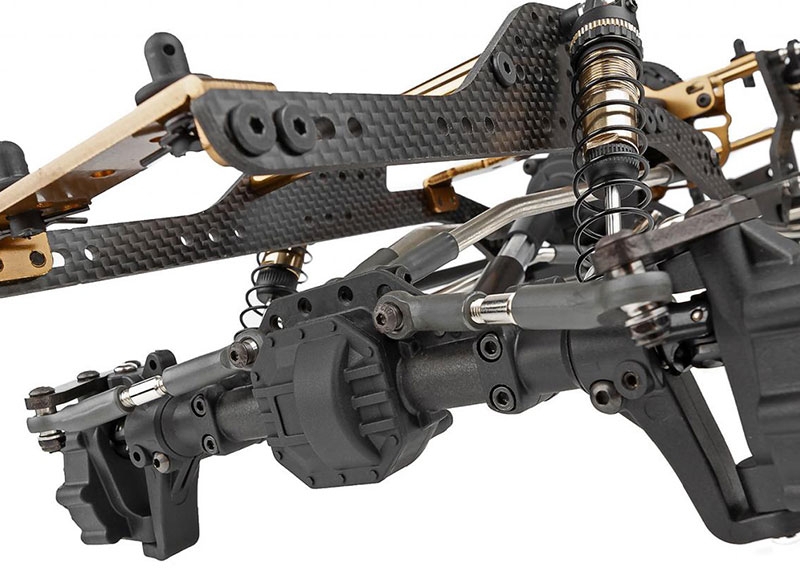

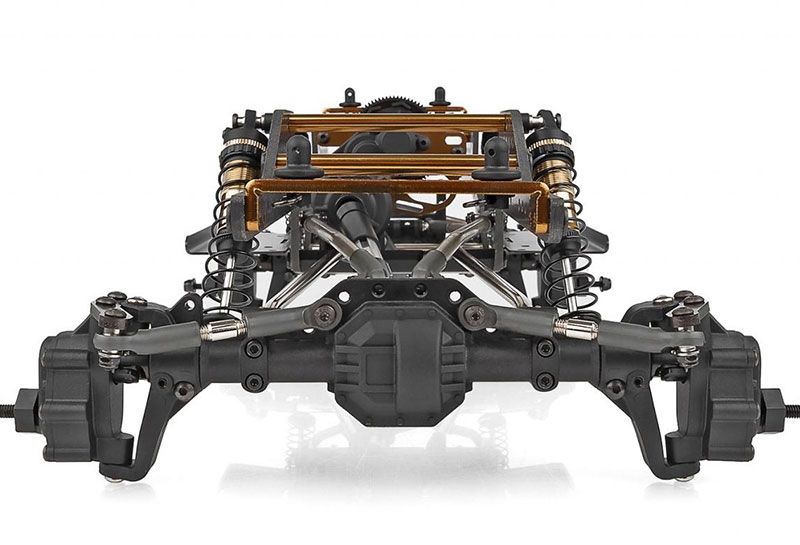

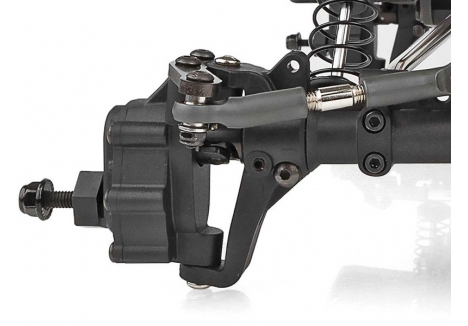

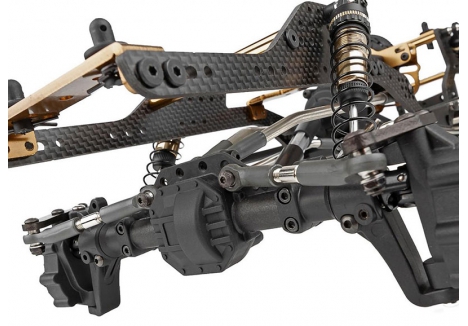

PORTAL AXLES: When it comes to rock crawling, ground clearance is crucial. That’s why the Enduro Comp Fox competition rock crawler kit includes our all-new high-clearance portal axles. With almost an inch of added center axle clearance over standard straight axles, getting over tough obstacles is a breeze. To battle the massive amount of torque inherent with portal axles, we not only utilized metal gears throughout, but also use six screws to hold the portal gear boxes tight. That many screws ensures a stronger portal box and less chance of gears pulling apart under heavy loads.
Included is our performance proven Stealth® X transmission that features the ability to adjust the rear drive ratio. In the box you get the standard 5.7% and 11.83% gear options. Paired with our all-new portal axles with zero percent underdrive, this is the perfect mild setup for the average crawler.
If even more underdrive in the rear is desired, an optional 12/23 tooth gear set (#42372) is available separately for an additional 36% overdrive from axle-to-axle alone!
ADDITIONAL FEATURES
NEW high-clearance portal axles
NEW carbon fiber flat rail chassis
NEW aluminum chassis braces and body mount supports
NEW Delrin® machined and flush mounted angled lower skid plate
NEW 2-piece forward-bias aluminum motor plate
Factory Team aluminum threaded shocks
Factory Team steel pivot balls
Factory Team 5mm heavy-duty steel
High-clearance links
Servo-on-axle steering
Universal front and rear drive axles
Aluminum steering plates
Optimized ball cups for more fluid axle articulation
Telescopic driveshafts front and rear
Extruded aluminum driveshaft splines
Machined input pinion gear
Metal ring gear
Machined steel top shaft
Metal ball bearings included
Steel 25T servo horn
Vehicle Specifications
Power Source: Electric
Terrain: Off-Road
Body Style: Truck
Scale Size: 1:10 Scale
Assembly Level: Kit*
Length: 410mm (16.14in)
Width: 230mm (9.06in)
Wheelbase: 322mm (12.68in)
Weight: 1190g (2.62lbs)
Internal
Gear Ratio: varies
Drive: 4WD
Manufacturer: Element RC
Part Number: EL40129
EAN: 784695401297
Motor Type: No Motor Supplied
Drive: 4WD
Surface Type: Off-Road
Assembly Type: Un-Assembled (Kit)
Scale: 1:10
Vehicle: Rock Crawler
Skill Level: Skill Level 3
Power Bundles: Power Bundle Required
Element RC Enduro Comp Fox Kit EL40129 – Built for Competitive Rock Crawling
The Element RC Enduro Comp Fox Kit 1/10 Scale Rock Crawler is engineered for serious competitors who demand precision, durability, and control on extreme terrain. This electric 4WD crawler kit features a lightweight carbon fibre chassis and aluminium braces, high-clearance portal axles, and a performance-proven Stealth X transmission with adjustable overdrive gearing. Designed to conquer technical gates and brutal breakovers, the Enduro Comp Fox delivers elite-level capability straight out of the box.
Key features of the Element RC Enduro Comp Fox Kit 1/10 Scale Rock Crawler
- Carbon fibre flat rail chassis – lightweight and rigid for low centre of gravity
- Machined aluminium braces – structural reinforcement for high-impact crawling
- Portal axles – nearly 1 inch of added clearance over standard axles
- Angled Delrin skid plate – 8º angle for smoother breakover transitions
- Stealth X transmission – adjustable overdrive with forward-biased motor mount
- Servo-on-axle steering – direct control with improved weight distribution
- Threaded aluminium shocks – Factory Team components for fluid articulation
- Steel pivot balls – abrasion-resistant for long-term suspension performance
- High-clearance links – designed for obstacle negotiation and axle protection
- Universal front and rear drive axles – consistent torque delivery across terrain
What makes the Element RC Enduro Comp Fox 4WD Competition Kit trail-ready?
The Element RC Enduro Comp Fox 4WD Competition Kit is built for precision crawling. Its routed carbon fibre chassis is reinforced with machined aluminium braces, offering a lightweight yet rigid platform that keeps the centre of gravity low. With multiple shock and link mounting positions, racers can fine-tune suspension geometry for any terrain. The servo-on-axle steering system enhances responsiveness while maintaining optimal weight balance.
How do portal axles improve ground clearance and durability?
The Element RC rock crawler with portal axles and Stealth X transmission features newly designed high-clearance axles that add nearly an inch of centre axle clearance compared to standard straight axles. These axles use all-metal gears and six-screw portal boxes to withstand high torque loads without gear separation. This design ensures smoother obstacle negotiation and long-term reliability under competitive conditions.
What is the benefit of the angled Delrin skid plate?
The Element RC crawler kit with angled Delrin skid plate and servo-on-axle steering includes a machined low-friction Delrin block angled at 8º. This geometry improves breakover capability by reducing hang-ups on sharp terrain transitions. The skid plate keeps the transmission flat while increasing rear ground clearance, making it easier to clear technical gates and steep ascents.
How does the Stealth X transmission enhance crawling performance?
At the heart of the Element RC EL40129 electric rock crawler kit is the Stealth X transmission, which includes adjustable rear drive ratios and a forward-biased aluminium motor mount. This setup places the motor weight over the front axles, achieving a targeted 60/40 weight distribution ideal for climbing and traction. The kit includes 5.7% and 11.83% overdrive options, with an optional gear set available for up to 36% axle-to-axle overdrive.
What tuning options are available for competitive drivers?
The chassis offers extensive suspension tuning with multiple shock and link mounting positions. Optimised ball cups and universal drive axles allow fluid articulation and consistent torque delivery. Factory Team upgrades such as threaded aluminium shocks, steel pivot balls, and high-clearance links ensure durability and precision. Optional brass ballast weights can be added to adjust static weight and bias for high-grip surfaces.
Is the Element RC crawler kit built for long-term reliability?
Yes. The Element RC crawler with carbon fibre chassis and aluminium braces is designed to withstand the rigours of competitive crawling. Steel 25T servo horn, machined input pinion gear, metal ring gear, and extruded aluminium driveshaft splines all contribute to a drivetrain that resists wear and delivers consistent performance. Ball bearings throughout the system ensure smooth operation under load.
Where can you buy the Element RC Enduro Comp Fox competition crawler kit online?
For serious rock crawling enthusiasts, the Element RC Enduro Comp Fox Kit 1/10 Scale Rock Crawler offers unmatched capability, adjustability, and durability. Buy Element RC Enduro Comp Fox competition crawler kit online today and take your crawling performance to the next level.
Technical specs of Element RC Enduro Comp Fox Kit EL40129
Brand, Model, Appliance Type
- Brand: Element RC
- Model: EL40129
- Product Type: Element RC Enduro Comp Fox Kit 1/10 Scale Rock Crawler, Element RC Enduro Comp Fox 4WD Competition Kit, Element RC EL40129 electric rock crawler kit, Element RC rock crawler with portal axles and Stealth X transmission, Element RC crawler with carbon fibre chassis and aluminium braces
Dimensions and Weight
- Length: 41 cm – ideal for scale realism and obstacle clearance
- Width: 23 cm – balanced stance for stability on uneven terrain
- Wheelbase: 32.2 cm – extended for improved climbing and articulation
- Weight: 1.19 kg – lightweight for low centre of gravity and responsive handling
Chassis and Frame
- Chassis Type: Routed carbon fibre flat rail chassis with machined aluminium braces
- Skid Plate: Angled Delrin skid plate (8º) for enhanced breakover clearance
- Motor Mount: Two-piece forward-biased aluminium motor plate for optimal weight distribution
- Body Mounts: Aluminium supports for secure body fitment
Suspension and Steering
- Shock Type: Factory Team threaded aluminium shocks for fluid articulation
- Suspension Links: High-clearance links for obstacle negotiation
- Pivot Balls: Factory Team steel pivot balls for durability and smooth movement
- Steering System: Servo-on-axle steering for direct control and low CG
- Ball Cups: Optimised for fluid axle articulation and reduced binding
Drivetrain and Transmission
- Drive Type: 4WD – full-time four-wheel drive for maximum traction
- Transmission: Stealth X transmission with adjustable rear drive ratio
- Overdrive Options: Includes 5.7% and 11.83% gear sets; optional 36% overdrive available
- Portal Axles: High-clearance design with metal gears and six-screw portal boxes
- Axle Clearance: Nearly 1 inch more than standard straight axles
- Drive Axles: Universal front and rear axles for consistent torque delivery
- Driveshafts: Telescopic with extruded aluminium splines for strength and flexibility
- Input Gear: Machined steel pinion gear for durability under load
- Ring Gear: Metal construction for long-term reliability
- Top Shaft: Machined steel for high torque resistance
Electronics Compatibility
- Power Source: Electric – motor not included
- Motor Type: Compatible with brushed or brushless systems
- Power Bundle: Required – electronics sold separately
Assembly and Build
- Assembly Level: Kit – requires full assembly
- Skill Level: Level 3 – suitable for experienced builders
Terrain and Use Case
- Surface Type: Off-road – designed for rock crawling and technical terrain
- Body Style: Truck – compatible with scale crawler bodies
- Scale: 1:10 – ideal for competitive crawling and custom builds
Warranty
- Warranty: 1 year manufacturer’s warranty
