Brand, Model and Product Type

• Brand: Hobbywing
• Model: HW30105100
• Product Type: Hobbywing HW30105100 ESC with 200A continuous and 1200A peak current, Hobbywing HW30105100 MAX6 G2 speed controller with built-in Bluetooth, Hobbywing HW30105100 brushless ESC with 8A switch-mode BEC and waterproof housing, Hobbywing HW30105100 with 3–8S LiPo input and 6.5mm connectors, Hobbywing MAX6 G2 ESC for 1/6 and 1/7 scale trucks and monster vehicles, Hobbywing ESC with real-time data logging and firmware upgrade support
• Product Colour: Black

Dimensions

• Length: 7.0 cm – compact footprint for mid-to-large scale RC platforms
• Width: 5.6 cm – allows efficient mounting in 1/6 and 1/7 scale chassis
• Height: 4.55 cm – accommodates internal cooling and protection systems
• Weight: 245 g – includes input wires; engineered for thermal stability and durability

Electrical and Performance Specifications

• Continuous Current: 200A – delivers stable power for aggressive acceleration and terrain control
• Peak Current: 1200A – supports full-torque launches and high-speed bursts
• Input Voltage: 3–8S LiPo – compatible with a wide range of battery setups
• Motor Compatibility: Sensored and sensorless brushless motors – optimized for high-output applications

BEC System

• BEC Type: Switch-mode – efficient and thermally stable
• BEC Output Voltage: Selectable 6V / 7.4V / 8.4V – supports high-voltage servo systems
• BEC Output Current: 8A – ensures reliable servo performance under load

Protection and Safety Features

• Waterproof Housing: Fully sealed – enables safe operation in wet, muddy, and dusty conditions
• Dustproof Design: Prevents debris intrusion – ideal for off-road and all-weather use

Connectivity and Programming

• Bluetooth Module: Built-in – enables direct mobile app control and firmware upgrades
• Program Port: Integrated – no external programmer required
• Firmware Upgrade: Supported – via mobile app interface

Data Logging and Monitoring

• Real-Time Data: Supported – monitors throttle, voltage, current, temperature, and speed
• Historical Graphs: Supported – visualizes performance trends for diagnostics and tuning
• Extreme Value Recording: Enabled – captures peak metrics during operation

Cooling System

• Fan Size: 3.5 × 3.5 × 1.0 cm – maintains optimal operating temperature
• Fan Voltage Range: 5–8.4V – powered by BEC output

Wires and Connectors

• Input Wires: 10AWG Red and Black – 20 cm length for secure power delivery
• Input Connectors: 6.5 mm Female – pre-installed for high-current compatibility

Applications

• Vehicle Type: 1/6 and 1/7 scale trucks and monster vehicles – ideal for Traxxas XRT, ARRMA Mojave, Losi Super Baja Rey
• Motor Type: Brushless – supports both sensored and sensorless configurations

What’s Included

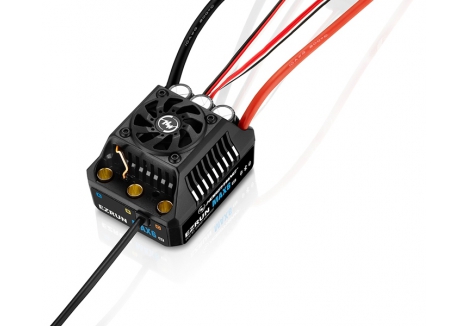

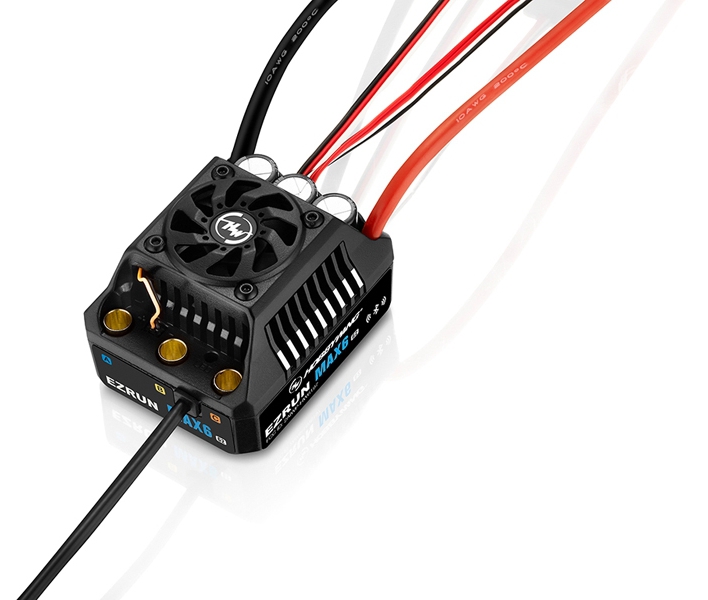

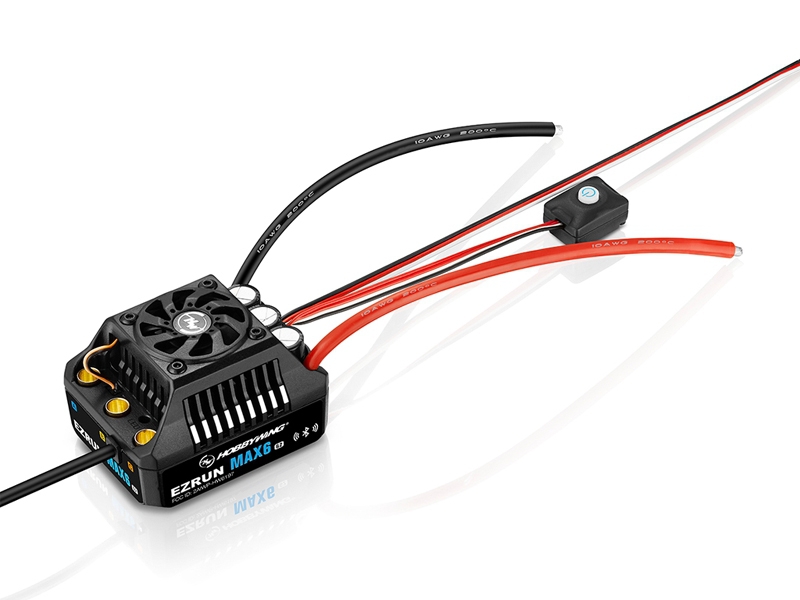

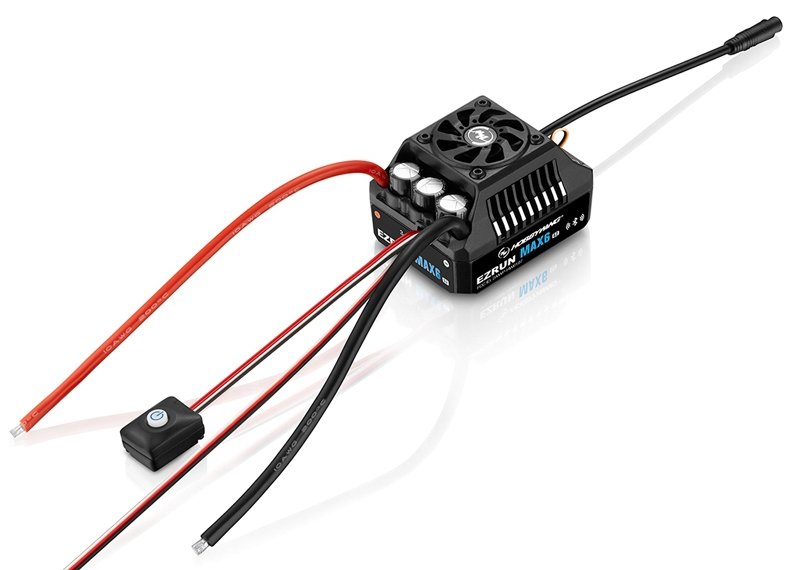

• 1 × Hobbywing EZRUN MAX6 G2 ESC

What You Require

• 3–8S LiPo battery pack
• Brushless motor (sensored or sensorless)
• Mobile device with HW Link app (for Bluetooth programming and monitoring)

Sold Separately

• Compatible brushless motor
• Battery pack

Product Description of Hobbywing HW30105100 ESC with 200A continuous and 1200A peak current

The Hobbywing HW30105100 ESC with 200A continuous and 1200A peak current is a black, high-performance brushless controller designed for 1/6 and 1/7 scale trucks and monster vehicles. Engineered for aggressive terrain and high-speed applications, this ESC delivers stable output, intelligent protection, and advanced configurability. Whether you're powering a Traxxas XRT, ARRMA Mojave, or Losi Super Baja Rey, the Hobbywing HW30105100 MAX6 G2 speed controller with built-in Bluetooth offers unmatched control, durability, and convenience. With support for 3–8S LiPo input, an 8A switch-mode BEC, and waterproof housing, this ESC is built to perform under pressure.

Key features of the Hobbywing HW30105100 ESC

• Waterproof and dustproof housing – ensures reliable operation in mud, snow, and water
• Built-in Bluetooth – enables direct mobile app control and firmware upgrades
• 8A switch-mode BEC – supports high-voltage servos with selectable output
• Real-time data logging – monitors throttle, voltage, current, and temperature
• Historical graph support – visualizes performance trends for tuning and diagnostics
• 6.5mm connectors – pre-installed for secure, high-current motor connection

How does the Hobbywing HW30105100 ESC deliver consistent high-power output?

The Hobbywing HW30105100 ESC with 200A continuous and 1200A peak current is built to handle full-throttle launches, high-speed straightaways, and rugged terrain with ease. Its internal architecture is optimized for thermal stability and overload protection, ensuring consistent torque and throttle response across demanding conditions. Whether you're racing on asphalt or bashing through dirt, the ESC maintains stable output, making it ideal for competitive and recreational builds alike.

What makes the waterproof housing ideal for off-road use?

The Hobbywing HW30105100 brushless ESC with 8A switch-mode BEC and waterproof housing features a sealed enclosure that resists water, dust, and sediment intrusion. This design allows the ESC to operate reliably in all-weather conditions, including rain, mud, and snow. For users who demand consistent performance across unpredictable terrain, the waterproof housing offers peace of mind and long-term durability.

How does the built-in Bluetooth improve usability?

The Hobbywing HW30105100 MAX6 G2 speed controller with built-in Bluetooth connects directly to the HW Link mobile app, allowing users to adjust parameters, monitor performance, and perform firmware upgrades without external programmers. The app interface displays real-time data including throttle, voltage, current, temperature, and speed, while historical graph support helps users analyze trends and optimize settings. This wireless interface streamlines setup and tuning, making the ESC more accessible and responsive in dynamic environments.

Why is the BEC system essential for large-scale builds?

The Hobbywing HW30105100 with 3–8S LiPo input and 6.5mm connectors includes a switch-mode BEC capable of delivering 8A continuous current with selectable output voltages of 6V, 7.4V, and 8.4V. This flexibility supports high-voltage servos commonly used in 1/6 and 1/7 scale platforms, ensuring optimal responsiveness and protection. Whether you're steering a monster truck or managing throttle input on a high-speed vehicle, the BEC system provides the voltage headroom needed for smooth and reliable operation.

Is the Hobbywing HW30105100 ESC suitable for popular RC platforms?

Absolutely. The Hobbywing MAX6 G2 ESC for 1/6 and 1/7 scale trucks and monster vehicles is compatible with a wide range of models including the Traxxas XRT, ARRMA Mojave, Losi Super Baja Rey, and HPI Baja 5B. Its robust construction, advanced protection systems, and high-current handling make it the best choice for users seeking reliable performance across diverse platforms. Whether you're upgrading a basher or building a custom rig, this ESC adapts to your setup with ease.

For RC builders seeking a rugged, high-performance ESC with intelligent protection and wireless configurability, the affordable Hobbywing MAX6 G2 with historical graph data and fan cooling delivers exceptional value and control. Buy Hobbywing HW30105100 ESC for Traxxas XRT and ARRMA Mojave builds today.

Technical Specifications of Hobbywing HW30105100 ESC with 200A continuous and 1200A peak current

Brand, Model and Product Type

• Brand: Hobbywing
• Model: HW30105100
• Product Type: Hobbywing HW30105100 ESC with 200A continuous and 1200A peak current, Hobbywing HW30105100 MAX6 G2 speed controller with built-in Bluetooth, Hobbywing HW30105100 brushless ESC with 8A switch-mode BEC and waterproof housing, Hobbywing HW30105100 with 3–8S LiPo input and 6.5mm connectors, Hobbywing MAX6 G2 ESC for 1/6 and 1/7 scale trucks and monster vehicles, Hobbywing ESC with real-time data logging and firmware upgrade support
• Product Colour: Black

Dimensions

• Length: 7.0 cm – compact footprint for mid-to-large scale RC platforms
• Width: 5.6 cm – allows efficient mounting in 1/6 and 1/7 scale chassis
• Height: 4.55 cm – accommodates internal cooling and protection systems
• Weight: 245 g – includes input wires; engineered for thermal stability and durability

Electrical and Performance Specifications

• Continuous Current: 200A – delivers stable power for aggressive acceleration and terrain control
• Peak Current: 1200A – supports full-torque launches and high-speed bursts
• Input Voltage: 3–8S LiPo – compatible with a wide range of battery setups
• Motor Compatibility: Sensored and sensorless brushless motors – optimized for high-output applications

BEC System

• BEC Type: Switch-mode – efficient and thermally stable
• BEC Output Voltage: Selectable 6V / 7.4V / 8.4V – supports high-voltage servo systems
• BEC Output Current: 8A – ensures reliable servo performance under load

Protection and Safety Features

• Waterproof Housing: Fully sealed – enables safe operation in wet, muddy, and dusty conditions
• Dustproof Design: Prevents debris intrusion – ideal for off-road and all-weather use

Connectivity and Programming

• Bluetooth Module: Built-in – enables direct mobile app control and firmware upgrades
• Program Port: Integrated – no external programmer required
• Firmware Upgrade: Supported – via mobile app interface

Data Logging and Monitoring

• Real-Time Data: Supported – monitors throttle, voltage, current, temperature, and speed
• Historical Graphs: Supported – visualizes performance trends for diagnostics and tuning
• Extreme Value Recording: Enabled – captures peak metrics during operation

Cooling System

• Fan Size: 3.5 × 3.5 × 1.0 cm – maintains optimal operating temperature
• Fan Voltage Range: 5–8.4V – powered by BEC output

Wires and Connectors

• Input Wires: 10AWG Red and Black – 20 cm length for secure power delivery
• Input Connectors: 6.5 mm Female – pre-installed for high-current compatibility

Applications

• Vehicle Type: 1/6 and 1/7 scale trucks and monster vehicles – ideal for Traxxas XRT, ARRMA Mojave, Losi Super Baja Rey
• Motor Type: Brushless – supports both sensored and sensorless configurations

What’s Included

• 1 × Hobbywing EZRUN MAX6 G2 ESC

What You Require

• 3–8S LiPo battery pack
• Brushless motor (sensored or sensorless)
• Mobile device with HW Link app (for Bluetooth programming and monitoring)

Sold Separately

• Compatible brushless motor
• Battery pack
