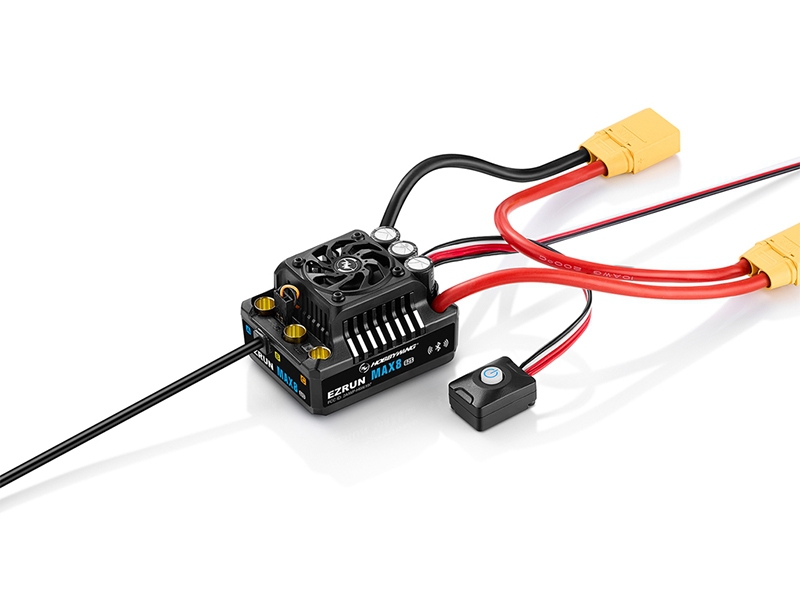

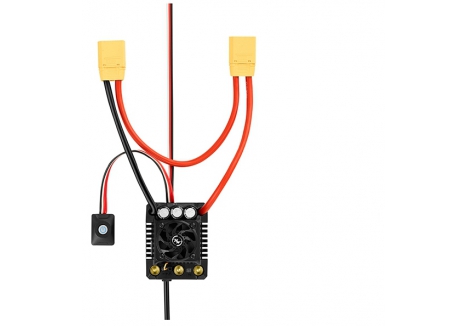

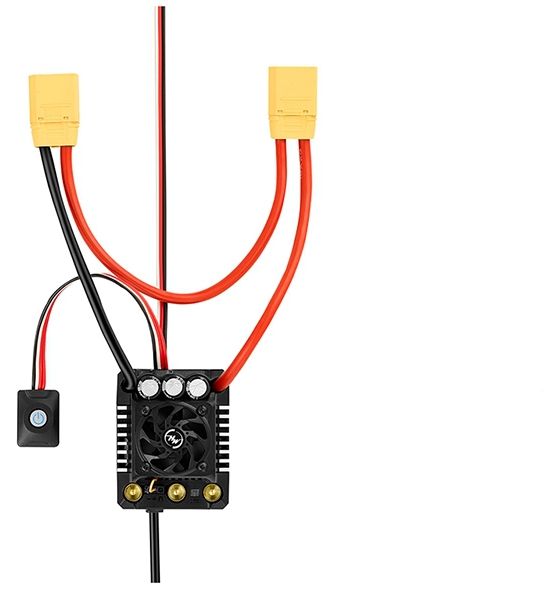

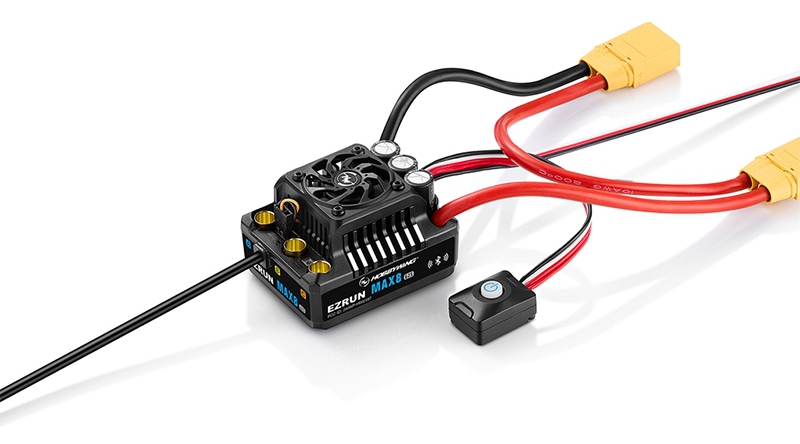

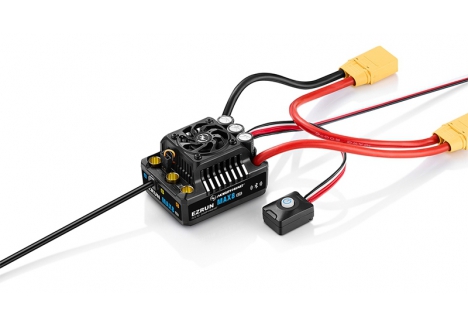

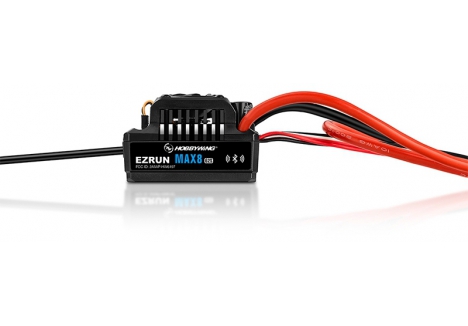

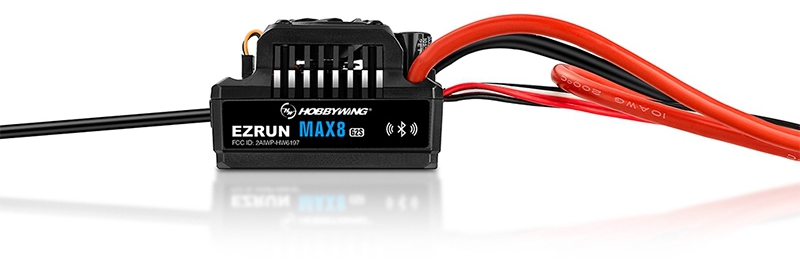

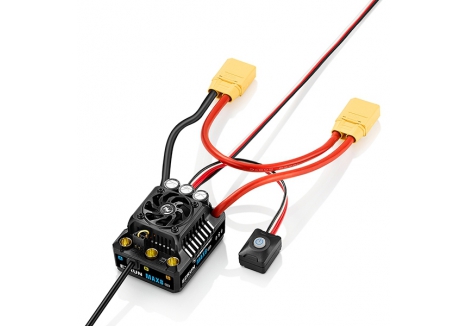

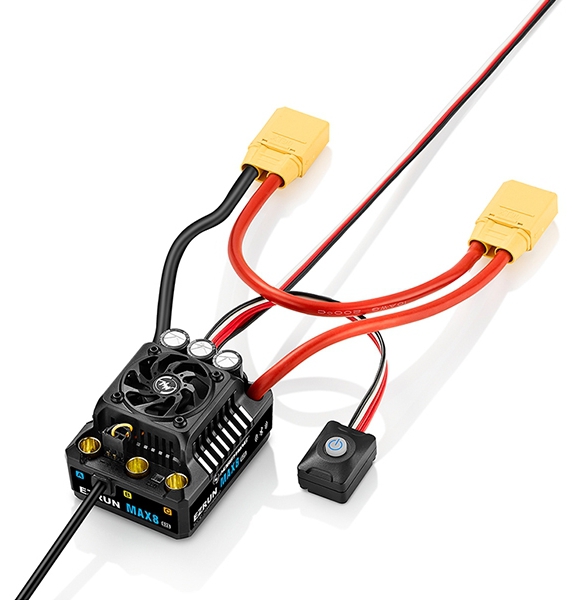

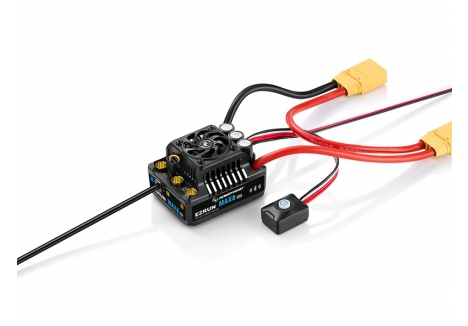

HOBBYWING EZRUN MAX8 G2S BRUSHLESS SPEED CONTROLLER HW30103205

Overview

The Hobbywing EzRun MAX8 G2S Brushless Speed Controller represents the pinnacle of ESC technology for serious 1/8th scale RC enthusiasts in the UK. This is the most sought-after ESC on the market, delivering dynamic and dominant specifications that meet the needs of power-hungry users who demand extreme performance from their brushless RC vehicles. Whether you're piloting a monster truck, off-road buggy, or short course truck, the MAX8 G2S provides the perfect balance of aggressive acceleration, high-speed stability, and precise control that allows you to push your RC car to its absolute limit.

Building upon the legendary MAX8 G2 platform, the new G2S variant introduces optimised hardware design with intelligent freewheeling technology, creating a speed controller that's not just powerful, but remarkably stable and reliable. The ESC delivers strong output power with excellent linearity at low speed thanks to full-sensored mode operation, whilst the enhanced capacitor bank ensures smooth throttle response and consistent performance in all conditions. For UK RC car enthusiasts who refuse to compromise on quality or performance, the MAX8 G2S is the ultimate choice for competitive racing, weekend bashing, or serious hobby-grade driving.

What truly sets this brushless speed controller apart is its commitment to thermal management and intelligent engineering. Unlike entry-level ESCs that overheat and lose performance, the MAX8 G2S features Hobbywing's proprietary SMART technology, which reduces operating temperatures by approximately 25°C compared to the previous generation MAX8. This means your RC truck or buggy will maintain peak performance throughout extended running sessions, whether you're racing on road tracks or bashing across rough terrain in all-weather conditions.

Key Features

• 160A Continuous / 1050A Peak Current Rating — This extraordinary power delivery system ensures your 1/8th scale brushless motor receives the full electrical potential needed for aggressive acceleration, high-speed runs, and demanding driving situations. The peak current capability allows for explosive launch performance that separates competitive drivers from the rest.
• Built-in Bluetooth Connectivity — The integrated Bluetooth module allows you to connect directly to your smartphone via the HW LINK mobile app without requiring any external programmer. This means you can adjust parameters, monitor real-time data, perform firmware upgrades, and fine-tune your setup from your iPhone or Android device in seconds, providing unmatched convenience for UK RC racers.
• Real-Time Data Logging and Recording — The ESC captures comprehensive operational data including throttle amount, voltage, current, temperature, and motor speed. You can store up to 10 minutes of your most recent run and analyse performance data using the HW Link V2 App, allowing you to optimise your driving technique and identify performance bottlenecks.
• SMART Temperature Management Technology — Hobbywing's intelligent thermal system reduces overall ESC temperature by approximately 25°C compared to older models, dramatically improving reliability and longevity during intense racing sessions. This enhanced cooling creates superior operating efficiency and ensures the ESC never becomes a performance bottleneck.
• Frameless Patented Fan Design — The innovative cooling system uses high-velocity airflow from the side of the fan combined with a copper thermal conduction sink on the internal power plate, all integrated into the housing radiator. This engineering excellence ensures rapid heat dissipation and maintains optimal operating temperatures even during extended use.
• IP67 Waterproof and Dustproof Rating — The comprehensive protection system guarantees excellent waterproofing and dustproofing, allowing your brushless RC vehicle to operate across all weather track conditions including muddy, sandy, icy, snowy, and even water environments without damaging the power unit. This makes it perfect for year-round UK RC hobby use.
• Adjustable Turbo Timing Technology — With turbo timing adjustable up to 32 degrees, you can electronically increase motor RPM by up to 25%, providing significant speed increases tailored to your specific vehicle setup and driving style. This flexibility is crucial for competitive 1/8th scale racing.
• Super Built-in BEC with 15A Output — The integrated switch-mode BEC delivers up to 15A continuous current with selectable output voltages of 6V, 7.4V, or 8.4V, providing enough power to support demanding high-torque servos without requiring external power solutions. This eliminates the need for a separate servo battery in most setups.
• Enhanced Capacitor Bank with 74% More Capacity — The ESC features three built-in 680µF capacitors (totalling approximately 870µF), providing 74% more capacitive performance than the original MAX8. This massive onboard capacitor bank eliminates the need for external capacitors in virtually all applications and dramatically improves power delivery consistency.
• Capacitor Overheating Protection — Intelligent protection circuits prevent capacitor damage from overload or extreme conditions, safeguarding the ESC from catastrophic failure and ensuring long-term reliability even in demanding racing environments.
• Intelligent Fan Start-Stop Function — The ESC fan only runs when needed, automatically activating once temperature reaches the preset threshold. This not only reduces unnecessary noise and power consumption during cool-running sessions, but also ensures optimal thermal management during intense driving.
• Full Sensored and Sensorless Compatibility — The MAX8 G2S operates with both sensored brushless motors (with the new waterproof sensor harness connector) and standard sensorless brushless motors, providing maximum flexibility in motor selection for your 1/8th scale RC setup.
• New Waterproof Sensored Cable Interface — The redesigned sensor harness connector achieves IP67 waterproofing when used with Hobbywing motors, providing the highest level of environmental protection. The system also supports standard market sensor interfaces via adaptor cables for maximum compatibility.
• Multi-Profile ESC Programming — Access to comprehensive programming options via SET button, LCD Program Box, or the innovative OTA Programmer allows you to customise every aspect of ESC behaviour to match your specific vehicle and driving requirements.
• Ideal Pairing with EzRun 4268/4278 SD G2 Motors — The MAX8 G2S is perfectly matched with Hobbywing's own brushless motor range, ensuring optimised thermal management, motor protection against overheating, and maximum performance potential across the entire drivetrain.

Technical Performance

The Hobbywing EzRun MAX8 G2S stands as a masterpiece of electrical engineering for 1/8th scale brushless RC vehicles. Delivering a continuous current rating of 160A with peak capability reaching an astounding 1050A, this speed controller provides the electrical foundation required for truly competitive performance. The unit accepts 3-6S LiPo batteries (11.1V to 22.2V), making it compatible with both 4S (14.8V) and 6S (22.2V) configurations depending on your motor selection and performance goals. With 4S LiPo, maximum motor KV should not exceed 3000, whilst 6S operation safely accommodates motors up to 2400KV, particularly 4278-size motors that deliver exceptional power output.

The physical construction weighs just 192 grams and measures 60mm × 48mm × 40.5mm, featuring a rugged aluminium housing with integrated heatsink radiator that efficiently dissipates the tremendous heat generated during high-current operation. Input connectivity utilises robust XT90 connectors with 10AWG wiring (150mm and 200mm configurations included), whilst motor output employs 6.5mm bullet connectors capable of handling the extreme current levels safely. The sensored motor input features the new IP67-rated waterproof connector, though standard sensored motor adaptor cables are supported for universal compatibility with non-Hobbywing sensor systems.

Performance in real-world conditions is extraordinary. The sensored brushless mode delivers aggressive launch characteristics and genuine high-speed stability on straights, whilst the flexible sensorless mode support ensures compatibility with virtually any brushless motor architecture. The frameless fan cooling system with patented design actively manages thermal conditions, maintaining optimal operating temperatures even during continuous high-stress operation. Programmable parameters include turbo timing (0-32 degrees), adjustable fan temperature thresholds, throttle response curves, and numerous safety functions. The switch-mode BEC efficiency means minimal heat generation from servo powering, and the three 680µF capacitors provide unprecedented power stability for aggressive acceleration and rapid throttle modulation. For UK racing circuits and off-road courses, the IP67 environmental protection rating ensures reliable operation in wet, muddy, and sandy conditions that would compromise lesser speed controllers.

What's in the Box

• Hobbywing EzRun MAX8 G2S Brushless Speed Controller (HW30103205)
• Input power wires: Red 10AWG × 150mm (1), Black 10AWG × 150mm (1), Red 10AWG × 200mm (1)
• XT90 battery connectors (pre-soldered)
• User manual and documentation

What You Need to Complete

• 3-6S LiPo battery pack (11.1V-22.2V) suitable for your vehicle and driving style
• Sensored or sensorless brushless motor appropriate to your KV and 1/8th scale vehicle type
• 1/8th scale RC chassis (monster truck, buggy, truggy, or short course truck)
• Compatible servo(s) for steering and throttle functions
• Radio control transmitter and receiver system compatible with your vehicle
• Optional: Hobbywing OTA Programmer (HW30850400) for advanced wireless programming beyond Bluetooth capabilities
• Optional: Connector adaptors if using non-standard motor or battery connections

Frequently Asked Questions

• Is the Hobbywing EzRun MAX8 G2S suitable for beginners and competitive racers alike? — Yes, absolutely. Whilst the extreme power output and advanced features appeal to serious competitors and experienced bashers, the smooth linear throttle response and intuitive app-based programming make it accessible to enthusiasts stepping up from brushed motors or entry-level brushless systems. The intelligent fan management and thermal protection prevent overheating even during learning sessions, and the programmable parameters allow you to reduce power delivery for novice drivers before progressing to full performance.
• What is the difference between the MAX8 G2S and the standard MAX8 G2? — The G2S variant represents the latest evolution, featuring optimised hardware design and intelligent freewheeling technology that further improve stability and reliability compared to the G2. The built-in Bluetooth connectivity is also a key G2S enhancement, eliminating the need to purchase a separate programming module. Both share the same phenomenal 160A/1050A current rating and thermal management capabilities, but the G2S offers superior intelligent fan control and modern app-based programming convenience.
• What LiPo battery configuration should I use with the MAX8 G2S? — The ESC accepts 3-6S LiPo batteries. Most users choose either 4S (14.8V) or 6S (22.2V) configurations depending on motor selection. With 4S systems, pair with motors rated 3000KV or lower. With 6S systems, select motors rated 2400KV or lower, with 4278-size motors being the perfect match. For your first build, a quality 4S LiPo around 5000-8000mAh provides excellent run times and manageable power output whilst you develop your driving skills.
• Does this ESC work with motors from brands other than Hobbywing? — Yes, the MAX8 G2S is fully compatible with sensored and sensorless brushless motors from any manufacturer. Hobbywing motors benefit from optimised thermal monitoring, but standard sensored motors simply require an adaptor cable for the new sensor connector. Many UK RC racers successfully pair this ESC with other premium motor brands, and the extreme power capacity accommodates virtually any quality brushless motor in the 1/8th scale range.
• How does the IP67 waterproof rating work in practice? — The comprehensive sealing protects the ESC from splashing, water spray, mud, and dust encountered during normal RC operation in wet UK weather, on muddy tracks, or in sandy environments. However, IP67 protection is not permanent and degrades with age and wear. You should avoid prolonged submersion or extended water soaking, which could compromise seals and cause internal damage. For splash-proof operation during normal conditions, the protection is excellent and reliable.
• Can I programme the MAX8 G2S without purchasing additional equipment? — Absolutely. The built-in Bluetooth module connects directly to the HW LINK app on your iPhone or Android smartphone, allowing you to adjust all parameters, view real-time data, and update firmware wirelessly. For advanced programmers seeking additional functionality, the optional Hobbywing OTA Programmer (sold separately) provides extended wireless capabilities, but the app offers complete control for 99% of users and dramatically simplifies setup compared to traditional button programming.
• What is the effective Bluetooth range for smartphone control? — The Bluetooth system is effective within approximately 5 metres in open-field conditions. This is more than sufficient for bench testing, parameter adjustment, and data monitoring, though racing obviously requires moving beyond this range once your vehicle is running. Real-time data viewing requires the 5-metre proximity, but once programmed, the ESC operates independently with full performance capability across any distance.
• Is the fan noise intrusive, and when does it run? — The intelligent fan start-stop function means the fan only activates once the ESC reaches a preset temperature threshold, typically during extended high-current operation or in hot ambient conditions. During cool running or initial acceleration bursts, the fan remains silent, keeping noise pollution minimal. When active, the noise level is moderate and far less intrusive than the motor itself, so track-side observers rarely notice the cooling fan.
• What warranty and support does Hobbywing provide in the UK? — All Hobbywing products sold through authorised UK retailers like RC Model Shop come with manufacturer support and warranty coverage. Hobbywing maintains excellent customer service through UK distribution channels, with readily available replacement parts, documentation, and firmware updates. The company's reputation for reliability means you're investing in a speed controller built to last through years of intensive use.
